Thread size for bed tie down points

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nazlax10, Apr 2, 2017.

  1. Apr 2, 2017 at 11:48 AM
    #1
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    Does anyone know what thread size these bolts are? They're the bed tie down bolts. I took one out but forgot it at home and I'm already at Lowes now. Thanks in advance!


  2. Apr 2, 2017 at 1:03 PM
    #2
    ChemDawg

    ChemDawg Well-Known Member

    Joined:
    May 15, 2015
    Member:
    #155296
    Messages:
    2,468
    Gender:
    Male
    Maine
    Vehicle:
    2005 sr5 4x4
    Google search engine....

    Type tacomaworld.com bed bolts.
    Easier for me than linking a bunch of threads over to this thread.:thumbsup:

  3. Apr 2, 2017 at 1:43 PM
    #3
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    Thanks man. I did that but really only found the size of the main bolts that secure the bed itself. I did find someone that said it was an m8. Then I remembered how much of an idiot I am and that I have a set of tools behind my rear seats to remove the other one. If anyone is wondering it's a 7/16-20.

    EatSleepTacos likes this.
  4. Apr 2, 2017 at 2:21 PM
    #4
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,138
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    it should not be standard, it should be metric lol

  5. Apr 2, 2017 at 2:33 PM
    #5
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    That's what I thought too, but the bolts from the factory only threaded into a 7/16-20 post in lowes.

  6. Apr 2, 2017 at 2:34 PM
    #6
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,138
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    sounds like it should be a M12x 1.75 which will kinda thread into the same thing

  7. Apr 2, 2017 at 3:42 PM
    #7
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    It didn't really thread into that one but maybe that specific post was messed up. Either way I could only find grade 8 bolts in standard and they worked great.

  8. Apr 2, 2017 at 4:27 PM
    #8
    Lostsheep

    Lostsheep Well-Known Member

    Joined:
    Aug 11, 2014
    Member:
    #135869
    Messages:
    605
    Gender:
    Male
    NorCal
    Vehicle:
    2015 6spd 4x4 OR
    6112s and 5160 , Dakars , Superbumps x4 , u-bolt flip , All Pro Skids (hacked and raised) , 265/70R17 KO2s, SEMA wheels, couple of machined things here and there
    No way this thread is a NC or NF , let me find my T55, I'll pull a bolt and measure...stay tuned (I'm a machinist, I have thread gauges, and I have calipers.)

    Last edited: Apr 2, 2017
  9. Apr 2, 2017 at 4:46 PM
    #9
    Lostsheep

    Lostsheep Well-Known Member

    Joined:
    Aug 11, 2014
    Member:
    #135869
    Messages:
    605
    Gender:
    Male
    NorCal
    Vehicle:
    2015 6spd 4x4 OR
    6112s and 5160 , Dakars , Superbumps x4 , u-bolt flip , All Pro Skids (hacked and raised) , 265/70R17 KO2s, SEMA wheels, couple of machined things here and there
    It's an M12 x 1.25

    ETA: A 7/16-20 will measure about .4375" diameter (11.11mm) and have a thread to thread distance of .050" (1.27mm). Will it fit? Yeah probably but it is not correct; get an M12 x 1.25.




    Last edited: Apr 2, 2017
  10. Apr 2, 2017 at 5:35 PM
    #10
    yeos

    yeos OCD Member

    Joined:
    Feb 24, 2013
    Member:
    #98297
    Messages:
    1,144
    Gender:
    Male
    Renton
    Vehicle:
    2011 AC TRD OR 4X 2007 Lexus GX
    I think he's taking about the bolt in the corner with the factory d ring, not the main bed bolts.

  11. Apr 2, 2017 at 5:42 PM
    #11
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    49,268
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    @Lostsheep

  12. Apr 2, 2017 at 6:02 PM
    #12
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    Thanks for all the help, but yeos is correct. I need the thread size for the tie down bolt. I have found out that 7/16-20 works no problem. If you feel inclined though I wouldn't mind knowing the correct size for future use.

  13. Apr 2, 2017 at 6:50 PM
    #13
    Lostsheep

    Lostsheep Well-Known Member

    Joined:
    Aug 11, 2014
    Member:
    #135869
    Messages:
    605
    Gender:
    Male
    NorCal
    Vehicle:
    2015 6spd 4x4 OR
    6112s and 5160 , Dakars , Superbumps x4 , u-bolt flip , All Pro Skids (hacked and raised) , 265/70R17 KO2s, SEMA wheels, couple of machined things here and there
    My mistake, I should probably refrain from posting when sleep deprived.

    That being said, it sounds like the same thread (I'm not at my shop anymore but will check tomorrow)

  14. Apr 2, 2017 at 6:59 PM
    #14
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    No big deal! It most likely is. I may have to go to fastenal to find some grade 8 m12 bolts.

  15. Apr 3, 2017 at 9:21 AM
    #15
    Lostsheep

    Lostsheep Well-Known Member

    Joined:
    Aug 11, 2014
    Member:
    #135869
    Messages:
    605
    Gender:
    Male
    NorCal
    Vehicle:
    2015 6spd 4x4 OR
    6112s and 5160 , Dakars , Superbumps x4 , u-bolt flip , All Pro Skids (hacked and raised) , 265/70R17 KO2s, SEMA wheels, couple of machined things here and there
    I stand corrected, it is an M11 x 1.25 (25mm long). That is a going to be tough to find. If Mcmaster doesn't have it you know it's a bastard thread. I think you are okay going with the 7/16's-20 as it is really close in diameter and pitch.



  16. Apr 3, 2017 at 10:19 AM
    #16
    nazlax10

    nazlax10 [OP] Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,219
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    Sweet, thanks for all the work and knowledge on that man!

    Lostsheep likes this.
  17. Apr 3, 2017 at 10:22 AM
    #17
    EricU

    EricU Well-Known Member

    Joined:
    Feb 4, 2015
    Member:
    #147859
    Messages:
    484
    Gender:
    Male
    Englewood, CO
    For what it's worth, with the Total Chaos bed stiffeners, the rear D ring bolt is replaced with a 7/16" bolt.

    Lostsheep likes this.
  18. Apr 3, 2017 at 10:23 AM
    #18
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    49,268
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Just a suggestion, but maybe you could update the thread title for anyone else trying to find this info in the future. "Thread size for bed tie down points" or something like that.

  19. Feb 22, 2018 at 10:10 PM
    #19
    mcole1987

    mcole1987 Member

    Joined:
    Feb 22, 2018
    Member:
    #245327
    Messages:
    7
    Gender:
    Male
    First Name:
    Mark
    Redondo Beach, CA
    Vehicle:
    2017 Taco TRD OffRoad
    Snugtop Rebel // Vented Windoors // Remote Start
    hoping this bolt size is the same for a 2017 taco. been searching all over the net for this! i'm trying to get some longer bolts to anchor a little sleeping platform build out. thank you!

  20. Mar 21, 2018 at 10:23 PM
    #20
    mcole1987

    mcole1987 Member

    Joined:
    Feb 22, 2018
    Member:
    #245327
    Messages:
    7
    Gender:
    Male
    First Name:
    Mark
    Redondo Beach, CA
    Vehicle:
    2017 Taco TRD OffRoad
    Snugtop Rebel // Vented Windoors // Remote Start

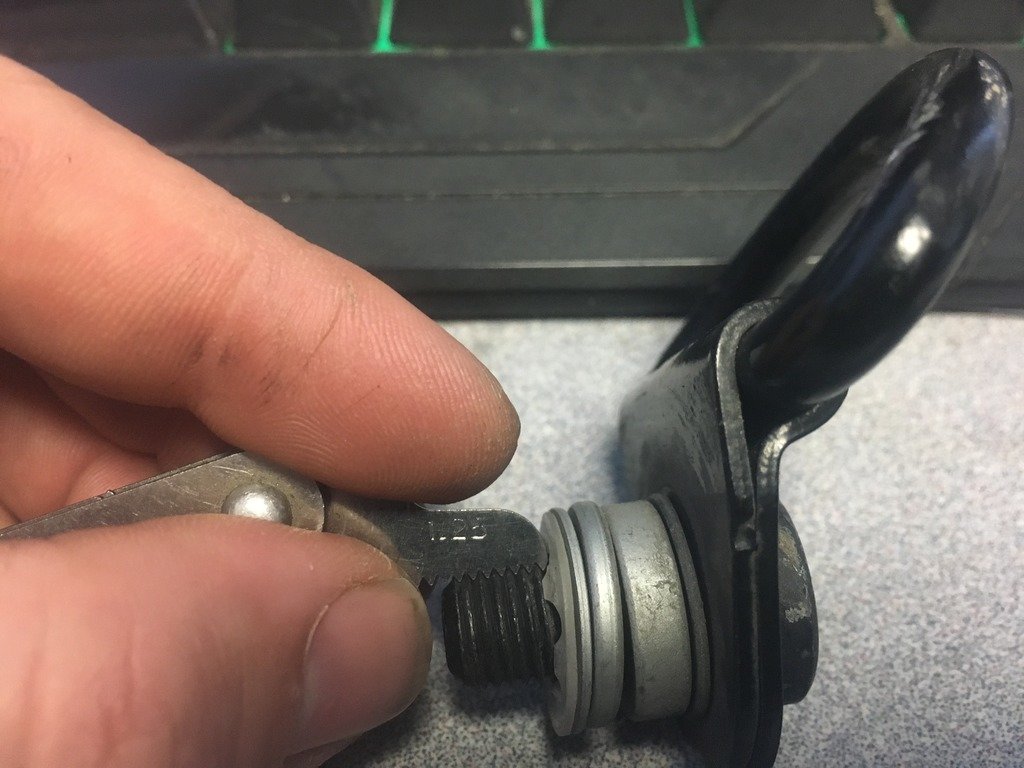

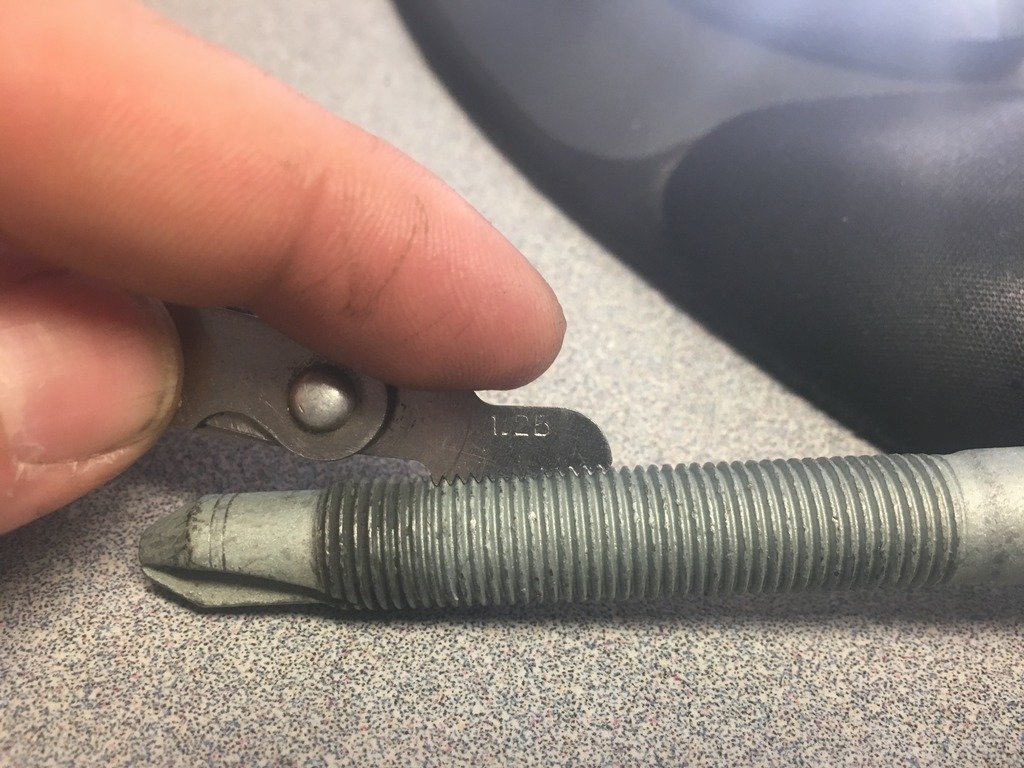

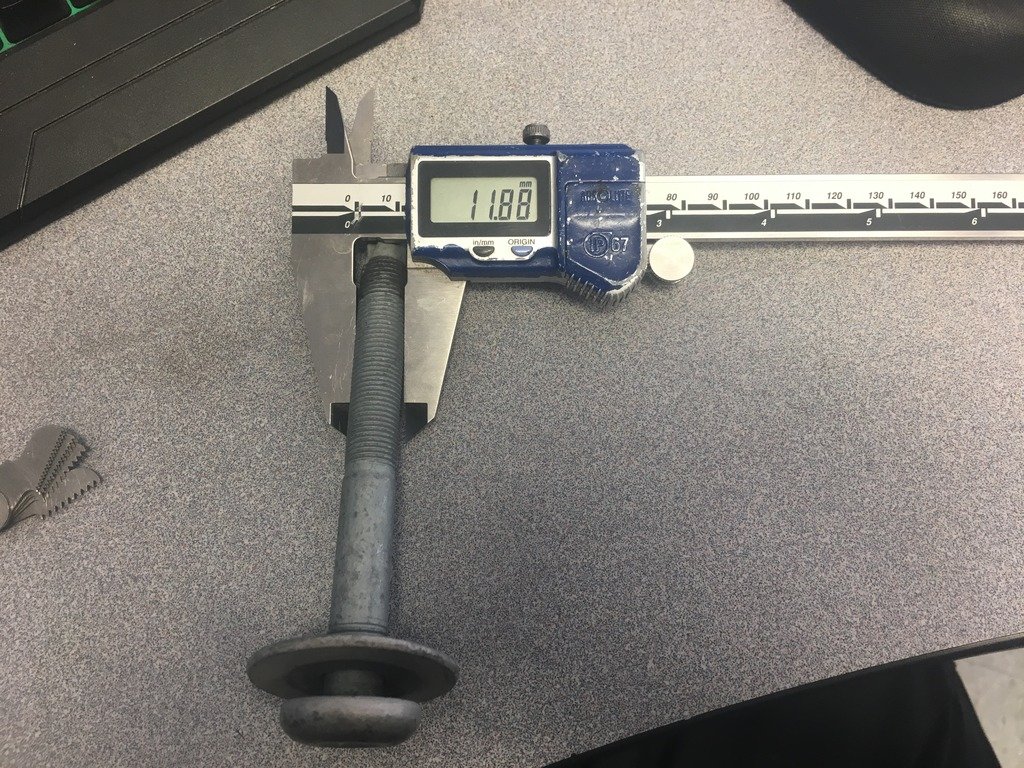

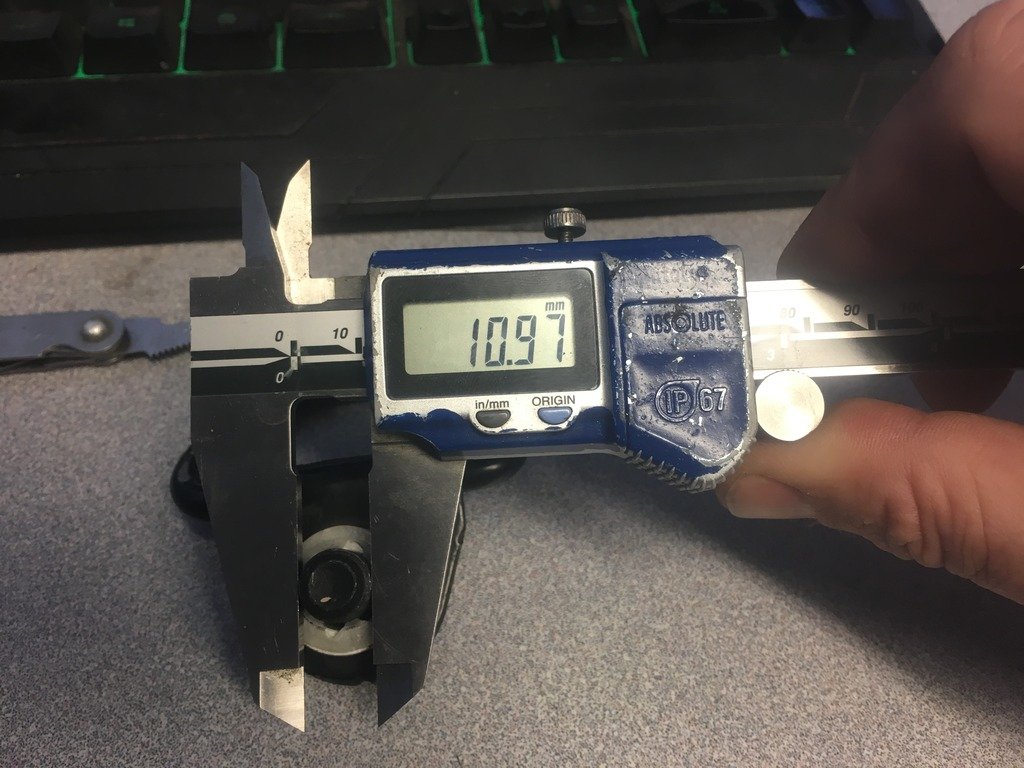

    I can confirm that those bolts I ordered fit my 2017 bed. once i removed the OEM bolts these fit perfect, i ordered them a little longer so they could hold down some wood. I have photos if anyone's interested.

    https://www.fastenal.com/products/details/11113278

    Thanks!

    Biscuits likes this.
