Throttle, hand control (5VZ)

Discussion in '1st Gen. Tacomas' started by TacoDell, Mar 21, 2013.

  1. TacoDell

    TacoDell [OP] Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    969
    Gender:
    Male
    Hemet/SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    check out muh video...

    http://www.youtube.com/watch?v=VrDpAhVujdM&feature=share&list=UUrC21XIO5oNaLx3Lj51uqfA

    [​IMG]

    wuz purdy simple to do
    the video might offer some visual orientation.

    not pictured in the video was the routing of the cable
    from the firewall to the gear shift lever...
    Cable comes in under the console plastics
    and rises up inside the gear shift boot to reside in the lever's seat.

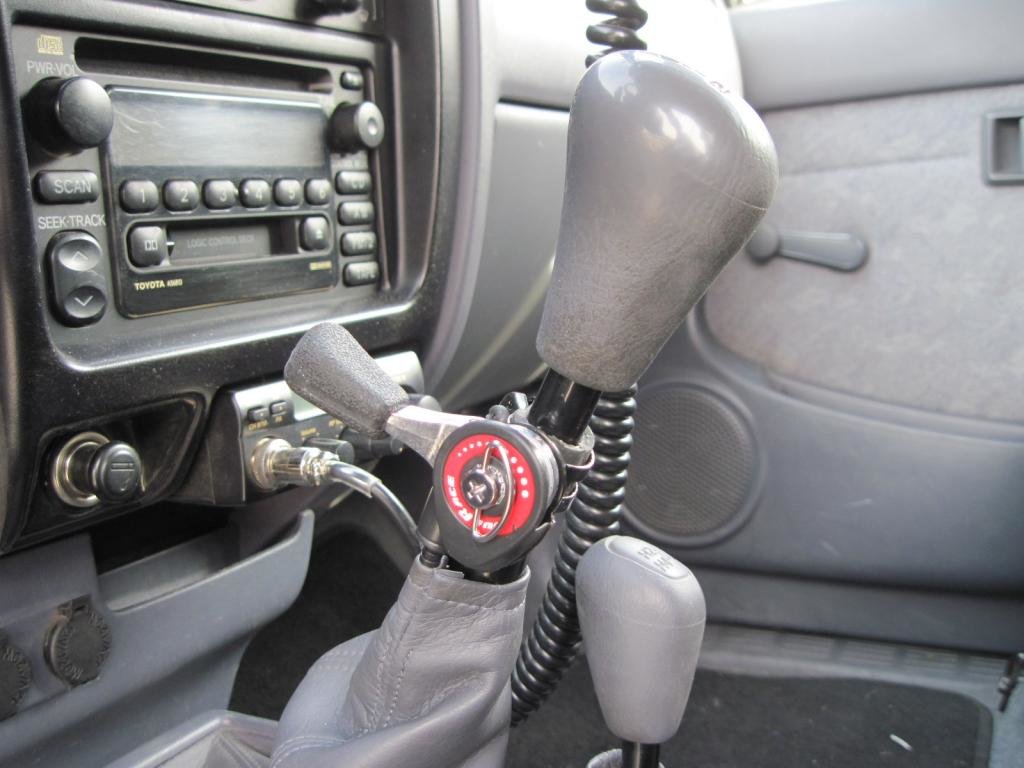

    not mine... but looks like this when stripped...

    [​IMG]

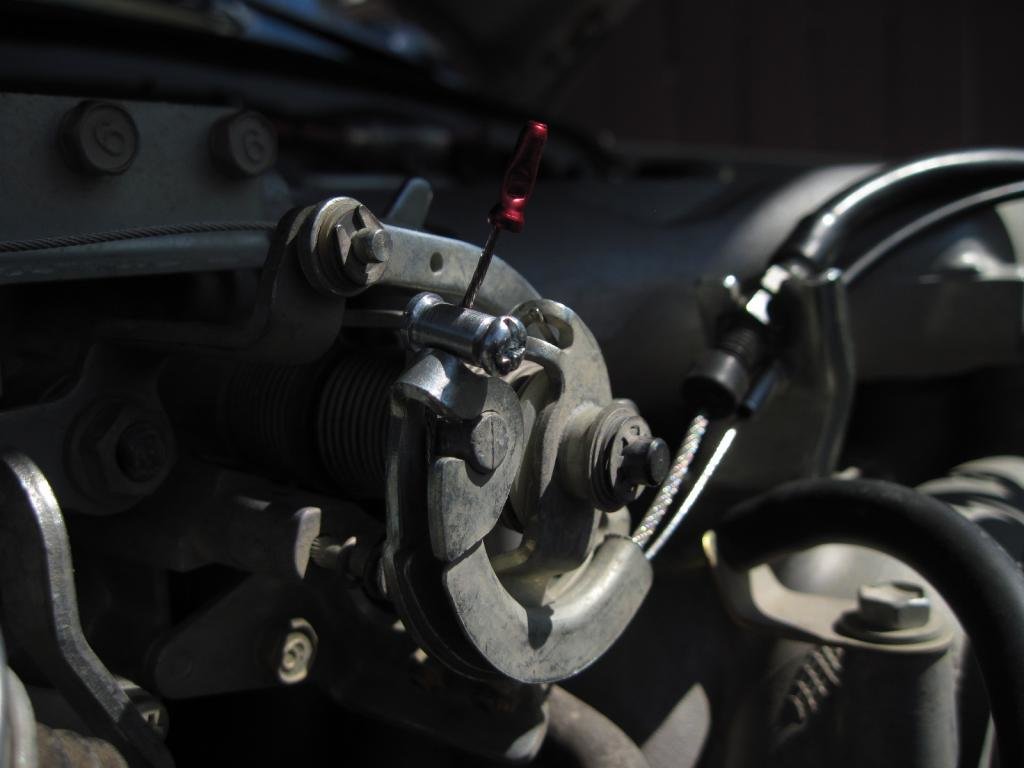

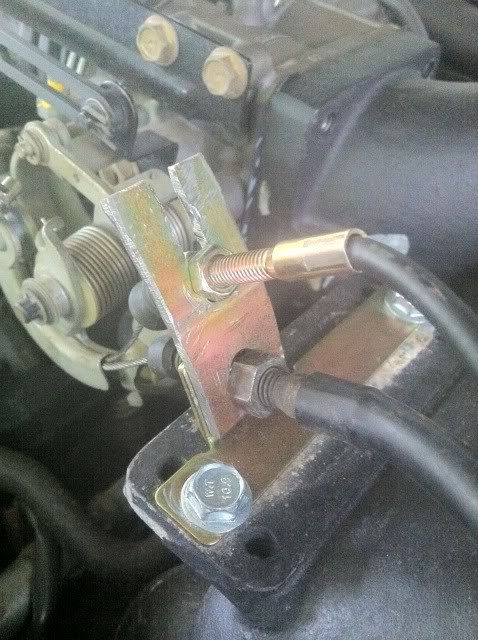

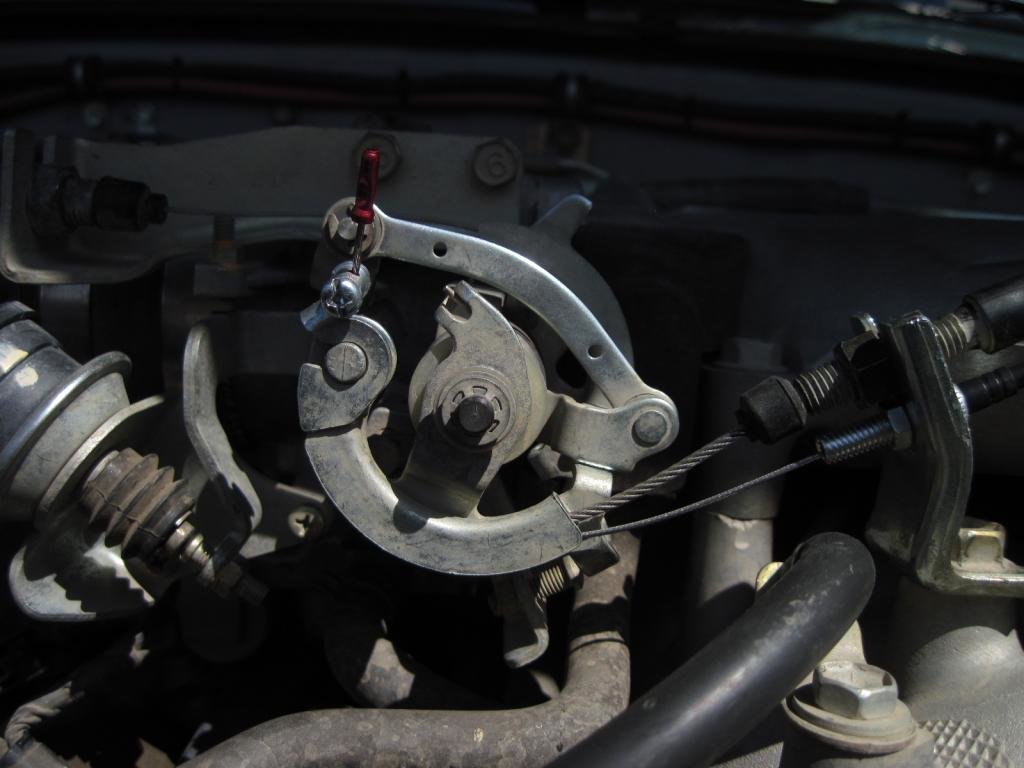

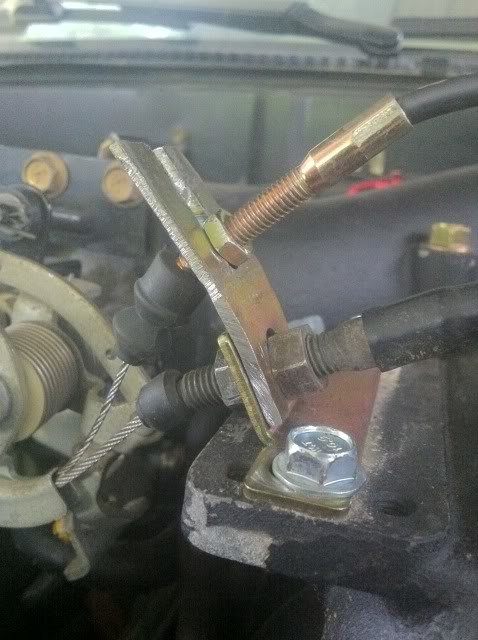

    here's a couple detail pics of the cable end / linkage...


    [​IMG]

    [​IMG]


    most the necessary parts were purchased off ebay fairly cheap

    I used SRAM 1.1mm X 2200mm SS wire cable.
    with 6ft L. X 4mm OD sleeve/casing (1.2 mm teflon inner core)
    * I purchased 7' of each because I wasn't sure (was shortened)

    Sunrace SLM10 friction shifter (left control)
    was purchased from Amazon

    I wanted to say thanks to Skyler (wolfgang123@TW)
    for sharing some links with me, made it super easy
    :)

    Last edited: Apr 2, 2013
  2. The Traveler

    The Traveler REBELTACO

    Joined:
    Mar 28, 2012
    Member:
    #75806
    Messages:
    6,775
    Gender:
    Male
    First Name:
    Matt
    SoCal
    Vehicle:
    '10 Long Travel 4x4 DCSB
    Total Chaos 3.5" LT kit, King remote resi 8x2.5 coilovers, Glassworks Unlimited fiberglass fenders and bedsides, Icon resi rears, All Pro Expo leaf pack, Wheeler's super bumps, drop in AFE Pro Dry-S, Aero-Turbine 2525XL Muffler, Spidertrax, Rigid Industries Dually Amber Floods, rock lights, Strobe amber/white dust lights, bushwhacker fender flares, CB and HAM radios, Pelfreybilt Off Road front three hoop bumper, All-Pro APEX kickout sliders, CBI Trail Rider rear bumper, Tres Tacos LED rock lights, 50" LED Light Bar,
    Awesome! :thumbsup:

    I've seen this once before on an older rig, and I'm assuming this is so you can use the brake while ascending up hill in a manual? Very cool...too bad the 2nd gens are all fly by wire.

  3. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,388
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    I like it man. Turned out good. Need to do this too.

  4. PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    19,675
    Gender:
    Male
    First Name:
    Brent
    Missouri
    Vehicle:
    2003 Tacoma TRD/SR5 4x4
    Suspension: Front - Bilstein 5100's/Eibach coils Rear - All Pro Expo Leafs/Rear Icon Remote Reservoir Shocks Wheels & Tires: 33x12.50x15 KM2's/Summit Racing 85 Black 8 Series Wheels/15x8/3.75" Backspacing [U]Armor:[/U] - [URL="http://www.tacomaworld.com/forum/relentless-fabrication/152694-just-released-re
    Cool, I like it! kind of like a poor man's crawl box... :thumbsup:

  5. TacoMX

    TacoMX TW's Official anti body-lift pundit

    Joined:
    Aug 24, 2011
    Member:
    #62240
    Messages:
    4,836
    Gender:
    Male
    First Name:
    Jonathan
    Deltona, Florida
    Vehicle:
    '13 Tacoma TRD Sport DCLB 4x4
    stock.....for now...
    thats freaking awesome....

  6. wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,362
    Gender:
    Male
    First Name:
    Skyler
    Statesboro, GA
    Vehicle:
    1997 TACOMA - 4x4

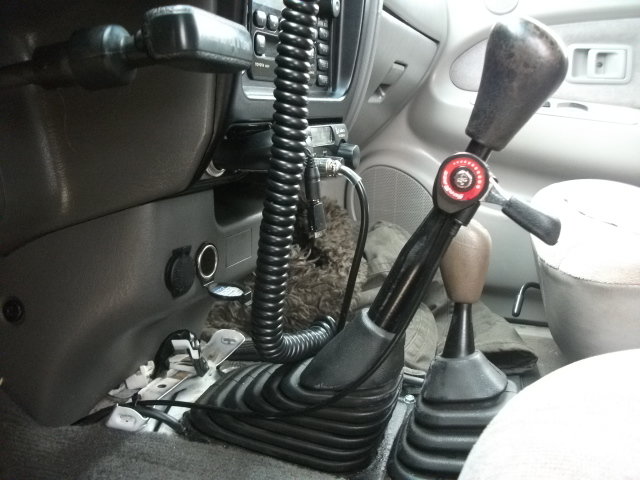

    heres mine on the 3rz:


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    the cable burred pretty bad at the end before i put my crimp end on there so i might just buy a new one and redo it since it kinda got damaged through out my trail and error setup process.

    Last edited: Mar 21, 2013
  7. TacoDell

    TacoDell [OP] Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    969
    Gender:
    Male
    Hemet/SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    hey Skyler... thanks for adding to the thread :)

    here's a lesson learned...

    so I was pushing the cable thru,
    after getting the housing in place.

    all of of sudden bacon's sounding off...
    and I see some light smoke :eek:

    came to realization that my cable, as it was pushed thru,
    had followed a path that ground the pos+ and neg- terminals
    on muh auxillary battery... :facepalm:

    no real harm... ( ...except :eek: )
    just discolored the wire at the section (end)
    I was planning to cut off anyway.

    just sayin...
    so attention is given as to where that wire runs :D

  8. Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    I just wanted to add something to this. If you have a supercharger then you are going to have to make a bracket similar to the 4cyl one so that you can mount the new cable parallel to the factory cable. Here is a couple pictures of mine.

    [​IMG]

    [​IMG]

  9. Aw9d

    Aw9d That one guy

    Joined:
    Nov 7, 2011
    Member:
    #66635
    Messages:
    11,401
    Gender:
    Male
    Great idea!

  10. BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,336
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    I know this is probably a moot point, but I would be worried about the safety involved. With you being able to lock the throttle, what would happen if you were to accidentally trigger the throttle? What if you had an accident? You could accidentally pull the throttle, or hit it and have other problems. Just asking if you have considerations for that?

  11. lotsoftoys

    lotsoftoys pavement is boring....

    Joined:
    Apr 22, 2010
    Member:
    #35790
    Messages:
    6,348
    Gender:
    Male
    First Name:
    Jace
    Denver
    Vehicle:
    98 lifted panda taco
    bunch of crap
    i mean it goes through your head..... but theres always a clutch that works just great:cool:

  12. Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    The knobs that we used are adjustable so that it can either spring back like a normal throttle or tightened up to hold the rpms in one spot. I will leave mine loose for that exact reason. Just in case my hand bumps it, it will spring back like normal.

  13. Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,667
    Gender:
    Male
    So what is exactly is the purpose or function of this?

  14. Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,864
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    If you have a 5 speed, you can leave your feet on the clutch and brake, without having to heel toe, when wheeling. I still need to do this...

  15. TACOMABOSS

    TACOMABOSS Well-Known Member

    Joined:
    Jul 7, 2011
    Member:
    #59499
    Messages:
    4,312
    Gender:
    Male
    Vehicle:
    96 SR5 4x4
    Bilstein 5100s, Toytec AAL, Deck plate mod, Hella 500ff's, Sportsman Camo seat covers, Total Chaos 1" diff drop, JVC stereo, Painted bumpers and grille, Custom grille insert, HID projectors, Black spray paint
    Thats pretty cool! What rpm can you get it up to?

  16. Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    I don't know about everyone else's setup but I can pull mine almost, if not completely, wide open. I haven't fully tested it yet but I know I pulled it to 4k and still had some left to go.

  17. Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,667
    Gender:
    Male


    Gotcha thanks. Learn something new everyday.

    :D

  18. TacoDell

    TacoDell [OP] Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    969
    Gender:
    Male
    Hemet/SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure

    ^ yep, what he said... except I call it a lever :p
    is the reason I selected this particular friction shifter.

    With the friction lever adjusted to minimal friction...
    The lever will move freely and return to neutral with the throttle linkage assembly.
    The lever's cable wire will extend out of the end of the throttle linkage, causing no bind.
    ^ (* using my attachment method) (* see muh video)
    And the lever receives zero feedback from the cable's movement.

    Add more friction to the lever (tighten) and it becomes a index type shifter.
    And holds solid at the index positions.
    No opposing lever feed back in this position either.

    If the cable end is attached in a different way then I did...
    It might be possible that lever feedback could occur.
    But enough slack in the cable end would likely bend/loop the wire
    rather then push back into the cable housing.
    ^ but it's something to be aware of if the cable end is attached differently.


    I'm fairly conscious about everything on muh junk...
    Knowing it is there and how to use it... makes ya smarter.
    Safe is only as good as one makes that.


    If yer a dummy... ya probably shouldn't do this mod ;)

    --------------------

    * Southern01Taco
    thanks for the details regarding the SC cable mount differences :)

    Last edited: May 3, 2013
  19. Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    Yea, lever, that sounds much better. I couldn't think of a proper term for it last night for nothing lol.

    And no problem, I didn't realize the cable mounts were that different until I went to install the second cable.

  20. BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,336
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    I see the aspects that you are all talking about. I guess sometimes I do tend to over analyze things. Just in my nature.
