Timing belt project

Discussion in '1st Gen. Tacomas (1995-2004)' started by Natenite, May 23, 2019.

  1. May 28, 2019 at 3:23 AM
    #41
    jeg0005

    jeg0005 Well-Known Member

    Joined:
    Jan 21, 2019
    Member:
    #280139
    Messages:
    636
    Gender:
    Male
    First Name:
    Jon
    BHM, AL
    Vehicle:
    2001 Tacoma SR5 double cab
    Full OME 883s, SPC UCAs, 33" STT Pros

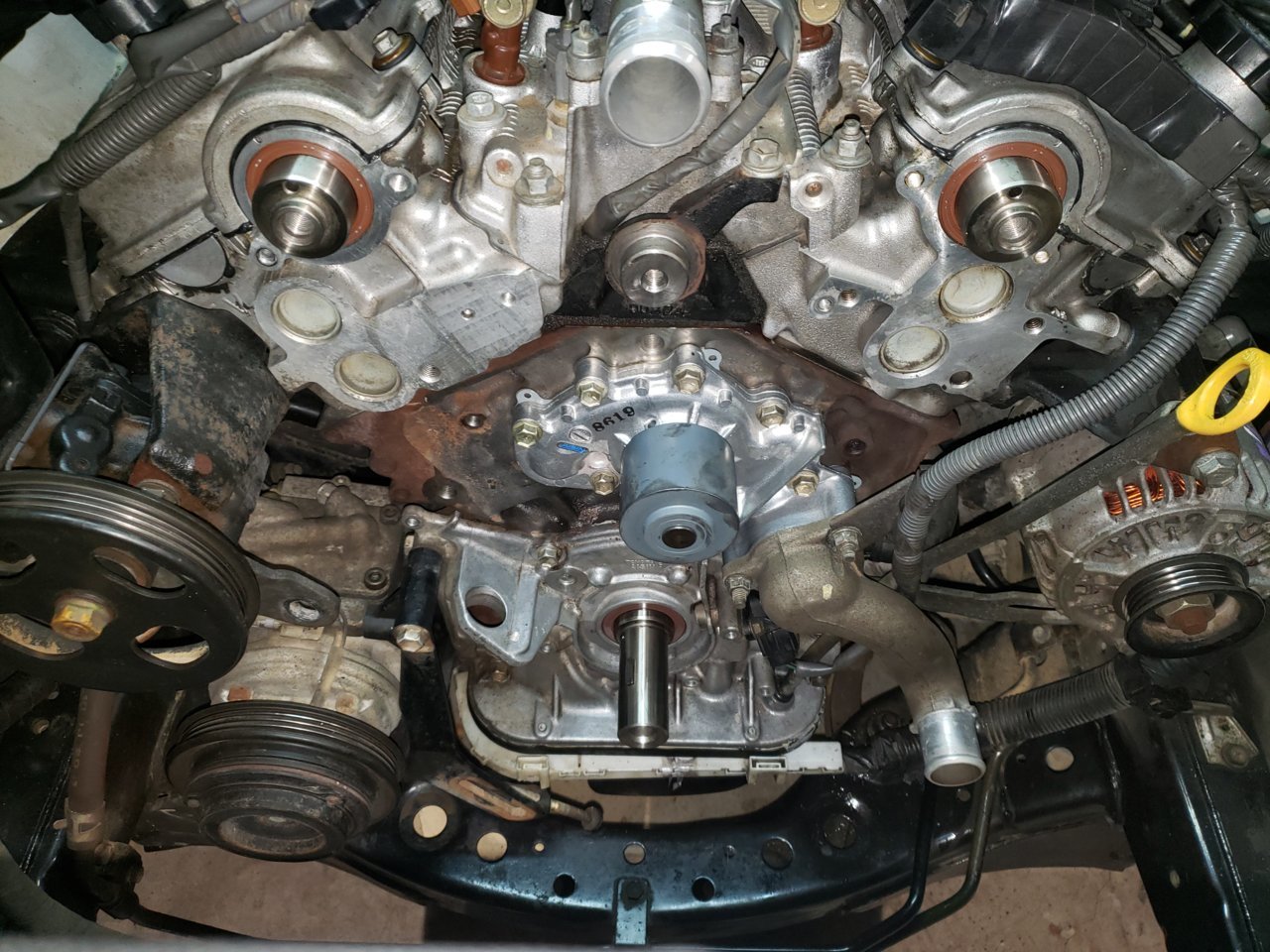

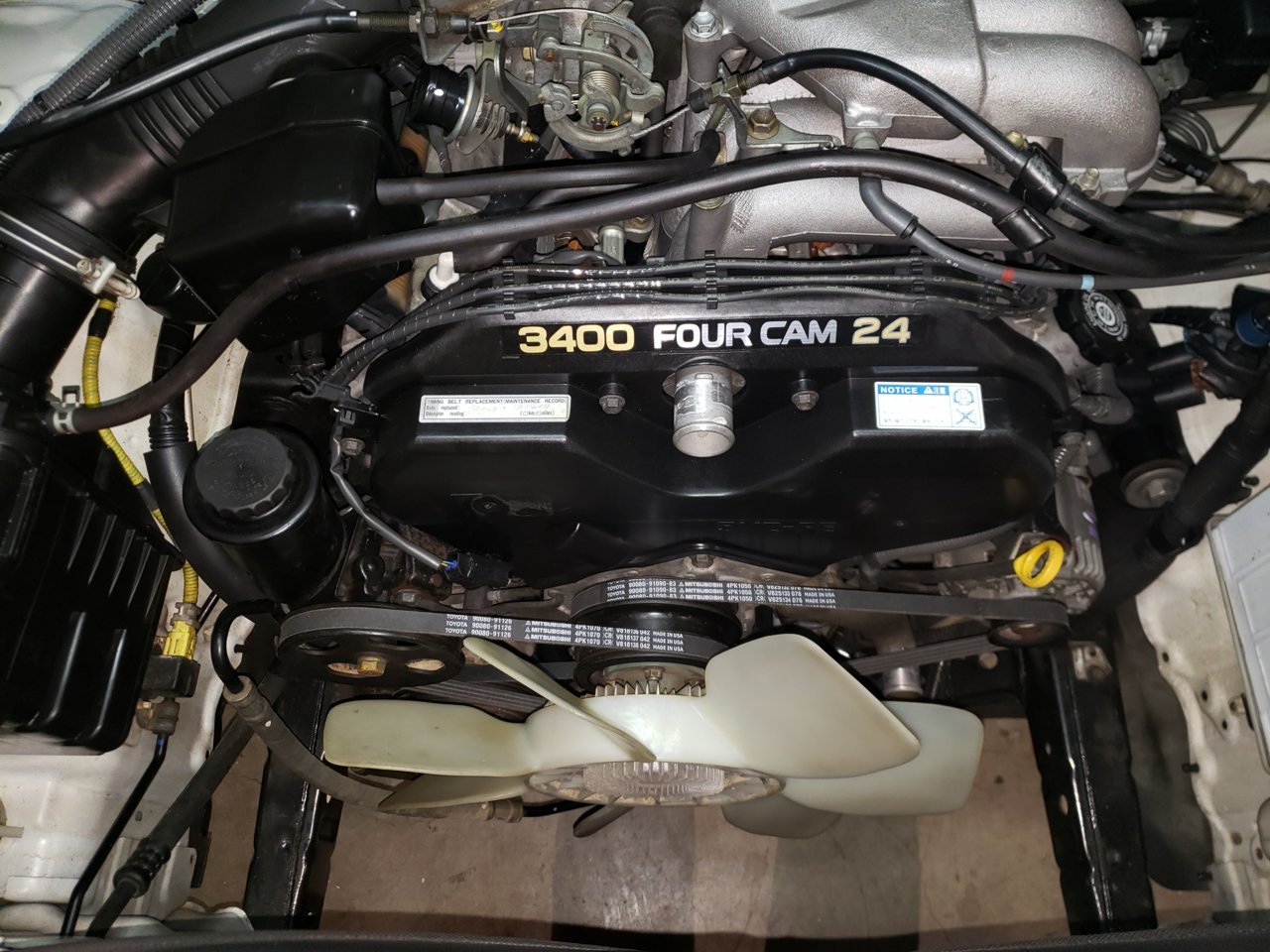

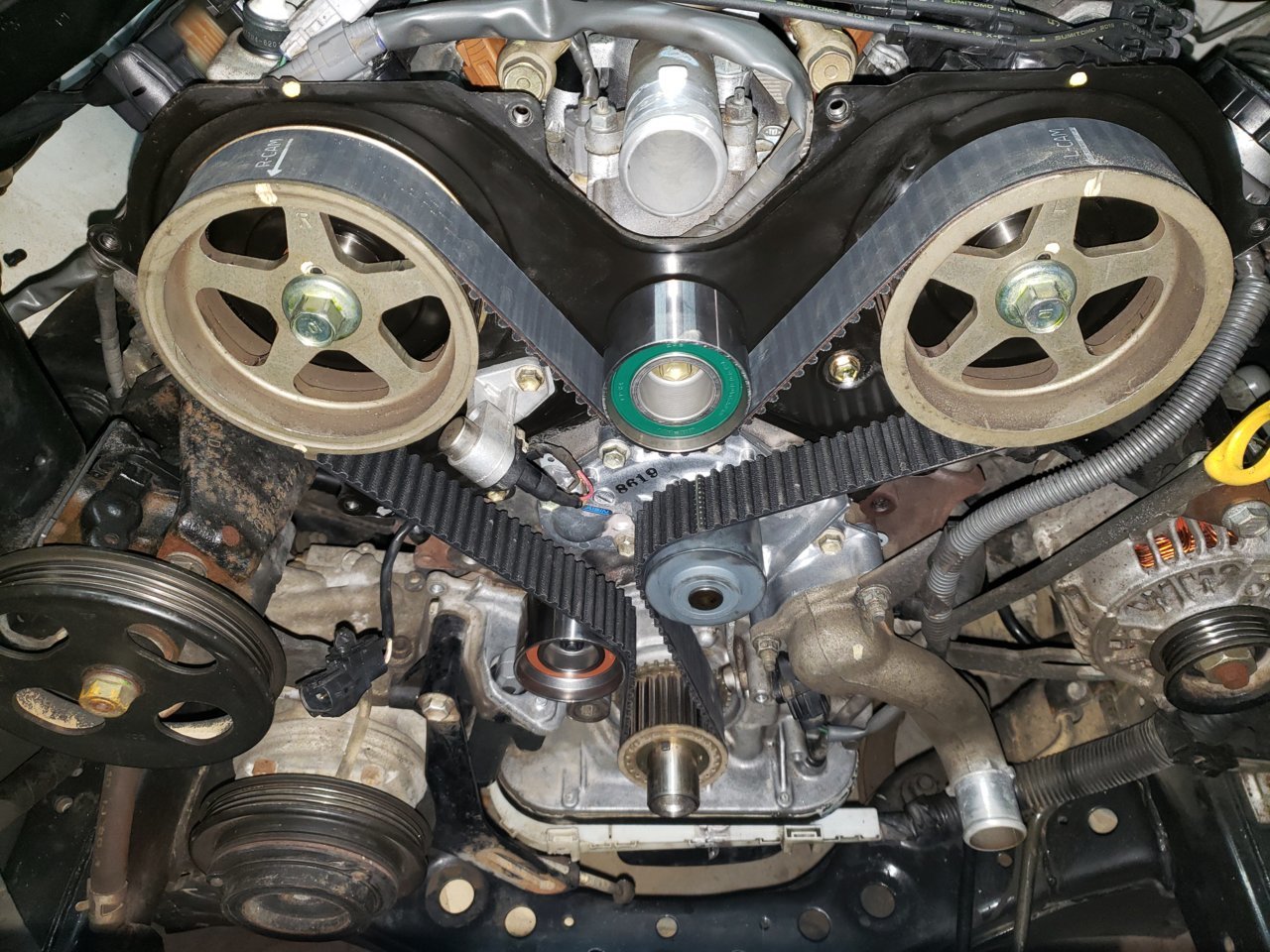

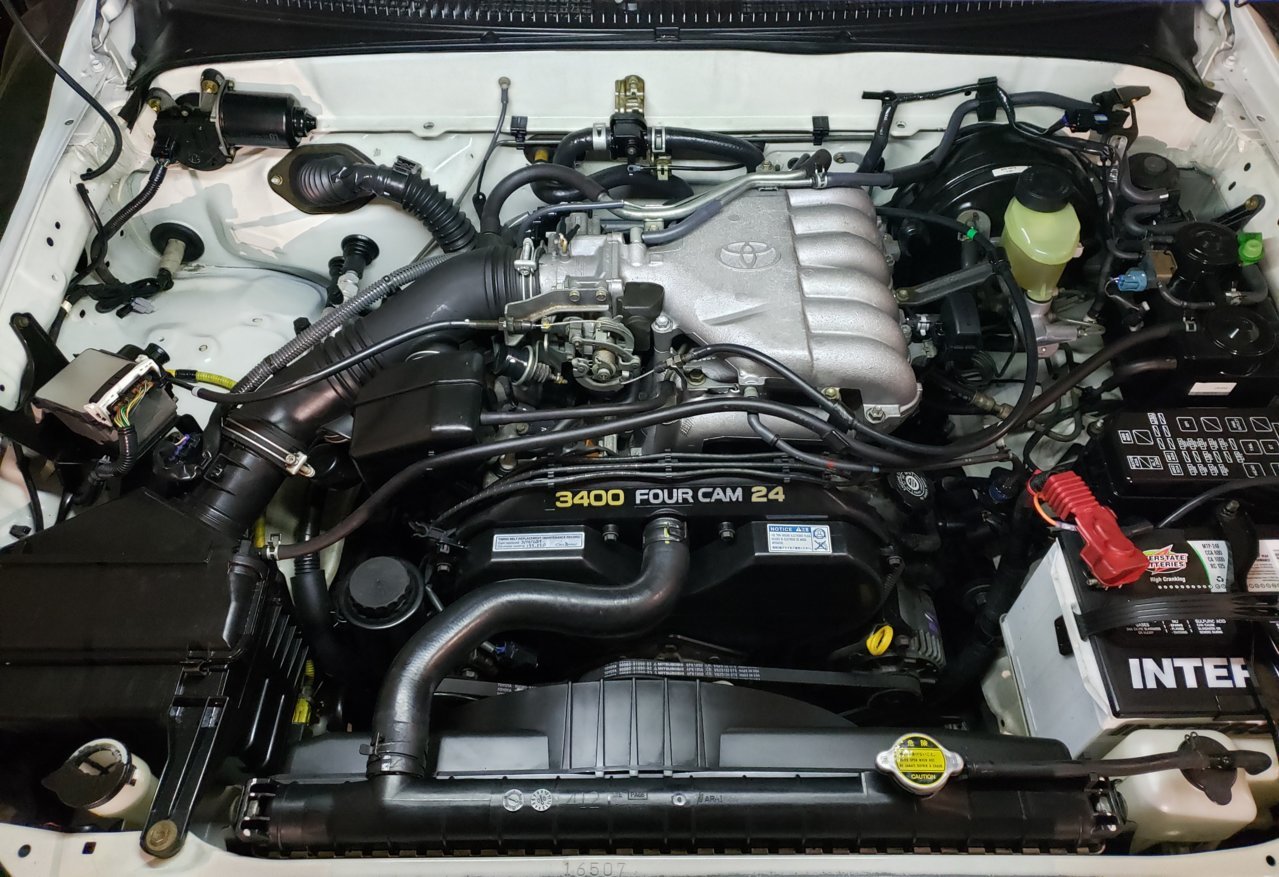

    You have the cleanest engine bay I've ever seen

    GQ7227, Gen1FTMFW and CS_AR like this.
  2. May 28, 2019 at 9:27 AM
    #42
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    15,998
    Gender:
    Male
    First Name:
    Justin
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    It's a non-interference engine, so aside from the normal leaks etc from improper re-assembly, the worst that will happen is it will run like shit, or won't run at all. Fixable with proper belt alignment.

    I did mine in a weekend. I started taking the bumper/radiator off when I got home Friday night, then had it running by early afternoon on Sunday, ready for work on Monday. That included some family time and constantly running back and forth from computer/tablet to the truck to make sure I was doing it right. I probably could have had it running later Saturday night, but I was being super anal and basically ran through the process twice to be sure I didn't forget anything, and wanted to do the final checks in daylight.

    It's not that bad. When you go to reassemble the belt, there are little marks everywhere on the belt and pulleys/gears. Bring it to top-dead-center before you take the belt off, then line up the marks with the new belt.

    I found it easier if you get a couple clamps to hold the belt to the cam pulleys as you're putting it together. It kept wanting to jump a tooth or two as I was wrestling the belt on. The clamps just hold it in place on each pulley until you can get the tensioner positioned.

  3. May 28, 2019 at 9:30 AM
    #43
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    15,998
    Gender:
    Male
    First Name:
    Justin
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
  4. May 28, 2019 at 9:32 AM
    #44
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    394
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD Radiant Red
    The specialty tools are at this point the thing holding me up. Watching the videos, these seem mandatory. Some are inexpensive but some and $100 or more. Did everyone just buy these or get lucky with a buddy having them or can I rent these kind of tools from somewhere? I would hate to spend that kind of money on tools when I am guessing I will only ever do this once.

  5. May 28, 2019 at 10:33 AM
    #45
    Gen1FTMFW

    Gen1FTMFW Well-Known Member

    Joined:
    Feb 20, 2017
    Member:
    #211192
    Messages:
    1,353
    Gender:
    Male
    Vehicle:
    2000 Tacoma 3.4 TRD "Stock AF" & 2006 GX470 Sport
    I purchased all of them as I plan on having my rig for ever and figure I will be doing the TB/WP a number of times. Most places should have rental tools that will work, but I would also throw out a feeler on your regional TW page.

    GQ7227 likes this.
  6. May 28, 2019 at 11:39 AM
    #46
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,891
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    do you live in a dust-free location with basically ZERO humidity and no rain?
    not a spot!!!


  7. May 28, 2019 at 11:55 AM
    #47
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    15,998
    Gender:
    Male
    First Name:
    Justin
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    There's a sticky on DIY crank pully tool. That and a torque wrench are the only "specialty" tools you really need.

    https://www.tacomaworld.com/threads/homemade-crank-pulley-tool.140646/

    Also, most auto parts stores (Auto Zone etc...) rent specialty tools for free... I've rented ball joint tools, spring compressors, etc... from them. I think they usually even have torque wrenches.

    CS_AR and Natenite [OP] like this.
  8. May 29, 2019 at 4:32 PM
    #48
    CS_AR

    CS_AR Well-Known Member

    Joined:
    Apr 3, 2019
    Member:
    #289019
    Messages:
    7,005
    Gender:
    Male
    Vehicle:
    1999 Tacoma PreRunner TRD
    Everything but the driveshaft. B03A - 410
    More pictures from the torque up. Since I couldn't find the Schley crankshaft tool, I bought one of these OTC 4754 multi-purpose pulley holding tools.
    Though initially, the holding pins were either too large for the crankshaft pulley holes or too small to hold it under high torque.

    So I decided to take the next to largest side pin and use my grinder to buff down off a small amount of metal so those would fit tightly inside the two holes on the crankshaft pulley.

    Well, that worked swimmingly.

    Here's a picture of the tool.


    Picture of the pins with a slight buffing around the outer edge to fit inside the crankshaft holes.

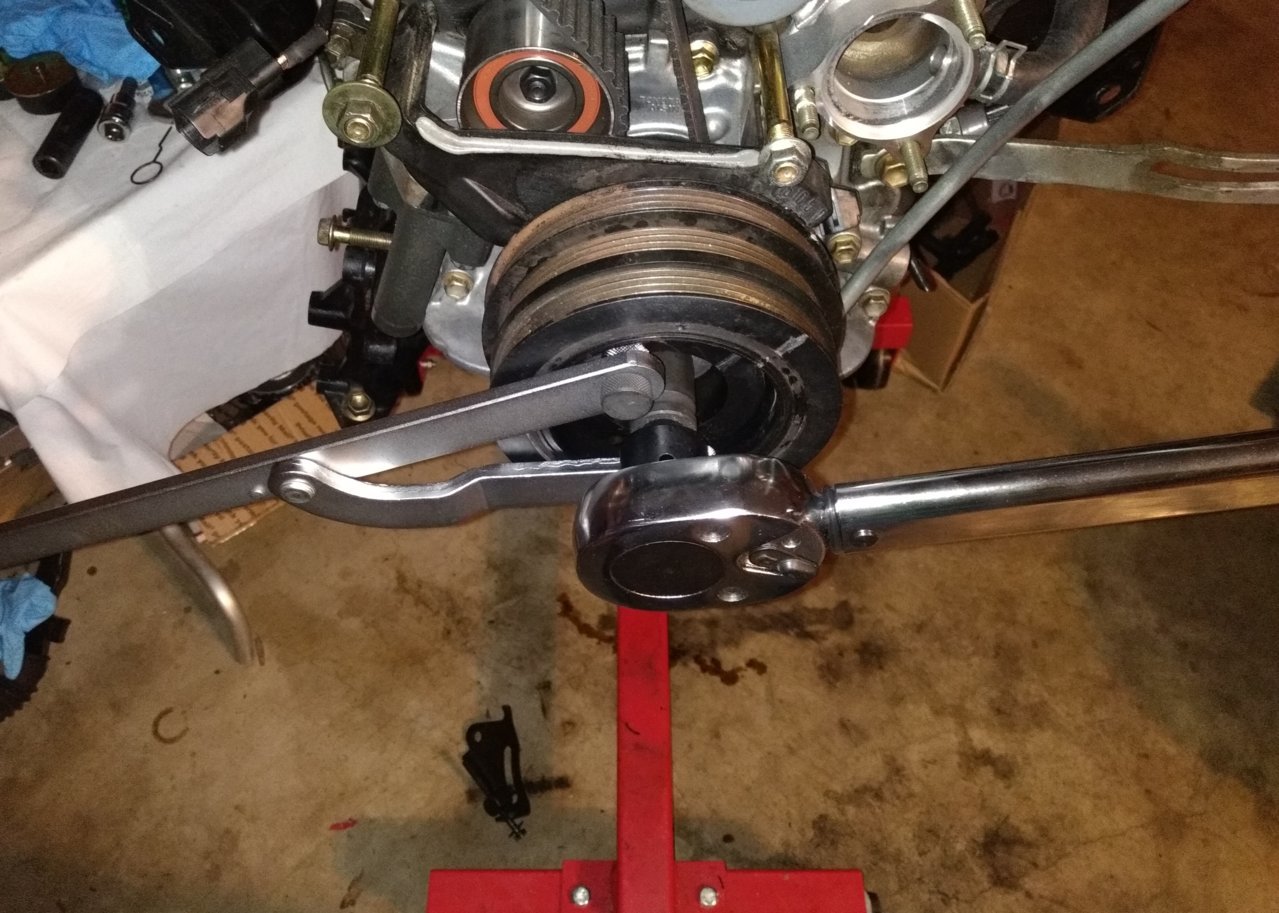

    Picture using the tool with my 3/4" drive HF torque wrench that I purchased almost 10 years ago for other engine projects. Click.
