timing belt replacement /timing belt broke/cam sprocket question

Discussion in '1st Gen. Tacomas (1995-2004)' started by toyinhawaii, Aug 17, 2023.

  1. Aug 17, 2023 at 11:08 PM
    #1
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB
    my timing belt broke while driving, at least it was near the house when it happened. I've replaced the belt,Water pump tensioner,etc. ,once before back in 2009 under regular scheduled maintenance and when the belt was intact so the crank and both cams where in alignment, so i am familiar with the routine. this time,i did have to rotate the crank, so i do have my crank at TDC @ 0 for timing, all the crank sprocket marks are good...even stuck a rod into the #1 cyl to see if the piston was at TDC. Question is, this time since the belt broke is all it takes is to align the cam sprocket marks with the V on the back plate? does the cam sprockets need a 180 degree turn to check for...?, do i need to take the valve covers off and check lobe locations markings or something? i did watch timmys youtube about the timing belt replacement but it was all under normal scheduled maintenance and nothing was said about, oh, this is the procedure if the belt breaks... unless i miss that part somewhere.
    thanks in advance for the help
    v6 5vze

  2. Aug 17, 2023 at 11:15 PM
    #2
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    11,580
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    50 50 chance you have it timed correct.

    I always double check with the valves.

    There might be an easier way but I always used this method.

    Search for lost timing belt change .

    Good Luck.

  3. Aug 18, 2023 at 12:46 PM
    #3
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB
    thanks, i did a search "lost timing belt change" i didnt seem to come up with anything, i plugged in a few different things but nothing. i know i am not the only one who has probably asked that question, but i'll keep chugging along.

    "There might be an easier way but I always used this method"..... IdK... maybe i'm dreaming but if the #1 cyl. piston is TDC that means the I/E valves should be closed(for combustion to take effect)... so would that mean if the cam sprocket notch "bounces freely" while turning to the back plate V notch and they line up, that would mean there is no load on the lobe and the lobe would be at 12 oclock, therefore it would be correct? sorry, IDK,,,just brainfarting. but best would be check the FSM. if anyone one has that section, i'd greatly appreciate it.

  4. Aug 18, 2023 at 2:16 PM
    #4
    Red_03Taco

    Red_03Taco Well-Known Member

    Joined:
    Nov 2, 2021
    Member:
    #381170
    Messages:
    1,145
    Gender:
    Male
    First Name:
    Jerad
    Vehicle:
    2003 Tacoma Xtra Cab 4WD
    I can take some pictures of that section this evening and post then once home, from my hard copy FSM

  5. Aug 18, 2023 at 2:19 PM
    #5
    Toyoda213

    Toyoda213 Well-Known Member

    Joined:
    Nov 8, 2017
    Member:
    #235466
    Messages:
    749
    Gender:
    Male
    First Name:
    Jimmy
    SoCal
    Vehicle:
    2003 V6 dlbc Prerunner 4x4 converted
  6. Aug 18, 2023 at 2:53 PM
    #6
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB
    Thanks Red! i really appriciate it! Ooh-rah!

  7. Aug 18, 2023 at 2:58 PM
    #7
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB
  8. Aug 18, 2023 at 5:03 PM
    #8
    Red_03Taco

    Red_03Taco Well-Known Member

    Joined:
    Nov 2, 2021
    Member:
    #381170
    Messages:
    1,145
    Gender:
    Male
    First Name:
    Jerad
    Vehicle:
    2003 Tacoma Xtra Cab 4WD

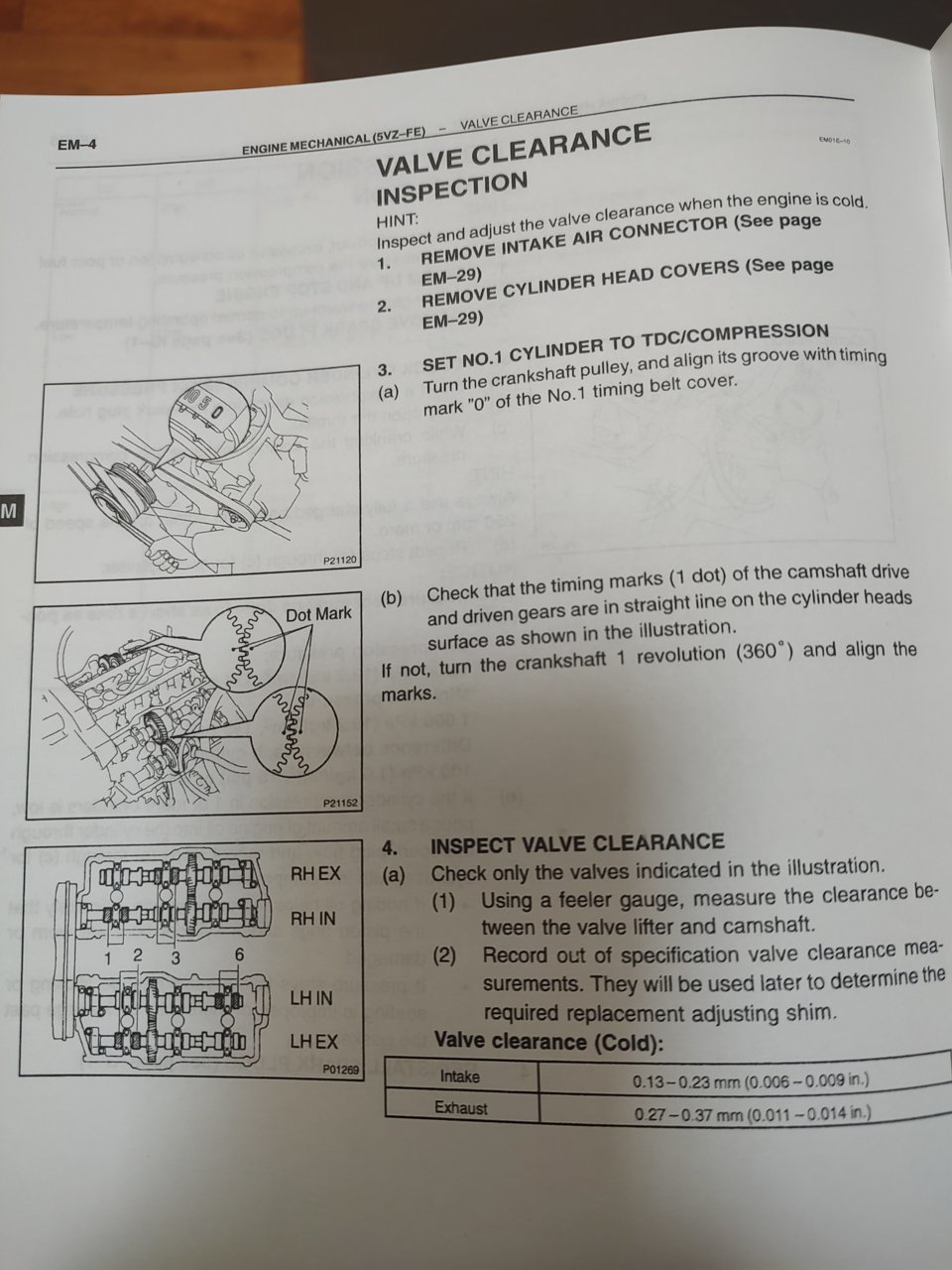

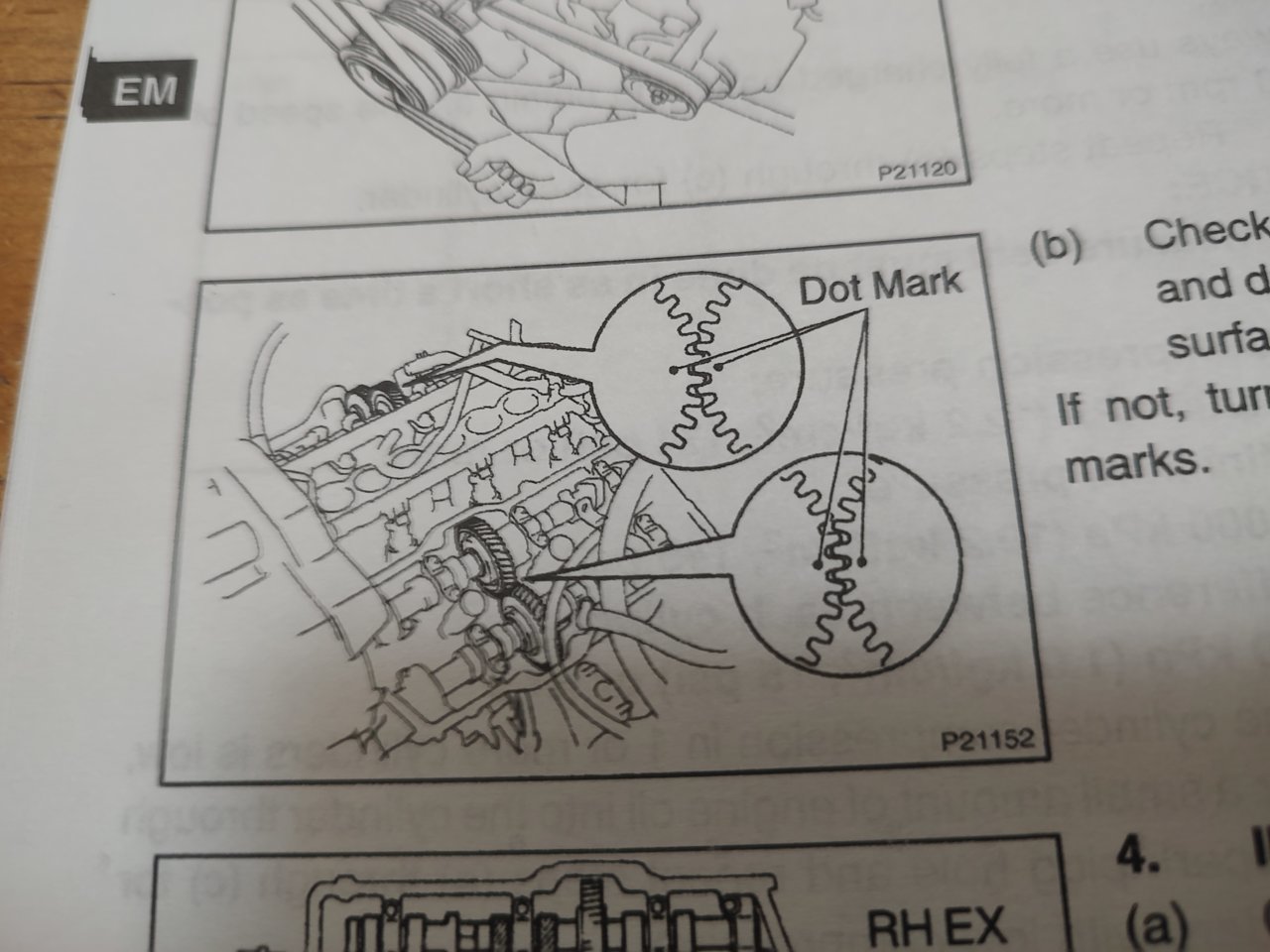

    Looks like your best bet to be certain will be to remove valve covers and look for the dots to be aligned on the cam gears themselves. See 2nd photo. The FSM makes no mention of a situation like you're in(at least not that I could find). Semper Fi and good luck brother!

    IMG_20230818_165901387.jpg IMG_20230818_165920792.jpg

  9. Aug 19, 2023 at 3:40 PM
    #9
    ArizonaBrian

    ArizonaBrian Well-Known Member

    Joined:
    Oct 25, 2019
    Member:
    #309002
    Messages:
    303
    Gender:
    Male
    You're only out of timing if the belt is on and you goof something up. With no belt on there is no timing happening. Simply line up all your marks on your crank and cams and it will be in time unless something goes sideways on your belt install. No 1 cylinder will always be at TDC when the crank mark is lined up with its corresponding mark without a belt.

    Kiloyard likes this.
  10. Aug 24, 2023 at 2:43 PM
    #10
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB

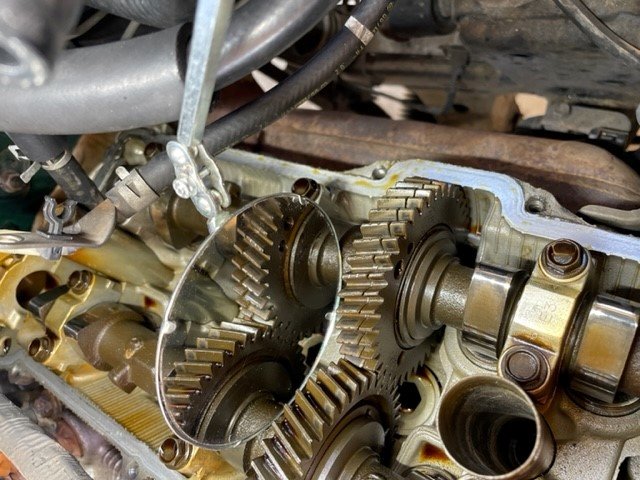

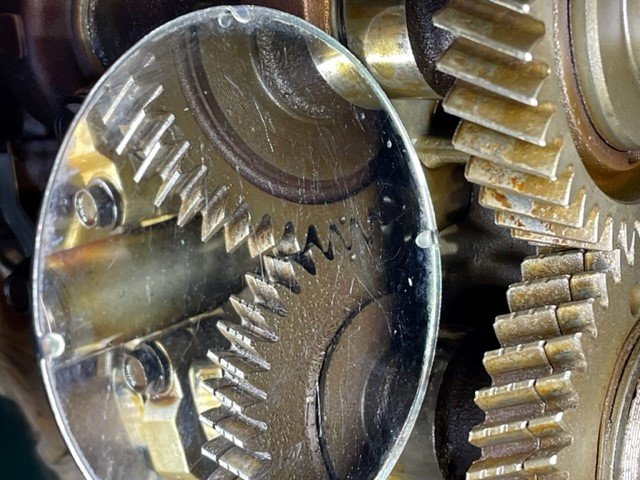

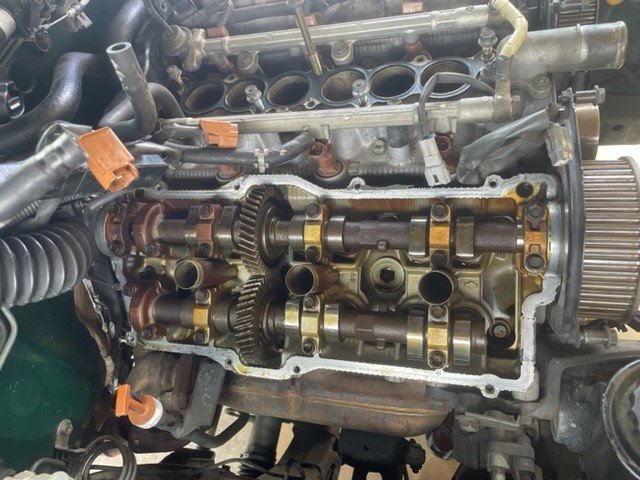

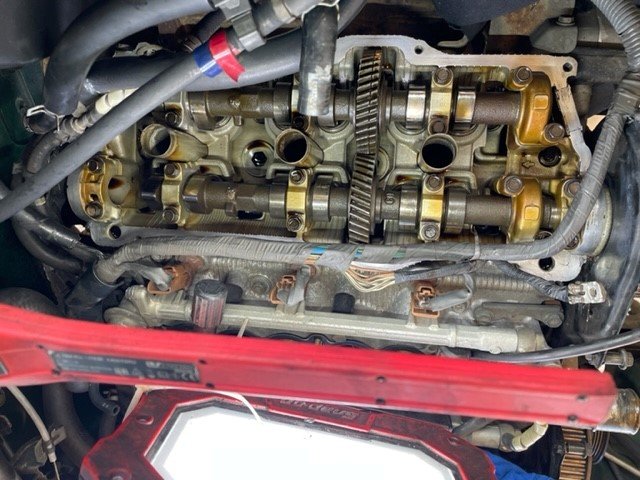

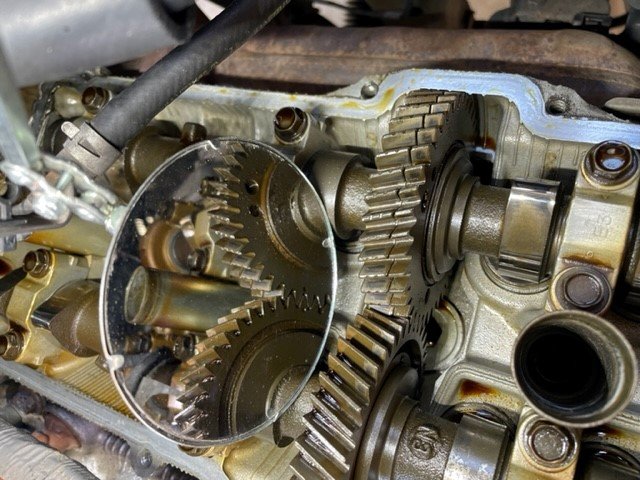

    Alrighty!, well, finally got it done. got my AISIN TKT-025 Engine Timing Belt Kit with Water Pump and the belts off Amazon last weekend and it took a few days... it was dayme hot....so worked on it during the evenings when i had time. ArizonaBrian, yes sir! you are 100% correct, i lined up the cam timing marks, then i did a 180degree rotation, then a 360..all counterclockwise, i even did it in counterclockwise rotation. and each and every time the twin cam dots lined up every time. I've have/ had Coronas, Celicas, trucks and this Tacoma, ranging from 1973-2004. and have never came across one that wasnt easy to work on and built so simply that major breakage is unheard of. by just changing the oil when its due adds to the life tremendously . thanks for all the help guys!


    leid and Bivouac like this.
  11. Aug 30, 2023 at 11:03 AM
    #11
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB
    FOLLOW UP: So far so good, running as normal. forgot to mention while i was disassembling, the reason i think my belt broke may have been cause the belt tensioner bearing locked up and didnt spin... noticed it when removing. Or (dont scold me lol) the belt had about 150k on it.

  12. Aug 31, 2023 at 6:32 PM
    #12
    toyinhawaii

    toyinhawaii [OP] Well-Known Member

    Joined:
    Jan 16, 2014
    Member:
    #120770
    Messages:
    85
    Gender:
    Male
    oahu
    Vehicle:
    2003 5VZE DOUBLE CAB
    i think i spoke to soon, might be different issue now. just came home and had the CEL come on so... my code scanner read it as p0171 system too lean (bank 1)... O2 sensor i think, but thats strange cause i changed it less than 75,000 miles ago i think ,and also P0450.... EVAP EMMISSION.... maybe the gas cap is loose...i doubt it though. well, this might be another thread so.........
