Top of the line brake controller worth the money?

Discussion in 'Towing' started by Cnasianfire, Jul 27, 2017.

  1. Jul 27, 2017 at 7:38 AM
    #1
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    I may tow a trailer with electronic brakes once or twice a year under 300 miles. Is it really worth buying a "top of the line" brake controller?

  2. Jul 27, 2017 at 3:18 PM
    #2
    awdvkd115

    awdvkd115 Well-Known Member

    Joined:
    Apr 5, 2017
    Member:
    #215429
    Messages:
    208
    Gender:
    Male
    First Name:
    Bud
    Vehicle:
    2017 Tacoma TRD OR
    Toytec lift, White Knuckle sliders, RCI Armour, ECGS (Nitro Gears), Victory 4x4 Striker Front bumper, Smittybilt X20 10K winch, Dobinson snorkel, Spidertrax 1.25 spacers and 255 R80 16 BF Goodrich KM2s.
  3. Jul 28, 2017 at 4:54 AM
    #3
    jethro

    jethro Master Baiter

    Joined:
    Aug 25, 2009
    Member:
    #21734
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Geoff
    Southern NH
    Vehicle:
    2020 Ford F-150 Lariat 5.0L V8
    My buddy bought a super cheap controller and it cooked his brakes in less than 300 miles since he could never get it set correctly. Now he's buying twice. Don't buy twice.

  4. Jul 28, 2017 at 5:59 AM
    #4
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    Good point! Thanks guys!

  5. Jul 28, 2017 at 7:13 AM
    #5
    sioux

    sioux Well-Known Member

    Joined:
    Feb 10, 2016
    Member:
    #177767
    Messages:
    467
    Gender:
    Male
    Northern Minnesota
    Vehicle:
    2012 DCSB SR5 4x4
    What is "top of the line" vs "super cheap"? I just bought a Tekonsha Primus IQ. While it was on the "cheaper" end of brake controllers, the Tekonsha brand, including the Primus model have great reviews.

  6. Aug 1, 2017 at 5:29 PM
    #6
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,588
    Gender:
    Male
    Nope.

    In almost all things you get into dimenishing returns. Buying the absolute cheapest is not the best idea in safety equipment but once you hit average you end up spending a lot more for only a tiny difference.

    Don't get a timed controller (ooooold school). Get one that doesn't need to be mounted perfectly level, needs to be directly parallel to your path or works with exterior pendulum. Most mId grades will do every thing you ever need.

  7. Aug 2, 2017 at 5:42 AM
    #7
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    TacoManOne and Capt Jrod like this.
  8. Aug 2, 2017 at 10:37 AM
    #8
    jethro

    jethro Master Baiter

    Joined:
    Aug 25, 2009
    Member:
    #21734
    Messages:
    5,678
    Gender:
    Male
    First Name:
    Geoff
    Southern NH
    Vehicle:
    2020 Ford F-150 Lariat 5.0L V8
    That's a good one!

  9. Aug 2, 2017 at 10:43 AM
    #9
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    So, does it have to be level? I was thinking annoy mounting it below the open/close "drawer" to the left of the steering wheel which would make it at an angle

  10. Aug 2, 2017 at 12:01 PM
    #10
    Ruggybuggy

    Ruggybuggy Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166403
    Messages:
    3,161
    Gender:
    Male
    NW ONT, CANADA
    Vehicle:
    2020 Tundra SX
    If your only towing occasionally use the Reese Towpower 7437711. It's was only $30 bucks and has great reviews. It's also small enough to install in the change draw so it's out of sight. Lost of guys on the forum are using them.

  11. Aug 2, 2017 at 12:03 PM
    #11
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    Yeah, I don't have a trailer, so i would have to borrow brother-in-law's trailer. I don't see me doing that often, but wanted to be prepared if I had to. All the uhaul trailers are surge brake types, so I haven't had to have a controller.

  12. Aug 2, 2017 at 12:04 PM
    #12
    Capt Jrod

    Capt Jrod Well-Known Member

    Joined:
    Dec 6, 2014
    Member:
    #143748
    Messages:
    897
    Gender:
    Male
    First Name:
    Jarrod
    Northern Ohio
    Vehicle:
    15 WHITE DCSB 4x4 TRD SPORT
    Tekonsha p3. Hands down. Order the harness for Toyota. Dig under the drivers side kick panel, plug and play never look back

  13. Aug 2, 2017 at 12:06 PM
    #13
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    That one isn't a proportional controller, right? I have heard that you really want one of those instead of a timed one. But I am really new to towing and brake controls, so I have no idea what I am talking about or even if what I just said makes sense.

  14. Aug 2, 2017 at 12:14 PM
    #14
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    I have the pigtail, should I still get the harness? yeah, i already found the plug under the dash for it.

  15. Aug 2, 2017 at 12:14 PM
    #15
    Cnasianfire

    Cnasianfire [OP] Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    Also, do brake controllers need a power source, or does it get it from the plug under the dash?

  16. Aug 2, 2017 at 1:18 PM
    #16
    Capt Jrod

    Capt Jrod Well-Known Member

    Joined:
    Dec 6, 2014
    Member:
    #143748
    Messages:
    897
    Gender:
    Male
    First Name:
    Jarrod
    Northern Ohio
    Vehicle:
    15 WHITE DCSB 4x4 TRD SPORT
    the Toyota pre rig harness was $20ish dollars and it plugged in. No power source needed, it feeds everything through the plug. Literally plug and play. You will love it. It also remembers different trailers, when I plug in the camper it has that setting and my little dump trailer has a different one. It is an amazing little box.

  17. Aug 2, 2017 at 4:53 PM
    #17
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,588
    Gender:
    Male
    Unless you're wiring a old truck you don't 3rd to run much. Usualy just a pigtail to the controller and maybe plugging in a relay.

  18. Aug 2, 2017 at 7:04 PM
    #18
    Ruggybuggy

    Ruggybuggy Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166403
    Messages:
    3,161
    Gender:
    Male
    NW ONT, CANADA
    Vehicle:
    2020 Tundra SX

    No it's not a proportional controler. I've been using it with my 3500lbs TT and works fine. When I'm on the highway I turn the gain up and if I'm finding it braking aggressively in the city I turn it down a touch. It works well with lighter trailer at or under 3500lbs.

  19. Aug 4, 2017 at 7:28 AM
    #19
    Bobmeel

    Bobmeel Bobmeel

    Joined:
    Jun 25, 2017
    Member:
    #222341
    Messages:
    15
    Gender:
    Male
    First Name:
    Bobby
    Petal Ms
    Vehicle:
    2017 gray tocoma trd sport

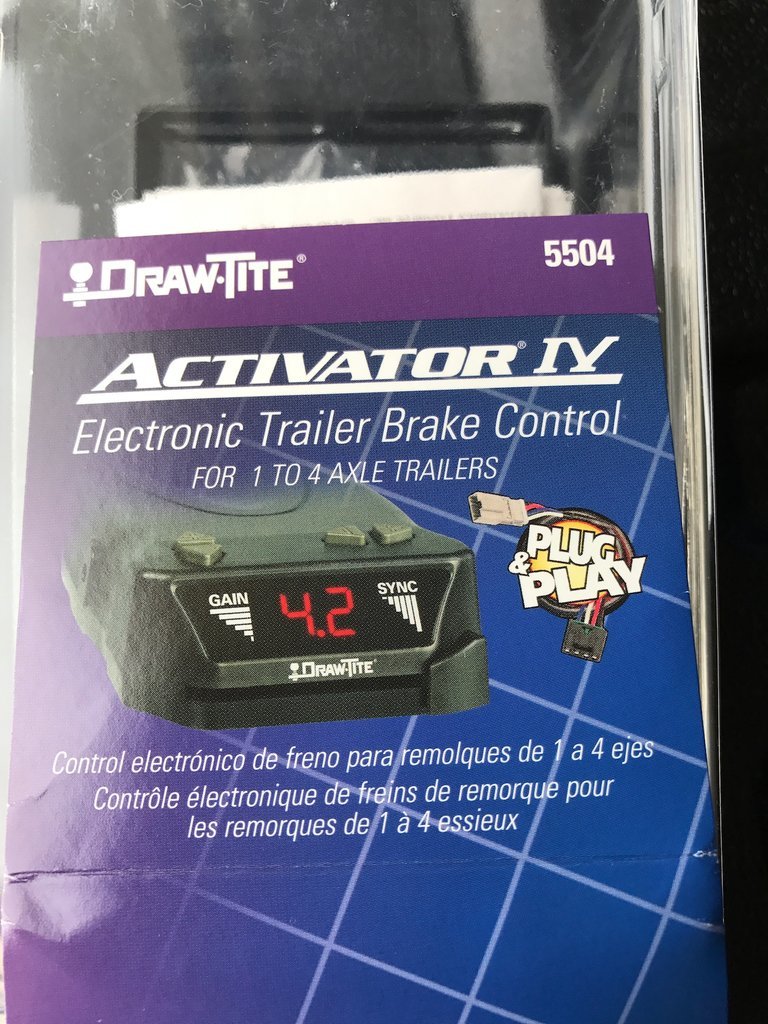

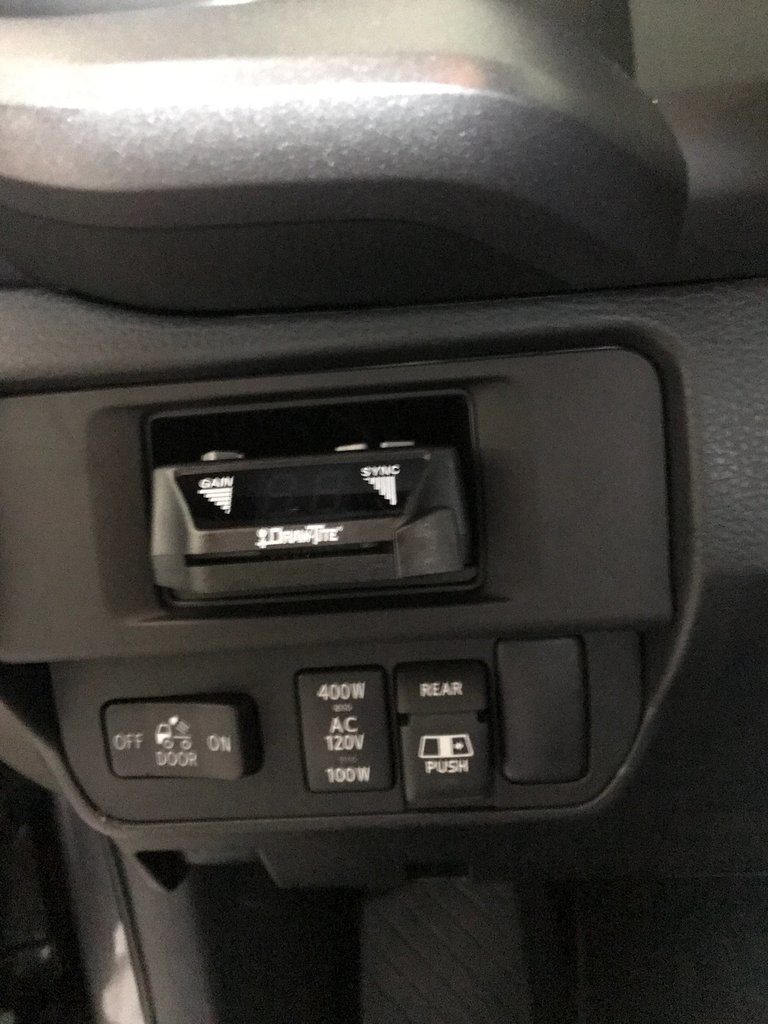

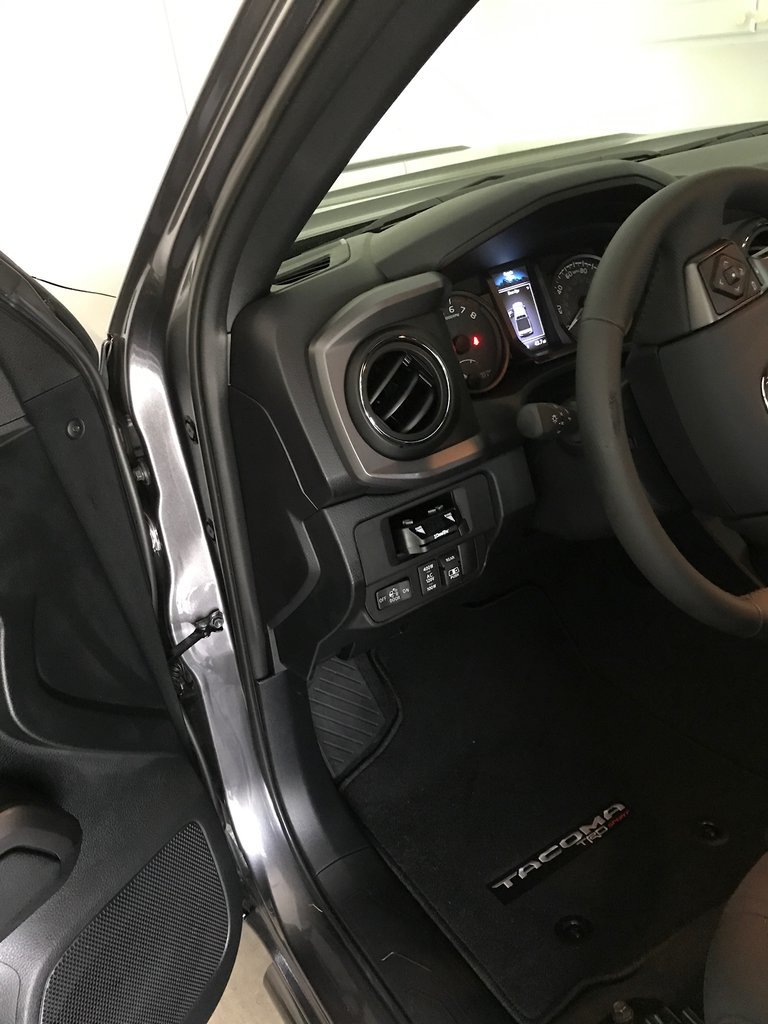

    I got theDraw-Tite Activator IV it will work up to 4 axles can be mounted in any prostitution with read out it came with wiring harness plug and play, fits just right in cubby hole took about 30 min. To install


    Cnasianfire [OP] likes this.
  20. Aug 4, 2017 at 1:32 PM
    #20
    Ruggybuggy

    Ruggybuggy Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166403
    Messages:
    3,161
    Gender:
    Male
    NW ONT, CANADA
    Vehicle:
    2020 Tundra SX


    "Prostitution"? Got to love when your phone corrects your spellong.
