Toubleshooting Dual LED Switch

Discussion in 'Lighting' started by TacoDirtyToMe, Jul 13, 2021.

  1. Jul 13, 2021 at 5:21 PM
    #1
    TacoDirtyToMe

    TacoDirtyToMe [OP] New Member

    Joined:
    Dec 26, 2019
    Member:
    #314274
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2012 Tacoma Access Cab 4x4
    2.5" Lift, Wheel/Tire Upgrade, lights
    Hey guys,

    I recently wired up a light bar and two ditch lights to a Dual Led Switch. The lights work but I'm having some issues.
    Both switches engage both lights, and the backlighting on the button never turns off, even when keys are out of ignition.

    Any help or direction would be greatly appreciated. I've looked all over the place.

    Disclaimer: I don't know anything about car electrical so there may be some stupid error here..

    Wiring Diagram.jpg

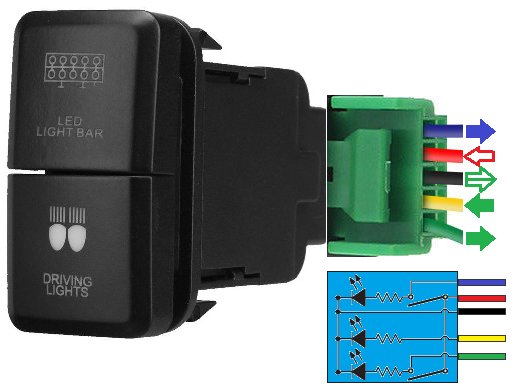

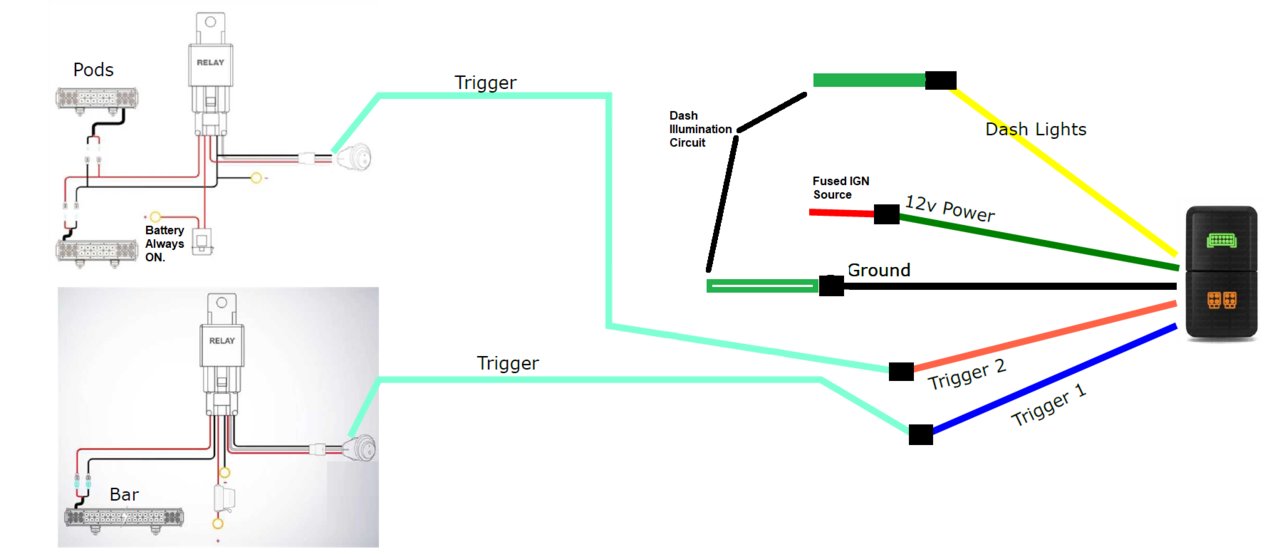

    • The two diagrams on top are provided by the dual-switch manufacturer. There are some reviews on Amazon saying it's wrong, and some saying it worked correctly.
    • The yellow wire on the dual-switch is (in theory) an optional 'dash light' that lights up the button when I turn my stock headlights on. I never connected that as I identified the issue before getting that far.
    • The two diagrams at the bottom left were provided by the wiring harness company. Both harnesses ran to individual switches. Both worked perfectly prior to being cut. When cut, they both had three wires running to each button: Red, Black, and Blue. (ground, 12v, trigger)
    • I've shown how I ran the 6 wires coming from the two harnesses to the 5 wires coming from the dual-switch. Essentially, running both harness 12v powers (red) to the dual-button 12v power (green), both harness grounds (black) to the dual-button ground (black), and each harness trigger (blue) to one of the dual-button triggers (red and blue).
    • My wires are butt connected and individually taped. A short seems unlikely.

    The confusing end result:
    Both switches engage both lights, and the backlighting on the button never turns off, even when keys are out of ignition. I can't figure out how I would have wired it so that both switches engage both lights...

    If I mistook the harness power wires for triggers and ran them both to one button's trigger, only one button would engage both lights and the other wouldn't work at all. None of the dual-switch wires are spliced to each other so I can't figure how both switches would engage both lights. Youtube University is sparse on this dual-switch topic. This company's single switches have 4 wires instead of 5 and plenty of videos.

    Here is the link to the dual-switch: https://www.amazon.com/gp/product/B08B5VMW66?ie=UTF8

    Here are links to the harnesses:
    https://www.amazon.com/dp/B076C5HV59?ref=ppx_yo2_dt_b_product_details
    https://www.amazon.com/dp/B076C4MXR1?ref=ppx_yo2_dt_b_product_details

    Here's a thread here trouble shooting this same switch with a slightly different issue:
    https://www.tacomaworld.com/threads/dual-switch-install-help.673095/

    Here's a link to a video of wiring the same brand single-switch:
    https://www.youtube.com/watch?v=PBu_ZyFGk14&t=47s


    Attached Files:

    Last edited: Jul 13, 2021
  2. Jul 14, 2021 at 12:14 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,641
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Jul 14, 2021
  3. Jul 14, 2021 at 12:27 PM
    #3
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    1,215
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    Make sure you didn't confuse wire #4, and 5? Got them backwards?

  4. Jul 14, 2021 at 1:02 PM
    #4
    TacoDirtyToMe

    TacoDirtyToMe [OP] New Member

    Joined:
    Dec 26, 2019
    Member:
    #314274
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2012 Tacoma Access Cab 4x4
    2.5" Lift, Wheel/Tire Upgrade, lights
    Thanks Caribe, just to confirm:

    • Run switch ground and switch dash illuminator to a dash light powered add-a-fuse such as brake lights.
    • Run 12v power through fused line to an ignition source such as cig lighter?
    • **Cap off 12v powers and grounds coming from harnesses? Or connect red and blacks of individual harnesses to maintain the circuit?**

  5. Jul 14, 2021 at 1:05 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,641
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Not brake lights at all. Any dash switch. Like fog lamp switch.
    Cig lighter wire, yes. Not the fuse. It's always ON.
    Cap off 12+ and grounds coming from harnesses.

  6. Jul 14, 2021 at 1:15 PM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,641
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  7. Jul 15, 2021 at 6:47 PM
    #7
    TacoDirtyToMe

    TacoDirtyToMe [OP] New Member

    Joined:
    Dec 26, 2019
    Member:
    #314274
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2012 Tacoma Access Cab 4x4
    2.5" Lift, Wheel/Tire Upgrade, lights
    Again, thanks. So please excuse my confusion but this is super helpful and I want to make sure I'm totally understanding you.

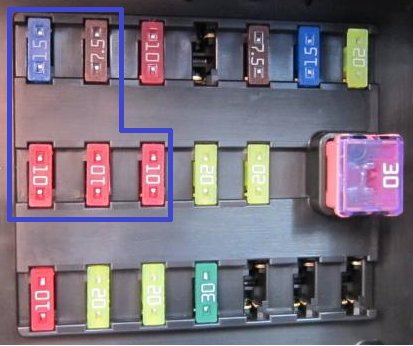

    Ground wire and Dash illumination wire: run to what? An add-a-fuse? Fuse #3 (TAIL) looks like the dash illumination circuit? OR Are you saying to directly tap another switches illumination wire via a tap/splice connector or something?

    12+ Wire: runs to what? An add-a-fuse to 1, 2, 7, 8, or 9 as you showed above? When you say IGN source are you talking specifically about Fuse 1 (IGN)?

    On the add-a-fuse do I match the fuse size to the original fuse or can I add-a-fuse with the original 10a fuse and a new 2a fuse?

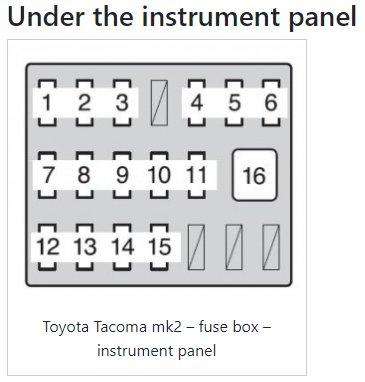

    https://www.autogenius.info/toyota-tacoma-2012-fuse-box-diagram/
