dual switch install help

Discussion in 'Lighting' started by Tacodave87, Jun 24, 2020.

  1. Jun 24, 2020 at 7:46 PM
    #1
    Tacodave87

    Tacodave87 [OP] Member

    Joined:
    Oct 11, 2019
    Member:
    #307746
    Messages:
    5
    Gender:
    Male
    First Name:
    Dave
    CT
    Vehicle:
    2016 TRD Off Road
    Light bar and ditch pods
    evening all first post so please go easy on me!!

    So I purchased the following dual switch from Amazon while picking up ditch lights and a light bar for my 2016 trd off road.

    https://www.amazon.com/Switch-Light...=4RunRun&qid=1592963673&sr=8-1#detail-bullets

    I have the auxbeam 32" light bar and Nilight ditch lights that i want to run of this switch, both lights come with their own relay and switch - 2 relays and 2 switches.

    I get to wiring it up as follows;

    coming through the fire wall I have the following

    for the light bar
    White - 12v
    black - ground
    blue - light bar trigger

    and for the ditch lights
    White - 12v
    black - ground
    blue - ditch light trigger

    I wired it up as follows

    Black to black from both switches - ground
    red to both whites from each of the switches 12v
    yellow to the adda fuse connected to the tail fuse in the fuse box - switched power
    blue to blue for the light bar
    green to red for the ditch lights

    Now the lights work when the switches are pressed, however the backlight for the switch is always on - even if the ignition for the truck is off.

    i think i need to swap the red and yellow wires on the switch but want to confirm this will work. Then while searching like crazy and finding limited people running switches like this I come across this thread

    https://www.tacomaworld.com/threads/dual-led-switch-wiring-help.581146/

    Showing Jumpers on pins 86 and 30 for constantly on and something completly different to what I have done here to wire when using switched power.....

    what do you all think?

    thanks!

  2. Jun 26, 2020 at 5:51 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    SWITCH POWER should read SWITCH Illumination
    Do not use the white power from the harness, it always has juice, hence the back light always ON.

    Last edited: Jun 26, 2020
    Tacospike likes this.
  3. Jun 26, 2020 at 5:58 PM
    #3
    Tacohumper13

    Tacohumper13 IG @_.mfa_

    Joined:
    Jan 21, 2008
    Member:
    #4369
    Messages:
    831
    Gender:
    Male
    Menifee
    Vehicle:
    2017 TRD Off-road DCSB 4x4
    6112/5160s w/ camburg UCAs 265/70/17 wildpeaks JP8 conversion kit
    I have those switches, they work perfect

  4. Jun 26, 2020 at 6:07 PM
    #4
    Tacodave87

    Tacodave87 [OP] Member

    Joined:
    Oct 11, 2019
    Member:
    #307746
    Messages:
    5
    Gender:
    Male
    First Name:
    Dave
    CT
    Vehicle:
    2016 TRD Off Road
    Light bar and ditch pods

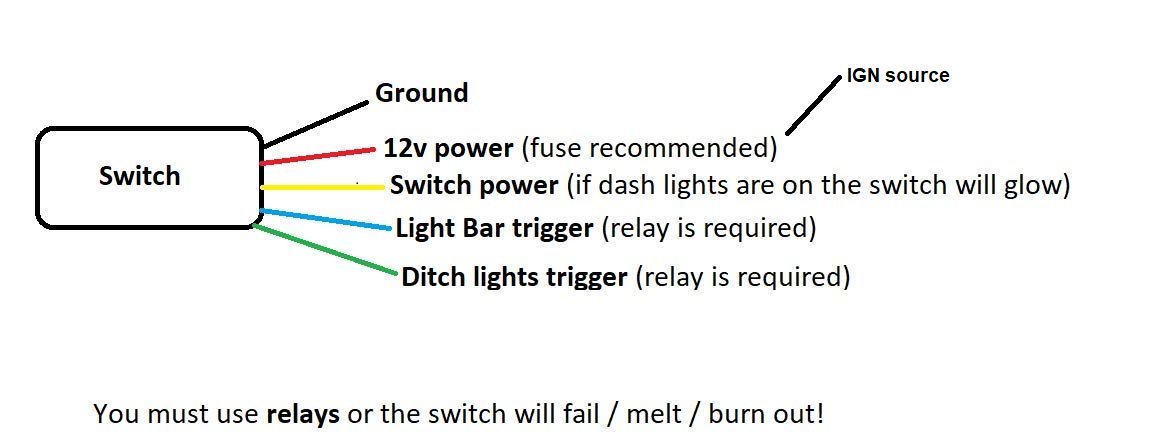

    thanks guys, I think it was a combination of the different harnesses, and me believing they would be wired the same way, I left it for the day, came back drew a diagram and got it figured out.
    12v from each of the wiring harnesses were different colors (Nilight and Auxbeam harnesses) one was red one was white (I assume'd both the whites were hot), this explained why the switch remained lit even when off.

    I can honestly say I know a lot more about relays than I did before!! Both the switch and lights work fantastically!

    Devir7 likes this.
  5. Jun 26, 2020 at 6:29 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,333
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    So they are able to come ON even if vehicle is OFF then...

    Tacodave87 [OP] likes this.
  6. Jun 27, 2020 at 7:31 AM
    #6
    Tacodave87

    Tacodave87 [OP] Member

    Joined:
    Oct 11, 2019
    Member:
    #307746
    Messages:
    5
    Gender:
    Male
    First Name:
    Dave
    CT
    Vehicle:
    2016 TRD Off Road
    Light bar and ditch pods
    Yes that is correct

  7. Jun 27, 2020 at 10:05 AM
    #7
    Tacohumper13

    Tacohumper13 IG @_.mfa_

    Joined:
    Jan 21, 2008
    Member:
    #4369
    Messages:
    831
    Gender:
    Male
    Menifee
    Vehicle:
    2017 TRD Off-road DCSB 4x4
    6112/5160s w/ camburg UCAs 265/70/17 wildpeaks JP8 conversion kit
    They fit the @MESO custom switch panel great!


    Tacodave87 [OP] likes this.
  8. Jun 27, 2020 at 10:14 AM
    #8
    Devir7

    Devir7 It’s a Secret to Everybody

    Joined:
    Jan 26, 2020
    Member:
    #317260
    Messages:
    1,838
    Gender:
    Male
    First Name:
    Eric
    Harford County, MD
    Vehicle:
    2020 Black TRD OR
    Ironman Stage 1 Foam Cell Pro lift kit, 255/85/16 Cooper ST Maxx, SCS BR6 Wheels, SPC UCA, Heated seats, MESO TRD start button, Meso Total Tail v1, steps, bed decal, ditch and hidden bumper lights, screen protech, RAV4 radio knobs, steering wheel anytime camera kit, dash cam, ECGS bushing, Timbren Active Off Road bump stops with Wheelers flip kit. 35% Xpel CS Ceramic Tint ‌ ‌ ▲ ▲‌ ▲

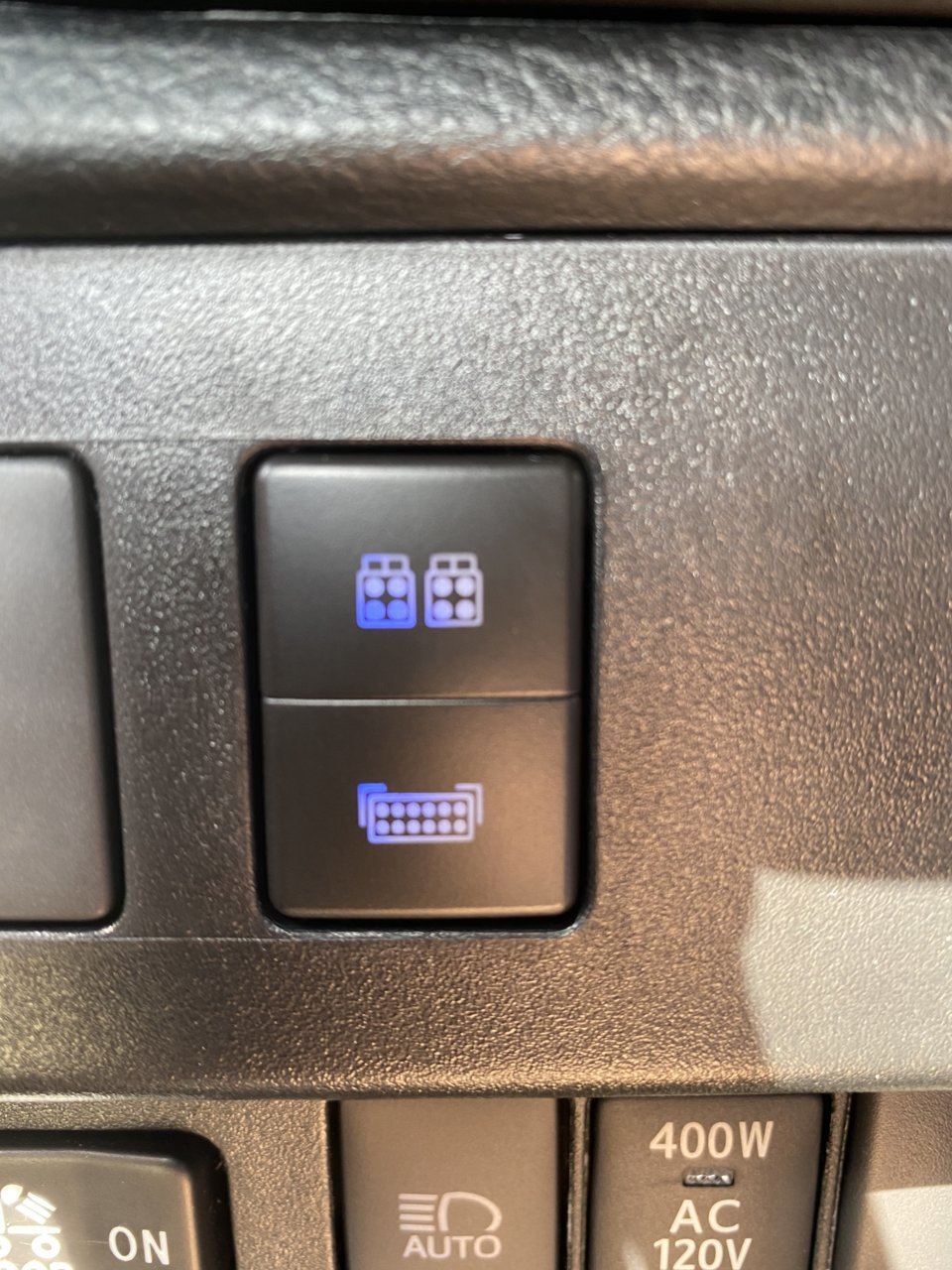

    I have mine set up the same way. I was not able to find a fuse other than the IGN in the engine bay that was off till the truck came on. I did an led light bar and ditch lights as well, to a dual switch as well. Once the truck is on the switch backlight comes on. I can turn lights on with the truck off. I also have raptor lights that are wired to the IGN fuse.
    The led bar is connected to battery and the ditch lights are on the side mirror heater fuse which my truck does not have.

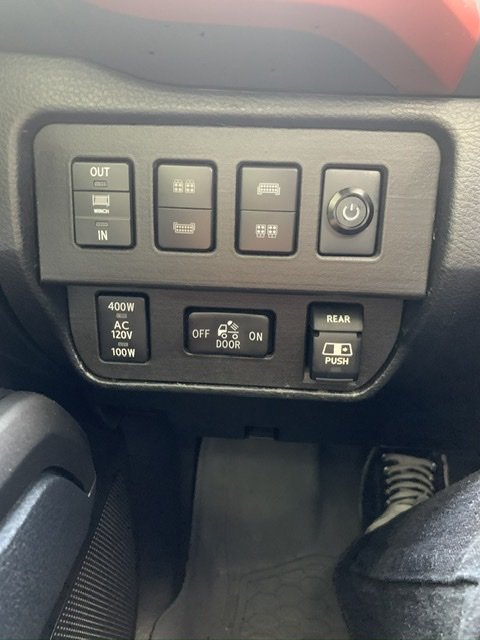

    I turned mine upside down so lights match where the buttons are.


    Tacodave87 [OP] likes this.
