Tow harness wiring diagram

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Suplex, May 6, 2019.

  1. May 6, 2019 at 7:17 AM
    #1
    Suplex

    Suplex [OP] Unknown Member

    Joined:
    May 1, 2019
    Member:
    #291993
    Messages:
    54
    Gender:
    Male
    First Name:
    Shane
    California
    Vehicle:
    ‘15 Prerunner TRD Sport v6 DCLB
    Would like to tap into the wire for the tow reverse lights, but not sure which color it is. Is there a wiring diagram?

  2. May 6, 2019 at 9:17 AM
    #2
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,501
    Suplex [OP] likes this.
  3. May 6, 2019 at 9:32 AM
    #3
    Suplex

    Suplex [OP] Unknown Member

    Joined:
    May 1, 2019
    Member:
    #291993
    Messages:
    54
    Gender:
    Male
    First Name:
    Shane
    California
    Vehicle:
    ‘15 Prerunner TRD Sport v6 DCLB
    Perfect, thank you!

    Muddinfun likes this.
  4. May 6, 2019 at 9:17 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,685
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    2015..no color change

  5. Jun 1, 2019 at 10:41 AM
    #5
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Can you tell me the color code on the reverse light itself?

  6. Jun 1, 2019 at 12:31 PM
    #6
    Suplex

    Suplex [OP] Unknown Member

    Joined:
    May 1, 2019
    Member:
    #291993
    Messages:
    54
    Gender:
    Male
    First Name:
    Shane
    California
    Vehicle:
    ‘15 Prerunner TRD Sport v6 DCLB
    Yellow.

  7. Jun 1, 2019 at 12:48 PM
    #7
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,828
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 350+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    I did just this exact same thing on my trailer. 5 pin flat connectors and the needed 7 round to 5 flat are available at Bass pro shops... Noticed them at Auto zone after i bought mine.
    The wire for reverse on my plug for the trailer was blue.

  8. Jun 1, 2019 at 12:56 PM
    #8
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Thank you kindly. I was not clear. I want to tap into the reverse light in the tail light assembly. Again, thank you.

  9. Jun 1, 2019 at 1:00 PM
    #9
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,501
    Pop the taillight out. There will be 2 wires going to the reverse light bulb. The ground will be white/black. Connect to the other one.

    thebeardedbeerguy likes this.
  10. Jun 1, 2019 at 1:07 PM
    #10
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Many thanks.

  11. Jun 1, 2019 at 1:09 PM
    #11
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Thank you. I want to install an LED auxiliary back-up light as well as back up horn. I'm tired of these people with their heads in the phone and I'm trying to get out of the parking space.

  12. Jun 1, 2019 at 1:10 PM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,685
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Suplex [OP] likes this.
  13. Jun 1, 2019 at 1:11 PM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    7,685
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

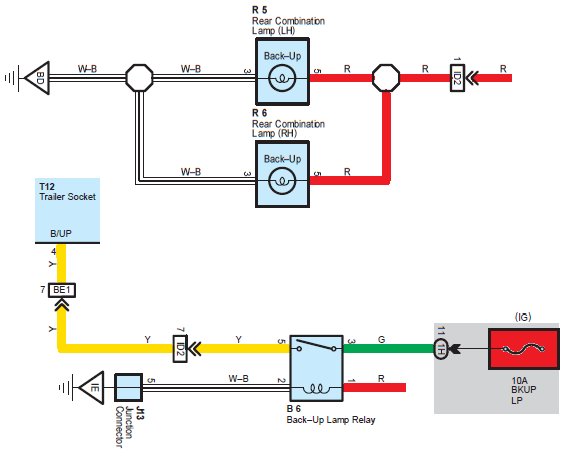

    The tow reverse has its own relay and fuse. It can "handle" better the added items than the reverse lamp in the tail lamp.

    tetten and Suplex [OP] like this.
  14. Jun 1, 2019 at 1:14 PM
    #14
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Understood. Thank you.

  15. Jun 1, 2019 at 1:19 PM
    #15
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,501
    If you want really bright reverse lights, the Deauto LEDs are awesome.

    thebeardedbeerguy likes this.
  16. Jun 1, 2019 at 1:31 PM
    #16
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Are those intended to replace the OEM bulb?

  17. Jun 1, 2019 at 2:04 PM
    #17
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,501
  18. Jun 11, 2019 at 3:39 PM
    #18
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Purchased a pair. Will let you know outcome. Thanks again.

    Muddinfun likes this.
  19. Jun 11, 2019 at 3:51 PM
    #19
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,501
    When you get them and open the package, your reaction will be, "That's it? Those don't look very impressive". But, after you install them, you will be blown away at how bright they are. And the best part is that they also shine light straight out to the sides where you need to see if you're going to sideswipe the wifes Lexus.

  20. Jun 15, 2019 at 6:50 PM
    #20
    thebeardedbeerguy

    thebeardedbeerguy Active Member

    Joined:
    Sep 26, 2015
    Member:
    #165191
    Messages:
    42
    Gender:
    Male
    First Name:
    John
    Newnan, GA
    Vehicle:
    2015 Tacoma PreRunner SR5 with towing package
    Dealer installed (running boards - part of purchase deal) Weather Tech (floor liners, headlight guards, bug shield); Vent Shade (rain guards, door sill protectors); Color matched body side molding; ARE color matched rear hatch; rubber bed and tailgate liner; Ranch Hand brush guard; SteelCraft Elevation rear bumper; 4" auxiliary running/stop/turn for place in bumper; led light to light up "SteelCraft" logo in bumper.
    Holy Chit. Every TACO needs these! Going to order turn signals. If you can’t see these you need a vision or sobriety test.:cheers::cheers: I have hijacked this thread enuf. Again. Thank you.:hattip:
