Towing harness issue SOLVED!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by projectmoonlite, Nov 16, 2020.

  1. Nov 16, 2020 at 12:48 PM
    #1
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    Fellas Im stumped. Ive eliminated the problem is the truck itself and not the trailer by using a test plug.

    Background: 2012 DCOR with factory towing package and all factory lighting. I once put in junction block/flasher relay to disable the DRL, but after finding out 2012+ integrated the towing converter relay into the DRL system, I put everything back to stock configuration.

    Problem: Truck brake light and signal works. Trailer right brake and signal does not.

    Testing: I've removed and replaced all known fuses/relays that tie to the towing harness. There's power to the harness, just not the right brake and right signal. However, when I hit the factory alarm to lock the doors, the test plug would light up, indicating there's power to the plug (both the left and right turn signal).

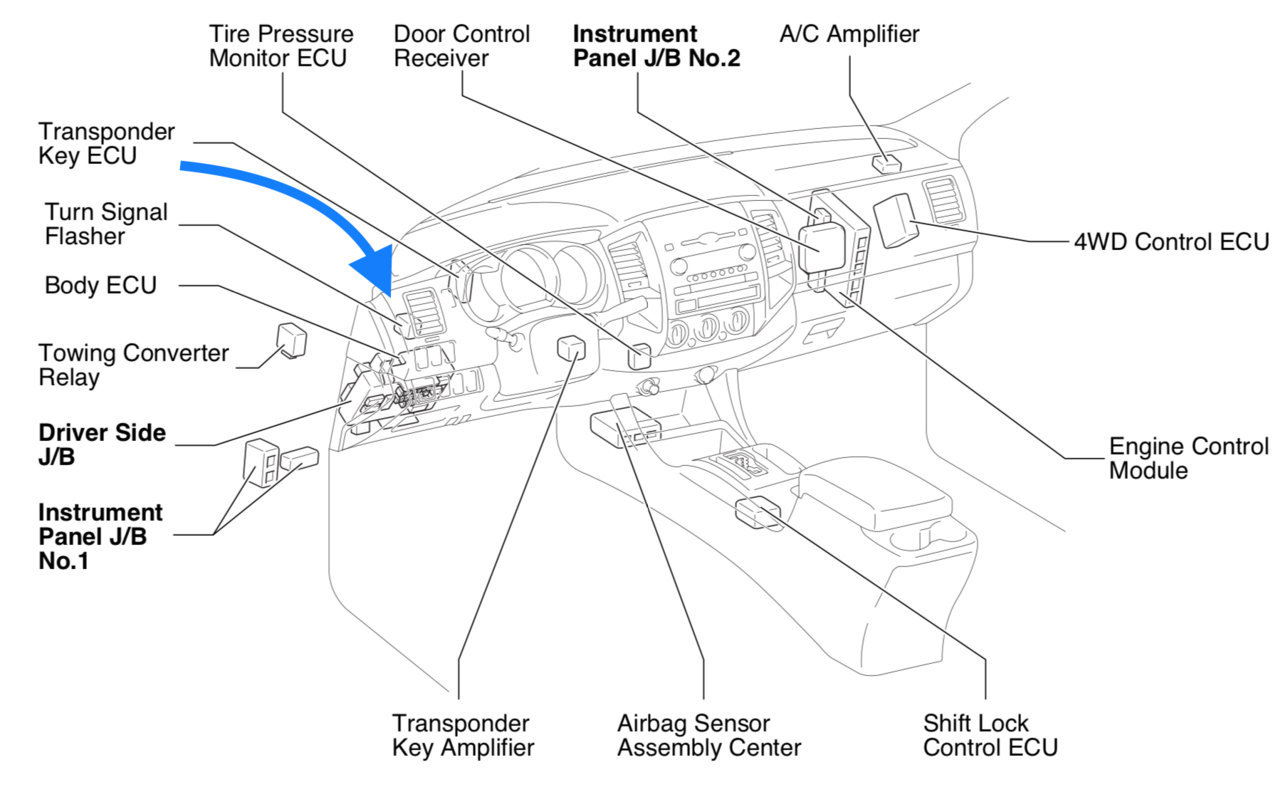

    Is there hidden fuse/relay that im not aware of? I've checked the ones in the engine bay and the ones by the kick panel.

    Thanks

  2. Nov 16, 2020 at 1:14 PM
    #2
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    3,648
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    This is a bit over my head?
    My guess would be that the Wireless Lock / Alarm uses the Hazard circuitry.
    And the Stop/Turn uses the Turn Signal?

    The strange part is the Stop light doesn’t work?

    Looks like this is a something for @caribe makaira to take a look at.
    I’m stumped too:confused:

  3. Nov 16, 2020 at 1:17 PM
    #3
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    The hazard switch would light up the left signal but not the right. :(

    Forgot to add, the right side gets power because when headlights are on, the right side is on. Just no signal and no brake. Flashes with door locking and unlocking.

    Last edited: Nov 16, 2020
  4. Nov 16, 2020 at 1:55 PM
    #4
    c212

    c212 Well-Known Member

    Joined:
    Jan 16, 2020
    Member:
    #316269
    Messages:
    75
    Gender:
    Male
    Any time I run into a problem like this on other people's trucks, the very first thing I check is how solid the grounds are, both on the truck and on the trailer. By that I mean truck ground connector to truck frame, and then (separately) trailer ground connector to trailer frame. Also check resistance between trailer frame to truck frame while the connector is plugged in. And don't go by just appearance; use an ohmmeter and look for a reading that's way down in the 0-5 ohm range (use the meter's X1 range). You will have to extend your test leads by many feet to perform these tests. Don't forget to check for nice clean metal on all plug contacts. If they look even slightly brown, hit them with a good dose of electrical contact cleaner and NOTHING ELSE.

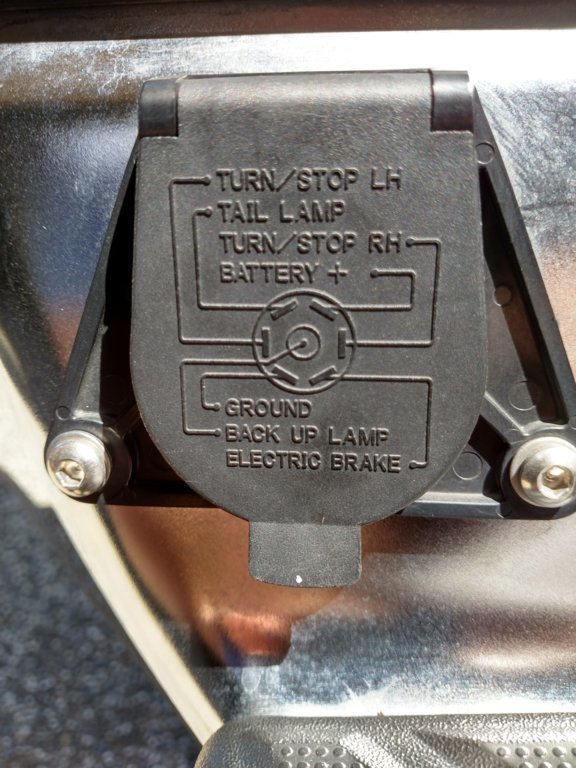

    Something else I've run across on 7-way connectors is people mating differently-wired connectors, that is, a 7-way "traditional" mated with a 7-way "RV standard."

    Also verify no wires in the harness are abraded/shorted to ground or each other, from the controller all the way back through the mating connectors and through the trailer frame.

    I've seen some truly awful wiring hack jobs, once by a very well-known truck conversion firm on a brand-new F350 diesel. That incident was when I decided never to trust anything again, and never again assume the wiring is okay.

    ABNFDC likes this.
  5. Nov 16, 2020 at 1:56 PM
    #5
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    3,648
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Yeah, that’s what is confusing.
    Both use the Flasher relay as far as I can tell?
    caribe makiare can probably figure it out?

  6. Nov 16, 2020 at 2:06 PM
    #6
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    Locking and unlocking the door activates the right turn signal lead in the harness, just not from turn signal stalk nor the hazard switch. Would that eliminate the possibility of a bad ground?

  7. Nov 16, 2020 at 2:14 PM
    #7
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    3,648
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Yes, you would think the ground is good if the other lights on the trailer work.
    You could easily test it by checking it with a DMM.
    Go from Ground to R/H Stop with a DMM or Test Light.

  8. Nov 16, 2020 at 2:14 PM
    #8
    ABNFDC

    ABNFDC Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195902
    Messages:
    884
    Gender:
    Male
    On Golden Pond
    Vehicle:
    2008 4WD Access Cab TRD OR "Rugged Trail"
    265/75/16 Wildpeaks, Dakar rear, HS 2.5" front coils
    Have you inspected and actually tested the connections with a test light or just the test plug? I know the results are likely the same, but it is hard to beat poking around with a 12v test light probe.

  9. Nov 16, 2020 at 2:18 PM
    #9
    c212

    c212 Well-Known Member

    Joined:
    Jan 16, 2020
    Member:
    #316269
    Messages:
    75
    Gender:
    Male
    You'll drive yourself crazy trying to find the source of the problem by looking at the symptoms. Get out the ohmmeter and check the integrity of your grounds, and make sure nothing's shorted (or open).

  10. Nov 16, 2020 at 2:19 PM
    #10
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    No test light was used. I've tried 2 different trailers, swap light bulbs, swap fuses with working ones... With the test plug I can safely say the trailer isn't the issue but the truck itself.

  11. Nov 16, 2020 at 2:21 PM
    #11
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    Yea I'll do that this week. I was actually going to my parents to grab my ohmmeter when locking the door of the truck triggered the test plug light. I jumped to conclusion there's a proper ground since that worked.

    TnShooter likes this.
  12. Nov 16, 2020 at 5:10 PM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,418
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

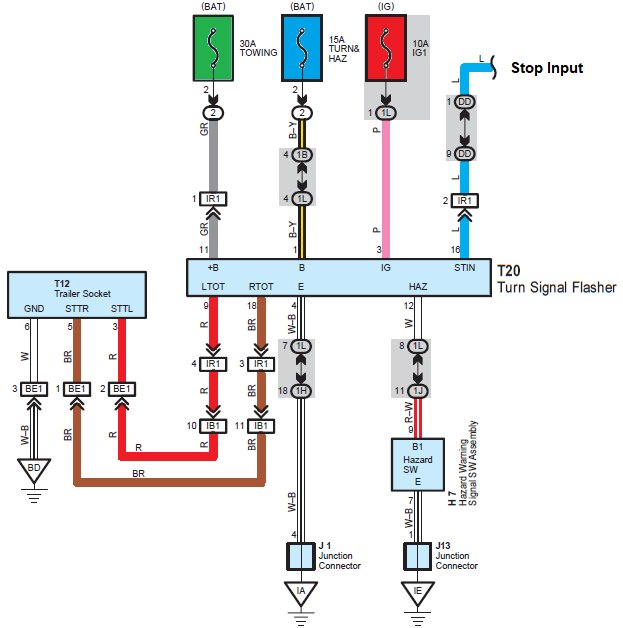

    Keeping just the affected circuit in this drawing (omitted the vehicle turns) The relay combines the stop and turn to one wire.
    Tail/Parking has its own wire.
    I'd say you have a failing relay.

    Last edited: Nov 16, 2020
    maxtherat and TnShooter like this.
  13. Nov 16, 2020 at 6:26 PM
    #13
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    Im not gonna lie, there were times during towing when I hit the brakes there's a burning smell coming from the dash area. I couldn't find anyone with this "burning smell while towing" issue. Wonder if it has to do with the failing relay.

  14. Nov 16, 2020 at 6:53 PM
    #14
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    3,648
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Do you have a Towing - Brake Controller?

  15. Nov 16, 2020 at 7:44 PM
    #15
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    No I do not. My small boat trailer doesn't have brakes.

    TnShooter likes this.
  16. Nov 16, 2020 at 8:21 PM
    #16
    TnShooter

    TnShooter Well-Known Member

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    3,648
    Gender:
    Male
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Well, then I check the flasher relay.



  17. Nov 16, 2020 at 8:25 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,418
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

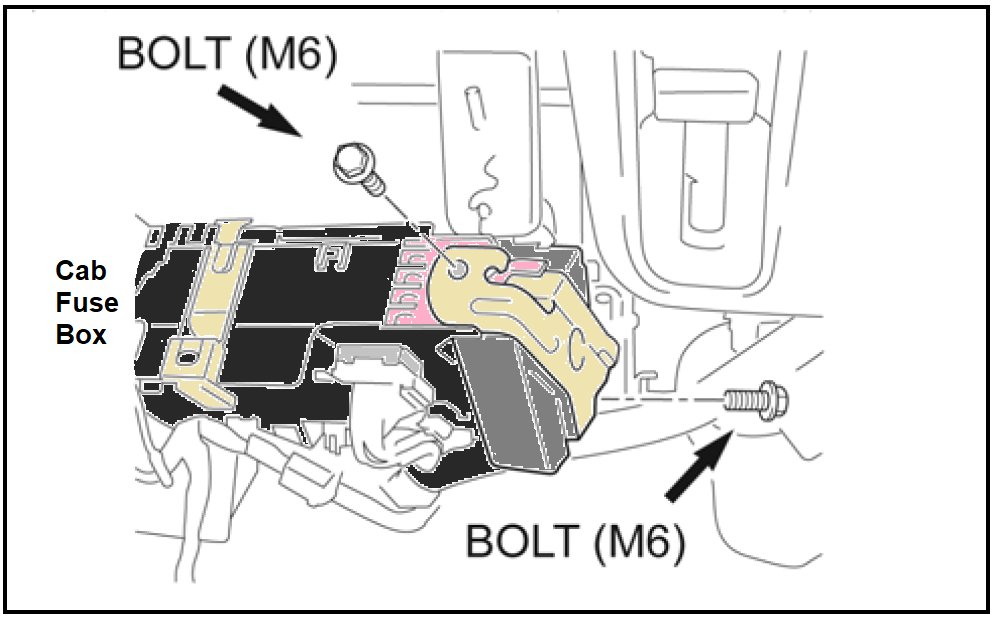

  18. Nov 16, 2020 at 9:07 PM
    #18
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    Thanks guys for all your help. I'll give it a look and report back my findings.

    spitdog and TnShooter like this.
  19. Nov 21, 2020 at 9:53 AM
    #19
    projectmoonlite

    projectmoonlite [OP] Taco noob

    Joined:
    Jul 6, 2018
    Member:
    #258524
    Messages:
    81
    Gender:
    Male
    Texas
    Vehicle:
    2012 Truck
    caribe makaira, thanks for leading me to the problem.

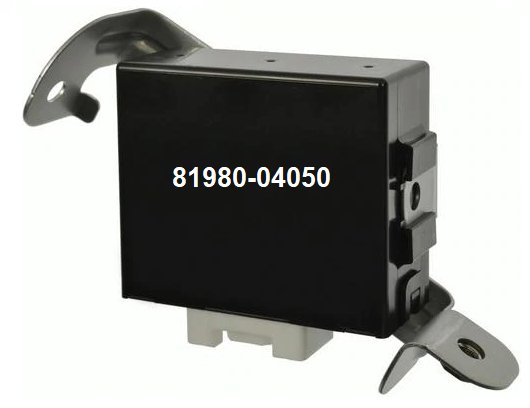

    I ordered a new turn signal flasher, 81980-04050.

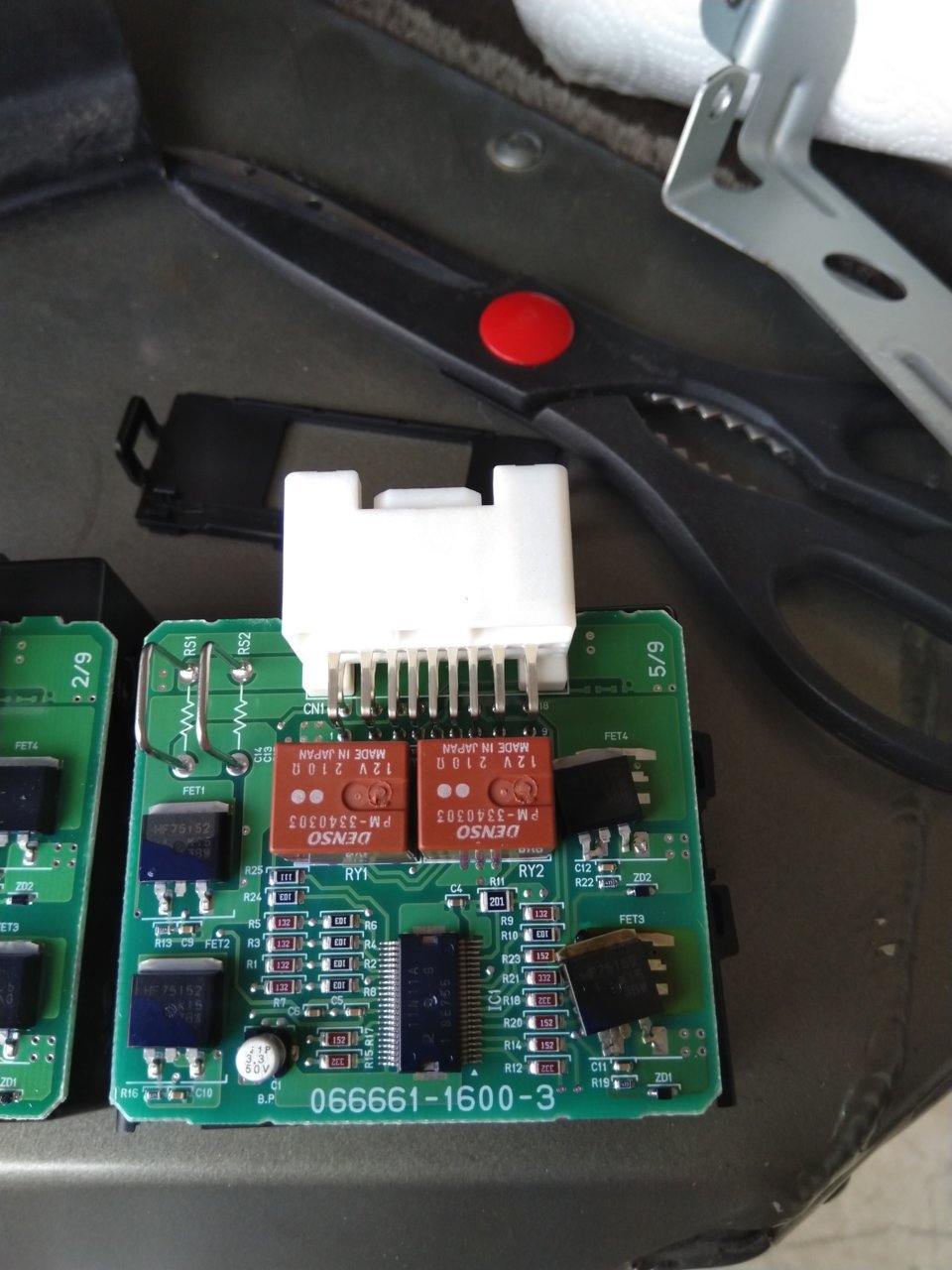

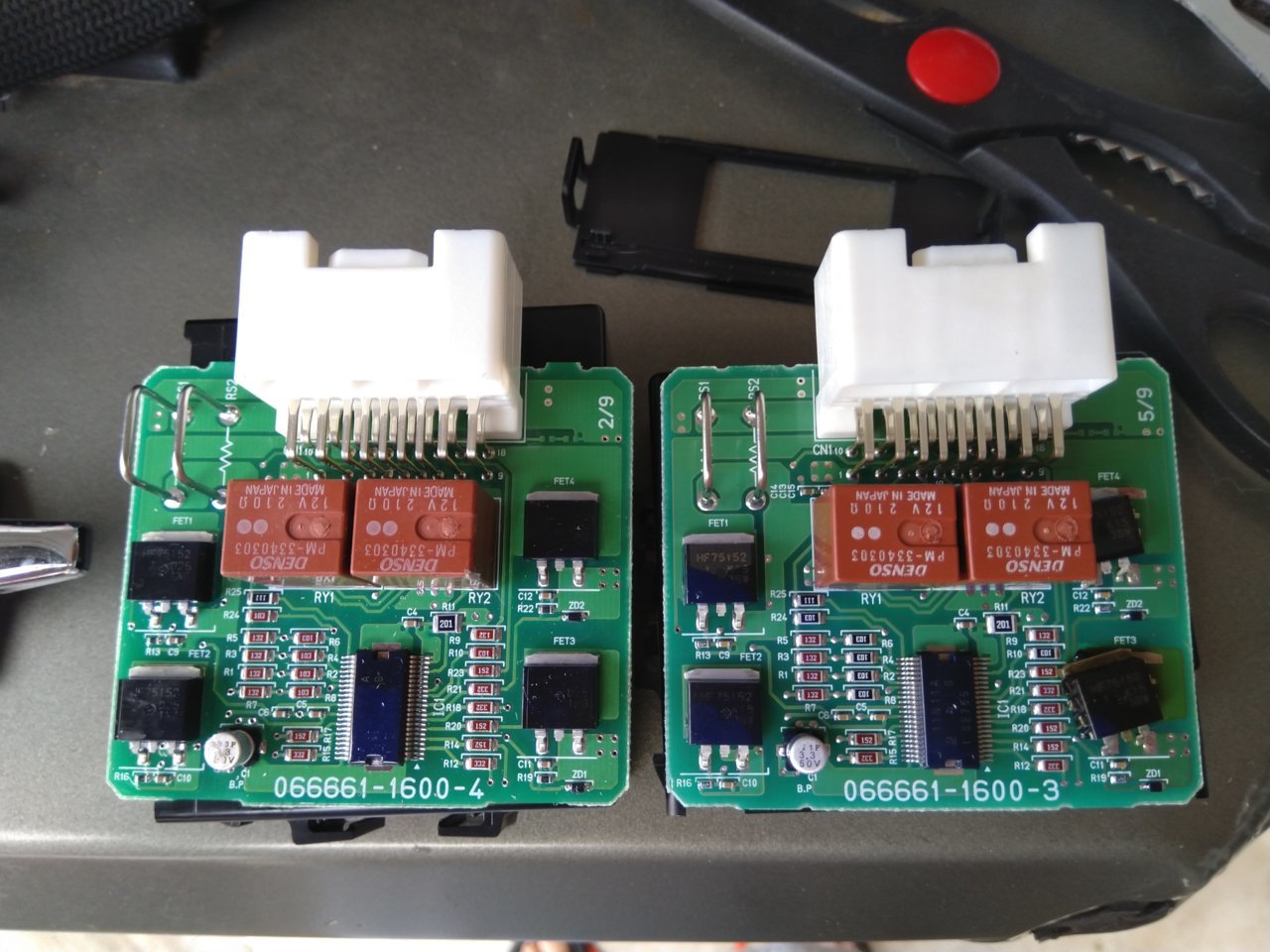

    I took apart the new one and the old one to compare, the old one is sorta burnt and the chips are shifted. I assume it's a bad flasher from the factory? I can't imagine anything can cause that to happen.

    Back to normal functioning tow harness. Thanks guys. IMG_20201121_110634.jpg IMG_20201121_110650.jpg

    TnShooter likes this.
  20. Nov 21, 2020 at 10:07 AM
    #20
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,248

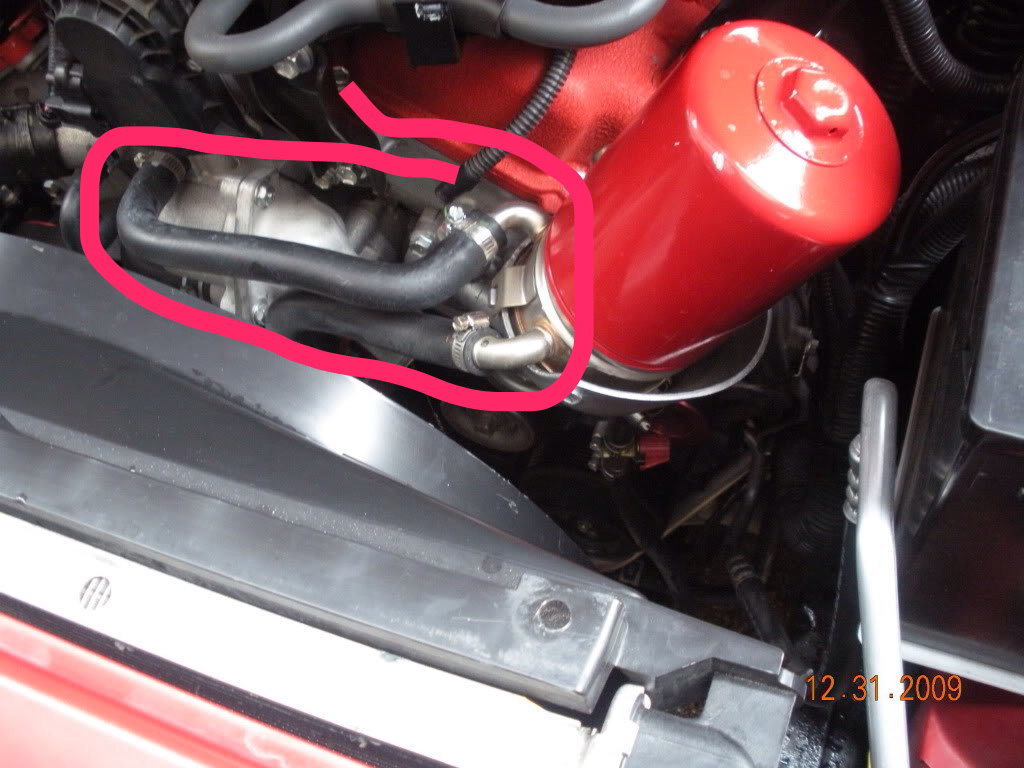

    You mentioned that you have the factory tow package. I’m curious if it really is, or if it’s a dealer installed tow package. Do you have the engine oil cooler?
