Toyota AK10

Discussion in 'Toyota Trucks & SUVs' started by KenLyns, Dec 21, 2013.

  1. Dec 21, 2013 at 8:34 PM
    #1
    KenLyns

    #1
    KenLyns [OP] 8.75" Third Member

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    29,365
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off-Road Full-Auto
    LED Headlights, Volant CAI, 32" Duratracs
    http://www.toyota-global.com/compan...otive_business/chapter2/section5/item8_b.html

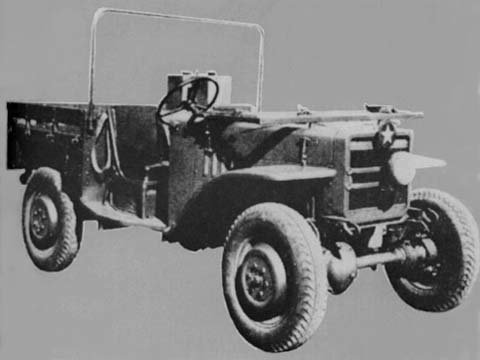

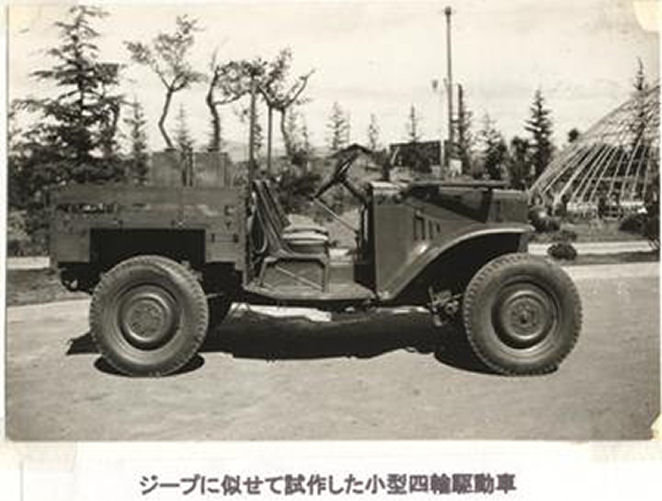

    This is the very first Toyota 4x4 "SUV", two generations before the FJ40. Toyota designed it based on captured Bantam jeeps. (Don't ask what Japan did to the American soldiers who drove the Bantam jeeps...)

    Model 4-wheel drive
    Engine C engine (4-cylinder, 2,258 cc, 50 hp)
    Transmission 3 forward gears, 1 reverse
    Sub-transmission 2-speed variable
    Wheelbase 2,300mm
    Length 3,360mm
    Width 1,570mm
    Height 1,800mm
    Track Front and rear 1,300 mm
    Vehicle weight 1,100kg
    Load capacity 500kg

    [​IMG]

    [​IMG]



    KenLyns, Dec 21, 2013
    #1
