Trail Toys UHMW Gas Tank Skid

Discussion in 'Trail Toys' started by SMKYTXN, Mar 2, 2015.

?

What color of UHMW would you prefer?

Poll closed Apr 2, 2015.
  1. BLUE

    7 vote(s)
    10.1%
  2. BLACK

    52 vote(s)
    75.4%
  3. RED

    10 vote(s)
    14.5%
  1. Mar 2, 2015 at 4:33 PM
    #1
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

    Skids are currently in stock!

    DCSB/Access Cab

    DCLB


    www.trailtoys.net

    I have put together a new gas tank skid for 2nd gen Tacomas. My skid is made out of UHMW (Ultra High Molecular Weight) Polyethylene. The material is a full ¼” thick and is very puncture resistant and slippery. The material is actually silicon injected which adds to it’s tendency to slip over obstacles rather than get caught on them.

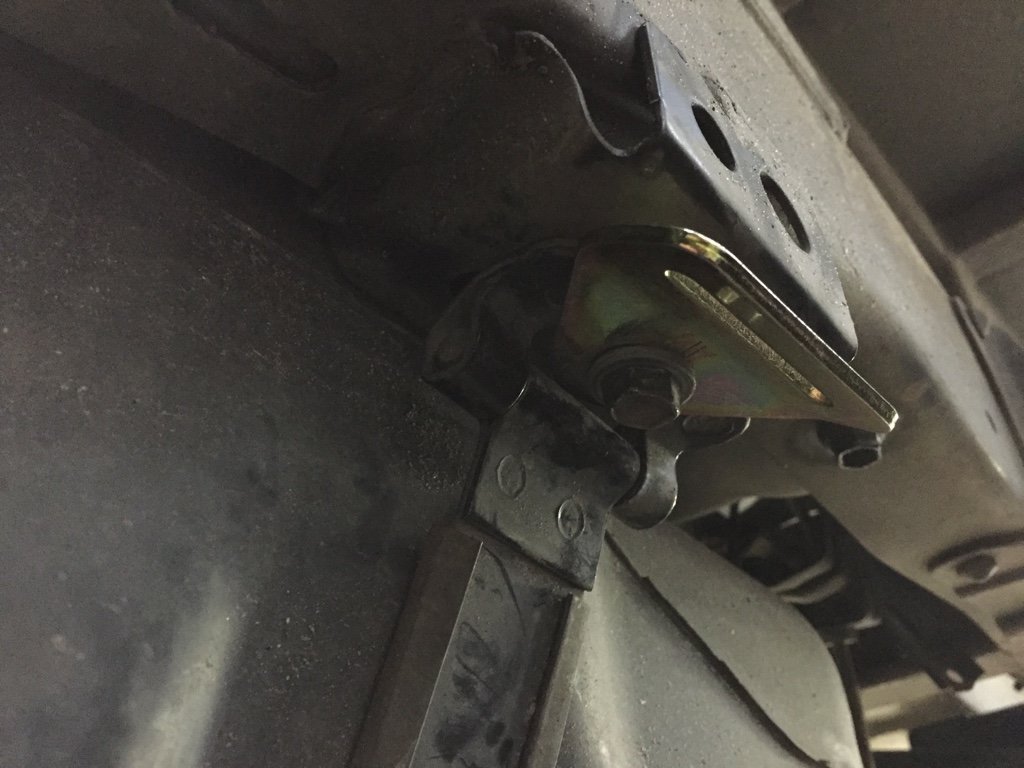

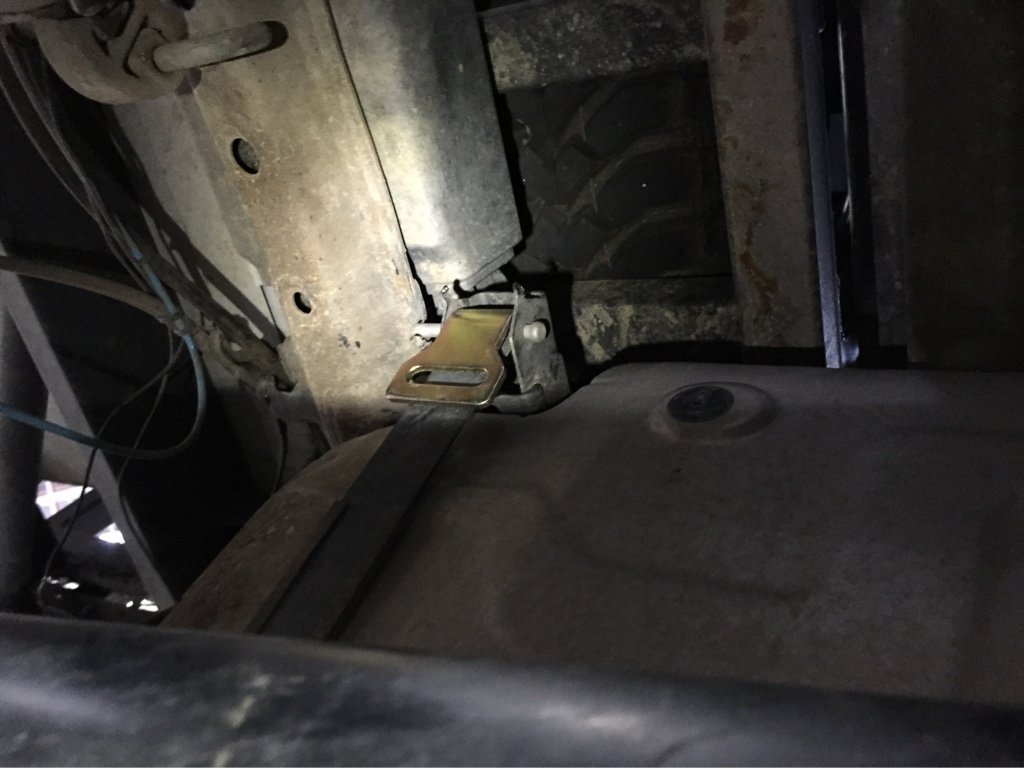

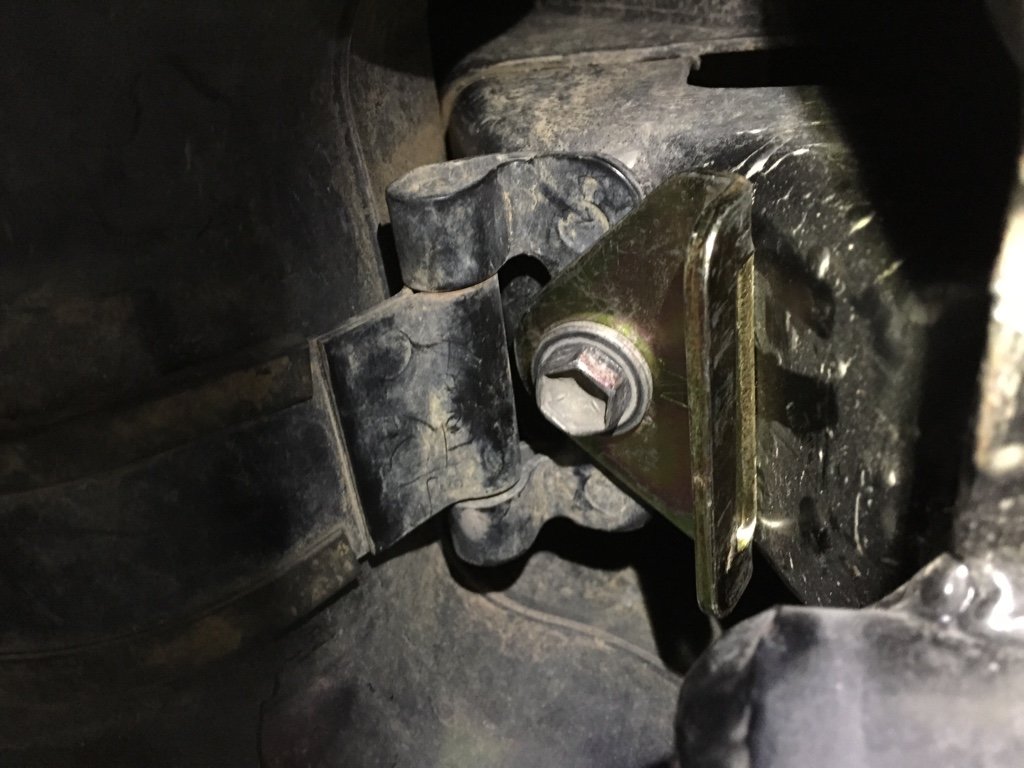

    The skid attaches to your truck using 2” endless loop cam buckle straps. Two hooks are provided that slip over the passenger side of the gas tank straps and two anchor mounting brackets bolt to the drivers side of the gas tank straps. The beauty of this design is that those of us that didn’t buy off roads don’t have to buy new $80 gas tank straps. The breaking strength of the webbing and associated hardware is 6,000lbs.

    The skid weighs in at a meager 8lbs. We already have enough weight on the drivers side of the truck, no need to add any more to that than we have too.

    Don’t forget that you don’t have to paint this skid ever! :D

    Installation time should be less than an hour.



    By popular request, the default color of the skids will be black. Here is the complete package.

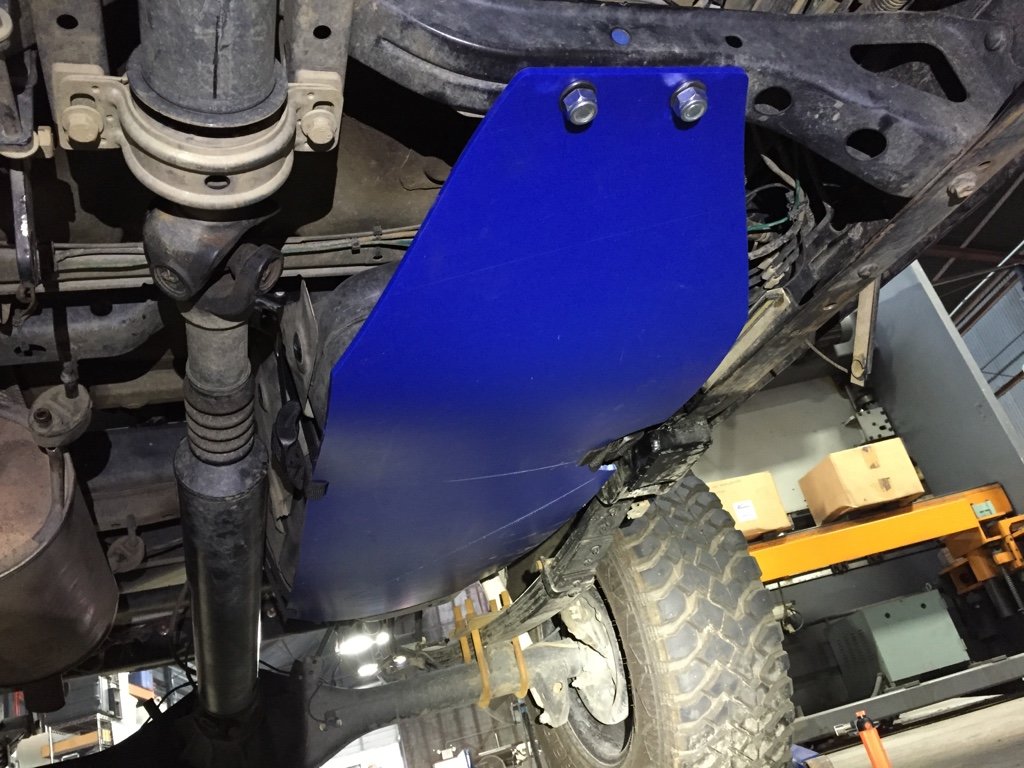

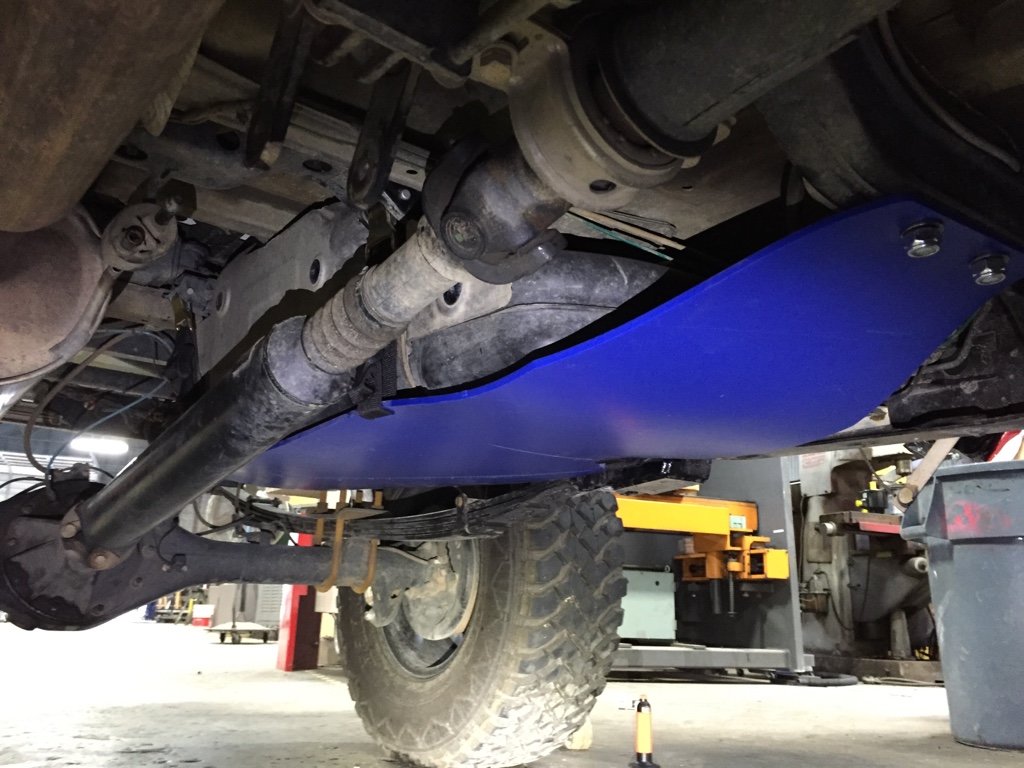

    Prototype pictures below.






    [​IMG]

    Last edited: Jan 5, 2018
  2. Mar 2, 2015 at 4:53 PM
    #2
    TheNatural

    TheNatural Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,166
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    But... does it come in black?

  3. Mar 2, 2015 at 5:01 PM
    #3
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    The standard color is Blue. Black is available for a slight upcharge.

    For the most part the other colors are meant for specific purposes. There's a bright red that is intended for high heat applications, for instance.

    I can put together a list of colors and costs if folks are interested.

    ChadsPride likes this.
  4. Mar 2, 2015 at 5:08 PM
    #4
    KenLyns

    KenLyns 8.75" Third Member

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    29,364
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off-Road Full-Auto
    LED Headlights, Volant CAI, 32" Duratracs
    How does the skid terminate at the rear? Any potential interference with diff lock actuator guards? (Though the skid probably can be trimmed easily to accommodate.)

  5. Mar 2, 2015 at 5:11 PM
    #5
    TheNatural

    TheNatural Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122175
    Messages:
    2,166
    Gender:
    Male
    Fort Nelson, BC
    Vehicle:
    '12 DCLB
    Lots of bolt on chrome stuff
    I'd be interested in a price for black.

    The low weight of these is really appealing, especially because it's all on one side. I haven't totally convinced myself yet though.. it feels weird to put things on my truck that aren't steel.

    High heat could be useful. If your gas tank ever catches fire, you can reuse the skid on the next taco! :cool:

    ManBeast likes this.
  6. Mar 2, 2015 at 5:17 PM
    #6
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    The skid terminates about six inches before the end of the gas tank. There shouldn't be any interference issues.

    I will get prices on the different colors tomorrow. LOL, I think you might have bigger issues if you catch your truck on fire than trying to reuse a skid.

  7. Mar 2, 2015 at 5:23 PM
    #7
    phillstill

    phillstill Long hair don't care

    Joined:
    Jan 9, 2012
    Member:
    #70318
    Messages:
    9,227
    First Name:
    Phill
    Tulsa
    Vehicle:
    Sweet Blue Coyote
    Untouched
  8. Mar 2, 2015 at 11:32 PM
    #8
    Mach375

    Mach375 Habitual Violator of Wheeling Rule #2

    Joined:
    Sep 18, 2010
    Member:
    #43428
    Messages:
    2,164
    Gender:
    Male
    First Name:
    Sathington "Alowicious Devadander Abercrombie" Willoughby (but you can call me Mud)
    Location: Satan's Stinky Butthole (SoCal)
    Vehicle:
    '11 DCLB 4x4 TRD Sport
    Too much to list, but enough to get me in trouble. Repeatedly.
    :spy: :spy:

    UHMWPE is good shit. SO MANY uses for it. This is a new one on me.

  9. Mar 3, 2015 at 4:11 AM
    #9
    greeneggsnspam

    greeneggsnspam ಠ_ಠ

    Joined:
    Oct 30, 2013
    Member:
    #115524
    Messages:
    42,619
    Gender:
    Male
    Houston, TX
    Vehicle:
    .gif
    Too poor to list anything interesting.
  10. Mar 3, 2015 at 7:36 AM
    #10
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,822
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Hot damn!!! :bravo:

    Ready to make under aero as well. :) Seriously though. I'd be #1 on that list if I off roaded.... however.....it is still quite useful if I ever rally cross....hmm..

  11. Mar 3, 2015 at 7:56 AM
    #11
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Thanks Mark. You do know those course cones are notorious for ruining gas tanks, right? Better jump on it. :D

  12. Mar 3, 2015 at 8:29 AM
    #12
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,990
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
    hmmmm, new bathroom vanity or a kickass gas tank skid....decisions decisions. Might have to opt out of the gb, but i will have one of these soon!

  13. Mar 3, 2015 at 9:35 AM
    #13
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    10,413
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    Interested. 2 questions, will it fit a long bed, and will shipping to Canada be ridiculous?

  14. Mar 3, 2015 at 9:42 AM
    #14
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    I will have to verify that the distance between the cross member and the mounting straps are the same. Shipping is definitely going to be more, but I won't know how much till I take these things over for shipping. Send me a PM with your location so I can get you a quote.

  15. Mar 3, 2015 at 10:07 AM
    #15
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Ok, I verified the colors and pricing. I am able to get blue, red, and black. I will be buying full sheets, so for this group buy I would like to stick to one color. Please voice your opinion as to what color you would prefer.

    I will honor my stated prices for whatever color is chosen. Prices will vary once the group buy is over.

  16. Mar 3, 2015 at 10:31 AM
    #16
    ruggedT

    ruggedT The Sticker Guy

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    3,177
    Gender:
    Male
    First Name:
    Stan
    Midlothian, Va
    Vehicle:
    2016 Ford F250
    Diesel on 35's
    I run a 1/2" one on my Ford, but in hdpe. Slick as shit!

  17. Mar 3, 2015 at 2:34 PM
    #17
    crazy joker

    crazy joker Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88787
    Messages:
    1,452
    Gender:
    Male
    First Name:
    Jesse
    Charlotte area, NC
    Vehicle:
    2014 DCLB sport 4x4
    Real men just call it camping
    I'm somewhat interested depending on how it fits my DCLB. I measured the distance from the center line of the holes you used for mounting on the cross member to front edge of the gas tank. I got 16".

  18. Mar 3, 2015 at 4:02 PM
    #18
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

    Please measure the distance between the straps and from the front strap to the front of the tank. Thanks!

  19. Mar 3, 2015 at 4:12 PM
    #19
    Glueman

    Glueman Yersinia pestis

    Joined:
    Dec 27, 2012
    Member:
    #93882
    Messages:
    2,100
    Gender:
    Male
    Utah
    Vehicle:
    The Plague....
    6 inch Douche Bag lift...what else do I need?
    So much want! Was thinking about a steel one but the weight is considerable. This is an awesome solution to that issue.

  20. Mar 3, 2015 at 5:38 PM
    #20
    crazy joker

    crazy joker Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88787
    Messages:
    1,452
    Gender:
    Male
    First Name:
    Jesse
    Charlotte area, NC
    Vehicle:
    2014 DCLB sport 4x4
    Real men just call it camping
    From center to center, the straps are 24 1/2" apart. From the center of the front strap to the front of the tank is 11 1/2".
