Trailer hitch wiring question - adding a 4 pole flat

Discussion in '2nd Gen. Tacomas (2005-2015)' started by fshams, Jan 25, 2018.

  1. Jan 25, 2018 at 5:18 AM
    #1
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB
    My 2012 Tacoma came with the OEM hitch and 7 pole wiring. I'd like to add a 4 pole flat wiring and retain my 7 pole wiring. I'm told I can easily add a T connector wiring for this.
    Has anyone done this and how?

  2. Jan 25, 2018 at 5:27 AM
    #2
    Stemmy

    Stemmy Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215220
    Messages:
    224
    Gender:
    Male
    First Name:
    Rob
    Pennsylvania
    Vehicle:
    2013 Pyrite Mica DCLB SR5
    I just use a 7 to 4 pin adapter.

  3. Jan 25, 2018 at 5:32 AM
    #3
    Muffdiver

    Muffdiver Growing old is mandatory, growing up is optional

    Joined:
    Jun 16, 2015
    Member:
    #157550
    Messages:
    1,111
    Gender:
    Male
    First Name:
    Ty
    Elkhart, In
    Vehicle:
    2012 TRD OR DC 4x4
  4. Jan 25, 2018 at 6:51 AM
    #4
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB
  5. Jan 25, 2018 at 6:58 AM
    #5
    edm3rd

    edm3rd Well-Known Member

    Joined:
    Oct 22, 2012
    Member:
    #89550
    Messages:
    896
    Gender:
    Male
    First Name:
    Duke
    Memphis TN
    Vehicle:
    09 PreRunner AC 6sp
    hard tonneau,scangauge
    For clarification, do you need to use both the 7-pin and 4-pin at the same time?

  6. Jan 25, 2018 at 7:04 AM
    #6
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB
    Exactly... I have a LED light bar that I need attached in to the 4 pin flat module at all

  7. Jan 25, 2018 at 7:15 AM
    #7
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,052
    Rattletrap66 likes this.
  8. Jan 25, 2018 at 7:24 AM
    #8
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,991
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Why run the Light bar from the trailer plug?

    Rattletrap66 likes this.
  9. Jan 25, 2018 at 7:36 AM
    #9
    Tacosail

    Tacosail Well-Known Member

    Joined:
    Feb 24, 2017
    Member:
    #211525
    Messages:
    383
    Gender:
    Male
    First Name:
    Jerry
    Hermanville Heights, Ohio
    Vehicle:
    '13 white ACLB
    '17 wheels,int. Wipers , bed mat , relocate trailer plug , husky floor liners , Lund nerf bars, wet Okole seat covers- heat & lumbar.
    This is the way to go. I think that they make them in 4 and 5 pin configurations, get the 4 pin model if you don't need the 5 pin, as you will have to cut off the back end of the boot on the 4 pin plug to install it on the 5 pin connector, losing some of its water resistant abilities . More important, if you plan on keeping it plugged in all the time.

  10. Jan 25, 2018 at 7:43 AM
    #10
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,052
    The one I posted works with 4 and 5 pin connectors with no cutting of the plug required. The one that has just a 4 pin connector has a molded connector for Ford.

  11. Jan 25, 2018 at 11:49 AM
    #11
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB
    I don't want to splice in to the existing wiring. I've seen T-connectors that you plug in between the factory wiring and the 7 pin module which adds the extra 4 pin flat module. Just not sure how to disconnect the existing wiring at the 7 pin connector below the bumper.

  12. Jan 25, 2018 at 12:09 PM
    #12
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    6,052
  13. Jan 25, 2018 at 12:52 PM
    #13
    Gunshot-6A

    Gunshot-6A West Coast Randy

    Joined:
    Dec 29, 2009
    Member:
    #28389
    Messages:
    14,869
    Gender:
    Male
    First Name:
    Conner
    Salt Lake City
    Vehicle:
    2015 TRD Offroad
    @fshams I asked the exact same question before trying to do the same thing ( Baja Designs RTL in my case). I could never get an answer from anyone that had actually done it on a tacoma. You may have to be the guinea pig on this one.

    I found an easy work around since I had to run some of the wiring up to the engine bay for my switchpros anyway. I just used the trailer brake controller pigtail as the signal.

  14. Jan 25, 2018 at 6:24 PM
    #14
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,991
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Let me rephrase, why run the led bar off of the trailer wiring at all. Also where is it mounted(what's its purpose) and how are you controlling it.

  15. Jan 26, 2018 at 3:23 AM
    #15
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB
    This is what I’m referring to:


  16. Jan 26, 2018 at 4:17 AM
    #16
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,991
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    OK, now that makes sense.

  17. Jan 31, 2018 at 3:42 PM
    #17
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB
    I like to add a 4 way flat connector to my OEM 7 way connector using the T-connector as described in the video described at the link below. I just can't figure out how to unplug the factory wiring from the back of the 7 way connector in order to add the T-connector... I already have a 7way to 4way plug adaptor, but I prefer to add a permanent plug-n-play 4way solution. Has anyone done this, and can advise me on how to do this?

    https://www.etrailer.com/Custom-Fit...Tacoma/2012/118384.html?vehicleid=20121176459

  18. Feb 1, 2018 at 7:31 AM
    #18
    docbrown

    docbrown Well-Known Member

    Joined:
    Feb 13, 2010
    Member:
    #31326
    Messages:
    842
    Gender:
    Male
    Tampa, FL
    Vehicle:
    05 Tacoma SR5 4X4
    Doug Thorley Long Tube Headers, Eclipse 6620 AVN GPS/DVD, K&N Drop-in Air Filter, Hose clamp mod, Redline Quick Lift Elites, Bilstein 5100's at .85, Firestone Ride Rite Air Bags, Weather Techs front and back, Bug Guard, and Factory Bull Bar, Wet Okole's up front, Bed Mat, LED interior lights, Fumoto Oil Valve
    There are instructions in link you provided. Looks like you do not disconnect from the back of the 7 pin connector, but you follow the wires from the back of the 7 pin connector to a plug that you then disconnect and plug in the new wiring harness with the 7 pin and 4 pin connector. You might need some zip ties to finish the job and I would recommend getting the attachment bracket as well to make a clean install.


    Attached Files:

  19. Feb 8, 2018 at 9:07 AM
    #19
    fshams

    fshams [OP] Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21067
    Messages:
    624
    Gender:
    Male
    Columbus, OH
    Vehicle:
    2012 Tacoma V6 4x4 TRD/TX PRO - DCSB

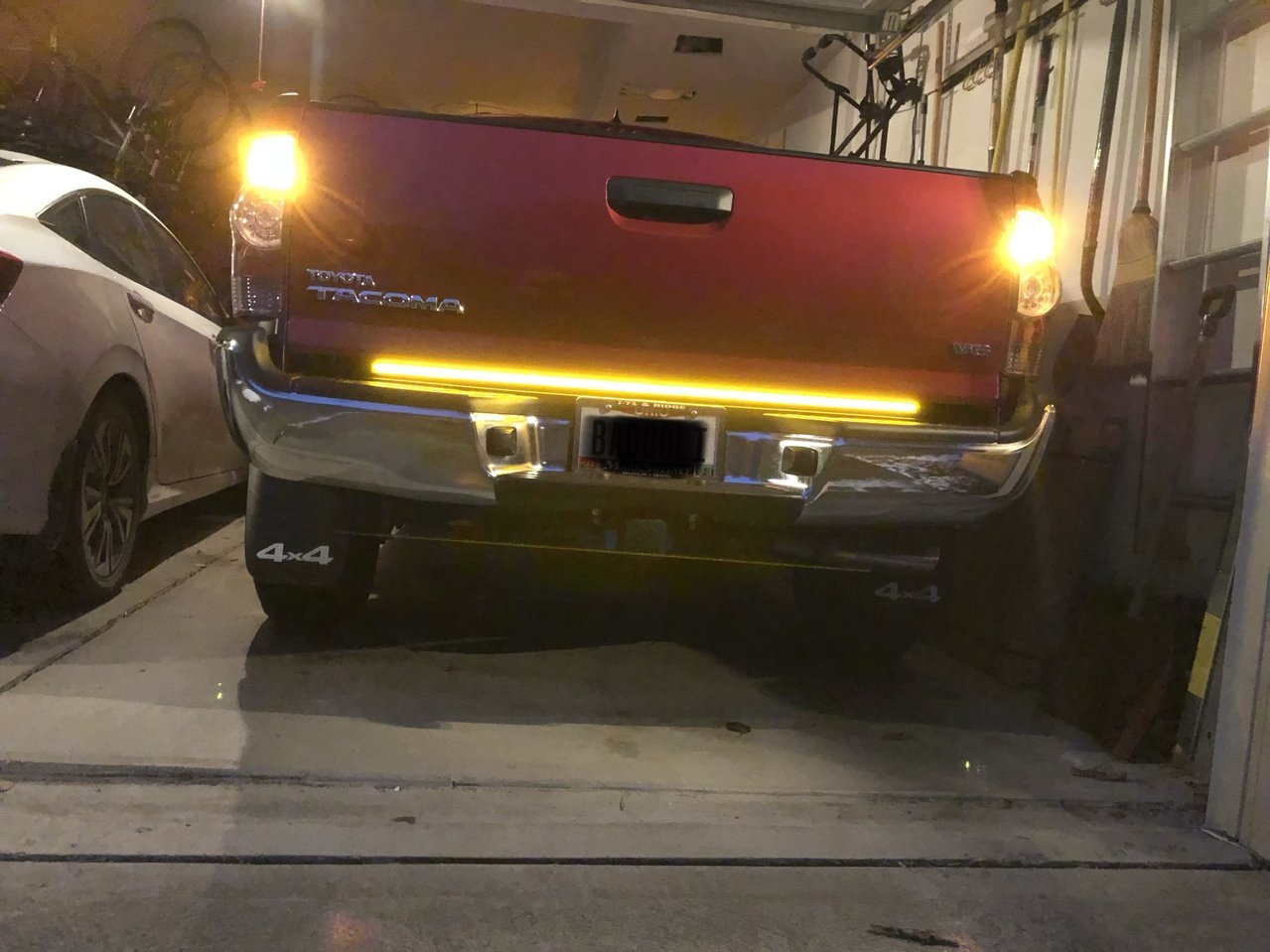

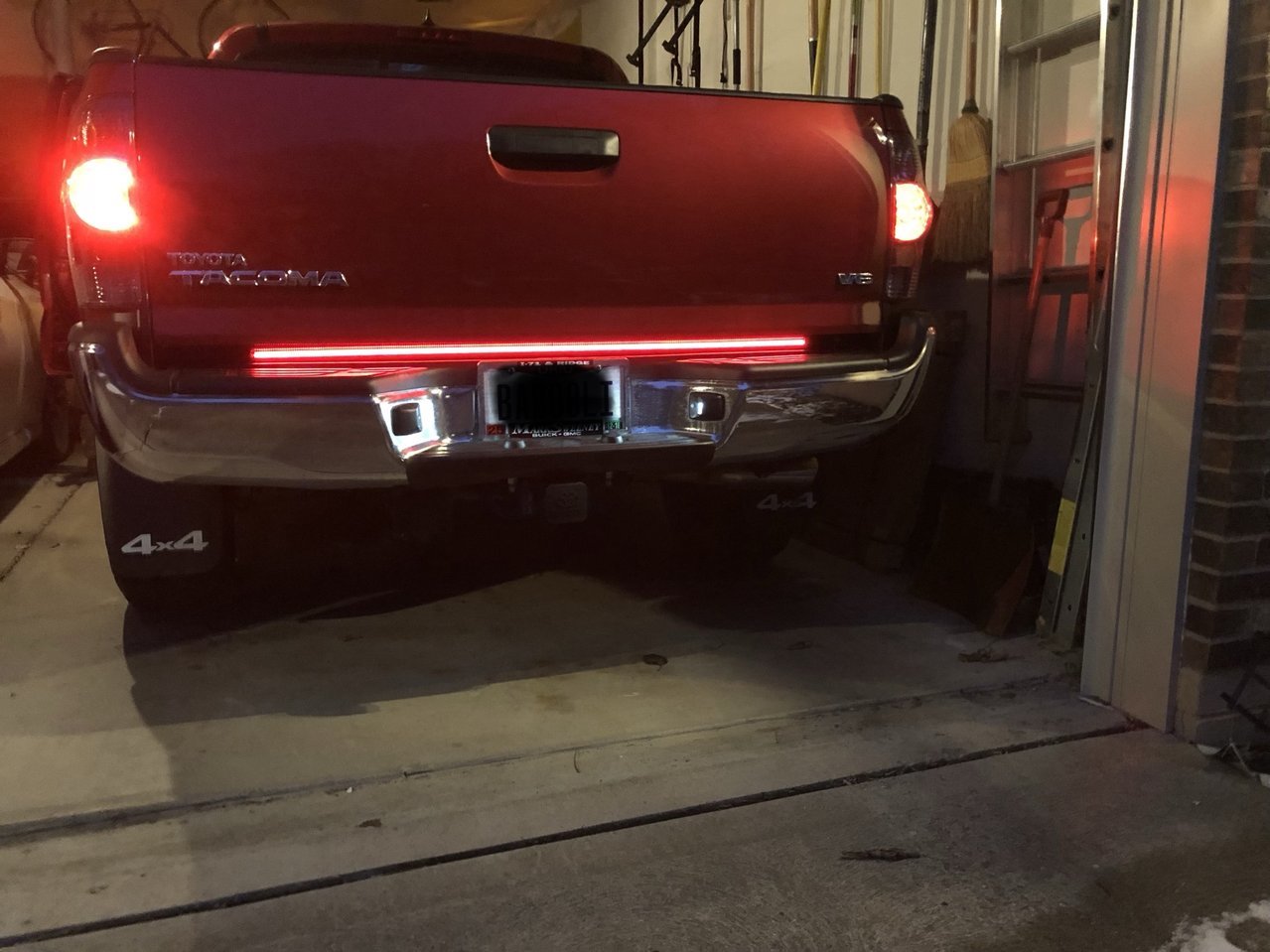

    So, I ended up installing these custom wiring from E-trailer instead. All plug-n-play and it only took 20-30 minutes to complete.
    I now have a 4 way flat connector I’ve plugged my rear light bar in, and tucked it away securely behind the bumper inside the frame. Very happy with the product. :) :thumbsup:


  20. Feb 8, 2018 at 9:33 AM
    #20
    Tacosail

    Tacosail Well-Known Member

    Joined:
    Feb 24, 2017
    Member:
    #211525
    Messages:
    383
    Gender:
    Male
    First Name:
    Jerry
    Hermanville Heights, Ohio
    Vehicle:
    '13 white ACLB
    '17 wheels,int. Wipers , bed mat , relocate trailer plug , husky floor liners , Lund nerf bars, wet Okole seat covers- heat & lumbar.
    That's sweet! Nice job.
