Trans temp sensor

Discussion in '2nd Gen. Tacomas (2005-2015)' started by windsor, Oct 22, 2016.

  1. Oct 22, 2016 at 3:01 PM
    #1
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Now that I have installed my trans cooler, I think I'll go ahead and install the trans temp sensor for the gauge that I have mounted in my pillar pod.
    Has anyone here added a temp sensor bung to the trans pan? Where would be the best spot on the pan to put the sensor? Side, front, back?

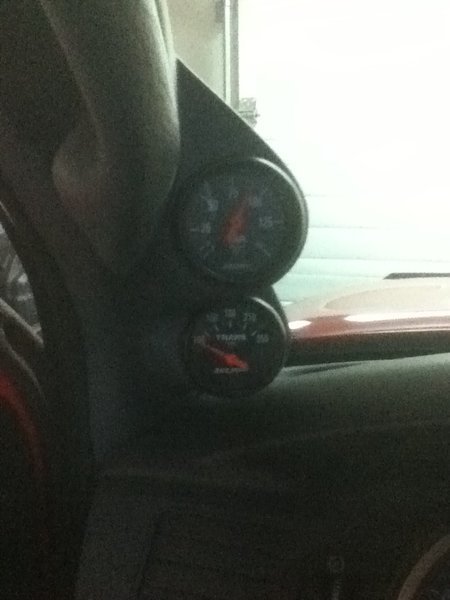

    I'm not going to get a SG since I have a gauge mounted in the pillar pod already.

    Last edited: Oct 22, 2016
  2. Nov 1, 2016 at 6:29 PM
    #2
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    I'll be doing this on my next oil change. Still trying to figure out the best spot to put the sensor.

  3. Nov 5, 2016 at 12:02 PM
    #3
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.

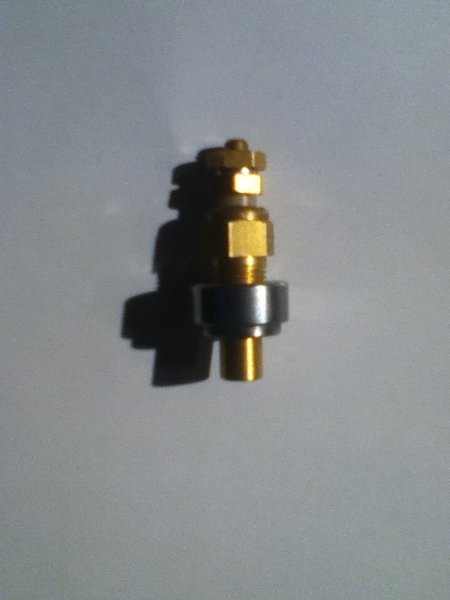

    Weld in (shouldered) bung arrived today, threads are 1/8-27 NPT. Picked up a new pan gasket on Thursday. The level of idiocy was amazing at the dealer. Told the guy at the parts counter I needed a transmission pan gasket for a 2007 Tacoma Prerunner 4.0L with automatic. He proceeded to name off the engine sizes available, I repeated 4.0L 1gr-fe V6. To which he replied "that's not an option for a '96.
    Anyways, got the correct one at the end of all the BS. So, probably going to do it next month when I do the oil change and tire rotation.

    Last edited: Mar 4, 2017
    gearcruncher likes this.
  4. Nov 6, 2016 at 3:40 PM
    #4
    tan4x4

    tan4x4 Well-Known Member

    Joined:
    Nov 30, 2011
    Member:
    #67982
    Messages:
    3,810
    Gender:
    Male
    First Name:
    Rick
    Folsom, CA
    Vehicle:
    99 Tacoma EC 4x4 2.7L Auto
    Bilsteins, OME 881's, 3-leaf AAL, Detroit TruTrac, Tundra brake swap, Michelin LTX AT2, Tranny skidplate, TC skidplate, CBI rear bumper, TG sliders, UltraGauge, PowerTank, Reverse Camera
    If there isn't an option to splice in a sensor into a flexible cooling line, there should be . :(

  5. Nov 6, 2016 at 5:51 PM
    #5
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Putting it inline can be done. Cut the hard line, install a compression T fitting.
    Installing in a rubber hose would require a T fitting with a ground strap/wire.
    I was hoping there would have been a test port that I'd be able to use. But, by putting it in the pan, I can monitor temp of fluid in what I think is a reliable manner without having to use an OBD device.

  6. Feb 24, 2017 at 3:30 PM
    #6
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Sunday, I will be pulling my pan and drilling it for a weld in bung. Already talked with the guy who does welding for me and he said Monday won't be a problem to stop by and get it tig welded. I'll take pictures while doing the install.
    Stopped by the dealer today and got 6qts of WS ($9.95/qt).

  7. Feb 26, 2017 at 1:25 AM
    #7
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    13,525
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    If you swap something into your truck and ask for a part most Toyota Parts people are clueless .

    There whole System is set up via the VIN telling them just what is in your truck.

    Then as the older parts people retire it just gets worse.

    Since some transmission pans are quite shallow make sure you have enough room for the sensor to have enough clearance .

    Yours might be just fine

    I ran into that years ago doing the welding of the bung

  8. Feb 26, 2017 at 4:20 PM
    #8
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    A little pic heavy. Got the pan off, cleaned up and hole drilled for the weld in bung. Placement of the sensor is on the driver side almost even with the filter pick up tube.

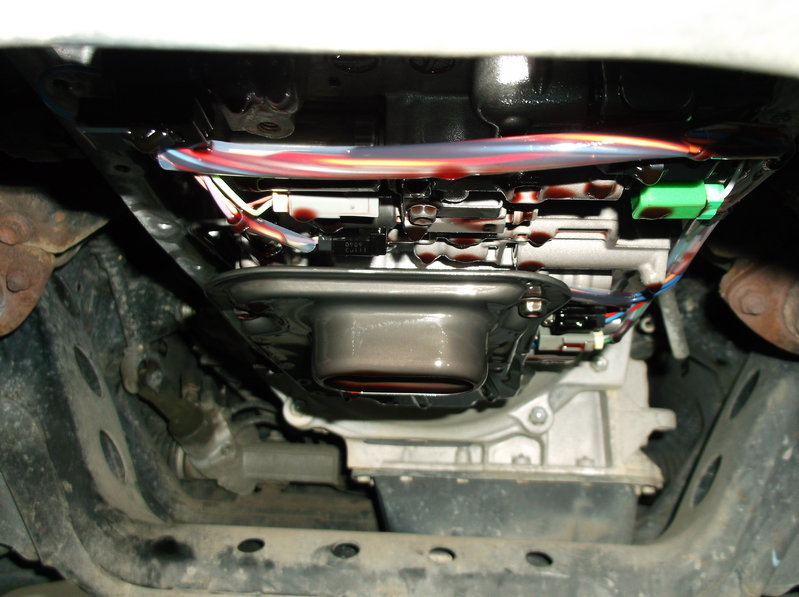

    These pictures show what you will find when you take the pan off. Nothing unusual. Red fluid dripping from everything.
    DSCF0066.jpg DSCF0067.jpg DSCF0068.jpg

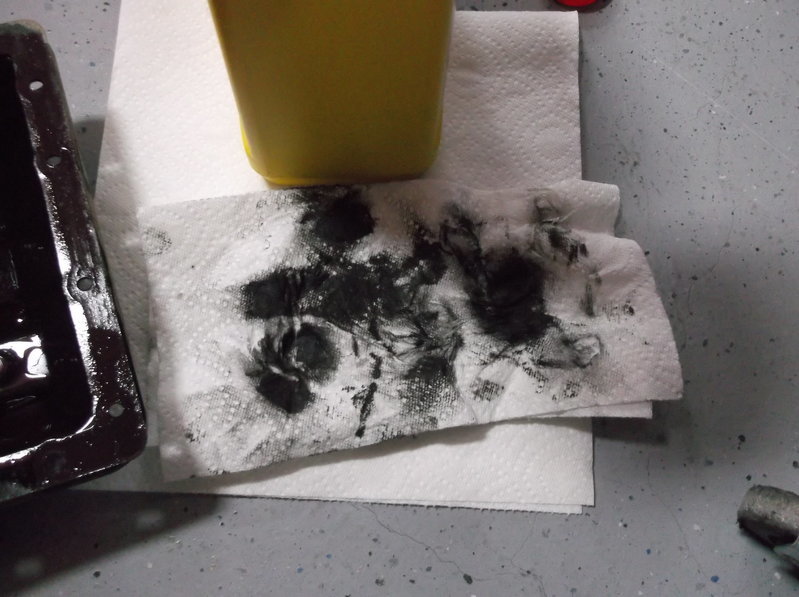

    This picture shows what was cleaned off of the 4 pan magnets.
    Color of the fluid after draining.

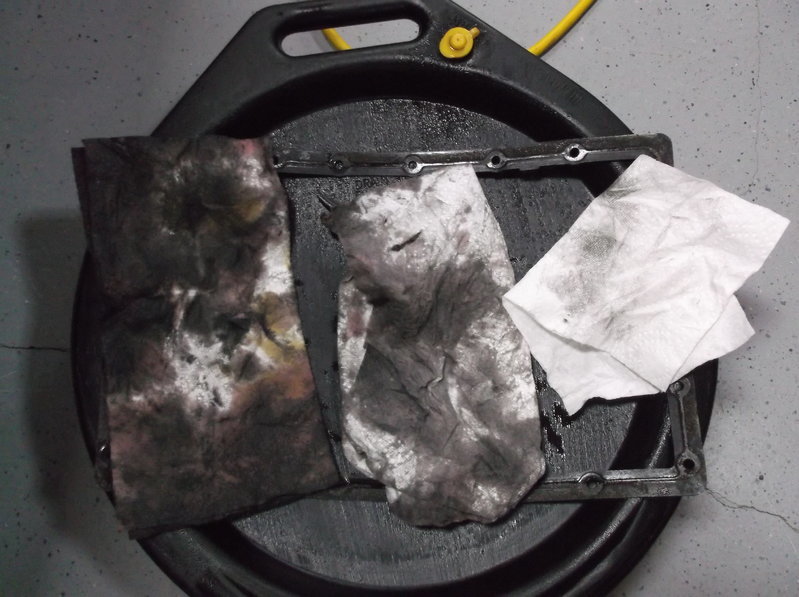

    Paper towels used to clean the bottom of the pan. Brown oil on the first towel is from cleaning the spout of the drain pan not trans oil.

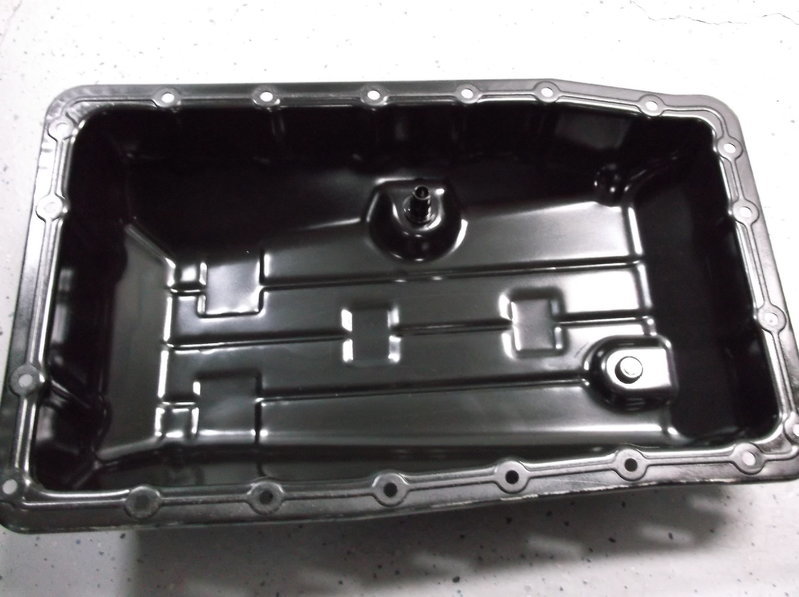

    Pan all cleaned up.

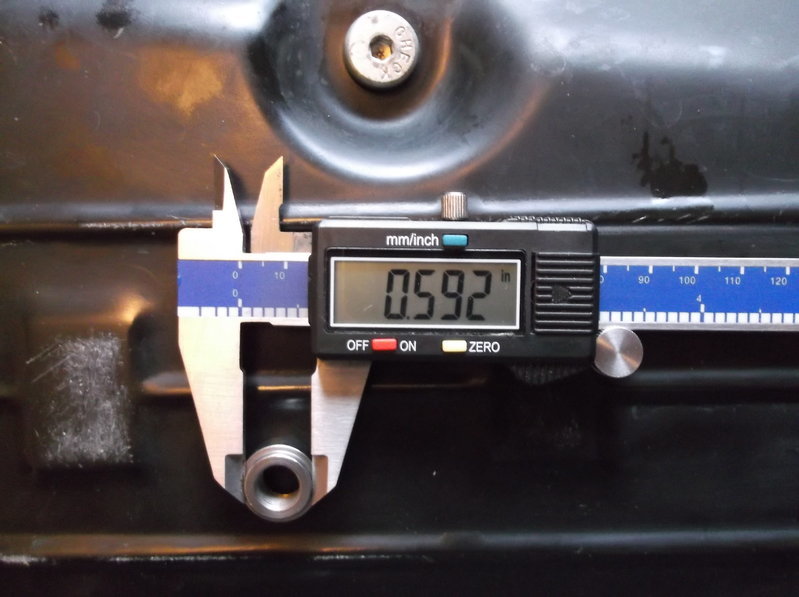

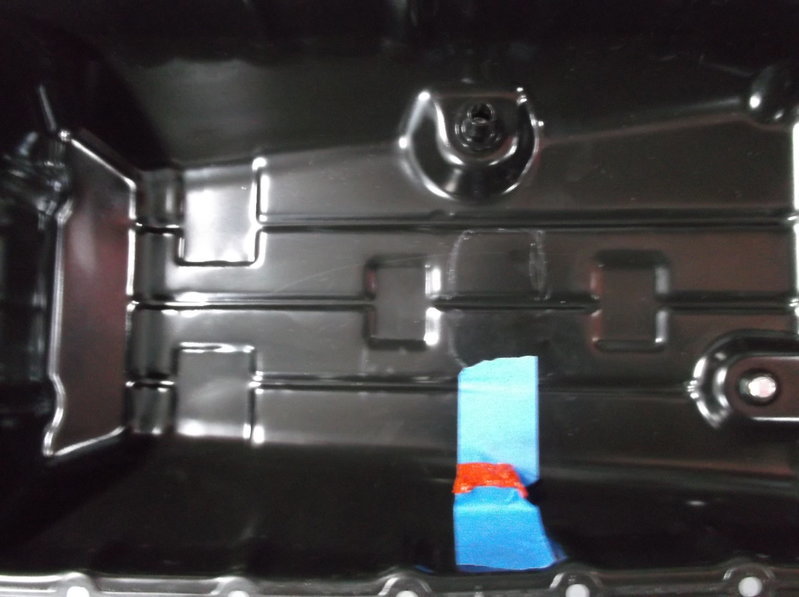

    To check clearance, I stacked the 4 magnets where I wanted to put the hole. They are about the same height as the sensor would end up being. Taped down to keep RTV off of them. RTV is used to verify that nothing would touch. I measured the location of the pickup and drew it onto the pan with soapstone so I could better estimate where to put the sensor.
    DSCF0076.jpg DSCF0077.jpg

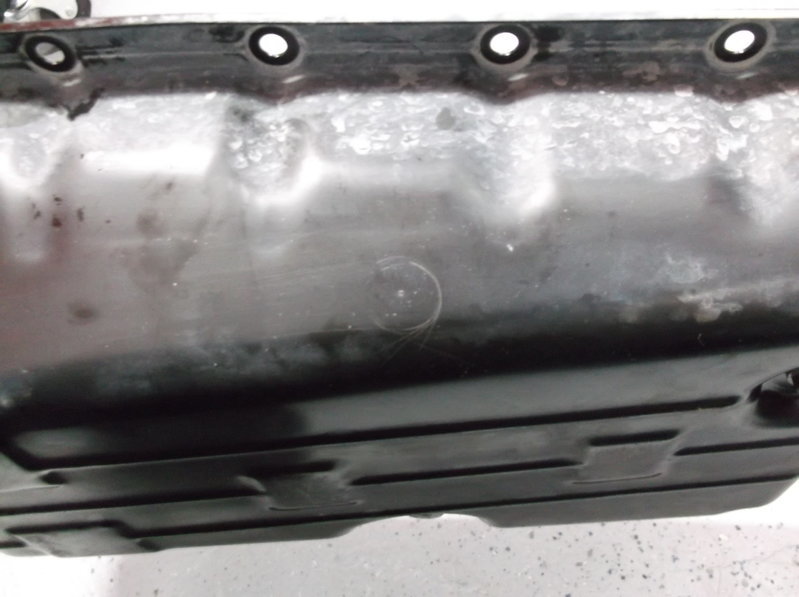

    Don't mind the circle scratches. Had to adjust for the slight curve of the pan.

    PzTank, hemitruk and IronPeak like this.
  9. Feb 26, 2017 at 4:29 PM
    #9
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Sensor bung. My drill bits were either too small or a little too bit. I drilled it out too big, which will give me a nice shoulder to weld. Ill post the pictures of that tomorrow after it gets welded up.
    Pilot hole definitely helps prevent walking of the larger drill bit.

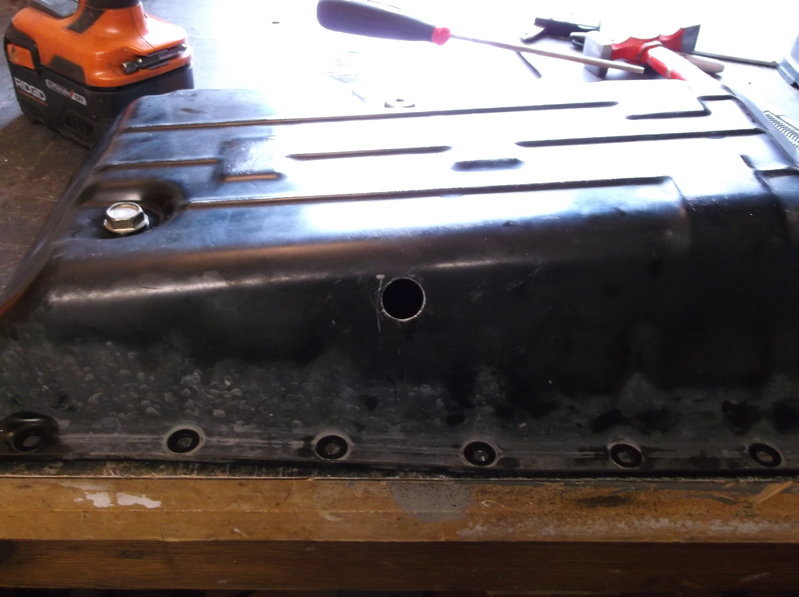

    Drilled out.

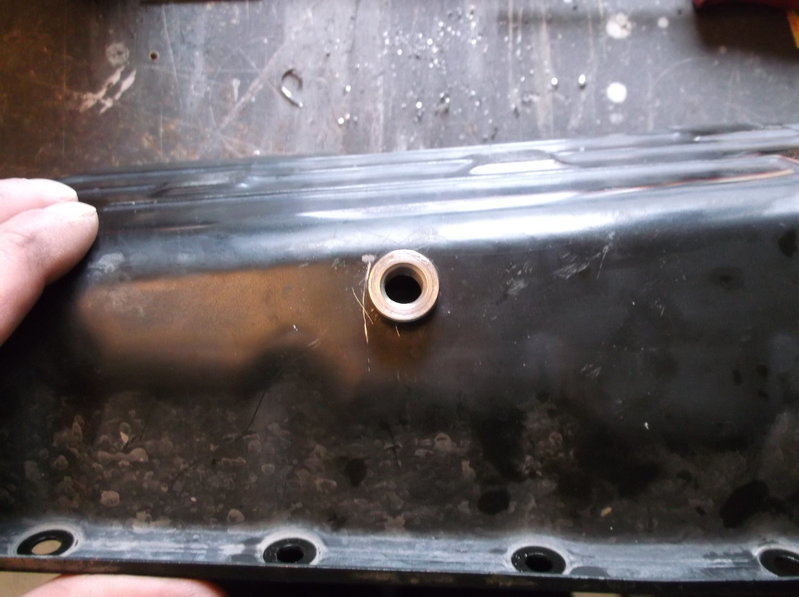

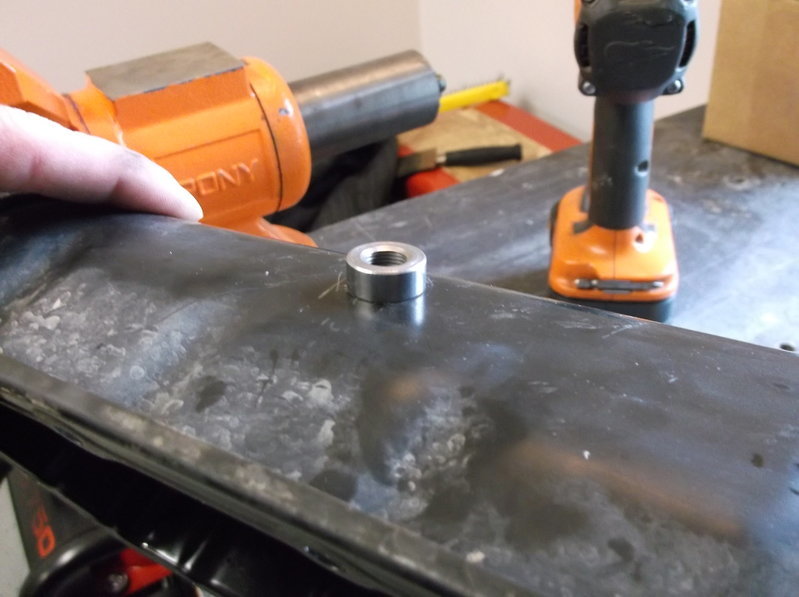

    Debating on if I will weld the bung to the outside or inside, I'll have to see if the electrode can reach all the way around if welded to the inside.
    DSCF0082.jpg DSCF0083.jpg

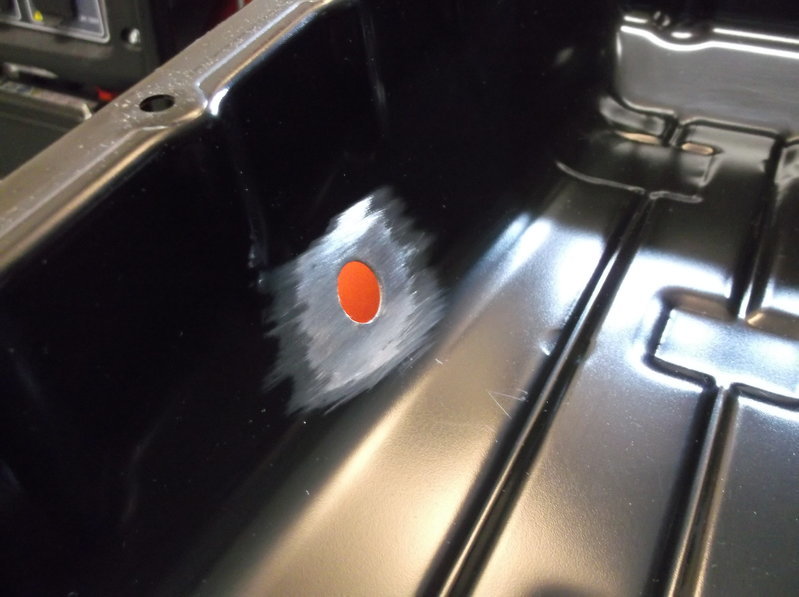

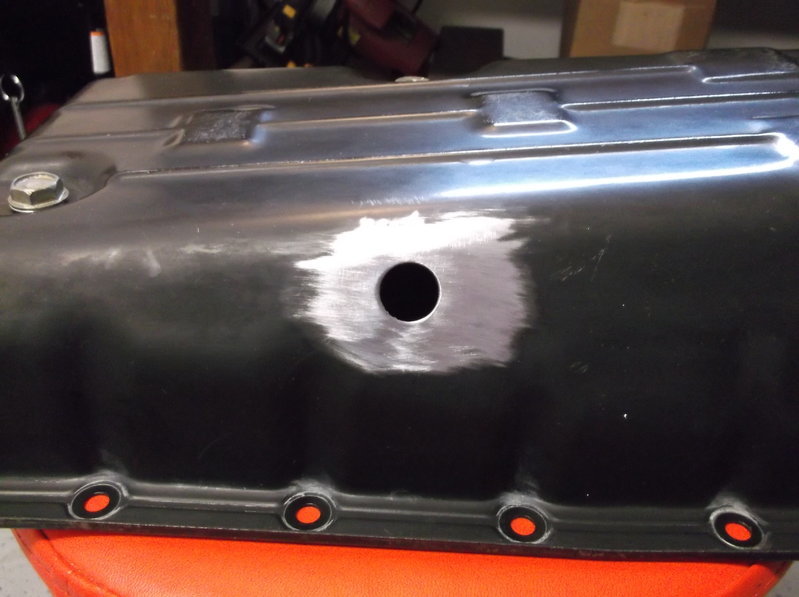

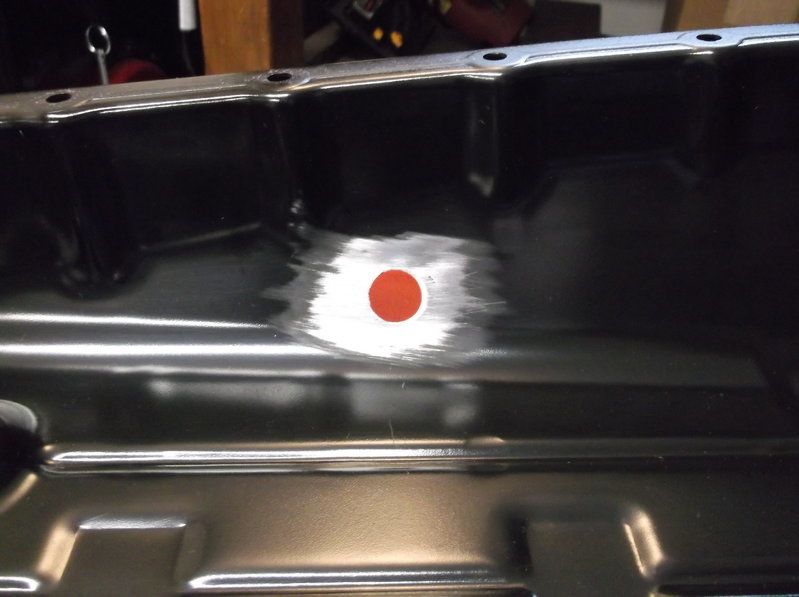

    De-burred, sanded clean. Used a small 150 grit flap disk. Washed the pan with hot soapy water. After it gets welded, it will be washed again and then painted.
    DSCF0084.jpg DSCF0085.jpg DSCF0086.jpg

    Bulldogs129, PzTank and hemitruk like this.
  10. Feb 27, 2017 at 4:36 PM
    #10
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Project complete. Decided to use silver solder instead of tig welding. Got everything put back together and wired. 5.5qt of new tranny fluid to get it full (put 6qt in, let it warm up, then removed the check bolt and about .5qt came out). On to the pictures.

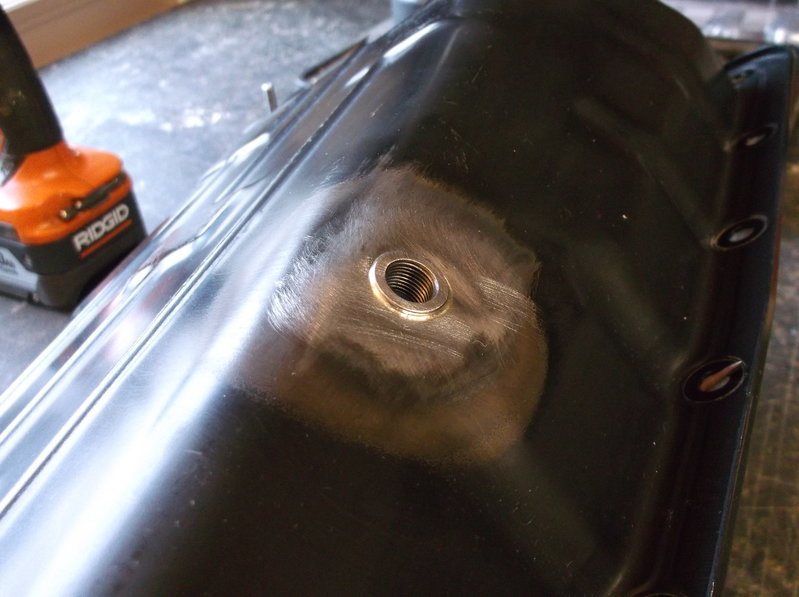

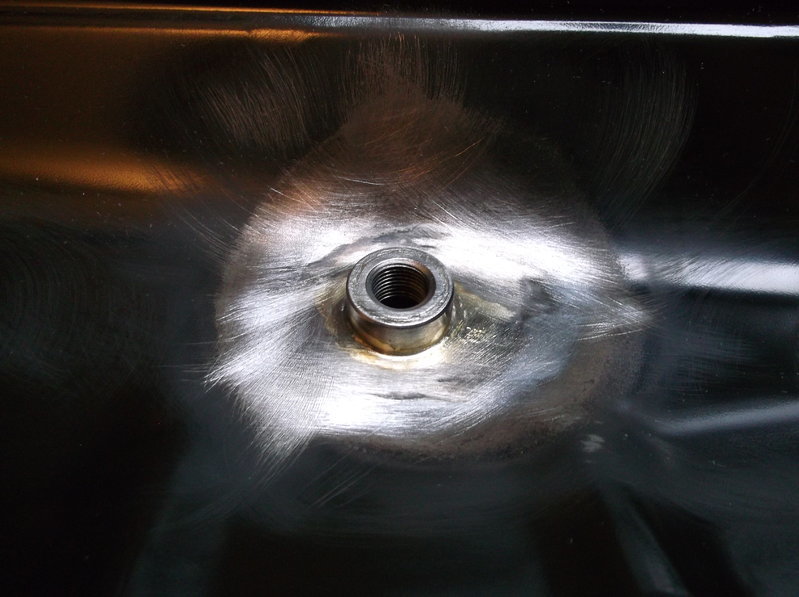

    Outside of the bung. Soldered in. Silver solder flowed really well to seal it up.
    Inside soldered.

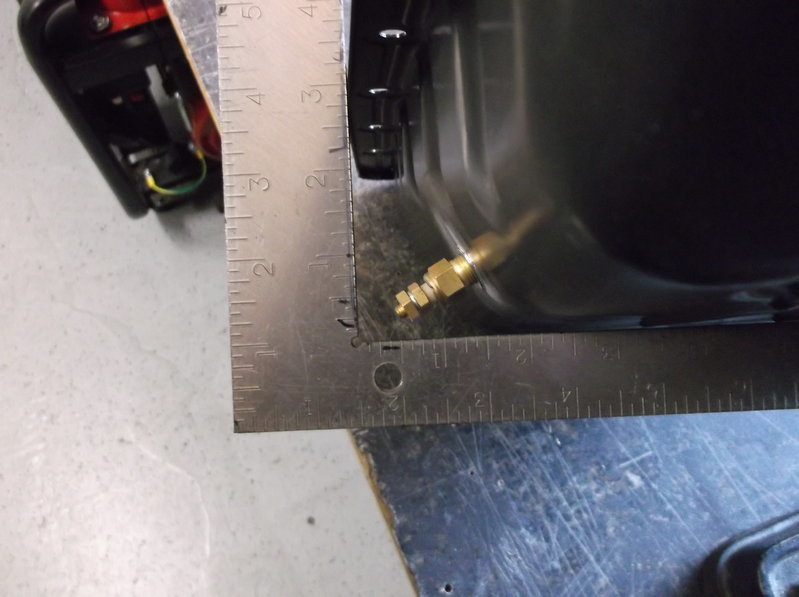

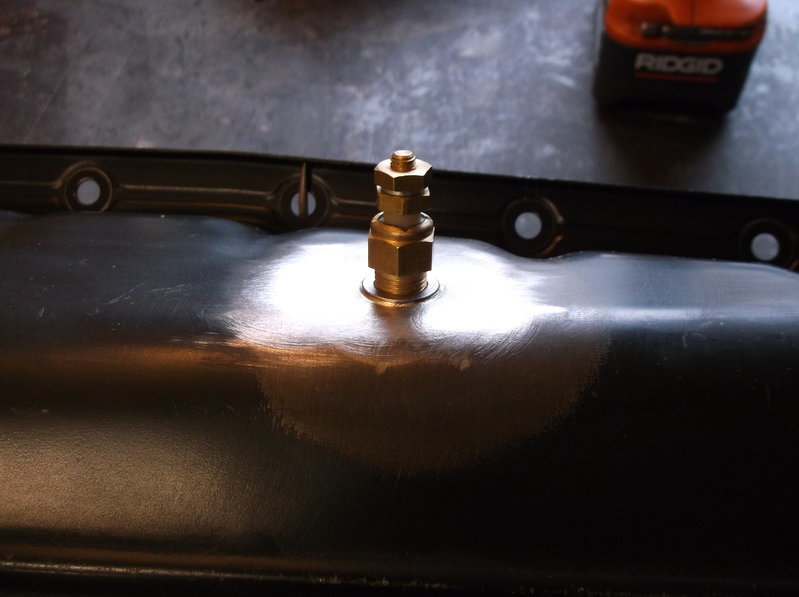

    How the sensor will sit.
    DSCF0092.jpg DSCF0094.jpg

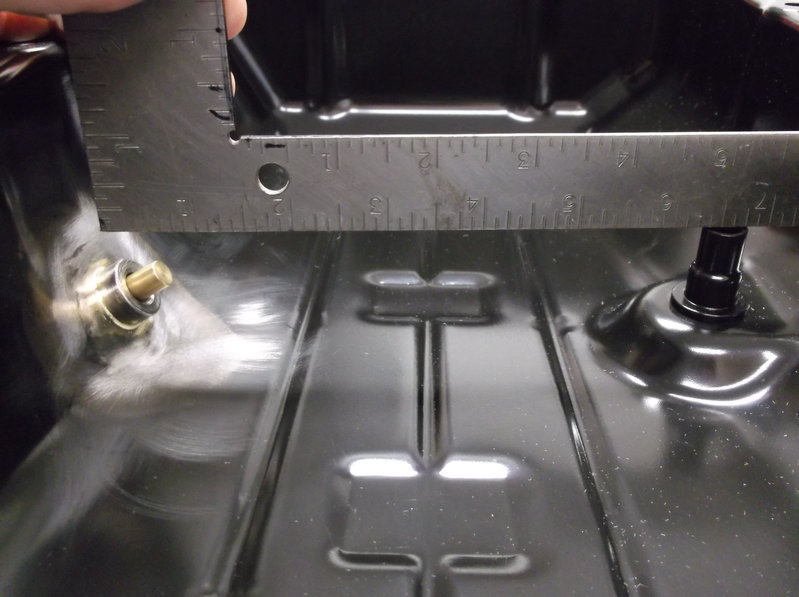

    Sensor sits below the level of the check tube.

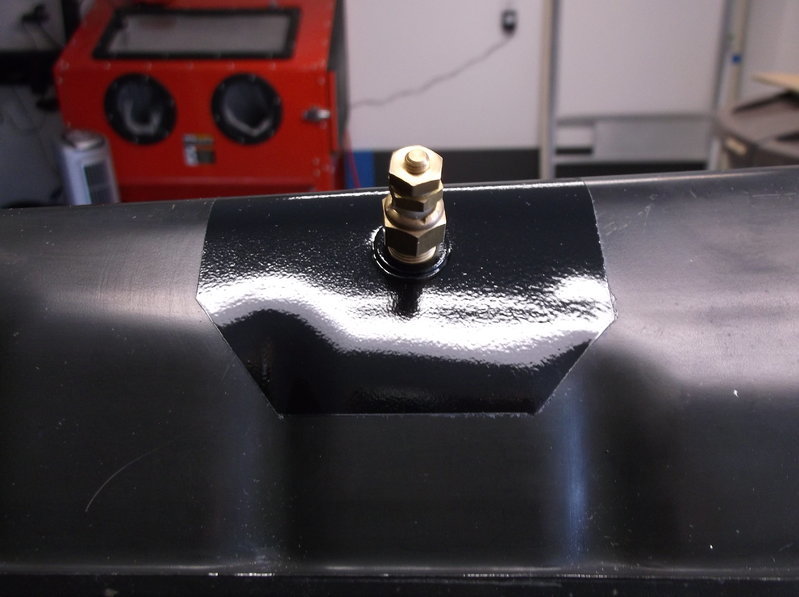

    Nothing fancy. Cleaned it up with a wire wheel, taped off the area, then prime & paint.

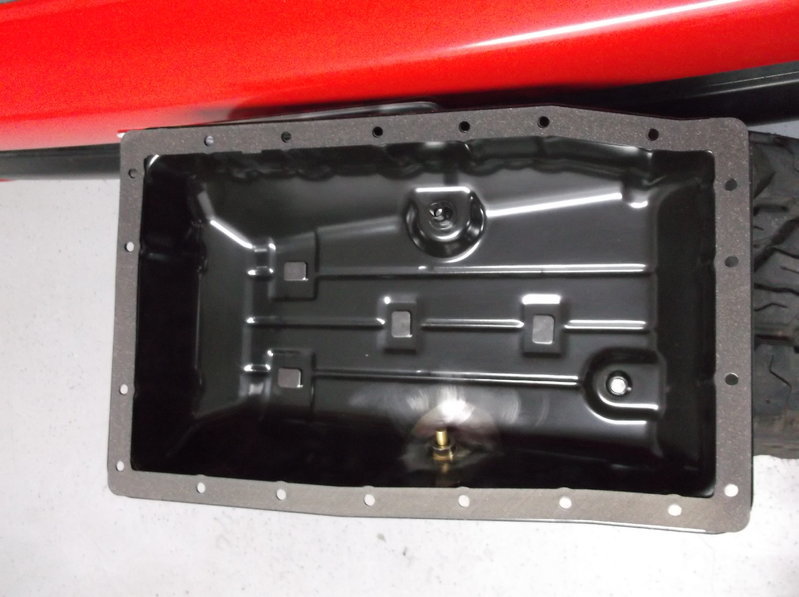

    New pan gasket. Remember to put the magnets back in place.

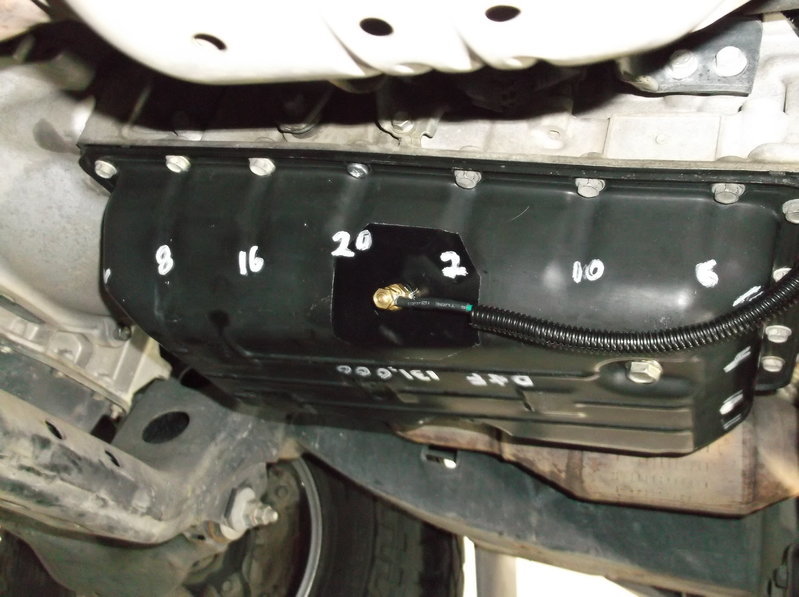

    Pan installed and sensor wired. Don't remember if I mentioned it, I found that one of the bolts had recently been removed. Threads were nice and shiny, had a nice circle of clean black paint. It would appear that while my truck was in the body shop, they needed a bolt for another vehicle and decided to take it off my tranny pan. I will have to go get a new one, until then, I used a phillips head bolt. Used a paint pen to mark the tightening sequence. It is a modified T4R sequence (T4R has 19 bolts instead of 20, so I changed 18 to 19 and 19 to 20 then made the extra #17). Wrote the D&F mileage on the bottom.

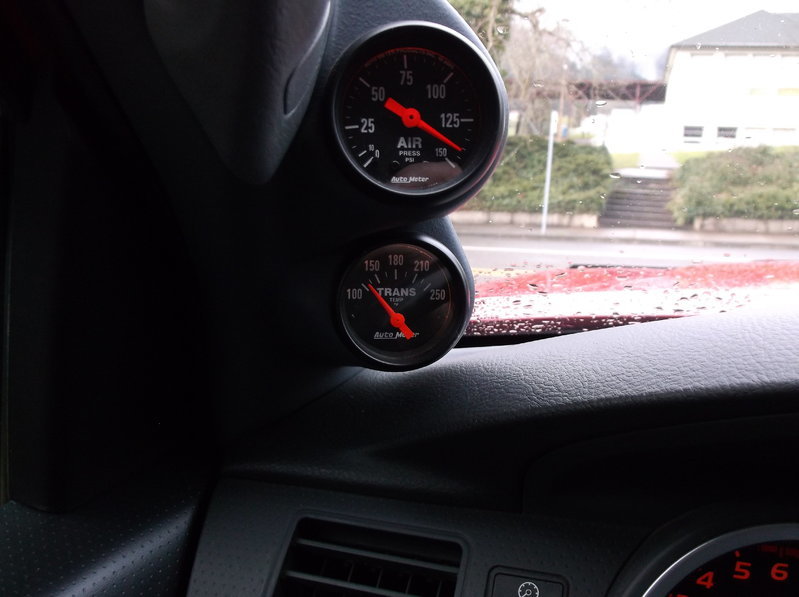

    Temp sensor is working. This was right after I finished. I'll see where it runs when I drive through the mountains on Wednesday.
    Welp, that's all folks.

  11. Mar 4, 2017 at 7:04 AM
    #11
    2015WhiteOR

    2015WhiteOR Well-Known Member

    Joined:
    Feb 2, 2015
    Member:
    #147773
    Messages:
    793
    Gender:
    Male
    CLEAN writeup! Nice work! What temps are you seeing in normal stop and go traffic?

  12. Mar 4, 2017 at 9:23 AM
    #12
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    I haven't really been in stop and go traffic since I installed it. Driving 100+ miles of relatively flat with a few good hills, it got to 125 and pretty much stayed there. Driving up past Crater Lake with hills and windy roads, it got up to just under 150.

  13. Mar 10, 2017 at 8:47 PM
    #13
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Closest to stop and go traffic I got into was on Wednesday. Sat for a while waiting for a front end loader to clear a rock slide enough to open one lane for traffic. I let it idle in drive for 15 minutes. It got up to and maintained just under 165.

    Zero leaks, only issue is that the bulbs for the two gauges are different colors. Air pressure is more orange while trans temp is white. Going to have to fix that. Eventually.....

  14. Mar 10, 2017 at 9:34 PM
    #14
    2015WhiteOR

    2015WhiteOR Well-Known Member

    Joined:
    Feb 2, 2015
    Member:
    #147773
    Messages:
    793
    Gender:
    Male
    That seems reasonable enough. Warm enough for the conditions, but not hot enough to degrade the life of the trans fluid.

  15. Mar 10, 2017 at 9:40 PM
    #15
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    I don't have towing planned yet, but when I do, I'll post temps. Hoping to go get a travel trailer in the next month or two, so I'll be getting temps with 3200lbs in tow.

  16. Jun 14, 2017 at 12:17 PM
    #16
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    Update to this. Spent 3 hours working my way through the LA area, pan temp got up to ~165*.

  17. Jun 14, 2017 at 7:34 PM
    #17
    PzTank

    PzTank Stuck In The Well

    Joined:
    Sep 14, 2010
    Member:
    #43250
    Messages:
    2,966
    Gender:
    Male
    First Name:
    Jim
    New England
    Vehicle:
    ‘15 AC SR5 4X4 4.0 Auto
    ‘07 OR leather shift knob.
    Nice write up OP :thumbsup:
    Crazy Toyota doesn't have a threaded, dry port somewhere on the xmsn...in any case, your wet install will be most accurate.
    Temps are good. Thanks for posting!!

  18. Jan 5, 2018 at 2:27 AM
    #18
    SonnyBones

    SonnyBones I VOID WARRANTIES

    Joined:
    Nov 21, 2015
    Member:
    #170342
    Messages:
    833
    Gender:
    Male
    First Name:
    Jeffery
    Vehicle:
    2015 TACOMA ACCESS CAB
  19. Jan 5, 2018 at 6:32 AM
    #19
    llamasmurf

    llamasmurf Herpa Derp

    Joined:
    Mar 1, 2016
    Member:
    #179866
    Messages:
    4,256
    Gender:
    Male
    First Name:
    Wes
    Northern Ontario
    Vehicle:
    2015 Matte Black TRD ACOR
    Build thread lists all the things :D
    @windsor, So I am just curious as to why you did not want to simply use the 2 trans oil temp sensors already in the truck with an OBDII sensor?

    Does you 07 not have them? You dislike the OBDII? :boink:

  20. Jan 5, 2018 at 7:59 AM
    #20
    windsor

    windsor [OP] Just a guy

    Joined:
    Dec 31, 2014
    Member:
    #145322
    Messages:
    6,572
    Gender:
    Male
    First Name:
    Chris
    Myrtle Creek OR
    Vehicle:
    2008 Tacoma Super Duty
    Canopy, fitted seat covers.
    The 07 does have OBDII capability. I used my SnapOn Ethos* to watch temps when I moved from AZ to OR. But, I wanted to use a gauge in the pillar pod.

    Last edited: Jan 5, 2018
    llamasmurf likes this.
