Trd beadlocks

Discussion in '3rd Gen. Tacomas (2016+)' started by Arpatton86, Apr 1, 2018.

  1. Apr 1, 2018 at 2:03 AM
    #1
    Arpatton86

    Arpatton86 [OP] Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142003
    Messages:
    173
    Gender:
    Male
    Charleston SC
    Vehicle:
    2017 DCSB TRD OFF-ROAD OV TUUUUNED
    I’m picking up a set of TRD beadlocks for my 17 OR, and Ive been reading that they require PTR27-35100 (TRD lugnuts) is there any truth to this? I was really hoping to just use my factory OR lug nuts. Any info is much appreciated.

    andrewkissam likes this.
  2. Apr 1, 2018 at 3:20 AM
    #2
    Arpatton86

    Arpatton86 [OP] Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142003
    Messages:
    173
    Gender:
    Male
    Charleston SC
    Vehicle:
    2017 DCSB TRD OFF-ROAD OV TUUUUNED
    Also if the TRD off-road lugnuts wont work other TRD beadlocks could I just use these instead of the TRD lugnuts?

    McGard 65557 Chrome SplineDrive Wheel Installation Kit (M12 x 1.5 Thread Size) - For 5 Lug Wheels

    https://www.amazon.com/dp/B000COS0JC/ref=cm_sw_r_cp_api_9glWAb0PFY5SW

    McGard 65357 Chrome Cone Seat SplineDrive Lug Nut Set (M12 x 1.5 Thread Size) - Set of 4 https://www.amazon.com/dp/B0002UOHXY/ref=cm_sw_r_cp_api_xjlWAbH9C3R5A

  3. Apr 1, 2018 at 5:35 AM
    #3
    Yellowplatypuss

    Yellowplatypuss Well-Known Member

    Joined:
    Apr 17, 2014
    Member:
    #127922
    Messages:
    198
    Gender:
    Male
    First Name:
    John
    Columbia, SC
    Vehicle:
    2016 TRD Off Road
    Bilstein 5100 OME 888 & 5160 with AAL, Trd Beadlocks, Firestone MT2, morimoto hid and led fogs. Clazzio leather seat covers, ECGS bushing, TRD PRO Grill, Hondo Mount, Martin rack, Baja designs. Caliraised, Ov Tuned
    You will need the cone style lug nuts. The off-road lug nuts won’t fit. They are acorn and too big. I had to run to the parts store to get a set of cones while getting my wheels installed. Don’t make my mistake

    Arpatton86 [OP] likes this.
  4. Apr 1, 2018 at 5:51 AM
    #4
    STOCKTRD

    STOCKTRD Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62752
    Messages:
    798
    Gender:
    Male
    In Traffic
    Vehicle:
    CustomTacos Mafia!
    Cool Post Bro, Tell TJ Hunt To Update The Vlog!
    Yes you need to use different lugnuts for the TRD Beadlock wheels your stock OR lug nuts will not fit. I had a set of the Beadlocks and I just spent the extra money and got the PTR27-35100 TRD kit from Ebay. I could have went a cheaper route and got some regular conical lug nuts but the TRD set gave me peace of mind knowing it was specifically designed for the beadlocks and Im also a TRD fanboy.

    stun gun and Arpatton86 [OP] like this.
  5. Apr 1, 2018 at 6:09 AM
    #5
    Arpatton86

    Arpatton86 [OP] Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142003
    Messages:
    173
    Gender:
    Male
    Charleston SC
    Vehicle:
    2017 DCSB TRD OFF-ROAD OV TUUUUNED
    Thanks a lot to the both of you for the info!

  6. Apr 1, 2018 at 4:03 PM
    #6
    Arpatton86

    Arpatton86 [OP] Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142003
    Messages:
    173
    Gender:
    Male
    Charleston SC
    Vehicle:
    2017 DCSB TRD OFF-ROAD OV TUUUUNED

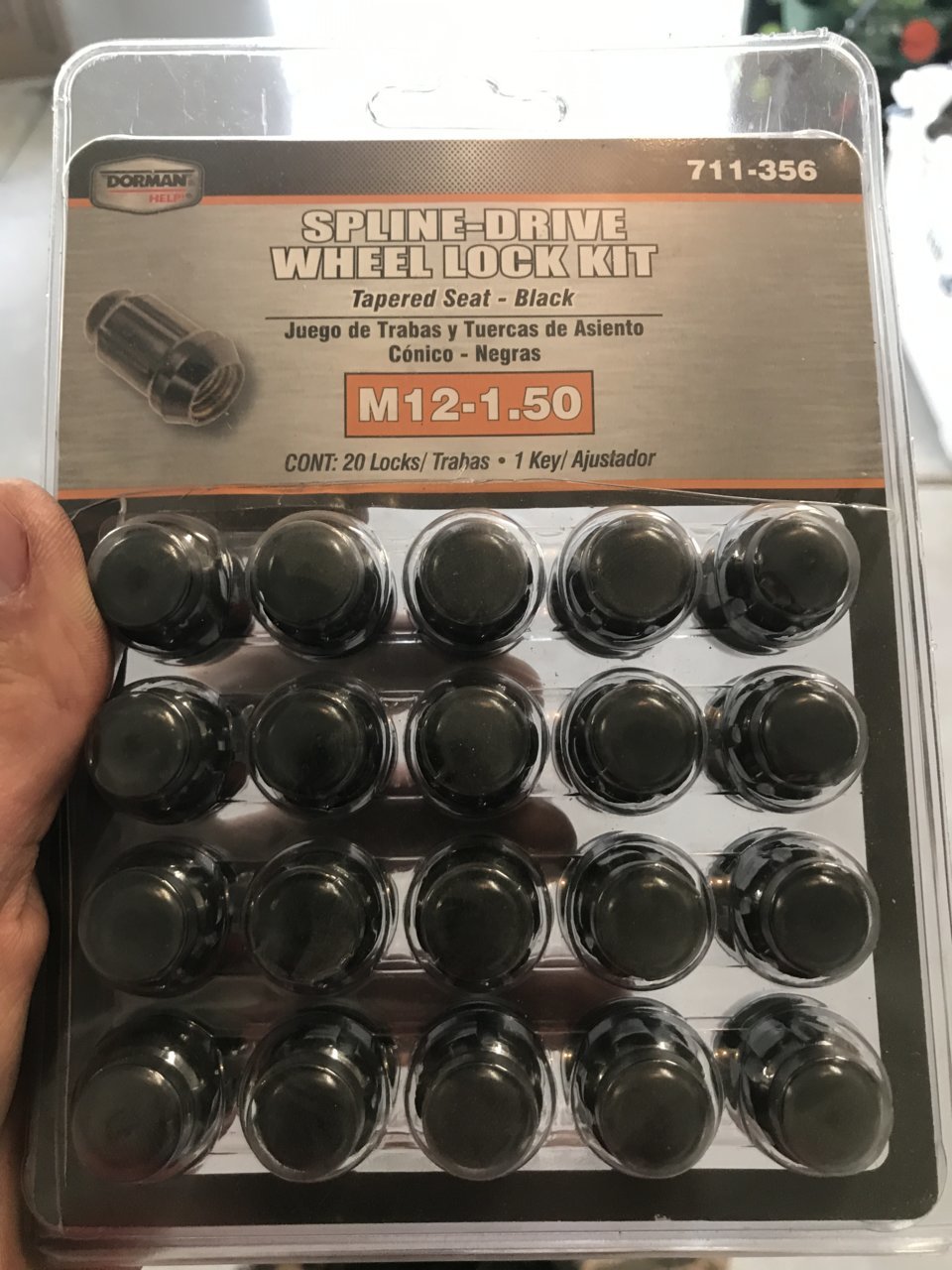

    Would these work? They’ve been sitting in my tool box for 2 years and that’d be great if they did.


  7. May 6, 2018 at 7:17 AM
    #7
    E-Paz 732NJ

    E-Paz 732NJ Well-Known Member

    Joined:
    Jan 27, 2018
    Member:
    #242585
    Messages:
    422
    Gender:
    Male
    First Name:
    Eric
    NJ
    Vehicle:
    2015 Tacoma TRD-OR
    Relentless Fab Stingray Low-Pro Bumper
    did they end up working?

  8. May 6, 2018 at 8:44 AM
    #8
    Arpatton86

    Arpatton86 [OP] Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142003
    Messages:
    173
    Gender:
    Male
    Charleston SC
    Vehicle:
    2017 DCSB TRD OFF-ROAD OV TUUUUNED
    I got the mcgard lugnuts that I posted a link earlier they worked. Buuuut I’ve had the tires balanced twice now and I’m still getting quite a bit of highways speed vibrations. 4wp told me it was because of the lugnuts that I got and needed the ET ones.

  9. May 13, 2018 at 8:03 PM
    #9
    KTMrdr4ever

    KTMrdr4ever Member

    Joined:
    Jan 5, 2018
    Member:
    #240295
    Messages:
    11
    Gender:
    Male
    First Name:
    Freddy
    Vehicle:
    2017 TRD SB Quicksand
    Hakkapelitta R2 winters.
    Bulk black M12 x 1.5 conical is what I got with mine as a package from the Toyota dealer. Fraction of the cost of TRD branded ones. No installation issues, no vibrations, smooth ride. It looks like you’re in luck!

  10. May 14, 2018 at 10:31 AM
    #10
    Arpatton86

    Arpatton86 [OP] Well-Known Member

    Joined:
    Nov 9, 2014
    Member:
    #142003
    Messages:
    173
    Gender:
    Male
    Charleston SC
    Vehicle:
    2017 DCSB TRD OFF-ROAD OV TUUUUNED
  11. May 14, 2018 at 10:33 AM
    #11
    JoeCOVA

    JoeCOVA IG @MightyJoeFlannel

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    5,808
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2017 DCSB TRD OR
    35" Trepadors w/ OMF Beadlocks, Kings, OBA, 5.29s etc
    I have them and it is true.
