  1. Dec 16, 2020 at 11:21 AM
    #33461
    Lucario Runner

    #33461
    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    7,183
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    Goof.

    Lucario Runner, Dec 16, 2020
    #33461
    12TRDTacoma[OP] likes this.
  2. Dec 16, 2020 at 11:23 AM
    #33462
    Lucario Runner

    #33462
    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    7,183
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    Lucario Runner, Dec 16, 2020
    #33462
    JacksonTacoma likes this.
  3. Dec 16, 2020 at 11:43 AM
    #33463
    wrmathis

    #33463
    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    9,439
    Gender:
    Male
    First Name:
    Ryan
    Bonaire, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    1994

    wrmathis, Dec 16, 2020
    #33463
  4. Dec 16, 2020 at 12:05 PM
    #33464
    JacksonTacoma

    #33464
    JacksonTacoma Well-Known Member

    Joined:
    Jul 25, 2017
    Member:
    #224953
    Messages:
    1,185
    Gender:
    Male
    First Name:
    James
    Jackson, MI
    Vehicle:
    2015 S/C TRD Pro
    Magnuson SC, 2.5 pulley, hptuner, FPR mod, AFE Intake, URD longtube headers, JFR Y-pipe, 255 Deatschwerks, 76mm TB, Banks 3" exhaust, cam gears
    JacksonTacoma, Dec 16, 2020
    #33464
    TodayWasTHeDaY likes this.
  5. Dec 16, 2020 at 12:13 PM
    #33465
    mr.trd

    #33465
    mr.trd Are you Recreationally Insane?

    Joined:
    Jul 9, 2008
    Member:
    #7842
    Messages:
    1,447
    Gender:
    Male
    First Name:
    Brant
    Pocatello, Idaho
    Vehicle:
    '06 S/C 1GR-FE DCSB
    Icon coilovers w 14" 700lb springs, Icon billet UCA w/ Delta joints, custom built Icon rear resi-shocks, Icon stage 3 rear leaf pack, Archive Garage Hammer Hangers w/ homemade spreader bar, superbumps up front and timbren bumps in the rear, Crown brake lines, U-bolt flip,4.88's with front ARB locker and ARB dual compressor mounted behind back seat, 285/75R17 BFG A/T KO2's on Bronze Icon Alloy Compression's, 5th gen T4R budget big brake kit, CBI Off-Road Fab. custom Trailmaster 2.0 with swing-away tire carrier, CBI custom tube front bumper, CBI kickout sliders, CBI full flat belly skids including gas tank,CBI Ditch Light brackets w/ Heretic Studio Quattro's, Heretic Studio's 30" Amber on the front, Heretic Studio 40" bar under the Front Runner Roof Rack, Expedition Essentials RAM mount, Leer used shell, OEM black chrome sport headlights, fog lights always on mod, rear locker anytime mod, TRD supercharger, URD Ucon-EMS, Deatschwerks 255 fuel pump w/ URD external fuel filter kit, AFE intake paired to a Safari Snorkel, URD spec-U exhaust w/ factory Tundra muffler behind URD equal length headers.
    42, 43 on St. Paddy's day. Still can't grow much of anything for facial hair so I look younger and act younger unless I have been sitting for too long then I look like I am 95 trying to get my back to straighten up. LOL To be old and wise, you must first be young and dumb. I was definitely young and dumb and body took the brunt of it. But I try to not let that stop me from doing anything, except recovering.

    mr.trd, Dec 16, 2020
    #33465
    White lightning boosted, 12TRDTacoma[OP], SUMOTNK and 5 others like this.
  6. Dec 16, 2020 at 12:58 PM
    #33466
    rheath08

    #33466
    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,764
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged
    Ill do you a favor, you can have some of my facial hair. :rofl:
    FB_IMG_1607872935725.jpg I think that was 7 years ago, but I can still grow it that healthy.

    Last edited: Dec 16, 2020
    rheath08, Dec 16, 2020
    #33466
    White lightning boosted, 12TRDTacoma[OP], mr.trd[QUOTED] and 1 other person like this.
  7. Dec 16, 2020 at 2:04 PM
    #33467
    JuanitoBonito

    #33467
    JuanitoBonito Que Pasa

    Joined:
    Dec 29, 2013
    Member:
    #119422
    Messages:
    9,178
    Gender:
    Male
    First Name:
    Juan
    CHI-TOWN
    Vehicle:
    2024 Raptor
    Can someone please accurately tell me within this mess what hoses I need to concentrate on for the catch can install.

    JuanitoBonito, Dec 16, 2020
    #33467
  8. Dec 16, 2020 at 2:06 PM
    #33468
    nudavinci64

    #33468
    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    10,138
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    nudavinci64, Dec 16, 2020
    #33468
  9. Dec 16, 2020 at 2:12 PM
    #33469
    BenMara

    #33469
    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    1,944
    Gender:
    Male
    First Name:
    Ben
    Belton, SC
    Vehicle:
    2011 DC 4x4 SCed
    TRD Blower, Ham Radio, DBA T2 Rotors

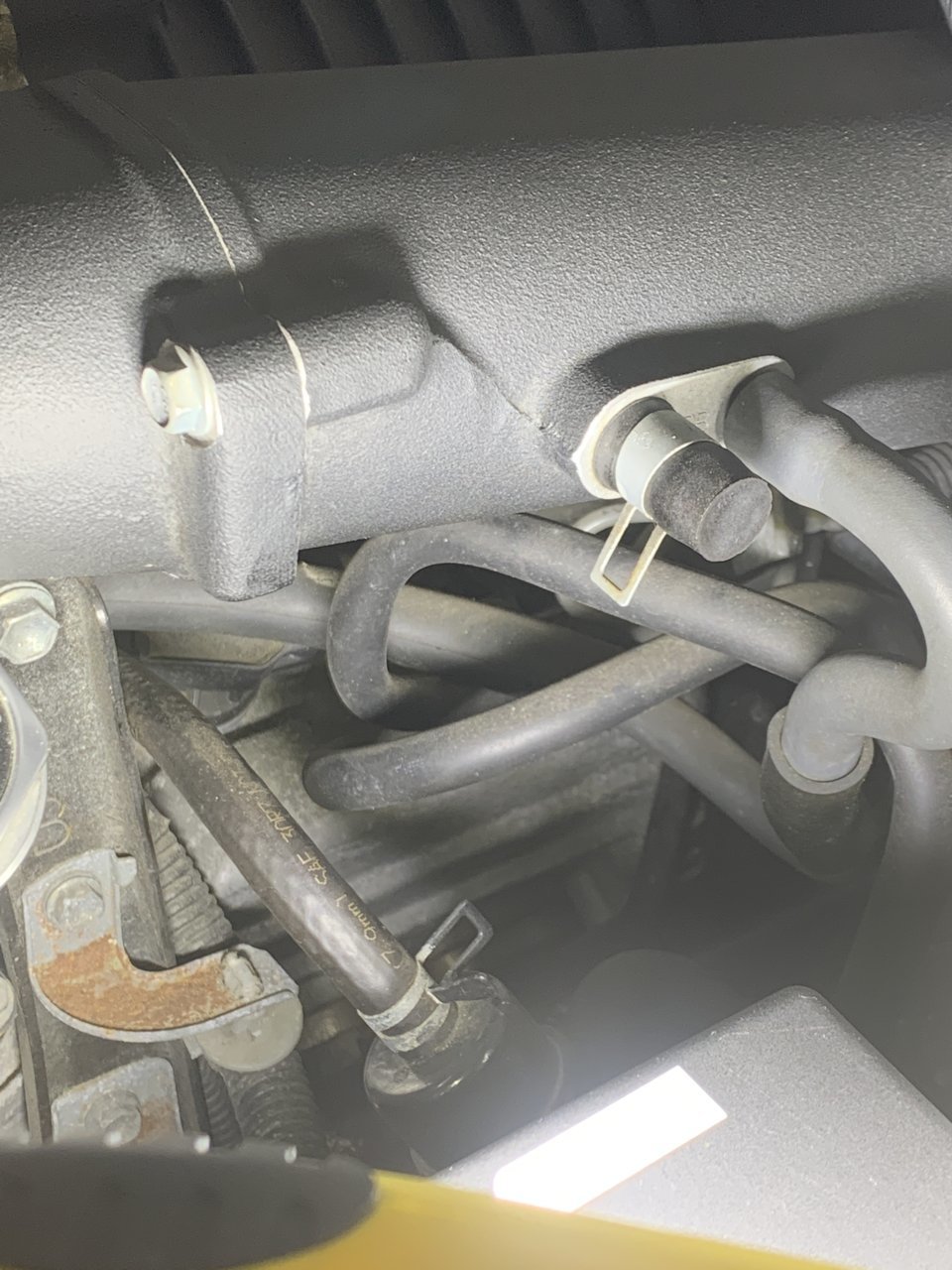

    Horizontal is PVC, vertical is inlet of SCer

    BenMara, Dec 16, 2020
    #33469
    jamesepoop likes this.
  10. Dec 16, 2020 at 2:23 PM
    #33470
    henryp

    #33470
    henryp Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70080
    Messages:
    2,425
    Gender:
    Male
    First Name:
    Henry
    Montana
    Vehicle:
    '17 GX 460 and '09 Boosted Taco
    Form follows function
    That is a really good picture. Can’t believe how hard it was to get my hand in there when I installed mine.

    henryp, Dec 16, 2020
    #33470
    BenMara[QUOTED] likes this.
  11. Dec 16, 2020 at 2:57 PM
    #33471
    JuanitoBonito

    #33471
    JuanitoBonito Que Pasa

    Joined:
    Dec 29, 2013
    Member:
    #119422
    Messages:
    9,178
    Gender:
    Male
    First Name:
    Juan
    CHI-TOWN
    Vehicle:
    2024 Raptor
    So that one tapping into the right port of the s/c intake is the return or “out” from the catch can right?

    JuanitoBonito, Dec 16, 2020
    #33471
    lemon177 likes this.
  12. Dec 16, 2020 at 2:59 PM
    #33472
    Lucario Runner

    #33472
    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    7,183
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    Nipple pointing down at the back of the intake runner of the Supercharger is the in. The back of the valve cover is the out for the pcv

    Lucario Runner, Dec 16, 2020
    #33472
    nudavinci64 and 12TRDTacoma[OP] like this.
  13. Dec 16, 2020 at 3:36 PM
    #33473
    JuanitoBonito

    #33473
    JuanitoBonito Que Pasa

    Joined:
    Dec 29, 2013
    Member:
    #119422
    Messages:
    9,178
    Gender:
    Male
    First Name:
    Juan
    CHI-TOWN
    Vehicle:
    2024 Raptor
    JuanitoBonito, Dec 16, 2020
    #33473
    nudavinci64[QUOTED] likes this.
  14. Dec 16, 2020 at 3:37 PM
    #33474
    JuanitoBonito

    #33474
    JuanitoBonito Que Pasa

    Joined:
    Dec 29, 2013
    Member:
    #119422
    Messages:
    9,178
    Gender:
    Male
    First Name:
    Juan
    CHI-TOWN
    Vehicle:
    2024 Raptor
    Ok. I thought it was the other way around. I thought the valve cover line went to the “in” baffled side of the catch can

    JuanitoBonito, Dec 16, 2020
    #33474
    nudavinci64 likes this.
  15. Dec 16, 2020 at 3:56 PM
    #33475
    BenMara

    #33475
    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    1,944
    Gender:
    Male
    First Name:
    Ben
    Belton, SC
    Vehicle:
    2011 DC 4x4 SCed
    TRD Blower, Ham Radio, DBA T2 Rotors
    If WE are trying to prevent all oil vapor to enter the engine, why arent we venting both valve covers to a catch can? That what I did when I owned a Subaru Forester XT.

    BenMara, Dec 16, 2020
    #33475
  16. Dec 16, 2020 at 4:01 PM
    #33476
    Lucario Runner

    #33476
    Lucario Runner Resident Truck/SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    7,183
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX or nearest race track
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, URD spec u catback, lightweight water pump pulley, Greddy sandwich cooler plate, Earls oil cooler, IPT valve body, FJ TRD shocks, Cusco front and rear sway bars, Energy Suspension rear track rod bushings and rear link bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Motul 600 rbf, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, AEM wideband afr gauge, Flexpod, Pioneer 400w speakers.
    Thats the best way however those that live in Cali wont pass visual cause it's not stock. Then you also have mounting issues for those with lights, those bigger fuse boxes, etc.

    Lucario Runner, Dec 16, 2020
    #33476
    BenMara likes this.
  17. Dec 16, 2020 at 4:04 PM
    #33477
    henryp

    #33477
    henryp Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70080
    Messages:
    2,425
    Gender:
    Male
    First Name:
    Henry
    Montana
    Vehicle:
    '17 GX 460 and '09 Boosted Taco
    Form follows function
    Flow goes:
    PVC -> catch can -> SC inlet

    henryp, Dec 16, 2020
    #33477
    Norton likes this.
  18. Dec 16, 2020 at 4:06 PM
    #33478
    rheath08

    #33478
    rheath08 Well-Known Member

    Joined:
    Nov 16, 2016
    Member:
    #202554
    Messages:
    1,764
    Gender:
    Male
    First Name:
    Russell
    Bakersfield, CA
    Vehicle:
    Frankenstein's Monster
    converted AWD, RC62f swap, Supercharged
    Anyone have a 70mm throttle body they would like to sale?

    rheath08, Dec 16, 2020
    #33478
  19. Dec 16, 2020 at 5:19 PM
    #33479
    BenMara

    #33479
    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    1,944
    Gender:
    Male
    First Name:
    Ben
    Belton, SC
    Vehicle:
    2011 DC 4x4 SCed
    TRD Blower, Ham Radio, DBA T2 Rotors
    Yes...

    BenMara, Dec 16, 2020
    #33479
    henryp[QUOTED] likes this.
  20. Dec 16, 2020 at 6:42 PM
    #33480
    JuanitoBonito

    #33480
    JuanitoBonito Que Pasa

    Joined:
    Dec 29, 2013
    Member:
    #119422
    Messages:
    9,178
    Gender:
    Male
    First Name:
    Juan
    CHI-TOWN
    Vehicle:
    2024 Raptor
    Which shield is the one I need for the URD tcai?? The one on the left right??

    JuanitoBonito, Dec 16, 2020
    #33480
Page 1674 of 2606

Products Discussed in

Mobil 1 104361 75W-90 Synthetic Gear Lube - 1 Quart (Pack of 2)
$28.27
Solary Automotive Smoke Machine Leak Detector - 12V DC EVAP Vacuum Diagnostic Tester for Pipe System
$77.98
Denso (5345) IKH22 Iridium Power Spark Plug, (Pack of 1)
$8.47
Mobil 1 M1-102A Extended Performance Oil Filter
$12.49
NGK 6619 Iridium Spark Plugs LFR6AIX-11 - 6 PCSNEW
$46.99
AEM (30-4110) UEGO Air/Fuel Ratio Gauge
$184.95
100pcs PA66 Nylon 16-14 AWG Wire Connectors Electrical Crimp Butt Connector Fully Insulated Splice Wire Terminals Blue
$6.99
Denso 234-4260 Oxygen Sensor
$28.05
Denso 234-9051 Right-Bank Upstream with 4-Wire 8.5” Option Air Fuel Ratio Oxygen Sensor
$119.99
Denso 234-9026 Air Fuel Sensor
$130.88
Denso 234-4261 Oxygen Sensor with 4-Wire 10” Harness for Lexus/Toyota V-6 Downstream Left/Front
$42.39
Bando USA 5PK1790 OEM Quality Serpentine Belt
$19.30
OTC 464 2-Ton 'GripLock' External and Internal Puller
$94.45
Gates K070834 Micro-V Serpentine Drive Belt
$25.99
ABS Plastic Sheet 3-pack 12" X 24" X 0.0625" (1/16") 3 Pack, Black Haircell, for VEX Robotics Teams, Hobby, DIY, Industrial. Easy to Cut, Bend, Mold.
$21.99
Gates K040620 Belt
$14.17
Canton Racing Products 80-242 Aluminum Supercharger Tank for Kenne Bell Supercharger, 1 Pack
$166.00
E-cowlboy for Toyota/Lexus Crankshaft Damper Pulley Holding Holder Harmonic Tool with 2PCS Crank Bolts
$20.80
K&N Gasoline Fuel Filter: High Performance Fuel Filter, Premium Engine Protection, Compatible with 1982-2013 Ford, Lincoln, Mercury, Mazda Fuel Injected Gasoline Engines, PF-2300
$11.99
Glarks 84Pcs 10 Size Mini Fuel Injection Style Hose Clamp Assortment Kit for Diesel Petrol Pipe
$14.95
Aeromotive 11540 340 Series Stealth Intank Fuel Pump, High Horsepower, 12V Electric, EFI and Carbureted Engines, Gas or E85 Fuel Type, Center Inlet
$133.16
Denso 5346 Spark Plug
$12.14
Remflex 6006 Exhaust Collector Gasket for Mopar, (Set of 2)
$15.83
PetSafe Happy Ride Extra Long Telescoping Dog Ramp, Portable Pet Ramp for Cars, Trucks & SUVs with Adjustable Sizing
$169.95
6pcs Hinge Drill Bit,Self Centering Hinge Cabinet Door Wood Drill Bit Set 5/64 7/64 9/64 11/64 13/64 1/4
$19.59
Dayco 89515 Idler/Tensioner Pulley
$35.69
Gates K070835HD FleetRunner Micro-V Serpentine Drive Belt
$40.88
CTEK 4.3 Test & Charge, 12 Volt Fully Automatic Charger with Unique Battery and Alternator Testing, Ideal for Long Term Storage
$139.96
ACDelco GM Original Equipment 10-4041 Synthetic Supercharger Oil - 4 oz
$19.45
Design Engineering 10071 Heat Screen 12" x 24" Adhesive Aluminized Mylar Radiant Matting
$26.99
RodLouvers Pair of Angled Aluminum 5” 11 Louver Hood Panels Jeep YJ (Bolt-On) Kit
$79.95
M6-1.0 x 50mm Flanged Hex Head Bolts Flange Hexagon Screws, Stainless Steel 18-8 (304), Plain Finish, 20 PCS
$11.99
STAR BRITE Epoxy Aluminum Putty Stick - Make Fast, Permanent Repairs - Even Underwater - Aluminum 4 OZ. (087004)
$17.95
Lisle 30800 CV Boot Clamp Pliers
$33.54
KNIPEX - 10 99 i220 Tools - Ear Clamp Pliers, Front and Side Jaws (1099i220), Red
$32.54
ABN CV Joint Ear Clamp Banding Tool & Boot Crimp Pliers 2-Piece Kit 10mm Fuel, Cooling System, Vacuum Hose Clamping Set
$13.99
RULLINE Universal 350ml Oil Catch Can Tank 0046 Aluminum Polish Baffled Reservoir Black Upgraded Braided Hose
$24.99
Farm & Implement Paint Aerosol Massey Ferguson Red (MF Red)
$16.87
Blue Sea Systems 7725 Safety HUB Fuse Block 100 RBS
$79.97
Denso 234-9145 Oxygen Sensor
$133.32
CTA Tools 9292 Head Bolt Wrench, 10mm - Compatible with Toyota
$14.20
Moroso 85474 Universal Air/Oil Separator Catch Can
$215.70
To Top
