TRD Pro Grill Garnish Installation

Discussion in '3rd Gen. Tacomas (2016+)' started by mikeaesq, May 8, 2019.

  1. May 8, 2019 at 6:20 PM
    #1
    mikeaesq

    mikeaesq [OP] Well-Known Member

    Joined:
    Mar 17, 2019
    Member:
    #286928
    Messages:
    279
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    TRD Off-road 4x4
  2. May 8, 2019 at 6:46 PM
    #2
    PizzaTaco4x4

    PizzaTaco4x4 Well-Known Member

    Joined:
    Apr 23, 2019
    Member:
    #291147
    Messages:
    90
    Gender:
    Male
    Very hard to do by hand, buy some rubber washers and it hold it in place. Can't remember the size though. I did this trial and error.

  3. May 8, 2019 at 6:57 PM
    #3
    Boosted_Carrera

    Boosted_Carrera Well-Known Member

    Joined:
    May 11, 2018
    Member:
    #253218
    Messages:
    681
    Gender:
    Male
    Hawaii
    Vehicle:
    2018 TRD SPORT, 1996 911 Turbo

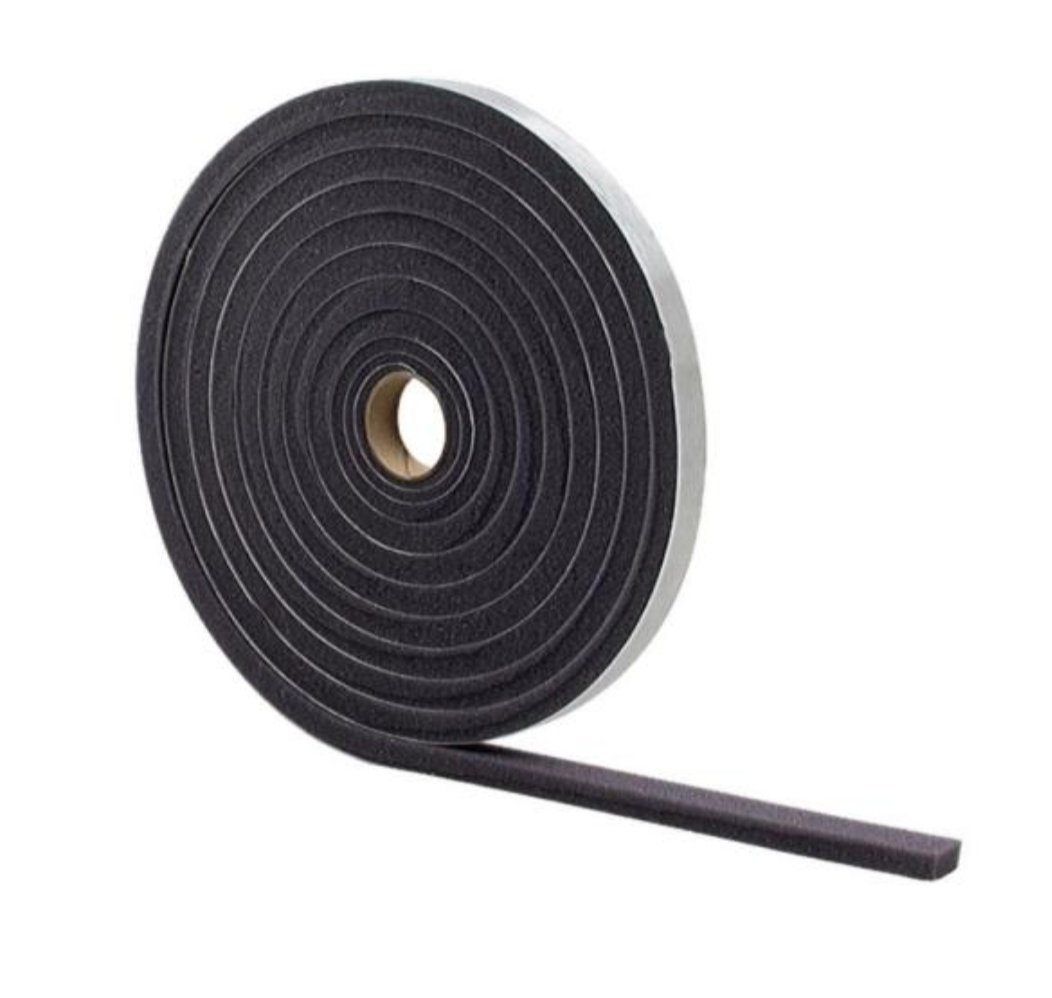

    Screenshot_20190508-161131_Home Depot.jpg
    Push in as far as it will go then use a needle nose plier to push it flush to the grill. Check around the garnish and grill to make sure it's all even all around.
    It should sit flush evenly.

    If you want to go a step further and not get error from snow or rain, you can use a thin strip of foam around the garnish to keep moisture from seeping into the sensor. I've yet to get ANY error from heavy downpours.
    You can't see the foam unless you look for it. I'm a bit OCD so it has to look clean.

    Last edited: May 8, 2019
  4. May 8, 2019 at 9:13 PM
    #4
    azerathis

    azerathis Well-Known Member

    Joined:
    Dec 19, 2017
    Member:
    #238876
    Messages:
    66
    Gender:
    Male
    Vehicle:
    Tacoma 2019 Offroad 4x4 dcsb quicksand
    ARE hd shell
    The lock washers are pretty easy to install if you hold the garnish and use a small socket to push the washer onfrom the other side. As far as errors the dealership tss repair looks like a huge flap of rubber/foam that just hangs over the sensor on the back

  5. May 8, 2019 at 9:26 PM
    #5
    MrBrooks

    MrBrooks Well-Known Member

    Joined:
    Oct 14, 2017
    Member:
    #232988
    Messages:
    1,172
    Midwest
    Vehicle:
    2018 SS DCSB 2019 Rav4 XLE
    For as much as they charge for the garnish they don't come with the necessary hardware to install it??? :eek:

  6. May 8, 2019 at 9:36 PM
    #6
    azerathis

    azerathis Well-Known Member

    Joined:
    Dec 19, 2017
    Member:
    #238876
    Messages:
    66
    Gender:
    Male
    Vehicle:
    Tacoma 2019 Offroad 4x4 dcsb quicksand
    ARE hd shell
    The washers were like ¢10 each but yeah they should've come with the garnish

    KY_Rob likes this.
  7. May 8, 2019 at 9:47 PM
    #7
    ToolPac

    ToolPac Well-Known Member

    Joined:
    Apr 28, 2019
    Member:
    #291602
    Messages:
    238
    Gender:
    Male
    Show Low, AZ
    Vehicle:
    2018 TRD Pro, 1998 TRD
    I bought my pro with 12 miles on it and it didn't have those washers installed on the garnish. I questioned why it was loose before I signed and they told me it was normal. I laughed and said I'd fix it myself. A quick search here showed how and I took it back and had them do it. That was a mistake. I asked the service mgr. to make it so it was flush with the rest of the grille and he gives it back to me all angled to the sky.

    KY_Rob likes this.
  8. May 8, 2019 at 11:30 PM
    #8
    Kauai_Tacoma

    Kauai_Tacoma Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172496
    Messages:
    79
    Gender:
    Male
    Vehicle:
    2016 Tacoma sport
  9. May 9, 2019 at 6:08 AM
    #9
    mikeaesq

    mikeaesq [OP] Well-Known Member

    Joined:
    Mar 17, 2019
    Member:
    #286928
    Messages:
    279
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    TRD Off-road 4x4
    Appreciate the help guys. The responsiveness and altruism here is unparalleled.

    shotgunbilly420 likes this.
  10. May 27, 2019 at 1:06 PM
    #10
    KY_Rob

    KY_Rob Well-Known Member

    Joined:
    Apr 11, 2019
    Member:
    #289780
    Messages:
    587
    Gender:
    Male
    First Name:
    Rob
    Northern Kentucky
    Vehicle:
    2018 DCSB TRD-OR
    Tinted front windows WeatherTech Vent Shades Hondo Garage ARFCOM Radio Knobs Perfect Squeeze Phone Mount Taco Garage DMM Coverking CR-Neoprene seat covers 4x white grille lights Black textured rear bumpershellz Total Chaos Bed Stiffeners A/C Drain Mod MESO Ultimate Turn Signals MESO Extended Fuse Box Cover MESO Ultimate Map Lights MESO Ultimate Dome Light MESO Gasshole MESO Minimalist Key Fob MESO Stage 2 Total Tails MESO Puddle Pods MESO Black Interior Chrome Delete Kit (not yet installed) MESO Black Vent Rings (not yet installed) OEM TRD Pro Tail Lights OEM TRD Pro Skid Plate OEM Bed Mat OEM Matte Black Badging Covers OEM TRD Pro grille OEM LED Bed Lighting Lomax Hard Tri-Fold Tonneau Kicker speakers throughout (Subaru tweeters)
    I’ve got an OEM Pro Grille waiting to be installed. It’s the 2016-2017 version, but has the TSS sensor opening. When I install the separate garnish, it also looks angled to the sky when pushed in all the way. If I “make it flush”, there’s barely any washer stud poking through the holes at the top. Not sure what to do about this yet.

  11. May 27, 2019 at 1:08 PM
    #11
    KY_Rob

    KY_Rob Well-Known Member

    Joined:
    Apr 11, 2019
    Member:
    #289780
    Messages:
    587
    Gender:
    Male
    First Name:
    Rob
    Northern Kentucky
    Vehicle:
    2018 DCSB TRD-OR
    Tinted front windows WeatherTech Vent Shades Hondo Garage ARFCOM Radio Knobs Perfect Squeeze Phone Mount Taco Garage DMM Coverking CR-Neoprene seat covers 4x white grille lights Black textured rear bumpershellz Total Chaos Bed Stiffeners A/C Drain Mod MESO Ultimate Turn Signals MESO Extended Fuse Box Cover MESO Ultimate Map Lights MESO Ultimate Dome Light MESO Gasshole MESO Minimalist Key Fob MESO Stage 2 Total Tails MESO Puddle Pods MESO Black Interior Chrome Delete Kit (not yet installed) MESO Black Vent Rings (not yet installed) OEM TRD Pro Tail Lights OEM TRD Pro Skid Plate OEM Bed Mat OEM Matte Black Badging Covers OEM TRD Pro grille OEM LED Bed Lighting Lomax Hard Tri-Fold Tonneau Kicker speakers throughout (Subaru tweeters)
    Where can I find these washers for a dime? Amazon has OEM washers for $4.00 EACH!

  12. May 27, 2019 at 1:17 PM
    #12
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    930
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    Use a longer 7mm socket push them on, deeper is better, shallow and it won't go down all the way. I think that's what it was. With the washer having the tabs pointing up, I'd point them towards the front/garnish. I did mine with the tabs pointing towards the engine and mine is loose and rattles around. I'm going to pull it off and try to flip them. Some have said that's how their's was and some of the PRO's on dealer lots were. I think it just depends on who assembled it.

  13. May 27, 2019 at 1:19 PM
    #13
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    930
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    Nope. They assume it's a replacement part, so you'd just reuse the old ones or whoever replacing them (shop) would have them on hand. Probably save money and make more money in the long run.

  14. May 27, 2019 at 1:28 PM
    #14
    KY_Rob

    KY_Rob Well-Known Member

    Joined:
    Apr 11, 2019
    Member:
    #289780
    Messages:
    587
    Gender:
    Male
    First Name:
    Rob
    Northern Kentucky
    Vehicle:
    2018 DCSB TRD-OR
    Tinted front windows WeatherTech Vent Shades Hondo Garage ARFCOM Radio Knobs Perfect Squeeze Phone Mount Taco Garage DMM Coverking CR-Neoprene seat covers 4x white grille lights Black textured rear bumpershellz Total Chaos Bed Stiffeners A/C Drain Mod MESO Ultimate Turn Signals MESO Extended Fuse Box Cover MESO Ultimate Map Lights MESO Ultimate Dome Light MESO Gasshole MESO Minimalist Key Fob MESO Stage 2 Total Tails MESO Puddle Pods MESO Black Interior Chrome Delete Kit (not yet installed) MESO Black Vent Rings (not yet installed) OEM TRD Pro Tail Lights OEM TRD Pro Skid Plate OEM Bed Mat OEM Matte Black Badging Covers OEM TRD Pro grille OEM LED Bed Lighting Lomax Hard Tri-Fold Tonneau Kicker speakers throughout (Subaru tweeters)
    For the thread and answering my own question, these washers are M6 internal star lock push on washers. Should be available at just about any hardware I would think.
    The plastic “studs” at the top of the inside garnish are just under a 1/4” diameter. Should be able to use 1/2”x1/4” rubber washers if desired.

    I’m thinking my garnish is going to end up being custom fit with all of the above, plus a little epoxy to keep things from rattling around. No way do I want it not sitting flush with the outside of the grille. Damned thing looks bad enough as it is.

  15. May 27, 2019 at 1:32 PM
    #15
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    930
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    I think a thin rubber washer and star washer would be perfect. I wouldn't use epoxy just to in case.

    KY_Rob likes this.
  16. May 27, 2019 at 1:42 PM
    #16
    KY_Rob

    KY_Rob Well-Known Member

    Joined:
    Apr 11, 2019
    Member:
    #289780
    Messages:
    587
    Gender:
    Male
    First Name:
    Rob
    Northern Kentucky
    Vehicle:
    2018 DCSB TRD-OR
    Tinted front windows WeatherTech Vent Shades Hondo Garage ARFCOM Radio Knobs Perfect Squeeze Phone Mount Taco Garage DMM Coverking CR-Neoprene seat covers 4x white grille lights Black textured rear bumpershellz Total Chaos Bed Stiffeners A/C Drain Mod MESO Ultimate Turn Signals MESO Extended Fuse Box Cover MESO Ultimate Map Lights MESO Ultimate Dome Light MESO Gasshole MESO Minimalist Key Fob MESO Stage 2 Total Tails MESO Puddle Pods MESO Black Interior Chrome Delete Kit (not yet installed) MESO Black Vent Rings (not yet installed) OEM TRD Pro Tail Lights OEM TRD Pro Skid Plate OEM Bed Mat OEM Matte Black Badging Covers OEM TRD Pro grille OEM LED Bed Lighting Lomax Hard Tri-Fold Tonneau Kicker speakers throughout (Subaru tweeters)
    Yeah, you’re probably right on the epoxy. I just hope there’s enough garnish stud for washer to grab and keep things flush on the outside.

  17. May 27, 2019 at 2:37 PM
    #17
    hazey

    hazey Active Member

    Joined:
    May 8, 2019
    Member:
    #292693
    Messages:
    41
    Gender:
    Male
    Vehicle:
    2019 DCOR MGM
    Do you really need to order the washers? I just used the silver washers from my off road and it fit great.

  18. May 27, 2019 at 2:50 PM
    #18
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    930
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    There's definitely enough. If the socket is too shallow, the nub won't go far enough into the socket to seat the star washer.

    KY_Rob likes this.
  19. Dec 26, 2020 at 4:38 PM
    #19
    Darthkevyn

    Darthkevyn Member

    Joined:
    Oct 11, 2020
    Member:
    #343497
    Messages:
    11
    Gender:
    Male
    First Name:
    Kevin
    Washington State
    Vehicle:
    2020 Cement TRD Off Road
    KB Voodoo Bed Rack, axe and shovel mount, Rotopax mount, TRD Pro Tail Lights, OEM Bed Light install, TRD Pro Grill, Rear De-Badged, Tacoma Badges Plastidipped, 30% Tinted Windows.

    Do you have any pictures of how you did the foam? I live in washington state and want to limit the amount of moisture so hopefully I won't have to replace a sensor or something

  20. Dec 26, 2020 at 4:49 PM
    #20
    s7726

    s7726 Well-Known Member

    Joined:
    Apr 18, 2019
    Member:
    #290569
    Messages:
    315
    Gender:
    Male
    Vehicle:
    2019 DCLB TRD OR Cement

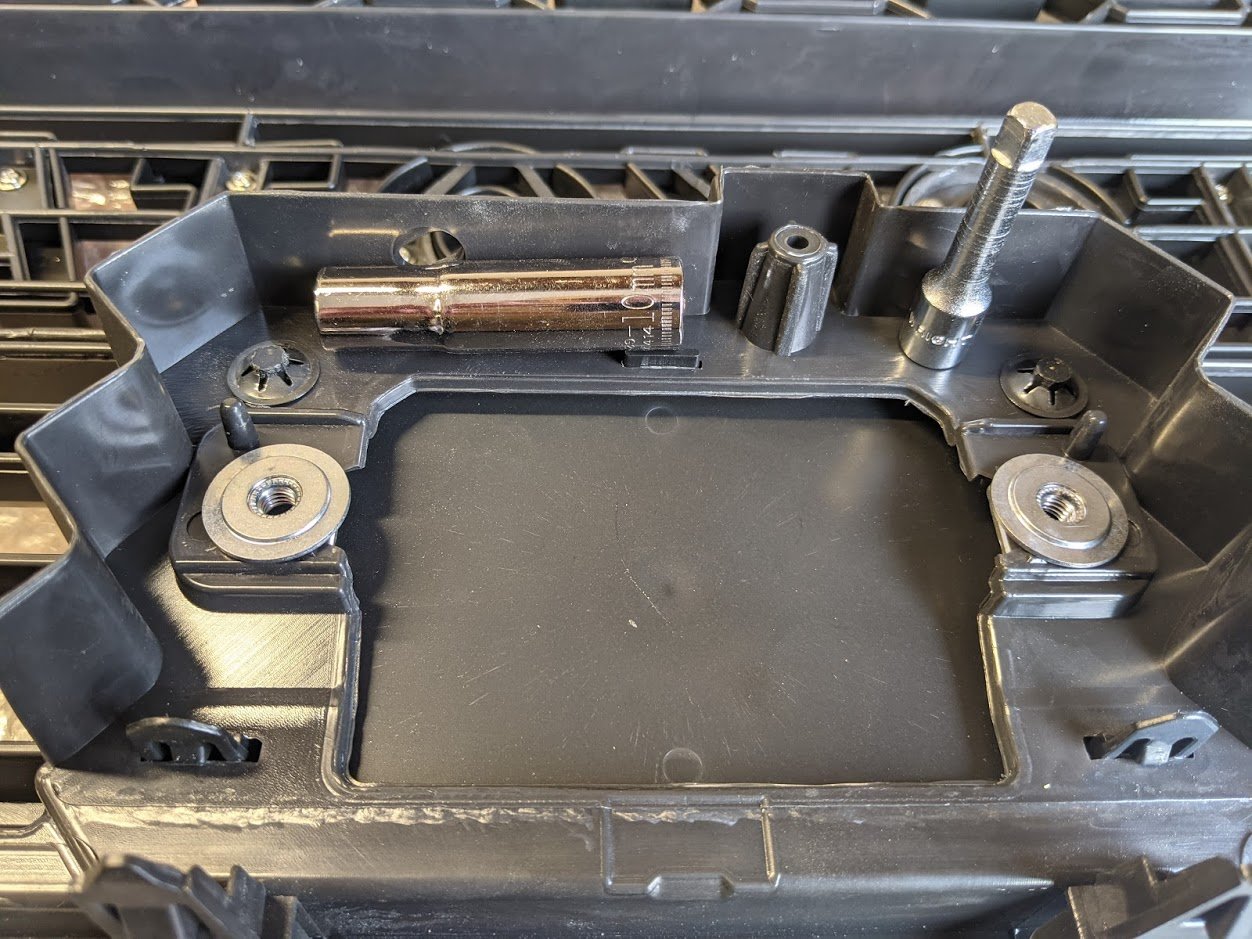

    Like this:
    UXiji1q-LRMZcVhjpWUEXV9hz9xF16w0P6B48Fcr_af4c61be8945ec6fd4099e5fbaa99639f612fada.jpg
    Use the 1/4" extension (open end) to get them started. Just until the teeth get around the little post.
    Finished them all the way with the 10mm.

    Put a block of wood (I covered it with vinyl for a little extra protection) under the garnish, the rappy-tap the tool (extension/socket) with a hammer.

    Medium, quick, firm hits should work.

    Last edited: Dec 26, 2020
    Darthkevyn likes this.
