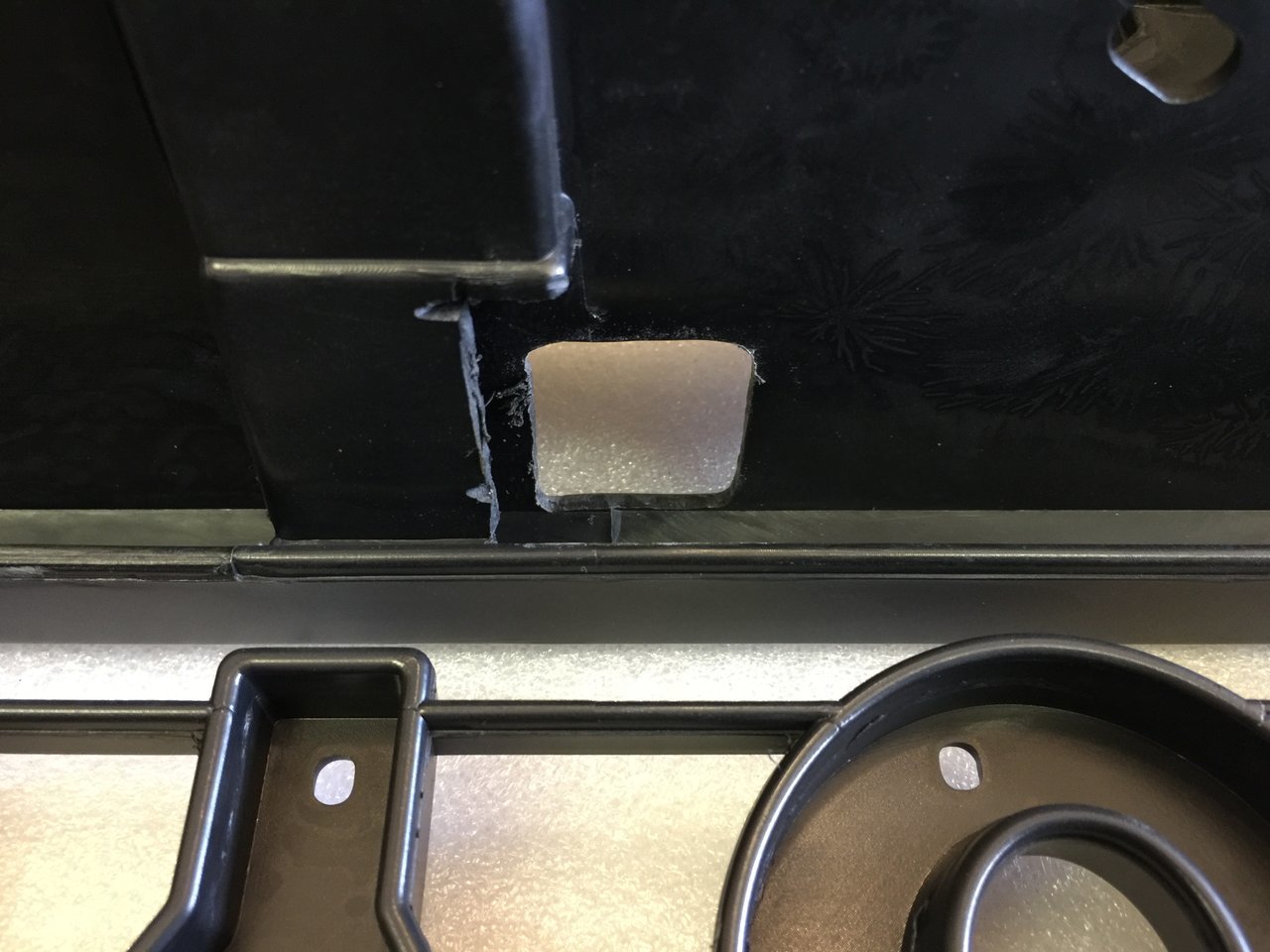

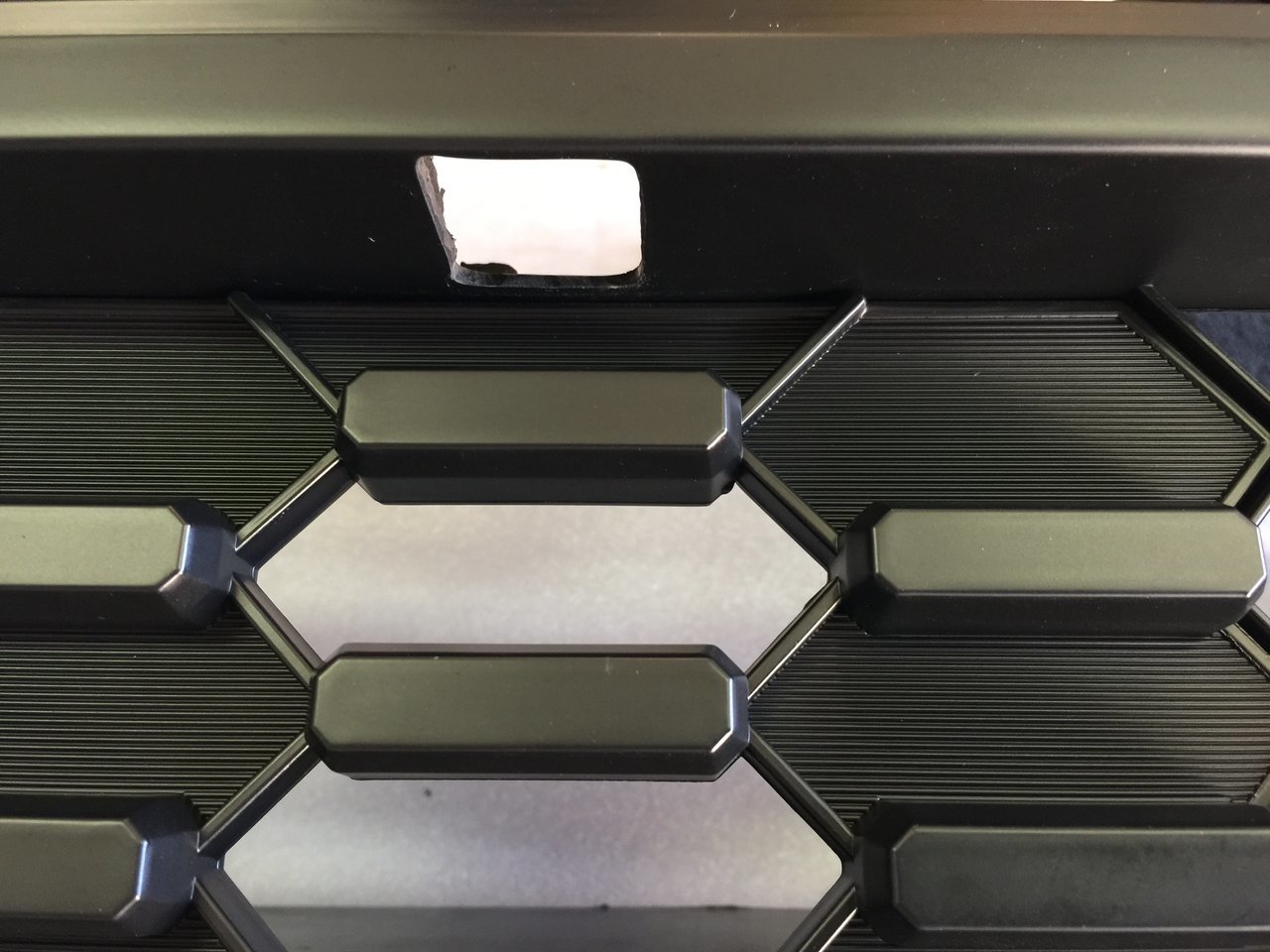

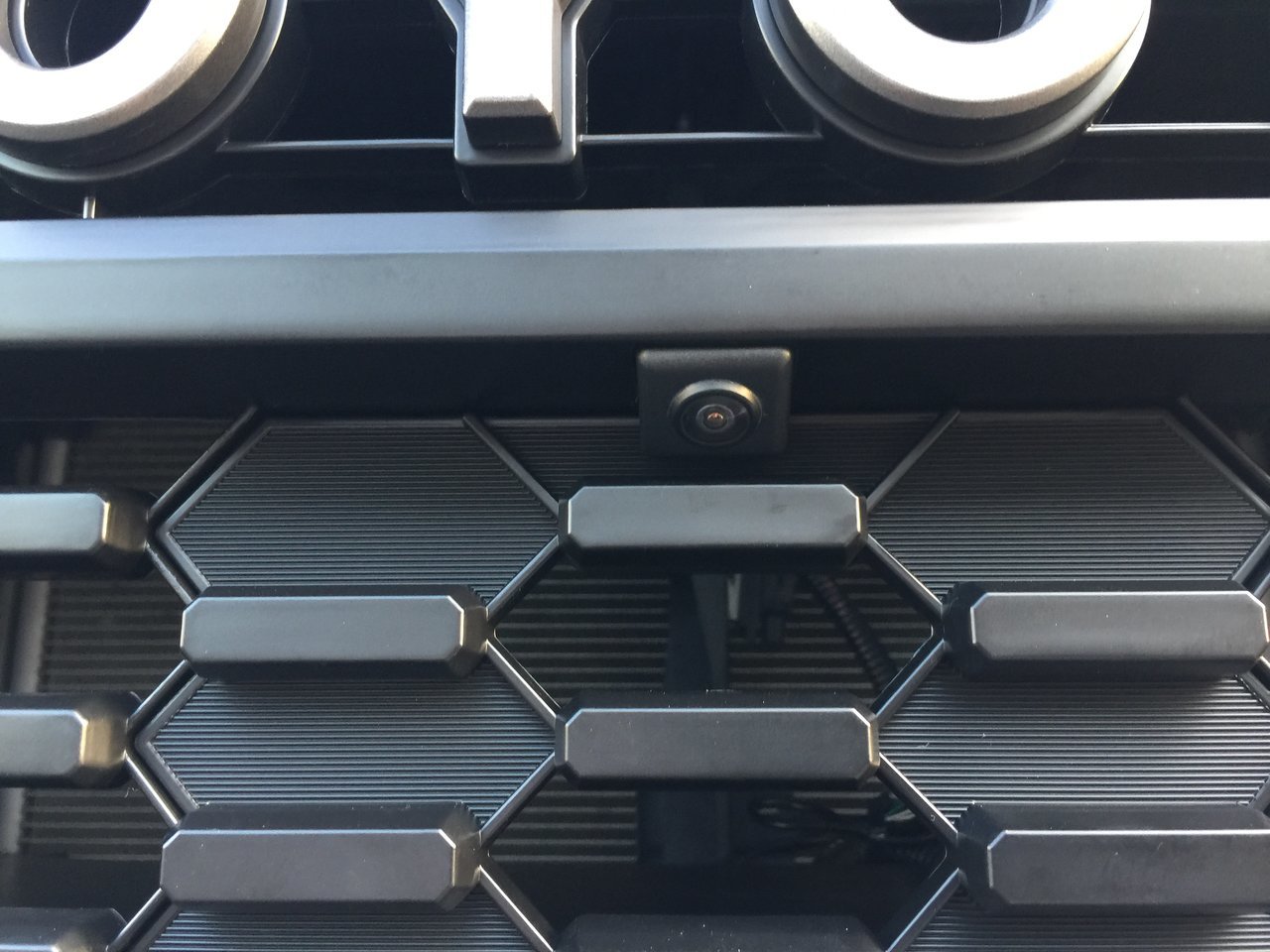

TRD Pro Grill with Front Camera

Discussion in '3rd Gen. Tacomas (2016-2023)' started by TacoTruck808, Dec 19, 2017.

  1. Jan 21, 2018 at 10:11 AM
    #41
    poopshute

    poopshute Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19385
    Messages:
    705
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Tacoma TRD Pro Storm Trooper

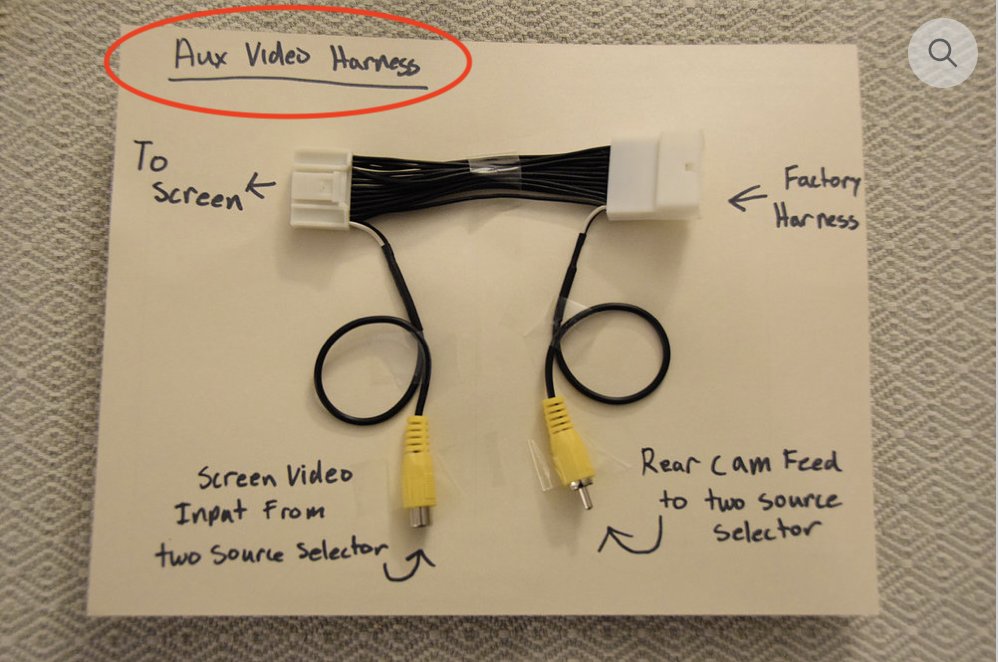

    Looking at this picture on the anytime site, it looks like it just might be tapping into the aux feed. This might be a problem for those of us using harnesses like the Crux A/V harness that mirrors your phone on your display while driving. I believe both of these hardnesses (anytime camera and Crux A/V) use the same factory plug. I would assume there would be issues with piggy backing them.


  2. Jan 21, 2018 at 10:14 AM
    #42
    TacoTruck808

    TacoTruck808 [OP] Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM

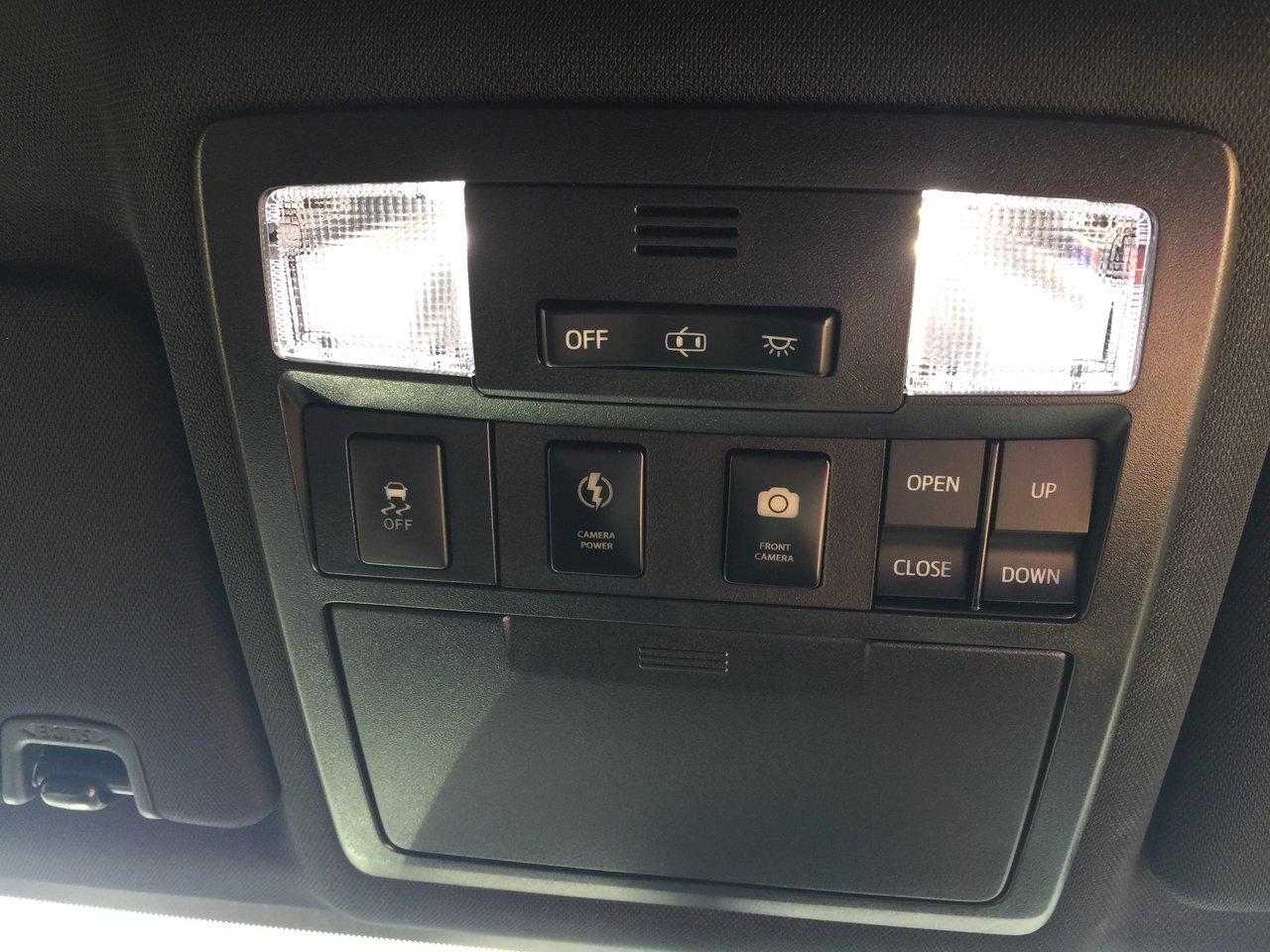

    Correct. I have 2 spst switches. One powers the cameras on so when pushing that power button, the HU screen automatically displays the camera view. The 2nd one switches between the front and back camera views.

  3. Jan 21, 2018 at 10:18 AM
    #43
    poopshute

    poopshute Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19385
    Messages:
    705
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Tacoma TRD Pro Storm Trooper
    Awesome. Thanks for the clarification. Would definitely been interested in pursuing this if it wasn't for my system already being setup to mirror my iPhone (and Apple TV... a story for another time). As stated, I believe my current hardness is already taking up that factory plug shown in the anytime harness.

    Regardless, great writeup, great finds (with the buttons and what not). Super clean setup and I would most likely set it up exactly how you did it if I ever go this route.

  4. Jan 21, 2018 at 10:21 AM
    #44
    TacoTruck808

    TacoTruck808 [OP] Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    It doesnt use the AUX feed. In the picture above, all that harness is doing is taking the leads that are going to the head unit from the camera and HU and adding an RCA video connection so you can use the video switcher. Otherwise, you cannot connect the camera to just the bare wires without the RCA connector. The video selector relay allows you to switch the feed to the HU from the existing rear and newly added feont camera.

  5. Jan 21, 2018 at 10:23 AM
    #45
    itsdug

    itsdug Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239850
    Messages:
    405
    Gender:
    Male
    First Name:
    Doug
    Fentress County
    Vehicle:
    2018 DCSB 4x4

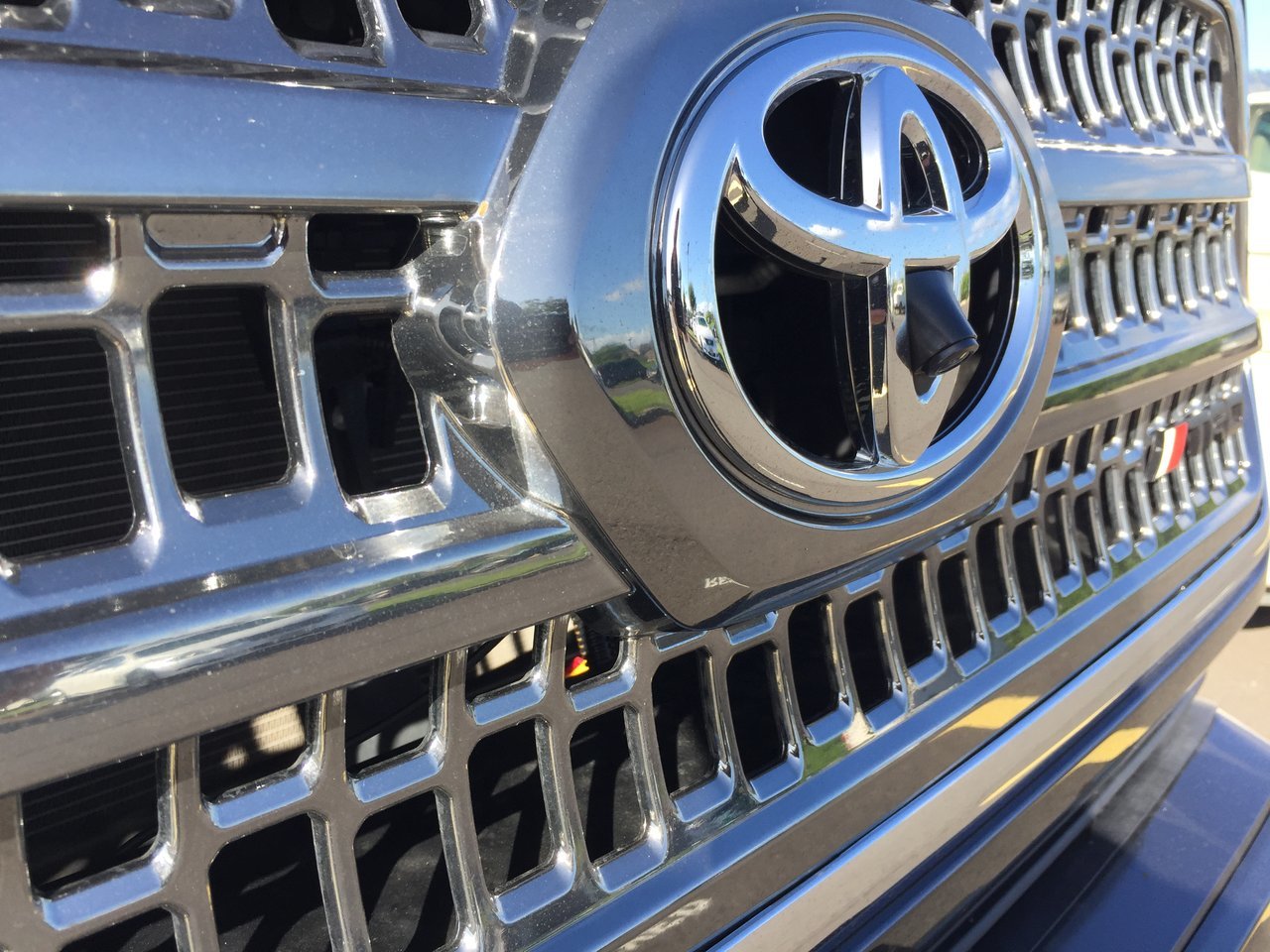

    Camera. Way cheaper.

    EastVanTaco likes this.
  6. Jan 21, 2018 at 10:23 AM
    #46
    TacoTruck808

    TacoTruck808 [OP] Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I dont think the mirroring uses the wires that this harness uses. In the future, i was planning on doing the mirroring also with the harness i already have and if i remembered correctly, i would still be able to do this.

  7. Jan 21, 2018 at 10:23 AM
    #47
    Friedtacolover

    Friedtacolover Well-Known Member

    Joined:
    Sep 2, 2014
    Member:
    #137481
    Messages:
    1,561
    Gender:
    Male
    First Name:
    Travis
    Ontario, Ca
    Vehicle:
    2017 DCSB Off Road 4x4
    my build tread: https://www.tacomaworld.com/threads/socal-no-shame-poser-build.513084/
    Can the power switch button be eliminated if all i want is the anytime front camera? I dont need the rear camera accessed when im not in reverse. So only want to install the front camera independitly. I also only want one button like a front camera button to push and not two buttons.

  8. Jan 21, 2018 at 12:01 PM
    #48
    KnckleChldrn

    KnckleChldrn Well-Known Member

    Joined:
    Dec 31, 2017
    Member:
    #239864
    Messages:
    784
    Gender:
    Male
    First Name:
    Jamie
    Mass
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    Suspension OME 886 Coils OME Nitro Charger Sport shocks OME Nitro Charger Sport struts Deaver Expedition leaf pack Mickey Thompson wheels 265/70/17 KO2 Total Chaos upper control arms Performance K&N air intake Exterior Southern Style Offroad slim line bumper Smittybilt x20 winch Interior Kicker tweeters, front and rear speakers Anytime front and rear camera Hondo Garage stereo knobs Hondo Garage un-Holley mount MESO black out door handles MESO steering wheel MGM overlay MESO puddle pods MESO ultimate red map lights MESO ultimate red dome MESO gasshole MESO ultimate turn signals MESO BD5 3rd brake light MESO stage 3 side markers Retrofit Morimoto 2.0 headlights RGB halo RGB demons RGB DRL Cali Raised raptor LED tail lights SpartanXCustoms scoop light Baja Designs Squadron Sports fogs (amber) Baja Designs Squadron Pro ditch (amber) Baja Designs S8 20" Matt Gecko bed lights Matt Gecko hood lights Switchpro 9100 OEM bed mat 300 Industries grill Bakflip Fibermax cover
    So does this mean it should work in conjunction with the HAI cable?

  9. Jan 21, 2018 at 12:06 PM
    #49
    EastVanTaco

    EastVanTaco Well-Known Member

    Joined:
    Jul 9, 2017
    Member:
    #223563
    Messages:
    925
    Gender:
    Male
    Vehicle:
    2017 super white Trd Sport DCLB
    So... In using hot glue.
    Im just curious... Lets say the camera stops working.
    Then what?
    Buy new grille?

  10. Jan 21, 2018 at 12:30 PM
    #50
    LilTexan22

    LilTexan22 Well-Known Member

    Joined:
    May 30, 2017
    Member:
    #220272
    Messages:
    1,114
    Gender:
    Male
    Vehicle:
    2017 Tacoma
    Ok, sorry if this is a dumb question but whats with having a front camera on your grill for?

  11. Jan 21, 2018 at 12:41 PM
    #51
    poopshute

    poopshute Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19385
    Messages:
    705
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Tacoma TRD Pro Storm Trooper
    This makes sense. Thanks!

    Please post an update once you install the phone mirroring kit! Would love to hear if this all works together since you’ll have the two harnesses piggy backing. If they don’t use the same wires, you’re absolutley right that the should both work.

    Ever wonder if you’re going to bump something in front of you when parking or 4wheeling? There’s your answer.

  12. Jan 21, 2018 at 4:31 PM
    #52
    TacoTruck808

    TacoTruck808 [OP] Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    The power button is mainly to power the anytime rear camera, but if I didn’t have that, I would still need a switch of some type to trigger the HU to turn on so you can view the front camera, that’s why it is used for both triggering the HU and powering the front camera at the same time. If you only wanted to use the front camera, then you will need to use a dpdt switch, but you would have to do research on how to use it that way and the factory type switches don’t come in a dpdt.

    I am thinking it would work with the HAI cable, since it seems like it is similar to the harness I used, but with some additional features like phone mirroring and Nav anytime mod built into the cable.

    Just buy a new camera. Hot glue will keep it in place pretty permanently, but if it needed to be removed, the hot glue can be cut off with a exacto or utility knife to replace the camera. You will just need to replace it with the exact same one.


    If it prevents even 1 instance of hitting a low pole, wall, rock or another persons bumper, then it is totally worth it to me.:thumbsup:

  13. Jan 21, 2018 at 5:50 PM
    #53
    KnckleChldrn

    KnckleChldrn Well-Known Member

    Joined:
    Dec 31, 2017
    Member:
    #239864
    Messages:
    784
    Gender:
    Male
    First Name:
    Jamie
    Mass
    Vehicle:
    2017 Tacoma TRD Sport DCSB MT
    Suspension OME 886 Coils OME Nitro Charger Sport shocks OME Nitro Charger Sport struts Deaver Expedition leaf pack Mickey Thompson wheels 265/70/17 KO2 Total Chaos upper control arms Performance K&N air intake Exterior Southern Style Offroad slim line bumper Smittybilt x20 winch Interior Kicker tweeters, front and rear speakers Anytime front and rear camera Hondo Garage stereo knobs Hondo Garage un-Holley mount MESO black out door handles MESO steering wheel MGM overlay MESO puddle pods MESO ultimate red map lights MESO ultimate red dome MESO gasshole MESO ultimate turn signals MESO BD5 3rd brake light MESO stage 3 side markers Retrofit Morimoto 2.0 headlights RGB halo RGB demons RGB DRL Cali Raised raptor LED tail lights SpartanXCustoms scoop light Baja Designs Squadron Sports fogs (amber) Baja Designs Squadron Pro ditch (amber) Baja Designs S8 20" Matt Gecko bed lights Matt Gecko hood lights Switchpro 9100 OEM bed mat 300 Industries grill Bakflip Fibermax cover
    Front camera harness purchased with that other HAI one. Once I receive and install I’ll post

  14. Feb 28, 2018 at 12:06 AM
    #54
    pmaldy91

    pmaldy91 Member

    Joined:
    Oct 5, 2017
    Member:
    #232106
    Messages:
    9
    Gender:
    Male
    First Name:
    Patrick
    Charleston, SC
    Vehicle:
    Black 2016 Tacoma TRD Sport
    @TacoTruck808
    I'm about to do this same modification but i have a couple questions before I get started. Im mounting my switches in what used to be the cubby to the left of the steering column after installing this https://www.shapeways.com/product/C...or-16-tacoma?optionId=59283471&li=marketplace.
    Did you connect the switches to be able to illuminate with the dash lights, and if so how?
    Where did you go through the firewall into the cab for the cables running to the front camera?
