Trying to add amp and sub to entunes premium 2017 Tacoma

Discussion in '3rd Gen. Tacomas (2016+)' started by eyesells, Jun 9, 2019.

  1. Jun 9, 2019 at 6:33 AM
    #1
    eyesells

    eyesells [OP] New Member

    Joined:
    May 21, 2019
    Member:
    #293927
    Messages:
    4
    Gender:
    Male
    First Name:
    Terry
    Franklin Tn
    Vehicle:
    2017 Inferno TRD
    I cant find a clearly marked diagram that tells me which wires are the tweeter, front speakers door and rear door speakers. I want to convert those to rca for amp input and then back out to upgraded speakers. Any help would be much appreciated. Also need to know where to run the blue lead from the amp to head unit.

  2. Jun 9, 2019 at 6:37 AM
    #2
    09 Redneck

    09 Redneck Well-Known Member

    Joined:
    Jan 17, 2009
    Member:
    #12668
    Messages:
    944
    Gender:
    Male
    Ga
    @destin_meeks
    He may can help.

    eyesells [OP] likes this.
  3. Jun 9, 2019 at 6:48 AM
    #3
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,851
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    I would get the metra 70-1761 and 71-1761 to build a T-harness behind the radio. That will get you color-coded speaker outputs from the radio and then inputs to the factory wiring to do exactly what you want to do.

    For the front door vs tweeter, there is actually only 1 pair of wires coming from the radio.
    It comes out of the radio, over to the factory tweeter, then out of the factory tweeter into the door panel. If you’ve looked at the tweeter, that’s why it has 4 wires

    eyesells [OP] likes this.
  4. Jun 9, 2019 at 6:56 AM
    #4
    eyesells

    eyesells [OP] New Member

    Joined:
    May 21, 2019
    Member:
    #293927
    Messages:
    4
    Gender:
    Male
    First Name:
    Terry
    Franklin Tn
    Vehicle:
    2017 Inferno TRD

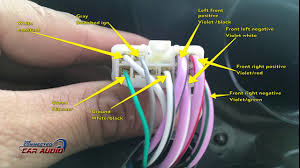

    Thanks here is a pic of front speakers. What colors are rear speakers?upload_2019-6-9_8-56-2.jpg

  5. Jun 9, 2019 at 7:01 AM
    #5
    Tocamo

    Tocamo Not to be confused with Camel Toe

    Joined:
    Jan 16, 2018
    Member:
    #241451
    Messages:
    2,610
    Gender:
    Male
    First Name:
    Rick
    Ottawa, Ontario. Capital of Canada
    Vehicle:
    2017 OFF-ROAD DCSB Taliban Tan
    C load 265/75/16 Duratracs.
    I used the rear speakers from the back of the HU. Don't remember the colours anymore unfortunately, but I think they were on their own on a white 4 plug module.

    eyesells [OP] likes this.
  6. Jun 9, 2019 at 7:04 AM
    #6
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,851
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

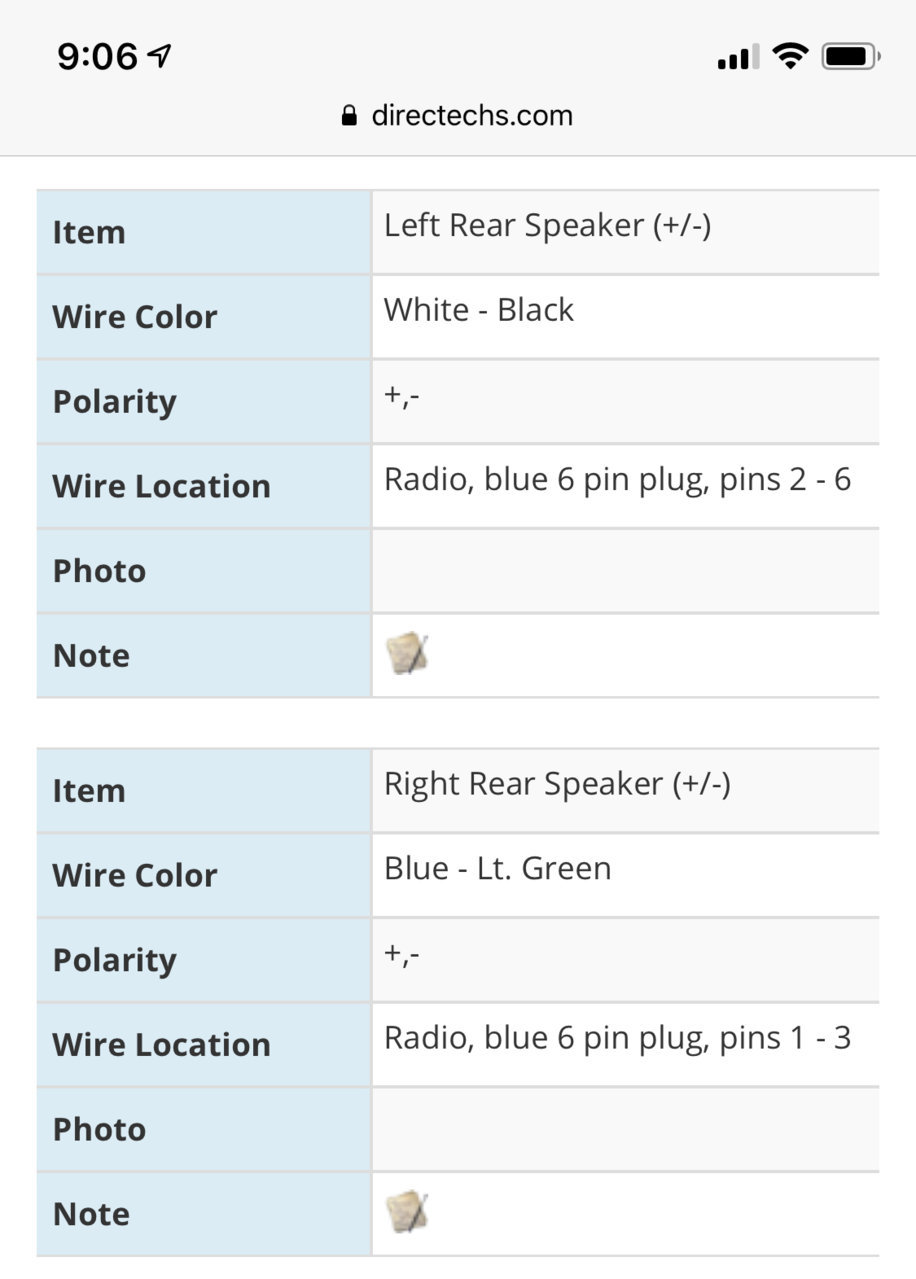

    Rear speakers are in the second, smaller harness next to that one. I want to say left is white-black and right is blue-green

    Last edited: Jun 9, 2019
    eyesells [OP] likes this.
  7. Jun 9, 2019 at 7:07 AM
    #7
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,851
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
  8. Jun 10, 2019 at 7:31 PM
    #8
    CO_Taco125

    CO_Taco125 Well-Known Member

    Joined:
    Aug 30, 2018
    Member:
    #264605
    Messages:
    67
    Gender:
    Male
    Vehicle:
    '17 TRD OR DCSB
    OVtune, Falken Wildpeaks, Falcon Suspension, KMC XD, KC flexpods, KC Pro6 bar, Kicker speakers, Sound Ordnance sub, MTX amp, interior vinyl wrap
    Take signal from the rear speaker wires to the amp, and run new wire from the amp to your doors. That way its easy to get the signal, and you can run larger wire for the increased power from the amp. An active line output converter would be a good investment as well, such as the LC2i.

  9. Jun 10, 2019 at 7:36 PM
    #9
    eyesells

    eyesells [OP] New Member

    Joined:
    May 21, 2019
    Member:
    #293927
    Messages:
    4
    Gender:
    Male
    First Name:
    Terry
    Franklin Tn
    Vehicle:
    2017 Inferno TRD
    Thanks for all the good info. Finished today and it’s awesome. 4jbl coax 1200 watt cerwin Vega amp and 800 watt 8 inch sub.

  10. Jun 11, 2019 at 7:19 PM
    #10
    FZfreak

    FZfreak New Member

    Joined:
    Nov 27, 2018
    Member:
    #273998
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2016 TRD Sport Inferno Access
    a related question, pls: what wire @ HU can be used to turn-on/wake-up the amp ? thx.

  11. Jun 11, 2019 at 7:22 PM
    #11
    eyesells

    eyesells [OP] New Member

    Joined:
    May 21, 2019
    Member:
    #293927
    Messages:
    4
    Gender:
    Male
    First Name:
    Terry
    Franklin Tn
    Vehicle:
    2017 Inferno TRD
    Gray wire refer back to pic in this thread. It’s the switch pwr wire.

    FZfreak likes this.
