Turbo BS Thread

Discussion in 'Performance and Tuning' started by Clay_916, Mar 20, 2017.

  1. Oct 12, 2017 at 8:05 PM
    #3221
    JayRolla

    JayRolla Well-Known Member

    Joined:
    Mar 30, 2017
    Member:
    #214833
    Messages:
    939
    Gender:
    Male
    First Name:
    Jason
    Colorado Springs
    Vehicle:
    Wife's 2012 DCSB Tacoma Sr5
    Trd stickers for 10whp
    No this is great info. The Toyota stock fpr seems to be great. Must be based off the Supra FPR.

    Brice likes this.
  2. Oct 13, 2017 at 1:06 AM
    #3222
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5
    If I got a MAP-ECU3 and the MAP-ECU AFR Module, would iMAPCAL output the AFR or would I still need to get another wideband?

  3. Oct 13, 2017 at 2:53 AM
    #3223
    buyobuyo

    buyobuyo Well-Known Member

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    1,685
    Gender:
    Male
    First Name:
    Jeremy
    Colonial Beach, VA
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    You need a separate wideband because you're altering the stock sensor signal to trick the ECU. The MAP-ECU3 software will only show AFR if you feed it the output signal from your wideband. It doesn't use that info for anything except datalogging.

  4. Oct 13, 2017 at 4:39 AM
    #3224
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    11,870
    Gender:
    Male
    First Name:
    Chris
    0 fucKS
    Vehicle:
    DCSB OR 4X4 Mid-Travel
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, CVT Mt.Shasta, AllPro PackRack, ADS Shocks, Deaver Leafsprings, 35s
    that car moves!
    if i could have found a decent gsx i would have gone that route

    dirtdigginjoe, JayRolla and Jcyr like this.
  5. Oct 13, 2017 at 9:23 AM
    #3225
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5
    This just doesn’t make sense to me. I’m assuming, by your description, that the AFR output wire is cut and becomes an input to the MAP-ECU; the MAP-ECU then sends out a laundered signal to the ECU. If true, I would think the MAP-ECU would display the actual input. Or if there is a separate input wire for AFR display, why couldn’t someone just connect this wire to the AFR output wire too?

  6. Oct 13, 2017 at 9:35 AM
    #3226
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    11,793
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    the way I understand it is, the ecu needs to read afrs from the factory wideband, if u adjust those numbers the ecu then makes adjustments based on that. however if that is also what you are using to read afrs, the numbers you read will now be incorrect because you have tricked the ecu into thinkin the afrs are not what the factory widebands reading and you will get a false read because of this. so tuning from this point on would become a shot in the dark because you would have no idea what the actual afrs are. and seems like the stock wide bands are voltage and not resistance or something something something

    JayRolla, MadTaco461 and Jstand like this.
  7. Oct 13, 2017 at 9:46 AM
    #3227
    Jstand

    Jstand Well-Known Member

    Joined:
    Jan 24, 2017
    Member:
    #208506
    Messages:
    542
    Gender:
    Male
    First Name:
    Jason
    Irving,Tx
    Vehicle:
    2000 Tacoma Prerunner SR5 2.7 2wd
    Turbo
    That makes sense

  8. Oct 13, 2017 at 9:52 AM
    #3228
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    11,793
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    I have my moments

    Brice, MadTaco461 and Jstand like this.
  9. Oct 13, 2017 at 9:52 AM
    #3229
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5
    I need to look at the MAP-ECU schematic

  10. Oct 13, 2017 at 10:06 AM
    #3230
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5

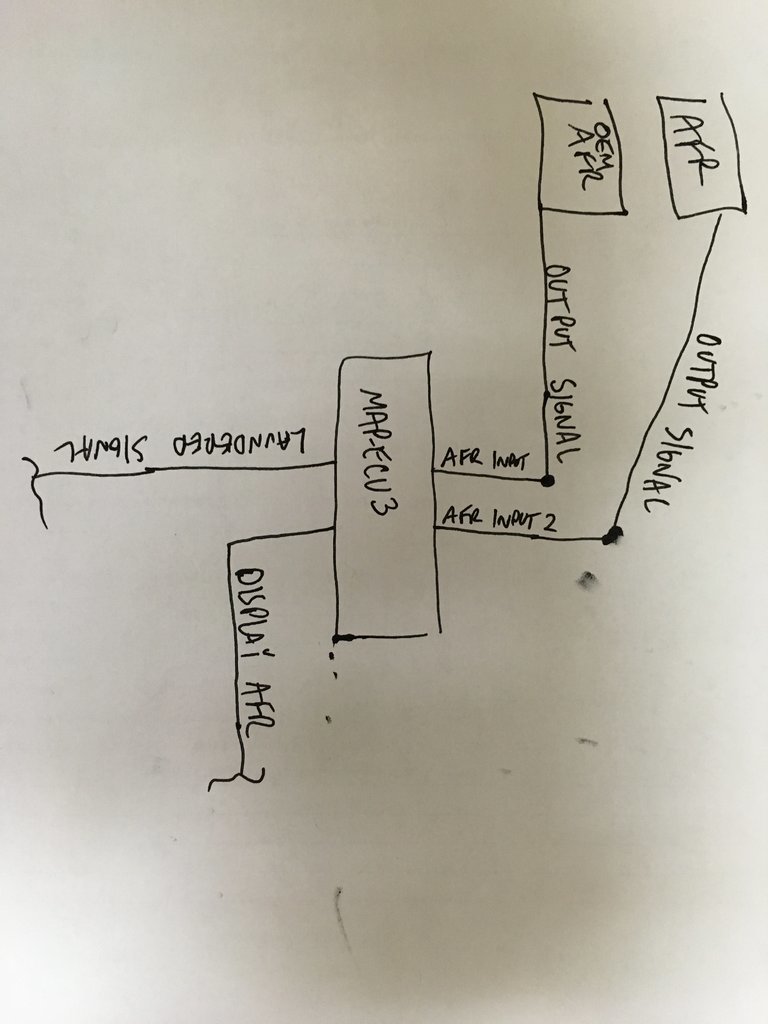

    I can’t find a pinout. This is the idea..
    What my understanding is of how people are doing it:

    My idea, connect both inputs to the AFR output

  11. Oct 13, 2017 at 10:15 AM
    #3231
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5

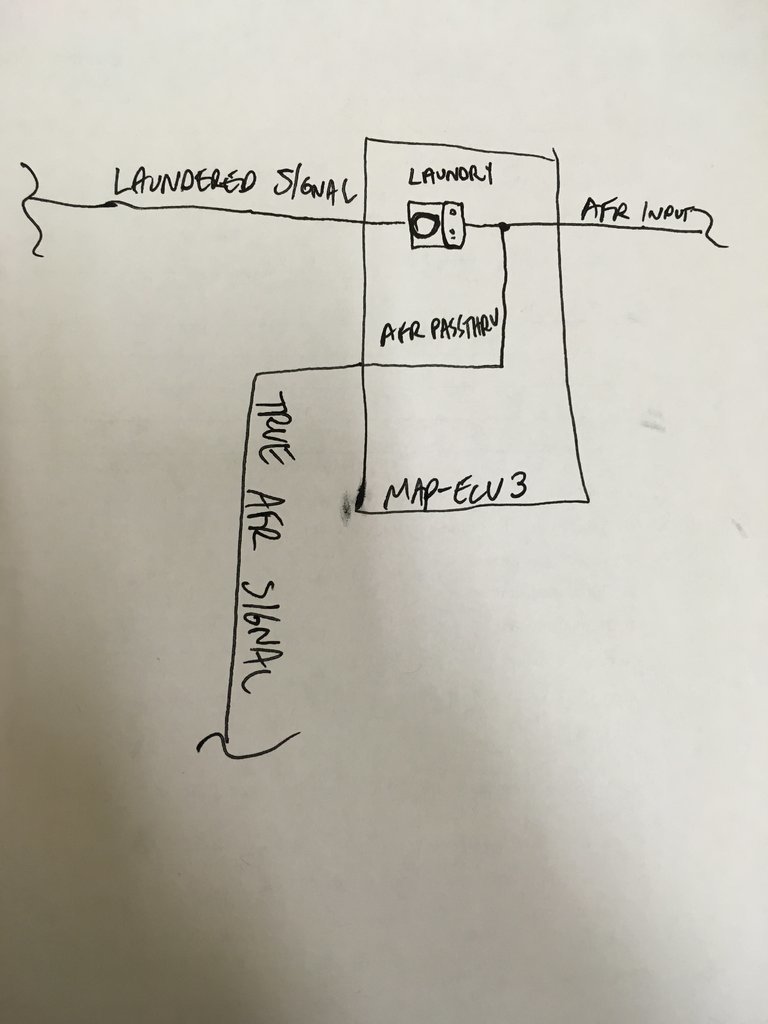

    2AC9CE10-7867-47B0-8947-3C1F66B54213.jpg This is how I would have assumed it would work, unless I was trying to sell you another AFR too :rolleyes:

  12. Oct 13, 2017 at 10:35 AM
    #3232
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    11,793
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    well just got off the phone with CXracing and got my clamps ordered. I had a half dozen $25 prepaid cards and multiple tenders are not very internet friendly so had to phone one in, but I think it saved my about $10 on shipping somehow so I'm ok with that

  13. Oct 13, 2017 at 10:40 AM
    #3233
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    12,176
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    With a 9180???? What other secrets are you keeping? :spy: You building this for TX2K, or something similar?

  14. Oct 13, 2017 at 10:51 AM
    #3234
    MadTaco461

    MadTaco461 Jack May Hoffer

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    8,016
    Gender:
    Male
    First Name:
    Mike
    Murrieta, CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    True taking the unmodified signal would work. Just easier to have a standalone afr gauge with wideband because you'll need to come up with a separate gauge on your dash.

    05Taco4x4 likes this.
  15. Oct 13, 2017 at 10:57 AM
    #3235
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5
    I was wanting to display the AFR with the iMAPCAL app

    MadTaco461 likes this.
  16. Oct 13, 2017 at 11:03 AM
    #3236
    MadTaco461

    MadTaco461 Jack May Hoffer

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    8,016
    Gender:
    Male
    First Name:
    Mike
    Murrieta, CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    Sweet. I don't have the wifi module or an iPhone so it was cheaper to do a wideband.
    You might need to give them a 0-5v table for your wideband if one doesn't exist yet.

  17. Oct 13, 2017 at 11:07 AM
    #3237
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    531
    Gender:
    Male
    First Name:
    Chad
    Vehicle:
    FJ HubRunner SR5
    I'm new to all this, I don't know how to capture that. I don't even have a MAP-ECU3 yet- just trying to educate myself before a purchase, to know exactly what I'm getting myself into.

  18. Oct 13, 2017 at 11:09 AM
    #3238
    Sacrifice

    Sacrifice Motorcycle Goon

    Joined:
    Oct 8, 2013
    Member:
    #114093
    Messages:
    11,870
    Gender:
    Male
    First Name:
    Chris
    0 fucKS
    Vehicle:
    DCSB OR 4X4 Mid-Travel
    Pelfreybilt Front Bumper,BAMF sliders, Airflow Snorkel,Mini D2S Retrofits, CVT Mt.Shasta, AllPro PackRack, ADS Shocks, Deaver Leafsprings, 35s
    the 8374 is rated 700 crank which may be possible to get to the wheel with a some push. :notsure: havent done the maths. just dreaming until the car is up and running first.

    no but that would be fun to go to. been wanting a high hp car and figure this should do it just fine, haha. wipe a few grins off some newer cars

    Torspd likes this.
  19. Oct 13, 2017 at 11:30 AM
    #3239
    MadTaco461

    MadTaco461 Jack May Hoffer

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    8,016
    Gender:
    Male
    First Name:
    Mike
    Murrieta, CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    You can download all the software and manuals for free off their website to play with.

    Jcyr and 05Taco4x4 like this.
  20. Oct 13, 2017 at 1:57 PM
    #3240
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    11,793
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    05Taco4x4 likes this.
