Turbo BS Thread

Discussion in 'Performance and Tuning' started by Clay_916, Mar 20, 2017.

  1. Nov 8, 2018 at 11:50 AM
    #9201
    5 Lug Fury

    5 Lug Fury Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,874
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    Yeah in this or another of the same video someone commented that it was a 2tr with land cruiser axles

  2. Nov 8, 2018 at 11:58 AM
    #9202
    MadTaco461

    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    11,212
    Gender:
    Male
    First Name:
    Mike
    Murrieta, CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
  3. Nov 8, 2018 at 12:01 PM
    #9203
    MadTaco461

    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    11,212
    Gender:
    Male
    First Name:
    Mike
    Murrieta, CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
  4. Nov 8, 2018 at 8:54 PM
    #9204
    MrCrowntown

    MrCrowntown Well-Known Member

    Joined:
    Aug 7, 2016
    Member:
    #193980
    Messages:
    2,101
    Gender:
    Male
    First Name:
    Alyn
    PHX
    Vehicle:
    06 Extended cab Prerunner 2.7
    Dirt King Mid travel with King 2.5 coilovers, Baja Kits chase SUA with 14in fox smoothies under custom hangars.
    God I love the sound of that engine lol


    :pout:

    dirty deeds and MadTaco461 like this.
  5. Nov 8, 2018 at 10:40 PM
    #9205
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    2,920
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    I'm attempting to set-up Cruise on the Haltech.

    With the vehicle off, I measure resistance across the stalk, when activating the option, as:
    At Rest:795 ohm
    Main (enable/disable): 1.5 ohm
    + Res: 186.7 ohm
    - Set: 356.6 ohm
    CANCEL: 535.2 ohm

    With the key in the Run position:
    At Rest: OPEN
    Main: 25.9 ohm
    + Res: 17.6 ohm
    - Set: OPEN
    CANCEL: OPEN

    I figured something is opening the circuit (within the stalk?) to deny activating cruise. I thought maybe it is the ecu's way of disabling cruise under the minimum speed limit, so I measured resistance doing 35mph- STILL OPEN :(

    Haltech thought it was best to configure cruise with Voltage input, vice resistance. Issue above doesn't allow ESP to 'Calibrate' the voltage for the three open circuits.

    I'm stumped and very frustrated, I've spent 2 days trying to figure this out. Any ideas?

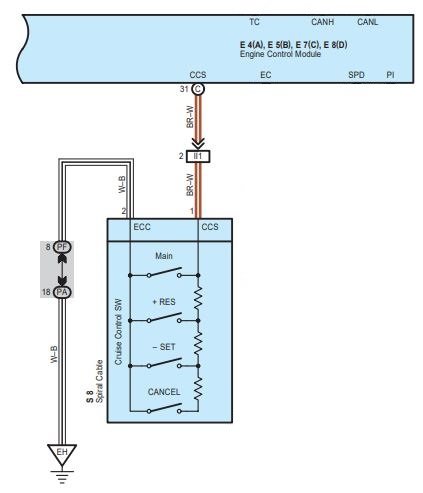

    Cruise Control SW.jpg

  6. Nov 8, 2018 at 10:48 PM
    #9206
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    2,920
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    And the idea of something within the stalk opening the circuit doesn't hold water because there's only 2 wires :pout:

  7. Nov 8, 2018 at 10:50 PM
    #9207
    MrCrowntown

    MrCrowntown Well-Known Member

    Joined:
    Aug 7, 2016
    Member:
    #193980
    Messages:
    2,101
    Gender:
    Male
    First Name:
    Alyn
    PHX
    Vehicle:
    06 Extended cab Prerunner 2.7
    Dirt King Mid travel with King 2.5 coilovers, Baja Kits chase SUA with 14in fox smoothies under custom hangars.
    Maybe get ahold of a ford falcon cruise control diagram and compare and modify. Might have to bypass the ECU entirely

    Torspd likes this.
  8. Nov 8, 2018 at 11:43 PM
    #9208
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    2,920
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    Something is going on with the Tacoma, outside of the diagram. There's only a few unassigned pins remaining and none output voltage.

    Last edited: Nov 9, 2018 at 12:28 AM
  9. Nov 9, 2018 at 9:36 AM
    #9209
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    3,698
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    1998 2.7 4x4 Single Cab
    LCE S/C, 58mm pulley, Icon CO's, SPC UCA, OME Dakar leaf pack, Rear OME shocks, ATX Mojave 15x8, 33x10.5 KO2’s, Nitro 4.88's, F&R ARB Lockers, TG front & AP rear bumpers, 4x sliders, Pioneer & JBL stereo, Weathertech Liners, Wet Okole Seat Covers
    In case anyone is interested...
    [​IMG]

  10. Nov 9, 2018 at 11:07 AM
    #9210
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    15,735
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []

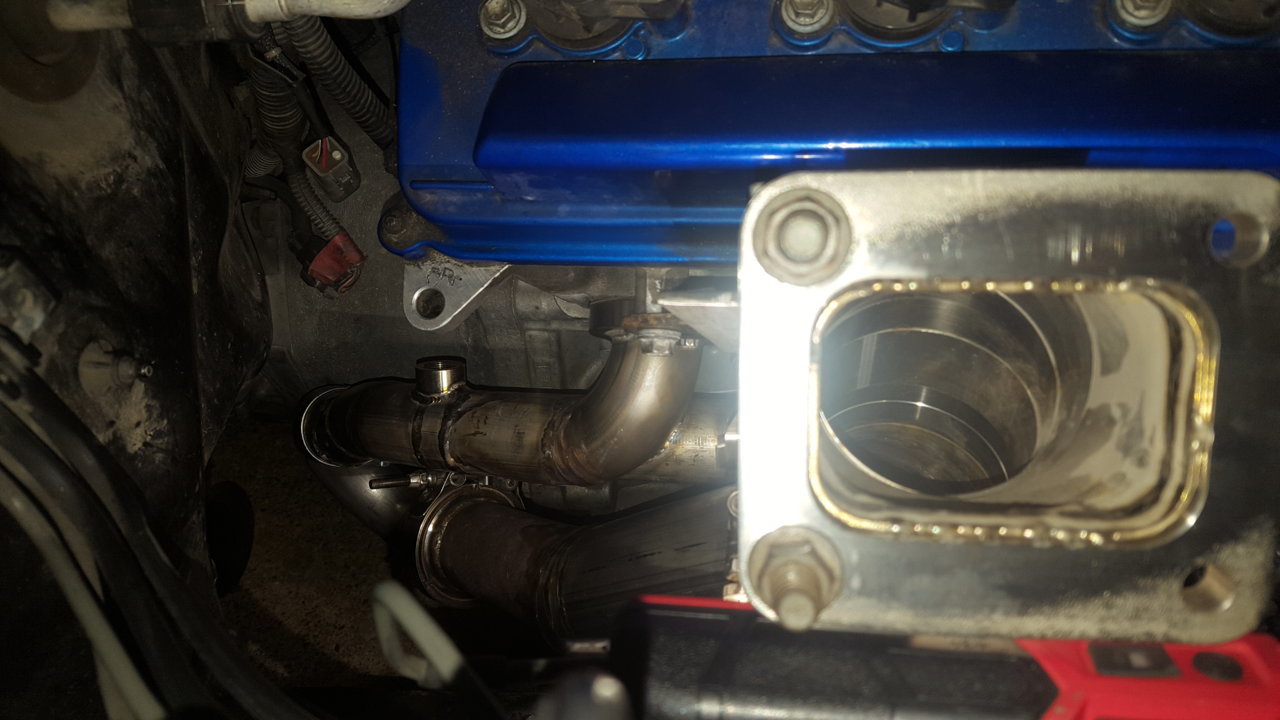

    Nearly there.....


  11. Nov 9, 2018 at 11:08 AM
    #9211
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    2,920
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    OK, so ground is denied after entering the junction- so I removed the pin and ground directly... everything is gtg :thumbsup:

    MrCrowntown and Torspd like this.
  12. Nov 9, 2018 at 11:16 AM
    #9212
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    15,735
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    BAM! Thanks for all of the leg work. Now to tinker, you genius! :D

    MrCrowntown and 05Taco4x4 like this.
  13. Nov 9, 2018 at 11:56 AM
    #9213
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    15,735
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    @Hacktacular

    Hacktacular likes this.
  14. Nov 9, 2018 at 12:07 PM
    #9214
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    3,698
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    1998 2.7 4x4 Single Cab
    LCE S/C, 58mm pulley, Icon CO's, SPC UCA, OME Dakar leaf pack, Rear OME shocks, ATX Mojave 15x8, 33x10.5 KO2’s, Nitro 4.88's, F&R ARB Lockers, TG front & AP rear bumpers, 4x sliders, Pioneer & JBL stereo, Weathertech Liners, Wet Okole Seat Covers
    Pretty crazy looking in through the flange seeing all the cuts! Nice work

  15. Nov 9, 2018 at 12:24 PM
    #9215
    dirty deeds

    dirty deeds Big Blue Nation!

    Joined:
    Oct 13, 2016
    Member:
    #199662
    Messages:
    26,093
    Gender:
    Male
    First Name:
    Nick
    Northeast KY
    Vehicle:
    '14 Wht AC SR, 2.7, MT, Baja wheels
    PlastiDip front emblem, twine, and Scotch tape
    Well, there goes Christmas funds for the kids! Sorry kids, not really :D

    Assume I'll need to contact them to see what works on the 2TR?

    boostedka likes this.
  16. Nov 9, 2018 at 12:30 PM
    #9216
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    15,735
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    If I were doing this for prototyping, to then be mass-produced, the pie cuts made for a super simple and rapid routing. Within translate into having angles necessary 4 mass production and improved efficiency in time, because of less time being spent on welds. I was able to throw the first few bins together and maybe an hour.

    boostedka likes this.
  17. Nov 9, 2018 at 12:39 PM
    #9217
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    3,698
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    1998 2.7 4x4 Single Cab
    LCE S/C, 58mm pulley, Icon CO's, SPC UCA, OME Dakar leaf pack, Rear OME shocks, ATX Mojave 15x8, 33x10.5 KO2’s, Nitro 4.88's, F&R ARB Lockers, TG front & AP rear bumpers, 4x sliders, Pioneer & JBL stereo, Weathertech Liners, Wet Okole Seat Covers
    LOL..
    You can basically make a Megasquirt work on anything you want. It's just having the wiring diagrams for your vehicle and figuring out some of the ins and out and whathaveyou's of making it function for your application.

    MadTaco461, dirty deeds and Torspd like this.
  18. Nov 9, 2018 at 12:44 PM
    #9218
    dirty deeds

    dirty deeds Big Blue Nation!

    Joined:
    Oct 13, 2016
    Member:
    #199662
    Messages:
    26,093
    Gender:
    Male
    First Name:
    Nick
    Northeast KY
    Vehicle:
    '14 Wht AC SR, 2.7, MT, Baja wheels
    PlastiDip front emblem, twine, and Scotch tape
    And this is why I'm here, on TW. I don't know shit lol

    Maybe I'll go the DIY route then. I like to solder.

    MrCrowntown and boostedka like this.
  19. Nov 9, 2018 at 1:03 PM
    #9219
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    3,698
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    1998 2.7 4x4 Single Cab
    LCE S/C, 58mm pulley, Icon CO's, SPC UCA, OME Dakar leaf pack, Rear OME shocks, ATX Mojave 15x8, 33x10.5 KO2’s, Nitro 4.88's, F&R ARB Lockers, TG front & AP rear bumpers, 4x sliders, Pioneer & JBL stereo, Weathertech Liners, Wet Okole Seat Covers
    It looks intimidating at first because there are so many wires in order to work for multiple applications. Once you figure out what you need, you see that it's only around 15 or so wires that you use. Here's a list of what I wired into mine for an example (copy and pasted from my build page):

    Megasquirt = Tacoma wire naming system

    ------------------------------------------------
    **Red-12V+ = B+ E5 Pin 12 White/Red
    Light Blue-TPS = VTA E7 Pin 10 Yellow
    Gray-VREF = VC E7 Pin 1 Green/Yellow
    **Black-VR- = NE- E6 Pin 6 Green (VR+, VR-, are in a shielded cable)
    **White-VR+= NE E6 Pin 12 Red
    Shielded ground = not connected
    Coolant temp = THW E7 Pin 4 Green/Red
    Air Temp = THA E7 Pin 3 Yellow/Green

    **Runs to both MS and Stock ECU

    MS3X Harness = Tacoma wire naming system
    ---------------------------------------------------
    Injector A = #10 E8 Pin 12 White/Red
    Injector B = #20 E8 Pin 11 White
    Injector C = #30 E8 Pin 10 Red
    Injector D = #40 E8 Pin 9 Red/Blue
    Pin 9 Idle valve = RSO E8 Pin 7 Black/Red
    Pin 27 VVT = RSC E8 Pin 6 Black
    Spark A = IGT1 Cyl 1&4 E8 pin 23 Black/Blue
    Spark B = IGT2 Cyl 2&3 E8 Pin 22 Brown/Yellow


    After that, it's figuring out what your setting need to be (fuel, ignition, idle, etc.). Without proper settings, the wiring means nothing and vise versa. I learned that with my idle issues that were fixed by just changing a couple of my settings.

  20. Nov 9, 2018 at 3:31 PM
    #9220
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    2,920
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    Not so fast. The stock ECU sends 10v, max input is 5v :annoyed: Gotta add a resistor to get those numbers below 5v.

    Last edited: Nov 11, 2018 at 9:55 AM
