Turbo BS Thread

Discussion in 'Performance and Tuning' started by Clay_916, Mar 20, 2017.

  1. May 5, 2021 at 2:45 PM
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
  2. May 5, 2021 at 2:49 PM
    BananaMan

    BananaMan Well-Known Member

    Joined:
    Sep 4, 2019
    Member:
    #304247
    Messages:
    8,234
    Gender:
    Male
    Bumfrick nowhere Maine
    Vehicle:
    06 2.7 RC 2wd manual "squattytruck"
    I've got a holset he351w twinscroll that's going to be feeding my 2tr build. Nobody makes a decent regular turbo header for it, and there's definitely nothing out there for a twinscroll header for it. I've tried finding books or literature of some kind to make one myself, but I haven't had much luck. I know you want the exhaust pulses from two cylinders going to one side and the other two to the second, but figuring out the math and volume and everything to get the pulses hitting at the right time to really take full advantage of the twinscroll is what's getting me.

    BassAckwards likes this.
  3. May 5, 2021 at 2:54 PM
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    53,070
    Gender:
    Male
    First Name:
    ゼイン
    5520 E Sprague Ave, Spokane Valley, WA 99212
    Vehicle:
    93 80 Series LC & 96 Turbo V6 Taco 4WD
    I've done a mod or two
    You need equal length and paired runners for true twinscroll. So 1and3 are paired and 4and2 are paired. Merging each one for proper scavenging without taking tons of space is kinda hard. My BMW manifold and turbo are twin scroll and takes up a good bit of room because of it.

  4. May 5, 2021 at 3:21 PM
    BananaMan

    BananaMan Well-Known Member

    Joined:
    Sep 4, 2019
    Member:
    #304247
    Messages:
    8,234
    Gender:
    Male
    Bumfrick nowhere Maine
    Vehicle:
    06 2.7 RC 2wd manual "squattytruck"
    I'm lucky in the fact that once the AC lines and factory air box are out of the way, there's a good bit of space to work with. So I hopefully don't think space will be my limiting factor. Although it is a big turbo, so I'll have to see.

  5. May 5, 2021 at 3:22 PM
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
    Firing order is 1-3-4-2. It's easy to visualize the pairing if you take the head off and rotate the crank. 1 and 4 pistons both come up at the same time, obviously only one of those will fire per cycle (1). Rotate again and 2 and 3 will both come up, now (3) fires. Rotate, now (4) fires. Rotate, lastly (2) fires. So to space the pulses out evenly, pair 1/4 and 2/3.

    Runner length and diameter are next. Obviously equal length helps. Sometimes it's difficult with packaging, do the best you can. Smaller runners have higher gas velocity and will choke sooner. Bigger runners flow more up top but typically don't spool as quick. I usually use small runners, 1.25" sch40 pipe. Can still make plenty of power, it fits in tight places better too. You really need to be honest with yourself, are you planning on a high revving 800-1000whp 4 cyl vehicle? Then probably use larger runners. No, then smaller.

    I'm using 1.25" sch40 on my 3.4 v6. Matches the port dimensions and I'm not looking for more than 400hp currently. Definitely not equal length due to space. I tried making it equal but with the coil bucket brace I couldn't install it, so I wasted a day on that basically.

    Just make sure everything fits and you can actually access all the bolts.

  6. May 5, 2021 at 3:27 PM
    BananaMan

    BananaMan Well-Known Member

    Joined:
    Sep 4, 2019
    Member:
    #304247
    Messages:
    8,234
    Gender:
    Male
    Bumfrick nowhere Maine
    Vehicle:
    06 2.7 RC 2wd manual "squattytruck"
    I'm aiming for 500whp, I was thinking 1.75 sch40 to flow for the big turbo without choking too soon. I'm aiming for 7500 rpm with a custom cam grind from WEB cams, along with LCE's pro HD 20+Lb valvetrain kit.

  7. May 5, 2021 at 3:31 PM
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
    1.5" sch40 is your friend.

    MadTaco461 and Torspd like this.
  8. May 5, 2021 at 3:36 PM
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma

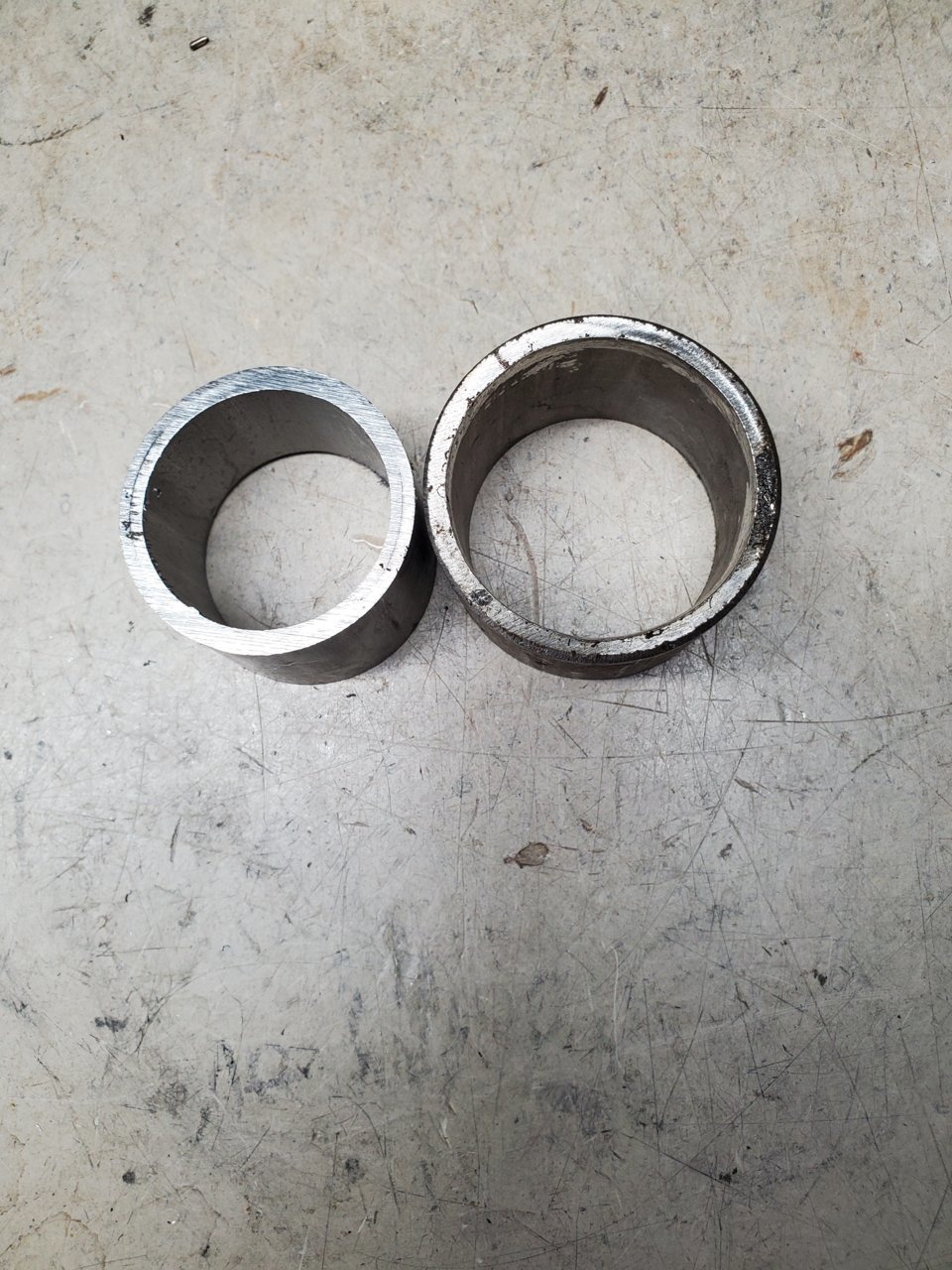

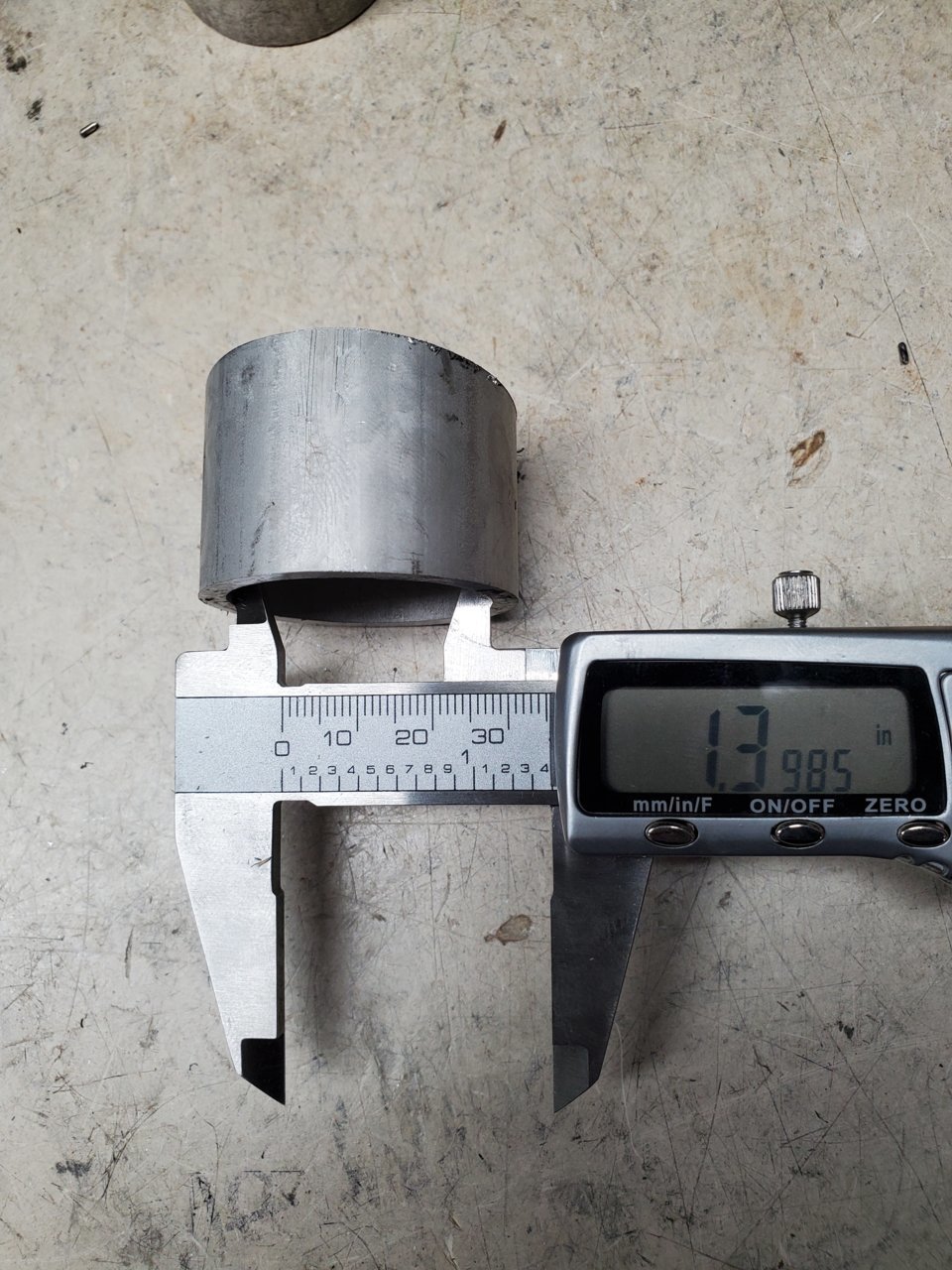

    1.25" sch40

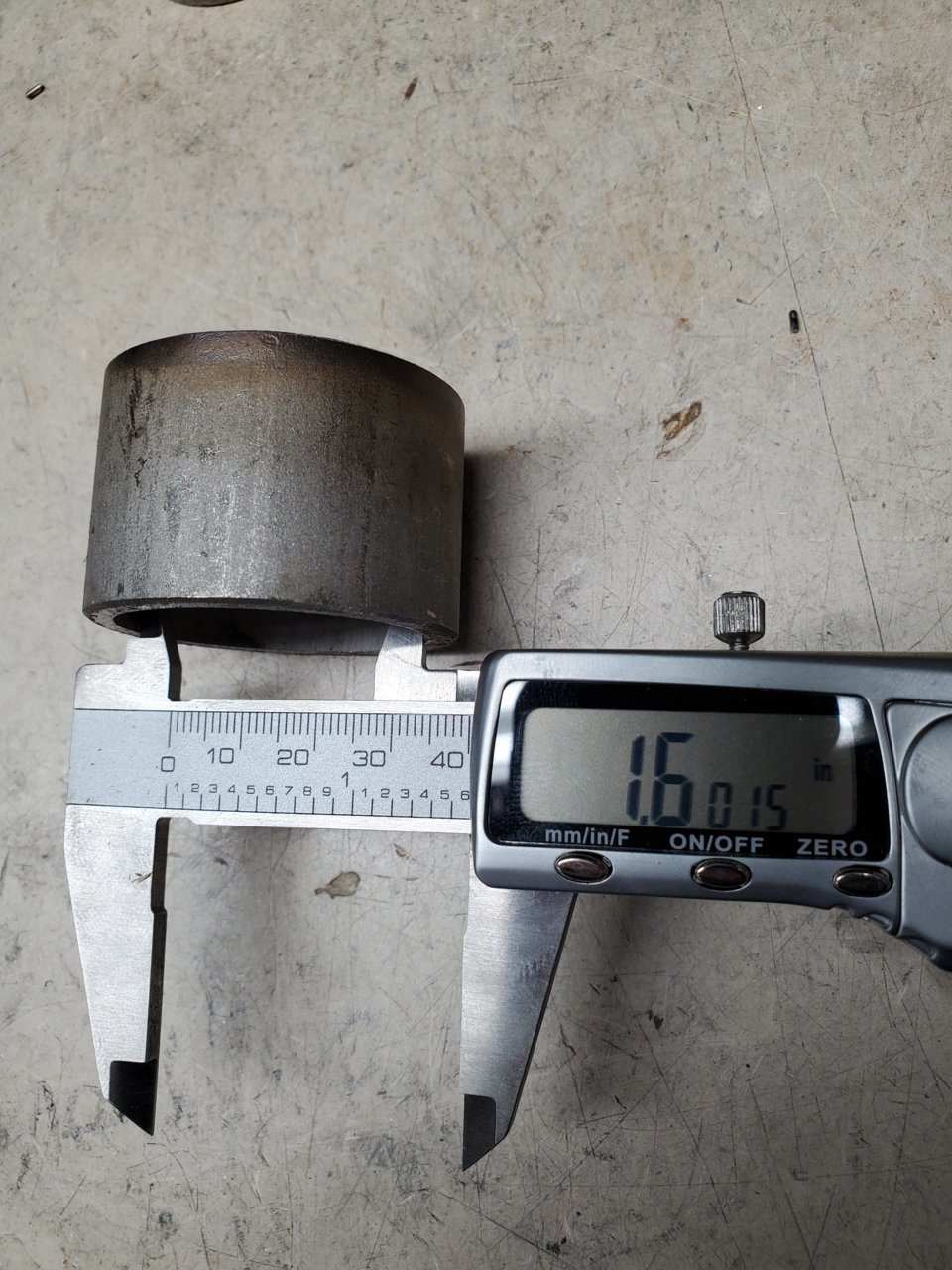

    1.5" sch40

    Torspd and BananaMan like this.
  9. May 5, 2021 at 4:19 PM
    Jon64l

    Jon64l Well-Known Member

    Joined:
    Jan 12, 2016
    Member:
    #174799
    Messages:
    1,437
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2000 4runner, 1996 Tacoma
  10. May 7, 2021 at 5:14 AM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,782
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Does that come with a wastegate? As well as a selectable spring pressure?

    What does the rear of the turbine outlet look like?

    Is that a T3 inlet flange, and what is the turbine A/R?

    Lastly....make sure to only test drive out of boost, until the proper fueling is implemented....A bit of a given, but heed that universal warning

  11. May 7, 2021 at 5:26 AM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,782
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []

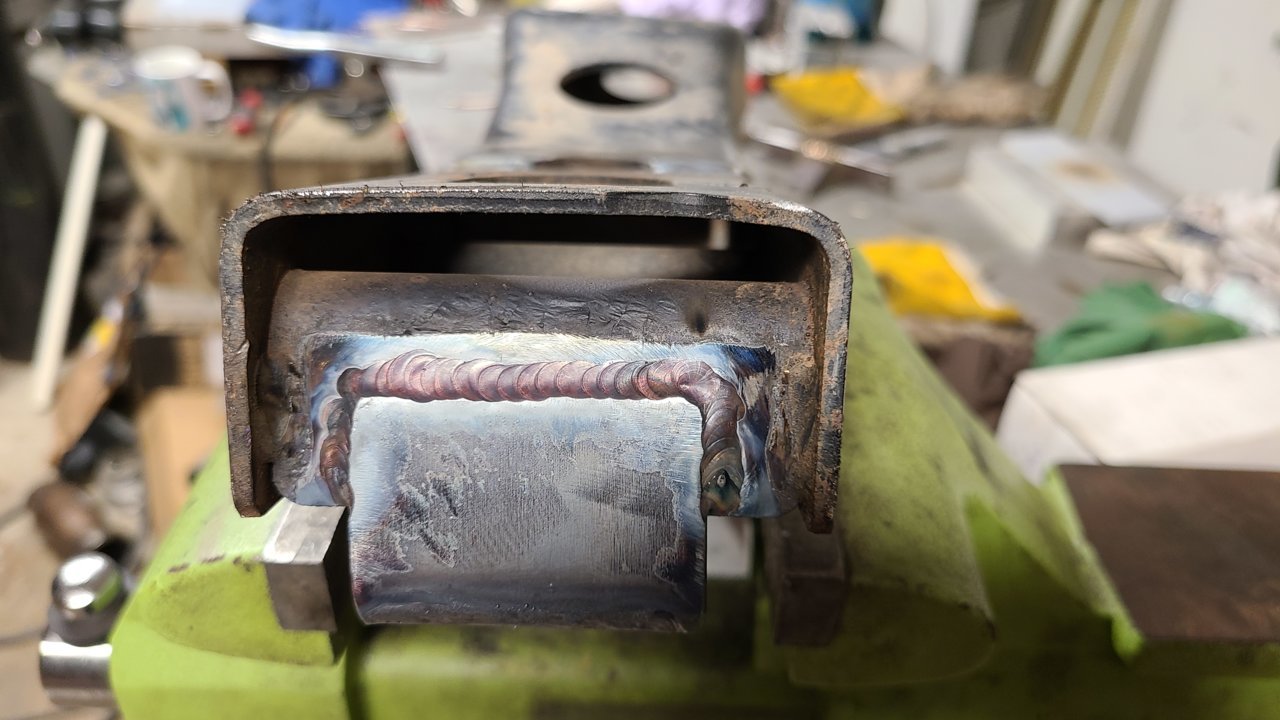

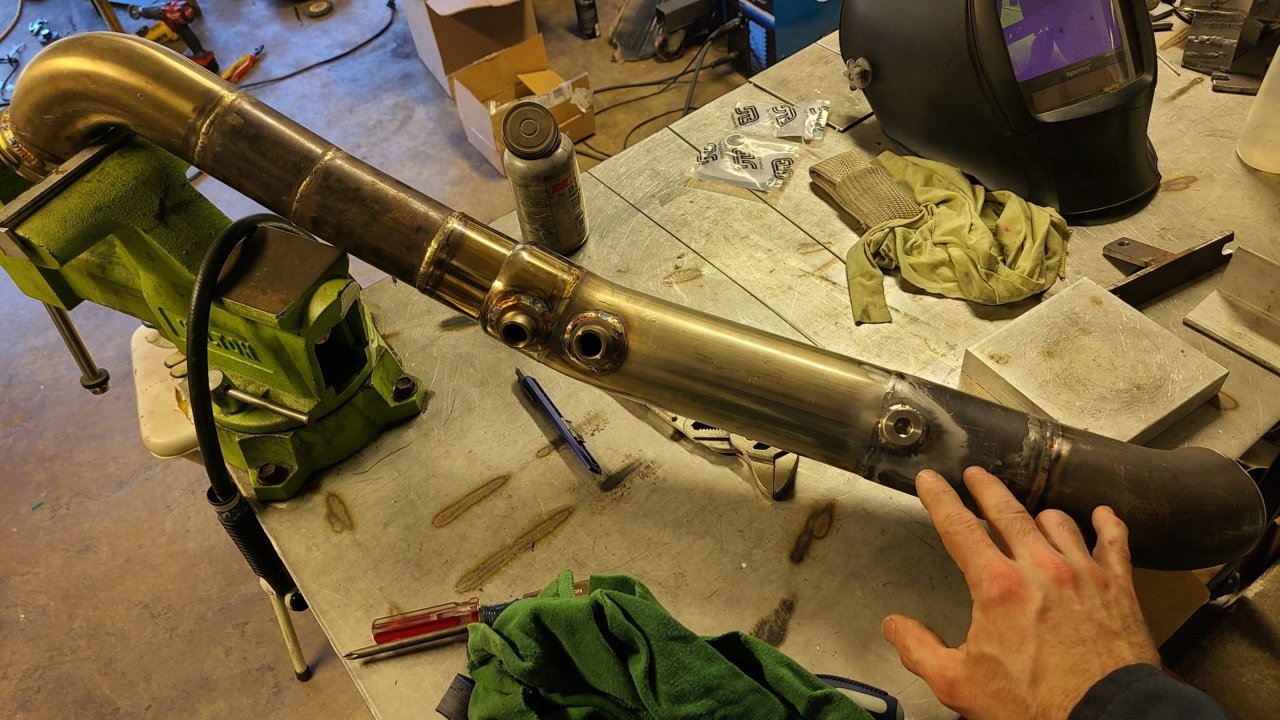

    Nearly finished on the race truck. Upper support bracket for the intercooler, and a gauge or two to install, and it will be ready for tuning. Added in a little extention and bend, from the scrap pile, then welded in a bung for the AEM wideband.


    The owner came buy, and had him have some fun practicing TIG welding on his transmission cross-member. Then I added in some reinforcement. That thing was flexing like a bow. I need to get a better picture. This piece ties the very end to the main truss. 3/32, 309 filler was used for that.


    Got a little muddy on a test drive....that was quite fun.


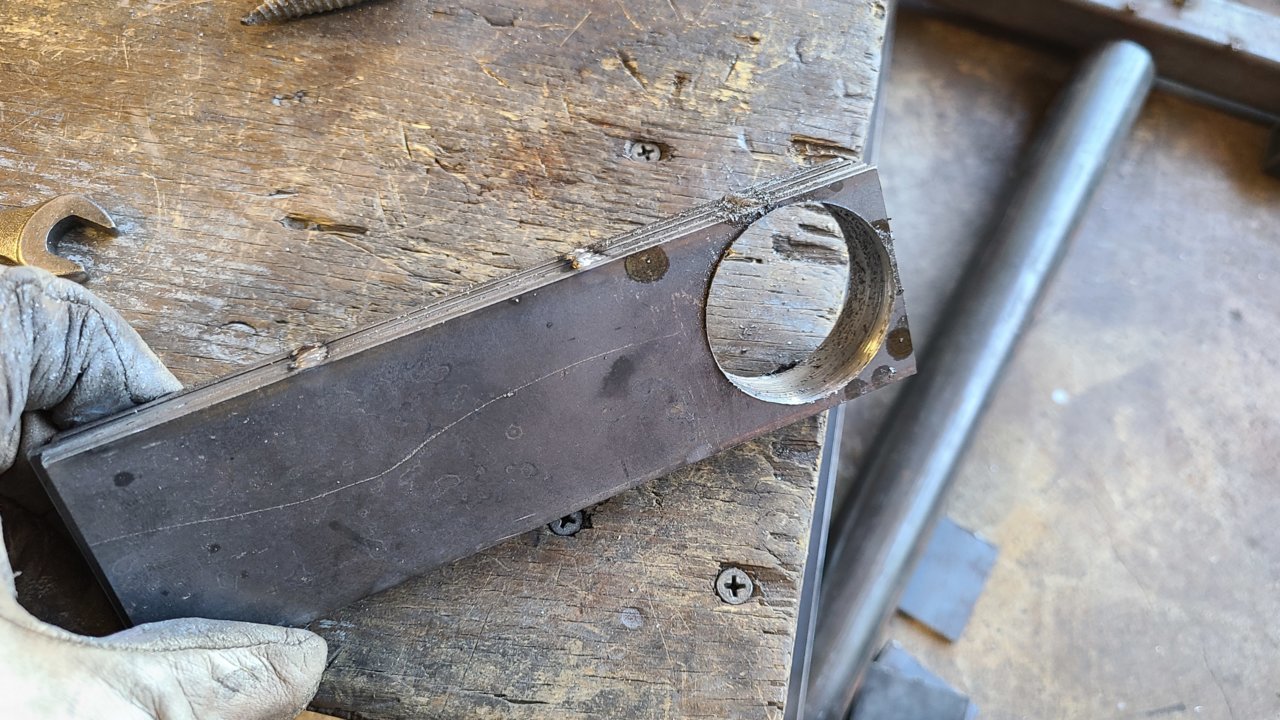

    This is the start of the upper supports for the IC.


  12. May 7, 2021 at 7:19 AM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,782
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []

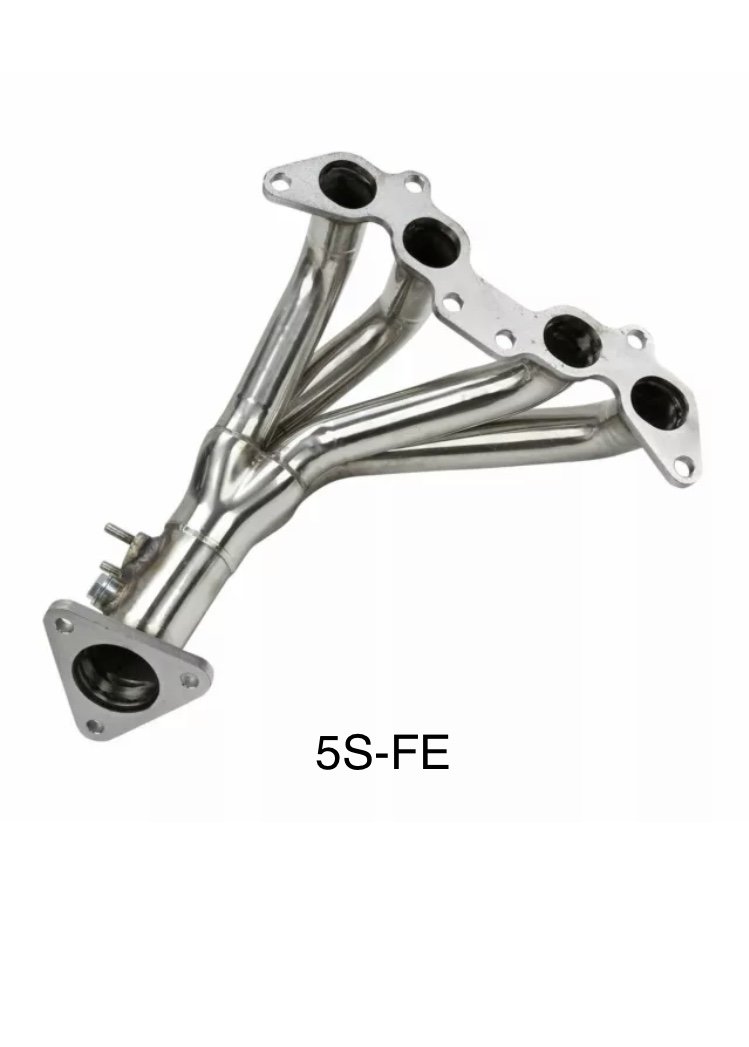

    So in this picture, it looks easy to modify to fit the wider width of a 3rz header. On the bottom plane of the runners, as referenced by the photo, a cut and and add a straight piece in. Mount to 3rz flange.

  13. May 7, 2021 at 8:58 AM
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,838
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a B6 pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox

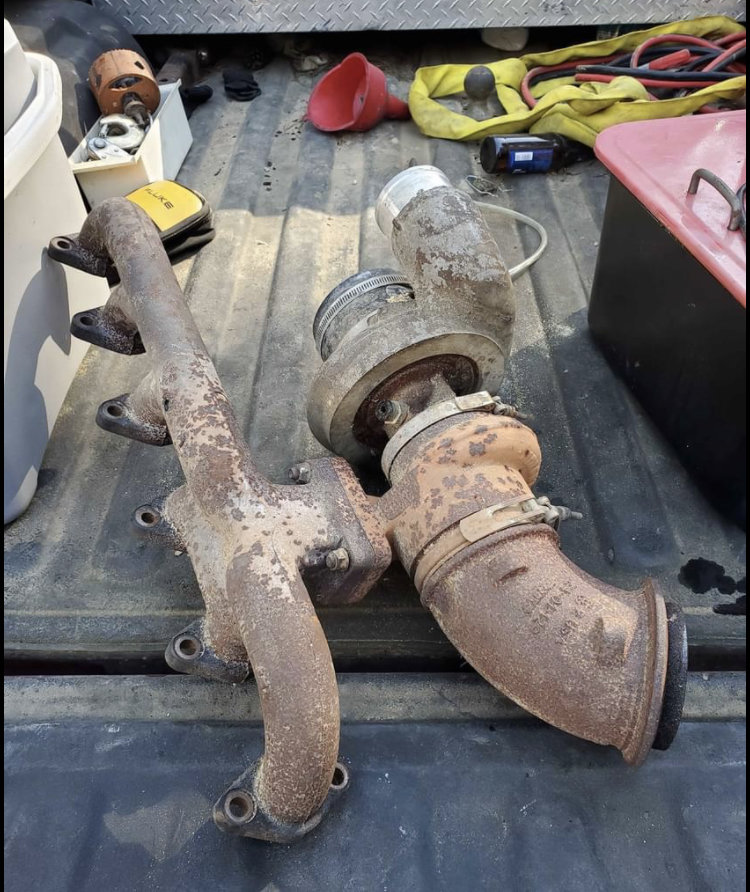

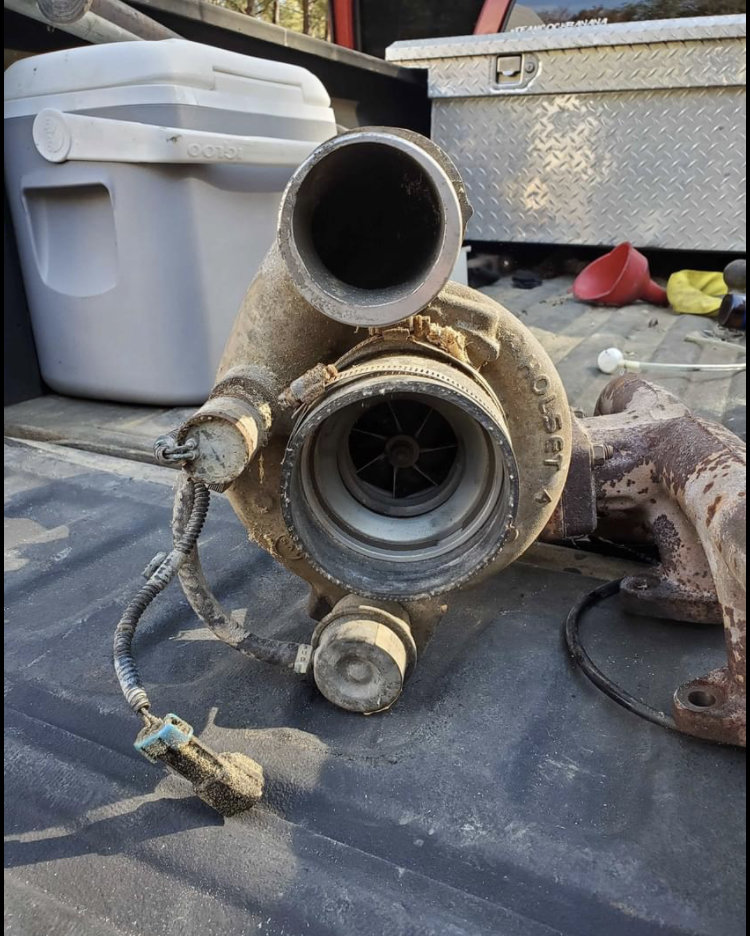

    Pulled straight off a 2006 Cummins. Internally wastegated and as adjustable as you can make it. I have a smaller version on my Jetta and have it somewhat reigned in at 28psi using the internal wastegate and manifold pressure. They're fairly simple to adjust and if the OEM spring rate is too high you just get another that isn't as strong. 98% sure it is a t3. Can't tell if it's a single or double scroll, would assume a single, but the exhaust mani is not a complete log.

    Dude wants to sell complete as is.


  14. May 7, 2021 at 9:01 AM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,782
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Is this for you, or the one @BananaMan was referring to? He said his was twinscroll.

  15. May 7, 2021 at 9:05 AM
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,838
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a B6 pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox

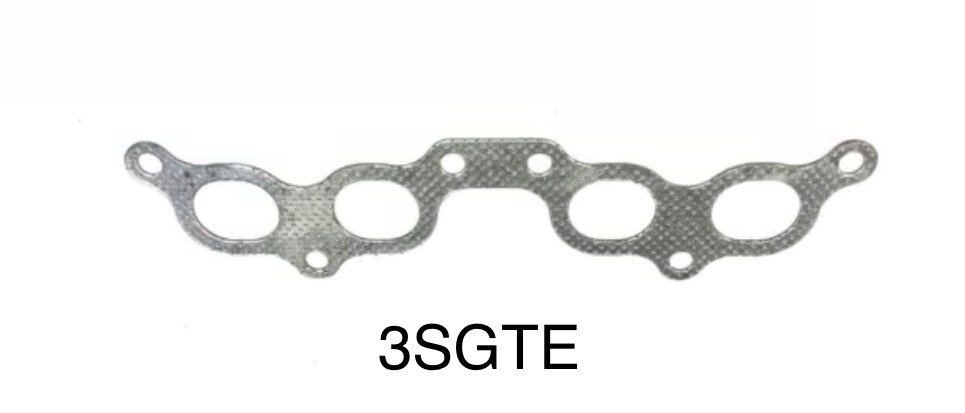

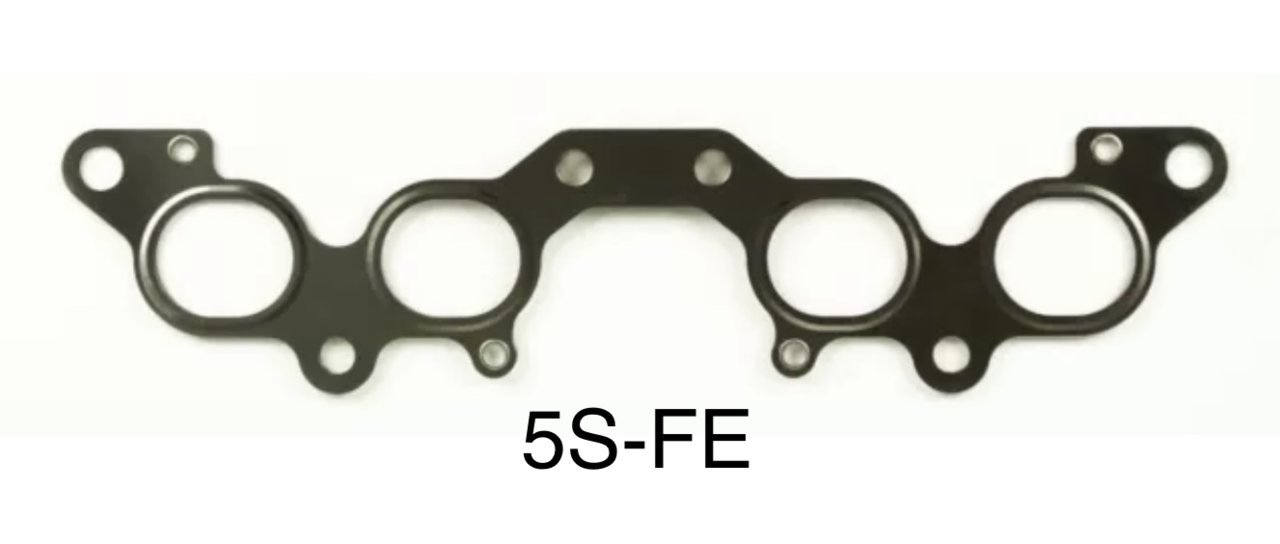

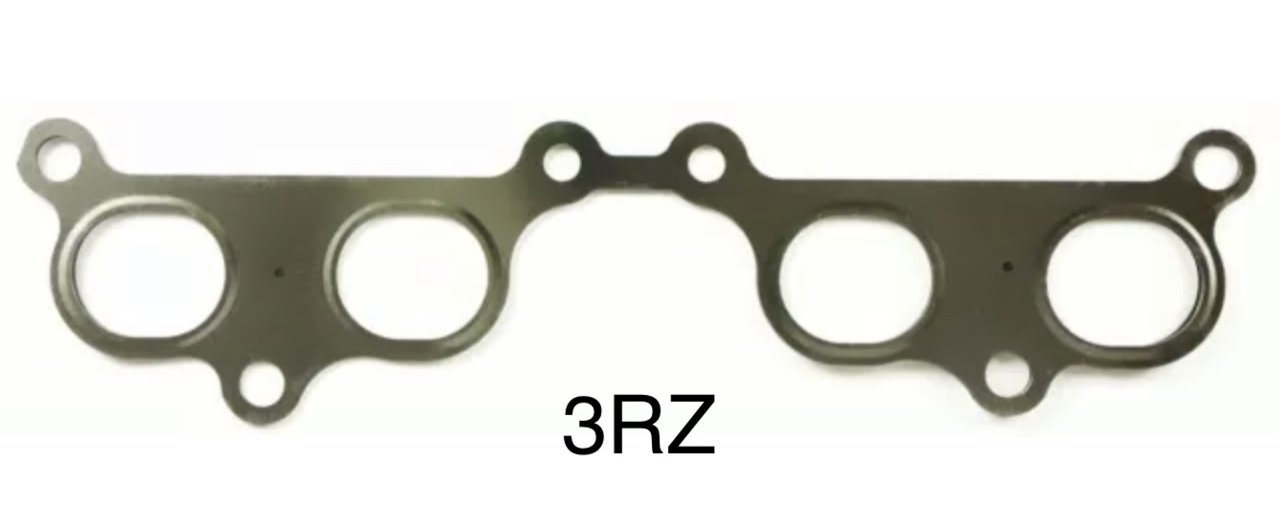

    Almost. The port spacing was a little off as well. But all the manifolds would put the turbo at the back of the bay and tucked in tight to the motor. Which when mounted to their respective engines would be underneath and to the front/back, or side actually. Since some were for the rear engine MR2.

    Torspd[QUOTED] likes this.
  16. May 7, 2021 at 9:06 AM
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,838
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a B6 pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox
    For me. I'm hoping to wait out a guy on facebook for a lower bid. It looks rough on the outside but should clean up. Didn't want to pay more than a rebuild would cost me combined when I could get a new one. If he won't bite on the $200 low ball then I'll be passing on it.

    Torspd[QUOTED] likes this.
  17. May 7, 2021 at 9:11 AM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,782
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Being resourceful just takes time.

  18. May 7, 2021 at 9:16 AM
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,838
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a B6 pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox
    Yes. Meanwhile I can gather other stuff up. After looking at that exhaust mani on my computer Ima say it's a twin scroll. Just looked up the Cummins firing order and 1-5-3-6-2-4 would lend credence that it is a twin. Especially if 1&2 are on the short side.

    Torspd[QUOTED] likes this.
  19. May 7, 2021 at 9:46 AM
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    6,034
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    Mine was a rebuilt pull, just like this, and it's T3 but it's not twin scroll. I use this wastegate actuator https://www.amazon.com/gp/product/B00B2HE006
    You can pretty much build a HE351 the way you want it
    https://agpturbo.com/3rd-gen-cummins-t3-divided-inlet-4-4-he341-he351-outlet-14cm-for-s300/

    Torspd and Brake Weight[QUOTED] like this.
  20. May 8, 2021 at 9:18 AM
    manger

    manger Active Member

    Joined:
    Nov 26, 2020
    Member:
    #347902
    Messages:
    32
    Vehicle:
    1998 Tacoma

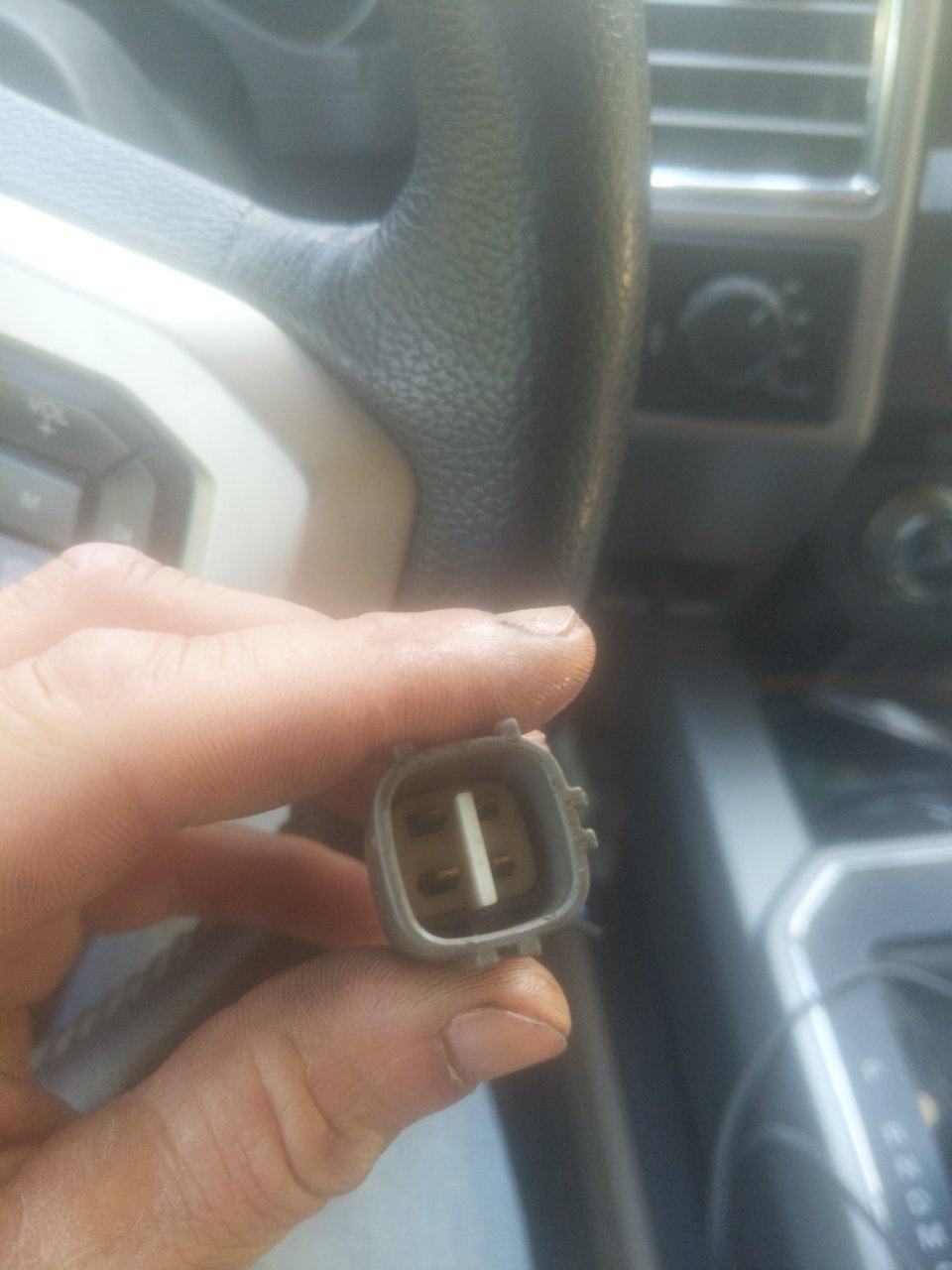

    Hey all I'm working on a turbo build for a 98 3rz and I'm trying to find a denso o2 sensor that threads into an m18 1.5 bung with this plug:
    2021-05-08 12.17.39.jpg
    Anyone happen to know a part number?

    Edit, in case anyone is wondering the denso part no is 234-5622.

    Last edited: May 9, 2021
    Reh5108 likes this.
