Turbo BS Thread

Discussion in 'Performance and Tuning' started by Clay_916, Mar 20, 2017.

  1. May 16, 2022 at 5:23 AM
    Pinchaser

    Pinchaser Flipper Crazy

    Joined:
    Sep 6, 2020
    Member:
    #339938
    Messages:
    314
    Gender:
    Male
    First Name:
    Alan
    Vehicle:
    2020 Tacoma ECU 04B82 AT
    I need to look at that wire, maybe, but if it is the same dimming circuit as goes to illuminate switches; then i am almost certain it is dimmed by Pulse Width Modulation (PWM), and the new gauges dimming function needs a +12v trigger, to activate the internal dimmer.

    The Toyota illumination is all LEDs, and i am almost certain that LEDs are not dimmed by varying voltage. they are either on or off, depending on if the voltage is higher than the threshold or lower, the resistor is only to prevent burning up the LED from Over Voltage. The way to dim LEDs is to flash it on and off, quicker than the eye can detect, but appears dimmer. the brightness varries as a function of the time intervals of "on" vs "off"; until the point where we can see the flashes. I believe this is what the illumination wires use on our trucks, but would need to connect to an oscilloscope to verify. Anyhow, the illumination wires that go to dash switches, will not work to feed these gauges, unless i dissect the gauges and intervene. I have not figured that out, as the schematic for the gauge is not available.

    Do you know if the stereo illumination is 12v, live only with headlights live (not with DRL)?

  2. May 16, 2022 at 8:02 AM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,071
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I have them as well. Mmmm.

  3. May 16, 2022 at 10:14 AM
    PhoS

    PhoS Proffauxssional

    Joined:
    Apr 8, 2020
    Member:
    #324146
    Messages:
    1,007
    PNW
    Vehicle:
    08 FJ Cruiser
    Contains MSG
    I'm assuming 3rd gen all the same the book shows 11-14v on that wire which leads to me believe its switched from the battery not PWM but probably worth investigating? I've never seen PWM going to the deck but who knows on this new shit.


  4. May 16, 2022 at 10:15 AM
    PhoS

    PhoS Proffauxssional

    Joined:
    Apr 8, 2020
    Member:
    #324146
    Messages:
    1,007
    PNW
    Vehicle:
    08 FJ Cruiser
    Contains MSG
    [​IMG]

    Torspd[QUOTED] likes this.
  5. May 16, 2022 at 10:36 AM
    Pinchaser

    Pinchaser Flipper Crazy

    Joined:
    Sep 6, 2020
    Member:
    #339938
    Messages:
    314
    Gender:
    Male
    First Name:
    Alan
    Vehicle:
    2020 Tacoma ECU 04B82 AT
    That sounds good, I will check that out! Thank you!

  6. May 16, 2022 at 10:45 AM
    Pinchaser

    Pinchaser Flipper Crazy

    Joined:
    Sep 6, 2020
    Member:
    #339938
    Messages:
    314
    Gender:
    Male
    First Name:
    Alan
    Vehicle:
    2020 Tacoma ECU 04B82 AT

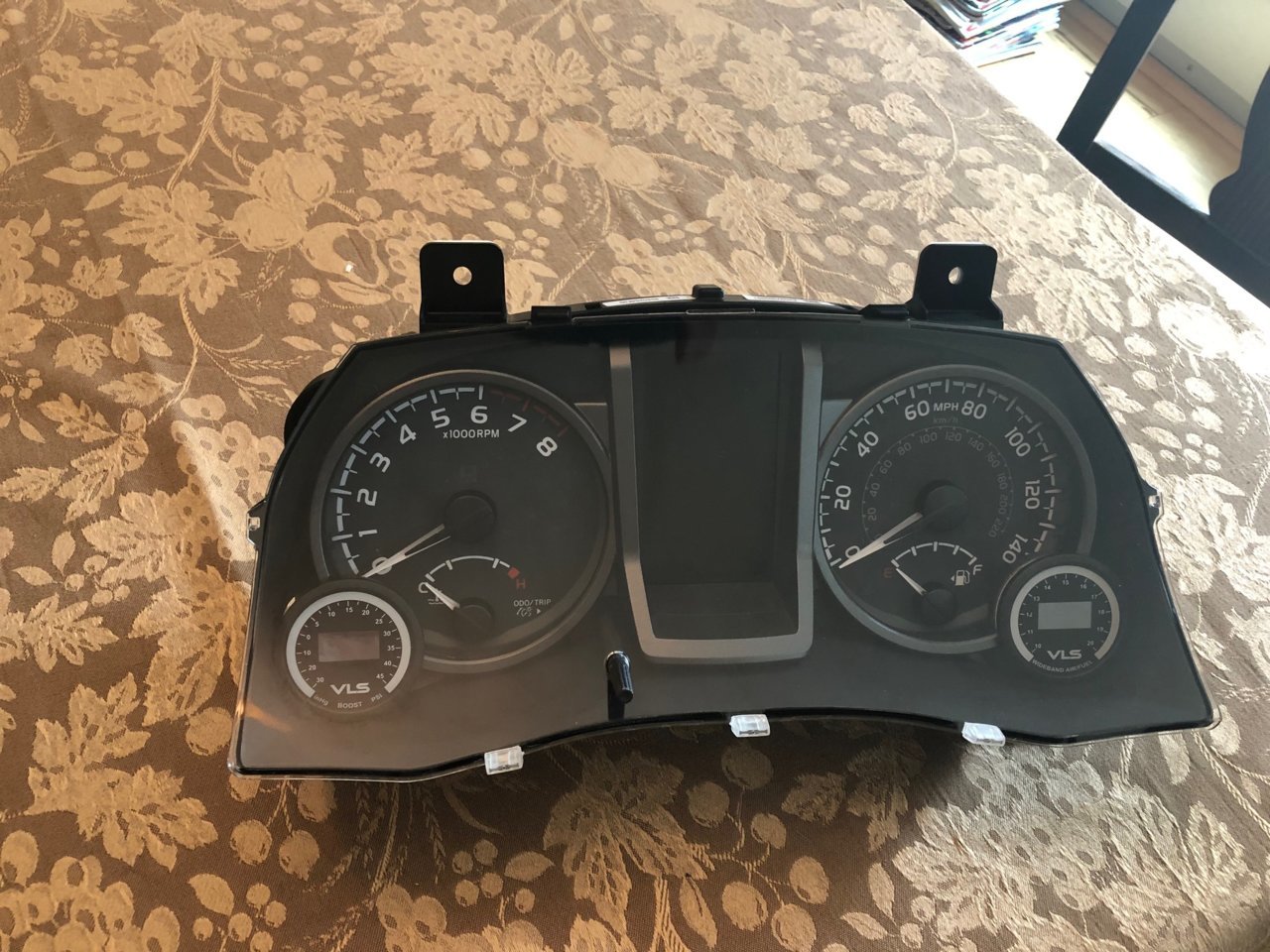

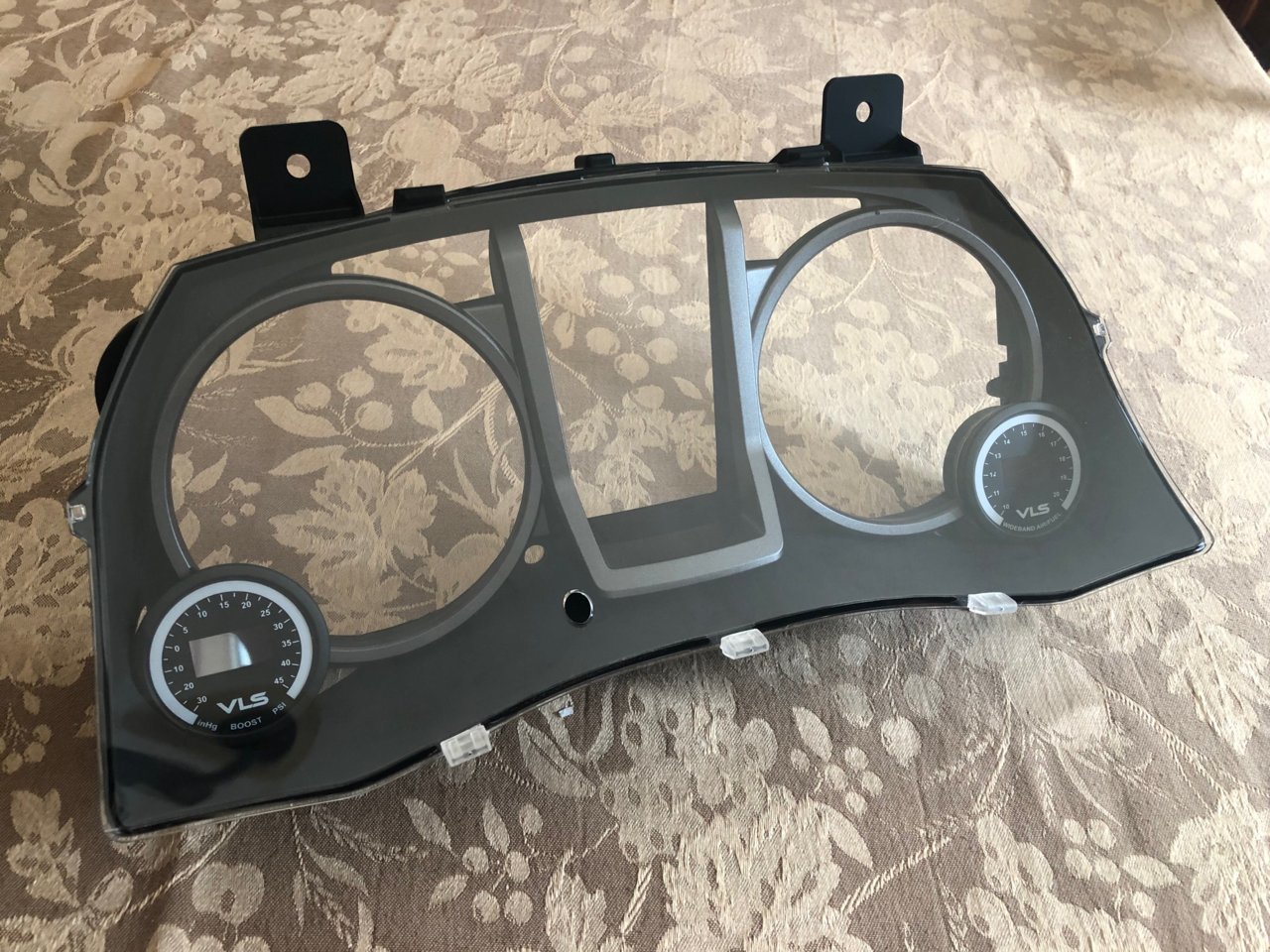

    OK, So I am disappointed that no one commented on the gauge install? I expected a bit of a pat on the back, pretty proud of how it came out, but I guess this goes to show that I am in the company of greatness, so you guys set a high bar (though I have not seen Meso on this thread, so thought I had a chance for coo-does {Meso is a very tough act to follow})?

    Maybe it is my choice of pictures:IMG_3429.jpg IMG_3459.jpg IMG_3437.jpg

    Last edited: May 16, 2022
  7. May 16, 2022 at 10:53 AM
    PhoS

    PhoS Proffauxssional

    Joined:
    Apr 8, 2020
    Member:
    #324146
    Messages:
    1,007
    PNW
    Vehicle:
    08 FJ Cruiser
    Contains MSG
    Definite props deserved on the super clean install. :thumbsup:

  8. May 16, 2022 at 10:58 AM
    Tacospike

    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    14,426
    Gender:
    Male
    512
    Vehicle:
    16 Tacoma TRD Sport DCSB / 17 Tundra 5.7L 4X4 CM
    Two Trucks
    Good job

  9. May 16, 2022 at 11:07 AM
    Pinchaser

    Pinchaser Flipper Crazy

    Joined:
    Sep 6, 2020
    Member:
    #339938
    Messages:
    314
    Gender:
    Male
    First Name:
    Alan
    Vehicle:
    2020 Tacoma ECU 04B82 AT
    Thanks guys! 3 days of modding gauges, gauge wiring and the lens, but I think it was worth it. I still need to weld the bung on the down-pipe to get the AFR operating.

    Torspd likes this.
  10. May 23, 2022 at 3:51 PM
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    21,524
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    I don't hate it lol but that passenger better be careful exiting the vehicle it it is routed like the driver side

    Brice, MadTaco461 and Jon64l like this.
  11. May 23, 2022 at 7:19 PM
    MadTaco461

    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    13,305
    Gender:
    Male
    First Name:
    Mike
    CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    It's a real van too. I like it a bit more once I see it burn out.
    https://www.youtube.com/watch?v=ftVsoTK0F7g

    Brice, yota243[QUOTED] and Torspd like this.
  12. Jun 8, 2022 at 10:00 AM
    MadTaco461

    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    13,305
    Gender:
    Male
    First Name:
    Mike
    CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    Haven't drove the truck in a few months. Whoa buddy she got some go. Nice treat to take the truck out every so often.

    Brake Weight and BassAckwards like this.
  13. Jun 8, 2022 at 12:20 PM
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    26,071
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Kind of like, "Oh yeah, this thing is badass!"

    MadTaco461 likes this.
  14. Jun 8, 2022 at 1:47 PM
    PhoS

    PhoS Proffauxssional

    Joined:
    Apr 8, 2020
    Member:
    #324146
    Messages:
    1,007
    PNW
    Vehicle:
    08 FJ Cruiser
    Contains MSG
    My AEM oil pressure gauge scared the shit outa me today. Was cruising down the freeway an saw it flashing 100-150psi, thought I smelled oil too but it was a dump truck in front of me..

    Everything checked out and it was normal again after a power cycle. Still gonna do oil/filter early just for investigative purposes, and my own sanity. :confused:

    MadTaco461 likes this.
  15. Jun 8, 2022 at 3:27 PM
    MadTaco461

    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    13,305
    Gender:
    Male
    First Name:
    Mike
    CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    It's fun when you forget how fun something is when you haven't drove it in a while. I was like damn more pick up than my dd.


    My afr gauge lost its shit for a minute too while I was cruising on the freeway. Truck would have ran like crap if there was an issue. Maybe a ground wire. It was fine the rest of the day.

  16. Jun 8, 2022 at 4:09 PM
    mjbtaco

    mjbtaco low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,764
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Turbo'd 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom Turbo Setup FRONT SUSPENSION Drop Spindles by Aaron Carswell 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Cando Upper Control arms QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with mjbfab qa1 mounting plates and Poly bushing sleeves REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Aem gauges are garbage. Both my wide band and boost gauges were DOA had to warranty both if them. Now my wide band is dead again after about a year of use.

    MadTaco461 likes this.
  17. Jun 8, 2022 at 7:28 PM
    PhoS

    PhoS Proffauxssional

    Joined:
    Apr 8, 2020
    Member:
    #324146
    Messages:
    1,007
    PNW
    Vehicle:
    08 FJ Cruiser
    Contains MSG
    My original wideband sensor that came with the gauge only lasted like 800mi, the replacement I got has been solid for quite a while. Makes me think they got a bad batch or something. Happens often in my industry so I can't really blame AEM, the gauges have worked perfectly otherwise. Changed the oil , everything looked ok. Dropped a cool $85 shipped for new pressure sender too. :drunk:

    MadTaco461[QUOTED] likes this.
  18. Jun 8, 2022 at 7:39 PM
    MadTaco461

    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    13,305
    Gender:
    Male
    First Name:
    Mike
    CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock
    I have a love hate relationship with my gauges. It's more or less there to let me know maybe I should plug in the laptop and see what is up.

    Brake Weight likes this.
  19. Jun 8, 2022 at 7:58 PM
    PhoS

    PhoS Proffauxssional

    Joined:
    Apr 8, 2020
    Member:
    #324146
    Messages:
    1,007
    PNW
    Vehicle:
    08 FJ Cruiser
    Contains MSG
    I'm a serial data logger, too ez with the Mpiv2 automatic triggers. Always had the Ultragauge up front and center too.

    MadTaco461[QUOTED] likes this.
  20. Jun 8, 2022 at 9:17 PM
    Brice

    Brice Turbo Member

    Joined:
    May 28, 2015
    Member:
    #156265
    Messages:
    2,213
    Gender:
    Male
    First Name:
    Brice
    Texas
    Vehicle:
    1999 Tacoma PreRunner V6 SR5
    Wastegate assisted turbo delete
    I've only used one AEM gauge but it's been solid now for like 6 or so years and the sensor has been installed on like 3 different exhausts. Doesn't discredit your experience but that is strange to me. Well actually I think @vasinvictor had a similar experience?

    Torspd likes this.
