    Well I might as well document the whole process. Im going to be running 10psi with 450cc injectors. Sorry for some of the shitty pics.... damn cell phones.

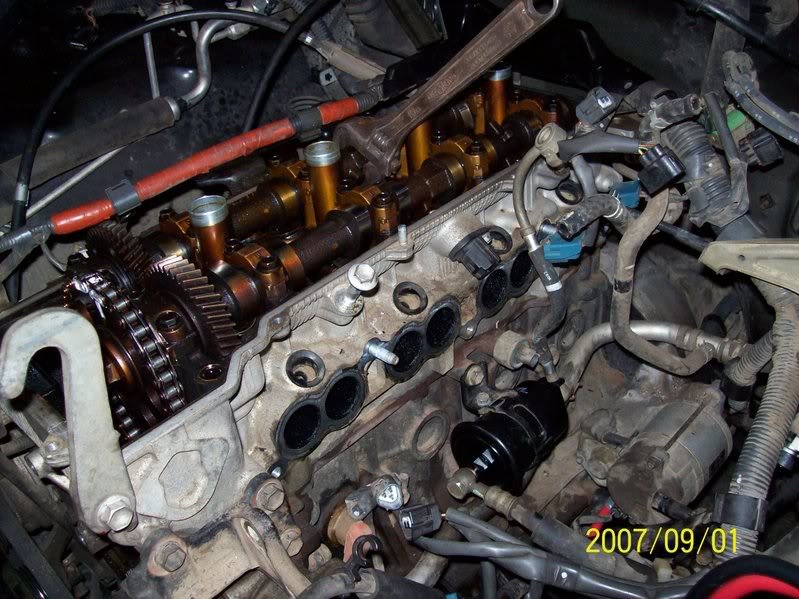

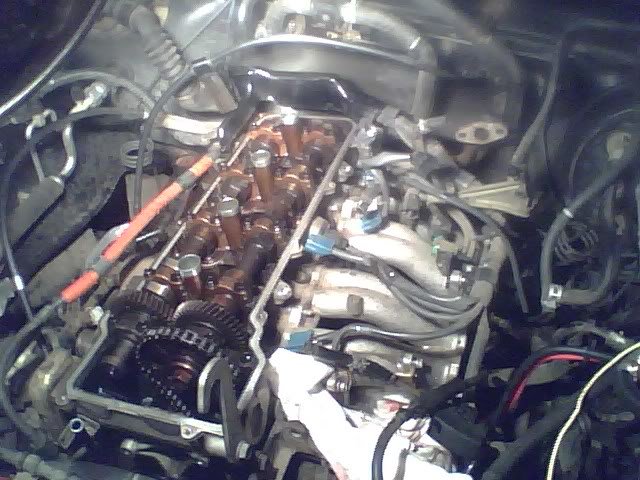

    Day 1: Tore down engine bay including intake plenum and valve cover.

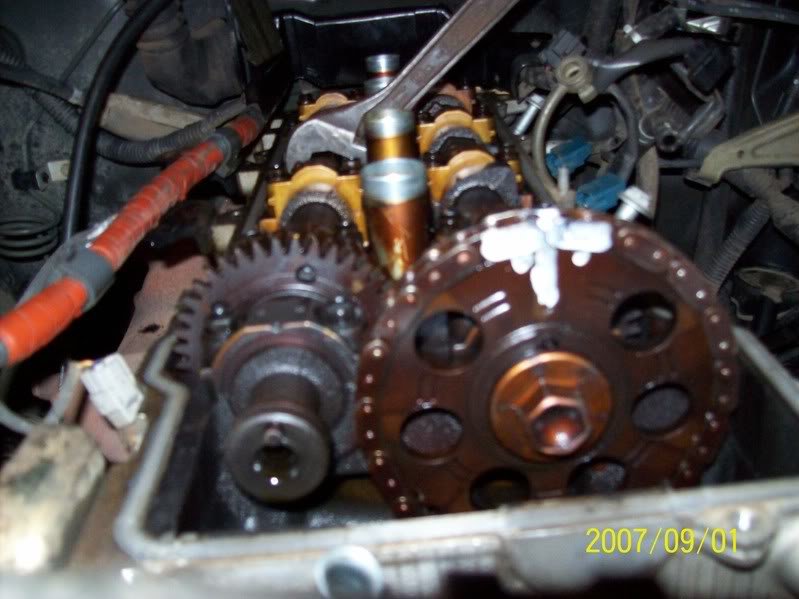

    Day 2: Removed rest of plenum and replaced fuel filter. Set TDC

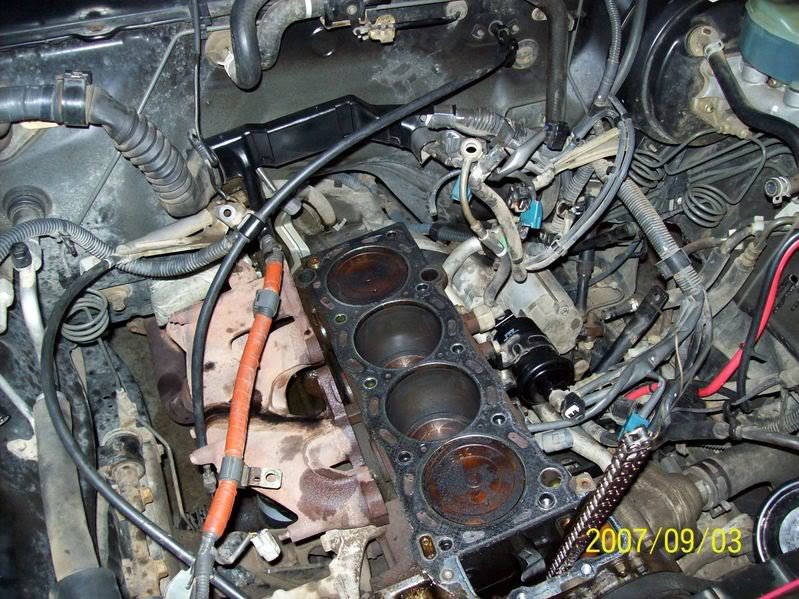

    Day 3: Removed cams and head.

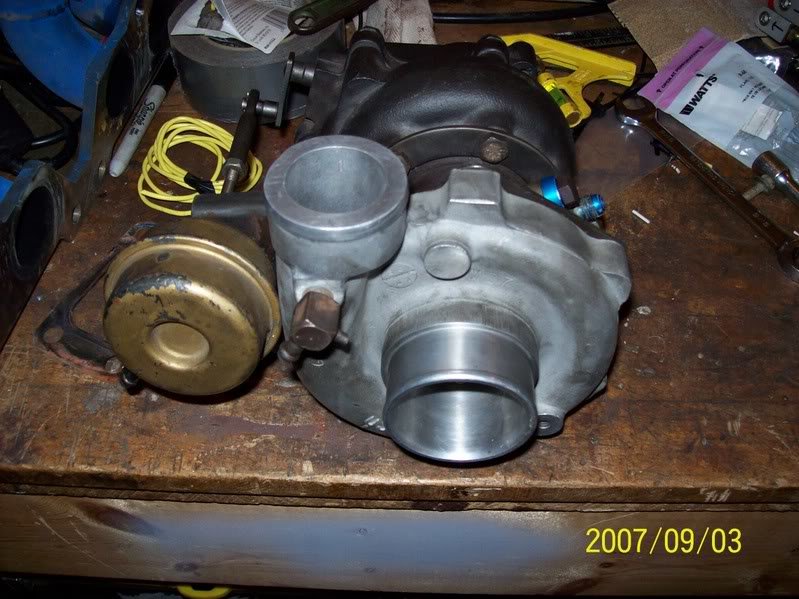

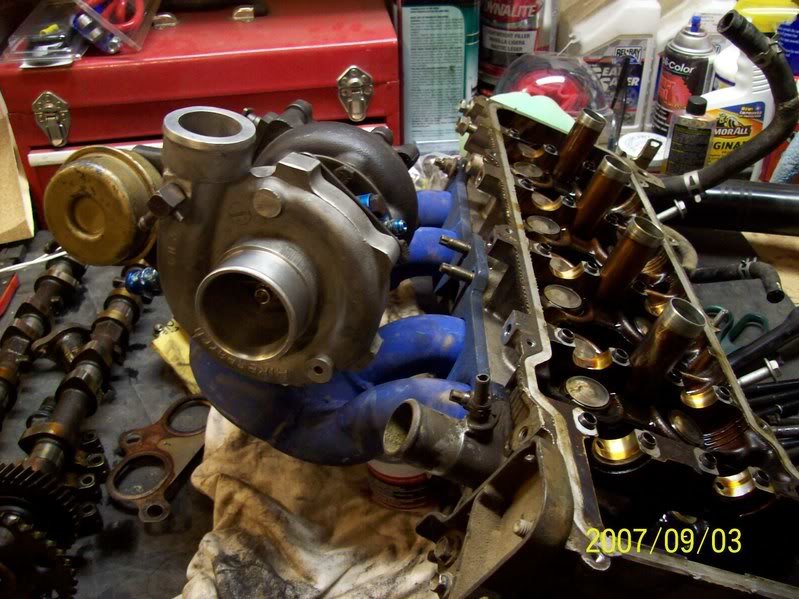

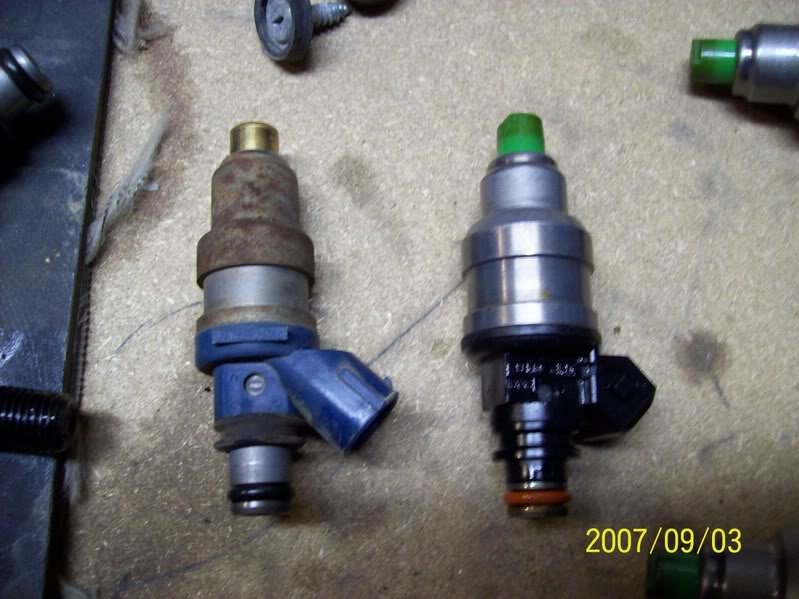

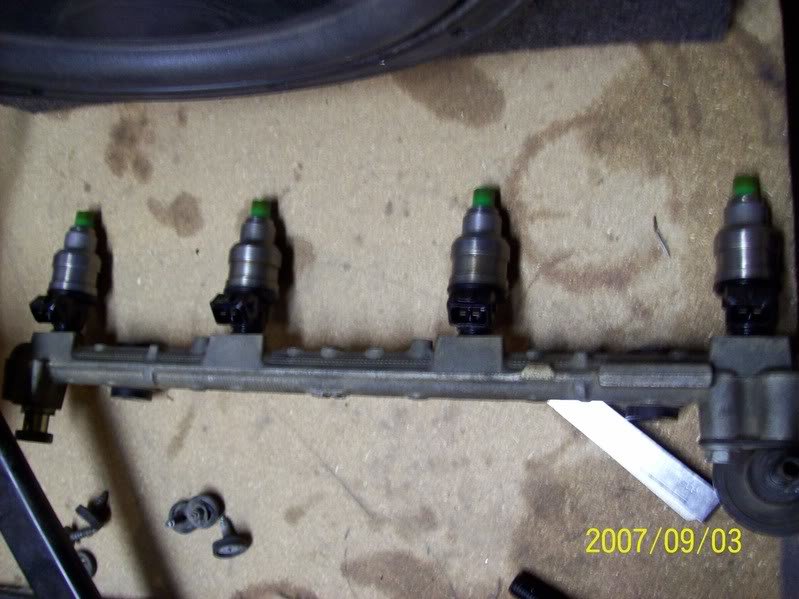

    Day 4: Rebuilt the turbo, got 450cc injectors cleaned, balanced and flowed. Stock is on the left.

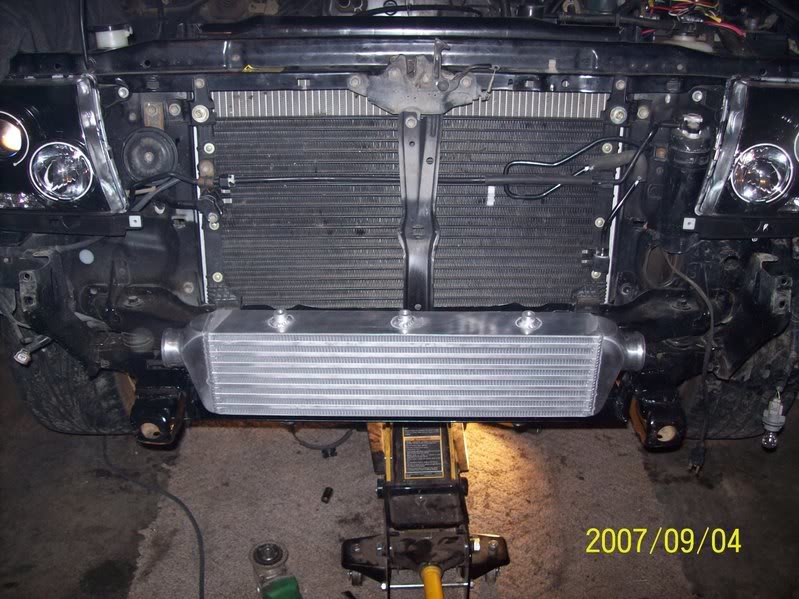

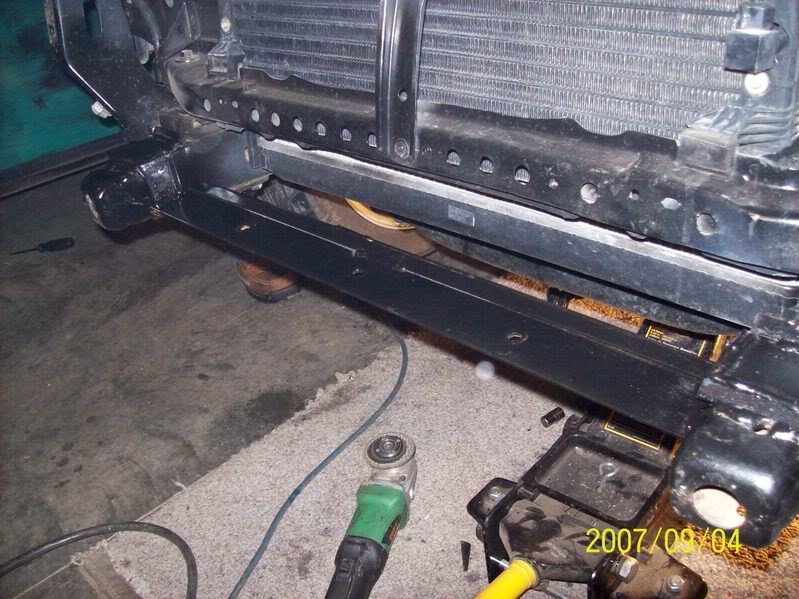

    Day 5: Removed headers, collector and downpipe. Mounted my intercooler. Replaced valve cover gasket and sparkplug seals.

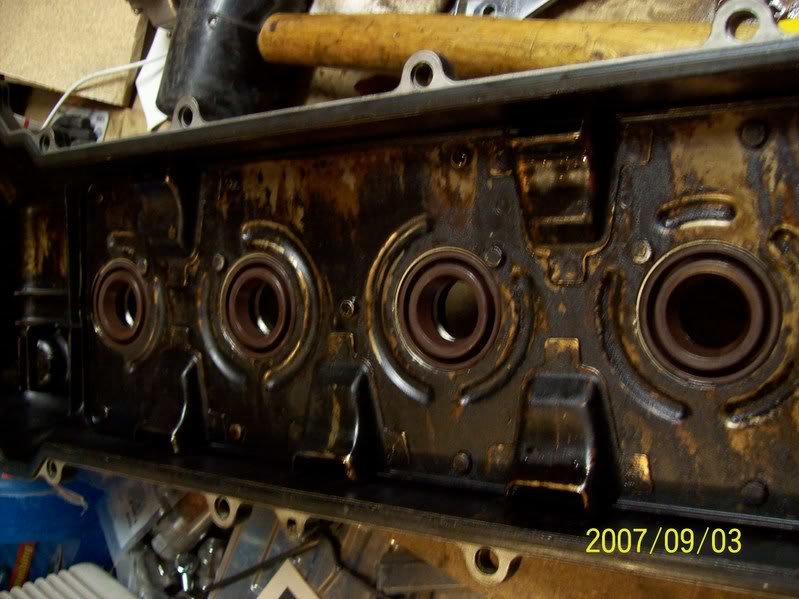

    Before:

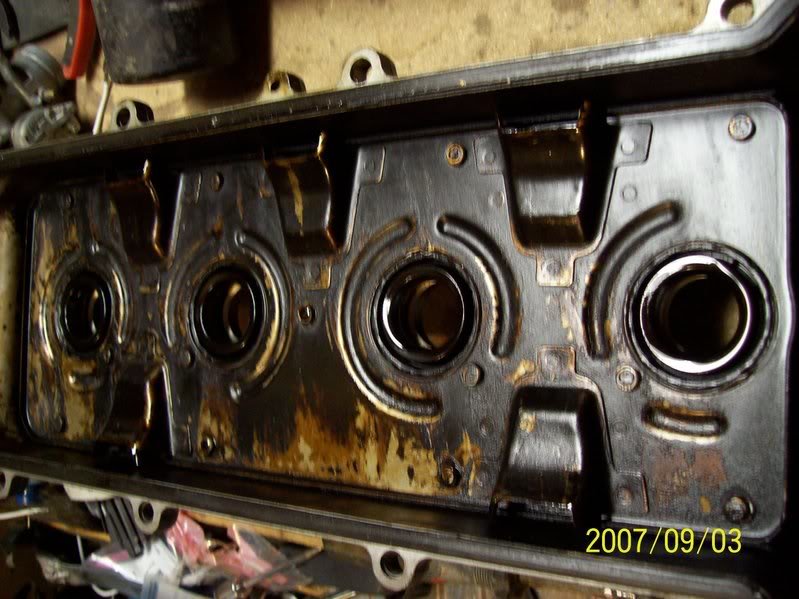

    After:

    Waiting on headgasket and studs, injector clips, boost controller and gauge. If funds allow project should be finished next friday! Will keep you posted.

    dually, Feb 14, 2009
    #1
  2. Feb 14, 2009 at 7:41 AM
    #2
    jolayiv

    #2
    jolayiv Carolina Alliance

    Joined:
    Aug 25, 2008
    Member:
    #8757
    Messages:
    1,128
    Gender:
    Male
    First Name:
    Jim
    Hertford NC
    Vehicle:
    07 DC TRD 4x4 Off-Road
    Revenge-Fab Sliders, AVS Vent Guards, Rear TSB, Hose clamp MOD, Locker MOD, Flowmaster 40 Series Delta Flow, Midland Radio, Wilson 1000 antenna, Rear Diff breather MOD, Weathertech liners, Maglite mount, Bed Divider, LEER 100XR, Pop&Lock
    Awesome man! I can't wait to see it finished.

    jolayiv, Feb 14, 2009
    #2
  3. Feb 14, 2009 at 7:47 AM
    #3
    oldtacomaguy

    #3
    oldtacomaguy four forty four

    Joined:
    Dec 11, 2006
    Member:
    #444
    Messages:
    10,032
    Gender:
    Male
    First Name:
    Dave
    SE Conn.
    Vehicle:
    08 SR-5 4WD Impulse Red Pearl
    Alpine deck and amp, Polk speakers front and rear, Kenwood subwoofer, windows tinted to 20%, Sockmonkey decals, TSB, Eibach springs and Bilstein 5100's
    Looking good dually, nice work!

    oldtacomaguy, Feb 14, 2009
    #3
  4. Feb 14, 2009 at 8:03 AM
    #4
    dually

    #4
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Thanks guys! I've been working my ass off on getting this done, Im sooo close just need a few more things!

    dually, Feb 14, 2009
    #4
  5. Feb 14, 2009 at 9:56 AM
    #5
    JDCPA

    #5
    JDCPA Well-Known Member

    Joined:
    Nov 15, 2008
    Member:
    #10777
    Messages:
    931
    Gender:
    Male
    First Name:
    Jim
    SW FL
    Vehicle:
    09 5 Lug Access Cab SR5
    Curt Hitch and etrailer.com wiring harness.
    Why do your pictures have a 2007 date?

    JDCPA, Feb 14, 2009
    #5
  6. Feb 14, 2009 at 10:04 AM
    #6
    dually

    #6
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Its my moms camera... i have no idea... I suppose i could fix it, but I would rather be installing my head studs..:D

    dually, Feb 14, 2009
    #6
  7. Feb 15, 2009 at 6:30 PM
    #7
    dually

    #7
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB

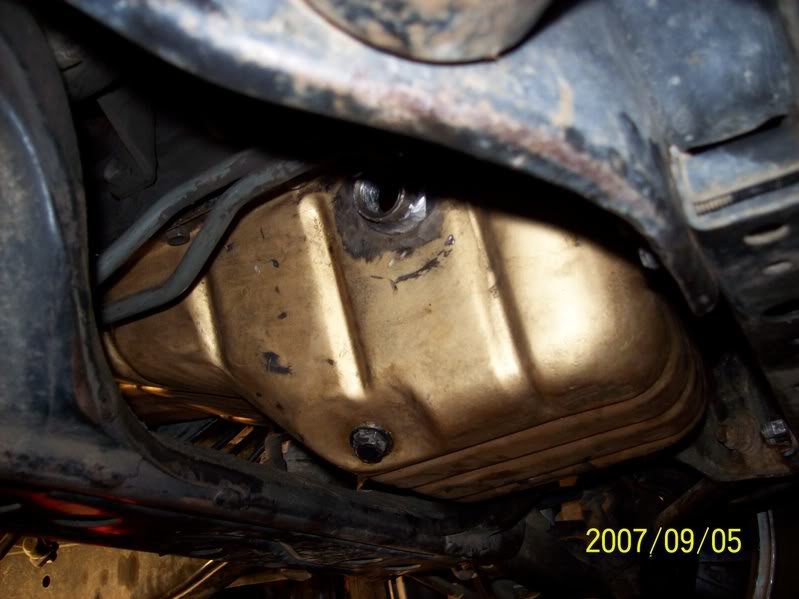

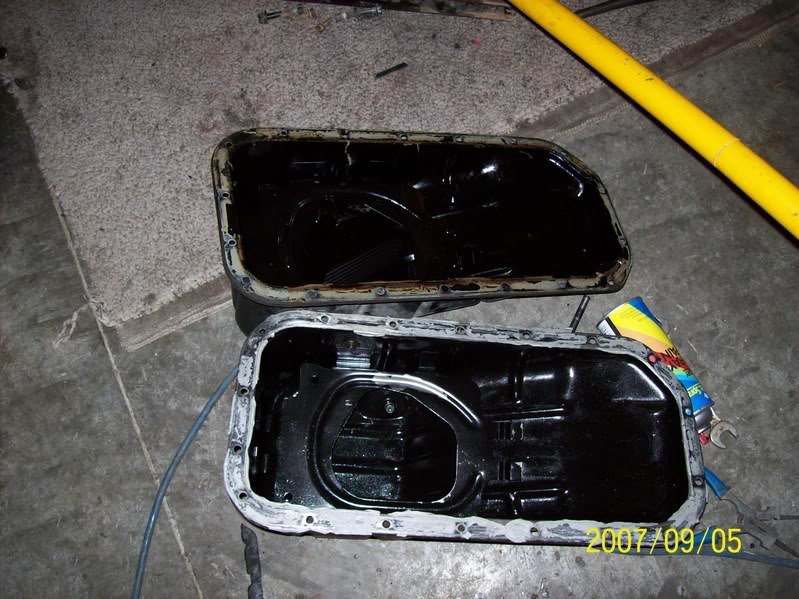

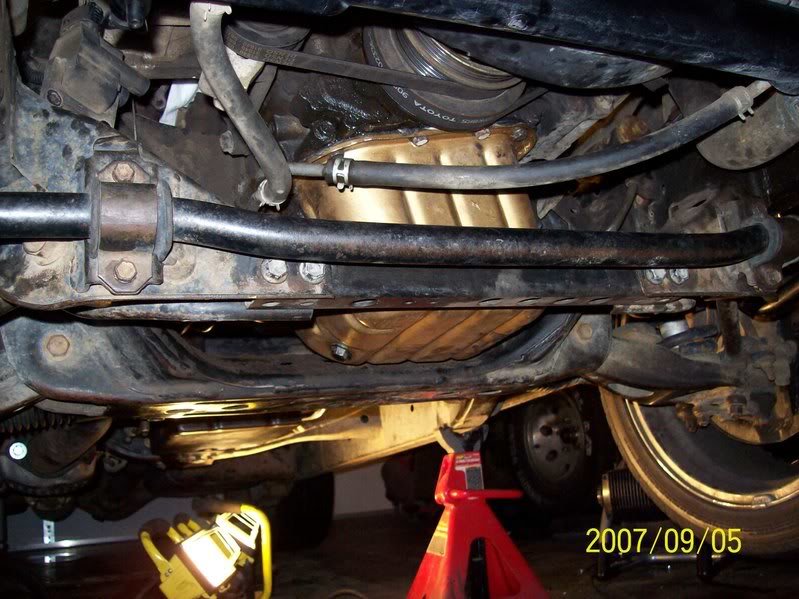

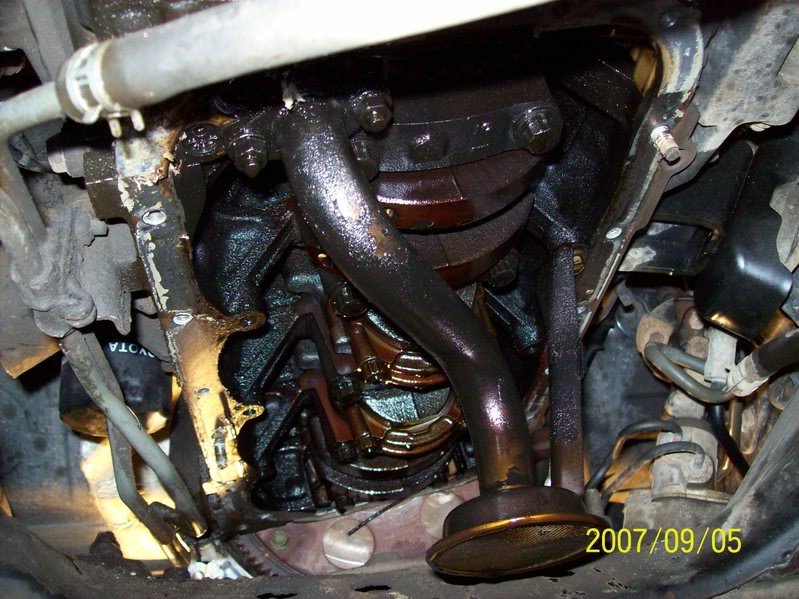

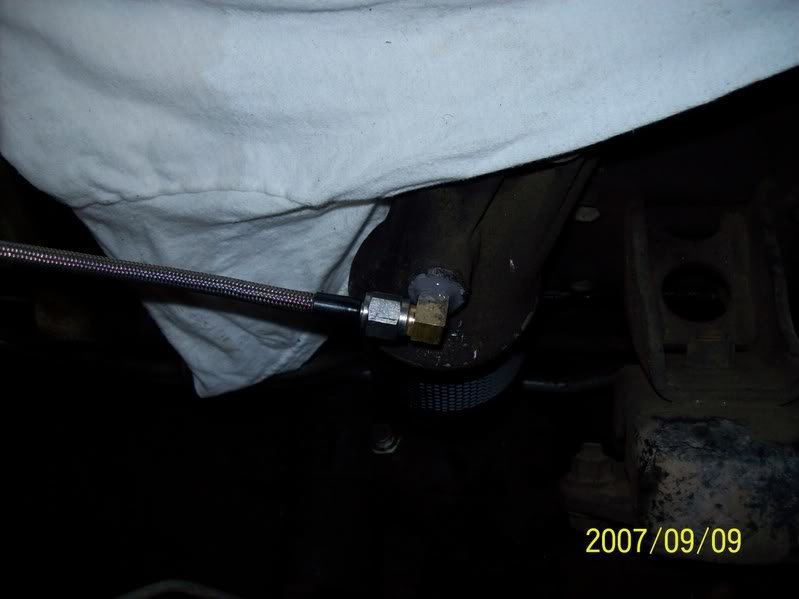

    Day 6: Dropped oilpan and replaced with gold one/w welded oil return bung.

    dually, Feb 15, 2009
    #7
  8. Feb 16, 2009 at 7:17 AM
    #8
    dually

    #8
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Anyone know if it would be wise to replace the cat with a test pipe? Less backpressure= more power?

    dually, Feb 16, 2009
    #8
  9. Feb 16, 2009 at 3:17 PM
    #9
    Fredneck

    #9
    Fredneck Active Member

    Joined:
    Dec 3, 2008
    Member:
    #11257
    Messages:
    31
    Gender:
    Male
    Wyoming
    Vehicle:
    09 2.7L Tacoma
    BONE STOCK for now
    Yes, the bigger the pressure differential across the tubine side of the turbo the better.

    Fredneck, Feb 16, 2009
    #9
  10. Feb 16, 2009 at 3:32 PM
    #10
    chris4x4

    #10
    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    112,751,538
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    Very nice! :)

    chris4x4, Feb 16, 2009
    #10
  11. Feb 16, 2009 at 3:36 PM
    #11
    dually

    #11
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    :frusty:Oh man Fedex showed up with stuff and didnt leave it!!! Damn fedex...

    dually, Feb 16, 2009
    #11
  12. Feb 18, 2009 at 4:03 AM
    #12
    Fredneck

    #12
    Fredneck Active Member

    Joined:
    Dec 3, 2008
    Member:
    #11257
    Messages:
    31
    Gender:
    Male
    Wyoming
    Vehicle:
    09 2.7L Tacoma
    BONE STOCK for now
    What Turbo is that? How much Boost do you plan on Running?

    Fredneck, Feb 18, 2009
    #12
  13. Feb 18, 2009 at 12:03 PM
    #13
    dually

    #13
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Airesearch m27/ Garrett T3. 10psi for the time being, the wastegate will only hold 12 psi.

    dually, Feb 18, 2009
    #13
  14. Feb 18, 2009 at 12:05 PM
    #14
    mjp2

    #14
    mjp2 Living vicariously through myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    21,896
    Gender:
    Male
    First Name:
    Milton Juevo Portimous II
    NJ
    Vehicle:
    Current: '21 Bronco Badlands. Previous: '06 TRD Access Cab, v6, 6-speed
    Subscribing as I do to all dually threads. :)

    mjp2, Feb 18, 2009
    #14
  15. Feb 18, 2009 at 12:27 PM
    #15
    dually

    #15
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Thanks!:D

    dually, Feb 18, 2009
    #15
  16. Feb 18, 2009 at 5:56 PM
    #16
    Fredneck

    #16
    Fredneck Active Member

    Joined:
    Dec 3, 2008
    Member:
    #11257
    Messages:
    31
    Gender:
    Male
    Wyoming
    Vehicle:
    09 2.7L Tacoma
    BONE STOCK for now
    Nice Work! :D

    Being a Diesel Head I'm not familar with that turbo, Is there a comprssor Map for it?

    I know of a very easy low cost fix for the wastegate when and if you decide you need more boost:headbang:

    Also are you going with a thicker head gasket to lower compression any?

    Fredneck, Feb 18, 2009
    #16
  17. Feb 18, 2009 at 9:14 PM
    #17
    dually

    #17
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Im not too sure about the compressor map. But yeh, im going with a 1.5mm Cometic HG and ARP headstuds.... if they show up sometime, ordered 2 weeks ago and they have yet to show.

    Anyway UPDATE!:

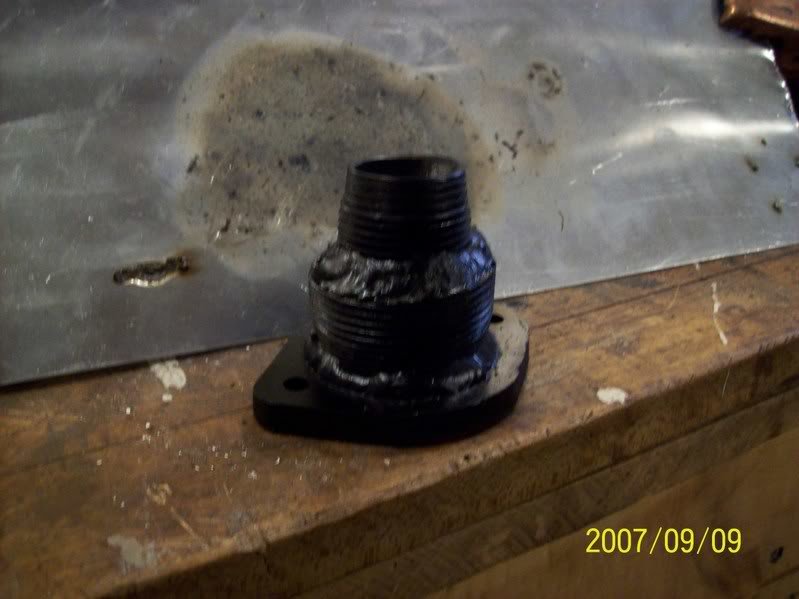

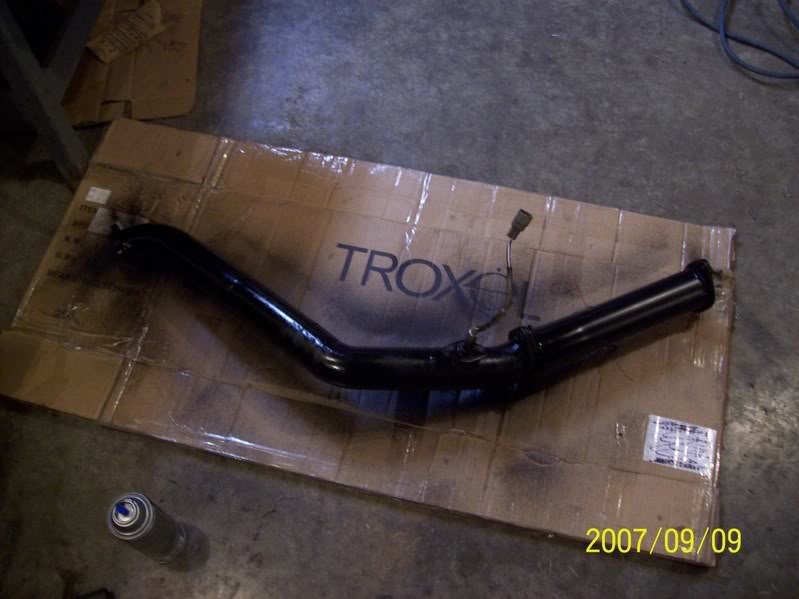

    Wired in new injector clips, fabbed my test pipe with downpipe and BOV adapter, tapped my oil feed line.

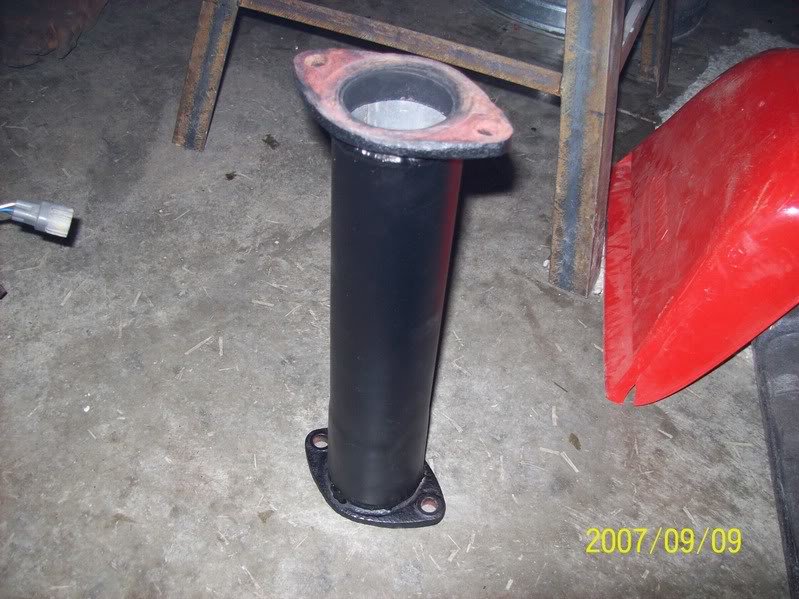

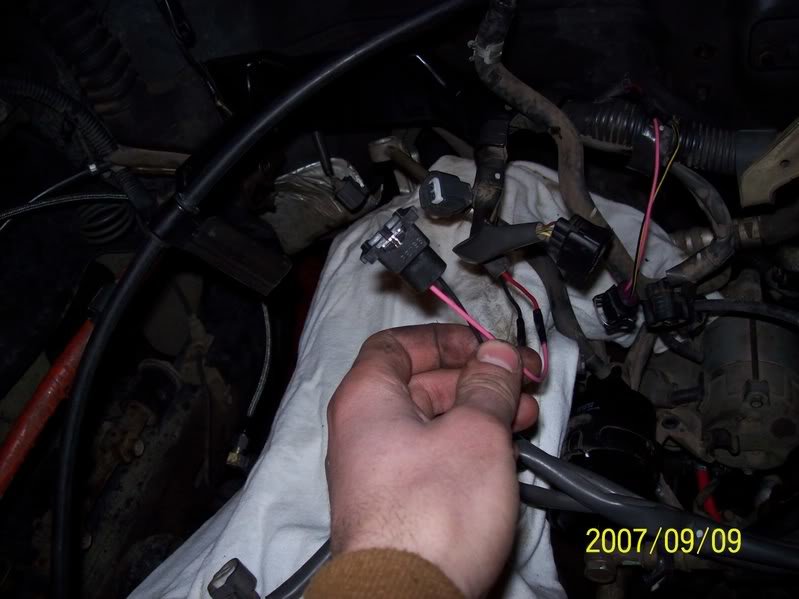

    101_0007_6fae6bec268718e969d7d75aad21564f0b37579e.jpg101_0001_644af4c2b2f7912e48391d70d57a87719819e0b9.jpg

    dually, Feb 18, 2009
    #17
  18. Feb 19, 2009 at 12:22 PM
    #18
    dually

    #18
    dually [OP] Low and slow

    Joined:
    Jul 29, 2008
    Member:
    #8205
    Messages:
    3,299
    Gender:
    Male
    Interstate underpass
    Vehicle:
    '16 Inferno SR5 DCLB
    Tally of all items and materials used to date:

    Turbo/Manifold/Oilpan/BOV/BoostGauge/BoostController/Oil Feedline/Downpipe-$400
    Turbo Rebuild-$110
    Greddy Emanage-$350
    450cc Injectors-$60+$56 for cleaning
    Injector Clips-$40
    Cometic 1.5mm HG and ARP Headstuds-$245
    Intercooler-$70
    Intercooler piping-$110
    Intercooler couplers-$50
    AEM Uego-$195
    Gaskets-$38
    Gauge Pods-$50
    Oil Drain Line-$20
    Valve cover gasket+Spark Plug seals-$60
    Misc. Materials-$250

    Total=$2100 (+-)$50
