Turn Signal Wiring / Fixing Hyperflashing

Discussion in '3rd Gen. Tacomas (2016+)' started by OdiN1701, Jul 16, 2017.

  1. Jul 16, 2017 at 9:54 AM
    #1
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Since nobody apparently knew, putting this here for reference.

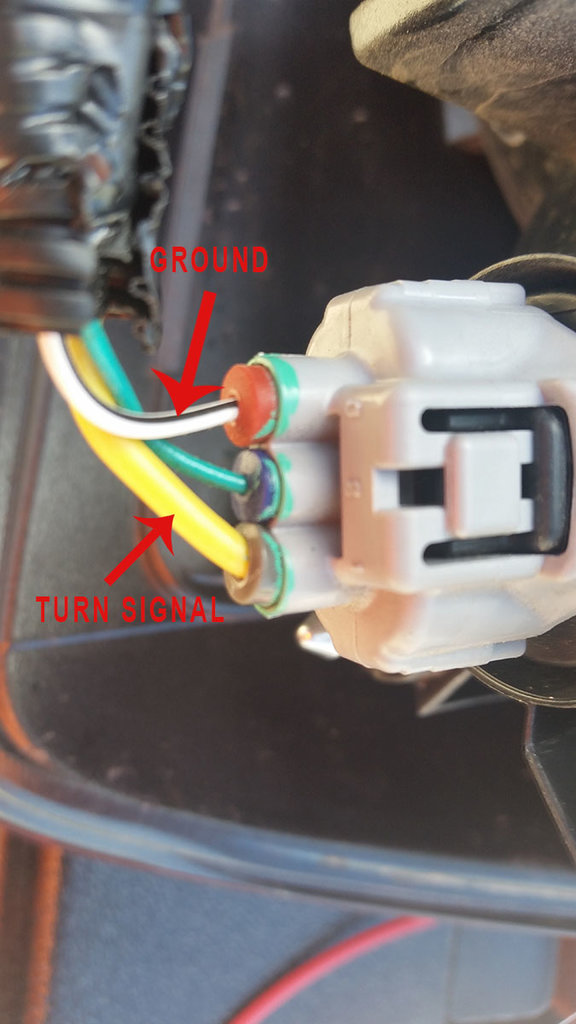

    The below photo shows the wiring for the driver side taillight. The white/black wire is ground and the larger yellow wire is the turn signal wire. On the passenger side, the turn signal wire is grey. These are the two wires you need to bridge with the resistor to fix hyperflashing.

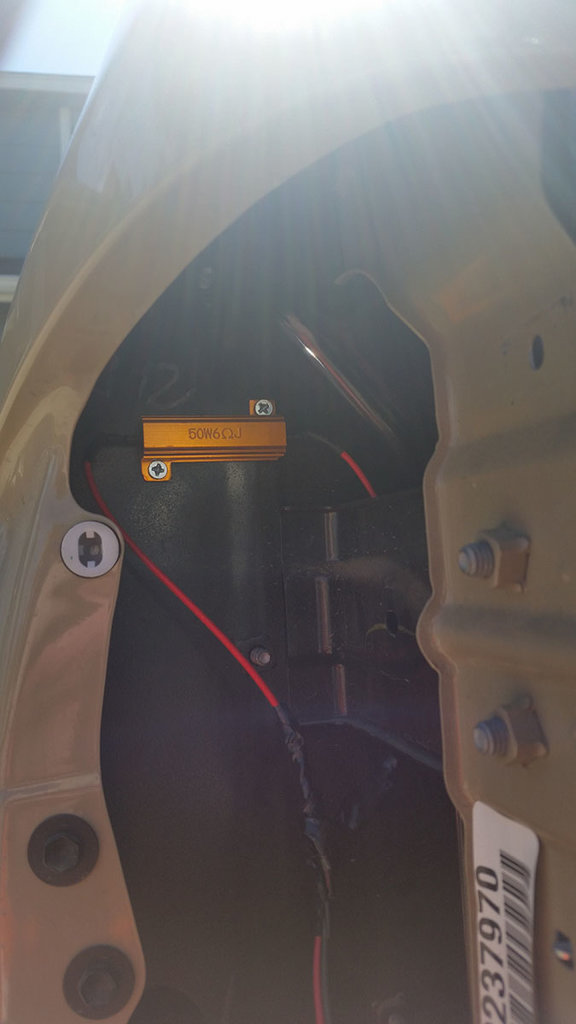

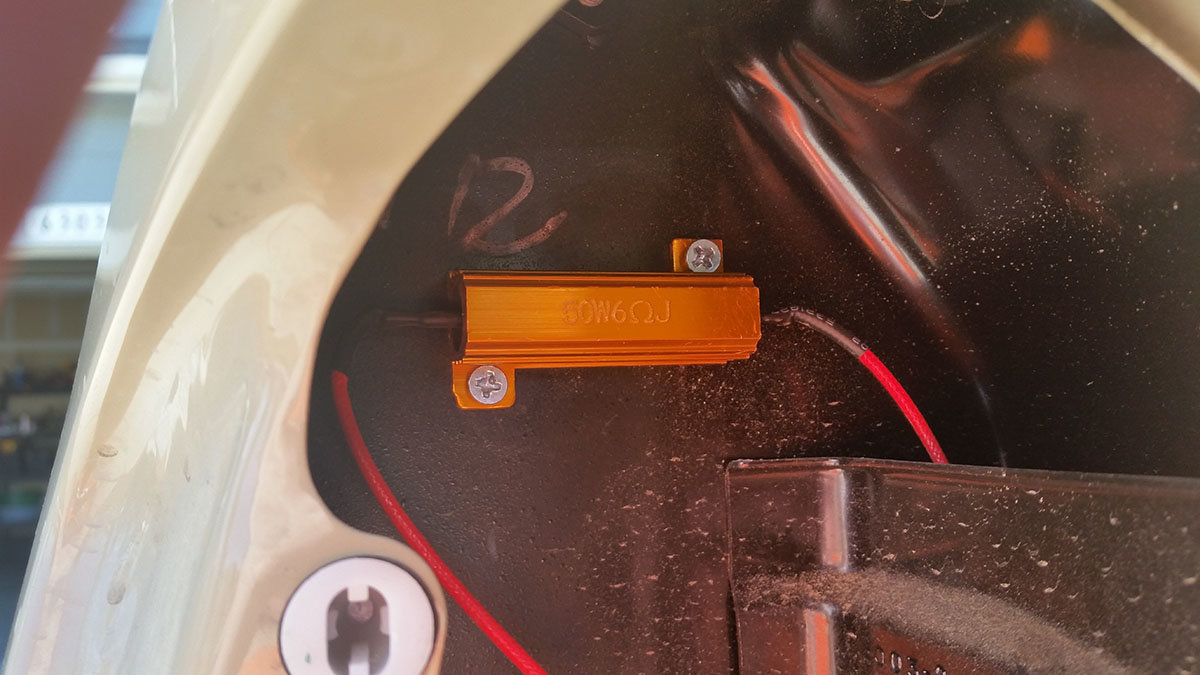

    The next photos show where I mounted the resistors. They shouldn't come into contact with anything here. Basically I put them up as high as possible while still being able to get my drill in to mount them.

    I put spade connectors on the ends of each wire to the resistor and then added another length of wire to them in order to be able to have enough slack to lay the taillight on the tailgate without straining anything.

    I used posi taps and electrical tape to keep things tidy.




    Attached Files:

    • hf1.jpg
      File size:
      92.9 KB
      Views:
      186
    • hf2.jpg
      File size:
      59.5 KB
      Views:
      138
    • hf3.jpg
      File size:
      138.4 KB
      Views:
      136
    ktbell444, El Latigo, Frito and 4 others like this.
  2. Aug 25, 2017 at 9:57 AM
    #2
    daohaus

    daohaus Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    thanks for this

    Catstravaganza likes this.
  3. Sep 19, 2017 at 2:25 PM
    #3
    BigSkyTRD

    BigSkyTRD Active Member

    Joined:
    Feb 21, 2017
    Member:
    #211269
    Messages:
    40
    Gender:
    Male
    First Name:
    Chris
    Bozeman, MT
    Vehicle:
    '17 TRDOR DCSB QS
    Yes, This :thumbsup:

    ...and, if you are doing all 4 corners, you need 4 resistors.

  4. Sep 19, 2017 at 2:26 PM
    #4
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    You mean the front too? Yes, in that case you would, but this is only the wiring for the rear.

  5. Sep 19, 2017 at 2:30 PM
    #5
    BigSkyTRD

    BigSkyTRD Active Member

    Joined:
    Feb 21, 2017
    Member:
    #211269
    Messages:
    40
    Gender:
    Male
    First Name:
    Chris
    Bozeman, MT
    Vehicle:
    '17 TRDOR DCSB QS
    Yes, you need 4 if adding LEDs to the front also. Your wiring for the rear is spot on!

  6. Sep 19, 2017 at 2:32 PM
    #6
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I haven't bothered with the front yet. Not sure if I will.

  7. Sep 19, 2017 at 2:34 PM
    #7
    daohaus

    daohaus Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
  8. Sep 19, 2017 at 2:37 PM
    #8
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Ahh I looked for those but could never find them.

    daohaus likes this.
  9. Sep 19, 2017 at 9:52 PM
    #9
    daohaus

    daohaus Well-Known Member

    Joined:
    May 25, 2017
    Member:
    #219904
    Messages:
    918
    Gender:
    Male
    First Name:
    Duan
    33.960892 -117.575824
    Vehicle:
    18 TRD Off Road Premium 4runner
    Rotiform SIX OR Toyo Open Country RT
    BTW what ohm resistors did you get

    NM I zoomed in and saw

  10. Oct 6, 2017 at 12:09 PM
    #10
    Leo4x2

    Leo4x2 Well-Known Member

    Joined:
    Jun 29, 2016
    Member:
    #190855
    Messages:
    1,359
    Gender:
    Male
    First Name:
    Leo
    San Antonio, Tx
    Vehicle:
    2016 Toyota Tacoma SR5
    Maxtrac/Bilstein suspension 20x10 Fuel Couplers 305/55/20 Falken Wildpeak AT3 1.25" Spidertrax rear wheel spacers RAD Industries Grille Morimoto Profile Prism RGB Halos & Demon Eyes
    What wires would you splice into for the front? They are also numbered 1,2 & 3. #3 is the ground (b&w) on both driver/passenger. I am assuming #1 is the blinker/turn wire and #2 is the parking wire?

  11. Oct 14, 2017 at 10:26 PM
    #11
    itsraymondang

    itsraymondang Spam King

    Joined:
    Sep 10, 2017
    Member:
    #229645
    Messages:
    317
    Gender:
    Male
    Houston, TX
    Vehicle:
    2017 White TRD Sport DCSB
    Shit.. I tapped the resistor into the white/black wire and green wire. But it still fixed the hyper flash lol

  12. Jan 31, 2018 at 4:42 PM
    #12
    commbubba19

    commbubba19 Well-Known Member

    Joined:
    Jan 2, 2018
    Member:
    #240020
    Messages:
    1,081
    Gender:
    Male
    Omaha, NE
    Vehicle:
    2017 Tacoma OR - SOLD
    Thank you for this. Did my rear turn signals no problem.

    I didn’t have any screws that would hold the resistors to the inside panel so I used 3M tape.

    Props to the OP.

  13. Jan 31, 2018 at 4:43 PM
    #13
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I just used some random self tappers i had lying around.

  14. Jan 31, 2018 at 4:49 PM
    #14
    dj0mladen

    dj0mladen Well-Known Member

    Joined:
    Dec 5, 2017
    Member:
    #237739
    Messages:
    144
    Gender:
    Male
    First Name:
    Milan
    New Hampshire
    Vehicle:
    '17 TRD Sport Double Bed
    This is perfect. I just had UPS deliver the led bulbs. How about front anyone?

  15. Jan 31, 2018 at 5:00 PM
    #15
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I didn't have to do anything special in front. Just swapped bulbs. But I did add extra resistors in the back since I did the tail as turn mod too.

    If you need them in front I think there's just two wires since they are turn only. I didn't actually look though.

  16. Feb 1, 2018 at 7:58 AM
    #16
    commbubba19

    commbubba19 Well-Known Member

    Joined:
    Jan 2, 2018
    Member:
    #240020
    Messages:
    1,081
    Gender:
    Male
    Omaha, NE
    Vehicle:
    2017 Tacoma OR - SOLD
    Yeah, I was annoyed i couldn't find any self tapping screws small enough.

    The newer LED 7440/7443/7444 ambers do not seem to need resistors. From what I've found, 7440 are intended for on/off only such as blinkers and taillights (not running lights).

    If the light has to function as both a running light and blinker/brake, they use 7443/7444 which have they hyper flashing issue.

    I used these for the front turn signals:

    https://www.amazon.com/gp/product/B074YVZD4X/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

    These for the rear taillights:

    https://www.amazon.com/gp/product/B07559QVX5/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

    and these resistors:

    https://www.amazon.com/gp/product/B00L4V9ECY/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

  17. Feb 1, 2018 at 8:10 AM
    #17
    El Latigo

    El Latigo Well-Known Member

    Joined:
    Jan 4, 2018
    Member:
    #240278
    Messages:
    501
    Gender:
    Male
    Anaheim CA
    Vehicle:
    2017 MGM TRD OR Double Cab Short Bed
    Exactly what i was looking for to install my new LED blinker bulbs.. Thanks for the information!!.. :thumbsup:

  18. Mar 9, 2018 at 7:43 AM
    #18
    commbubba19

    commbubba19 Well-Known Member

    Joined:
    Jan 2, 2018
    Member:
    #240020
    Messages:
    1,081
    Gender:
    Male
    Omaha, NE
    Vehicle:
    2017 Tacoma OR - SOLD
    My passenger side randomly hyper flashes even with a 6Ohm resistor. Thought it was a bad resistor or crimped wire but no luck. It will flash normal even with lights on and as I make a turn it will begin to hyper flash. So weird. I want to do more like Tail light as Turn but getting this to work consistently is annoying.

  19. Mar 9, 2018 at 7:49 AM
    #19
    OdiN1701

    OdiN1701 [OP] Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,724
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    I had to add some 3Ohm in series to get mine to work with tail as turn.

    Here's the post:

    https://www.tacomaworld.com/threads...rake-and-signals.471450/page-11#post-16612198

  20. Mar 9, 2018 at 7:50 AM
    #20
    commbubba19

    commbubba19 Well-Known Member

    Joined:
    Jan 2, 2018
    Member:
    #240020
    Messages:
    1,081
    Gender:
    Male
    Omaha, NE
    Vehicle:
    2017 Tacoma OR - SOLD
