U-Bolt Flip Kit Question

Discussion in 'All-Pro Off Road' started by goufcustom, Dec 23, 2012.

  1. Dec 23, 2012 at 7:52 AM
    #1
    goufcustom

    goufcustom [OP] 7.62x63mm

    Joined:
    Oct 3, 2011
    Member:
    #64586
    Messages:
    1,328
    Gender:
    Male
    First Name:
    Michael
    Leonardtown, MD
    Vehicle:
    2006 4x4 TRD Off Road DC SR5
    Bed Topper, Diff Breather, aFe Cold Air Intake, Satoshi Grill, Moved Horns, Oil Catch Can, Tailgate Lock, Husky Mud Flaps, H4 65/70W Bulbs, Lower Grill Mesh, TRD Skid Plate, LEDs in the bed, LEDs behind the grill for accent lighting, Parking lights as turn signals, LED turn signals and reverse lights, 5100s up front, eibachs up front, SS extended brake lines all around, 1.5" AAL in the rear, Relentless Fab U-Bolt Flip Kit, ICON Progressive AAL, TRD Wheel Center Caps, HomeLink, Heated Driver Seat, Hella 500 FF Driving Lights, BAMF Diff Skid, BAMF LCA Skids, BAMF Rock Sliders w/ KickOut.
    Your website calls out the following cheaper option for bump stops with your U-Bolt Flip Kit:

    Tapped flip plates add $10 per kit.
    Bumpstops add $19.90 per kit.

    Do you have any pictures of this? Has anyone installed these? I want to flip, but I dont want to spend the money on the Timbren's...

    Thanks

  2. Dec 23, 2012 at 9:26 PM
    #2
    Mxpatriot

    Mxpatriot Busted Knuckles Fabrication

    Joined:
    Nov 18, 2009
    Member:
    #26163
    Messages:
    2,775
    Gender:
    Male
    First Name:
    Chase
    Vehicle:
    '06 4x4 AP LT
    Money pit.
    Don't use the timbrens unless you're towing. Go to autozone and pick up a cheap poly performance bumpstop of your choice, drill a hole in the strike plate (on the frame), and install the bump so it is facing down. It will strike off the U-bolt flip plate.

    You'll save money and have more bump travel, which is critical in keeping the back end of the truck down through the rough stuff.

  3. Jan 3, 2013 at 5:03 PM
    #3
    AcadianTaco

    AcadianTaco Well-Known Member

    Joined:
    Apr 27, 2012
    Member:
    #77751
    Messages:
    738
    Gender:
    Male
    First Name:
    Vince
    N.B. Canada
    Vehicle:
    2015 AC TRD OFFROAD
    Extang Tri Fold Tonneau, Dee Zee Bed Mat
    I ordered my flip kit tapped and used the original bumpstop, drilled two holes in each and did some grinding.


    [​IMG]

  4. Jan 12, 2013 at 12:17 PM
    #4
    Sublime

    Sublime Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25918
    Messages:
    3,729
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    08 TRD 4x4
    Icon/All Pro.....chopped for 35's
    3" or the 4.5"? Was going to get some but wasn't sure how much they compress? Stock is 3" and my super bumps compress to that but their a little on the soft side!

  5. Jan 30, 2013 at 7:47 AM
    #5
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,105
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    should have pics for you by Friday evening..

  6. Feb 3, 2013 at 3:33 PM
    #6
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,105
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids

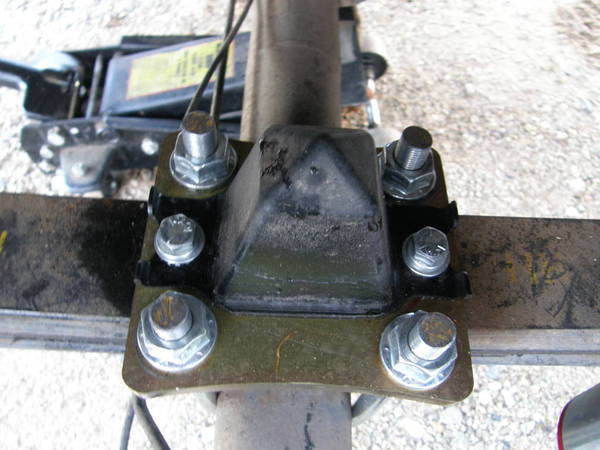

    here it is.
    [​IMG]

    their universal bump stops are shorter in height than our oem's. i ended up taking them out & drilling holes in the oem's & bolting them to the plate.

  7. Feb 6, 2013 at 11:45 AM
    #7
    TherealScuba

    TherealScuba Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75781
    Messages:
    1,049
    Gender:
    Male
    First Name:
    Stephen
    Austin, Texas
    Vehicle:
    99 Single Cab 4x4
    Depending on your spring it may be necessary to run an even taller bumpstop or run an extension from the striker plate up top so that the leaf springs don't go flat or past flat into negative arch.

    I don't have pictures of this kit on a truck, but I can get pictures of the components themselves. Let me know if you want them.
    Thanks!

  8. Feb 6, 2013 at 12:11 PM
    #8
    thegreatwall23

    thegreatwall23 Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72251
    Messages:
    584
    Gender:
    Male
    First Name:
    Danny
    Mt. Juliet, TN
    Vehicle:
    2009 TRD Off Road
    Armor Shrockworks front bumber Shrockworks Rock Sliders Brute Force Rear Bumper XRC8 with synthetic rope Relentless Full Skid Pack Suspension Icons 2.5 extended travel all around with King 14" 700# Springs Icon Tubular UCA's All Pro Standard Leaf Pack 3 degree axle shims Wheelers front bumpstop U bolt flip kit Timbren rear bumpstop Mods rear diff breather fog light anytime ABS Disable TPMS disable Door Chime disable Seat Belt Chime Disable Cab Mount Chop Pinch Weld Mod BHLM Other 4.56 Nitro gears FX-R Retrofit HID's with Halos PIAA fogs and driving lights Wet Okole seat covers Weather-Tech floormats Access LiteRider bed cover AMP bed extender Viair 450P-A Rocky Clutch SD mounts Pop-n-lock tailgate lock Aux rear lights Rear sliding window security bar B.A.M.F Light Bar Ultragauge 48" Hi Lift Jack with Bed Rail Mount Bushwacker Fender Flares ECGS PTFE Bushing SS Brake Lines Brembo Blanks Hawk HPS In cab winch control (12voltguy) Tint
    I just installed my kit last week. I have the all pro standard leaf pack and have extended icon shocks. Here is what it looks like all installed. From my leaf pack to frame, I had just a little over 7 inches.

    The flip kit plate is .5"
    The Timbren bumpstop is 4.75".

    That left me with exactly 2" of room before it hits the stops. They aren't super hard, I could squeeze them just a little bit with my hands. From what I have read they do compress down under load. If I had to guess, they are probably going to compress down around 1.5". Which ends up making them about 3.25 when compress, plus the .5" flip plate kit. Overall .75" taller than stock if I had to guess. Which is just a little taller than stock. I haven't noticed any issue with them at all, but I haven't loaded the bed down with weight since I put them on either. This is just my estimates from reading and seeing them in place, etc... I think they are going to be perfect for my setup.


  9. Feb 6, 2013 at 1:05 PM
    #9
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,105
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    this is at rest?

  10. Feb 6, 2013 at 4:38 PM
    #10
    thegreatwall23

    thegreatwall23 Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72251
    Messages:
    584
    Gender:
    Male
    First Name:
    Danny
    Mt. Juliet, TN
    Vehicle:
    2009 TRD Off Road
    Armor Shrockworks front bumber Shrockworks Rock Sliders Brute Force Rear Bumper XRC8 with synthetic rope Relentless Full Skid Pack Suspension Icons 2.5 extended travel all around with King 14" 700# Springs Icon Tubular UCA's All Pro Standard Leaf Pack 3 degree axle shims Wheelers front bumpstop U bolt flip kit Timbren rear bumpstop Mods rear diff breather fog light anytime ABS Disable TPMS disable Door Chime disable Seat Belt Chime Disable Cab Mount Chop Pinch Weld Mod BHLM Other 4.56 Nitro gears FX-R Retrofit HID's with Halos PIAA fogs and driving lights Wet Okole seat covers Weather-Tech floormats Access LiteRider bed cover AMP bed extender Viair 450P-A Rocky Clutch SD mounts Pop-n-lock tailgate lock Aux rear lights Rear sliding window security bar B.A.M.F Light Bar Ultragauge 48" Hi Lift Jack with Bed Rail Mount Bushwacker Fender Flares ECGS PTFE Bushing SS Brake Lines Brembo Blanks Hawk HPS In cab winch control (12voltguy) Tint
    Yes, at rest.

  11. Feb 6, 2013 at 5:46 PM
    #11
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,105
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    doesn't give you much room to play with does it.

  12. Feb 6, 2013 at 8:02 PM
    #12
    thegreatwall23

    thegreatwall23 Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72251
    Messages:
    584
    Gender:
    Male
    First Name:
    Danny
    Mt. Juliet, TN
    Vehicle:
    2009 TRD Off Road
    Armor Shrockworks front bumber Shrockworks Rock Sliders Brute Force Rear Bumper XRC8 with synthetic rope Relentless Full Skid Pack Suspension Icons 2.5 extended travel all around with King 14" 700# Springs Icon Tubular UCA's All Pro Standard Leaf Pack 3 degree axle shims Wheelers front bumpstop U bolt flip kit Timbren rear bumpstop Mods rear diff breather fog light anytime ABS Disable TPMS disable Door Chime disable Seat Belt Chime Disable Cab Mount Chop Pinch Weld Mod BHLM Other 4.56 Nitro gears FX-R Retrofit HID's with Halos PIAA fogs and driving lights Wet Okole seat covers Weather-Tech floormats Access LiteRider bed cover AMP bed extender Viair 450P-A Rocky Clutch SD mounts Pop-n-lock tailgate lock Aux rear lights Rear sliding window security bar B.A.M.F Light Bar Ultragauge 48" Hi Lift Jack with Bed Rail Mount Bushwacker Fender Flares ECGS PTFE Bushing SS Brake Lines Brembo Blanks Hawk HPS In cab winch control (12voltguy) Tint
    Not a ton, but I won't be running it too long... I hope anyway. Timbren recommends that you only have 1 inch between the bumpstop and frame. I personally think that is way to close. But I am running an extended travel icon shock in the rear and the compressed length is 16 inches. So, I needed everything that length to make sure I don't bottom out on the shock. Long term goal is to remove that and make the shock point higher on the frame with hoops, relocation kit, etc... Not sure what route I am going to go yet, but as you know that is a bigger job and more money, so I am stuck with it at the moment.

    No stuffing the wheels for me yet! Lol... But I have to look at things on the bright side, I have a ton of down travel! Lol

  13. Feb 9, 2013 at 2:07 PM
    #13
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,588
    Gender:
    Male
    Anyone done this with a Firestone Air Ride kit? My Idea was to chop the bolts once installed, then mount the Firestone plates as usual.

  14. Feb 15, 2013 at 12:02 PM
    #14
    GEARAHOLIC

    GEARAHOLIC Well-Known Member

    Joined:
    Jul 29, 2009
    Member:
    #20340
    Messages:
    624
    Gender:
    Male
    First Name:
    KELLEN
    PASO ROBLES, CA
    Vehicle:
    07 Black on Black BEAST
    heres what I did so I wouldn't bottom out my shocks...come out to cali and I will do it for you for cheap! [​IMG]
    [​IMG]

  15. Feb 15, 2013 at 6:59 PM
    #15
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,999
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, CBI Sliders, Icon ET Coilovers, aFe Intake, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, All-Pro UCAs, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
  16. Feb 15, 2013 at 7:04 PM
    #16
    Beefed Taco

    Beefed Taco Taco Vending Machine Vendor

    Joined:
    Dec 18, 2008
    Member:
    #11706
    Messages:
    1,309
    Gender:
    Male
    First Name:
    Brian
    My Metal Shop
    Vehicle:
    99 Taco
    streetacos.com parts!
    Yeah I'd go for quality bump stops, avoid cheapos at common auto stores and get Energy or those pictured above. Same goes for ubolts. These round ones pictured are true 9/16" grade 8 custom made at a spring shop.

    10-25 008.jpg

  17. Feb 15, 2013 at 7:30 PM
    #17
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,999
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, CBI Sliders, Icon ET Coilovers, aFe Intake, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, All-Pro UCAs, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    The All-Pro U-bolts are also 9/16". Grade is not advertised. However, both the plate and the U-bolts appear to be zinc plated. After two winters they are holding up much better than the axle paint...

    [​IMG]

  18. Feb 16, 2013 at 7:36 AM
    #18
    thegreatwall23

    thegreatwall23 Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72251
    Messages:
    584
    Gender:
    Male
    First Name:
    Danny
    Mt. Juliet, TN
    Vehicle:
    2009 TRD Off Road
    Armor Shrockworks front bumber Shrockworks Rock Sliders Brute Force Rear Bumper XRC8 with synthetic rope Relentless Full Skid Pack Suspension Icons 2.5 extended travel all around with King 14" 700# Springs Icon Tubular UCA's All Pro Standard Leaf Pack 3 degree axle shims Wheelers front bumpstop U bolt flip kit Timbren rear bumpstop Mods rear diff breather fog light anytime ABS Disable TPMS disable Door Chime disable Seat Belt Chime Disable Cab Mount Chop Pinch Weld Mod BHLM Other 4.56 Nitro gears FX-R Retrofit HID's with Halos PIAA fogs and driving lights Wet Okole seat covers Weather-Tech floormats Access LiteRider bed cover AMP bed extender Viair 450P-A Rocky Clutch SD mounts Pop-n-lock tailgate lock Aux rear lights Rear sliding window security bar B.A.M.F Light Bar Ultragauge 48" Hi Lift Jack with Bed Rail Mount Bushwacker Fender Flares ECGS PTFE Bushing SS Brake Lines Brembo Blanks Hawk HPS In cab winch control (12voltguy) Tint
    Man, I wish I was closer and I would definitely take you up on that offer!

  19. Feb 18, 2013 at 2:11 PM
    #19
    TherealScuba

    TherealScuba Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75781
    Messages:
    1,049
    Gender:
    Male
    First Name:
    Stephen
    Austin, Texas
    Vehicle:
    99 Single Cab 4x4
  20. Feb 18, 2013 at 3:24 PM
    #20
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,969
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Generally, U Bolts without a grade rating are a grade #5.
