U.S. Offroad Hidden Winch Mount Bumper

Discussion in '3rd Gen. Tacomas (2016+)' started by TacOly, Mar 14, 2017.

  1. Mar 14, 2017 at 9:30 PM
    #1
    TacOly

    TacOly [OP] Member

    Joined:
    Mar 4, 2017
    Member:
    #212287
    Messages:
    8
    Gender:
    Male
    First Name:
    Justin
    Pacific Northwest
    Vehicle:
    17' TRD pro
    GB Sport Snugtop, TRD intake, pop and lock tailgate, predator steps(until replaced with sliders)
    KTJO 4x4 likes this.
  2. Mar 14, 2017 at 9:35 PM
    #2
    J.M Taco

    J.M Taco Well-Known Member

    Joined:
    Feb 12, 2017
    Member:
    #210428
    Messages:
    374
    Gender:
    Male
    Central California
    Vehicle:
    '17 Tacoma Quicksand DCSB TRD OR 4x4
    I like the concept, minimalist but functional. I have the Pro skid so I'm curious too.

    KTJO 4x4 and TacOly [OP] like this.
  3. Mar 14, 2017 at 9:55 PM
    #3
    Roxanne16

    Roxanne16 Well-Known Member

    Joined:
    Mar 1, 2017
    Member:
    #212007
    Messages:
    88
    Gender:
    Male
    First Name:
    Zack
    Kansas City, MO
    Vehicle:
    2016 Magnetic Gray Tacoma Limited (Roxanne)
    2000 Toyota Sienna 2004 Toyota Tacoma 2001 Acura Integra LS 1999 Toyota Celica 1998 Toyota Harrier (Lexus RX300) 1999 Toyota MR-S 1999 Toyota Altezza (Lexus IS300) 2016 Toyota Tacoma Limited MGM
    Id probably replace that winch hole cover (not sure what it's called) with one o the stainless steel roller ones.. I can only imagine the amount of rub you'd have with the steel cable and the cover when in use. Other than that it's a cool concept not unlike the lopro winch bumpers that just replace the pop out front bumper.

  4. Mar 14, 2017 at 10:14 PM
    #4
    TacOly

    TacOly [OP] Member

    Joined:
    Mar 4, 2017
    Member:
    #212287
    Messages:
    8
    Gender:
    Male
    First Name:
    Justin
    Pacific Northwest
    Vehicle:
    17' TRD pro
    GB Sport Snugtop, TRD intake, pop and lock tailgate, predator steps(until replaced with sliders)
    Good point, a roller fairlead would work better on this steep angle but I don't want to spend money twice. Since it comes with the hawse fairlead already.

    KTJO 4x4 and Roxanne16 like this.
  5. Mar 14, 2017 at 11:34 PM
    #5
    nvnv

    nvnv Well-Known Member

    Joined:
    Jun 5, 2016
    Member:
    #188803
    Messages:
    1,039
    Gender:
    Male
    First Name:
    Connor
    Vehicle:
    2016 Tacoma TRD OFF ROAD

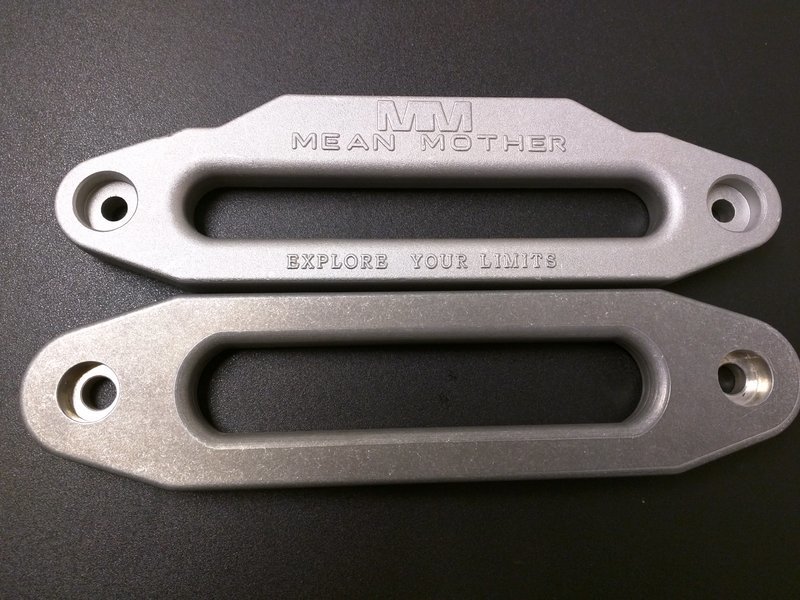

    It's synthetic line so you use a hawse fairlead not a roller. Regardless of the fairlead type though I'd be worried about the angle of it. It's not ideal at all. I'd like to see how the winch is mounted in that also.

    chops749 and Roxanne16 like this.
  6. Mar 15, 2017 at 3:37 AM
    #6
    Ch78

    Ch78 GBO!

    Joined:
    Apr 22, 2016
    Member:
    #185006
    Messages:
    2,188
    Gender:
    Male
    First Name:
    Chris
    Tomball, TX
    Vehicle:
    17' Taco Supreme
    Tuned By D3 Performance
    adanfon and Hondah like this.
  7. Mar 15, 2017 at 3:38 AM
    #7
    Hondah

    Hondah Revelations 6:8

    Joined:
    Feb 21, 2015
    Member:
    #149256
    Messages:
    1,433
    Gender:
    Male
    Newnan, Ga
    Vehicle:
    '13 RC 4x4
  8. Mar 15, 2017 at 3:39 AM
    #8
    Hondah

    Hondah Revelations 6:8

    Joined:
    Feb 21, 2015
    Member:
    #149256
    Messages:
    1,433
    Gender:
    Male
    Newnan, Ga
    Vehicle:
    '13 RC 4x4
    Gunshot-6A and Ch78 like this.
  9. Mar 15, 2017 at 8:13 AM
    #9
    Marcoc

    Marcoc Well-Known Member

    Joined:
    Nov 26, 2012
    Member:
    #91857
    Messages:
    613
    Gender:
    Male
    Connecticut
    Vehicle:
    2017 Tacoma TRD Off-Road LB
    2017 Tacoma TRD OR LB white w/tech package
    Nice but a little expensive, $500 plus shipping. Looks like a great idea, wonder how it impacts front crash/air bag deployment

  10. Mar 15, 2017 at 8:14 AM
    #10
    LivinOnEdge

    LivinOnEdge ✧゚・:*¯\_(ツ)_/¯*:・゚✧ Sarcastic Fairy Dust

    Joined:
    Dec 23, 2016
    Member:
    #205574
    Messages:
    7,011
    Gender:
    Male
    Land of The Lost
    Vehicle:
    Four wheels and a refrigerator
    Just judging by eyeballing, but it looks like the stock skid plate works just fine (seen in picture), i would imagine the TRD skid plate would work just as well.

  11. Mar 15, 2017 at 8:17 AM
    #11
    Sloth

    Sloth Baby Ruth?

    Joined:
    Nov 16, 2012
    Member:
    #91263
    Messages:
    11,988
    Gender:
    Male
    First Name:
    Seth
    Democratic Peoples Republik of Massachusetts
    Vehicle:
    07 FJ Cruiser, 98 Landcruiser
    Stuff
    You can use delrin rollers with synthetic.

  12. Mar 15, 2017 at 9:22 AM
    #12
    usoffroad

    usoffroad TEXAN Vendor

    Joined:
    Aug 25, 2012
    Member:
    #85521
    Messages:
    892
    Gender:
    Male
    First Name:
    Brad
    Granbury, Texas
    Vehicle:
    1991 FJ80
    US Off Road bumpers, Mean Mother 12k winch, OME suspension, Nitro 4.88, 4340 axles, locker.
    We just released these a week or so ago and have shipped quite a few all over the world already. Our skid is part of the product, there is a .250" winch tub internally, you use the skid we provide as a template to make the cuts in your chin piece/valance (you do NOT have to cut your bumper cover), the skid also ties in to the winch tub via the shackle mounts, hawse bolts, two more bolts and then two at the subframe... so it's not just a skid but is also a structural part of the mount. IF you bend or damage the skid (10 ga / .125"), which won't be easy to do, all it takes is 6 bolts and you can remove and repair or order a new one from us.

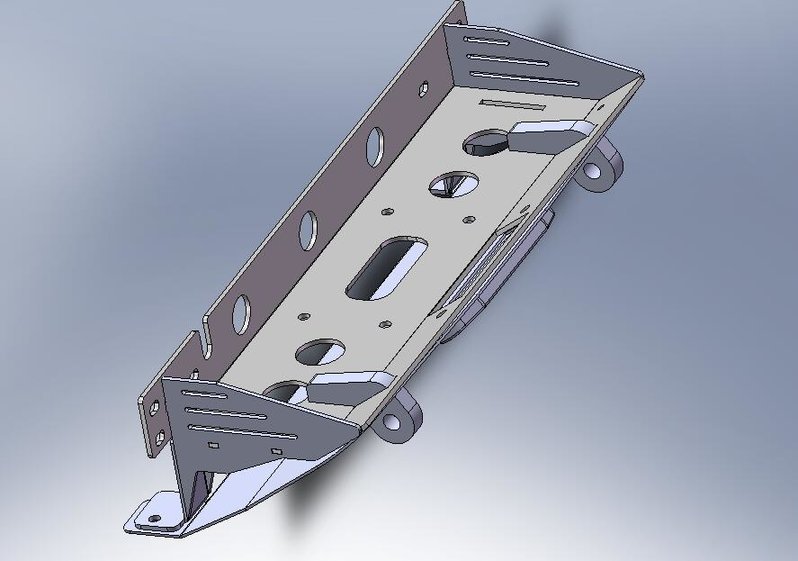

    2017 taco tub assem side.jpg

    The angle is 30 degrees which is not that much different from some other bumpers out there that don't exit on a vertical plane. Demello for instance has a few. We actually designed this 'Big Mouth' hawse just for this application, it has a wider opening and more radius front and back and is then coated with a Teflon infused powder coat...very low friction stuff. We include this hawse with every winch mount.

    For comparison.


    Read above...

    Compared to other solutions out there we are hardly expensive. Other solutions cost anywhere from 650-1200+, weigh more and are more expensive to ship. PLUS ours comes with a hawse. This is a well thought out product that took some time to get just right for the new Tacos and their design. There is a dev thread in our forum that discusses it all at length and why we did what we did.

    In short, over the years we listened to our customers and overwhelmingly they said they wanted these things:

    1. Did not want to overly alter the basic look of the truck.
    2. Wanted a low weight solution to mount a winch.
    3. Wanted ease of installation with minimal modification to the truck. Something they could install their self in a garage.
    4. Lower cost than a full plate bumper.
    5. Easily accessible recovery points and shackle storage.
    6. Additional armor protection without sacrificing the items above.

    We supply relocation brackets for the steering cooler (moves back 1") and cut ventilation holes to move MORE air than stock over the cooler and lower radiator. We offer a winch solenoid relocation bracket and mounting slots in the winch tub if your winch solenoid box won't mount over the winch motor side (no center mounting). We developed a front (quick removable) license plate mount for those that live in states that require it. This also has 1" shackle mounts that were custom designed to also be a structural part of the winch tub. Another words, a full well thought out solution.


    Additionally, we don't build our products out of A36 which is your most common carbon steel used for bumpers. We build ours (winch tubs, skids, shackle mounts, etc) out of A572 Grade 50 steel which is a high strength, low alloy steel. For comparison, the tensile strength of A572 has a yield strength of about 50000 PSI where A36 is around 36000 PSI. This costs more and is not just stronger but cuts MUCH better on a CNC Laser than A36 which can have a lot of contaminates and scale too. Try cutting 1" A36 on a laser and see what happens... tulip cuts, elephant skin looking striations on the cut edges and other issues.

    You will NOT find another winch mounting solution for the 16+ Tacos that is easier, lighter and faster to install AND doesn't require you cutting the very expensive bumper cover (don't screw THAT up!). It's impossible to mess up the cuts for our mount and even if your wife runs over it while you had it off you can buy another chin piece from Toyota for $100 now. Replace the chin valance and you can put it back to stock if you ever wanted to. Oh...and once ours is installed you do NOT need to pull the bumper cover to remove the winch and/or mount either!

    Finally... being an aftermarket off road piece of equipment, we are no different than any other off road bumper/mount manufacturer in that we don't do airbag/crash testing (these wouldn't be 499 but more like 4999 if we did). However, airbags are deployed by 'deceleration sensors', not impact sensors in the bumper as they once were (FJ's are in the center console for example). We have had several customers email us photos of accidents and their bags deployed 'normally' as they expected in a variety of...and unsubstantiated, impacts. No way for us to know the exact conditions though. Bottom line, any time you start altering the OEM front end of a vehicle it could have unknown effects on frontal impact results.

    Winch Mount: https://www.usoffroad.us/store/bumpers/toyota-tacoma-2016-2017-winch-mount/
    Combo Kits: https://www.usoffroad.us/store/bumpers/winch-mounts/combo-packages/tacoma-2016/

    Last edited: Mar 15, 2017
  13. Mar 15, 2017 at 10:03 AM
    #13
    TacOly

    TacOly [OP] Member

    Joined:
    Mar 4, 2017
    Member:
    #212287
    Messages:
    8
    Gender:
    Male
    First Name:
    Justin
    Pacific Northwest
    Vehicle:
    17' TRD pro
    GB Sport Snugtop, TRD intake, pop and lock tailgate, predator steps(until replaced with sliders)
    Thanks for answering my questions and some others I didn't know I had yet, but I have another if you have the time. Thanks

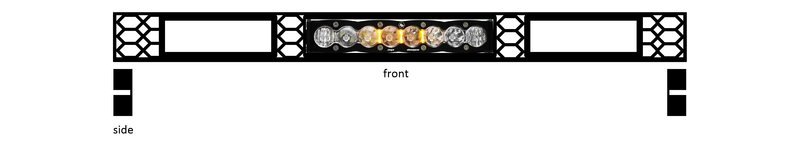

    Does it work with the bumper mounted LED light bars? I'm assuming you would need another bracket, but looks like there is still space between the winch and grill for a light bar? Have you guys thought about making an bracket option if it could work?

  14. Mar 15, 2017 at 10:12 AM
    #14
    usoffroad

    usoffroad TEXAN Vendor

    Joined:
    Aug 25, 2012
    Member:
    #85521
    Messages:
    892
    Gender:
    Male
    First Name:
    Brad
    Granbury, Texas
    Vehicle:
    1991 FJ80
    US Off Road bumpers, Mean Mother 12k winch, OME suspension, Nitro 4.88, 4340 axles, locker.
    I have been working with DB Customz to do just that with a lower grille that would match his custom radiator grilles. It is above the winch so LED depth is not a problem. One thing you can do that is optional is remove a few slats in that lower grille to gain access to the winch clutch and box to attach a cable... in lieu of opening the hood, I had suggested to DB that the create openings on each side for that and a 20" single row light in between. Here was a quick and dirty example of what I am talking about:

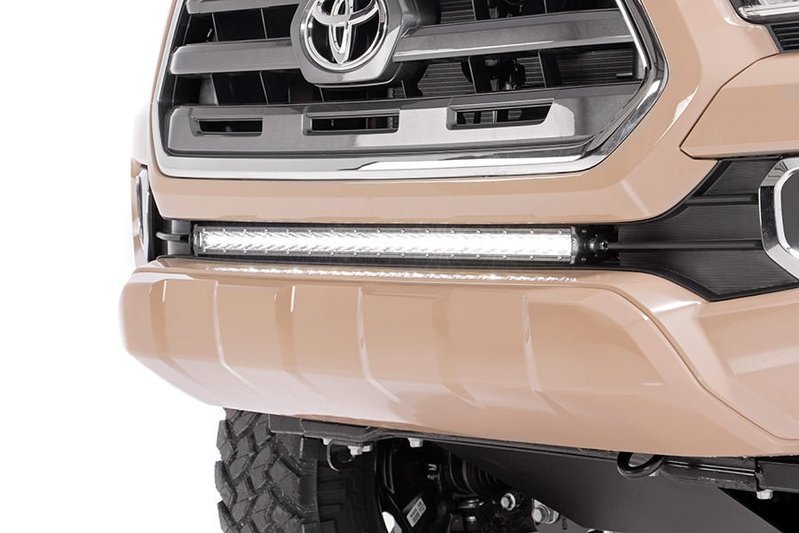

    Additionally you could go with this Rough Country 30" route from us as well but loose any openings to reach your winch: https://www.usoffroad.us/store/lighting/rough-country/2016-tacoma-30-light-kit-lower-grille/


    Last edited: Mar 15, 2017
    TacOly [OP] likes this.
  15. Mar 15, 2017 at 10:43 AM
    #15
    usoffroad

    usoffroad TEXAN Vendor

    Joined:
    Aug 25, 2012
    Member:
    #85521
    Messages:
    892
    Gender:
    Male
    First Name:
    Brad
    Granbury, Texas
    Vehicle:
    1991 FJ80
    US Off Road bumpers, Mean Mother 12k winch, OME suspension, Nitro 4.88, 4340 axles, locker.
    Read my lengthy response above that I think will address this thoroughly.

    You can...but don't have to. Plus roller fairleads stick out that much more.

    When is the last time you had a perfectly straight on pull with your winch? Almost never. The rope/cable is almost always in contact with the hawse or fairlead. Heck, just go watch a few YouTube vids for examples: https://www.youtube.com/results?search_query=winch+recovery

    KTJO 4x4 and Roxanne16 like this.
  16. Apr 12, 2017 at 1:49 PM
    #16
    BandanaBerg

    BandanaBerg The Church Of @ODNAREM*

    Joined:
    Jan 11, 2017
    Member:
    #207231
    Messages:
    1,095
    Gender:
    Male
    First Name:
    Jason
    Tempe,AZ
    Vehicle:
    ‘06 PreRun TRD OR
    Up Front; 4” Lift Spindles, Icon 2.5 Extended w/ Fox 600s, eBay Suicide UCAs w/ Camburg Bushings/FK Uniball/Dirt King Misalignments, Pelfreybilt IFS Steel Skid... Out Back; All Pro Standard Pack,Icon 2.0 Resi, GMC Bump Stop Retro, G2 1.50” Spacers, All Pro U-Bolt Flip, All Pro Extended Brake Lines, Dif Breather Mod... Misc Bologna; Some Nice Falken Wildpeak M/Ts 315/75/16 on Pro Comp 5001 16" Custom Swing Tire Gate, CaliRaised LEDs Here and There, Anytime Fog Mod, US Off Road Hidden Winch Mount w/ Engo 9000lb, Relentless Bed Bars, Smittybilt Overlander RTT, Dual Battery Mod, LED bed lights, Amazon Cheap LEDs, Bed Light LEDs, Custom Switches, DIY Bed Rail Hi-Lift Mounts, RGB LED Stripper Pole...
    Love This Concept!
    I am interested in the 2005+ mount... is there a thread with that unit? @usoffroad
    If you could give me a tag that'd be radical! :hattip:

  17. Apr 28, 2017 at 6:20 PM
    #17
    Harvo

    Harvo Hanging On !!!

    Joined:
    Apr 6, 2017
    Member:
    #215586
    Messages:
    952
    Gender:
    Male
    Vehicle:
    17' TRD Offroad DCSB
    SpiderTrax, RCI Sliders, Warn bumper, Smittybuilt winch, Ridge Grapplers...
    Very Cool. So no Warn XDi top mounted solenoid winches then. If you still use a plug in winch controller, what is the best way you have found to attach and run the remote wire?

  18. Apr 29, 2017 at 1:30 AM
    #18
    Calamity_taco

    Calamity_taco your friendly neighborhood weeb :3

    Joined:
    Sep 6, 2016
    Member:
    #196622
    Messages:
    11,952
    Gender:
    Male
    First Name:
    Jacob
    I have no idea
    Vehicle:
    2013 DCSB TRD Off-road 4x4, 2019 civic si coupe
    lots and lots of stuffs and always changing
    I'm extremely enterested in the bumper for my 2013 is their a thread on that and would I have to do any major cutting on my truck?? Would love to know before purchasing thanks!!
    @usoffroad

  19. Apr 29, 2017 at 7:14 AM
    #19
    Ch78

    Ch78 GBO!

    Joined:
    Apr 22, 2016
    Member:
    #185006
    Messages:
    2,188
    Gender:
    Male
    First Name:
    Chris
    Tomball, TX
    Vehicle:
    17' Taco Supreme
    Tuned By D3 Performance
    Check in the US OffRoad vendor forum.

    BandanaBerg likes this.
  20. Apr 29, 2017 at 9:44 AM
    #20
    Hondah

    Hondah Revelations 6:8

    Joined:
    Feb 21, 2015
    Member:
    #149256
    Messages:
    1,433
    Gender:
    Male
    Newnan, Ga
    Vehicle:
    '13 RC 4x4
    You have to cut the recovery tow hook and a section out of the stock bumper.

    You'll need a grinder for the hook and While I used the grinder initially for the bumper I used a box cutter for the finishing touches.
