UCA pivot bolt question

Discussion in 'Suspension' started by RacerP, May 18, 2012.

  1. May 18, 2012 at 8:03 AM
    #1
    RacerP

    RacerP [OP] Well-Known Member

    Joined:
    Oct 4, 2008
    Member:
    #9677
    Messages:
    452
    Gender:
    Male
    Chicago
    Vehicle:
    2003 4x4
    7th Injector kit, Trans Cooler, Donohoe c/o's, Billy's in the rear, FJ Cruiser Trail Team SE wheels.
    I am trying to install some custom fabbed UCA's and the stock pivot bolt going thru the bushngs is not long enough.

    I know it's a 14mm, but, does anyone know if ones off a Tundra or Land Cruiser are any longer than the Tacoma ones? I did call the local dealer and they don't have any in stock to compare it to.

    The best I have been able to come up with is some threaded rod from Fastenal and use lock nuts on both ends?

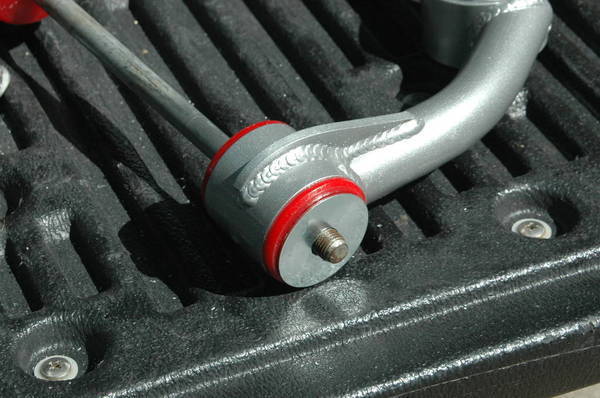

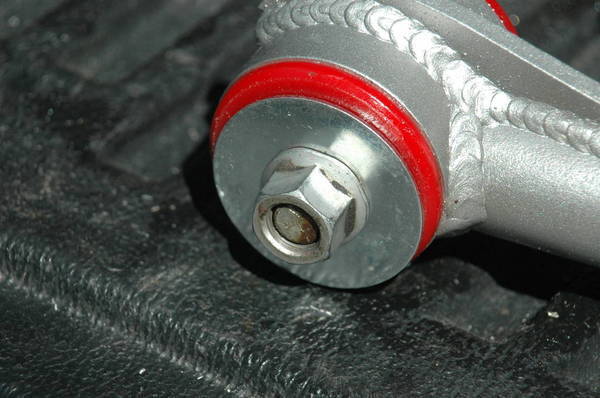

    From the pictures I am assuming I don't have enough thread to be safe? Perhaps get rid of the flange nut and just go with a regular lock nut?

    [​IMG]

    [​IMG]

  2. May 18, 2012 at 8:22 AM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Dont use a fully threaded rod. It doesnt have the required shear strength. And Yes, You need more thread showing.

  3. May 18, 2012 at 8:25 AM
    #3
    RacerP

    RacerP [OP] Well-Known Member

    Joined:
    Oct 4, 2008
    Member:
    #9677
    Messages:
    452
    Gender:
    Male
    Chicago
    Vehicle:
    2003 4x4
    7th Injector kit, Trans Cooler, Donohoe c/o's, Billy's in the rear, FJ Cruiser Trail Team SE wheels.
    What would be an alternative solution? As far as I can search no one carries a 14mm bolt that long? Unless a Tundra or Land Cruiser bolt is 14mm and slightly longer?

  4. May 18, 2012 at 8:43 AM
    #4
    RacerP

    RacerP [OP] Well-Known Member

    Joined:
    Oct 4, 2008
    Member:
    #9677
    Messages:
    452
    Gender:
    Male
    Chicago
    Vehicle:
    2003 4x4
    7th Injector kit, Trans Cooler, Donohoe c/o's, Billy's in the rear, FJ Cruiser Trail Team SE wheels.
    And I just got off the phone with McMaster Carr and they have threaded rod in Grade 8. Isn't that the same as most suspension fasteners?

  5. May 18, 2012 at 8:47 AM
    #5
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    26,663
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
  6. May 18, 2012 at 8:51 AM
    #6
    RacerP

    RacerP [OP] Well-Known Member

    Joined:
    Oct 4, 2008
    Member:
    #9677
    Messages:
    452
    Gender:
    Male
    Chicago
    Vehicle:
    2003 4x4
    7th Injector kit, Trans Cooler, Donohoe c/o's, Billy's in the rear, FJ Cruiser Trail Team SE wheels.
  7. May 18, 2012 at 8:53 AM
    #7
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    26,663
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
    Sorry, didn't notice the grade 5 at the bottom. I looked and saw the 8.8 above it.

  8. May 18, 2012 at 8:53 AM
    #8
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    25,154
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Bumper, CBI Sliders, Icon Coilovers, BudBuilt Skids, aFe Intake, Icon VS Rear Shocks, Timbren Bumpstops, All-Pro UCAs, JDM Steering Wheel, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps
    Loads on the UCA aren't that high, actually. Grade 5 will work, but you can't torque it to OEM specs. The Fastenal bolt has a plain finish, though, which will cause the bolt to rust out within one winter in Chicago.

    Do the outboard bushing flanges need to be that thick?

    Since the bolt is in shear, another solution is to use a jam nut. Only 7mm thick:
    http://www.fastenal.com/web/search/...2900|~ ~|sattr02:^Steel$|~ ~|sattr04:^Zinc$|~

  9. May 18, 2012 at 12:28 PM
    #9
    RacerP

    RacerP [OP] Well-Known Member

    Joined:
    Oct 4, 2008
    Member:
    #9677
    Messages:
    452
    Gender:
    Male
    Chicago
    Vehicle:
    2003 4x4
    7th Injector kit, Trans Cooler, Donohoe c/o's, Billy's in the rear, FJ Cruiser Trail Team SE wheels.
    I was actually thinking about the jam nut. But, never thought about shaving off some of the flange on the bushing, there is plenty of meat on it.

  10. May 18, 2012 at 12:30 PM
    #10
    rondog

    rondog your TW web developer!

    Joined:
    Nov 2, 2010
    Member:
    #45618
    Messages:
    2,201
    Gender:
    Male
    First Name:
    Ronnie
    Escondido/San Diego
    why dont you just order the oem bolt?

  11. May 18, 2012 at 12:39 PM
    #11
    RacerP

    RacerP [OP] Well-Known Member

    Joined:
    Oct 4, 2008
    Member:
    #9677
    Messages:
    452
    Gender:
    Male
    Chicago
    Vehicle:
    2003 4x4
    7th Injector kit, Trans Cooler, Donohoe c/o's, Billy's in the rear, FJ Cruiser Trail Team SE wheels.
    That's what I have in there and it's not long enough. The way these were fabbed, the made the pivot housing extra wide.

  12. May 18, 2012 at 12:40 PM
    #12
    rondog

    rondog your TW web developer!

    Joined:
    Nov 2, 2010
    Member:
    #45618
    Messages:
    2,201
    Gender:
    Male
    First Name:
    Ronnie
    Escondido/San Diego
    oh, gotcha..that's weird. Are they TC UCA?

    edit: nvm I see you said custom. I would try these guys too http://www.ababaqa.com/

    You can call them and if they don't have a long enough bolt in stock they can order you one. I've bought many bolts from them
