Ultimate 3rd Gen Dual Battery setup?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by MisterKitchen, Jun 19, 2022.

  1. Jun 19, 2022 at 7:19 AM
    #1
    MisterKitchen

    MisterKitchen [OP] Well-Known Member

    Joined:
    Jul 29, 2018
    Member:
    #260997
    Messages:
    190
    Gender:
    Male
    First Name:
    FABIAN
    Vehicle:
    2018 CONCRETE TACOMA TRD OFF ROAD
    Too many
    It has been a long and tiresome process. I am glad to finally be just about done with this endeavor. Figured it would be worthwhile to share if anyone is in the same boat as I.

    It started with a dometic CFX45 and voltage drops. One thing led to another.

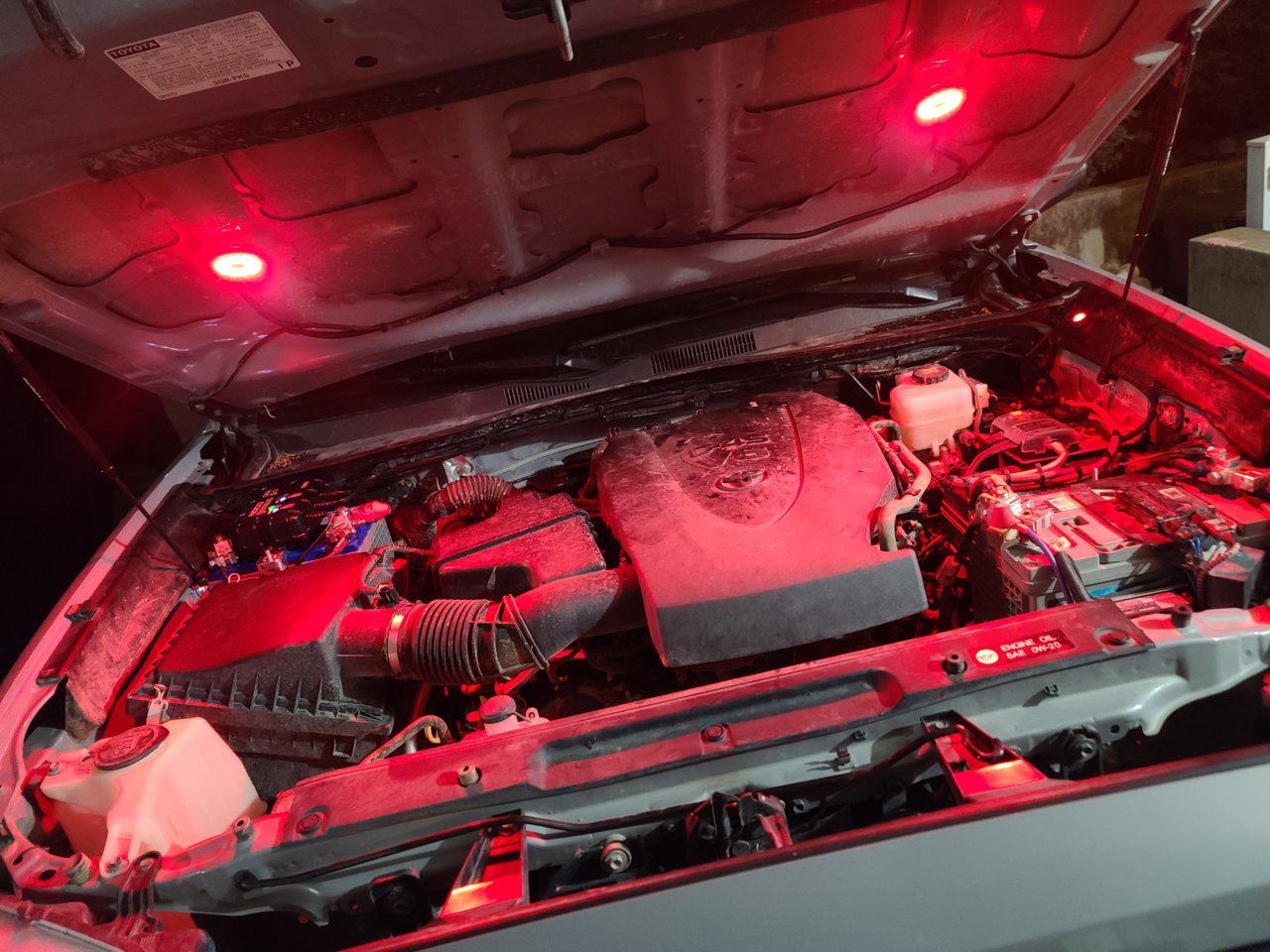

    I'm running dual Northstar AGM batteries. Starter is a 31, Aux is a 34. Larger start battery since I never intended on rolling into dual batteries. I figured the 31 would hold me over.

    I did upgrade to an SDHQ/DC Power high output alternator. She can push 270 amps. On top of that, voltage output was raised to 14.6-14.7 using vF Tuner. This is to accommodate the AGMs.

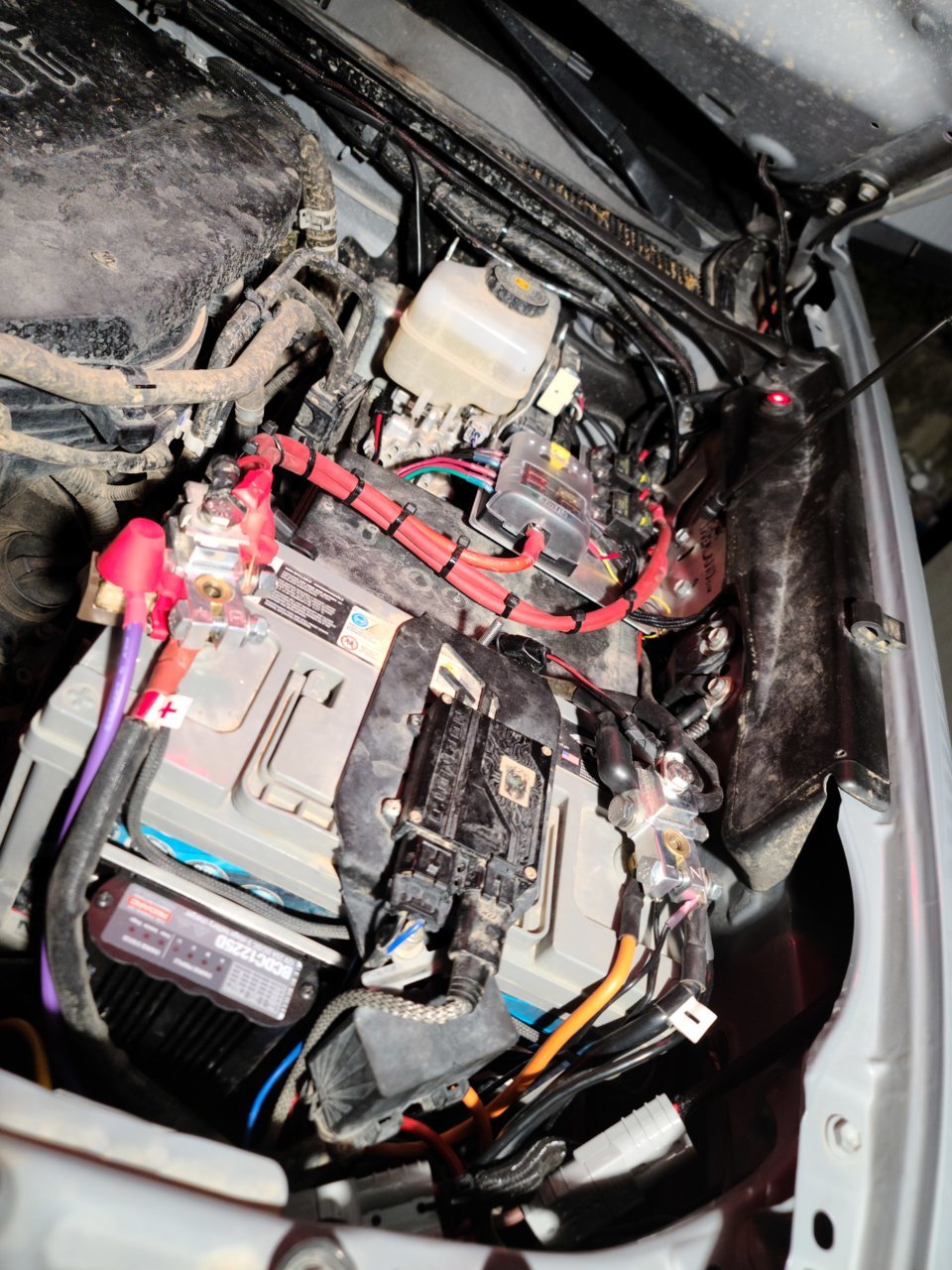

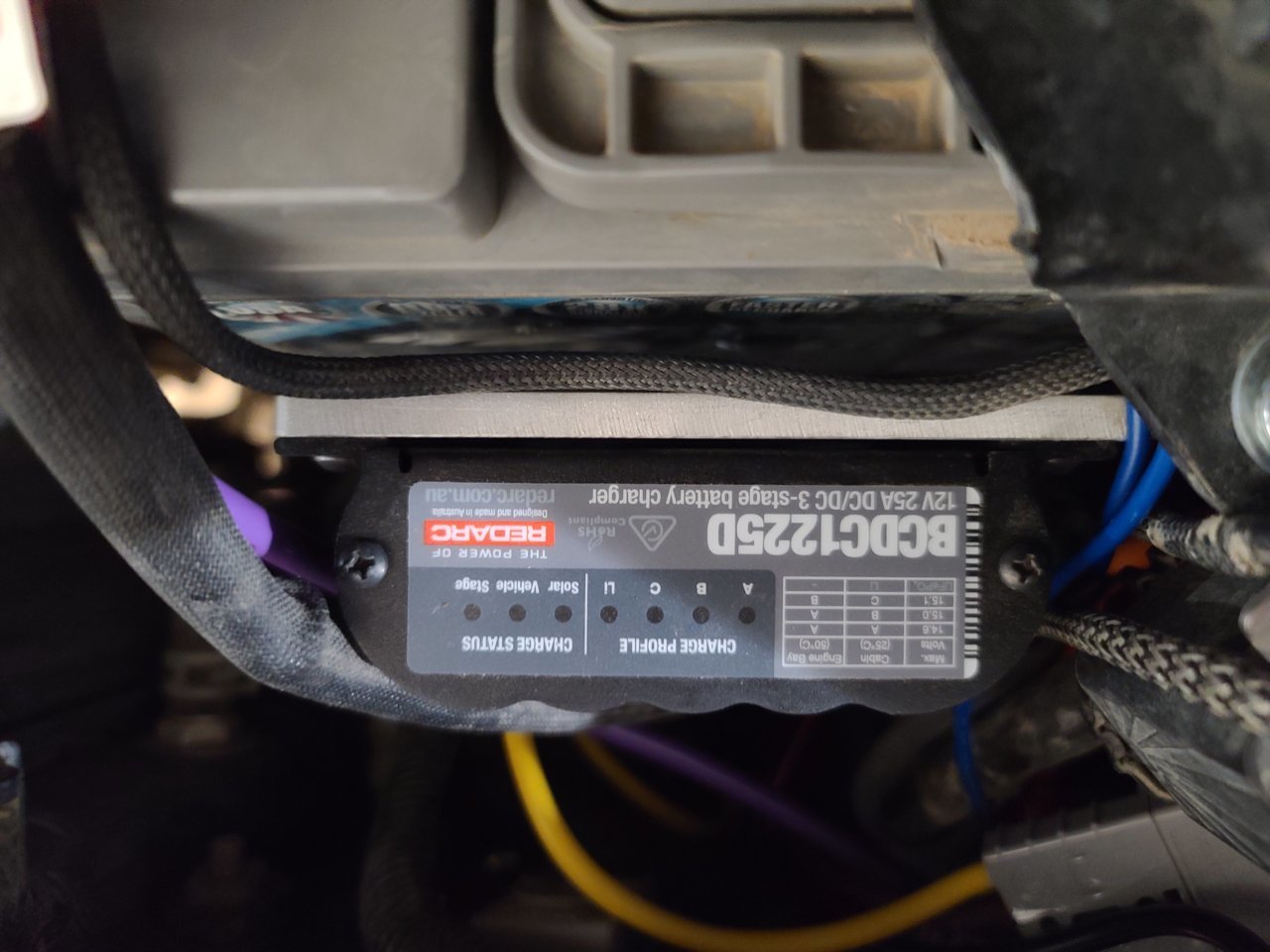

    Both batteries are tied together/ managed by a Redarc BCDC1225D. I picked up an Off Grid Engineering ultimate dual battery kit. It included everything you'd need for a simple dual setup. The BCDC is an awesome piece of kit. It maintains your AUX battery and has an MPPT function for solar. I'll get into that soon.

    In addition to the BCDC, I opted to install an RK1260 Relay to the system. This allows me to cut input voltage to the BCDC when the truck ignition is turned off. This is important because of battery drain issues when attempting to use battery chargers (AC to DC). The BCDC senses an input, turns on and automatically wants to send all power to the AUX battery. Draining the start.

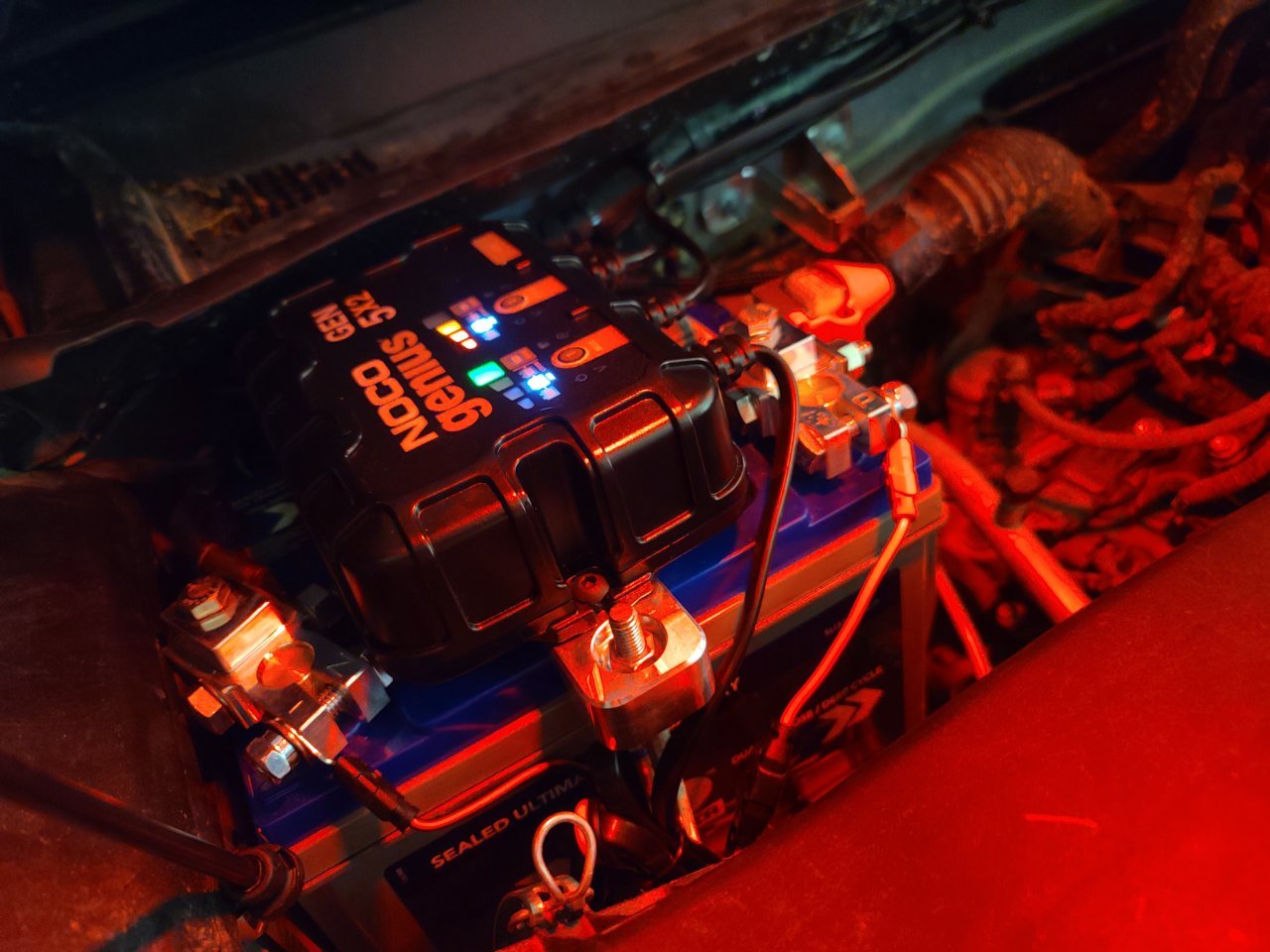

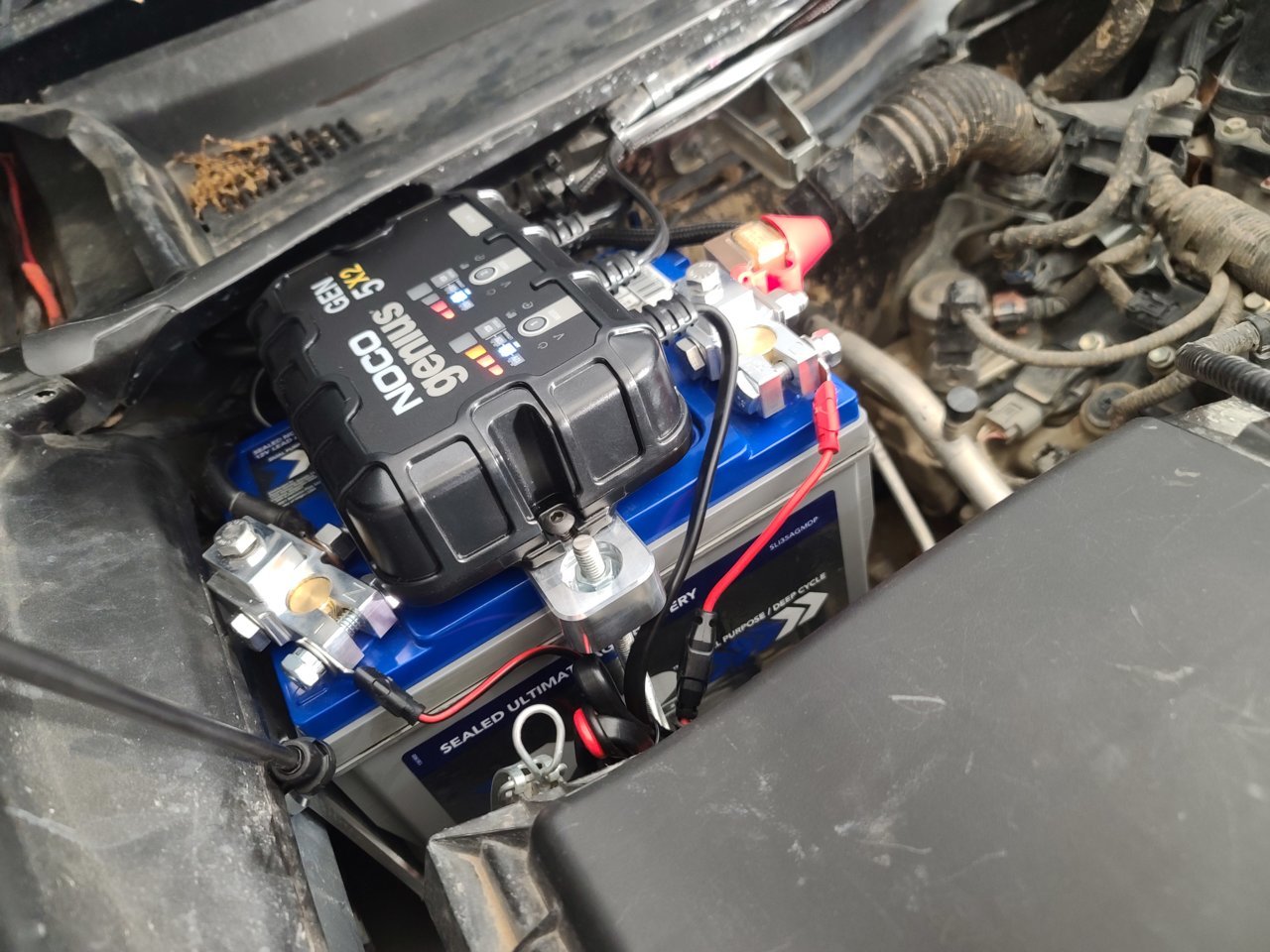

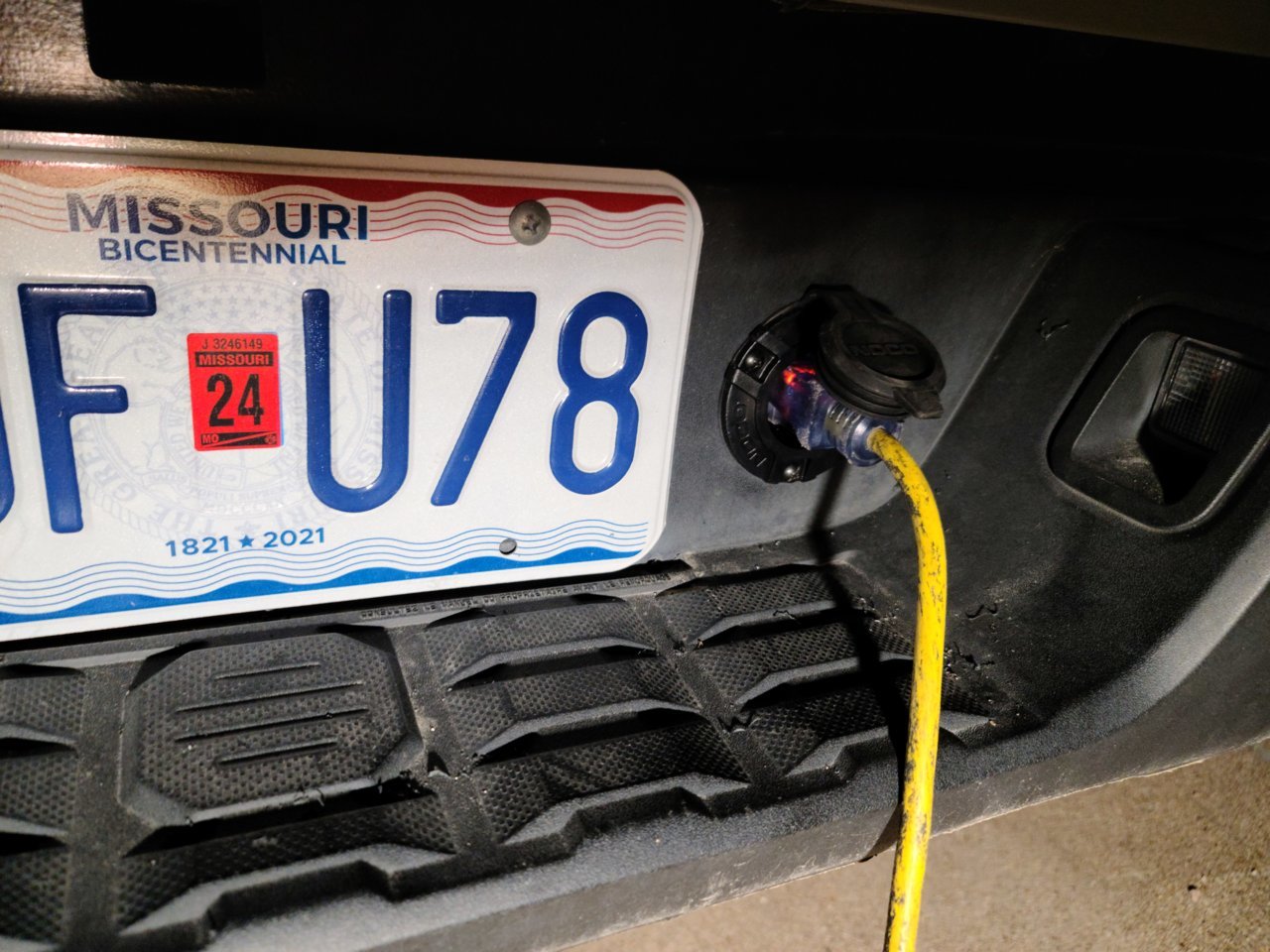

    On the topic of battery charger, I opted for a NOCO Gen 5x2. A dual lead, 5 amp per lead smart charger. Each battery gets its own lead and I can independently control what each battery is getting. I stood around for 35 minutes trying to figure out where to mount it. Ended up drilling and tapping the OGE battery tie down 1/4x20 and bolting it down. Actually worked out perfect. Ran one of NOCOs AC port/extensions from the bumper to the charger for a nice clean look.

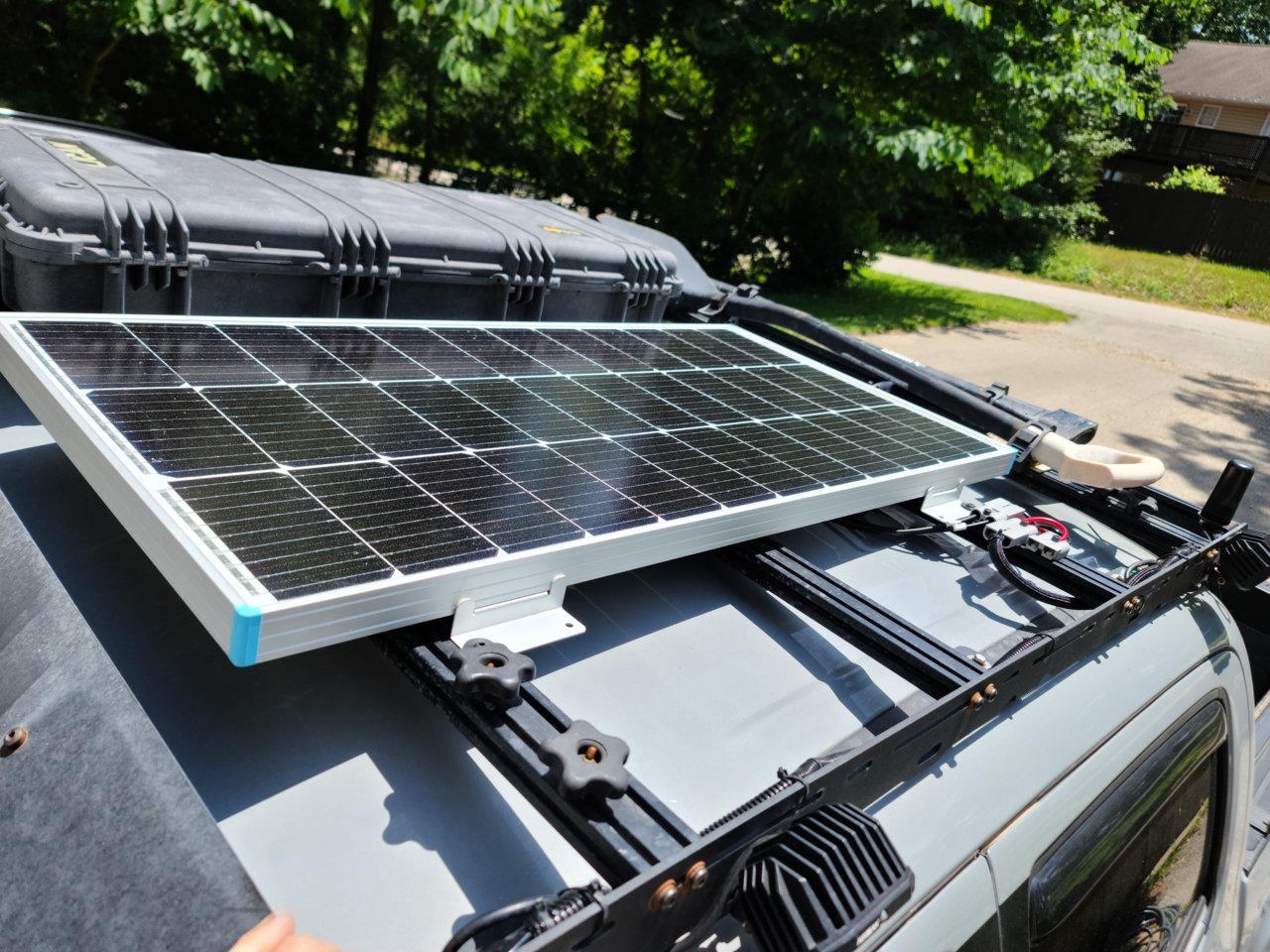

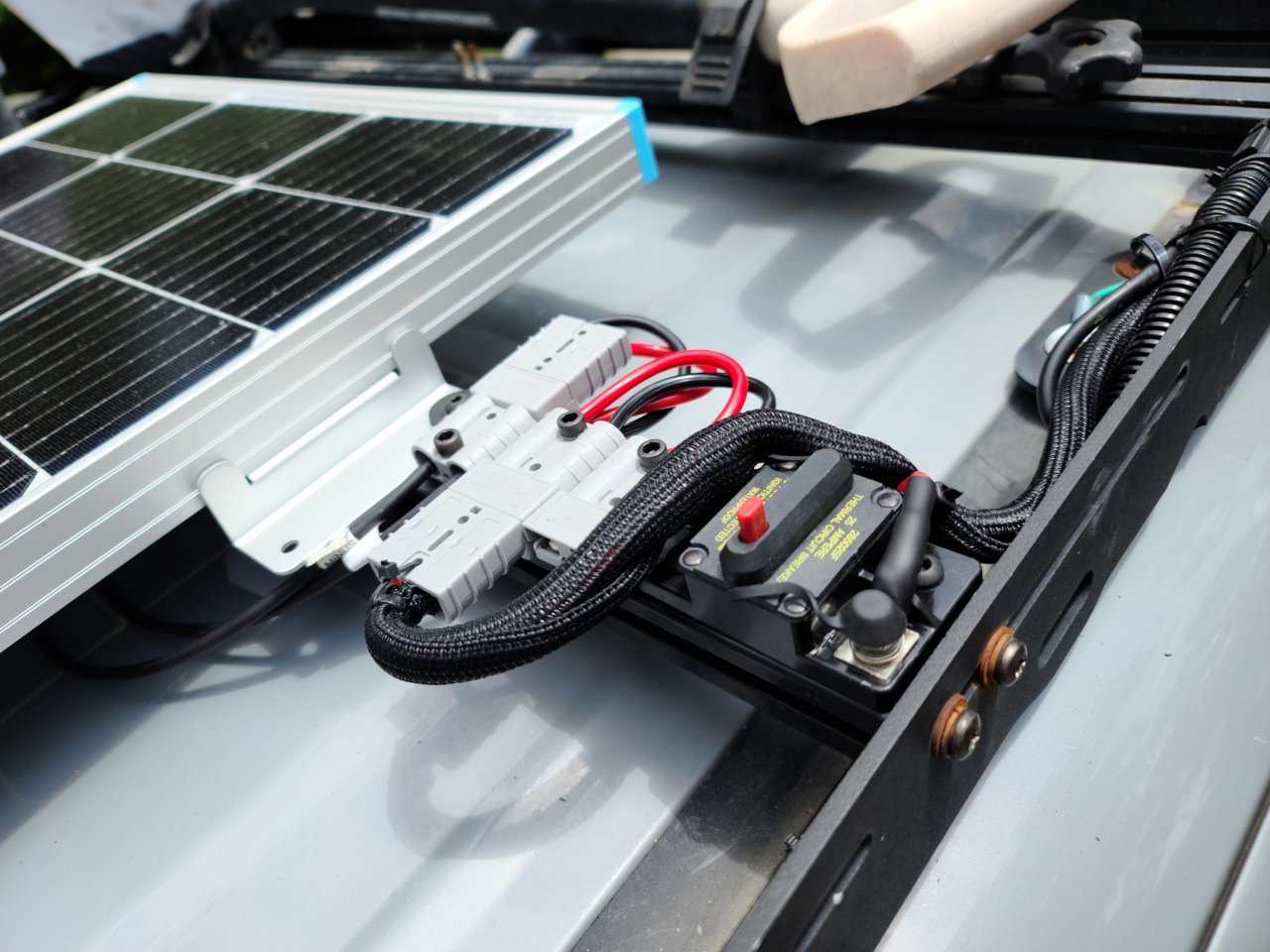

    Moving on to solar. I chose a Renogy 100 watt panel. Mounted to the roof rack. Simple enough. Ran 10 awg to the BCDC. All connections made with Anderson Powerpole connectors. Love these things. Mounted 3 to the rack. One is panel 1 input. Panel 2 input (portable panel for extra wattage if need be) and power out. Next to that is a blue sea systems 25 amp circuit breaker. Aside from safety, it is used as a shut off when I do not want solar input. If I have the noco plugged in and it senses any other input, it will shut off. No Bueno. To combat that. Simply walk by and push the little button. Cuts power. Good to go.



    The rest is fairly straightforward. Just some blue sea breakers, panels and fuse blocks. The next step is to install an SBI12 and a changeover Relay so that the excess solar will charge the start battery as well.

    The main purpose behind all of this tomfoolery is to ensure that batteries stay topped off in extended periods where the truck won't be started. Definitely makes the camping trips easier. Is it all worth it from a price perspective? I'll find out. Sure does look cool though. That's all that matters, right?
