Ultimate HID retrofit!!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by yosh2000, Apr 2, 2010.

  1. Apr 2, 2010 at 8:02 PM
    #1
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    06/20/10 UPDATE AT BOTTOM

    well, finally started on my much anticipated FX-R retro with level motors...!! i know, i know, its going to take me awhile to finish them too, but i decided to document some stuff just in case you guys want to try it as well.

    here is a link to the thread that gave me the idea to do this. all the electronic wiring is exactly the same, as i tested it today.

    first off, ordered an OEM level switch from a 04-09 toyota sienna XLE version ONLY (as this is the only model that comes w/ HIDs from my understanding)! this switch (PN 84152-33030) will fit and matches our slots perfectly.
    [​IMG]

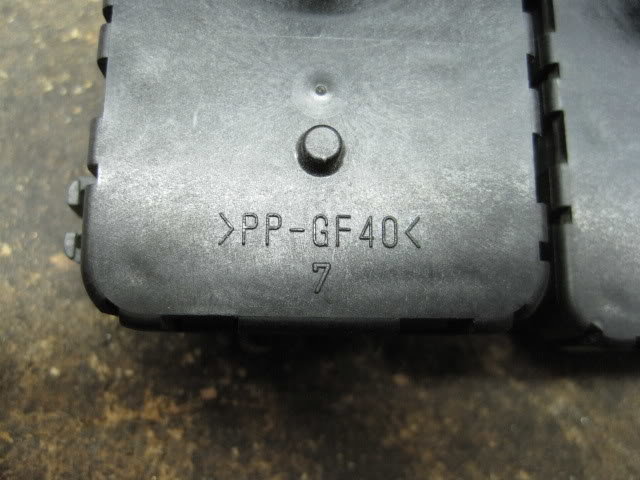

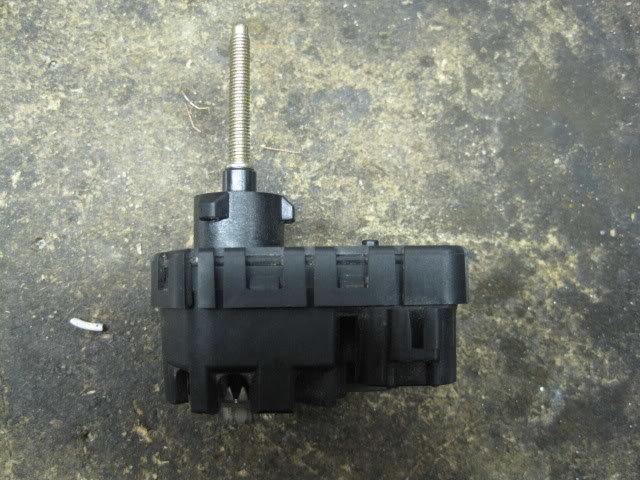

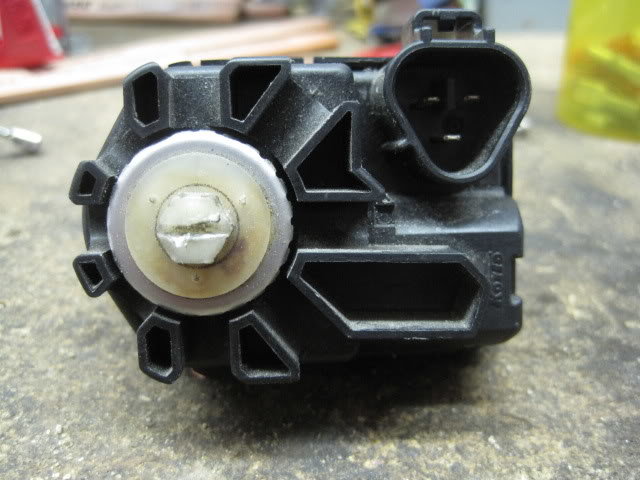

    here are some pics of the level motor. dont know the PN, but its from 2003+ celicas w/ HID headlights, and most likely other toyota/lexus vehicles w/ HIDs as well.
    [​IMG]
    [​IMG]
    [​IMG]

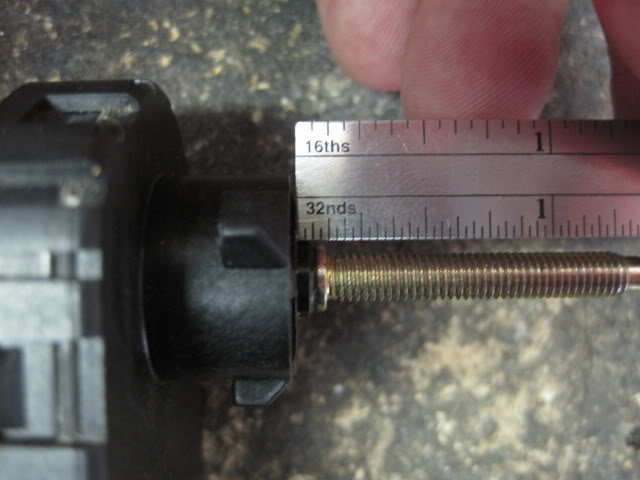

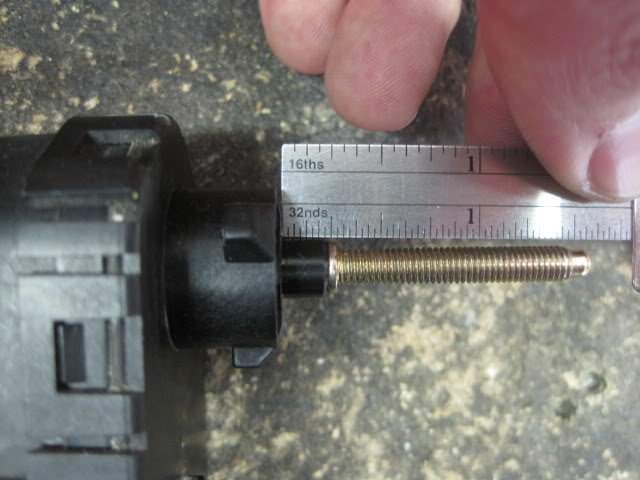

    here are some pics of the level motor completely retracted and completely extended. i get about 0.156" of travel. did some math, and even w/ my bed loaded w/ 1600#, i will still be able to level out my headlights!!
    [​IMG]
    [​IMG]

    05/15/10 UPDATE
    test fitted the motors today. here is a vid showing the reflector (and therefore the projector when mounted) moving ever so slightly. this movement will raise/lower the cutoff. vids of this can be found on youtube now, and i will post my actual one when completed.

    http://www.youtube.com/watch?v=RFaYiVVUPpQ

    06/20/10 UPDATE
    been busy doing retros for two other guys, so finally got to get back to this one...

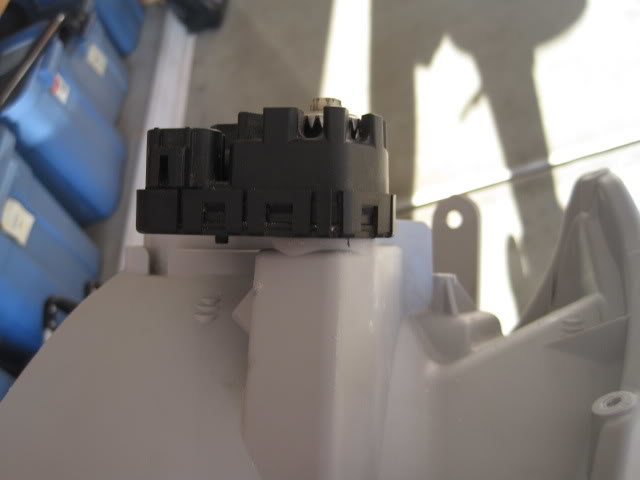

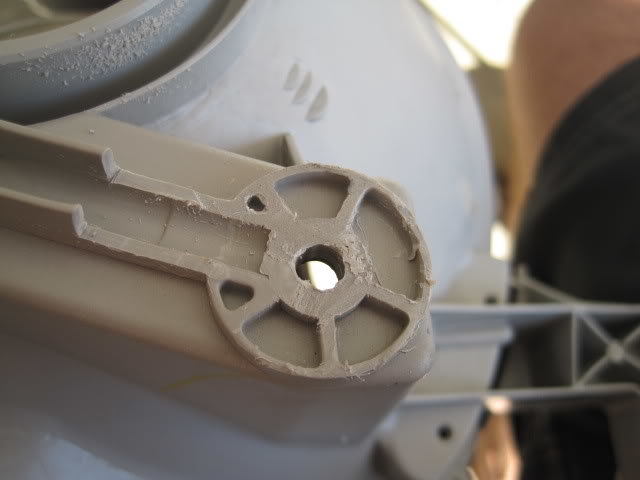

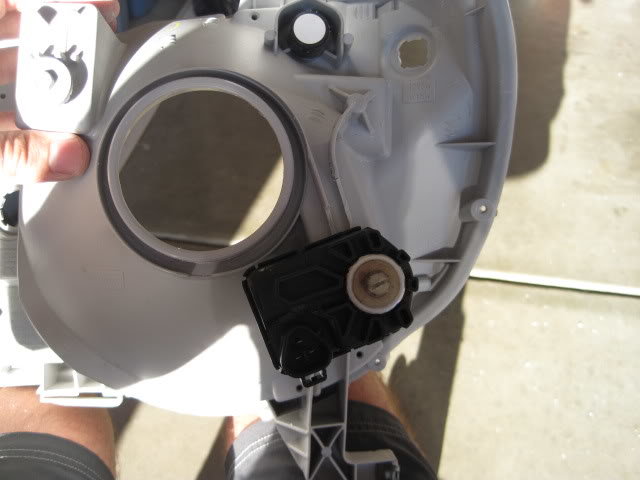

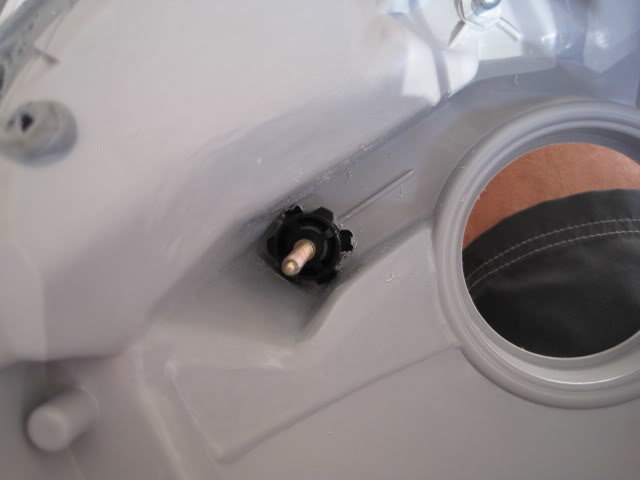

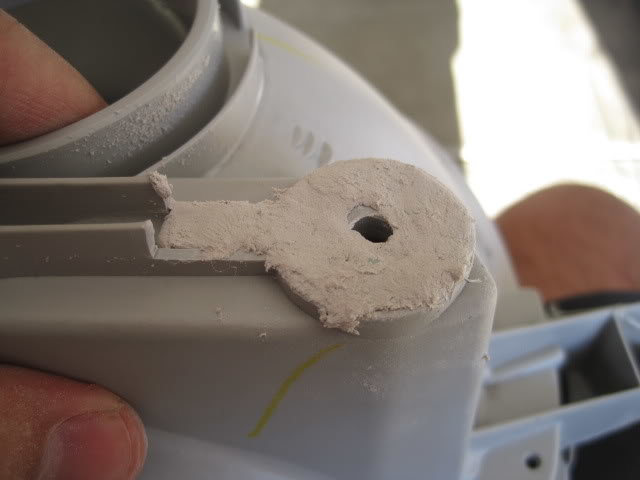

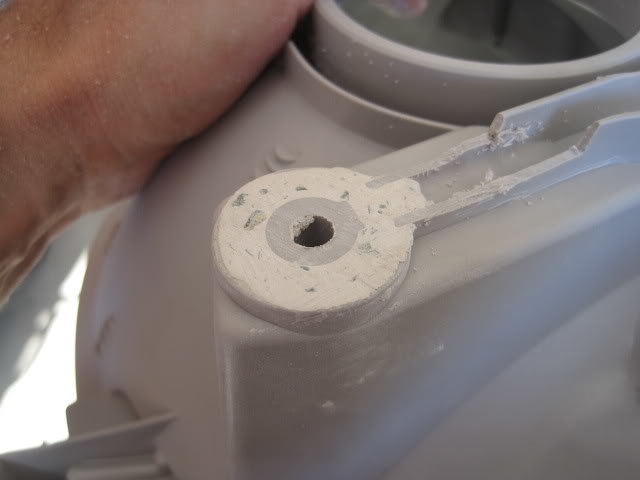

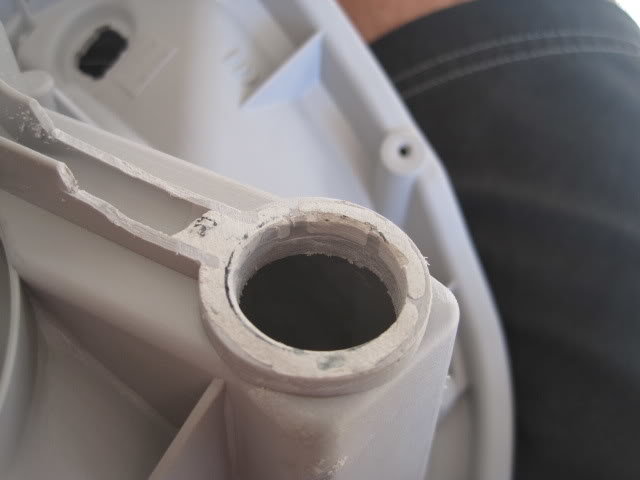

    the following series of shots is how i mounted the motors. i used that two part epoxy putty stuff to fill in and give a more solid mounting surface...enjoy! im aiming to finish this thing by next weekend as a i have a roadtrip to CO and it sure would be nice to have these lights installed before them....so check back often!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
