Under-seat Powered Subwoofers - let’s talk about em.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by steveo27, Jan 2, 2020.

  1. Jan 2, 2020 at 2:30 PM
    #1
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,951
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Kickin around the idea of installing a small powered subwoofer in my access cab.

    Keeping the OEM Entues non JBL navigation headunit. It functions for what I need and doesn’t look out of place like an aftermarket unit.

    I’ve already upgraded the mids/highs. I plan on amping them eventually.

    Space is a premium in these trucks. Back seat space is already taken up and used so a traditional box/sub/amp isn’t an option.

    It’s gotta go under one of the front seats.

    I don’t need anything crazy. I did this before and it was fun, but I’m over it. Just looking for something to complete the sound.

    Whose installed a sealed powered underseat subwoofer in their truck before? Any real world experience or input? Thoughts?

    Last edited: Jan 2, 2020
  2. Jan 2, 2020 at 2:35 PM
    #2
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    5,118
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    no input yet but I have been thinking how I can incorporate this as well. My rear is used up so not an easy way to toss one in there. My replaced speakers (Focal ISC, ISS sets) only go down to 60hz so mostly mid bass not much mid bass.

    Another option I saw back in the day when I was big on this when I was younger was installing a small sub in the front passenger area. I have seen bigger speakers install there but that was when they needed much more space. Some of the newer space saver subs could be an interesting choice. 6" or 8" small space subs. Even a 10" possibly.

    Larzzzz likes this.
  3. Jan 2, 2020 at 4:39 PM
    #3
    lbaldwin22

    lbaldwin22 Member

    Joined:
    Oct 26, 2018
    Member:
    #270698
    Messages:
    17
    Gender:
    Male
    Vehicle:
    2006 Silver Access Cab
    I went with the Powerbass STA10 under the driver's seat in my AC. For what it is, I am happy with the bass it puts out. I was somewhat underwhelmed at first but I am used to coming from full custom audio installs in all of my vehicles with multiple subs, so once I got over that expectation I was fine with it. Where i mounted it it does stick out from the back of the front seat approx 2-3" but I'm shorter and my seat is a little farther forward. The occupancy sensor brackets will hit it when moving the seat if you don't mount it closer to the door side of the floor board.

    nudavinci64 likes this.
  4. Jan 2, 2020 at 5:29 PM
    #4
    Icarus II

    Icarus II Well-Known Member

    Joined:
    Mar 20, 2019
    Member:
    #287241
    Messages:
    214
    Gender:
    Male
    First Name:
    Keith
    Southeast Pa.
    Vehicle:
    2007 Prerunner SR5
    I just installed a Sound Ordinance B-8PTD, it’s only 125 watts. The head unit is just a 22 watt Sony, door speakers are stock.I’m still playing around with the tune, I haven’t had a sub before. So far, I’ve been hearing new things in music that I’ve been listening to for 45 years.
    There seemed to be a sudden change, when turning up the gain, where it went from more bass to a boom. Like I said, I’m still playing with the tune, but I’m glad I got it.
    I’ve moved it out from under the seat for now, but I’ll try it back under there again with the new tune.
    Sometimes I think I should have gone for a more powerful sub, but I didn’t see spending the extra $$.

    jo2010 likes this.
  5. Jan 2, 2020 at 6:54 PM
    #5
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,247
    I built a bandpass custom box with a single 10, mounted under the bed, ported it into the cab's floor, and refabbed the exhaust around the woofer box on a standard cab Toyota pickup. Sorry, no pictures. It sounded amazing. There's no reason why it couldn't be done on a Tacoma of any cab.

    TVH475 likes this.
  6. Jan 2, 2020 at 6:57 PM
    #6
    DG92071

    DG92071 Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312004
    Messages:
    2,247
    Another alternative.

    jo2010 likes this.
  7. Jan 2, 2020 at 7:03 PM
    #7
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    I have stock head unit (non-JBL), Polk components in front doors, Polk 3 ways in back doors & they're all powered by an Alpine ( KTP-445U) 4ch amp. I also have a Kicker powered 8" sub under my driver seat. It sounds good for what it is. Like the other guy said, I was underwhelmed @ first (having had real sound systems in the past) but when you accept it for what it is, it sounds good.

    **I changed Kenwood to Kicker. Idk why I originally said Kenwood. It’s the Kicker Hideaway.

    Last edited: Jan 4, 2020
    Kolter45 and steveo27 [OP] like this.
  8. Jan 2, 2020 at 7:09 PM
    #8
    Fire Chicken

    Fire Chicken Aka 'Panda Express'

    Joined:
    Feb 11, 2019
    Member:
    #282681
    Messages:
    1,629
    Gender:
    Male
    First Name:
    Charles
    Vehicle:
    2019 Tacoma TRD Off-road 4x4; 1979 Pontiac Trans Am WS6
    I don't have one in my truck, but I used to work at a car audio shop. If you are expecting it to sound like two twelves in the trunk or even a ten, you will be upset. Manage your expectations and know it is there to fill in sound, not rattle the truck.

    Kolter45 likes this.
  9. Jan 2, 2020 at 8:26 PM
    #9
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,951
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.

    That’s 100% the goal. I had 2 L5 10s in like a 4cuft ported box with a 900rms amp in a previous vehicle. Definitely do not need/want that with this truck

    Just a little bit of extra fill

  10. Jan 2, 2020 at 8:30 PM
    #10
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,951
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Any details in your build thread?

  11. Jan 2, 2020 at 8:35 PM
    #11
    MolonLabeTaco

    MolonLabeTaco Well-Known Member

    Joined:
    Jan 30, 2018
    Member:
    #242953
    Messages:
    2,786
    Gender:
    Male
    First Name:
    Dude
    N. Texas
    Vehicle:
    '12 DC 4x4 OR
    Probably but to be honest, I don't remember if I put any in there or not. I remember wiring the components, using stock wiring, took a little work but not bad. The stock tweeters are wired opposite of what you want aftermarket wired. They're 180° out of phase, factory.

  12. Jan 2, 2020 at 9:04 PM
    #12
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,952
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    Running two Sound Ordinance powered subs (B-8PTD), one under each seat. Seat risers (.50") were required for them to fit. They fill the lows well and give a little butt rumble (lol) but as we all agree, they def don't hit like a 10" or even an actual 8" sub. Especially with only 40-200 response.

    Pioneer head unit, (F) 6.5" Sound Ordinance components (P-65CB), (R) 6.5" Sound Ordinance components (P-65CB), powered by a 4ch (400w) amp.

    Larzzzz and Kolter45 like this.
  13. Jan 2, 2020 at 9:07 PM
    #13
    Bluebaron7

    Bluebaron7 Active Member

    Joined:
    Aug 8, 2016
    Member:
    #194088
    Messages:
    31
    Gender:
    Male
    Sierra Vista, AZ
    Vehicle:
    2009 Tacoma Double Cab TRD Off-Road
    3 Inch Lift, Leaf spring pack, SPC UCA's, Bilsteins 5100's, AFE CAI, ECGS Needle Bearing, CVJ Axles, Under seat Infinity Sub & 4 channel amp, Kenwood deck & Infinity speakers all around with door matting, taco sauce only sticker, steering wheel leather wrap.
    I installed one of those Infinity powered subs under the passenger seat. I had to take the seat out and flip the bar that is underneath but it wasn't too hard. I like the bass that it adds. I watched and copied Tacotune videos to get some wiring tips.

  14. Jan 2, 2020 at 9:14 PM
    #14
    YamaDirtrider

    YamaDirtrider Custom bumpers @FORT-ifyRigs

    Joined:
    Mar 1, 2016
    Member:
    #179877
    Messages:
    6,064
    Gender:
    Male
    First Name:
    Josh
    Elizabeth CO
    Vehicle:
    06 DCLB sport postrunner
    What hasn't been modified?
    Aftermarket head unit. Kicker powered 8” under passenger seat. There is a write up on here somewhere that you can fit it under the seat by rotating a support bar on the seat.

  15. Jan 3, 2020 at 2:44 AM
    #15
    Icarus II

    Icarus II Well-Known Member

    Joined:
    Mar 20, 2019
    Member:
    #287241
    Messages:
    214
    Gender:
    Male
    First Name:
    Keith
    Southeast Pa.
    Vehicle:
    2007 Prerunner SR5

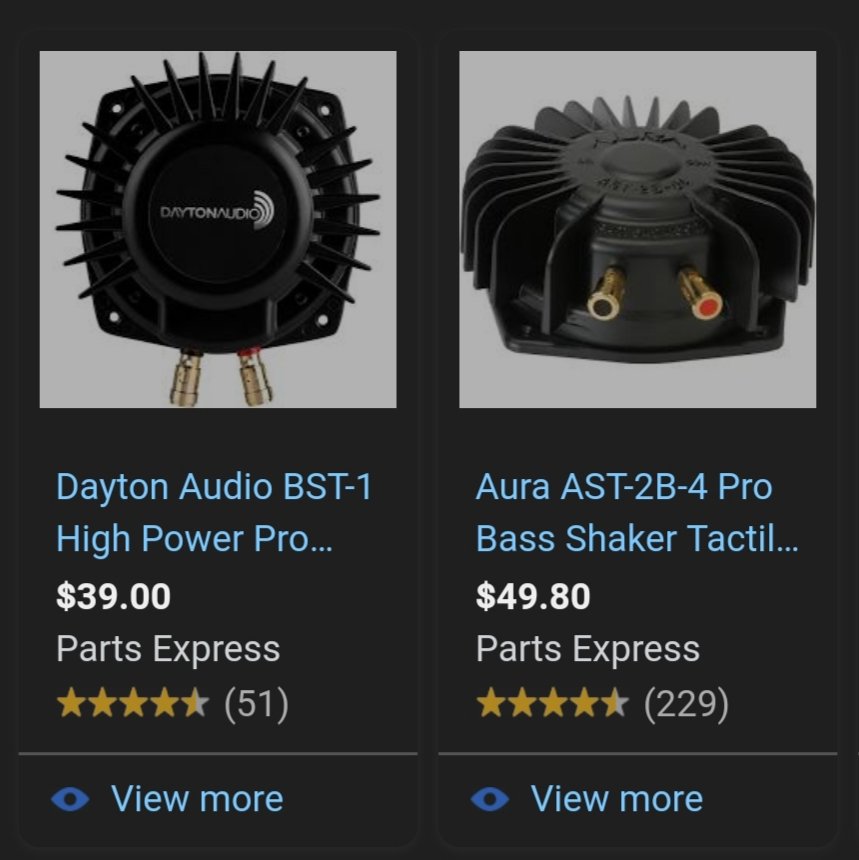

    What about these?

  16. Jan 3, 2020 at 3:13 AM
    #16
    Kolter45

    Kolter45 Well-Known Member

    Joined:
    Jul 7, 2019
    Member:
    #298534
    Messages:
    420
    Gender:
    Male
    Denver, CO
    Vehicle:
    2013 BRM DCSB Sport
    Toytec Boss Leer/Rhino Rack TRD Gry & Exhaust
  17. Jan 3, 2020 at 4:17 AM
    #17
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    3,971
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
  18. Jan 3, 2020 at 6:36 AM
    #18
    Y2kbaja

    Y2kbaja Well-Known Member

    Joined:
    Jun 11, 2013
    Member:
    #106028
    Messages:
    696
    Gender:
    Male
    Sacramento
    Vehicle:
    05 Total Chaos Tacoma
    Total Chaos
    I put a Kenwood under my passenger seat. All is good. Just keep in mind the rear seat heater duct is under there (which i just cut the plastic making it shorter then duct taped the end so it blows straight up and not into the sub). There is also a low hanging bar under the passenger seat (at least on my 05 DC) that wasn't on the drivers side. This made me move the sub forward another 3".

    jrlockman likes this.
  19. Jan 3, 2020 at 7:51 AM
    #19
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    3,971
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    Could’ve flipped the bar upside down to give you more room.

  20. Jan 3, 2020 at 10:28 AM
    #20
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,951
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Diggin the discussion.

    Let’s keep it going.

    For you guys that kept the oem headunit, did you use speaker level inputs or a LOC or the RCA pre out T harness?

    I love the T harness idea since it keeps its all plug and play with out cutting anything.

    Last edited: Jan 3, 2020
