Understanding O2 signals and Fuel trim

Discussion in 'Technical Chat' started by BamaToy1997, Jan 20, 2013.

  1. Mar 27, 2013 at 7:01 AM
    #21
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    211
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4
    On the 1st gen tacoma, it shares 1 AF sensor between the 2 banks. This can be an issue for fuel consumption if/when it wears out. The newer tacomas have newer logic that has in turn created another code that will tell you if an AF is sticking lean for too long, and it has an additional code that can tell you if one bank or the other is lean. This is not possible on the first gen with only 1 AF.

    My point is that maybe the AF data needs to be monitored to make sure it is ranging correctly and not staying close to 3.35 all the time, or not staying at 4.99 volts for extended periods.

  2. Mar 27, 2013 at 8:56 AM
    #22
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,803
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    Never mind I actually read this post and will calculate to see if it's the maf

  3. Jun 25, 2013 at 9:29 AM
    #23
    scoostraw

    scoostraw Active Member

    Joined:
    Oct 14, 2010
    Member:
    #44649
    Messages:
    29
    Gender:
    Male
    First Name:
    Ken
    Wisconsin
    Vehicle:
    1995 Tacoma 4x4 Ext Cab 6cyl 5-Speed
    Hey Bama are u still putting this together? My '95 is throwing P0420 but I'll wait for your write-up if it's forthcoming.

    Thanks!

  4. Jun 25, 2013 at 6:05 PM
    #24
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,455
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    To be honest, I had actually set that writeup aside since I had been busy with so many other things at the shop. I guess I need to get back on the ball here and take care of that.

  5. Jun 25, 2013 at 8:50 PM
    #25
    scoostraw

    scoostraw Active Member

    Joined:
    Oct 14, 2010
    Member:
    #44649
    Messages:
    29
    Gender:
    Male
    First Name:
    Ken
    Wisconsin
    Vehicle:
    1995 Tacoma 4x4 Ext Cab 6cyl 5-Speed
    You will find me patiently waiting here. :)

  6. Jun 26, 2013 at 12:29 PM
    #26
    scoostraw

    scoostraw Active Member

    Joined:
    Oct 14, 2010
    Member:
    #44649
    Messages:
    29
    Gender:
    Male
    First Name:
    Ken
    Wisconsin
    Vehicle:
    1995 Tacoma 4x4 Ext Cab 6cyl 5-Speed

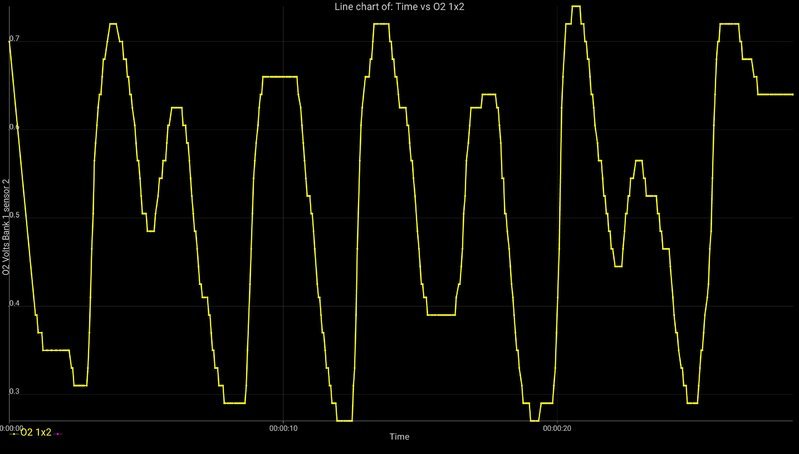

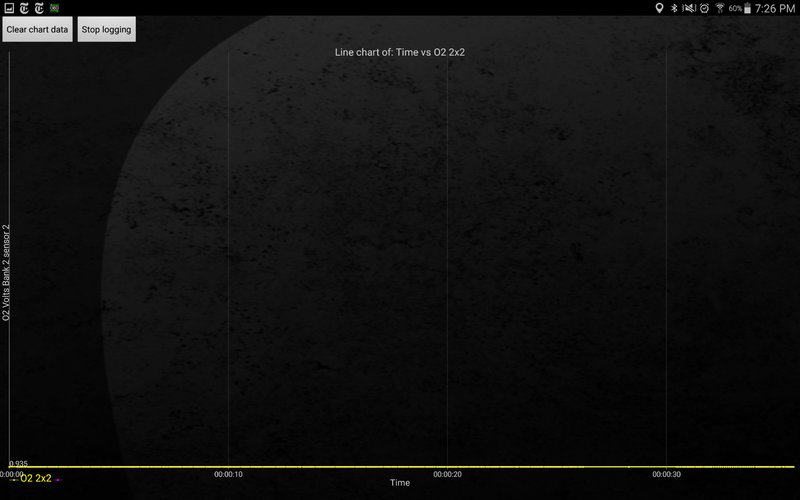

    Will a "ScanGauge II" allow me to view the upstream air/fuel sensor and downstream O2 sensor data in real time - so maybe I can get a better idea of what is going on?

  7. Jun 26, 2013 at 12:44 PM
    #27
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,897
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    Yes, you need to add them via Xgauges, but the codes are there, at least for the A/F sensor. For the downstream sensors I have seen the codes, but haven't tried them.

  8. Sep 16, 2013 at 8:26 AM
    #28
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    3,581
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD OffRoad Poser ψ(`∇´)ψ
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
    Subbed. I currently have the p0172 code. Already changed out fuel injectors o2 sensors and maf. Maybe because of Maf sensor calibrator?

  9. Jan 19, 2014 at 10:29 PM
    #29
    suhteevin

    suhteevin Well-Known Member

    Joined:
    May 3, 2013
    Member:
    #103402
    Messages:
    105
    Gender:
    Male
    First Name:
    Steven
    Dallas, TX
    Vehicle:
    TRD Sport Supercharged
    is +7 LTFT at idle normal? when on load it drops for +2 - +4 with AFR at 14.5 - 14.7.

  10. Jan 20, 2014 at 5:48 AM
    #30
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,897
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    IMHO, I wouldn't worry about it as long as it stays consistent, but also this is where the ST trims come into play. Adding the 2 together gets you your actual fuel trims. Also check your open loop/WOT AFRs to ensure you aren't running too lean with that SC.

  11. Jan 20, 2014 at 6:31 AM
    #31
    suhteevin

    suhteevin Well-Known Member

    Joined:
    May 3, 2013
    Member:
    #103402
    Messages:
    105
    Gender:
    Male
    First Name:
    Steven
    Dallas, TX
    Vehicle:
    TRD Sport Supercharged
    My STFT bounces between +5 to -5. AFR at WOT is at 12.0, Cruise is at 14.5 - 14.7, and Decel is a 17.9. Is this normal conditions?

    MPG is great usually between 21 - 24 city and 18 - 19 Highway (cruising 75 mph)

  12. Jan 20, 2014 at 8:52 AM
    #32
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,897
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    My opinion is that you are just fine. Again, the effective fuel trim is LT+ST, so if those are staying small single digits, I wouldn't give it a second thought.

    On my 09, not SC'd though, cruise LT is 2-5, with ST bouncing around to equate to a +/-2 effective trim, although I do see my LT spike up to 6-8 occasionally if I am doing a fair amount of city driving. At idle I usually get a +/-1 effective trim.

    BTW, decel afr goes high lean since the ECU cuts the injectors off on higher speed deceleration.

  13. Jan 20, 2014 at 1:25 PM
    #33
    suhteevin

    suhteevin Well-Known Member

    Joined:
    May 3, 2013
    Member:
    #103402
    Messages:
    105
    Gender:
    Male
    First Name:
    Steven
    Dallas, TX
    Vehicle:
    TRD Sport Supercharged
    AWESOME! thanks for the help, learn something new everyday.

  14. Jan 22, 2014 at 1:26 PM
    #34
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,455
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    There is a lot more detail on how that works. This is how the LTFT and STFT work:

    When the engine is running in closed loop the computer makes fast, large changes in the injector pulse width based on your short term fuel trim. This is used for changes in your driving based on instant responses such as braking, accelerating, turning on the AC, etc.

    Whenever the STFT goes either positive or negative more than about 10 points for a specific amount of time, the computer then changes the LTFT number by one point in the same direction, and locks that new injector pulse width as the baseline. Then it uses STFT numbers to try to balance out the instant changes again. If the STFT again stays too far the LTFT will again increase (or decrease) to compensate.

    LTFT is the baseline adapting of change to the factory injector pulse width. Things that can affect this are dirty/clogged injectors, fuel composition, airflow restriction (A dirty air filter can and will affect your fuel trim number) etc.

    STFT is the fast adaptation of change to the baseline injector pulse width. Things that affect that are: snapping open of throttle, AC compressor engaging/disengaging, alternator demand, etc.

    When trying to diagnose fuel economy and other fuel related issues, including sensor codes, the primary number to look at is LTFT. If it is a high positive number (anything above 8) then you could be looking at a weak fuel pump, or clogged fuel filter or injectors. If it is a high negative number (anything above -8) then you most likely are looking at a dirty air filter, bad fuel pressure regulator, or bad EGR. LTFT Numbers in the extreme, like +25 or -25 are for gross errors: Vacuum line disconnected, injector stuck open, etc.

  15. Jan 23, 2014 at 5:02 AM
    #35
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,897
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    ^^^^ good info, consider my version the Cliffs Notes!

  16. Jan 24, 2014 at 10:07 AM
    #36
    BamaToy1997

    BamaToy1997 [OP] ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,455
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Yeah, I do get carried away when it comes to O2 sensors and Fuel trim. I've worked performance for GM for so many years. lol.

  17. Mar 24, 2014 at 9:43 AM
    #37
    Hans Moleman

    Hans Moleman Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4505
    Messages:
    584
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2006
    I'm starting to get bad gas mileage. It started after using the Techron concentrated fuel system cleaner 3 fill ups ago and the gas mileage has stood low since. I used to average 19mpg now it's 15mpg.

    It's not the spark plugs because they were changed 3000 miles ago and mpg was still good after I changed them.

    So I'm using the Scangauge to look at fuel trims.
    Bank 1 shows +2 at idle and +3 at cruise for LTFT.
    Bank 2 shows +4 at idle and +3 at cruise for LTFT.

    However STFT for both banks range from -4 to +7 depending on the condition.

    Could there be a vacuum leak?

    Last edited: Mar 24, 2014
  18. Mar 25, 2014 at 6:33 AM
    #38
    Lurkin

    Lurkin Well-Known Member

    Joined:
    May 21, 2009
    Member:
    #17497
    Messages:
    4,897
    First Name:
    Rod
    Pearland, TX
    Vehicle:
    09 PreRunner SR5 DC
    My opinion is that there isn't anything significantly wrong with those readings. Essentially you are still running single digit effective fuel trims. BTW, my 09's LTs hang around 0-4, with the STs running in the +/-4-5 range.

  19. Apr 15, 2014 at 12:04 PM
    #39
    Hans Moleman

    Hans Moleman Well-Known Member

    Joined:
    Jan 30, 2008
    Member:
    #4505
    Messages:
    584
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2006
    I found the cracks on the PCV hose on the driver side and breather hose on the passenger side so I replaced them.

    Now bank 1 LTFT has been showing 0% for idle and cruise. But bank 2 LTFT is at 3% for idle and cruise. I wonder why I can't get bank 1 to match bank 2.
