Unistrut bed rails in a 1st gen?

Discussion in '1st Gen. Tacomas (1995-2004)' started by Natenite, Aug 12, 2019.

  1. Aug 12, 2019 at 11:40 AM
    #1
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner
    i was looking at doing the unistrut bed rails that someone showed me in the tundras.com forums. Wondering if anyone has done that mod in a 1st gen? Do the small side walls at the top of the bed hold much weight? Do aftermarket attachments fit them well? Anything that slides that could hold a shovel? I’m picturing something that lets me unlatch the part closest to the bed and then slide the shovel towards me and then detach the other attachment. I think with the unistrut you have to bolt everything into the rail but thought I would ask.

  2. Aug 13, 2019 at 2:28 PM
    #2
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner
  3. Aug 13, 2019 at 2:31 PM
    #3
    MikeWH

    MikeWH Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209164
    Messages:
    559
    First Name:
    Mike
    Colfax, CA
    Vehicle:
    1999 TRD 4x4 (x2)
    Got a link to an example? I’ve always wanted to try this, the unistrut would be a lot stronger than the bed sides, you would have to bolt them on with a large square washer behind each nut.

    Natenite [OP] likes this.
  4. Aug 13, 2019 at 3:16 PM
    #4
    jbrandt

    jbrandt Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    13,127
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Custom skids Sticker mod
    This, right?

    (from Tundras.com)
    [​IMG]

    Pretty sure there are people who have done similar things with their first gens.

    If you mount in that same location, you'd need to use riv-nuts, and I'm not sure how much space is between the outside and inside fender material at that location. Might not even be enough for a riv nut.

    I used riv-nuts for my highlift mounts, but those were riv-nutted quite a bit lower, then I used conventional bolts/nuts on the inside edge of the bed rail.

    Either way, I wouldn't use that to tie down anything heavy...

    Natenite [OP] likes this.
  5. Aug 14, 2019 at 2:11 PM
    #5
    970btu

    970btu Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246902
    Messages:
    416
    Gender:
    Male
    First Name:
    Ty
    Las Vegas
    Vehicle:
    99 Tacoma 3.4 5spd ext limited TRD 55K and counting
    OME, SPC UCA, ARB w/warn 10K winch, TG Rock Defense Rear, Marlin Clutch, Custom hi clearance under bed spare mount. 285/75/16. A ton of repairs done and a list up to come modifications.

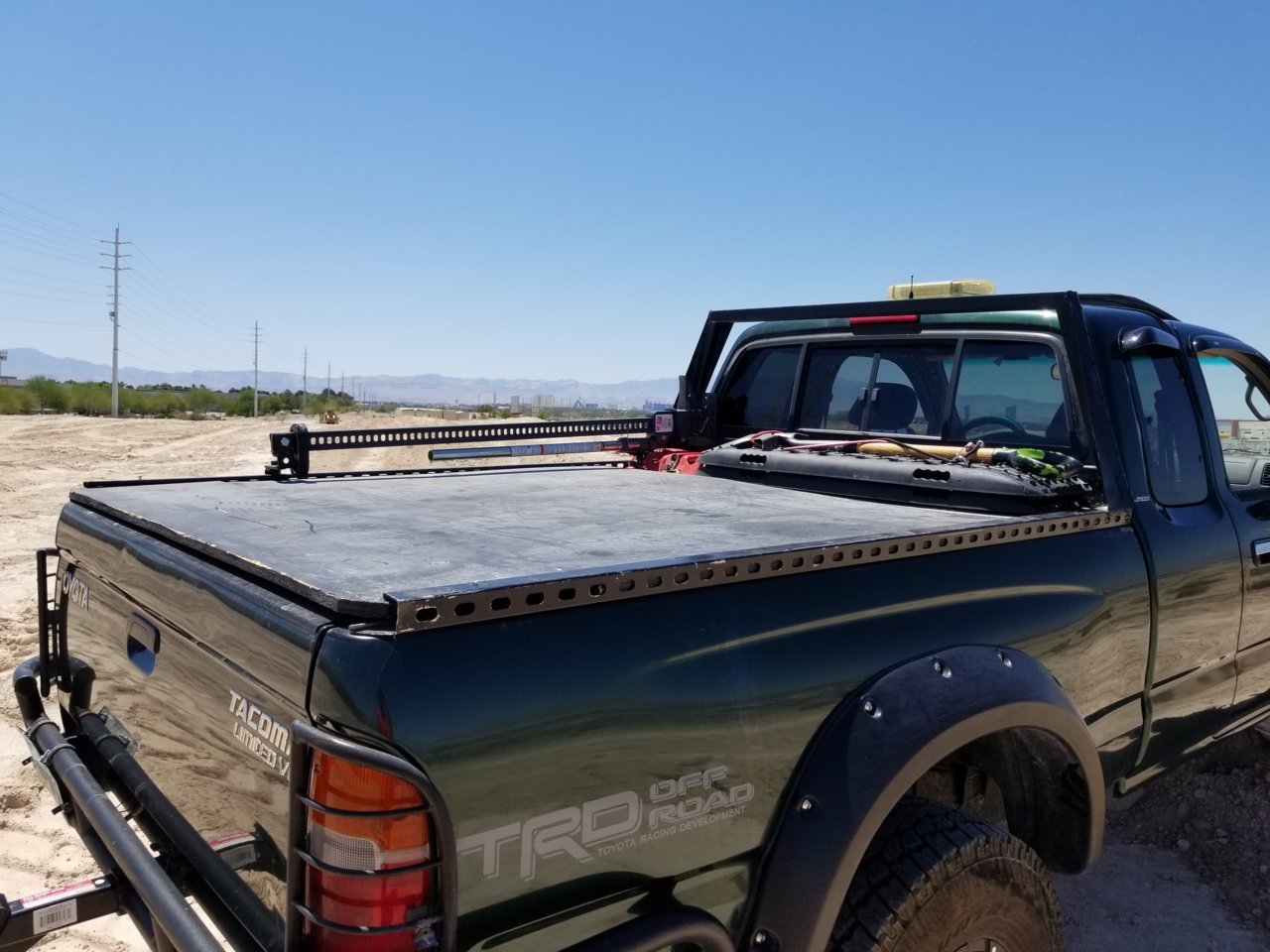

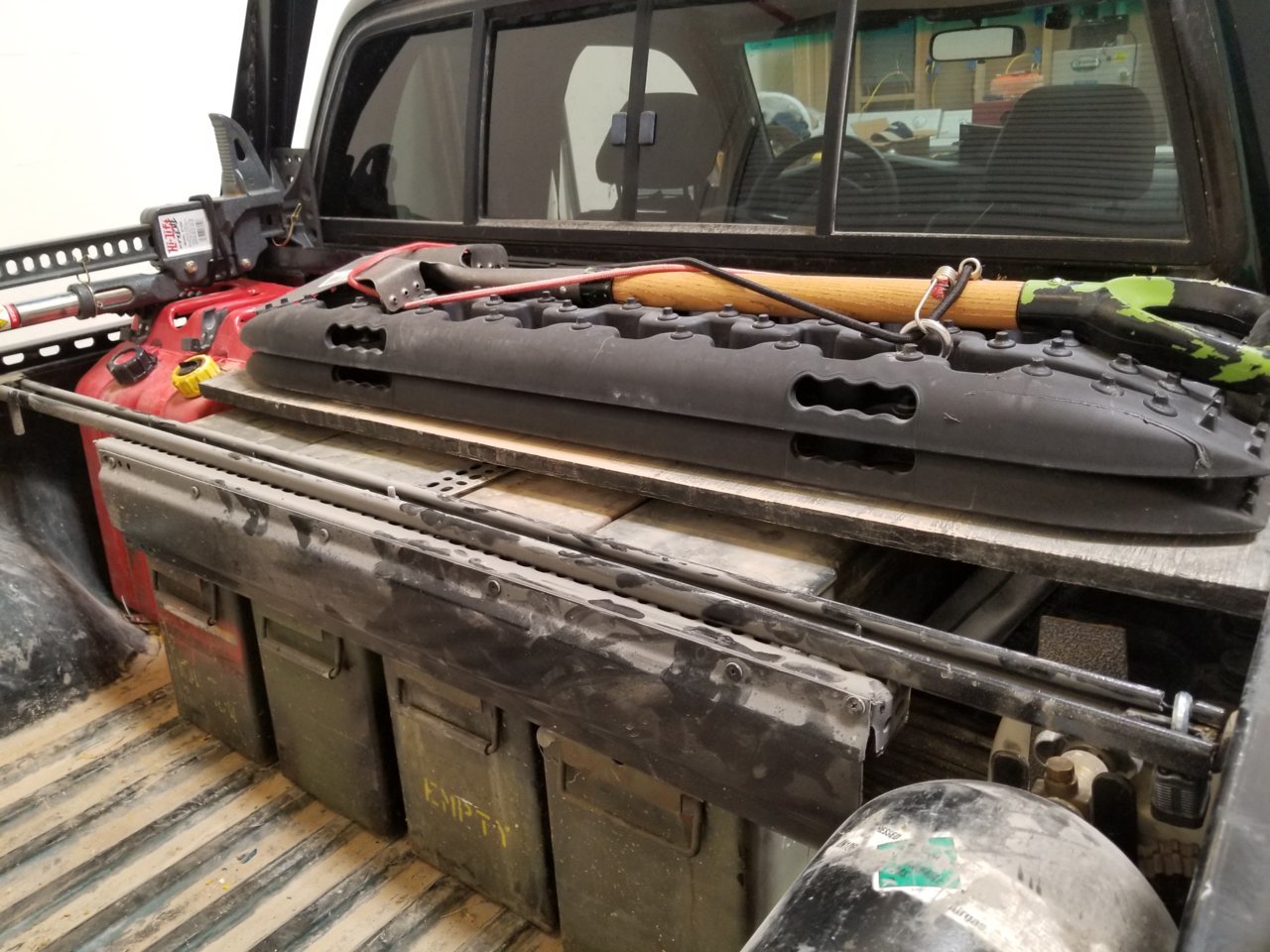

    I mounted strut on top of my bed rails.
    Under the bed mat I some rust. I cleaned it up and coated it but it was weaker and looked bad.
    It was great having all the tie down points.
    Then I got a neeting that hooked across it and it worked great for camping trips.

    Then I was having problems with sticky fingers so I cut 3/4 plywood and slid it in the strut to make a heavy duty cover. I could set my camp right up on top of it and have gear strapped above and below.

    Now im building an offroad camper and I left it as my base.

    tacoma_ca and Wulf like this.
  6. Aug 14, 2019 at 2:18 PM
    #6
    970btu

    970btu Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246902
    Messages:
    416
    Gender:
    Male
    First Name:
    Ty
    Las Vegas
    Vehicle:
    99 Tacoma 3.4 5spd ext limited TRD 55K and counting
    OME, SPC UCA, ARB w/warn 10K winch, TG Rock Defense Rear, Marlin Clutch, Custom hi clearance under bed spare mount. 285/75/16. A ton of repairs done and a list up to come modifications.
    Some will hate it but for me it's the function.


    Rachelsdaddy, ajm and Natenite [OP] like this.
  7. Aug 14, 2019 at 3:59 PM
    #7
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner
    This is interesting. I have a camper shell
    So I can’t do it this way though. I would assume if it’s strong enough to put in the top is should be strong enough to hang on the inside just below where you did. I only want to mount stuff like a shovel and maybe a hi lift if I ever get one. Thanks for showing this!

    970btu and Wulf like this.
  8. Aug 14, 2019 at 5:59 PM
    #8
    Wulf

    Wulf so stupid it's contagious

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    25,514
    First Name:
    Jake
    Southlands mall
    Vehicle:
    96 Tacoma WIP
    Trail damage
    Unistrut is plenty stout for attaching just about anything. I would expect to the weak points to be the bed rail or however it is attached to the bed rail

    970btu and jbrandt like this.
  9. Aug 15, 2019 at 7:36 PM
    #9
    970btu

    970btu Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246902
    Messages:
    416
    Gender:
    Male
    First Name:
    Ty
    Las Vegas
    Vehicle:
    99 Tacoma 3.4 5spd ext limited TRD 55K and counting
    OME, SPC UCA, ARB w/warn 10K winch, TG Rock Defense Rear, Marlin Clutch, Custom hi clearance under bed spare mount. 285/75/16. A ton of repairs done and a list up to come modifications.

    Wulf is right, much stronger than the bed its mounted to.
    2 most common sizes,
    1 5/8x 1 5/8 the deep or
    1 5/8 x 7/8 the shallow

    Galvanized coating or painted

    You can get it in 12 or 14 gage
    even aluminum from Granger supply.

    Lowe's and home depot carry it but is usually cheaper from an electrical supply company.

    There are a ton of mounting accessories and brackets, bolt and nut combinations for them.

    The grown up erector set.

    Last edited: Aug 16, 2019
    tacoma_ca and Rachelsdaddy like this.
  10. Aug 16, 2019 at 10:14 AM
    #10
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner

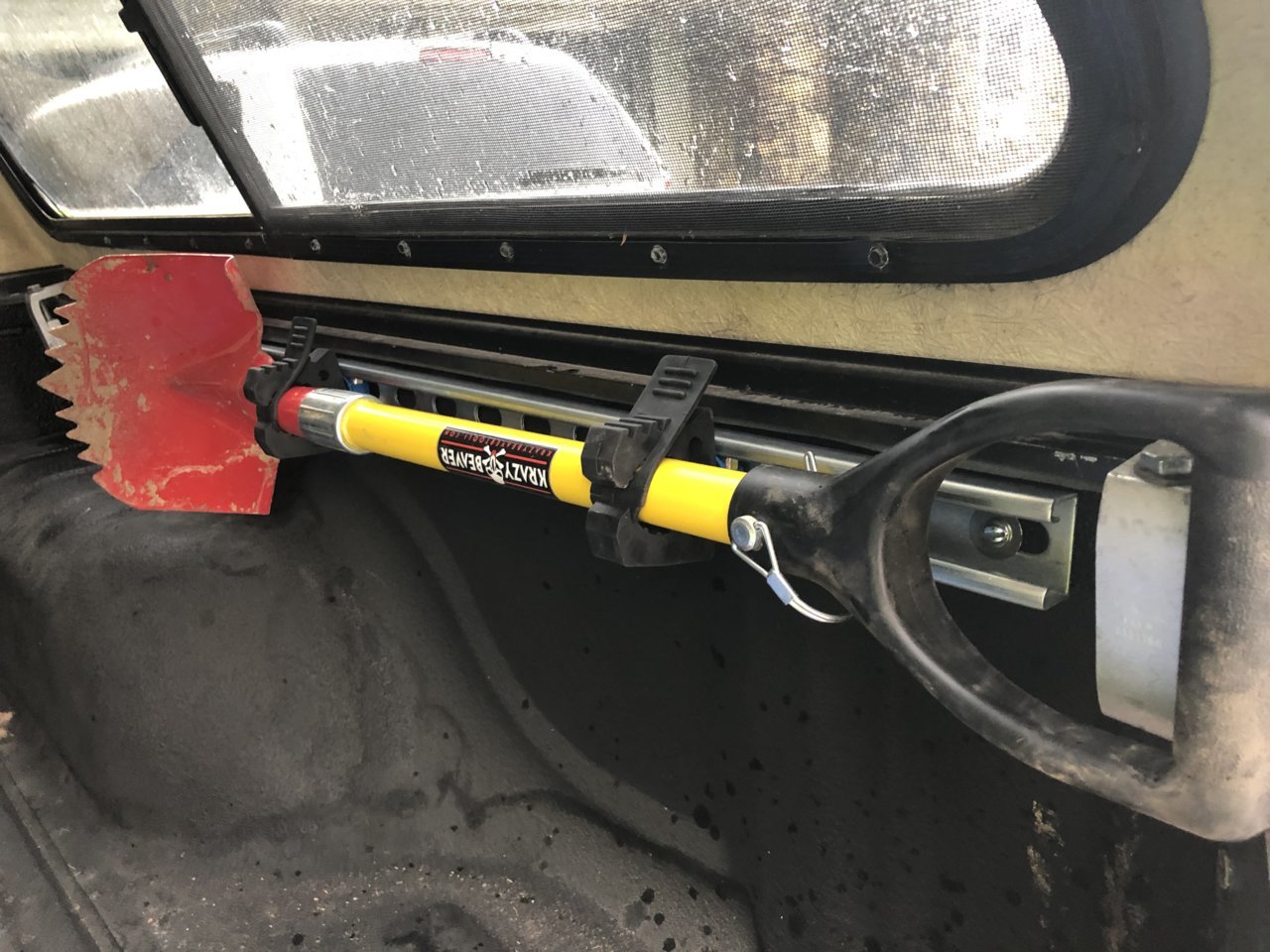

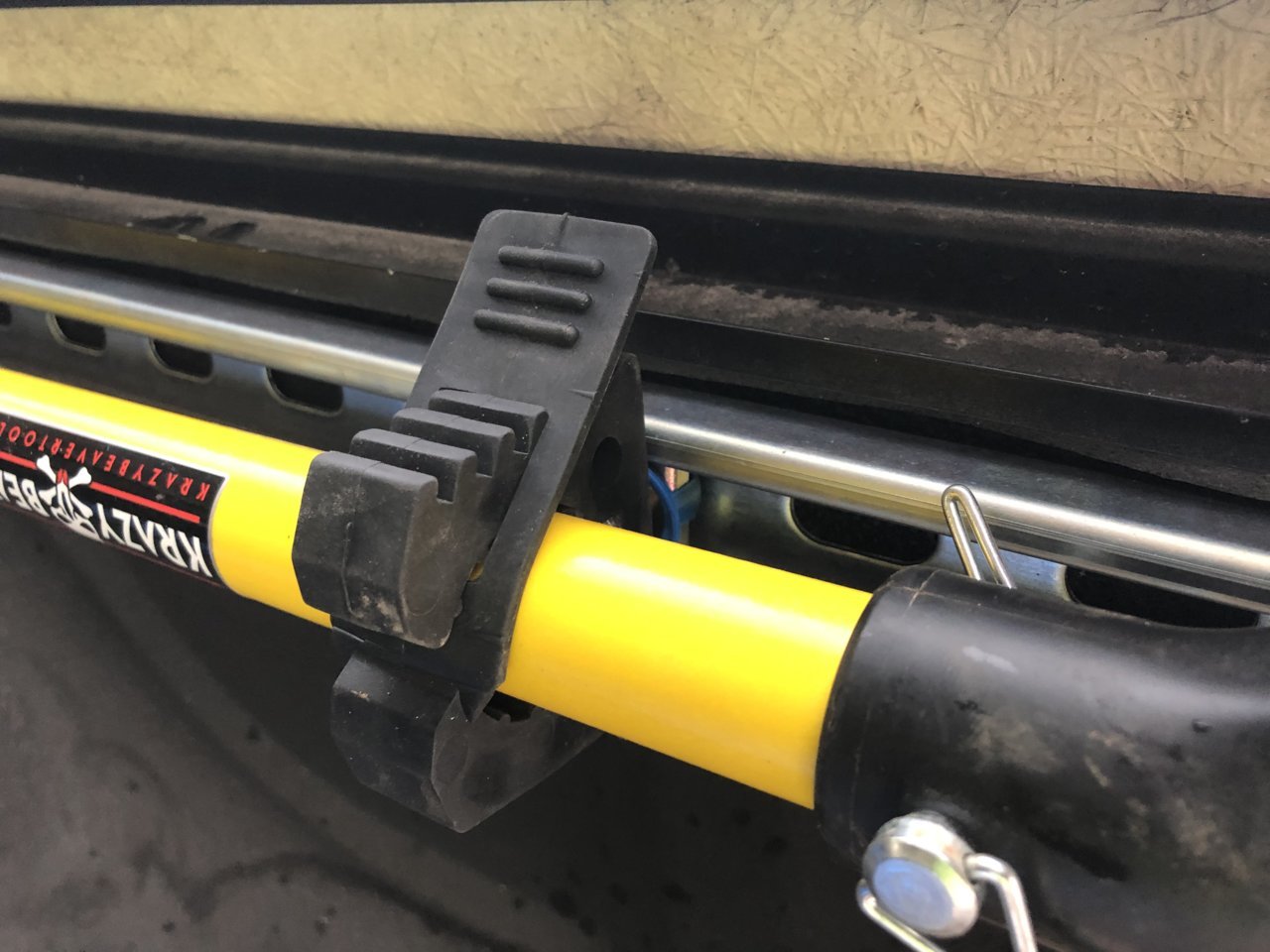

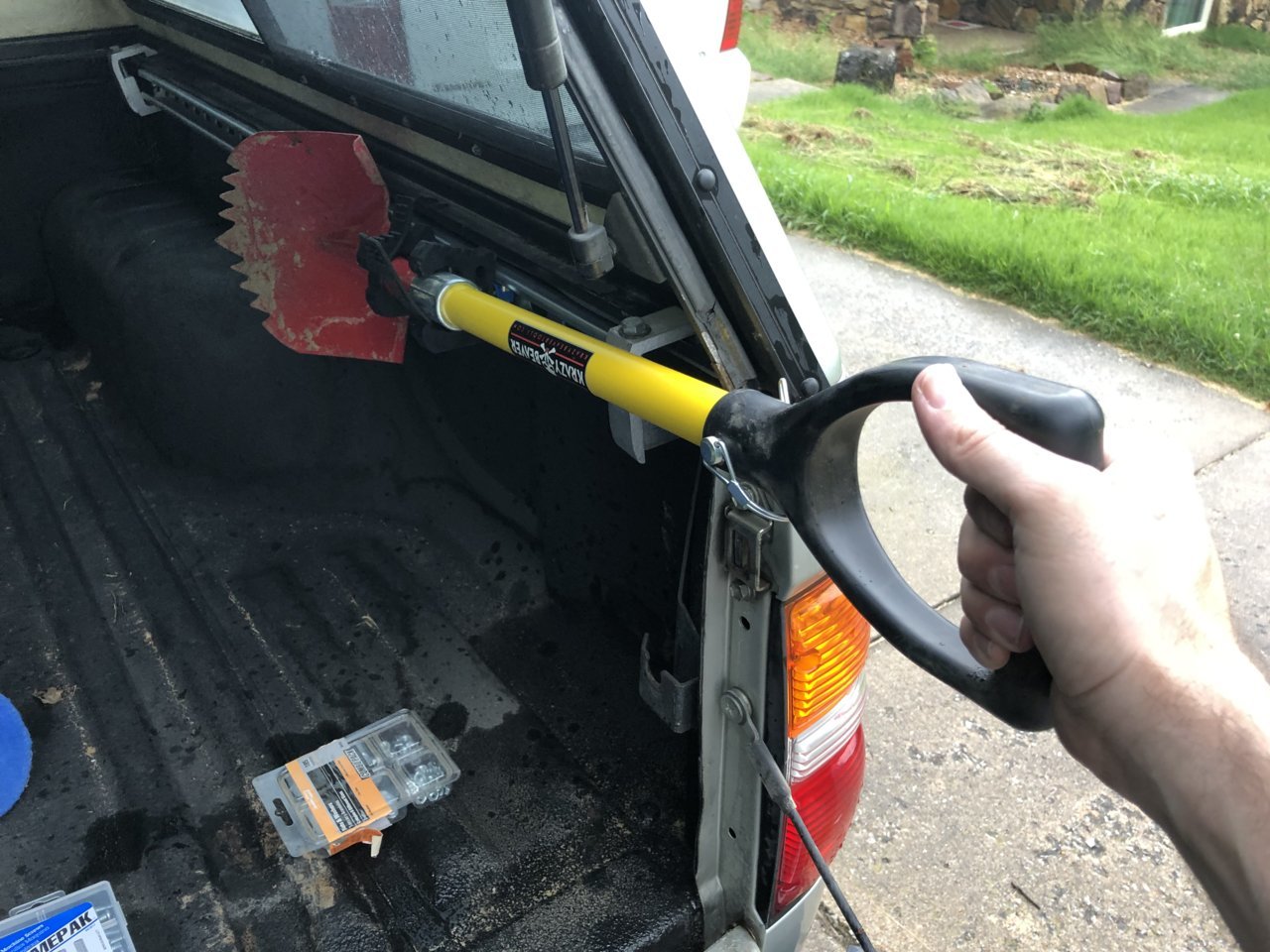

    I was able to mount a bit of unistrut in the bed. Added some cone nuts and quick fists and created a sliding shovel mount. Allows me to get the shovel out without having to get into my campershell covered bed. Not perfect but I think it’s gonna work. Not bad for my first mod. Couldn’t find anything similar so I had to wing it. I’m sure there are ways to improve it but I’m not that smart.

    970btu likes this.
  11. Aug 16, 2019 at 10:30 AM
    #11
    ForestRunnerFrank99

    ForestRunnerFrank99 Well-Known Member

    Joined:
    Mar 10, 2019
    Member:
    #286162
    Messages:
    355
    Gender:
    Male
    First Name:
    Josh
    Rancho Cucamonga, CA
    Vehicle:
    '99 TRD 4x4 Manual 3.4l v6
    Fox Coil-overs, Dakar Leafs, Intake, Tires, Rims

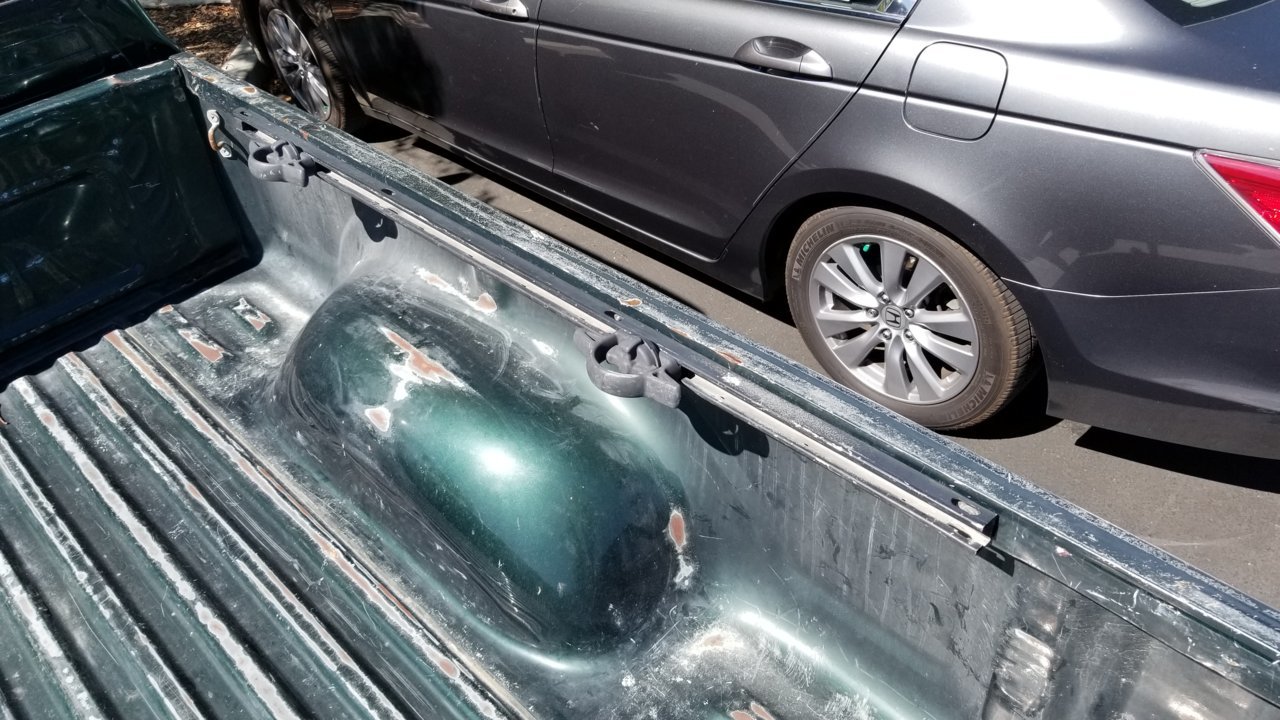

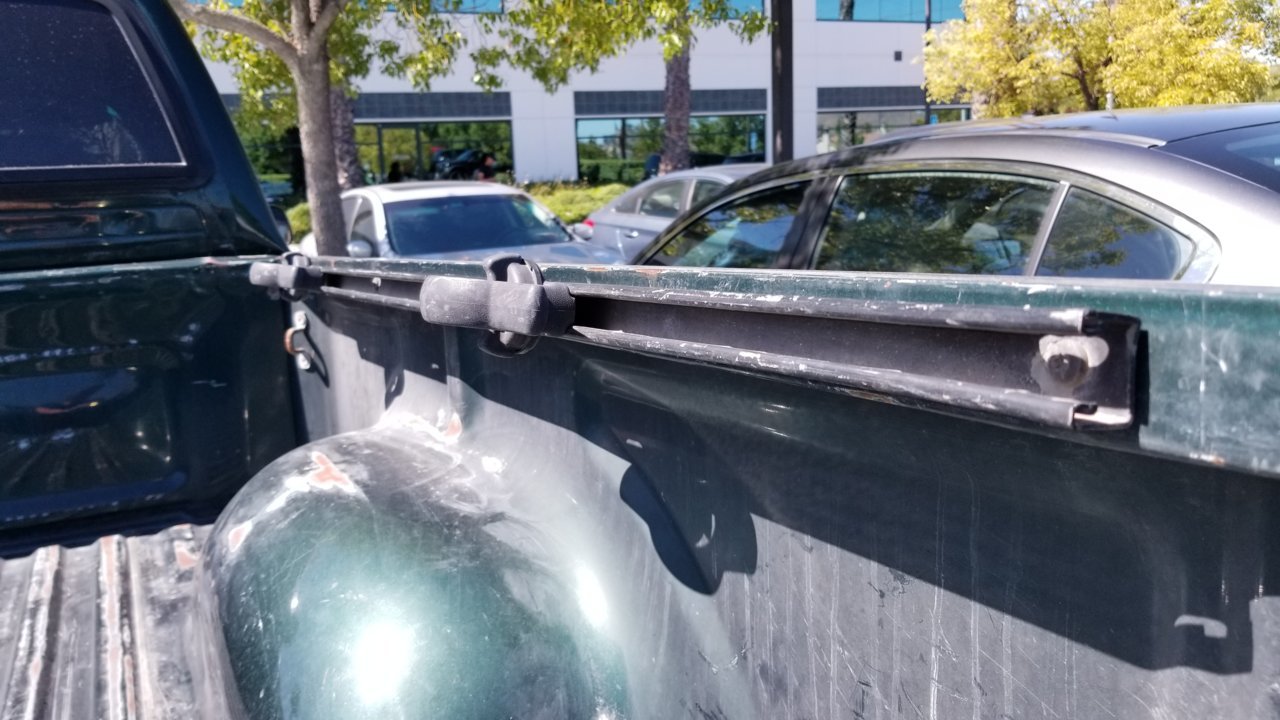

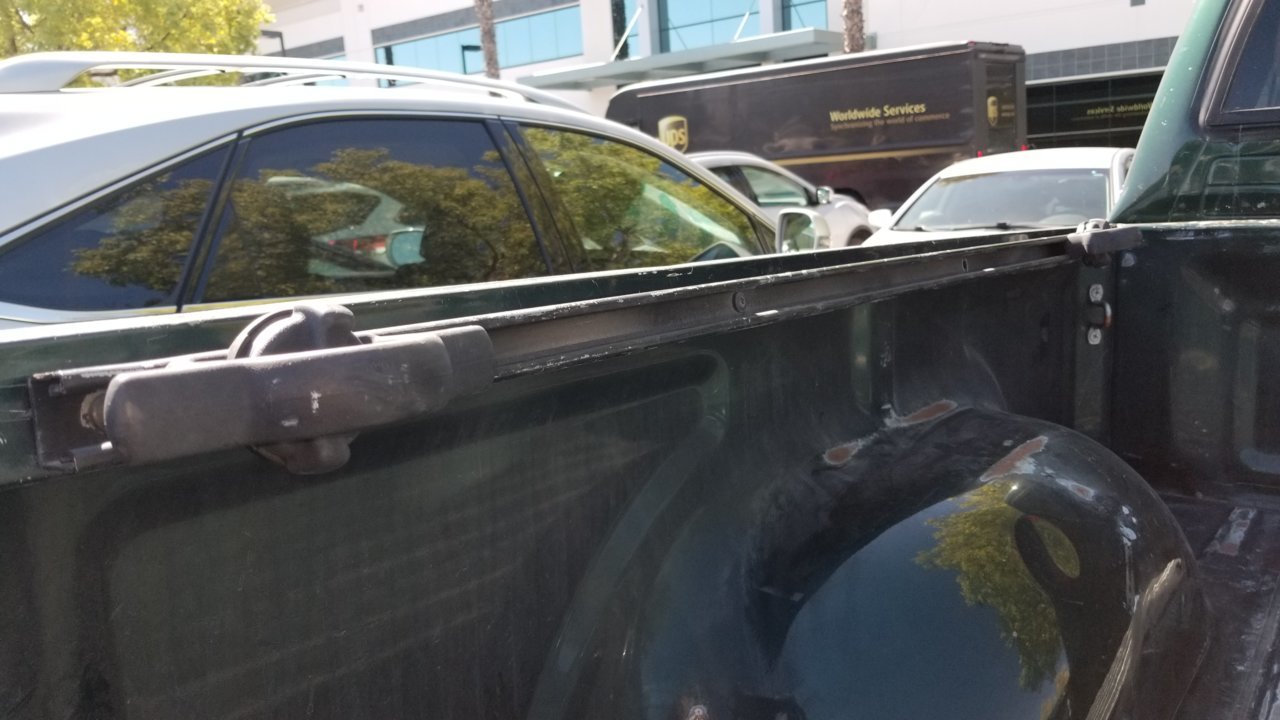

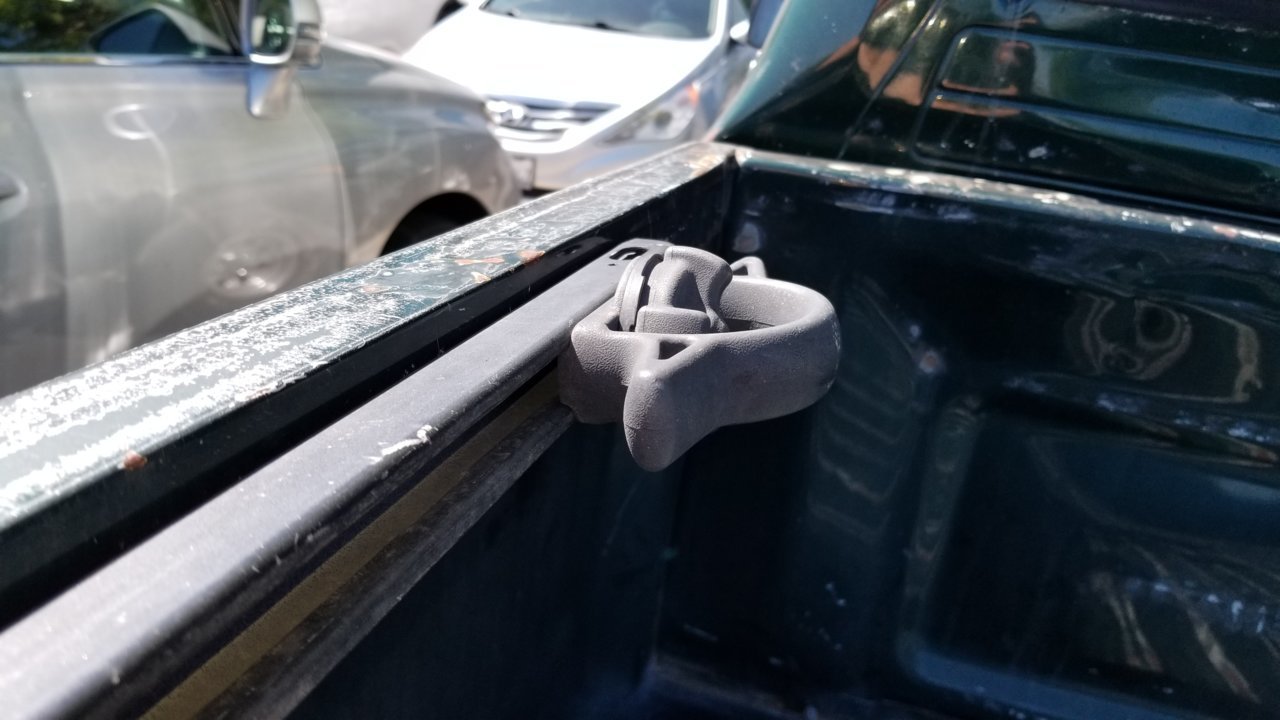

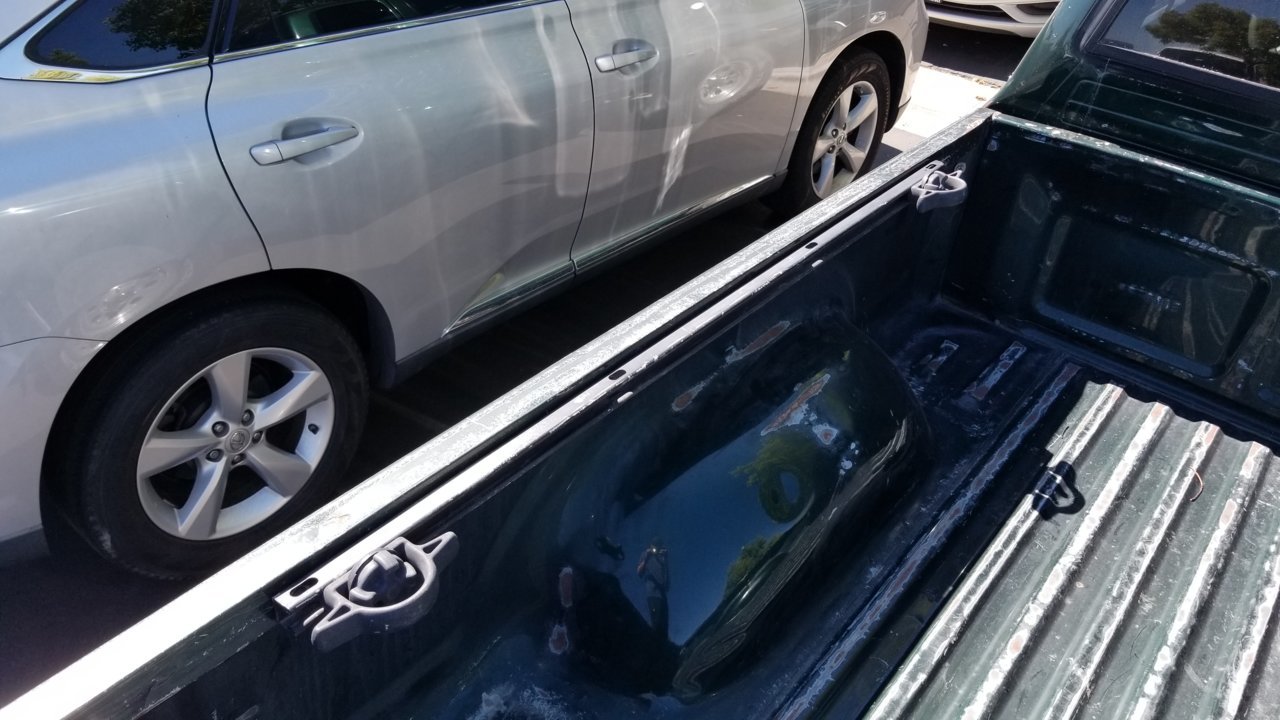

    Here are mine:




    The mounts slide on and off and I have seen accessories for them. I wouldn't trust them for a ton of weight but they would 100% hold a shovel.

    Area51Runner likes this.
  12. Aug 16, 2019 at 5:14 PM
    #12
    Rachelsdaddy

    Rachelsdaddy Well-Known Member

    Joined:
    Jun 17, 2017
    Member:
    #221707
    Messages:
    781
    Gender:
    Male
    Vehicle:
    99 PreRunner 4x4 2.7
    This is awesome. Great ideas. On my to do list for sure.

  13. Aug 16, 2019 at 7:42 PM
    #13
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner
    B11FC084-B701-4AD6-BA2C-85FFE974646F.jpg E17E42F1-7726-4441-AEEF-2C4ABB2B5944.jpg 75829EF1-8AA2-44C7-82AF-2682D9830343.jpg

    CSC, 970btu and Wulf like this.
  14. Feb 29, 2020 at 10:00 PM
    #14
    CSC

    CSC Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254777
    Messages:
    61
    Gender:
    Male
    First Name:
    Craig
    Grand Canyon, AZ
    Vehicle:
    1999 Tacoma TRD
    This is just what I’ve been looking for! Got the Quickfist, just need the Unistrut and accessory parts. Can you tell me exactly what you used to connect the quickfist to the Unistrut? Cone nuts and square washers between the strut and quickfist? Did you have to drill out the quickfist to use a larger mounting bolt? Thanks for your help!

    970btu likes this.
  15. Mar 1, 2020 at 11:57 AM
    #15
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner
    Yeah I sued the 3/8 inch cone nuts. I think that’s what they called it. I drilled out the hole in the quick fist a bit, didn’t need much. Ran bolt straight into the first and spin the whole fist into the nut. I keep it loose so it slides but you can snug it up for a more fixed mount.

  16. Mar 1, 2020 at 12:02 PM
    #16
    CSC

    CSC Well-Known Member

    Joined:
    May 28, 2018
    Member:
    #254777
    Messages:
    61
    Gender:
    Male
    First Name:
    Craig
    Grand Canyon, AZ
    Vehicle:
    1999 Tacoma TRD
    Many thanks Natenite!

  17. Mar 1, 2020 at 2:13 PM
    #17
    Natenite

    Natenite [OP] Well-Known Member

    Joined:
    May 12, 2019
    Member:
    #293056
    Messages:
    313
    Gender:
    Male
    Springfield Mo
    Vehicle:
    2003 Tacoma 4d TRD prerunner
    Your welcome. Glad it helped someone. Super simple so you should have no problems.

  18. Mar 1, 2020 at 4:32 PM
    #18
    Ritchie

    Ritchie Well-Known Member

    Joined:
    Dec 24, 2012
    Member:
    #93649
    Messages:
    1,634
    Gender:
    Male
    San Diego (North County)
    Vehicle:
    RC Step side Pre-runner
    2.7 w/auto, 4WU 3 link, F & R Diamonds, ARB's F/R w/ Yukon 5.29's, Inchworm 4.7 Lefty, Deavers, ARB OBA, Schrockworks up front.
    I suggest staying away from using this section of the bed as a secure point for these items. Over time, the attach points will be come weak and fail.
    Might I suggest looking at USCargo for secure hold down ideas.

  19. May 29, 2020 at 11:47 AM
    #19
    Newlife

    Newlife Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106845
    Messages:
    8,411
    Gender:
    Male
    First Name:
    Adam
    Knoxville TN
    Vehicle:
    Underdog
    iPad mini 2 w/ retina in dash, Alpine amp and subs, avs window visors, 3" omelift with bastard pack, full synthetic fluid swap, 15% tint all over, debadged all the way around.,two cree led pods near windshield,50'' up top, and pods in lower bumper , Katzkins grey and barracuda red leather interior all around. Wrangler MTR's 35" . American out law buckshot 16x9. Bruteforce Fab rear bumper. SOS concepts front bumper. Engo 10000s winch And a bunch of other money tied up in it,
    I just built a support rack for my bed shell the floor of my truck with unistrut pretty damn stout. I haven’t tested it yet but I think the shell will fail way before the unistrut will. I tied it directly into the rails of my shell with 5/16 grade 8 bolts then my prinsu rack Goes onto the rains putting all the pressure on the legs mounted to the bed.

  20. May 29, 2020 at 1:30 PM
    #20
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    2,744
    Gender:
    Male
    I have used the factory captured nuts that are for the tie downs at the front and back of the bed.
