***UPDATED*** 3rd Gen Multimedia Updates

Discussion in '3rd Gen. Tacomas (2016+)' started by ktbell444, Nov 28, 2020.

  1. Nov 28, 2020 at 11:23 PM
    #1
    ktbell444

    ktbell444 [OP] Let's be Jolly!

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,543
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    Updated 11/03/2021

    Well, I paid for a subscription to TIS (again).

    Below you will find a link to the most up-to-date multimedia firmware for our 3rd Gen Tacoma's. They cover updates from 2016 through 2021 model years. No, these do NOT come as OTA updates! The TSB's are also attached separately in this post so you can review prior to downloading and updating, if necessary.

    I have zipped all of the files into one. The updates for the 2020+ MY's are HUGE, so I cannot upload to TW. I will provide a link to my drive below.
    If you do not know which one applies to your head unit then you can throw every file onto the thumb drive at once, as only the one needed will be pulled for the update. -Thanks to @tonered for this tip!



    Requirements to install the update:
    • A trusted USB flash drive (If it's questionable, get another)
    • Max 16GB for 2016-2019, 32GB for 2020+.
      • Minimum 4 GB if you're planning on throwing ALL of the files on your drive.
    • USB 2.0
    • Formatted as FAT 16 or FAT 32 (who uses FAT 16 anymore anyway)
    • No folders or other files on the flash drive


    Instructions:
    1. Download the update files from here (3.81 GB in size, so be prepared).
    2. Extract then copy the .kwi file(s) onto the prepared flash drive
    3. Follow the steps outlined in the TSB (both [2016-2019 and 2020-2021] can be found in the zip file).
    4. Crack open a cold one with the boys (Not necessarily in this order, but this step is required).


    Attached Files:

    Last edited: Nov 30, 2021 at 1:53 AM
    c14y70n, Reluctanse, psvines and 42 others like this.
  2. Nov 30, 2020 at 7:21 AM
    #2
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    25,192
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I just looked at the files. 13TDANNA-DA11_0160.kwi was problematic for some folks. You have Version 164 in there. I'm excited.

    Check it out @Saeros !

    Also, the TSB was revised to note Version 164.

    Last edited: Nov 30, 2020
    Saeros, ktbell444 [OP] and G8R_Taco like this.
  3. Nov 30, 2020 at 7:28 AM
    #3
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    Dude, thank you!
    Your karma is good. :fistbump:

    JaCado, ktbell444 [OP] and tonered like this.
  4. Nov 30, 2020 at 7:49 AM
    #4
    codyb209

    codyb209 Well-Known Member

    Joined:
    Sep 23, 2019
    Member:
    #306139
    Messages:
    360
    Gender:
    Male
    First Name:
    robert
    209-916
    Vehicle:
    2019 TRD off road
    What are the updates?

  5. Nov 30, 2020 at 7:51 AM
    #5
    ktbell444

    ktbell444 [OP] Let's be Jolly!

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,543
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    Here's the T-SB and T-TCI (Canada)


    Attached Files:

    synchron123 and b3itz like this.
  6. Nov 30, 2020 at 8:43 AM
    #6
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4

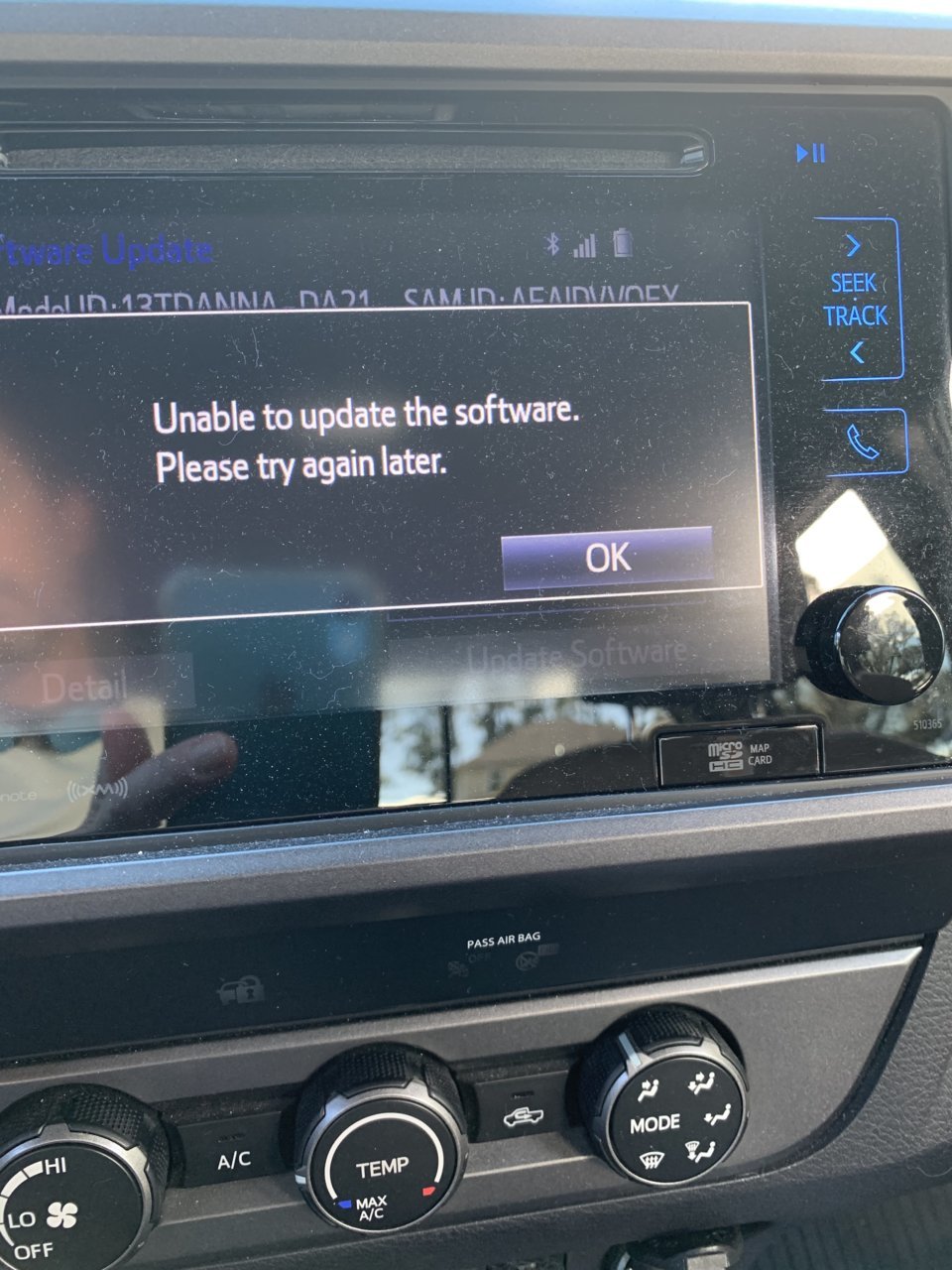

    Well crap! Software update appeared to go well and I was prompted to turn vehicle off and then back on to complete the update. Then this. The screen before said to contact dealer. Any ideas?

    2019 premium entune using the 165 kwi

    JaCado likes this.
  7. Nov 30, 2020 at 8:48 AM
    #7
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    25,192
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    That stinks. I was getting similar with the old version, except it was dying about 1/4 of the way through.

    My only suggestion is waiting to see what other 2019 folks post up?

    Skydvrr and G8R_Taco like this.
  8. Nov 30, 2020 at 8:54 AM
    #8
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    I couldn't find a 2.0 USB stick. That shouldn't matter right? Formatted FAT32

  9. Nov 30, 2020 at 8:58 AM
    #9
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    25,192
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Nah. As long as your formatted like that and are of decent size it should be fine. Getting that far, the USB stick shouldn't matter.

    There are instructions if a FW update doesn't take, but it ain't pretty.

    One was to try the update again with the Map SD card out.

    The other was to wipe the H/U and disconnect the battery.

    Neither worked for me. It was surprising how long it to get all the options set up again.

    G8R_Taco likes this.
  10. Nov 30, 2020 at 8:59 AM
    #10
    ktbell444

    ktbell444 [OP] Let's be Jolly!

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,543
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    According to this link here (about ⅔ down), it says:
    "There may be times that the software update cannot be performed due to communication device or media is still preparing, such as trying to perform the software update right after the navigation system has started up, so perform the operation after a while"

    Maybe let the truck sit at idle for a bit before initiating the update?

    G8R_Taco and tonered like this.
  11. Nov 30, 2020 at 9:02 AM
    #11
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    Funny you mention that. I recently got a new map sd card off ebay and was wondering if that might be an issue. Put the OEM one back in and no joy.
    And I have the battery unhooked now and on a charger.
    The radio still works so its not bricked or anything... weird :annoyed:

    ktbell444 [OP] and tonered like this.
  12. Nov 30, 2020 at 9:04 AM
    #12
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    25,192
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Try it with the card out.


    Yeah. The updates are generally foolproof, so you won't have any issues if the update doesn't take. Here even more so as earlier versions were publicly available on the Downloads website.

    G8R_Taco and ktbell444 [OP] like this.
  13. Nov 30, 2020 at 9:16 AM
    #13
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    Will do. May download and transfer again. Maybe I flipped a bit! :eek::D

    tonered likes this.
  14. Nov 30, 2020 at 9:17 AM
    #14
    ktbell444

    ktbell444 [OP] Let's be Jolly!

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,543
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    I think you're fine. It wouldn't be official from Toyota if it wasn't a pain in the ass.

    Here's another link I found online that may be useful.

    G8R_Taco likes this.
  15. Nov 30, 2020 at 9:17 AM
    #15
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    I’m gonna go drive it in a bit. That document also says if an audio update is available but won’t install, replace HU! o_O:cool:

  16. Nov 30, 2020 at 9:19 AM
    #16
    ktbell444

    ktbell444 [OP] Let's be Jolly!

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,543
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    I doubt that's your issue. But hey, if you're looking for an excuse to tell the wife, now's your chance!

    Deet and G8R_Taco like this.
  17. Nov 30, 2020 at 9:19 AM
    #17
    JaCado

    JaCado I make bad choices

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    39,644
    :popcorn:

    G8R_Taco likes this.
  18. Nov 30, 2020 at 9:22 AM
    #18
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    25,192
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Unlikely, but another USB drive couldn't hurt.

    Yeah. That one is interesting, but obviously the H/U is good. It is just the FW that is wonky. We'll see what the new version does for me.

    G8R_Taco likes this.
  19. Nov 30, 2020 at 9:23 AM
    #19
    G8R_Taco

    G8R_Taco Fruit Bowls All Around

    Joined:
    Jun 8, 2019
    Member:
    #295798
    Messages:
    1,572
    Gender:
    Male
    FLA
    Vehicle:
    2019 TRD OR 4x4
    :annoyed:
    :cheers:

    JaCado likes this.
  20. Nov 30, 2020 at 9:23 AM
    #20
    ktbell444

    ktbell444 [OP] Let's be Jolly!

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,543
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green

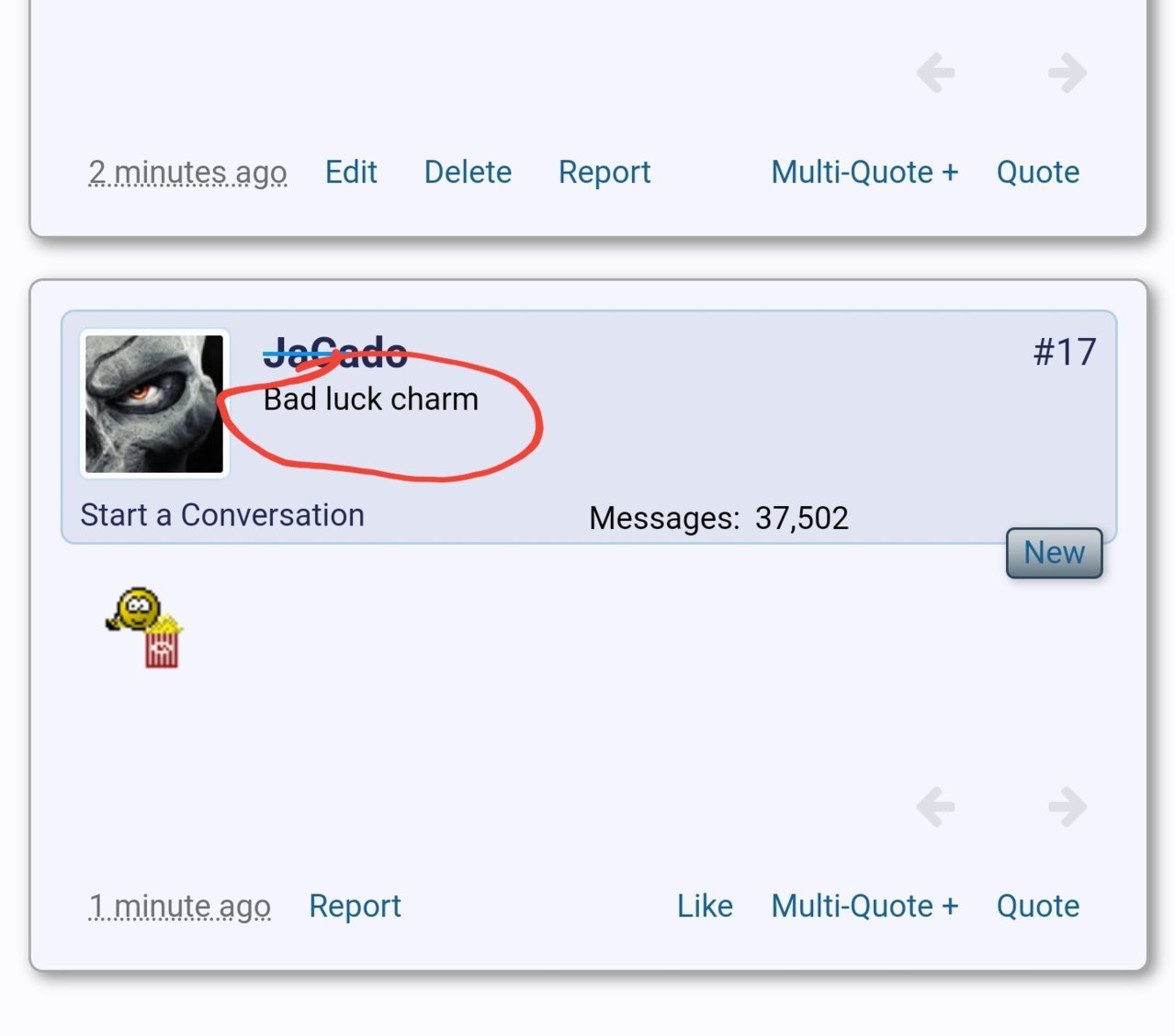

    I think I found your problem:
    :rofl:

    elmontemike, JaCado and G8R_Taco like this.
