URD MAF Calibrator

Discussion in 'Product Reviews' started by lsocoee, Feb 23, 2008.

  1. Feb 23, 2008 at 10:18 PM
    #1
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    I installed the URD CAI www.urdusa.com a while back and I've been holding off on installing the MAF calibrator that I bought at the same time. Well today, I finally installed it.

    It was a simple process, but easy to screw up. Give yourself about 3 hours.

    Here's the process...
    Unplug your battery.
    Open your glove compartment and empty it out.
    Press in the sides of the glove compartment.
    On the right of the glove compartment, is a small damper. Squeeze the tabs together to remove it from the glove box.
    Lower the glove box further and lift the bottom up to separate from the truck.
    This part is optional...I removed some trim to give me more room to move the wiring harnesses. I removed the kick panel and the trim bolted at the latch for the glove box.
    [​IMG]

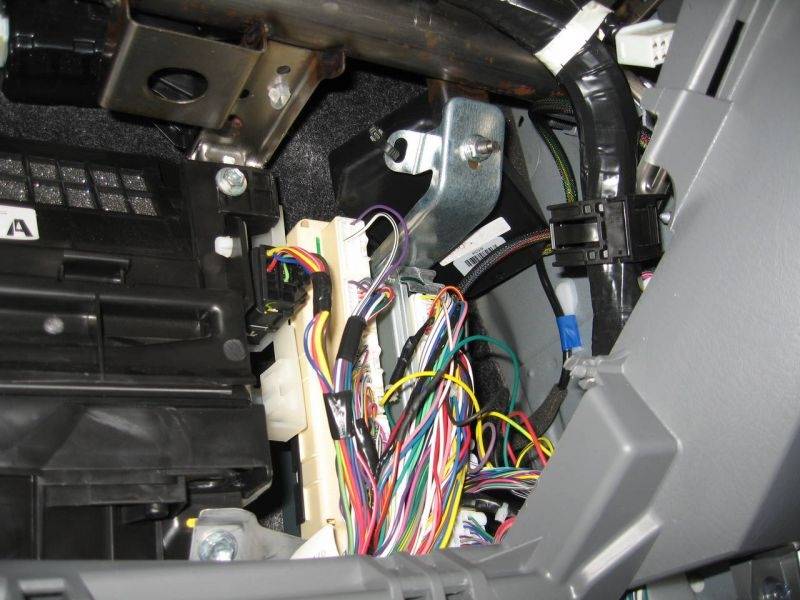

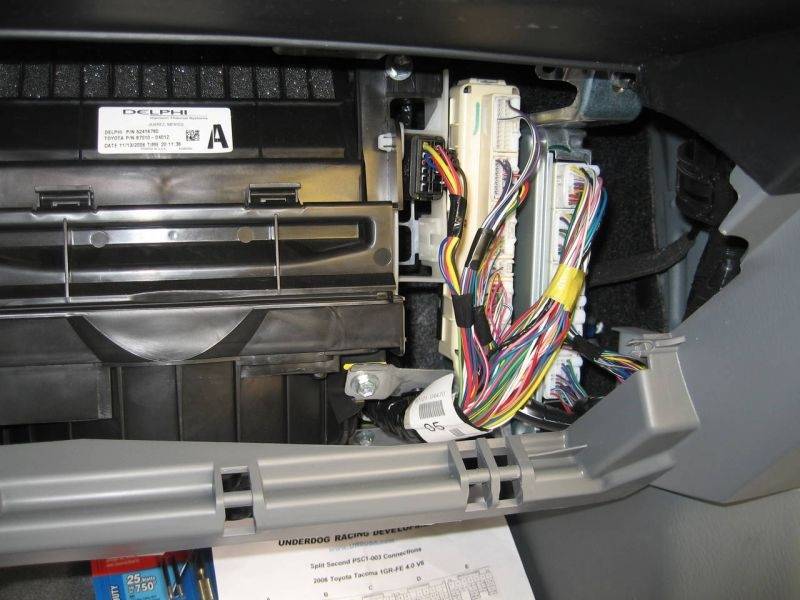

    The white plugs at the far right are what you need to work on. From bottom to top, they are A,B,C,D, E. To make it easier on my, I labeled all the plugs, so I could focus on not screwing up other things.
    [​IMG]
    Here is the wiring diagram. This is probably the only copy you'll find online. Enjoy. PM me if you want a higher res picture. The first 4 connections require you to tap into the wires. To tap into the wires, I used one of the automagic wire strippers. One end holds the wire and the other end pushes the insulation away. This allows you to keep the wire in tact and free up .25" or wire. Wrap the appropriate wire from the Calibrator around the wire from the ECU. The last two wires from the Calibrator are the ones that modify the signal from the MAF to the ECU. Cut the wire listed here, slide some heat shrink and wrap the wires together. Check and re-check all connections. When you are 100% sure, start all your soldering. After all the soldering, tape the wire taps and zip tie the around original wire to the Calibrator Wire. Then do the heat shrink for the other connections. Plug all the plugs back into the ECU.

    Alright, almost done...connect your battery back and start her up. I let it warm up a little bit and then I gave it some gas. If everything sounds good, go ahead and stash the Calibrator up in your dash.

    [​IMG]

    Initial drive was a little dull. I think my intake is quieter now. I think I need to retrain the computer through some aggressive driving. I don't know that the truck is any slower, but it doesn't feel any faster. I'll do some driving tomorrow and see how she feels. I've got my Dashhawk that I can use to measure some 0-60 times and I'll post those and some mileage numbers as well.

    It should also be noted, URD now makes plug and play harnesses for their calibrators. If you're uneasy with cutting and soldering wires to your ECU, you should spend the extra $150 for that.

  2. Feb 23, 2008 at 10:23 PM
    #2
    05PreRunner

    05PreRunner "Living life in the FAST lane..."

    Joined:
    Sep 11, 2007
    Member:
    #2675
    Messages:
    4,968
    Gender:
    Male
    <-(714)-> SO-CAL
    TRD intake, JBA "shorty" headers, URD y-pipe
    Do you think the URD MAF CALIBRATOR would be a good upgrade for me? (I have a True Flow XDI Intake)

  3. Feb 23, 2008 at 10:40 PM
    #3
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    LOL! I don't even know if it was worth it for me yet. All I know is that it was $240 and my most nerve-racking mod yet. I'll have a better idea tomorrow when I get some more driving done. I really hope that it is worth it. The calibrator is supposed to be good for about a 15 rwhp.

  4. Feb 23, 2008 at 10:42 PM
    #4
    05PreRunner

    05PreRunner "Living life in the FAST lane..."

    Joined:
    Sep 11, 2007
    Member:
    #2675
    Messages:
    4,968
    Gender:
    Male
    <-(714)-> SO-CAL
    TRD intake, JBA "shorty" headers, URD y-pipe
    cool, be sure to keep us updated.........

  5. Feb 23, 2008 at 11:04 PM
    #5
    ZonKs

    ZonKs Can speak french in Russian.

    Joined:
    May 30, 2007
    Member:
    #1711
    Messages:
    1,056
    Gender:
    Male
    Glendale, CA
    =p
    lsocoee, u da man :cool:

  6. Feb 24, 2008 at 9:11 AM
    #6
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    I knew you were waiting on this.

  7. Feb 24, 2008 at 11:05 AM
    #7
    mountain lion

    mountain lion Member

    Joined:
    Feb 9, 2008
    Member:
    #4640
    Messages:
    24
    VA
    Vehicle:
    06 PreRunner
    URD TCAI, MAF Cal, o2 Sim, DT Headers
    They are worth it if you're WOT frequently or in the upper rpm range. They really only adjust fuel mapping in open loop, so anything about 4krpm or WOT will it have an effect. It leans things out a good bit since the factory map is so rich. URD is going to be selling one that doesn't require splicing into the stock harness soon, it'll be plug and play, but it's bit more expensive.

  8. Feb 25, 2008 at 1:33 PM
    #8
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    The truck is definitely faster. I won't say too fast, but I don't feel like I can floor it any longer.

    The stock tires have no traction when I mash on it from a stop.

    No performance tests yet...I'm paranoid about having other people in sight of me when I floor it from a stop.

    I'm pretty sure that the supercharger would be wasted on me because I'd be afraid to ever floor it(well, maybe every once in a while I'd floor it.)

  9. Feb 27, 2008 at 6:58 PM
    #9
    silvertaco408

    silvertaco408 Well-Known Member

    Joined:
    Dec 30, 2007
    Member:
    #4032
    Messages:
    98
    Gender:
    Male
    San Diego, CA
    Vehicle:
    07 double cab long bed 4x4 trd sport
    Pioneer Avic Z2 navigation with ipod and bluetooth, K&N 77 Series intake, DT Headers, Flowmaster 50 exhaust, All Weather Mats, Fog Light Mod, Debadged, 20% tint all around, custom blue dome, maps, steering wheel, shifter lights, and cluster, Midland CB with PA, XD Series Revolvers wrapped in BFG AT's, black mesh grillcraft grill
    Just curious if the tunning was relatively easy to do. Also, I know you didnt use the plug and play, but do you know if the calibrator still has to stay in the car or can you just tune it and take it out untill you need a retune?

  10. Feb 27, 2008 at 7:05 PM
    #10
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    I didn't tune it. I used the map that was designed for stock plus URD intake.

    I wouldn't think you need to take out the calibrator. It is soldered in there and would be just about impossible to remove without doing some damage.

  11. Feb 27, 2008 at 7:10 PM
    #11
    05PreRunner

    05PreRunner "Living life in the FAST lane..."

    Joined:
    Sep 11, 2007
    Member:
    #2675
    Messages:
    4,968
    Gender:
    Male
    <-(714)-> SO-CAL
    TRD intake, JBA "shorty" headers, URD y-pipe
    Damn it, i regret not getting the URD intake... I had my mind set on the URD, then i saw the True Flow XDI and i got the XDI. Oh well, i guess i could always sell it on e-bay once i'm tired of it.......;)

  12. Feb 27, 2008 at 7:13 PM
    #12
    Spyder327

    Spyder327 Well-Known Member

    Joined:
    May 25, 2007
    Member:
    #1677
    Messages:
    204
    Phoenix, AZ
    Vehicle:
    2005 X-Runner
    Aquamist 2D meth/water injection kit, URD Exhaust, DT Long Tube Headers, Hood Struts, and lots of other miscellaneous stuff...
    Tuning is somewhat easy once you are familiar with the software program that is used. In order to get the biggest gain out of the calibrator, you will need it tuned even if you used the base map.

    with the plug-n-play harness, it would be simple to remove the calibrator again if you wanted

  13. Feb 27, 2008 at 7:21 PM
    #13
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    simple, if you have a way to measure the AF ratio...

  14. Feb 27, 2008 at 7:25 PM
    #14
    Spyder327

    Spyder327 Well-Known Member

    Joined:
    May 25, 2007
    Member:
    #1677
    Messages:
    204
    Phoenix, AZ
    Vehicle:
    2005 X-Runner
    Aquamist 2D meth/water injection kit, URD Exhaust, DT Long Tube Headers, Hood Struts, and lots of other miscellaneous stuff...
    removal of the calibrator being simple has nothing to do with the AFR. But all the same if you need to be able to see it, there's dyno's everywhere.

  15. Feb 27, 2008 at 7:46 PM
    #15
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    I wasn't talking about the removal. I was referring to you saying the programming was easy. Programming requires you know the AF ratio (correct?) which is not easily (or cheaply) determined.

  16. Feb 27, 2008 at 7:47 PM
    #16
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    Don't want to come off sounding like a prick, I think this was a misunderstanding. Besides, I'm the amateur here. I'm sure (sincere) that you know more than I do.

  17. Feb 27, 2008 at 8:07 PM
    #17
    Spyder327

    Spyder327 Well-Known Member

    Joined:
    May 25, 2007
    Member:
    #1677
    Messages:
    204
    Phoenix, AZ
    Vehicle:
    2005 X-Runner
    Aquamist 2D meth/water injection kit, URD Exhaust, DT Long Tube Headers, Hood Struts, and lots of other miscellaneous stuff...
    You are correct there. The reason i thought you were referring to the removal was because you used the word "simple" so i thought you were referring to when i said it'd be simple to remove it. No big deal

  18. Feb 27, 2008 at 10:01 PM
    #18
    silvertaco408

    silvertaco408 Well-Known Member

    Joined:
    Dec 30, 2007
    Member:
    #4032
    Messages:
    98
    Gender:
    Male
    San Diego, CA
    Vehicle:
    07 double cab long bed 4x4 trd sport
    Pioneer Avic Z2 navigation with ipod and bluetooth, K&N 77 Series intake, DT Headers, Flowmaster 50 exhaust, All Weather Mats, Fog Light Mod, Debadged, 20% tint all around, custom blue dome, maps, steering wheel, shifter lights, and cluster, Midland CB with PA, XD Series Revolvers wrapped in BFG AT's, black mesh grillcraft grill
    So I guess my main question is... after I use it to tune the truck can I remove it and still have it tuned or does it go back to how it was before?

  19. Feb 28, 2008 at 6:27 AM
    #19
    lsocoee

    lsocoee [OP] My hair is all natural Staff Member

    Joined:
    Feb 9, 2007
    Member:
    #872
    Messages:
    10,104
    First Name:
    Hotdog
    Vehicle:
    2007 PreRunner SR5 Double Cab
    Wet Okole Underwear
    no, you must leave it in the truck after it is tuned.

  20. Mar 4, 2008 at 10:28 AM
    #20
    pumo420

    pumo420 Well-Known Member

    Joined:
    Feb 2, 2008
    Member:
    #4537
    Messages:
    83
    florida
    Vehicle:
    07 Prerunner Sr5 Debadged
    silver star headlights, optima yellow top battery, 2X10 mtx thunder 4500 speakers, kicker kx 400 amp, pioneer headunit, injen air intake, flowmaster dual exhaust, doug thorley long tube headers. waiting to put on urd maf caliberater, urd o2 senser, urd supercharger and 7th injector setup.i Fell
    i just bought a urd maf calibater, im running headers intake and exhaust, for me to get it tuned, would it be best to take it to the dyno, and would they help tune it over at the dyno shop?
