URD TCAI on a 2012 Tacoma

Discussion in 'Performance and Tuning' started by S7ICKlVlAN, Apr 7, 2012.

  1. Apr 7, 2012 at 9:28 PM
    #1
    S7ICKlVlAN

    S7ICKlVlAN [OP] Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Installed my URD TCAI this morning....I got some tips for anyone with a 2012 looking to install this as well. The following pics and the air hose modification should be referenced in addition to the URD supplied installation instructions. [DISCLAIMER - I assume zero liability to any damages or injuries incurred by your use of these volunteered aids. Install at your own risk]

    I ended up removing the headlight to cut the rad support since I was working with a sawzall and dremel. I'd recommend this step to anyone doing the install.
    [​IMG]


    Then I made a point to de-burr the cut out and used the grinding wheel to finish all radii and get it as close to perfect shape as possible. Following this, I applied lithium grease to the exposed metal edge before installing the finishing strip.
    [​IMG]


    Extended MAF wires, soldered, shrink wrapped, loomed
    [​IMG]


    The following images show the portion of the install that wasn't in the URD supplied instructions. Being that the 2012's have a fender mounted air pump for the smog system, the existing hose layout will block the proper mounting of the intake charge pipe attached to the TB. If you have a 2012, you will notice that the air hose going to the pump is a 2pc assembly with a check valve mounted closest to the valve cover mounted assembly. You will need to remove this and relocate the check valve to the longer of the 2 pieces of hose. You will also need to trim one end of the hose to properly feed to the air pump.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    The modified air hose installed
    [​IMG]


    I also removed the upper piece on the intake tube mounting bracket and utilized only the "L" portion of the bracket to clean up the install. Had I used the upper piece it also would have been rubbing against the upper rad support.
    [​IMG]
    [​IMG]


    TCAI installed, front grill about to go back on.....
    [​IMG]


    All done!
    [​IMG]

  2. Apr 8, 2012 at 5:20 PM
    #2
    ModernPopeye

    ModernPopeye Well-Known Member

    Joined:
    Oct 16, 2011
    Member:
    #65265
    Messages:
    99
    Gender:
    Male
    Hampton Rds,Va
    Vehicle:
    12 DBL Cb Sport LB
    Thanks for the install tips! I have yet to open my hood,lol. Sweet valve covers huh? Looks great btw. Tell any improvement through your butt-dyno?

  3. Apr 8, 2012 at 6:07 PM
    #3
    cintocrunch

    cintocrunch Special Substitute Guest Member

    Joined:
    Dec 20, 2011
    Member:
    #69090
    Messages:
    771
    Gender:
    Male
    First Name:
    Mike
    MD
    Vehicle:
    2012 DCSB TRD Sport MGM 6MT
    Anytime fogs, Leer Tonneau
    Did you paint the valve covers? I haven't looked under the plastic yet but I doubt the factory made them look that nice...

  4. Apr 8, 2012 at 7:55 PM
    #4
    S7ICKlVlAN

    S7ICKlVlAN [OP] Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    LOL naw I painted them guys. There's a write up on XRU in the how to section.

  5. Apr 8, 2012 at 7:57 PM
    #5
    ModernPopeye

    ModernPopeye Well-Known Member

    Joined:
    Oct 16, 2011
    Member:
    #65265
    Messages:
    99
    Gender:
    Male
    Hampton Rds,Va
    Vehicle:
    12 DBL Cb Sport LB

    DAMN! LOL I should have known better : /

  6. Apr 9, 2012 at 7:23 AM
    #6
    aaroness

    aaroness Member

    Joined:
    Apr 9, 2012
    Member:
    #76560
    Messages:
    6
    Gender:
    Male
    sorry,i have no idea .[​IMG]

  7. Apr 9, 2012 at 8:16 AM
    #7
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,936
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    You are the man for doing this. :thumbsup:

    What is your professional opinion on the product?

  8. Apr 9, 2012 at 10:47 AM
    #8
    S7ICKlVlAN

    S7ICKlVlAN [OP] Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD

    Thanks brother Tor. Here's what I can speak on....

    The Kit
    The product itself is top notch when compared to the intakes on the market that I've seen. I personally tend to lean more towards custom "boutique" shop products anyway. The design is well thought out and puts the filter in the best possible place to not only grab cold air, but to (as much as possible) "Ram" it into the intake tract. It also has a nice long run to straighten that air flow our before it enters the TB. Fit & finish for the kit kicks butt. Instructions are comprehensive, kit contents are all you need to complete the installation exactly as intended/expected.

    Appearance/Sound
    The wrinkle black finish is perfect IMO for this intake. It gives it a business-like feel and seems pretty darn durable. The silicone couplers included were straight cut and fit very well. I didn't like the 2pc bracket used to mount the forward intake charge pipe. Also didn't like having to extend the MAF wires although when it was all said and done, being forced to extend the wires (as opposed to have a PnP extension from URD) definitely allowed for a much cleaner looking installation.

    Other than that, everything is good. Once installed I got a chance to roll on the throttle while checking for CEL's and while I didn't have enough sampling to give any feedback on "performance" attributes yet, I can say that the sound of this intake alone, would fool a lot of people into thinking that they're making a whole lot more power. Great sound, but not obnoxiously so. Nice deep intake sound. I likey!

    I'll be doing a bit of driving this week to a couple of job sites so I'll have more feedback soon my brutha.

  9. Apr 9, 2012 at 3:27 PM
    #9
    CascoYota

    CascoYota Well-Known Member

    Joined:
    Mar 2, 2012
    Member:
    #73979
    Messages:
    53
    Gender:
    Male
    First Name:
    John
    Casco,ME
    Vehicle:
    07 Access Cab V6 SR5
    You're making me and my 07 incredibly envious. Great work man. Looks top notch!

  10. Apr 9, 2012 at 6:00 PM
    #10
    shaffcr31

    shaffcr31 Member

    Joined:
    Mar 11, 2012
    Member:
    #74705
    Messages:
    5
    Gender:
    Male
    First Name:
    Matt
    York,Pa
    Vehicle:
    Sr5
    Revtech suspension ,step bars,fender flares,flowmaster cat back stainless duel ex.
    Looks good!! Did you add the maf sensor calibrater with the tcai ? I want to order it when i buy the tcai they give u like 50 dollars off when ordered at the same time. Im just wondering how this mod will affect my warranty?

  11. Apr 9, 2012 at 6:30 PM
    #11
    Cowboyz

    Cowboyz Membor

    Joined:
    Dec 21, 2011
    Member:
    #69143
    Messages:
    475
    Gender:
    Male
    First Name:
    Luke
    Southern Utah/Las Vegas
    Vehicle:
    07 DC LB TRD Sport
    6in Pro Comp stage 2 lift, 2.75in ProComp Coilovers, Rear MX6 adjustable shocks, 35in Nittro Trail Grapplers, 17 in XD Spys, URD intake, URD MAF Calibrator, Flowmaster 40 Series, AMP Power steps, debadged, blacked out tail lights, Blacked out headlights w/ Mini H1 Retros and halos, JVC KW-AVX840 7" Double-Din, Viper 5704 2way alarm/remote start, LEDs in Dome, Maps, and license plate lights, short black antenna, 5% Tint, removed sway bar
    Yea defently add the MAF calibrator and you will notice the difference when driving. Are you going to buy a heat shield to protect the filter from water and bugs?

  12. Apr 9, 2012 at 7:15 PM
    #12
    COMAtose HI

    COMAtose HI Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70155
    Messages:
    1,968
    Gender:
    Male
    808
    Vehicle:
    2012 TRD SPORT 4x4
    6" Procomp Stage 1 Suspension Lift, Custom 6" Alcan Springs, N-Fab Side Steps, Husky Floor Liners, Wet Okole Seat Covers, Debadged, Weathertech Side Window Deflectors, 13" Antenna from AntennaX.com, 35% Tint for front windows, Procomp 7032 Series 18x9 wheels, 33x12.50 Nitto Mud Grappler tires
    u did it again op!!! making me all jelly with all your mods!!! looks f'ckin sick!!!

  13. Apr 9, 2012 at 8:38 PM
    #13
    S7ICKlVlAN

    S7ICKlVlAN [OP] Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Casco - Thanks brah!

    schaff - No I didn't. I am not sure which engine management is going to best fit the final build needs. That UCON looks pretty tempting right now. I had a MAF Cal on my 2000SS and while it was great for what I needed with minor upgrades, it quickly became a weak point as my build progressed. We'll see what the final plans look like then make a decision on performance electronics.

    Cowboyz - Yeah I'll probably buy the shield or fab my own....

    Wolf - Brutha, great insights. I have no qualms at all about MAF placement. However I would've liked the option for a PnP harness. The same techniques to locate the MAF further forward to read the cooler intake charge for more timing/aggressive fuel curve are being used in both the Viper & Vette world that I came from. I wouldn't have purchased this kit if I didn't think it was the best fit for the build. Your continued inputs have definitely helped me to decide. Mahalo!

    Bradda Shaun! - LOL I'm gaining experience so I can help you mod Gray when you come back to the rock! Auuriiite!

  14. Apr 9, 2012 at 8:49 PM
    #14
    COMAtose HI

    COMAtose HI Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70155
    Messages:
    1,968
    Gender:
    Male
    808
    Vehicle:
    2012 TRD SPORT 4x4
    6" Procomp Stage 1 Suspension Lift, Custom 6" Alcan Springs, N-Fab Side Steps, Husky Floor Liners, Wet Okole Seat Covers, Debadged, Weathertech Side Window Deflectors, 13" Antenna from AntennaX.com, 35% Tint for front windows, Procomp 7032 Series 18x9 wheels, 33x12.50 Nitto Mud Grappler tires
  15. Apr 10, 2012 at 12:09 PM
    #15
    S7ICKlVlAN

    S7ICKlVlAN [OP] Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Hmm good point. For that, you get this.....

    [​IMG]

    :yay:

  16. May 24, 2012 at 6:12 AM
    #16
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,616
    Gender:
    Male
    First Name:
    Patrick
    Currently Richmond, VA
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    Looks good OP. I'm installing mine tomorrow (as was as the maf cal) and I'm glad you have pics of the air pump hose modded. I'll be using your pics for a guide :) Anything you would do different to clean it up or just make it easier? I cut the rad support yesterday so I could paint it and give it time to cure so that's out of the way. And any updates on performance?

  17. May 24, 2012 at 7:06 AM
    #17
    COMAtose HI

    COMAtose HI Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70155
    Messages:
    1,968
    Gender:
    Male
    808
    Vehicle:
    2012 TRD SPORT 4x4
    6" Procomp Stage 1 Suspension Lift, Custom 6" Alcan Springs, N-Fab Side Steps, Husky Floor Liners, Wet Okole Seat Covers, Debadged, Weathertech Side Window Deflectors, 13" Antenna from AntennaX.com, 35% Tint for front windows, Procomp 7032 Series 18x9 wheels, 33x12.50 Nitto Mud Grappler tires
    Op is banned at this time lol

  18. May 24, 2012 at 7:24 AM
    #18
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,616
    Gender:
    Male
    First Name:
    Patrick
    Currently Richmond, VA
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |
    oh :rofl:

    well fuck me... I guess I can't use the forum for its intended purpose, thanks a lot mods :rolleyes:

  19. May 24, 2012 at 7:50 AM
    #19
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,616
    Gender:
    Male
    First Name:
    Patrick
    Currently Richmond, VA
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |

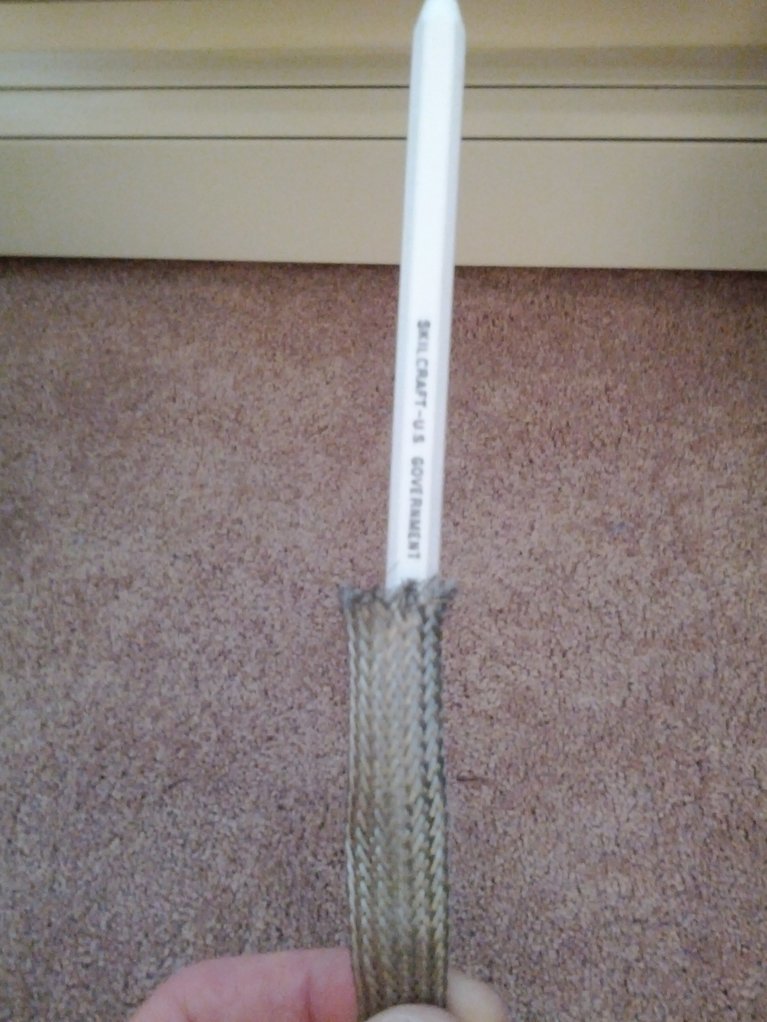

    Sweet thanks! Will the extra length do anything to the signal or cause interference do you think? I planned on wrapping the wires in some stainless steel wire loom I have, prior to the plastic loom (I stuck a pen in the end so you could see what it is better)
