USB port wiring question

Discussion in '1st Gen. Tacomas (1995-2004)' started by gerbs808, Apr 12, 2015.

  1. Apr 12, 2015 at 2:39 PM
    #1
    gerbs808

    gerbs808 [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152443
    Messages:
    74
    Gender:
    Male
    Socal
    Hey everyone,

    I've been lurking for a while and have read a ton of useful information on these forums. I know this subject has been covered a lot before and trust me I've read almost all of the information I could find using the search feature but I need some more help.

    I found this sweet carling switch with USB plugs online:
    [​IMG]

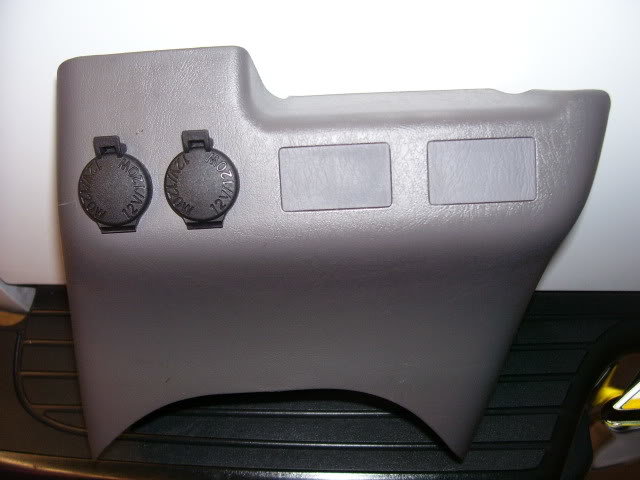

    And judging by the dimensions it should fit perfectly into one of the blank spots next to my 12v outlets:

    Here's how I was thinking of wiring it up, but keep in mind I have absolutely zero electrical/wiring knowledge so please let me know if this would work or catch my truck on fire....

    I have a few 16/14 Gauge T-taps laying around (like these: http://www.amazon.com/Install-Bay-BTT-Gauge-Connector/dp/B001N7PX6K. Can I attach these to the wires for one of the 12 volt outlets right next to where I want to install it? Basically...
    • connect a red wire from the power on the switch to a red wire from the 12v outlet using a T-tap
    • connect a black wire from the ground on the switch to the ground wire for the 12v outlet using another T-tap?
    Or do I need to run wires all the way up to the fuse box, install fuses, etc ???
    :confused::confused::confused:

    Any advice would be greatly appreciated...and please try to keep it at a kindergarten level for me :D

  2. Apr 12, 2015 at 3:55 PM
    #2
    Mod

    Mod Well-Known Member

    Joined:
    Jul 29, 2010
    Member:
    #40950
    Messages:
    1,783
    Gender:
    Male
    CR, WA
    Vehicle:
    1999 8 port 3RZ 4WD SR5
    stock
    Radio shack has a cig lighter usb adapter for your existing 12v ports. No need to cut or do anything like that. Have charged all brands of cells on that without issue for years.

  3. Apr 12, 2015 at 3:59 PM
    #3
    roehoe72

    roehoe72 Well-Known Member

    Joined:
    Jan 4, 2009
    Member:
    #12229
    Messages:
    446
    Gender:
    Male
    First Name:
    Dan
    Vacaville, CA
    Vehicle:
    04 dc prerunner v6 trd
    Sub'd. But why not just put use an adapter in the twelve volt outlet. I have a splitter that has two usb outlets. Just an idea, not a naysayer.

  4. Apr 12, 2015 at 4:06 PM
    #4
    DR007

    DR007 Well-Known Member

    Joined:
    Nov 12, 2012
    Member:
    #90963
    Messages:
    664
    Gender:
    Male
    First Name:
    Dylan
    Port Barre, LA
    Vehicle:
    '06 DCSB PreRunner
    MagnaFlow exhaust, K&N cold air intake, MB TKO wheels with 265/75/r16 Hankook Dynapro ATM, Blue Center shift LED color change, Map Lights with Dome, LED Map and Dome lights, Cluster Light Change, DTRL, Parking Light as Blinker, Blue A/C Control lights, Blue Clock, Bed Lights, Debadged tailgate, painted all exterior plastic trim, 6LZ Lightbars in grille, OTRATTW switches, Fog Light in Reverse light Mod, LED Blinkers all around, Projector Fog Lights, 15" blitzpro light bar, added hidden cig lighter port, custom plate front bumper, OME complete lift with 885 front coils, Ultraguage, CB radio 3' whips, 12v bed lighter port, Center Console Lights, AllProOffroad Sliders, 50" roof led light bar, 2 BlitzPro 6LZ Reverse Lights
    Your thinking is close but because Toyota outlets are not hot constantly then no you can't use tap those and run the USB's whenever at the click of the switch. You can use the black for your negative but you would need to run a red positive to your fuse box. You could just run it to a always hot fuse in you dash fuse box. This would enable it to be controlled by the switch whether your keys were in or not.

  5. Apr 12, 2015 at 4:11 PM
    #5
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    25,932
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Front emblem led lighting. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a Anytime foglight mod R.G.B tape light for inside toekick lighting. Front and back. CJumpers 700 lumens LED reverse lights. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels Electrical a/c 115volt plug/usb mod next to passenger knee Fox 2.5 coilovers Icon 2.0's in the rear Rear locker any-time mod Abs kill switch mod
    Welcome toT.World. Hope it works out.

  6. Apr 12, 2015 at 4:34 PM
    #6
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,205
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a VW pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox
    Here's mine I sourced from Amazon.


    I can't remember the exact brand (Blue Sea something another), but it was around the $10 mark +/- and nearly a perfect fit. It has a little rubber cap included, but I didn't use it. Then I did the jumper mod in the under hood fuse box, with another fuse just in case, and now it's on 24/7. The little plug in adapters always burn out on me at the worst time.

    Biscuits likes this.
  7. Apr 12, 2015 at 4:53 PM
    #7
    gerbs808

    gerbs808 [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152443
    Messages:
    74
    Gender:
    Male
    Socal
    Thanks everybody for the help so far. I currently have one of those adapters that plugs into the 12v outlet and has USB ports on the front, but I'd like to install something else to have it a little more permanent and free up my 12v outlets.

    DR007 - I don't know if I'll be able to figure out how to run the wire all the way up to the fuse box...I'll look into it but in case that proves too difficult, will wiring it the way I said at least give me power when the truck is running? That would probably be good enough for me, especially if it's difficult to run the positive to the fuse box. Plus, if it is wired always hot wouldn't the blue light of the switch and anything charging drain the battery if the truck is off?

    Brake Weight - That looks really clean, I like how it looks like it came from the factory like that. But personally I'd like to use one of the empty spaces rather than one of the 12v sockets. Do you have any pictures of how you wired it to the fuse box?

  8. Apr 12, 2015 at 4:59 PM
    #8
    DR007

    DR007 Well-Known Member

    Joined:
    Nov 12, 2012
    Member:
    #90963
    Messages:
    664
    Gender:
    Male
    First Name:
    Dylan
    Port Barre, LA
    Vehicle:
    '06 DCSB PreRunner
    MagnaFlow exhaust, K&N cold air intake, MB TKO wheels with 265/75/r16 Hankook Dynapro ATM, Blue Center shift LED color change, Map Lights with Dome, LED Map and Dome lights, Cluster Light Change, DTRL, Parking Light as Blinker, Blue A/C Control lights, Blue Clock, Bed Lights, Debadged tailgate, painted all exterior plastic trim, 6LZ Lightbars in grille, OTRATTW switches, Fog Light in Reverse light Mod, LED Blinkers all around, Projector Fog Lights, 15" blitzpro light bar, added hidden cig lighter port, custom plate front bumper, OME complete lift with 885 front coils, Ultraguage, CB radio 3' whips, 12v bed lighter port, Center Console Lights, AllProOffroad Sliders, 50" roof led light bar, 2 BlitzPro 6LZ Reverse Lights
    It's real easy to hook up to the fuse box. I have a second gen so not sure how the first gens are but it'll just be snaking a wire around to the box. The light won't be on if the switch is off and you'd have to leave it on a a long time before it'll kill your battery. I've left light bars on over night and half a day and it never stuttered to turn over.

  9. Apr 12, 2015 at 7:16 PM
    #9
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,205
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a VW pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox
    I used the 12v outlet's wiring. It direct plugged into the USB port piece.

  10. Apr 12, 2015 at 9:19 PM
    #10
    gerbs808

    gerbs808 [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152443
    Messages:
    74
    Gender:
    Male
    Socal
    So you tied into the 12v like I am planning but since you did the jumper mod you have full time power?

  11. Apr 12, 2015 at 9:21 PM
    #11
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,205
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a VW pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox
    Yes. It's full time power.

  12. Apr 12, 2015 at 9:24 PM
    #12
    gerbs808

    gerbs808 [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152443
    Messages:
    74
    Gender:
    Male
    Socal
    Ok. I think I'm going to try to tap in with the T-taps and then possibly do the full time power mod. I'll take some pics when I do it in case anyone is curious. Thanks everyone for the help

  13. Apr 12, 2015 at 9:54 PM
    #13
    Cruzintaco

    Cruzintaco Well-Known Member

    Joined:
    Apr 10, 2015
    Member:
    #152893
    Messages:
    73
    Gender:
    Male
    Sanjose
    Vehicle:
    2001 PreRunner TRD
    K&N drop in filter EGR Silencer Delete More MODS soon to come!
    Well theres a fuse box in the truck, under the steering wheel. You could run the 12v+ to that possibly.
    But ive seen people use Add a Circuit (I call them fuse taps) to hook up stuff like this. cause ive been looking into doing this too but my electrician skills are as kindergarten level can get hopefully someone corrects my input or tells me im on the right track

  14. Apr 15, 2015 at 7:07 AM
    #14
    Nic914AZ

    Nic914AZ Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110084
    Messages:
    292
    Gender:
    Male
    First Name:
    Nic
    Tempe, AZ
    Vehicle:
    02 White Prerunner
    None
    I took apart a 99 cent cig adapter, soldered on some wire leads where the cig lighter parts used to be, then cut a square hole in the blanks there and jbwelded it to the back. Looks stock. Ill get a pic today.

  15. Apr 15, 2015 at 7:14 AM
    #15
    GreeGunc

    GreeGunc Full of regret

    Joined:
    Sep 6, 2014
    Member:
    #137721
    Messages:
    3,504
    Gender:
    Male
    First Name:
    Jacob
    North GA
    Vehicle:
    1st gen 3rz+18' inferno OR 6spd
    2lo mod. PIAA 510s. Green Floor Lights. Green dash swap. Axle dump exhaust. Husky floor mats. Moto metal mo970's. Shrockworks. Sundown sa-8. 9.5xrc. Kings
    Op, I've ran many wires from the center console. I just ran them behind the pedals and up to the fuse box in the truck. If you really wanted, you could go straight from the battery and get an inline fuse.

  16. Apr 15, 2015 at 10:05 AM
    #16
    Brake Weight

    Brake Weight But it hasn't rained in weeks...I'll make it.

    Joined:
    Jan 27, 2015
    Member:
    #147363
    Messages:
    2,205
    Gender:
    Male
    Deep South near the Third Coast
    Vehicle:
    Taco pulling 33s and a VW pushing 33psi
    Weld on sliders, fiberglass shell, 12k winch in an Elite Offroad bumper, front Aussie Lunchbox
  17. Apr 15, 2015 at 7:00 PM
    #17
    gerbs808

    gerbs808 [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152443
    Messages:
    74
    Gender:
    Male
    Socal
    Can you explain how to connect the wires to the fuse box? If you have any pics that'd be great too.

  18. Apr 15, 2015 at 7:10 PM
    #18
    gerbs808

    gerbs808 [OP] Well-Known Member

    Joined:
    Apr 3, 2015
    Member:
    #152443
    Messages:
    74
    Gender:
    Male
    Socal
    I received the switch today, although I was a little disappointed to find out that it is not actually a switch. Since it doesn't have the ability to switch off I think I am just going to tap into the 12v outlet wiring that way it doesn't stay on all the time and have the possibility of draining my battery. I'll give it a try this weekend and report back.

  19. Apr 15, 2015 at 7:23 PM
    #19
    GreeGunc

    GreeGunc Full of regret

    Joined:
    Sep 6, 2014
    Member:
    #137721
    Messages:
    3,504
    Gender:
    Male
    First Name:
    Jacob
    North GA
    Vehicle:
    1st gen 3rz+18' inferno OR 6spd
    2lo mod. PIAA 510s. Green Floor Lights. Green dash swap. Axle dump exhaust. Husky floor mats. Moto metal mo970's. Shrockworks. Sundown sa-8. 9.5xrc. Kings
    Alright bud, you could get something called an inline fuse. pretty much a wire with a fuse in the middle. And I actually worded my statement above incorrectly. I did it the second way straight from the battery with an inline fuse. There is also a fuse tap, just plugs into fuse panel and has a wire coming off of it.

  20. Apr 15, 2015 at 8:00 PM
    #20
    Nic914AZ

    Nic914AZ Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110084
    Messages:
    292
    Gender:
    Male
    First Name:
    Nic
    Tempe, AZ
    Vehicle:
    02 White Prerunner
    None
    The existing cig lighter wiring can handle whatever 5v charger you want. Mine charges a phone at standard and an ipad at 2 amp plus stuff plugged into the cig lighter.
    No need to go all the way to the battery for a usb charger.
