Discussion in 'Audio & Video' started by Westdog976, Mar 18, 2011.

  1. Mar 18, 2011 at 5:24 AM
    #1
    Westdog976

    Westdog976 [OP] Well-Known Member

    Joined:
    Nov 5, 2008
    Member:
    #10514
    Messages:
    163
    Gender:
    Male
    First Name:
    Frankie
    Las Vegas
    Vehicle:
    4x4 SR5 TRD Sport S/B D/C Magnetic Gray
    MX black upper and lower girlles, debadged, limo tints, TRD CAI, flowmaster dual side exit cat-back, DRL mod, 33x12.5 Toyo Open Country M/T, 18x9 XD Monsters, 6" stage II pro comp lift, smoked LED tails and third brake light, mag gray eyelids, 5901 viper remote start alarm, one touch window modules, 10,000k bixenon hid headlights, 3,000k hid fogs, 4x4 switch LED mod, RBP nerf bars, weathertech floor liners, muth signal mirrors, avid light bar, kenwood excelon dnx9140 nav

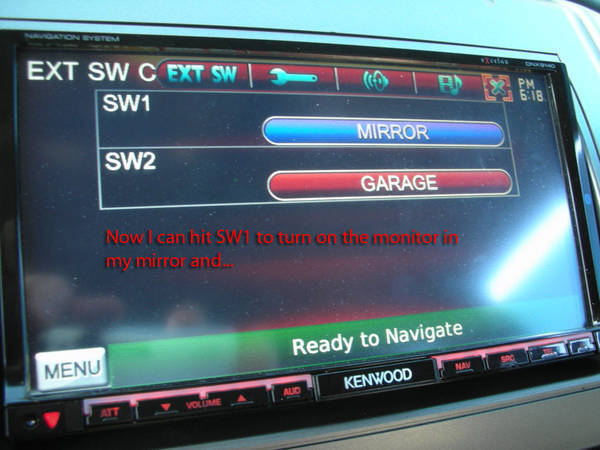

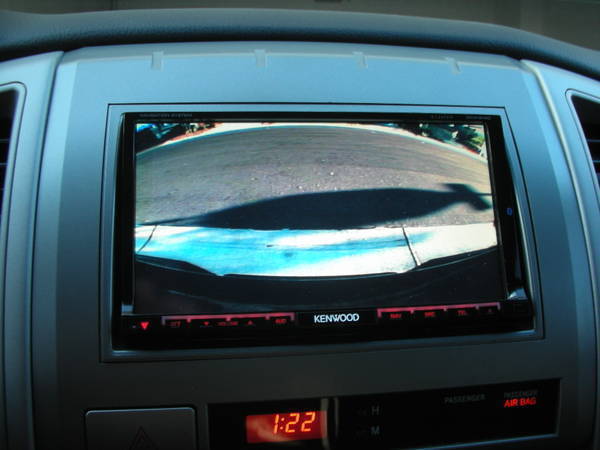

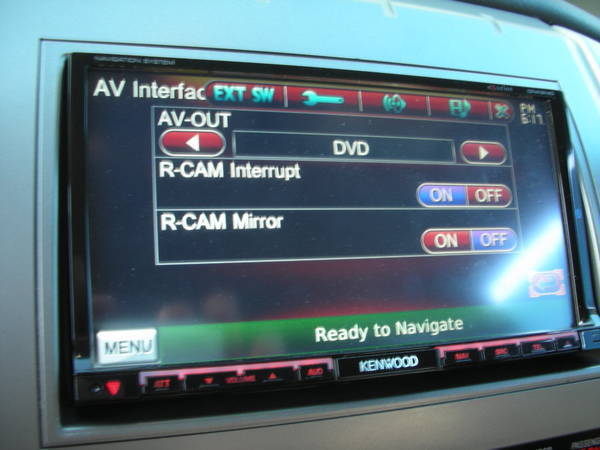

    Hey guys, was going to make a how-to but got deployed to Afghan... maybe when I get back I can edit some of my mistakes and do a decent write up.

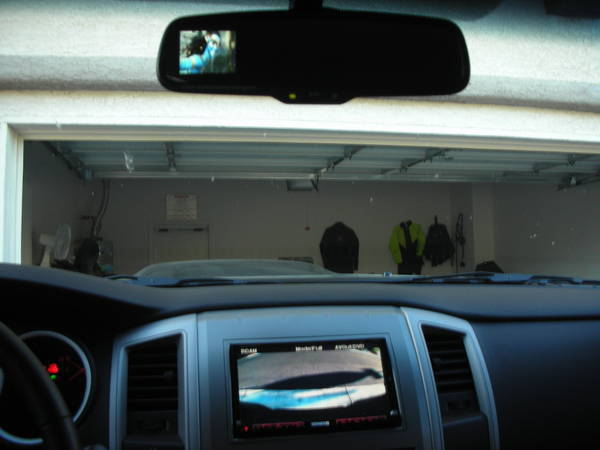

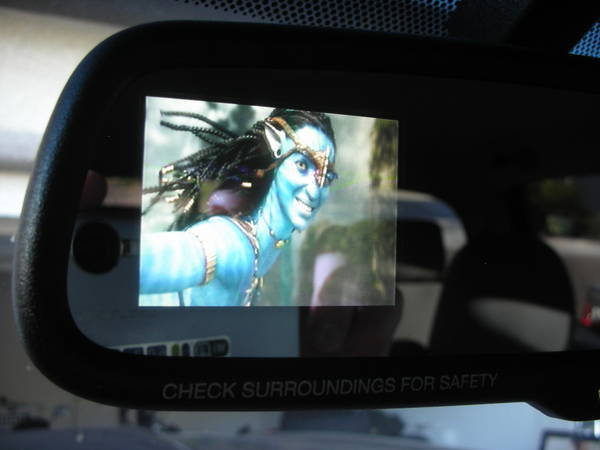

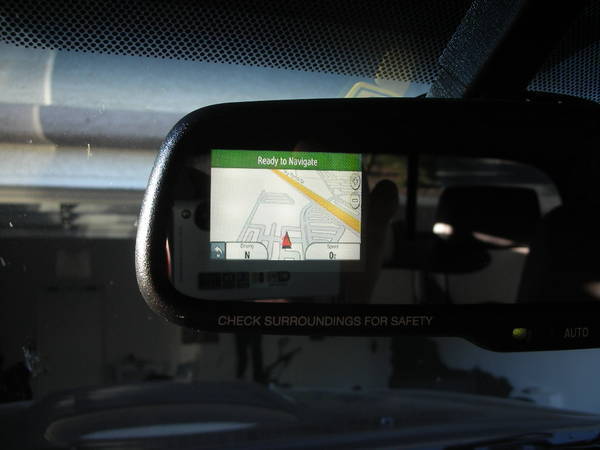

    No real need for a movie playing in that tiny monitor but it is nice to have my speedo up there!! :D

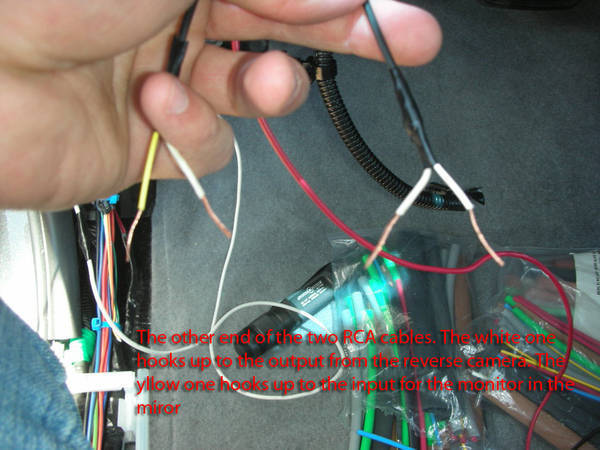

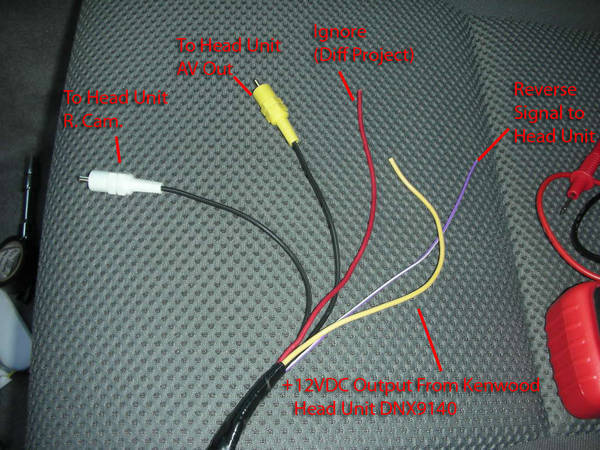

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Apr 6, 2011 at 8:01 AM
    #2
    gov875

    gov875 WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    that's awesome man. way beyond my capabilities though.

  3. Apr 6, 2011 at 8:06 AM
    #3
    TacoRun

    TacoRun Subd for later..

    Joined:
    Mar 8, 2010
    Member:
    #32808
    Messages:
    2,610
    Gender:
    Male
    First Name:
    Luis
    Edinburg,Texas
    Vehicle:
    TRD off road, Magnetic Gray
    Pop Lock, Ranch Hand brush guard
    X2

    As soon as a saw all the wires I was like ah crap Nevermind.

  4. Apr 6, 2011 at 8:10 AM
    #4
    rleeharris

    rleeharris "Old Timer," compliments of 11Taco2.7

    Joined:
    Jan 16, 2011
    Member:
    #49326
    Messages:
    1,253
    Gender:
    Male
    First Name:
    Bob
    San Antonio, Texas
    Vehicle:
    '11 Tundra Crew Max TRD Off Road
    Just saw this! Much Rep to you! Wow!

  5. Apr 6, 2011 at 8:12 AM
    #5
    craignthem08

    craignthem08 Short Sweet & Hard to beat!

    Joined:
    Apr 1, 2011
    Member:
    #54188
    Messages:
    19
    Gender:
    Male
    First Name:
    Pineapple
    Oregon
    Vehicle:
    09 Taco Double Cab
    Air Bags, Rear locker, Front brush guard,Cap, Anytime fogs, Interior LED's, Bed Rug, Yakima Rack and Basket, HID Off Road lights, Revtek Lift, Plasti-Dipped Grill and Rear Bumper, Body Armor Rear Taillight Guards, 3" REVTEK leveling kit,
    That's SICK!

  6. Apr 6, 2011 at 8:30 AM
    #6
    Seabass

    Seabass I need to go return some videotapes...

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    5,231
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    <insert thief bait here>
    Well done!

  7. Apr 6, 2011 at 8:34 AM
    #7
    rjclemen

    rjclemen Well-Known Member

    Joined:
    Aug 16, 2009
    Member:
    #21254
    Messages:
    395
    Gender:
    Male
    First Name:
    Riley
    Charlotte, NC
    Vehicle:
    07 Pre Runner The good looking Blue
    Tint, Bed Cover, HIDs, stubby antenna, double din system, debagded, All Terrain bedside stickers.
  8. Apr 6, 2011 at 8:36 AM
    #8
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,327
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    Awesome write up

  9. Apr 6, 2011 at 8:50 AM
    #9
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,779
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Awesome OP

  10. Apr 6, 2011 at 9:11 AM
    #10
    Westdog976

    Westdog976 [OP] Well-Known Member

    Joined:
    Nov 5, 2008
    Member:
    #10514
    Messages:
    163
    Gender:
    Male
    First Name:
    Frankie
    Las Vegas
    Vehicle:
    4x4 SR5 TRD Sport S/B D/C Magnetic Gray
    MX black upper and lower girlles, debadged, limo tints, TRD CAI, flowmaster dual side exit cat-back, DRL mod, 33x12.5 Toyo Open Country M/T, 18x9 XD Monsters, 6" stage II pro comp lift, smoked LED tails and third brake light, mag gray eyelids, 5901 viper remote start alarm, one touch window modules, 10,000k bixenon hid headlights, 3,000k hid fogs, 4x4 switch LED mod, RBP nerf bars, weathertech floor liners, muth signal mirrors, avid light bar, kenwood excelon dnx9140 nav
    Thanks for all the feedback guys! I’m feeling a little guilty now though….

    Come to find out, the monitor in the mirror is only designed to stay on for five minutes!!!! I assume to prevent it from burning out.

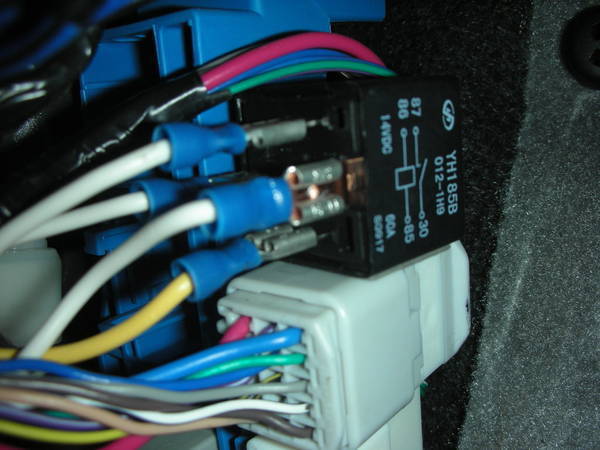

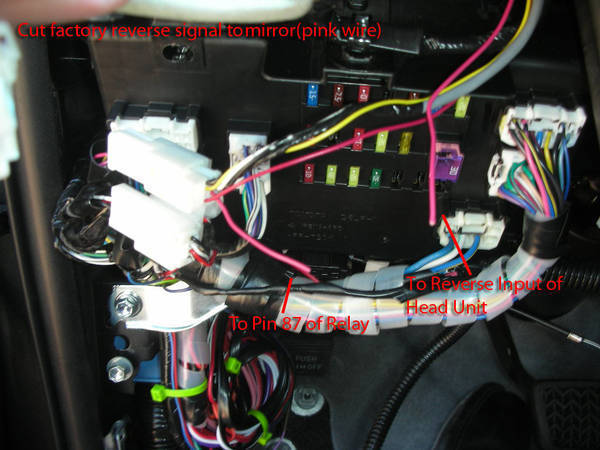

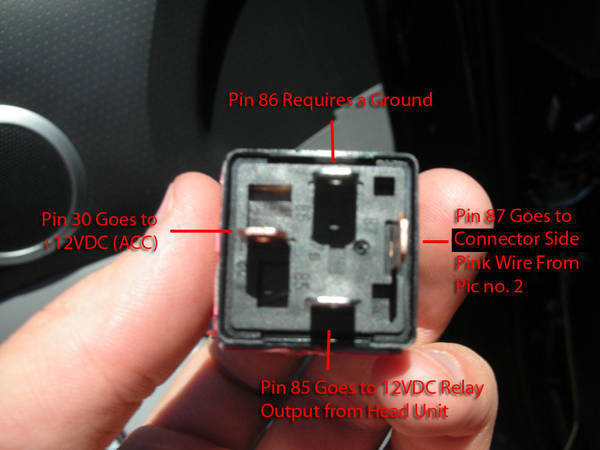

    Anyway, the work-around, unfortunately, was to open up the mirror and solder a wire from the +12 VDC reverse signal (which is now being supplied by the relay) to the monitor power lead. This works really well and the monitor will always stay on now!

    The only catch is the monitor only requires +3.8 VDC so now it is almost three times brighter. I need a way to step down the 12 volts… any ideas?

  11. Apr 6, 2011 at 9:30 AM
    #11
    rleeharris

    rleeharris "Old Timer," compliments of 11Taco2.7

    Joined:
    Jan 16, 2011
    Member:
    #49326
    Messages:
    1,253
    Gender:
    Male
    First Name:
    Bob
    San Antonio, Texas
    Vehicle:
    '11 Tundra Crew Max TRD Off Road
    Dude, I was lost on your first post (anything electrical is gibberish to me) but good luck. I'm sure you'll come up with something. If not, you an always try a hammer. That's what I use.

  12. Apr 6, 2011 at 9:37 AM
    #12
    bizjettech

    bizjettech Well-Known Member

    Joined:
    Dec 4, 2010
    Member:
    #47165
    Messages:
    728
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2013 MGM DCSB 4x4 TRD OR
    undercover flex bed cover
  13. Apr 6, 2011 at 9:41 AM
    #13
    TacoIII

    TacoIII Mr. Boombastic

    Joined:
    May 4, 2010
    Member:
    #36532
    Messages:
    1,419
    Gender:
    Male
    First Name:
    Andrew
    Boone, NC
    Vehicle:
    10 Taco 4x4 off road package
    3" OME 886 coils, ARB bumper warn M8000, Lightforce 240's and 255/85 16 KM2, Redline hood struts, custom offroad bodywork
    awesome

  14. Apr 6, 2011 at 10:59 AM
    #14
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    badass mod!

    x2 on what bizzjet said, solder in a resistor that can step down the power

  15. Apr 6, 2011 at 11:01 AM
    #15
    VooDoo

    VooDoo More Cowbell!

    Joined:
    Dec 5, 2009
    Member:
    #27044
    Messages:
    2,340
    Gender:
    Male
    First Name:
    Carter Ivey
    Baton Rouge, LA/ Starkville, MS
    Vehicle:
    '06 DC LB PreRunner
  16. Apr 6, 2011 at 11:02 AM
    #16
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Looks great but yeah the 5 minute deal sucks. It does the same thing to those that do the rear view camera anytime mod.

  17. Apr 6, 2011 at 11:04 AM
    #17
    davidpick

    davidpick Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    1,994
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    :bowdown: this is seriously impressive! and here i was feeling pretty proud of myself for wiring up my own fog lights and switches! :laugh:

  18. Apr 6, 2011 at 11:06 AM
    #18
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Why not get an aftermarket mirror with a monitor built in and running it the same way you are trying to run the stock one?

  19. Apr 6, 2011 at 12:29 PM
    #19
    Audacia77

    Audacia77 Member

    Joined:
    Apr 2, 2011
    Member:
    #54211
    Messages:
    19
    Gender:
    Male
    First Name:
    Ben
    They forgot to tell me we're not in Iraq anymore..
    Vehicle:
    It's MINE!
    All Pro bumpers, sliders & armor
    Never thought of running the GPS into the mirror. That's awesome.

  20. Apr 6, 2011 at 4:51 PM
    #20
    Westdog976

    Westdog976 [OP] Well-Known Member

    Joined:
    Nov 5, 2008
    Member:
    #10514
    Messages:
    163
    Gender:
    Male
    First Name:
    Frankie
    Las Vegas
    Vehicle:
    4x4 SR5 TRD Sport S/B D/C Magnetic Gray
    MX black upper and lower girlles, debadged, limo tints, TRD CAI, flowmaster dual side exit cat-back, DRL mod, 33x12.5 Toyo Open Country M/T, 18x9 XD Monsters, 6" stage II pro comp lift, smoked LED tails and third brake light, mag gray eyelids, 5901 viper remote start alarm, one touch window modules, 10,000k bixenon hid headlights, 3,000k hid fogs, 4x4 switch LED mod, RBP nerf bars, weathertech floor liners, muth signal mirrors, avid light bar, kenwood excelon dnx9140 nav
    WOW! I think I love you!

    Tried a resistor but that didn't do anything! Was looking for something small enough to fit inside the mirror. This would work but, judging by the heat-sink, I probably should mount it somewhere with air flow.

    I'll give it a try and post the results when I get home in a few weeks!

    Thanks bizjettech!
