Usethe2nds 2011 6SPD ACLB. Fully locked with 5.29's and 37'S. CHEVY 63’s

So my build thread was lost in the depths of the 2nd gen forums, that and my photo hosting site I was using decided to ban postings to firearms websites. So I deleted that shit and lost 99% of the photos I had. This will be a continuation.

MOVING ALONG

I picked up a cherry 2011 AC cab 6 speed with a little less than 19,000 on it in March of 2014

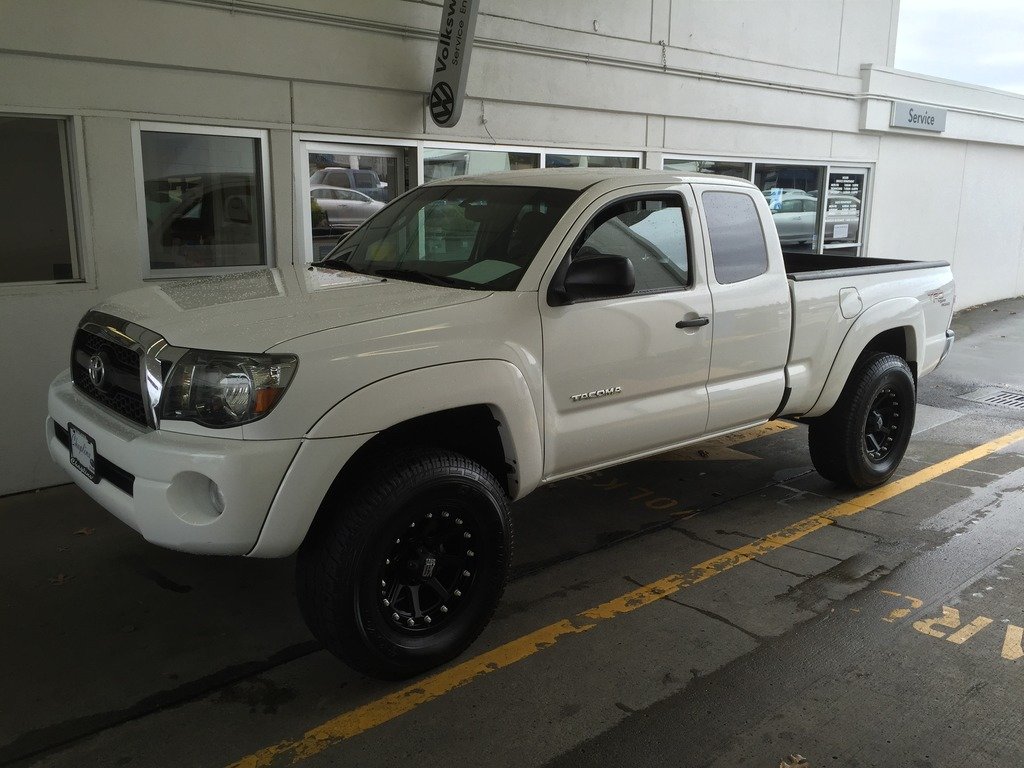

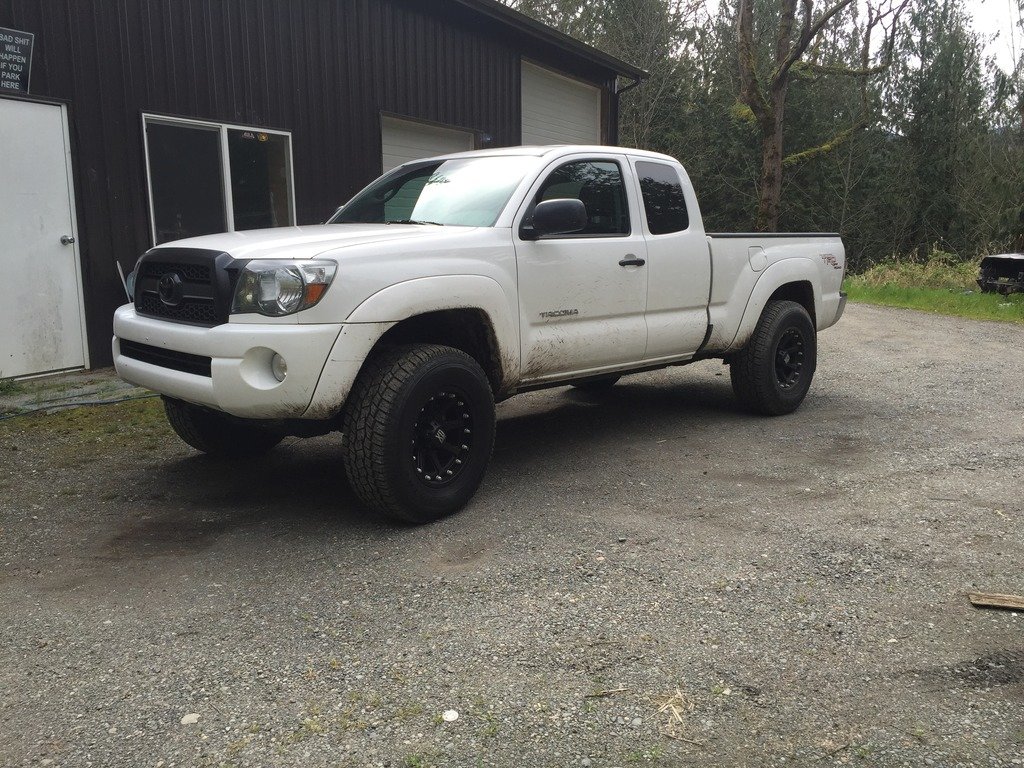

stock didn't last long, I ended up debadging it and dipping the grill

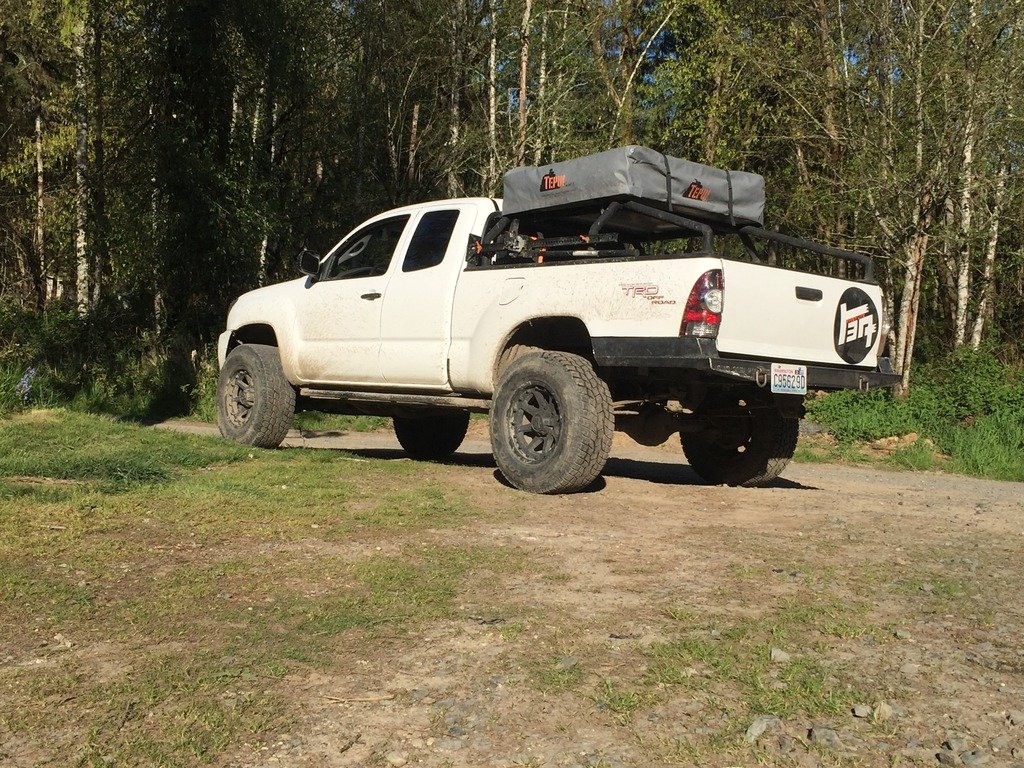

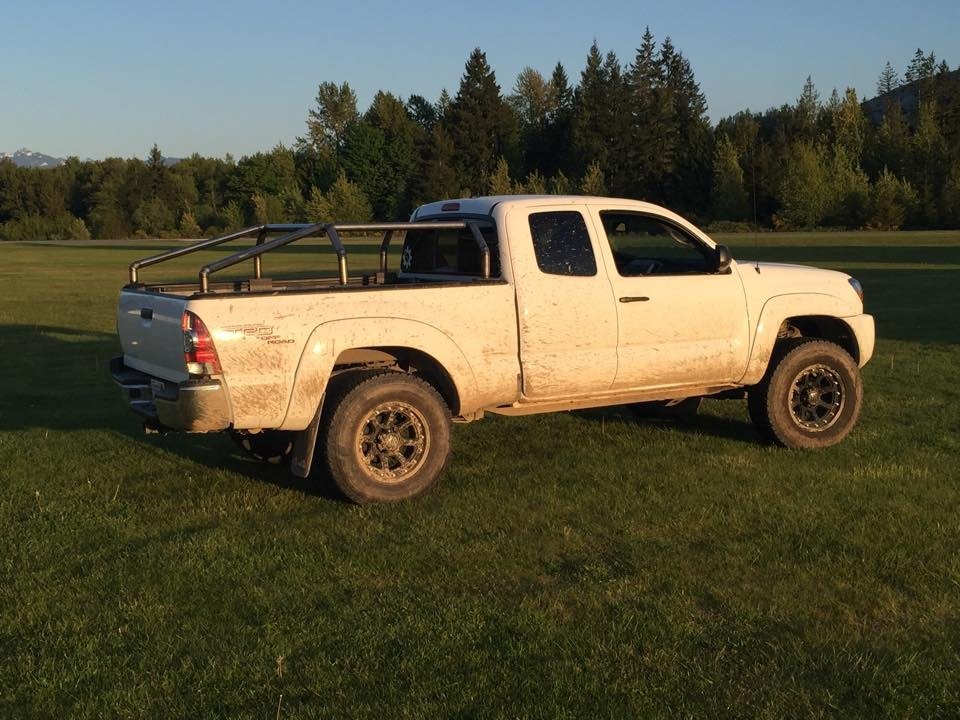

Then stock with no parts welded on got boring, so I made a bed rack and some jerry can holders.

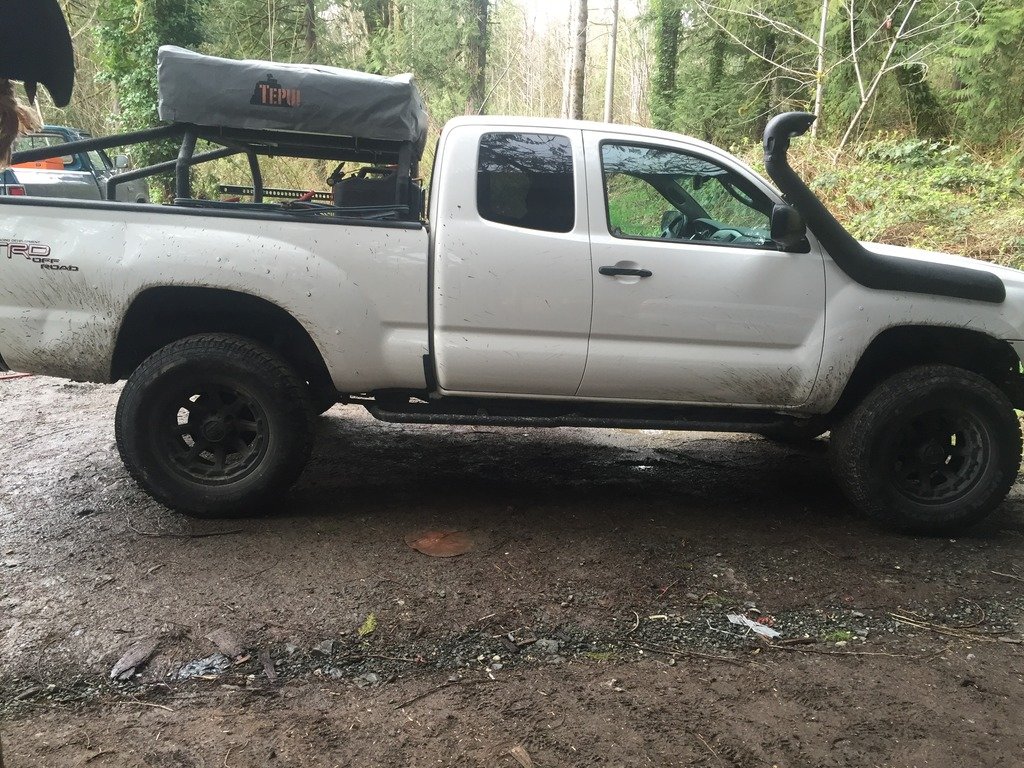

Then somewhere along the journey i drilled a fatty hole in the fender and finagled a LC80 snorkel on and made myself some sliders. I also did a CMC and beat in my pinch weld.

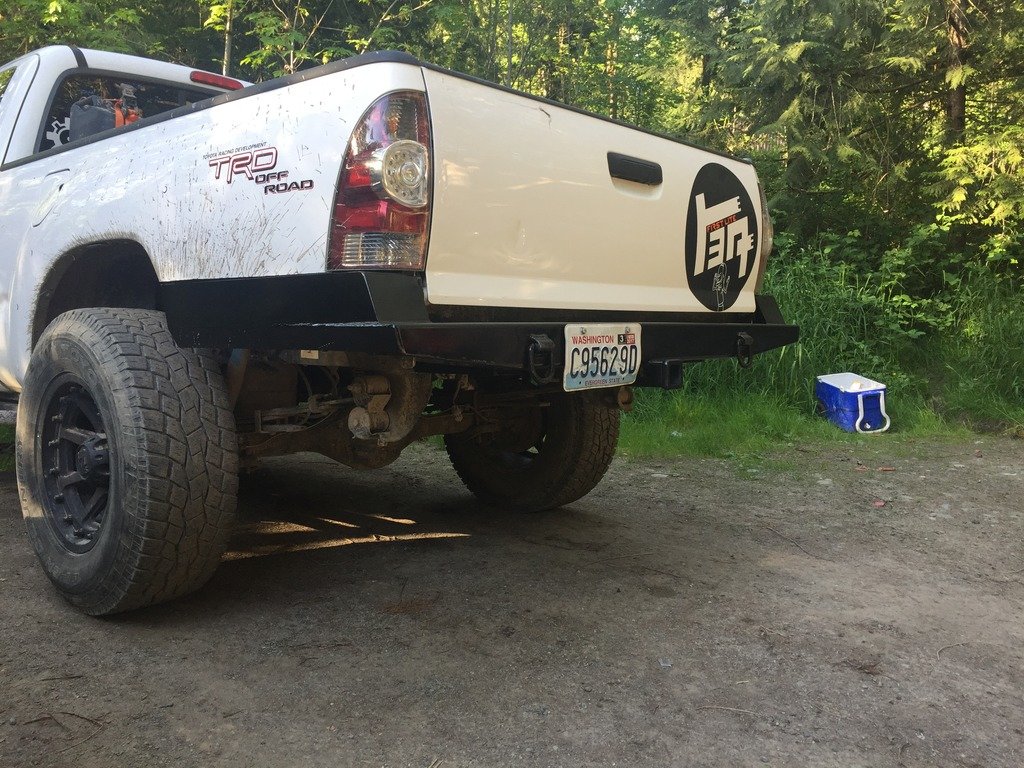

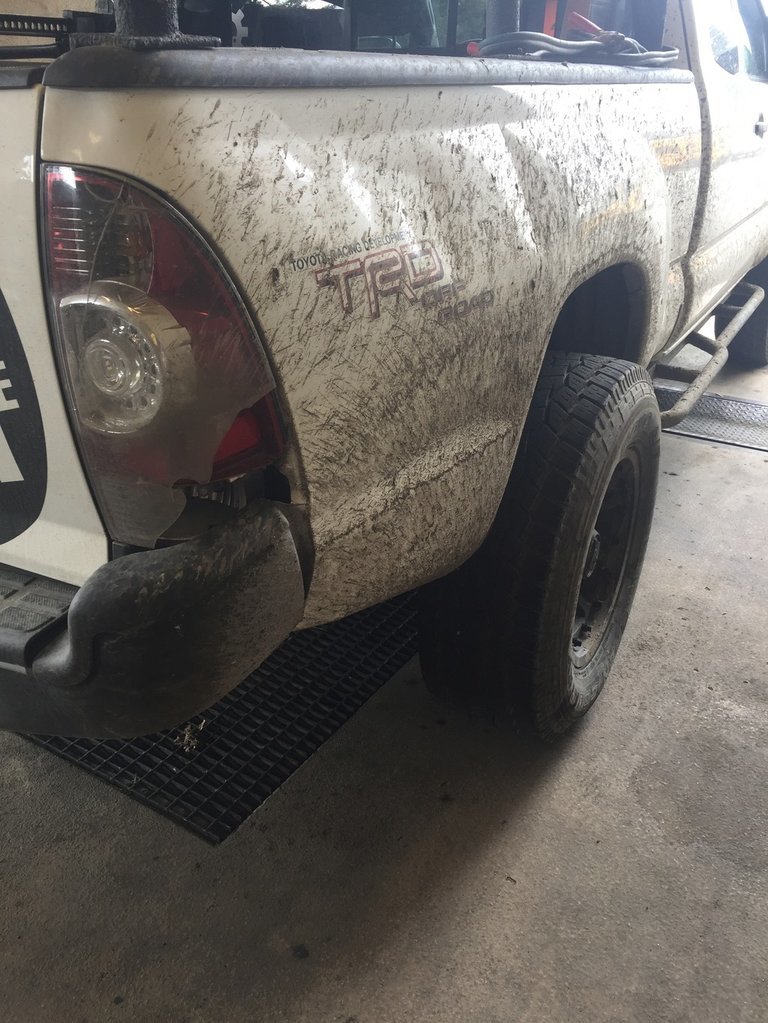

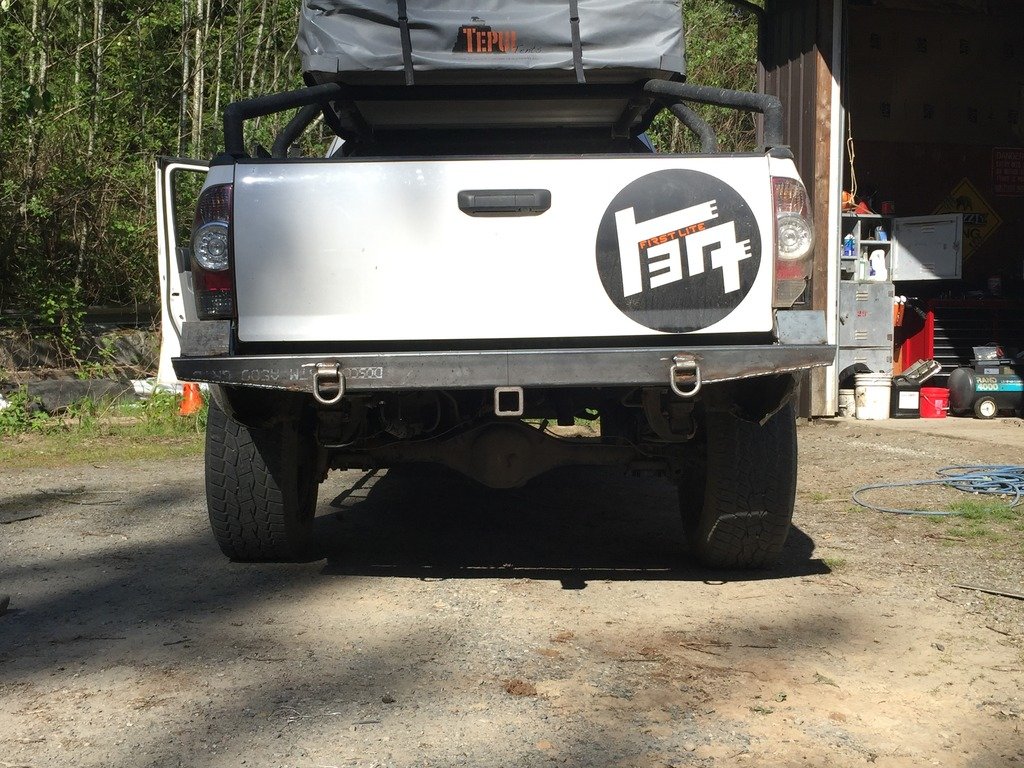

Then i hit a stump and bashed in my rear bumper pretty good so i decided it was HC time. I ended up making my own.





Then i wheeled and car-ramrodded a stump with my front bumper

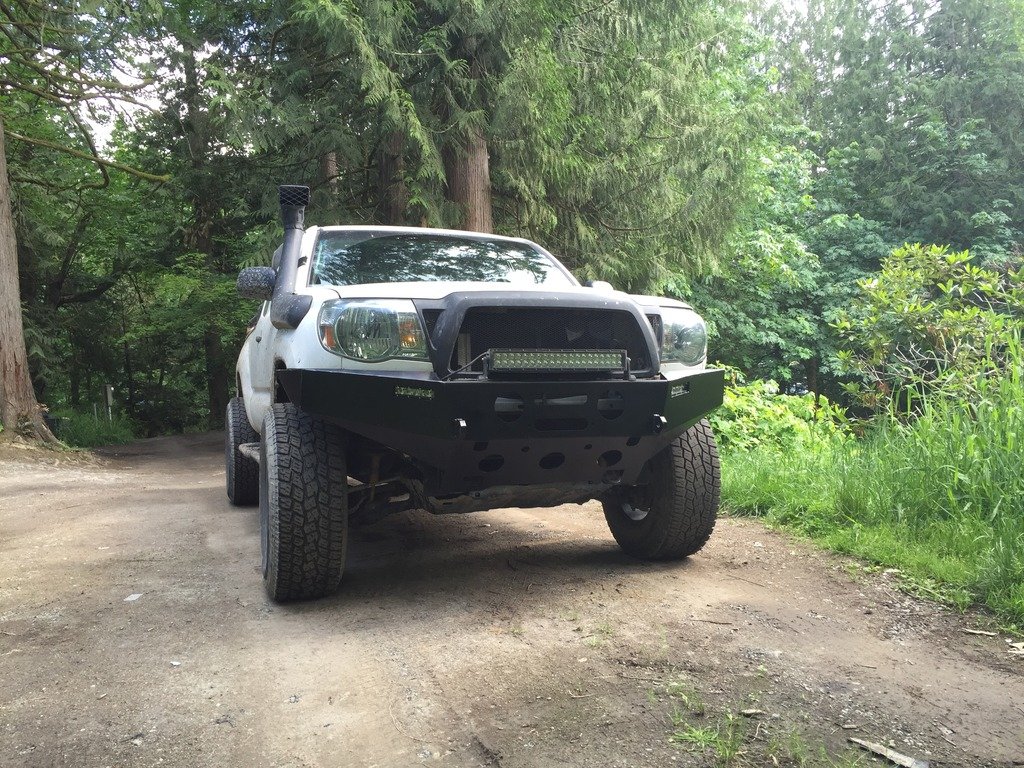

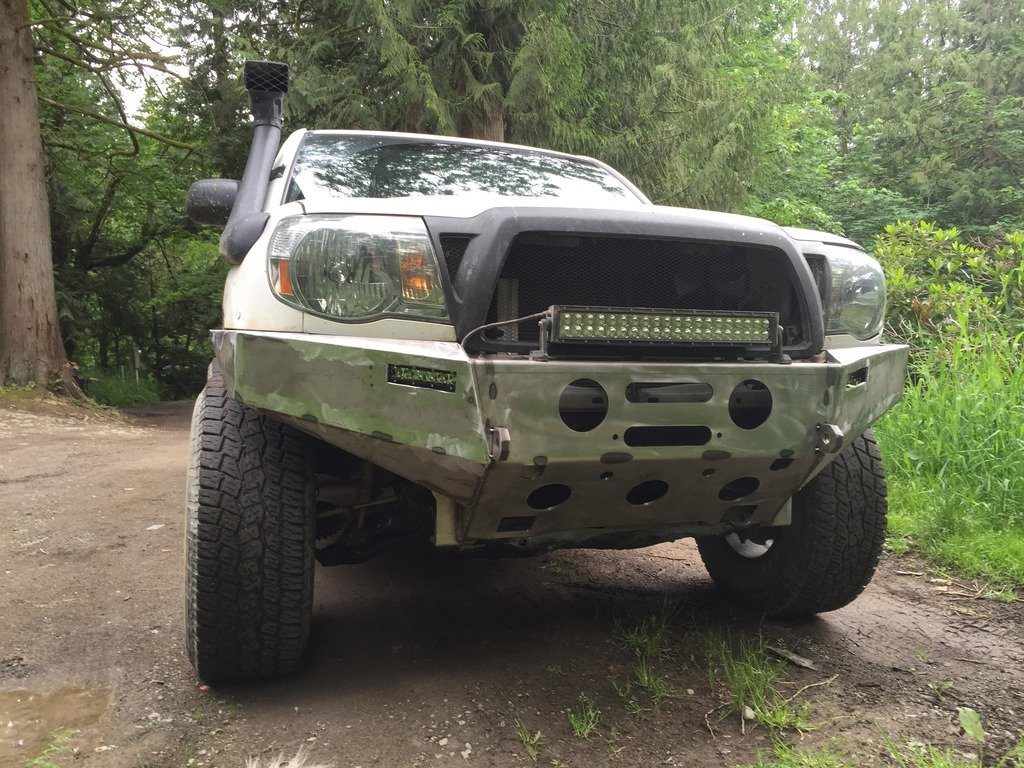

Obviously it was time for a new front bumper, Id really have liked to have made my own but time was short and the bumper was haggard so I banged out a Relentless DIY kit.



ARMOR
-Relentless off-road front bumper
-Custom rear high-clearance rear bumper
-Custom rock sliders
-SOS front skid (painted neon pink)

SUSPENSION
-Total Chaos UCA
-EXT travel ADS coilovers with adjusters
-OME Nitrocharger rear with Dakar’s
-Archive garage shackle flip

WHEELS/TIRES
-315/70R17 falken wildpeak MT1
-XD Addict’s

PERFORMANCE
-Magnaflow muffler
-URD Short throw
-Snorkel

DRIVETRAIN RECOVERY
-Fj cruiser t-case with low range off road twin sticks
-ARB RD111 front locker
-ARB CKSA12
-Nitro 5.29’s
-Re-routed rear different breather
-Locker anytime mod

LIGHTING
-30” Auxbeam light bar
-2- 8” Mictuning bars
-2 flush mount pods in the rear bumper

RECOVERY
-Smittybilt XRC 9.5
-48”Hi-lift jack
-Warn snatch block
-2- ??? tow straps
-1 tree strap
-4 shackles

MISC
-Custom bed cage
-Tepui Ayer
-400w anytime mod
-Tech-deck ram-mount holder
-Ultra gauge OBDII scanner
-Wired for Dual batteries(need new solenoid and second battery)
-Bussman AUX fuse block
-20lb cO2 tank
-Red Goat Fab body mount relocate



To do section ASAP
-Finish flareless fender swap (DONE)
-Install new snorkel (just broke my old one, my fault) (DONE)
-Install locker compressor (MOSTLY DONE, NEED TO FINISH WIRING)
-Install extended rear brake lines (DONE)
-Sand blast F&R bumpers and paint with POR-1(REAR DONE)
- Redo front bumper, going for a hybrid plate/steel (DONE AND BORED WITH IT)
-Purchase front skid plate(DONE)

In the future list:
-Flatbed
-Larger RTT
-MOAR LIGHTS
-TacoBox

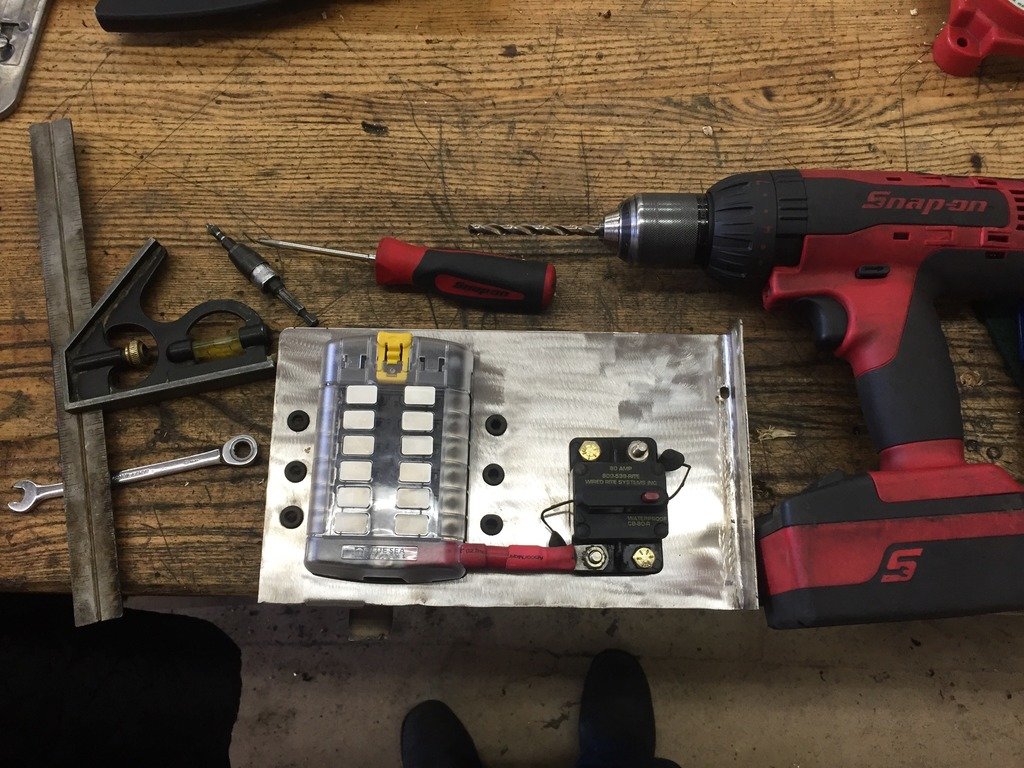

Got my fuse box mounting plate bent and mocked up, waiting on my weather pack connectors to get in now



when you wire all that up, can you do a writeup for the wiring, for someone who barely knows what gauge wiring to use? I have both of those installed in my truck, but nothing wired to them because I have no idea what Im doing.

Nice build progress so far!



I'll see what I can put together, I generally don't have the patience to make write ups. I get to caught up in the project itself and forget to take pictures

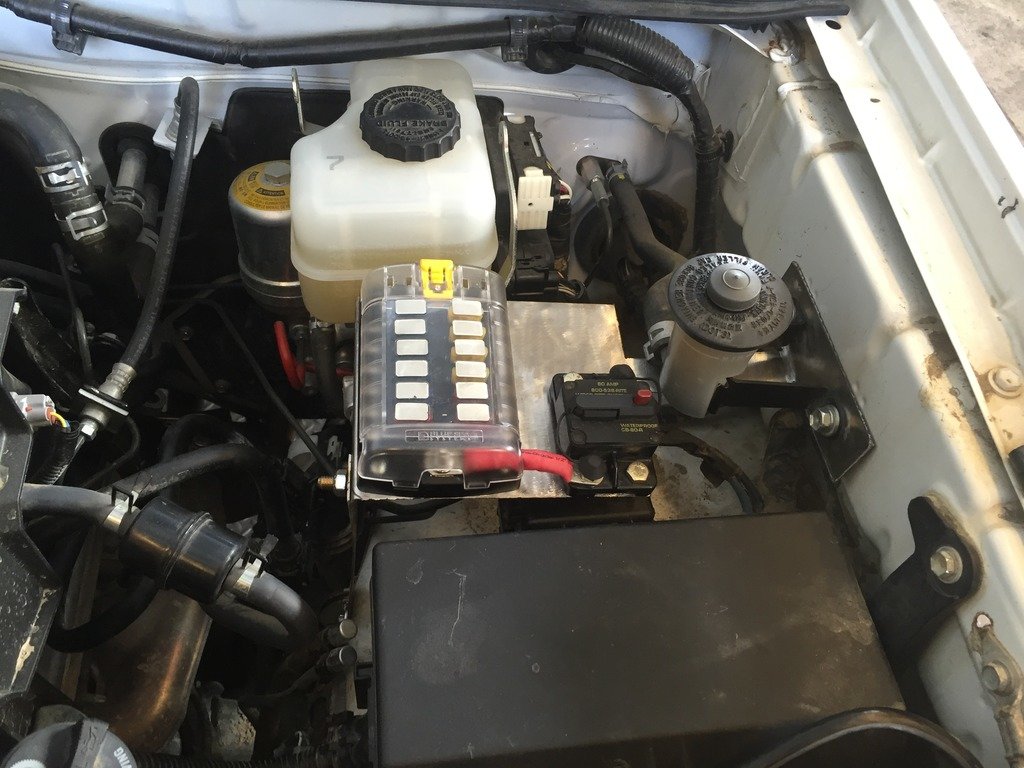

As for the update. I had to make another mounting plate for the aux box and unfortunately for @bobsuruncle i hacked up the old one.



Now I just have to get power to it and then I'll start running some wires



Alright after a few beers,yelling and diagnosing I'm 100% sure that my transfer case no longer wants to transfer.

Picking up an FJ case next weekend....Twin sticks.....



Hey @awsumdc. Quick question, I'm picking up the FJ case this weekend. I noticed the link for the DPDT switch on the RST forums doesn't work. Do you have a reccomendations on where I can get one from?

And I'll be getting the case before my twin sticks arrive, can I still grind the selector and run a single selector until it gets here?



Thanks to @bobsuruncle for cruising along to pick up the transfer case, good thing we didn't have to pull it.

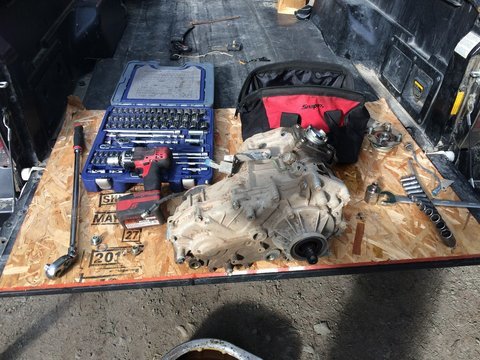

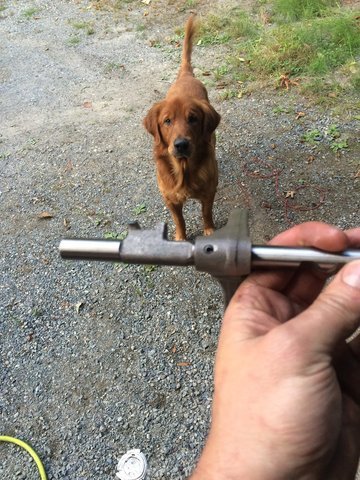

Got the case split and the rail ground down



Case is in! I'll end up taking it out again when I can figure out how to make the sensors work correctly and throw in the sticks

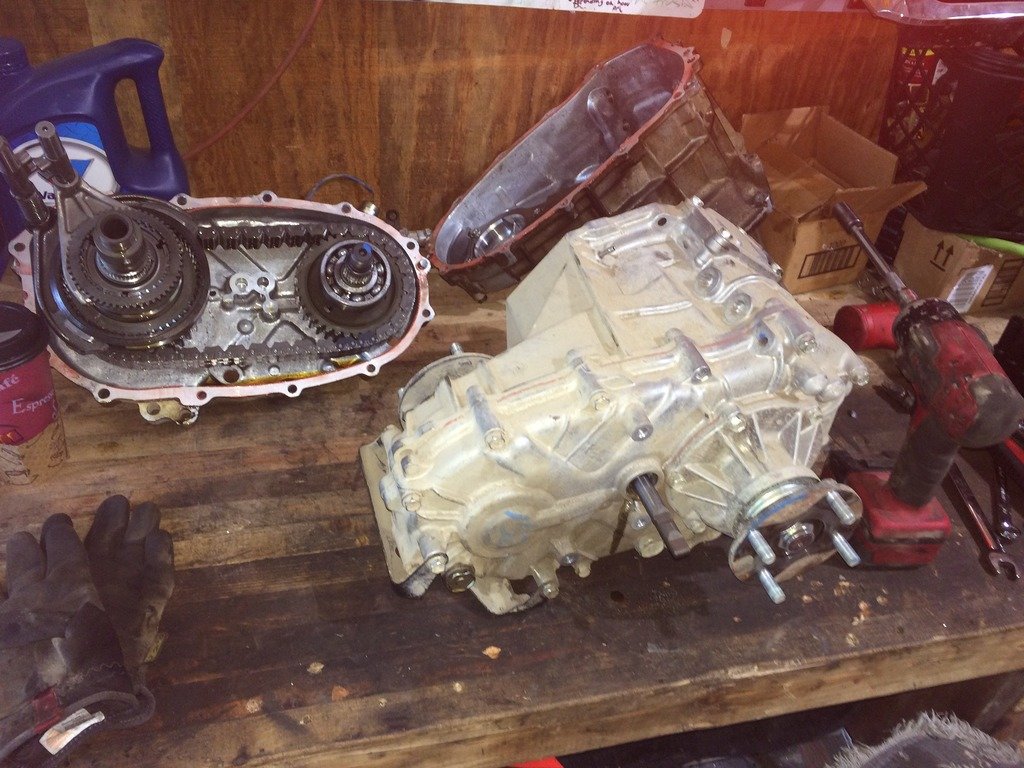

Another picture of the FJ case split open. The hardest part of this was the three little keys. I was able to do everything else by myself except for those little bastards. Thankfully my brother was able to lend a hand, proving that just because you have a desk job doesn't mean you aren't useful

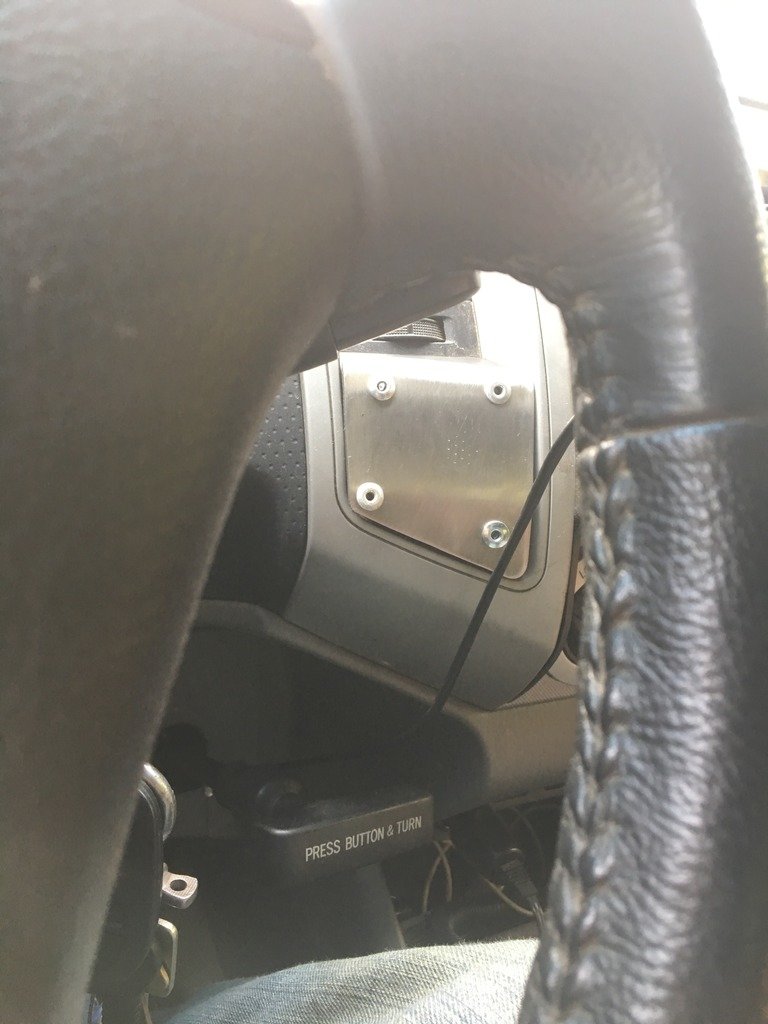

Removed the factory 4hi-lo switch and made this cover, I'll be mounting the front add diff actuator switch here when it arrives.



Can you do the fj case with just the one j style shifter? Really want to do that with my 4wd swap but don't want do twin sticks



Yep, you'll still have to wire in a switch for the front diff and eliminate to 4wd ECU



Here for the fj swap



The twin sticks will be here on Tuesday. Hopefully the switch I ordered isn't far behind



One....more...day...

At least I've been busy at work



Alright guys, got the switch figured out. Wiring...I hate it... I should have it functioning correctly which will be tested when I get home and throw in the sticks... They're sitting on my porch

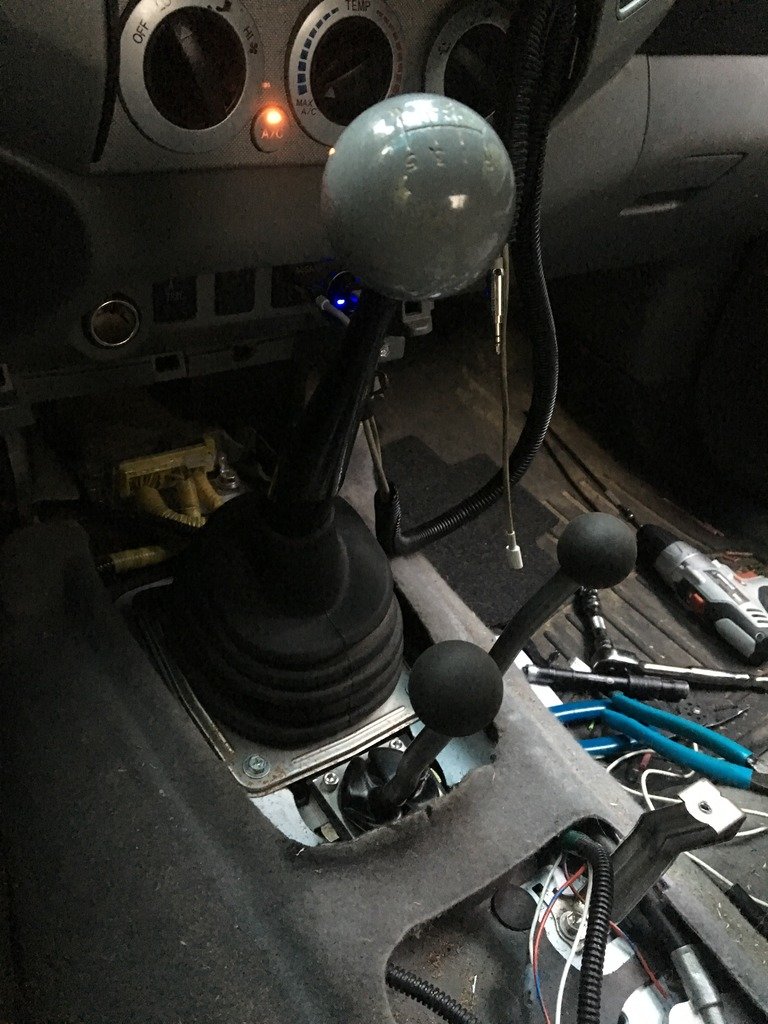

Awesomeness, still got some cleanup work to do. That and I'll have to cut and move the hi/lo shifter to the left, it interferes with selecting 2nd gear. I'll also need to swap around the sensors on the t case eventually
