Using an in cab push button switch to kill power to a Smittybilt winch.

Discussion in '3rd Gen. Tacomas (2016+)' started by littlefish, Jan 19, 2019.

  1. Jan 19, 2019 at 5:26 AM
    #1
    littlefish

    littlefish [OP] Well-Known Member

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    232
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    My SSO Slimline should be here soon, and with it I plan to install a SB X20 10K to go along with it. I'd like to also have a way to kill power to the winch when I am not using it. I could install a switch under the hood in line, but what's the fun in that? I wanted to use a CH4x4 switch inside the cab to kill the power.

    Can someone point me in the right direction on how to wire this up? I know I'll need a relay, I've got the switch. But as far as the wiring goes I am lost on this one. The install manual does a good job describing how to wire the winch, but I'd like to avoid keeping it powered full time.

  2. Jan 19, 2019 at 5:56 AM
    #2
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    10,475
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread
    You're right on needing the relay but I don't know if anyone even makes a relay big enough for that.
    Most of the 5pin relay are only good for 30-40amp. At least not in the conventional way

    You might have to go with a manual switch or look into battery isolator type relays.

    Blue Sea likely makes them.

  3. Jan 19, 2019 at 8:05 AM
    #3
    Garyji

    Garyji Well-Known Member

    Joined:
    Oct 31, 2015
    Member:
    #168245
    Messages:
    1,692
    Gender:
    Male
    First Name:
    Gary
    Western North Carolina
    Vehicle:
    2016 BR SR5 DCSB V6 4WD. TRD Pro 17's, BFG KO2's
    :popcorn:

    This outta be good.

    G.

  4. Jan 19, 2019 at 9:31 AM
    #4
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    3,569
    39.9526° N, 75.1652° W
    Vehicle:
    2017 TRD 4WD V6 AC LB 6MT
    The winch itself has a power switch

  5. Jan 19, 2019 at 9:33 AM
    #5
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    3,266
    Gender:
    Male
    What is the goal of doing this?

    TACOVRD and Boghog1 like this.
  6. Jan 19, 2019 at 9:41 AM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    1,231
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Get the Winch Quick Connect with end cover plugs, connect when your going to use it.
    [​IMG]

    gilligoon likes this.
  7. Jan 19, 2019 at 9:46 AM
    #7
    SearArtist

    SearArtist Just beat the devil out of it

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    4,455
    Gender:
    Male
    First Name:
    Matt
    Lincolnton, NC
    Vehicle:
    2016 Tacoma TRD Off Road
    gilligoon likes this.
  8. Jan 19, 2019 at 9:48 AM
    #8
    mwc273

    mwc273 Earning my EAF sticker, one mod at a time.

    Joined:
    May 10, 2013
    Member:
    #103900
    Messages:
    8,798
    Gender:
    Male
    First Name:
    Matt
    Cincinnati-ish
    Vehicle:
    '13 TRD DCLB 4x4 (Trail-Limo)
    dents an' scratches an' stuff
  9. Jan 19, 2019 at 9:48 AM
    #9
    SearArtist

    SearArtist Just beat the devil out of it

    Joined:
    Jan 5, 2016
    Member:
    #174151
    Messages:
    4,455
    Gender:
    Male
    First Name:
    Matt
    Lincolnton, NC
    Vehicle:
    2016 Tacoma TRD Off Road
    Incorrect. The switch on the winch is to turn off the wireless control. It’s powered constantly otherwise.

  10. Jan 19, 2019 at 9:57 AM
    #10
    Ducman82

    Ducman82 Well-Known Member

    Joined:
    Apr 8, 2018
    Member:
    #249837
    Messages:
    249
    Gender:
    Male
    First Name:
    jake
    Vehicle:
    2016 Sand Tacoma TRD
    had mine installed for a week so far..... no battery draw..... it will be a new winch, so unless it has an internal short, it won't draw anything...... never had a winch "kill" a battery.... ever.

  11. Jan 19, 2019 at 10:02 AM
    #11
    mwc273

    mwc273 Earning my EAF sticker, one mod at a time.

    Joined:
    May 10, 2013
    Member:
    #103900
    Messages:
    8,798
    Gender:
    Male
    First Name:
    Matt
    Cincinnati-ish
    Vehicle:
    '13 TRD DCLB 4x4 (Trail-Limo)
    dents an' scratches an' stuff

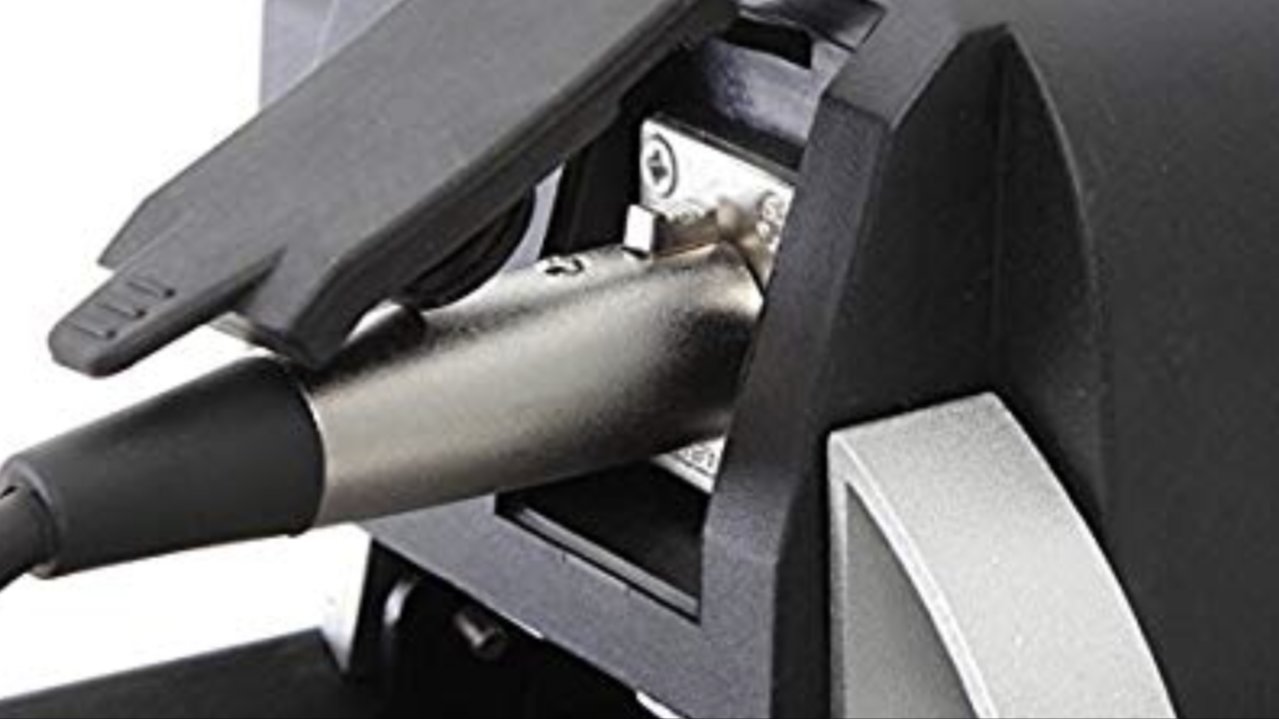

    The solenoid on the winch from the factory isolates everything but the positive supply cable.
    With wireless turned off and no controller attached you're good.
    All you're doing with an inline switch, or even a relay or solenoid, is shorting the live portion of the supply cable.

  12. Jan 19, 2019 at 10:06 AM
    #12
    Louisd75

    Louisd75 Well-Known Member

    Joined:
    Nov 7, 2013
    Member:
    #116140
    Messages:
    721
    Gender:
    Male
    Northwest Washington
    Vehicle:
    '02 Xtra Cab, '15 DCSB
    I don't know that he's necessarily worried about power draw. I have an isolation solenoid that I use as a preventative measure in case of an accident or if someone trying to steal my winch decides to cut the wires. There have been instances of vehicle fires caused by both of those cases.

    I'm pretty sure my solenoid is rated 300a continuous with 750a or 1000a momentary but I would need to look to verify.

  13. Jan 19, 2019 at 11:17 AM
    #13
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    3,569
    39.9526° N, 75.1652° W
    Vehicle:
    2017 TRD 4WD V6 AC LB 6MT
    I’m not an electrical expert, but it’s a power switch according to Smittybilt and manually (including non wireless) the winch doesn’t work until the control handle is plugged in.

    “This model has a switch on the solenoid pack to turn off the wireless. This way wireless interference can't actuate your winch while you aren't using it and pretzel your bumper/cause a fire. 5 pin winch solenoid wiring uses a double switched ground/positive setup so the contactor isn't grounded unless the winch switch is pressed. This provides solid security against unintended operation in the event of wiring or contactor failure, and wireless systems without a cutoff switch violate this safety measure.”






  14. Jan 19, 2019 at 11:21 AM
    #14
    FadedComa

    FadedComa Failed Porn Star.........

    Joined:
    Apr 27, 2017
    Member:
    #217518
    Messages:
    4,059
    Gender:
    Male
    Vehicle:
    09 BSP TRD SPORT......
    Wiper Blades
    That is literally what he just said.

  15. Jan 19, 2019 at 11:27 AM
    #15
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    4,692
    somewhere in the Mojave Desert
    Vehicle:
    2017 Tacoma TRD 4x4 (formerly 2002 TRD 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Edit: That BlueSeas switch model doesnt have a very high constant or intermittent amp rating, its rated to 350/600 amps . There’s another one that goes up to 900 amps. I put mine in the engine bay, but if he really wants to, I guess it could be mounted on his dash. He just needs a drill bit large enough to wire it up with some 1-guage power cord through the dash and firewall. Easy peasy! :bananadance:


    I’m not responsible for results, however...

    Last edited: Jan 19, 2019
  16. Jan 19, 2019 at 11:31 AM
    #16
    rollin904

    rollin904 Feather Slinger

    Joined:
    Apr 11, 2011
    Member:
    #54724
    Messages:
    2,202
    Gender:
    Male
    First Name:
    TJ
    Greenville, SC
    Vehicle:
    '14 DCSB 4x4
    Volksparts and OnHartung'sRoad like this.
  17. Jan 19, 2019 at 11:38 AM
    #17
    gordi

    gordi Only had a wheel fall off once

    Joined:
    Jul 16, 2013
    Member:
    #108373
    Messages:
    2,787
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2011 DCSB trd sport
    Fox 2.5 extended travel, dakars, rear 5125 255/80/17 cooper maxx ST

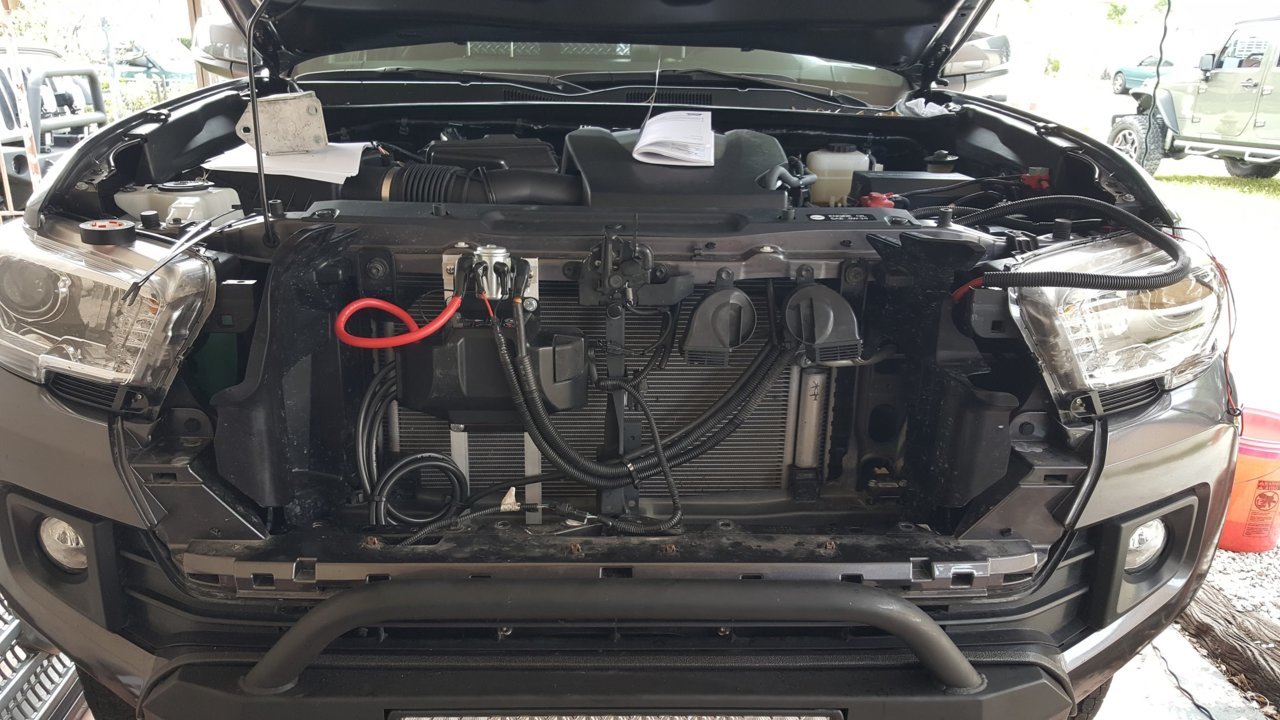

    only way to do it really. I mean he could run the line into the cab and back out lol. I moved my solenoid into the engine bay and i have in cab switches but still have the main switch under the hood and near the battery for when it needs to be turned on for use.


    TACOVRD and OnHartung'sRoad like this.
  18. Jan 19, 2019 at 11:45 AM
    #18
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    3,569
    39.9526° N, 75.1652° W
    Vehicle:
    2017 TRD 4WD V6 AC LB 6MT
    There’s more to it, the solenoid switch turns the winch off so you can’t use it manually or wireless.

    The wireless battery powered remote handle has a power switch, as well.

    A quick connect you’ll have to pop the hood to connect and you have to plug in the remote handle which is right next to the solenoid switch.

    To connect a quick connect for a winch is a waste of money plus it can kill your winch for the reasons below. These are not 100W light bars drawing 7 amps they draw up to 500 amps.



    This from another TW Member

    “A disconnect isn't a bad idea to prevent issues in the event of a crash, but not matter what, it is very important to ensure the cables are well secured and protected against rubbing. Same as your high current starter cable, which are never fused BTW. The downside to any disconnect or quick-connect connector is that it will eventually be a cause of high resistance, which equals low voltage to the motor, which = high current = heat which will destroy the winch motor.”


    And if anyone’s thinking of using a fuse or circuit breaker, read this from expedition portal

    “In my opinion, the winch manufacturers tell you to wire the winch directly to the battery for a reason. The wire harness provided is the only wiring on the vehicle capable of sustaining the amperage load the winch demands under its rated range of performance. Degrading or limiting the harness rating would only degrade the performance of the winch.

    Many winches will, in fact, consume 400 amps or more even when not stalled. A full stall electric motor consumes a lot of amperage, and it may well spike under those conditions to amperages well above those shown for the same motor under a running load. Having never had a load meter on a stalled winch, I don't know what the amperage consumption could spike to, but I would assume it would be well above the maximum draw shown for the winch under load. Still, I have stalled my winch many times without damage, and without causing a fire, so whatever the draw was, the system was able to provide it and sustain it at least briefly without negative result.

    Most of the time when using a winch for recovery, you will not pull maximum loads and thus will not pull maximum amperage. We routinely use only 2,000 to 4,000 pounds of pull for recovery, even with rigs far heavier than that and with winches rated for 8,000 to 12,000 pounds of pull. Check the power consumption chart for your winch. Instead of focusing on the maximum ratings and loads, look at the consumption for a 2,000 pound pull on the first wrap or second wrap and you will find that the power consumed is far less than maximum, and probably within the range of a heavy duty alternator. If this was all the winch ever was asked to do, a 200A breaker would probably do fine in circuit.

    However, the power harness for the winch should be built to handle the maximum load anticipated, not the nominal load or average demands of recovery. You simply can not control the amount of power needed by your winch when recovering a vehicle, so you need to build for maximum effort.

    I would not recommend using a circuit breaker or fuse in a winch harness for the simple reason that it is both possible and likely that you will see momentary power consumption far above the rating of any such device if the breaker rating is lower than the winch demands. I don't see a point in this, because you will be resetting breakers or replacing fuses when it really is not required otherwise.

    Having used winches on vehicles in extreme circumstances now for a lot of years, I can say from experience that I have never seen a short in a winch harness. I have even used mine repeatedly while the winch was fully submerged, without issues or shorting. If the harness is correctly routed, not subjected to abuse or excesses of heat and abrasion, or neglected, the likelihood of a short is so far down the probability scale as to be not worth taking extraordinary steps such as installing circuit interrupters.

    My recommendation is to install the winch according to manufacturer's directions and let it go at that.”





    Last edited: Jan 19, 2019
    Alesimo likes this.
  19. Jan 19, 2019 at 11:46 AM
    #19
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    4,692
    somewhere in the Mojave Desert
    Vehicle:
    2017 Tacoma TRD 4x4 (formerly 2002 TRD 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    That one is perfect - OP take a look at the rating on the face of the switch, the black one below can handle most winches when they are in full load mode- check your winch ratings at full load before you do this though just to be sure. See this:
    vs this:

    Ignore the voltage rating, as they are over 12v. As long as both continuous and intermittent amp values exceed your winch ratings, you will be ok directly wiring in this switch. Use 1 or 2 guage battery cables to do it, and keep them as short as possible.

    Last edited: Jan 19, 2019
    Volksparts likes this.
  20. Jan 19, 2019 at 8:13 PM
    #20
    Volksparts

    Volksparts AKA The Un"Official" Meso Taco

    Joined:
    Jan 13, 2017
    Member:
    #207523
    Messages:
    738
    Gender:
    Male
    First Name:
    Dave
    San Diego
    Vehicle:
    2017 Taco Runner
    rollin904 likes this.
