Using onboard air for air bags

Discussion in 'Suspension' started by kchotas, Apr 22, 2020.

  1. Apr 22, 2020 at 7:52 AM
    #1
    kchotas

    kchotas [OP] Member

    Joined:
    Jul 25, 2019
    Member:
    #300211
    Messages:
    14
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2010 Grey Tacoma TRD Off Road DCSB
    Anyone ever run their airbags off an onboard air compressor? I have the ARB single compressor and want to set it up to inflate the airbags I’m getting off a switch. I plan on installing a gauge in the cab to make sure I don’t over fill. My main question is what parts will I need to utilize one of the two switch harnesses that are meant for lockers?

  2. Apr 22, 2020 at 9:02 AM
    #2
    SubCultureNM

    SubCultureNM Well-Known Member

    Joined:
    Apr 19, 2018
    Member:
    #251016
    Messages:
    365
    Gender:
    Male
    First Name:
    Brian
    Houston, TX
    Vehicle:
    2017 DCSB
    Are you also using the ARB compressor to air-up tires or actuate a locker, or will it strictly be for your helper bags?

    kchotas [OP] and danielsthomas57 like this.
  3. Apr 22, 2020 at 9:31 AM
    #3
    kchotas

    kchotas [OP] Member

    Joined:
    Jul 25, 2019
    Member:
    #300211
    Messages:
    14
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2010 Grey Tacoma TRD Off Road DCSB
    I am using it for airing up tires and eventually I would like to put a knocker in my front diff but no immediate plan for it. The compressor is set up with the air hose adapter in the main spot. I still have the two bungs in the little tank that comes on it. I figured I could still use the one for a locker and the other for the airbags

  4. Apr 22, 2020 at 9:45 AM
    #4
    SubCultureNM

    SubCultureNM Well-Known Member

    Joined:
    Apr 19, 2018
    Member:
    #251016
    Messages:
    365
    Gender:
    Male
    First Name:
    Brian
    Houston, TX
    Vehicle:
    2017 DCSB
    Unless you absolutely want the looks of the ARB switch, the easiest way to wire it is going to be to eliminate the ARB wiring all together, and simply run the compressor's power and ground to a simple on/off switch (SPST). It's best to run a relay, IMO, so you're not sending full current through the switch. You obviously don't need to install the solenoids that control the air lockers until you're ready to have a locker installed. Since there's two ports, for now you can run one for an air chuck and one for your bags. However, if you want to install a pressure gauge for your bags, you'll need a small manifold on that port, and a reducer, so you can plumb the gauge's air line into the system.

    kchotas [OP] likes this.
  5. Apr 22, 2020 at 10:20 AM
    #5
    kchotas

    kchotas [OP] Member

    Joined:
    Jul 25, 2019
    Member:
    #300211
    Messages:
    14
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2010 Grey Tacoma TRD Off Road DCSB

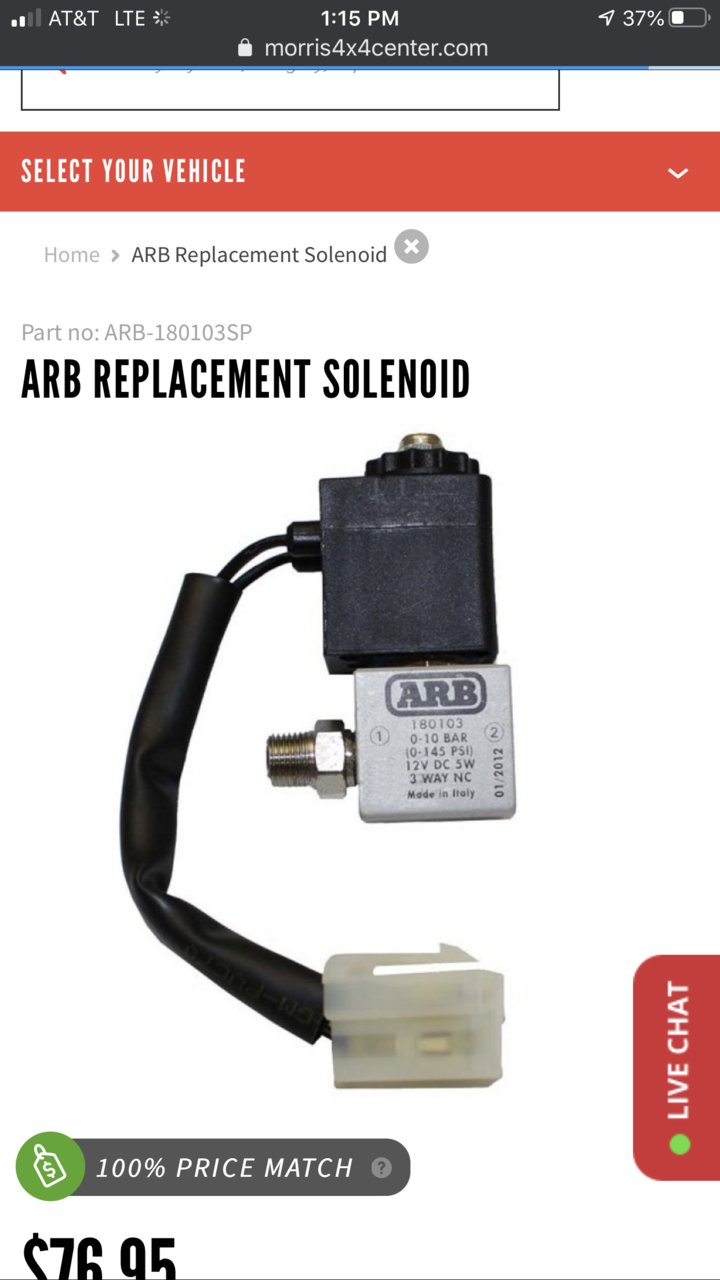

    I’d like to keep the arb switches since they already run to a relay supplied with the compressor. I’ve done some googling and found an ARB solenoid is that something I’d need to utilize the other switch wiring from the ARB harness?
