vF Tuner for the 3.5L Tacoma-AGM tuning

Discussion in '3rd Gen. Tacomas (2016+)' started by banjoist13, Oct 12, 2020.

  1. Oct 12, 2020 at 1:44 PM
    #1
    banjoist13

    banjoist13 [OP] KDMax Authorized Tuner NorCal

    Joined:
    Sep 5, 2016
    Member:
    #196465
    Messages:
    64
    First Name:
    Ian
    Humboldt County, CA
    Vehicle:
    2016 Off-Road 4x4 Manual Transmission
    RCI full skids, C4 FAb Rock Sliders, Rago Fab LCA skids & rear shock mount skids, Method Trail 701 Wheels, ARB onboard air system, Taco Tunes speaker system, Rago fabs Center consol MOLLE, Weboost Drive Sleek OTR, AnytimeBackupCamera front/rear camera system, SDHQ Billet Battery Terminals, Gofast Camper, Morimoto XD headlights, Fox 2.5 adjustable front w/650lb Eibach springs and rear shocks, Deavers stage 3 leaf springs, Martin off-road camper rack,
    Please, this thread is only intended for discussing using vF tune to tune the alternator to properly charge AGM batteries or such related discussions. Always feel free to reach out to me if you have specific questions or want ideas on shifting things.

    Last edited: Oct 12, 2020
    C41n, SC4333, Governor and 8 others like this.
  2. Oct 12, 2020 at 2:17 PM
    #2
    banjoist13

    banjoist13 [OP] KDMax Authorized Tuner NorCal

    Joined:
    Sep 5, 2016
    Member:
    #196465
    Messages:
    64
    First Name:
    Ian
    Humboldt County, CA
    Vehicle:
    2016 Off-Road 4x4 Manual Transmission
    RCI full skids, C4 FAb Rock Sliders, Rago Fab LCA skids & rear shock mount skids, Method Trail 701 Wheels, ARB onboard air system, Taco Tunes speaker system, Rago fabs Center consol MOLLE, Weboost Drive Sleek OTR, AnytimeBackupCamera front/rear camera system, SDHQ Billet Battery Terminals, Gofast Camper, Morimoto XD headlights, Fox 2.5 adjustable front w/650lb Eibach springs and rear shocks, Deavers stage 3 leaf springs, Martin off-road camper rack,

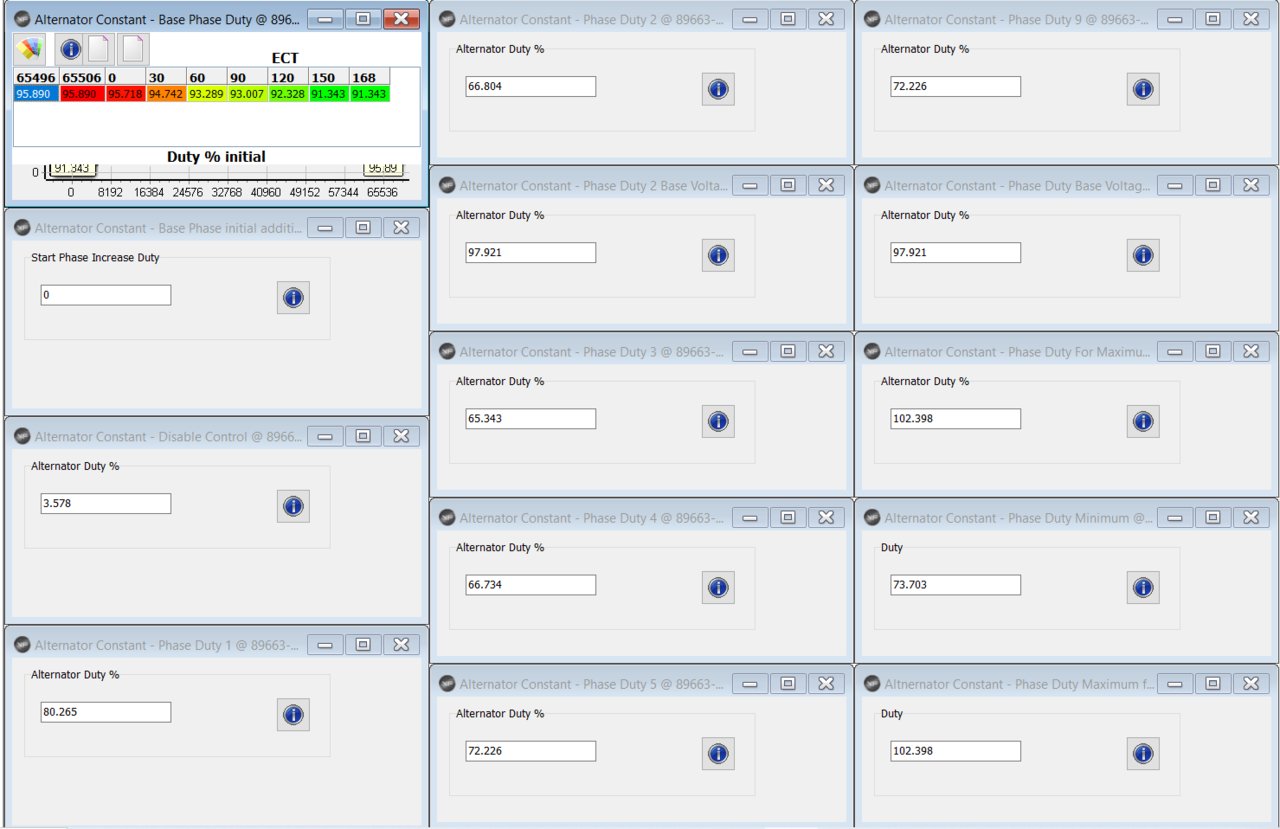

    Here are my latest numbers for tuning the ECU to charge AGM batteries with the vF tune 04B14 2.0 SFOB Premium tune.
    This gives a cold start voltage of ~14.56 in the ECU which translates to ~14.66v at the battery terminals. It will then drop the voltage to around 14.2v-14.4 v once the engine is fully hot. Still waiting on some clarification from Matt and Raphael about what the different phase duty numbers actually correlate to. Please feel free to reach out if you have any questions!
    upload_2020-10-12_14-15-13.jpg[/USER]

    Last edited: Oct 12, 2020
    McCoyoioi, cameleon50, tperks and 6 others like this.
  3. Oct 12, 2020 at 5:40 PM
    #3
    dutchcontractor

    dutchcontractor Well-Known Member

    Joined:
    May 10, 2019
    Member:
    #292911
    Messages:
    104
    Gender:
    Male
    Good deal! Thank you!

    WHTLTNG likes this.
  4. Oct 12, 2020 at 6:05 PM
    #4
    CLVol1255

    CLVol1255 Well-Known Member

    Joined:
    Oct 16, 2018
    Member:
    #269644
    Messages:
    1,579
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    2017 Toyota Tacoma TRD Sport 4x4, 2018 Chevy duramax crew cab 4x4 z71
    Sub’d for future reference. Thanks for sharing

    WHTLTNG likes this.
  5. Oct 12, 2020 at 7:02 PM
    #5
    BortisYeltzen

    BortisYeltzen Well-Known Member

    Joined:
    Dec 17, 2016
    Member:
    #205105
    Messages:
    1,153
    Gender:
    Male
    Salt Lake City, UT
    Vehicle:
    2017 MGM TRD Off-road DCLB
    OV Tuned, Bilstein TRD Pro lift, ECGS bushing, Heated Clazzio's, RCI SKID TRILOGY, BAMF sliders, ARE V-Series shell, RokBlokz flaps, more to come
    Just loaded a tune with these settings. My truck was still warm from my 35 mile commute home, but when I started it and took it around the neighborhood it was between 14.2-14.3 V. I’ll keep an eye on it and report back. Temps will drop into the 30’s here in the next few days, so I’ll get to see how it behaves when cold.

    WHTLTNG likes this.
  6. Oct 12, 2020 at 7:13 PM
    #6
    mZiggy

    mZiggy Honey badger; VFPro licensed; YotaWerx Tuning

    Joined:
    Apr 8, 2017
    Member:
    #215707
    Messages:
    4,363
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    2020 MGM Tundra SR5
    Running @Shellshock AGM values for the last however many months had me at 14.3 cold start, idk about warmed up float, I honestly never checked. Flashed the values that @banjoist13 had shared here this evening since I was flashing a new map edit anyhow and my cold start voltage was identical. Will try to remember to observe the warmed up voltage tomorrow

    uploadadventure, WHTLTNG and su.b.rat like this.
  7. Oct 12, 2020 at 7:22 PM
    #7
    banjoist13

    banjoist13 [OP] KDMax Authorized Tuner NorCal

    Joined:
    Sep 5, 2016
    Member:
    #196465
    Messages:
    64
    First Name:
    Ian
    Humboldt County, CA
    Vehicle:
    2016 Off-Road 4x4 Manual Transmission
    RCI full skids, C4 FAb Rock Sliders, Rago Fab LCA skids & rear shock mount skids, Method Trail 701 Wheels, ARB onboard air system, Taco Tunes speaker system, Rago fabs Center consol MOLLE, Weboost Drive Sleek OTR, AnytimeBackupCamera front/rear camera system, SDHQ Billet Battery Terminals, Gofast Camper, Morimoto XD headlights, Fox 2.5 adjustable front w/650lb Eibach springs and rear shocks, Deavers stage 3 leaf springs, Martin off-road camper rack,
    Try upping the first three base phase duty numbers by 1%. I am seeing that every truck seems to pretty much work a bit differently which makes sense given manufacturing tolerances and such. Feel free to send me your readings as you shift things. Like all of us, I am still trying to figure out what many of them do exactly. The Base Phase Duty chart seems to be the most influential given the available info. I still haven't figured out what numbers deal with the float charge.

    WHTLTNG and mZiggy like this.
  8. Oct 12, 2020 at 7:24 PM
    #8
    mZiggy

    mZiggy Honey badger; VFPro licensed; YotaWerx Tuning

    Joined:
    Apr 8, 2017
    Member:
    #215707
    Messages:
    4,363
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    2020 MGM Tundra SR5
    Will try this tomorrow :thumbsup:

    WHTLTNG likes this.
  9. Oct 12, 2020 at 7:24 PM
    #9
    banjoist13

    banjoist13 [OP] KDMax Authorized Tuner NorCal

    Joined:
    Sep 5, 2016
    Member:
    #196465
    Messages:
    64
    First Name:
    Ian
    Humboldt County, CA
    Vehicle:
    2016 Off-Road 4x4 Manual Transmission
    RCI full skids, C4 FAb Rock Sliders, Rago Fab LCA skids & rear shock mount skids, Method Trail 701 Wheels, ARB onboard air system, Taco Tunes speaker system, Rago fabs Center consol MOLLE, Weboost Drive Sleek OTR, AnytimeBackupCamera front/rear camera system, SDHQ Billet Battery Terminals, Gofast Camper, Morimoto XD headlights, Fox 2.5 adjustable front w/650lb Eibach springs and rear shocks, Deavers stage 3 leaf springs, Martin off-road camper rack,
    That is what I am hitting with a warm engine which is pretty close to optimal.

    BortisYeltzen and WHTLTNG like this.
  10. Oct 12, 2020 at 7:37 PM
    #10
    Shellshock

    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    19,137
    Iowa
    Vehicle:
    2019 Tundra TRD PRO
    The other variable is not everyone is setting the duty cycles the same.

    base phase duty controls the voltage output but you need the additional duty cycle to get the consistent voltage.

    At this point, we still don’t know exact what the columns of base phase duty correspond to and when the various duty cycles are actually used.

    that’s why I bumped my duty cycle all up by the same amount for consistency. I guess you could do the same thing for base phase duty

    FWIW, I’ve been running with my setting since vF was released with the alternator settings. My truck hasn’t started on fire so I’m not super worried about it.

  11. Oct 12, 2020 at 9:51 PM
    #11
    WHTLTNG

    WHTLTNG White Lightning

    Joined:
    Apr 13, 2020
    Member:
    #324611
    Messages:
    40
    Does anyone have alternator values for AGM with 04A61 (2018)?
    Maybe you can copy and paste the info below and add the new values.
    Please replace the Asterisks with the new values if you choose this route.
    If there is more than one way to skin this cat, let me see the other options. TIA

    Base Phase Duty - Current Values=
    *_____*_____*_____*_____*_____*_____*_____*_____*____
    Base Phase Initial Additive - Current Value= 0 ~ New Value= *
    Disable Control - Current Value= 3.578 ~ New Value= *
    Phase Duty 1 - Current Value= 14.031 ~ New Value= *
    Phase Duty 2 - Current Value= 60.796 ~ New Value= *
    Phase Duty 2 Base Voltage 13.6v - Current Value= 67.203 ~ New Value= *
    Phase Duty 3 - Current Value= 62.062 ~ New Value= *
    Phase Duty 4 - Current Value= 64 ~ New Value= *
    Phase Duty 5 - Current Value= 64 ~ New Value= *
    Phase Duty 9 - Current Value= 64 ~ New Value= *
    Phase Duty Base Voltage 13.6v - Current Value= 97.921 ~ New Value= *
    Phase Duty For Maximum Voltage 14.7v - Current Value= 102.398 ~ New Value= *
    Phase Duty Minimum - Current Value= 67.843 ~ New Value= *
    Phase Duty Maximum For 14.7 - Current Value= 102.398 ~ New Value= *

    Last edited: Oct 12, 2020
  12. Oct 13, 2020 at 10:44 AM
    #12
    mZiggy

    mZiggy Honey badger; VFPro licensed; YotaWerx Tuning

    Joined:
    Apr 8, 2017
    Member:
    #215707
    Messages:
    4,363
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    2020 MGM Tundra SR5
    Using your values on my 2017 6MT, I logged using the vF logger just now and my results are as follows:

    Cold start, about 80deg ambient temp
    Max: 14.492
    Current: 14.45-14.6x
    Min: 14.3x

    Halfway warmed up engine:
    Max: unchanged (as expected)
    Current: 14.37-14.39x
    Min: 13.5x

    Fully warmed up engine:
    Current: 14.23-14.27
    Min: 13.085

    Mattchew likes this.
  13. Oct 13, 2020 at 11:35 AM
    #13
    mZiggy

    mZiggy Honey badger; VFPro licensed; YotaWerx Tuning

    Joined:
    Apr 8, 2017
    Member:
    #215707
    Messages:
    4,363
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    2020 MGM Tundra SR5
    Base Phase Duty - Current Values=

    *91.843 *91.843 *91.523 *94 *94 *94 *94 *94 *94

    Base Phase Initial Additive - Current Value= 0 ~ New Value= *unchanged
    Disable Control - Current Value= 3.578 ~ New Value= *unchanged
    Phase Duty 1 - Current Value= 14.031 ~ New Value= *unchanged
    Phase Duty 2 - Current Value= 60.796 ~ New Value= *80.796 (+20 = 20%)
    Phase Duty 2 Base Voltage 13.6v - Current Value= 67.203 ~ New Value= *87.203 (this is the main value that varies from the 2016-17 MY's and so I took Shellshock's advice and just raised by 20, figured that was safer than jumping all the way to 102.xxx)
    Phase Duty 3 - Current Value= 62.062 ~ New Value= *82.062
    Phase Duty 4 - Current Value= 64 ~ New Value= *84
    Phase Duty 5 - Current Value= 64 ~ New Value= *84
    Phase Duty 9 - Current Value= 64 ~ New Value= *84
    Phase Duty Base Voltage 13.6v - Current Value= 97.921 ~ New Value= *102.296
    Phase Duty For Maximum Voltage 14.7v - Current Value= 102.398 ~ New Value= *unchanged
    Phase Duty Minimum - Current Value= 67.843 ~ New Value= *73.703 (copied from @banjoist13 values)
    Phase Duty Maximum For 14.7 - Current Value= 102.398 ~ New Value= *unchanged

    The above values are what I put into a map for my 2018 friend and when he'd flashed them on an already warmed up engine, he got 14.4v

    The previous map, I'd had him try settings that matched the settings from @banjoist13 except that PD1 was left alone and for PD2 Base Voltage, I increased by 20, and he hit 14.2 on cold start which isn't enough.

    Stormpeacock, tacomarin and WHTLTNG like this.
  14. Oct 13, 2020 at 5:29 PM
    #14
    WHTLTNG

    WHTLTNG White Lightning

    Joined:
    Apr 13, 2020
    Member:
    #324611
    Messages:
    40
    Thank you, at minimum I have a starting point now. I am not sure when I will get to this. I will follow up on this though. :thumbsup:

    mZiggy likes this.
  15. Oct 13, 2020 at 7:41 PM
    #15
    BortisYeltzen

    BortisYeltzen Well-Known Member

    Joined:
    Dec 17, 2016
    Member:
    #205105
    Messages:
    1,153
    Gender:
    Male
    Salt Lake City, UT
    Vehicle:
    2017 MGM TRD Off-road DCLB
    OV Tuned, Bilstein TRD Pro lift, ECGS bushing, Heated Clazzio's, RCI SKID TRILOGY, BAMF sliders, ARE V-Series shell, RokBlokz flaps, more to come
    Day 1 driving ~70 miles on @banjoist13 AGM tune. My previous AGM tune was a little closer to what @Shellshock and @mZiggy have shared. Just going by what I’m seeing on my simple cig lighter USB adapter with voltage reading, which I previously verified was close enough to my multimeter at the battery if I round up to nearest whole number after decimal point. Cold start up at ~45 F today had it at 14.6 for most of my initial ~5 mile city drive. Dropped off kiddo and upon restart (warm?) was at 14.5 for most of the rest of my 30 mile drive at 75 mph. I also saw it dropping to 14.1 or less when coming to a stop on city drive. After work, started my truck at 75 F (warm?) and it was at 14.3 and 14.2 for most all my drive home, ~30 miles at 75-80 mph. Engine definitely got fully to temp.

    Previous settings it really didn’t change much regardless of drive and temps, it was always around 14.4 and 14.5. Don’t know if any of this new stuff is better, but it does appear the @banjoist13 settings have more fluctuation, which I’m assuming is good as it changes charging voltage based on temps and other conditions, but I’m no battery-ologist guy...

  16. Oct 17, 2020 at 7:38 AM
    #16
    runmc

    runmc Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226288
    Messages:
    508
    Gender:
    Male
    First Name:
    Ron
    DFW Texas
    Vehicle:
    2021 Army Green Tacoma TRD OR DCSB
    One Mod after another
    Have you had a chance to try mZiggys settings ? Have you adjusted them? I just got my Tune pack and I'm ready to give this a try. :D

  17. Oct 17, 2020 at 8:20 AM
    #17
    ktbell444

    ktbell444 Non timemus

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,220
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    I think it's appropriate to ask, especially before everything gets buried behind 10's of pages. Will these settings (once finalized) be universal to all AGM batteries?

  18. Oct 17, 2020 at 8:24 AM
    #18
    JaTe

    JaTe Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149874
    Messages:
    478
    Maryland
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Not sure if it can be universal but may be good enough. If each manufacturer has different charging requirements for their AGM battery, a universal setting may not work.

  19. Oct 17, 2020 at 8:27 AM
    #19
    mZiggy

    mZiggy Honey badger; VFPro licensed; YotaWerx Tuning

    Joined:
    Apr 8, 2017
    Member:
    #215707
    Messages:
    4,363
    Gender:
    Male
    First Name:
    Marc
    Vehicle:
    2020 MGM Tundra SR5
    Most are pretty similar though

    Shellshock likes this.
  20. Oct 17, 2020 at 12:35 PM
    #20
    oldschool403

    oldschool403 ReloadOS

    Joined:
    Nov 16, 2018
    Member:
    #272903
    Messages:
    91
    Gender:
    Male
    Vehicle:
    2018 TRD Sport Long Bed
    SOS Front bumper with winch, Dual battery, RCI bed rack, Smitty built XL, 8112's in front, King 2.5 adj in back, Armor on the way.
    I was experiencing some issues with my optima yellow tops this summer when I raised the voltages to 14.7. It was strange as when I would be driving it was fine but as soon as I stopped the volts dropped to 13 and I got a warning "check charging system". Then it would go away after I started moving again. So I turned down the Volts to 14.4 and it hasn't happened since. It hadn't happened until the summer and I have had the AGM adjustment in for many months leading up to it with no issue. I was reading the those optima agm's don't like heat and the Odyssey ones have high heat AGM's. Up to 80C.

    I was going to suggest that if people post their tweaks that we include the battery that it is being used on?

    ktbell444 and mZiggy like this.
