Viair Automatic Mod (VAM)

Discussion in '3rd Gen. Tacomas (2016+)' started by tonered, Aug 13, 2020.

  1. Aug 13, 2020 at 7:18 AM
    #1
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Hey, Folks.

    I got a Viair 300P because it seemed to be the sweet spot between price and rated CFMs. The CFMs certainly did not disappoint after several uses, but the non-automatic part is slightly problematic, esp when doing air checks on all of the family vehicles.

    I found some breadcrumbs for an easy mod using a relay and an air horn compressor pressure switch.

    Parts are arriving today. So, this should be good to go this weekend.

    From the posts around here, I know there are a ton of folks with Viairs. This might be handy?

    https://www.tacomaworld.com/threads...ild-and-bs-thread.636594/page-4#post-23970721

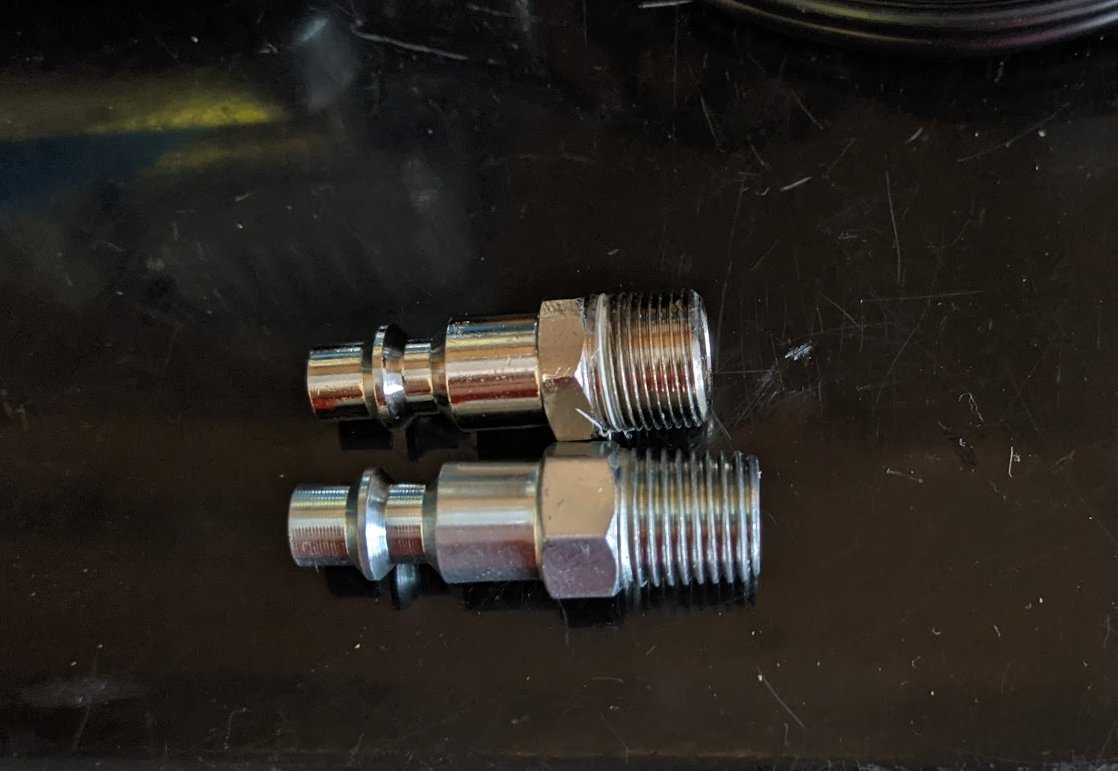

    Another Viair mod:

    The male outlet bothers me. I like female couplers on the tool end. The problem is that the Viair coupler uses straight threads that appear to be M14x1.0. That is the top fitting in the pic below. The bottom one is a standard NPT fitting.

    If folks go this route, you should check first. The Viair folks said that the thread was 1/4 NPT and was changed to M14x1.0.

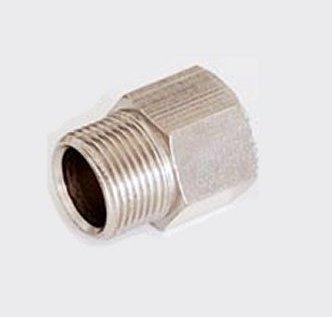

    I just found this adapter to try out:
    https://www.fittings.space/gbm22-04zf-m14x10mc

    It twerkes!


    Last edited: Dec 15, 2020
    C41n, Biscuits, Landpirate and 3 others like this.
  2. Aug 13, 2020 at 7:18 AM
    #2
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Viair Automatic Mod (VAM)

    Here's the mod details:

    The Viair uses metric fasteners. Nice!

    The wiring appears to be 12 AWG. I was able to get it into the 14 - 16 blue terminals.

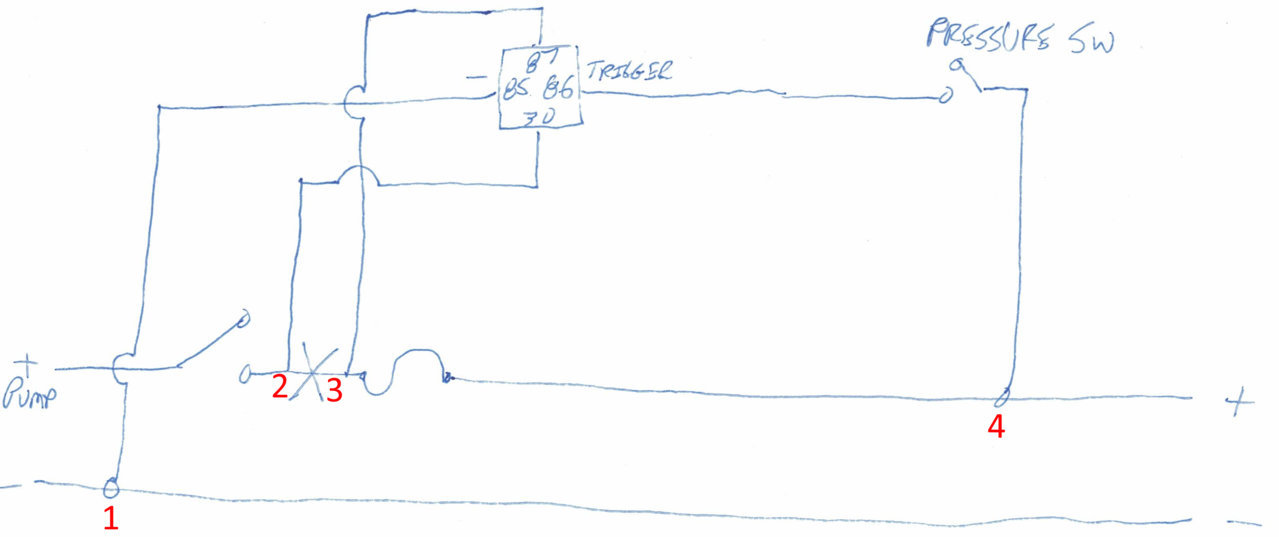

    Schematic:
    Apologies for the D- handwriting. See the Upskirt pic below for the matching harness numbers.
    schematic - numbered.jpg

    Here's the mechanical side:

    I reamed the tee fitting, linked below, from 1/8in dia to 3/16in dia since it is not used just for sensing, but for flow also.

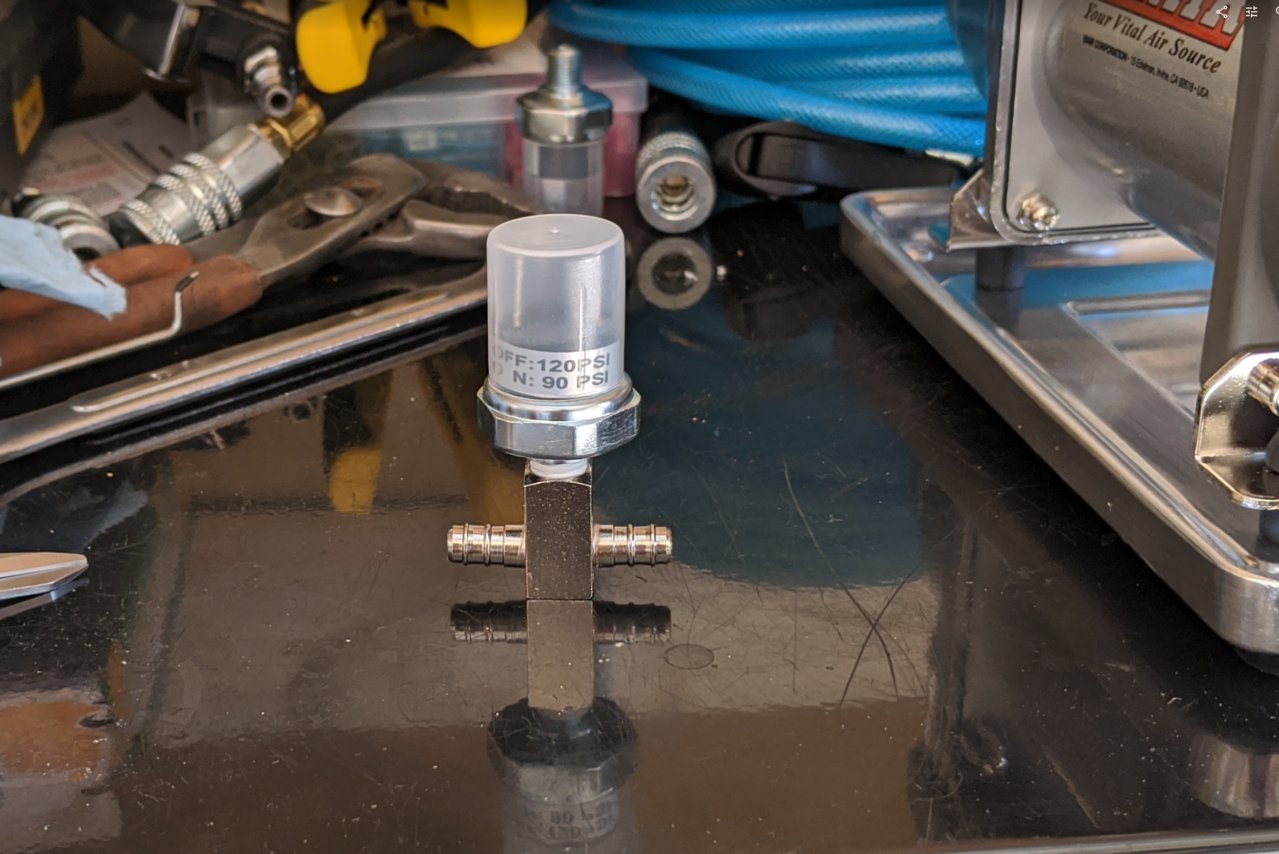

    Reamed Tee:

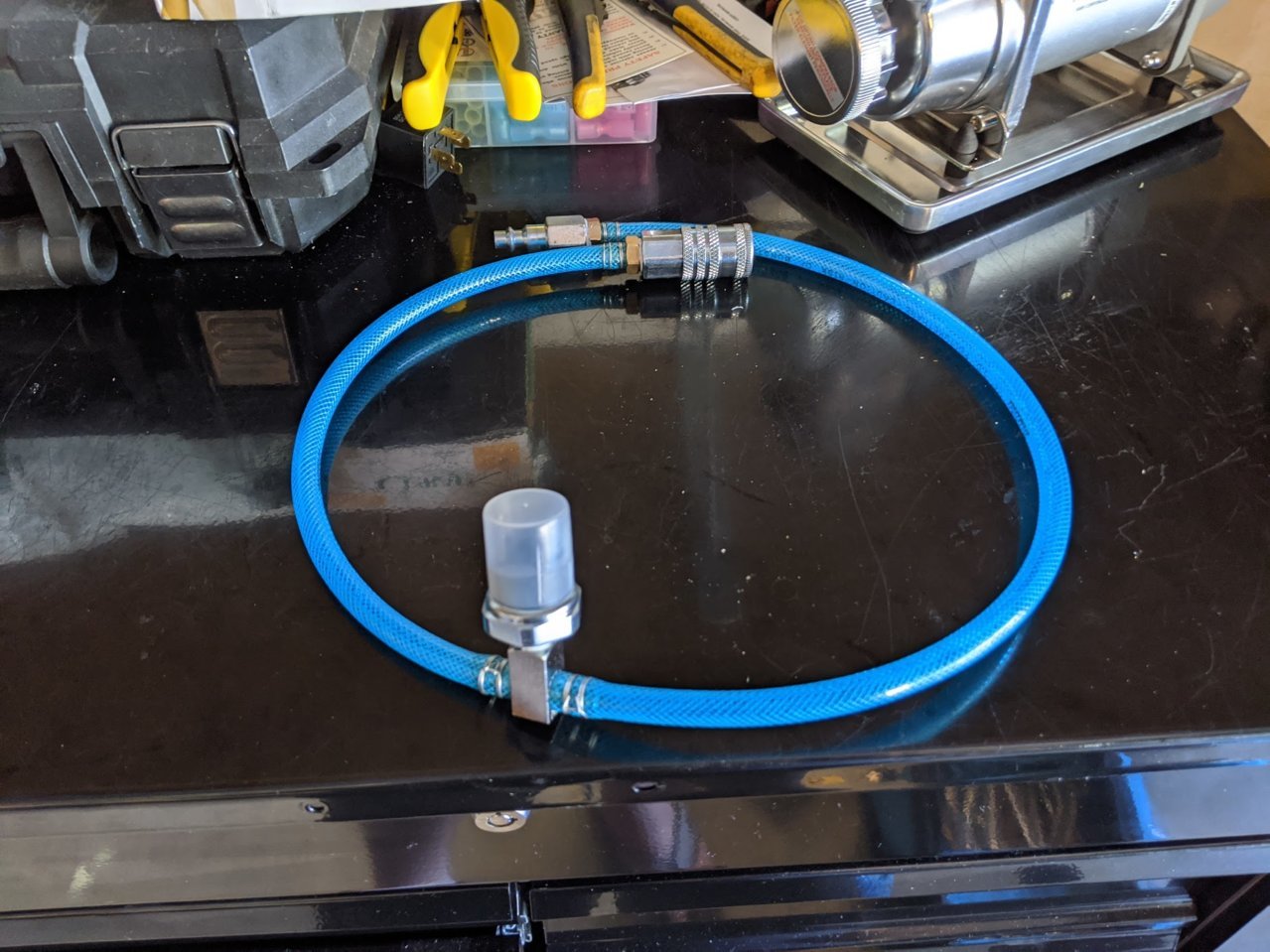

    Ready to go:



    I just enjoy making wire clamps. Of course oetiker or worm drive would be just as good.

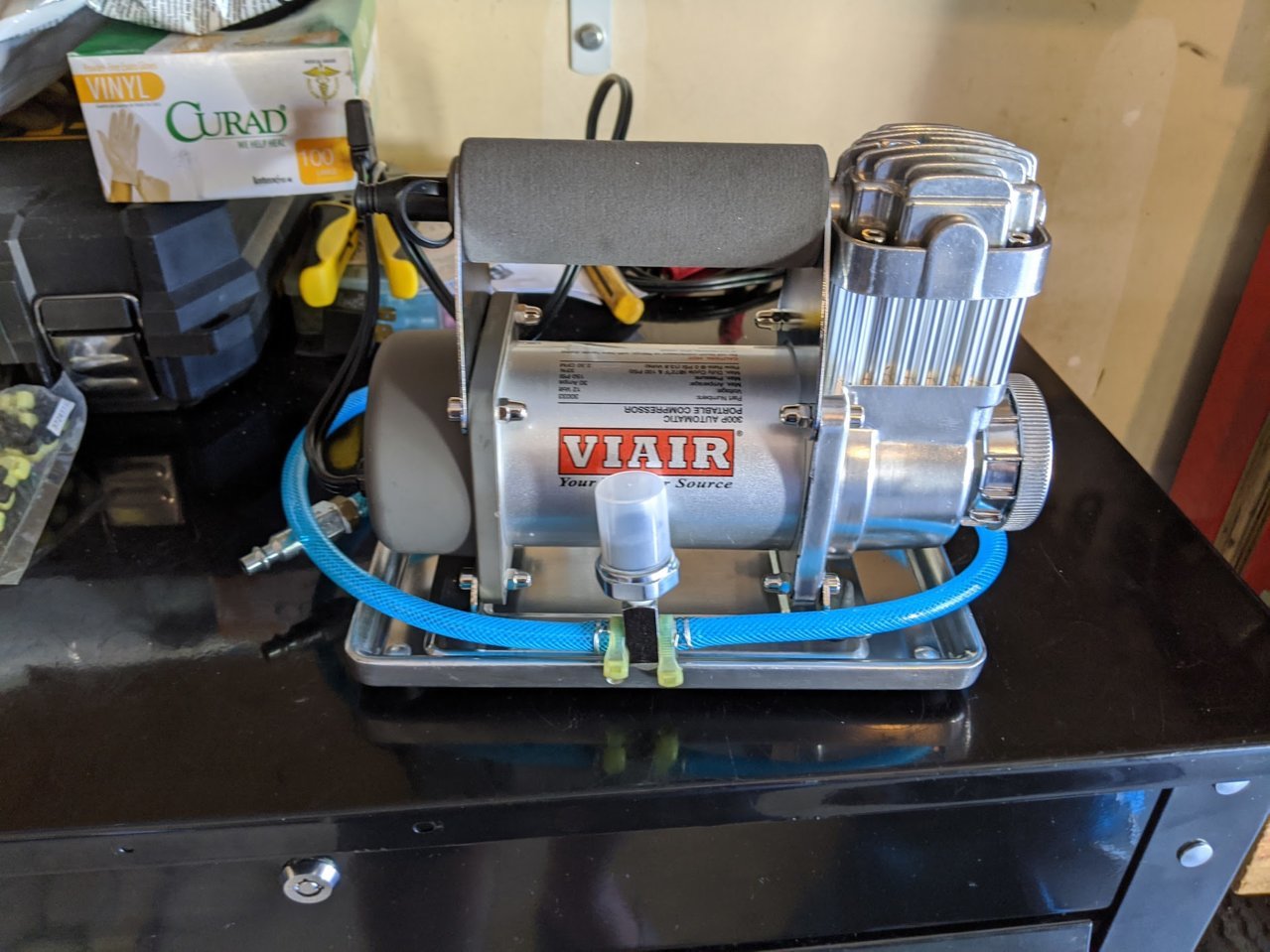

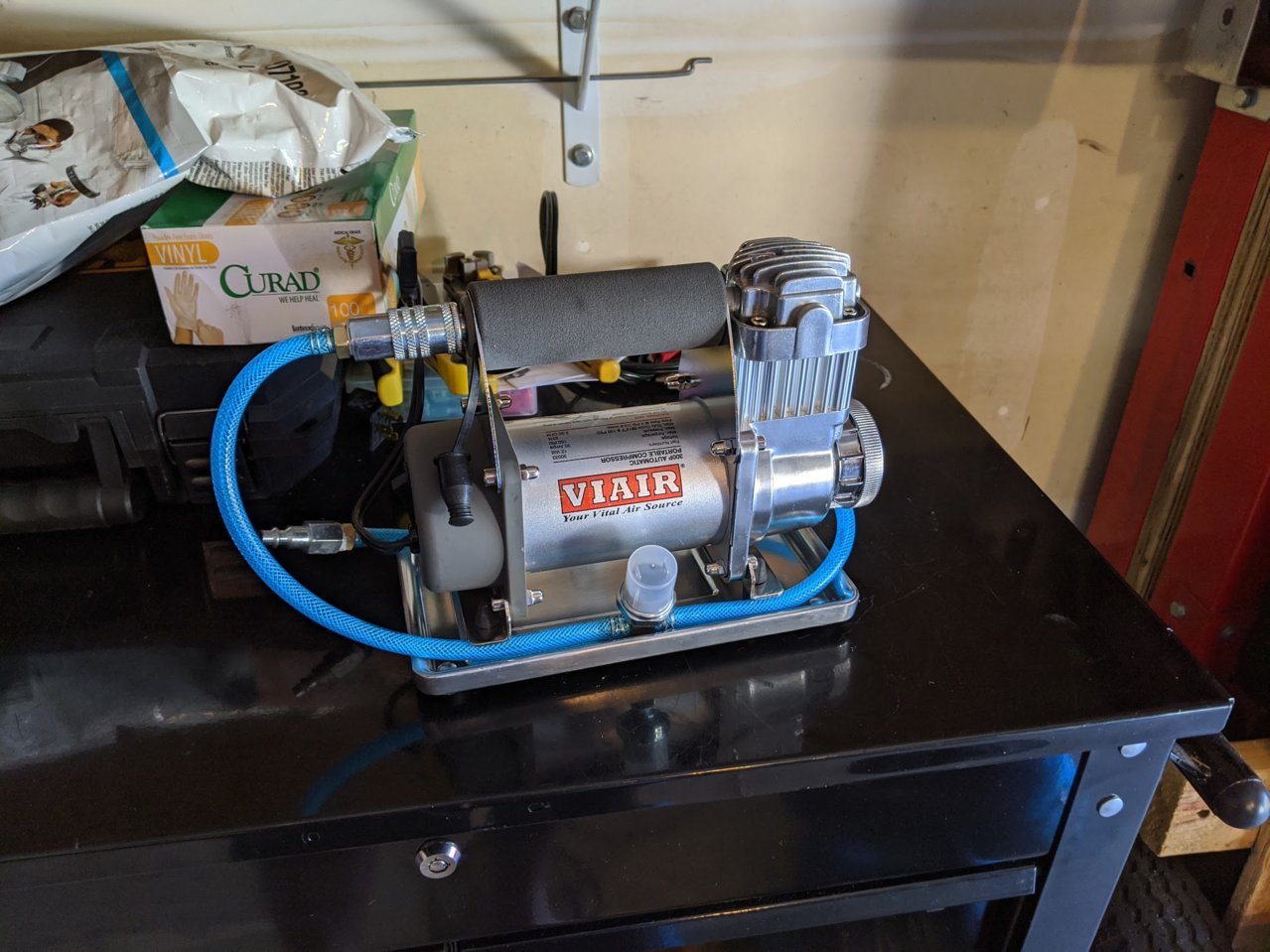

    General layout:

    I drilled a few holes in the foot plate for zip ties:

    I used a slightly longer screw and a washer to mount the relay.

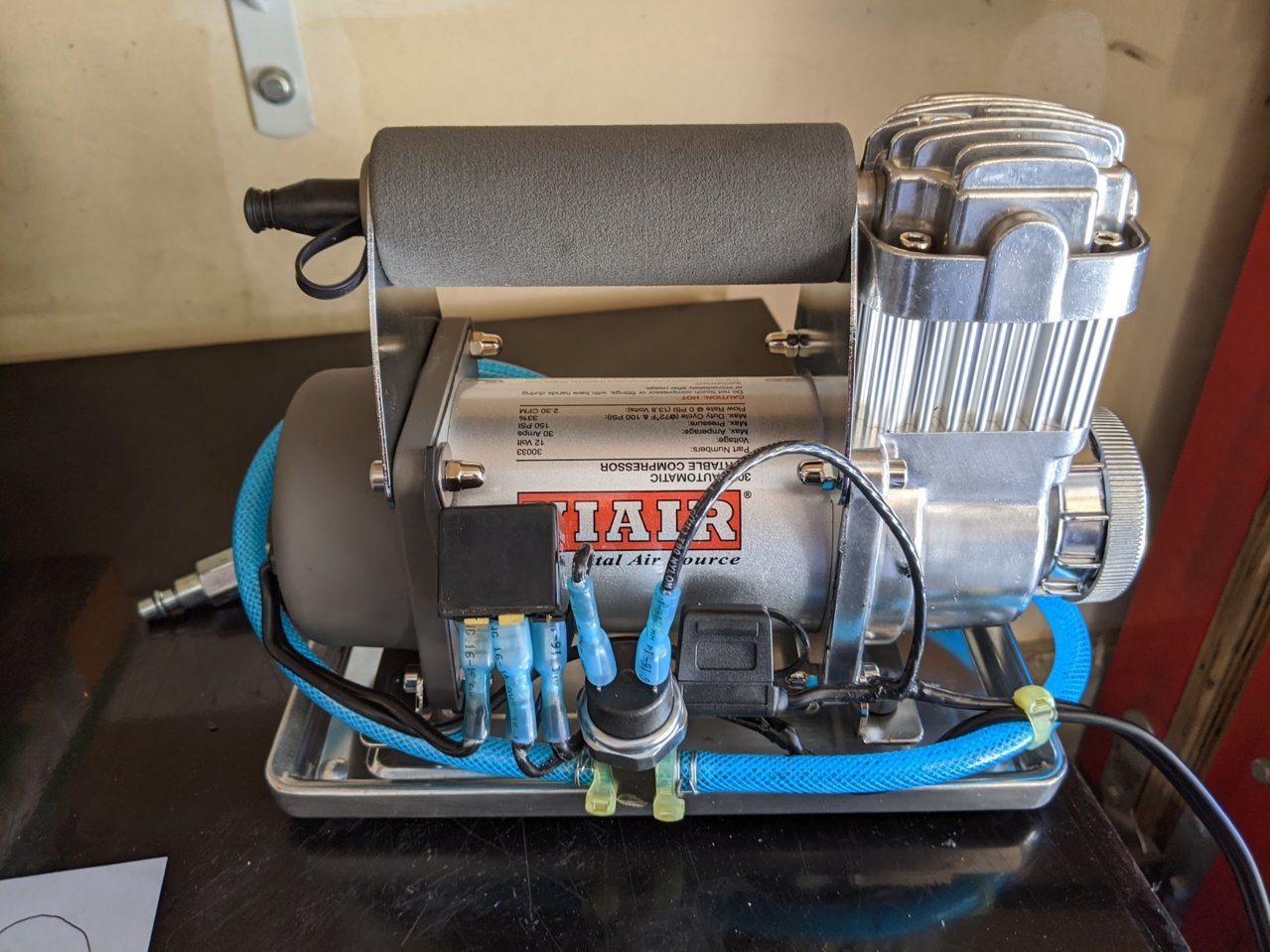

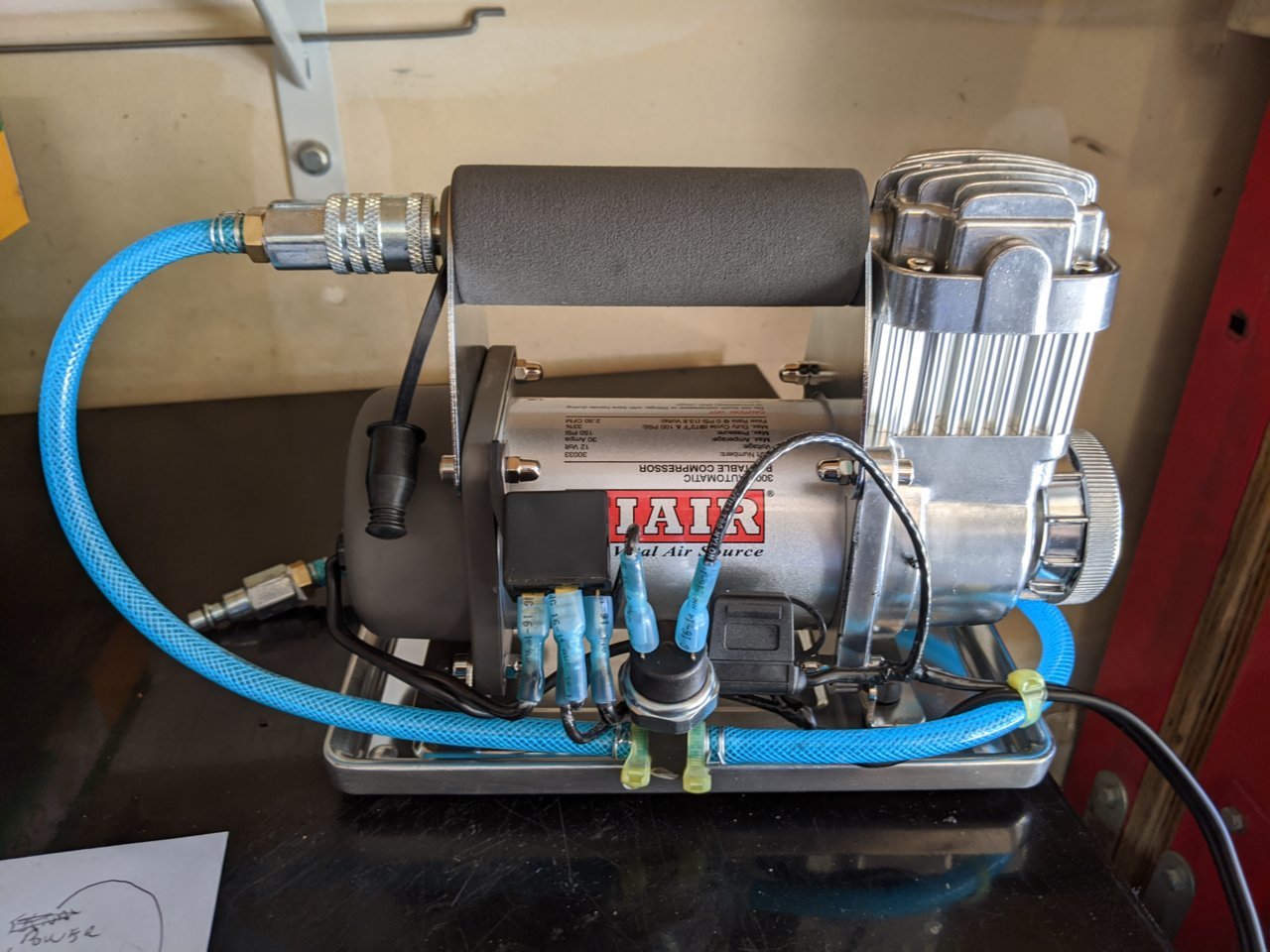

    The electrical side:

    I can choose to use the pressure switch when doing airchecks, or use it in non-automatic mode if I need to.

    Deployed:

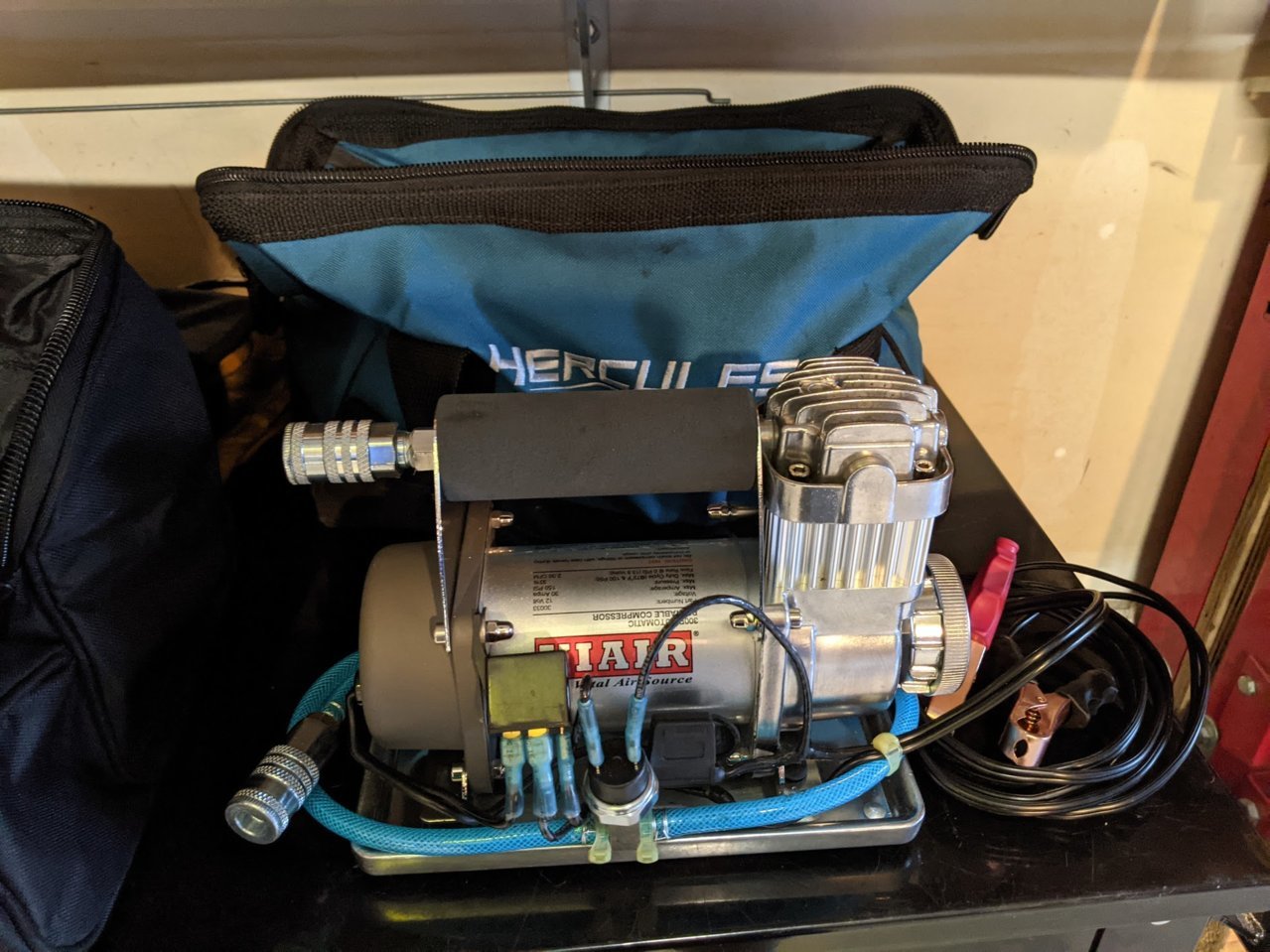

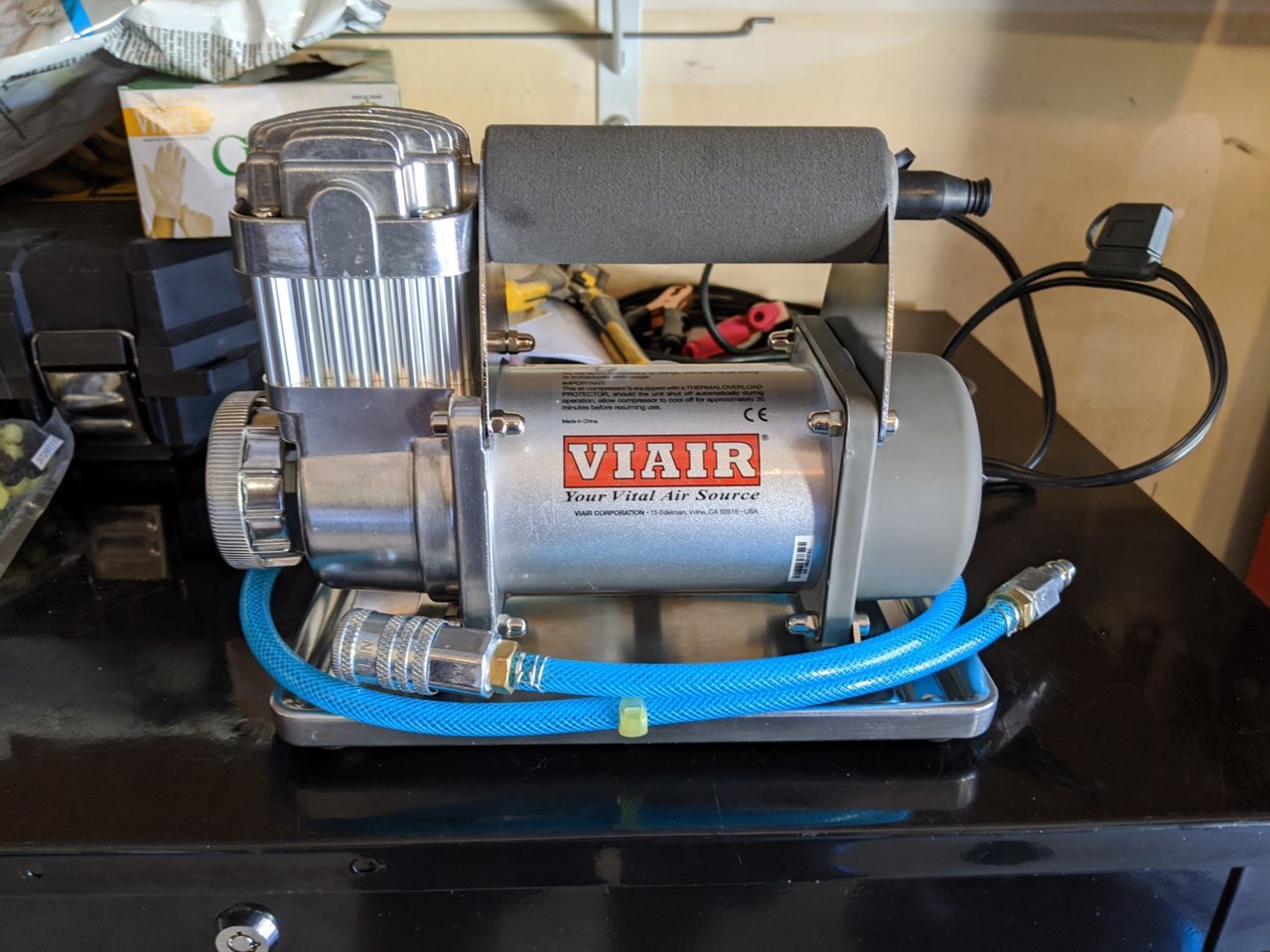

    Stored:

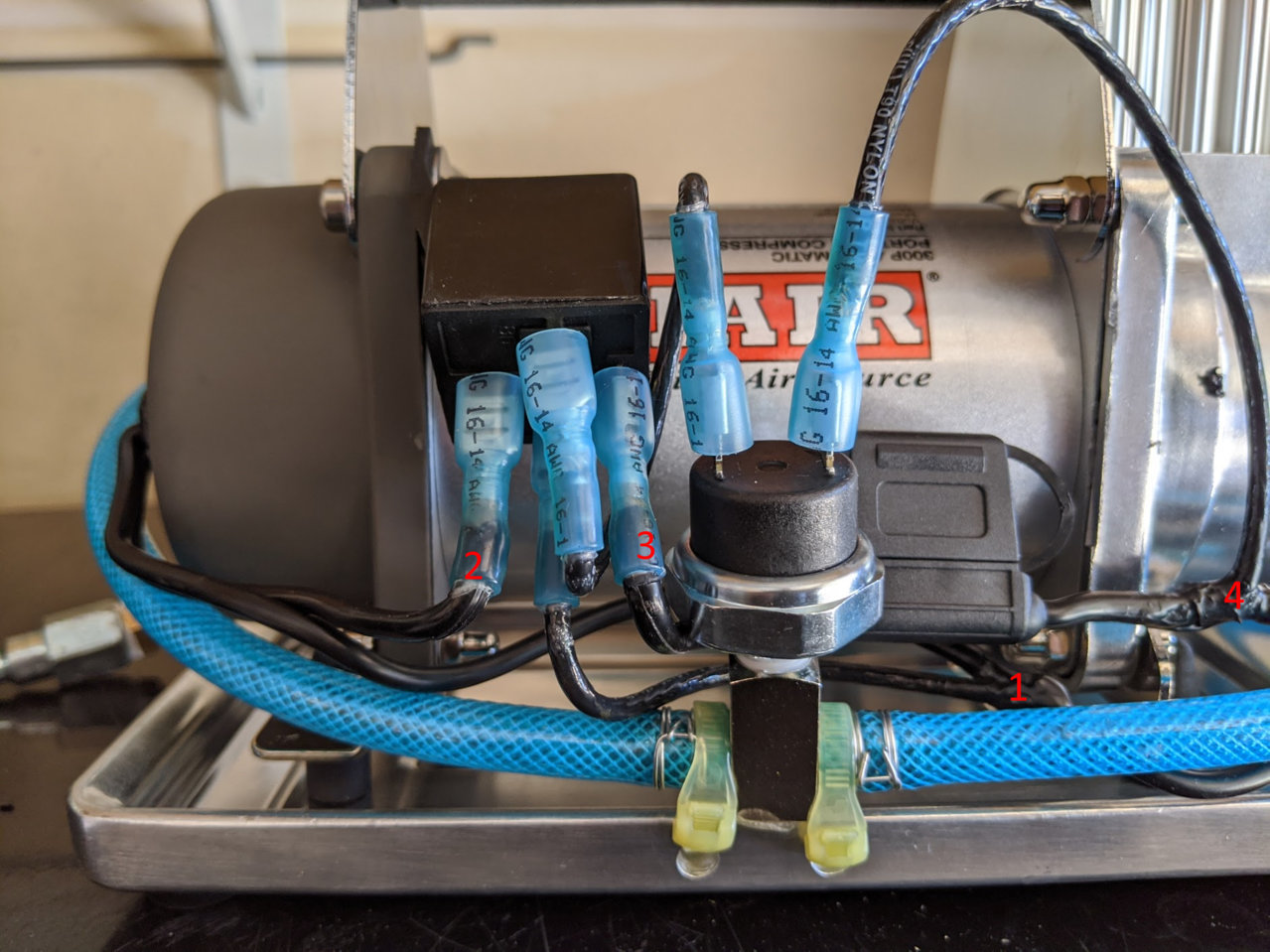

    Upskirt:
    After this pic, I hit the terminal ends with heat to shrink these killer marine terminals.


    Lemme know if you got any questions or comments.



    Source info:

    Here's what I am working with for the automatic switch:
    http://www.rpod-owners.com/forum_posts.asp?TID=7865

    I found a ton of switches on Amazon including a Viair version:
    https://www.amazon.com/Pressure-Switch-90-120-Compressor-120PSI/dp/B07XZ1FKYN

    https://www.amazon.com/VIAIR-90111-Pressure-Switch-Relay/dp/B000FQ793A

    Pressure switch tee fitting:
    https://www.amazon.com/gp/product/B00EOT94QO

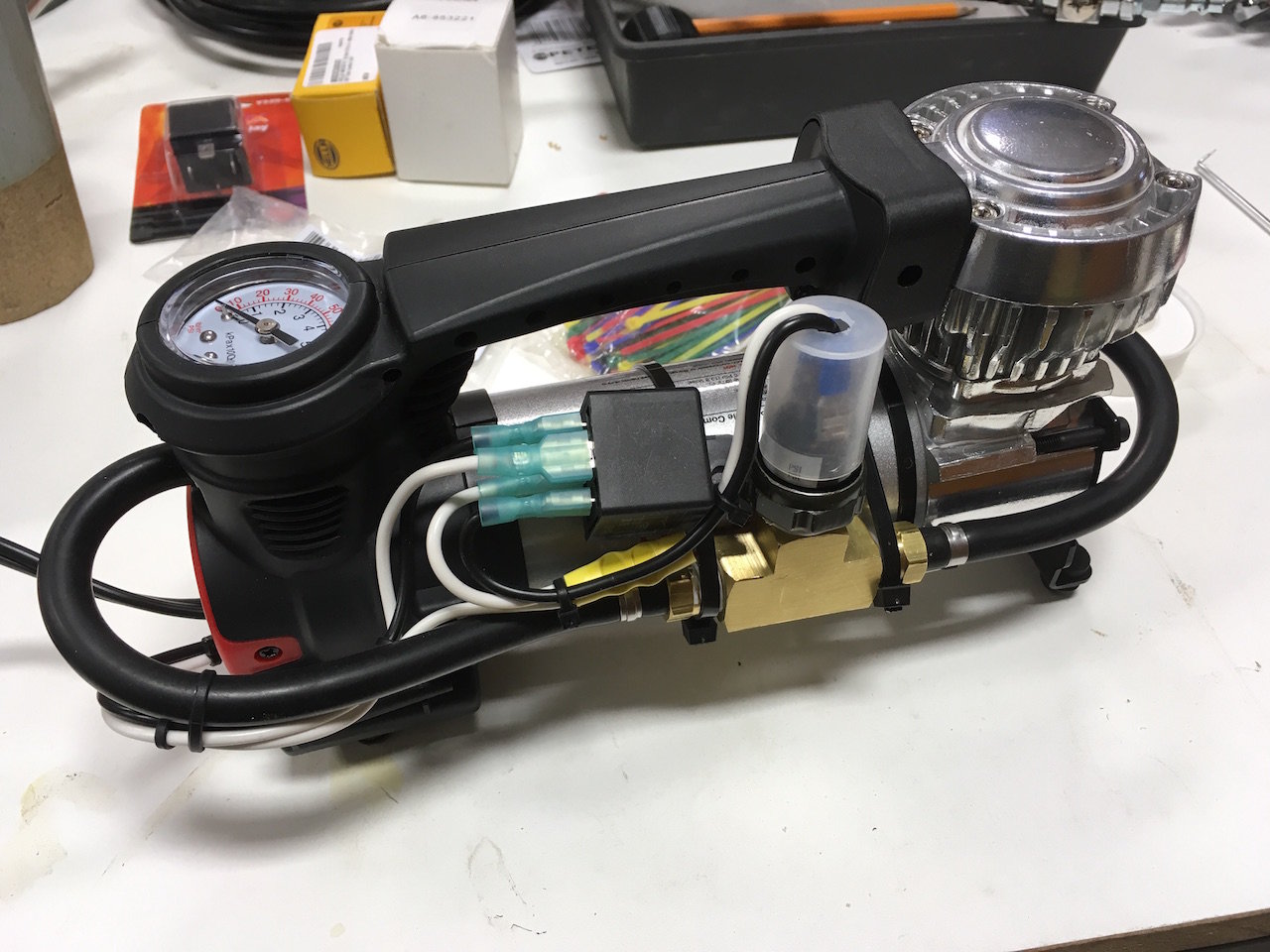

    Pics from the Rpod link:



    Last edited: Aug 20, 2020
    Biscuits, Landpirate, jmneill and 3 others like this.
  3. Aug 13, 2020 at 7:20 AM
    #3
    Freegolf

    Freegolf Well-Known Member

    Joined:
    Feb 3, 2017
    Member:
    #209500
    Messages:
    1,297
    Gender:
    Male
    Denver
    Vehicle:
    2016 offroad, manual tran
    Nice. Will be following closely as I have the same compressor :thumbsup:

    tonered [OP] likes this.
  4. Aug 13, 2020 at 7:23 AM
    #4
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Thanks!

    I will take some pics in the middle for this one, not just at the end. :rofl:

    Freegolf likes this.
  5. Aug 13, 2020 at 7:30 AM
    #5
    LstMinutePanic

    LstMinutePanic Well-Known Member

    Joined:
    Jun 22, 2018
    Member:
    #257156
    Messages:
    314
    Gender:
    Male
    Anchorage, AK
    Vehicle:
    2018 Black Tacoma OR DCLB AT
    tonered [OP] likes this.
  6. Aug 13, 2020 at 7:32 AM
    #6
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Freegolf likes this.
  7. Aug 14, 2020 at 8:40 AM
    #7
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    The parts came. The existing guts were slightly different than expected, so I am planning this out. They soldered the spade terminals to the switch. I am not going to undo that good connection.

    The tee for the pressure switch only had 1/8in dia holes in the barbed ends. I reamed thouse out to 3/16in.

    I also tried to swap the male outlet hose connection on the pump to a more typical female connector. Unfortunately, the stock fitting is fine pitch, straight threads. Not 1/4 NPT. Interesting.


    Reamed Tee:

    Ready to go:

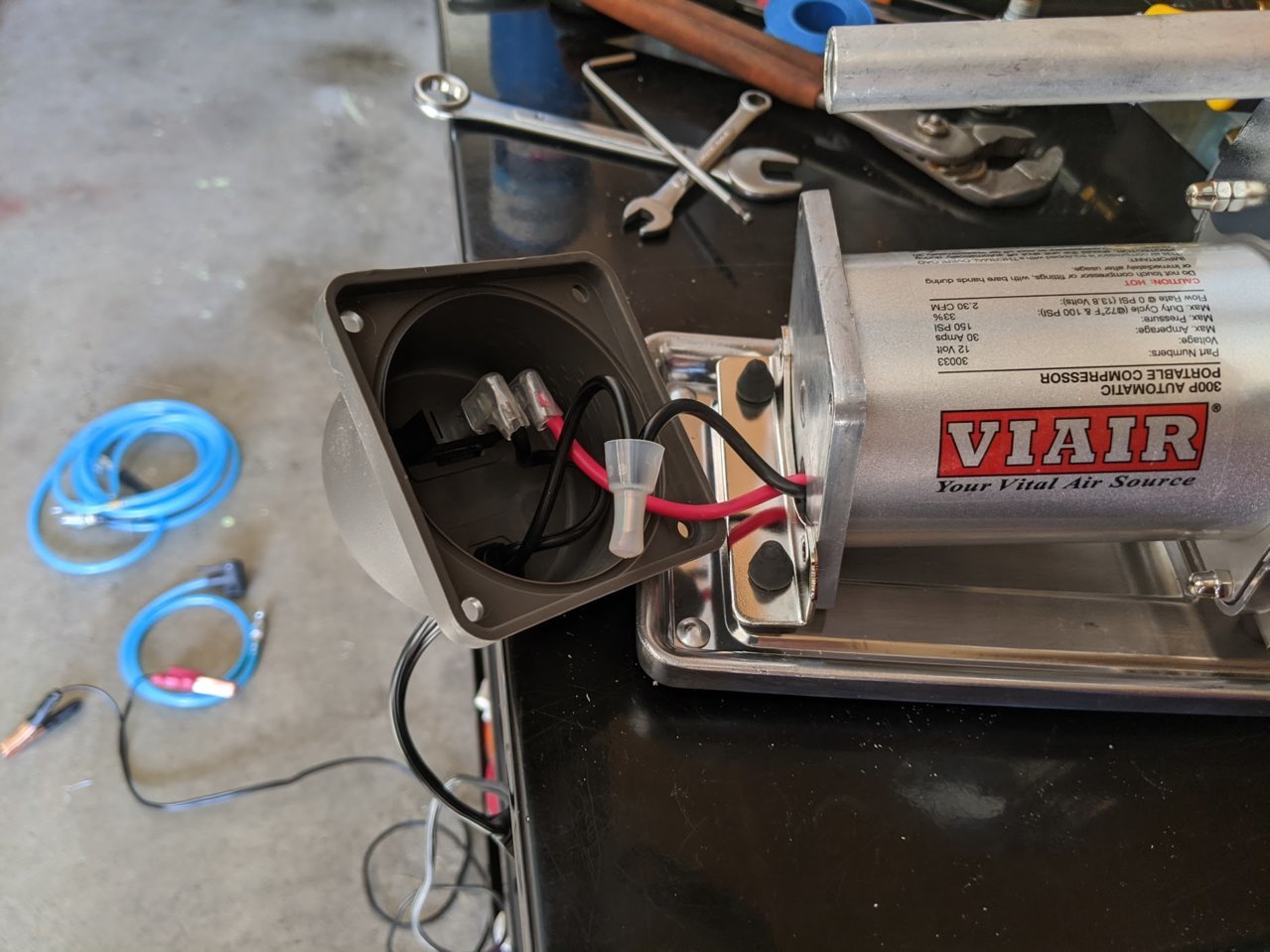

    It looks like an external only mod:

  8. Aug 15, 2020 at 3:25 PM
    #8
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    It works!


    I'll post up more pics, details, and a schematic.

    ohcjam, dilbert, Shellshock and 2 others like this.
  9. Aug 15, 2020 at 4:13 PM
    #9
    Shellshock

    Shellshock King Shit of Turd Island

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    17,048
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    You are a crafty fella! :thumbsup:

    tonered [OP] likes this.
  10. Aug 15, 2020 at 4:29 PM
    #10
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Thanks, @Shellshock !

    The angry pixies didn't get me.

    mac_2_nite and Shellshock like this.
  11. Aug 15, 2020 at 5:13 PM
    #11
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    @dilbert

    Those crimpers that you recommended were top notch. They were a joy to use after only frustration or hand soldering terminals in the past.

    dilbert likes this.
  12. Aug 15, 2020 at 6:22 PM
    #12
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    2,132
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    The ratcheting ones? I love those things, they make a really solid connection.

    davidstacoma and tonered [OP] like this.
  13. Aug 15, 2020 at 6:39 PM
    #13
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Yessir. I finally bought the ones that you recommended.

    The marine heat shrinks were kicking also.

    dilbert likes this.
  14. Aug 15, 2020 at 7:06 PM
    #14
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    2,132
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    Awesome! Between replacing broken sprinkler valves and now replacing damaged underlayment, the flooring, and a toilet in the kids bathroom - I haven't had much time for fun projects.

    tonered [OP] likes this.
  15. Aug 15, 2020 at 7:10 PM
    #15
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Not good.

    I've been putting off shower repair for way too long. We also need to get on some not fun painting.

    I'll take the Taco projects.

    dilbert likes this.
  16. Aug 15, 2020 at 7:18 PM
    #16
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,619
    Vehicle:
    TRD Pro in metallic primer
    Since you don’t have a tank, I’m having a hard time understanding what the pressure switch is for. I don’t think placed their it’ll give you an accurate (Or even close) reading of tire pressure until the compressor is off.

  17. Aug 15, 2020 at 7:19 PM
    #17
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    2,132
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    I love that wire hose clamp tool. The connections look so nice. It's on the top of my Amazon wishlist. Then I need to do this mod.

    Shellshock and tonered [OP] like this.
  18. Aug 15, 2020 at 7:22 PM
    #18
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    2,132
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    It turns it on and off automatically when you connect and disconnect from the tires.

    Slashaar, wahoobie and tonered [OP] like this.
  19. Aug 15, 2020 at 7:22 PM
    #19
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    :hattip:

    It takes longer and is more complicated, but I just enjoy it. The simple, low profile clamps from anything just get me going.

  20. Aug 15, 2020 at 7:25 PM
    #20
    tonered

    tonered [OP] tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,596
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Accurate readings and not racing between the pump and the 14 tires that we have for regular checks.

    Note that I am using @Shellshock 's deflator / inflator with a digital gauge. The one that came with the 300P is not at nice for a few reasons.

    Last edited: Aug 15, 2020
