VMS Oil Catch Can Install

Discussion in 'Performance and Tuning' started by XJfella95, Oct 27, 2015.

  1. Oct 27, 2015 at 10:53 AM
    #1
    XJfella95

    XJfella95 [OP] Product Developer

    Joined:
    Dec 11, 2013
    Member:
    #118409
    Messages:
    236
    Gender:
    Male
    First Name:
    Brandon
    Reading Pennsylvania
    This is the catch can that I bought.
    http://www.amazon.com/dp/B016E241ZM?psc=1

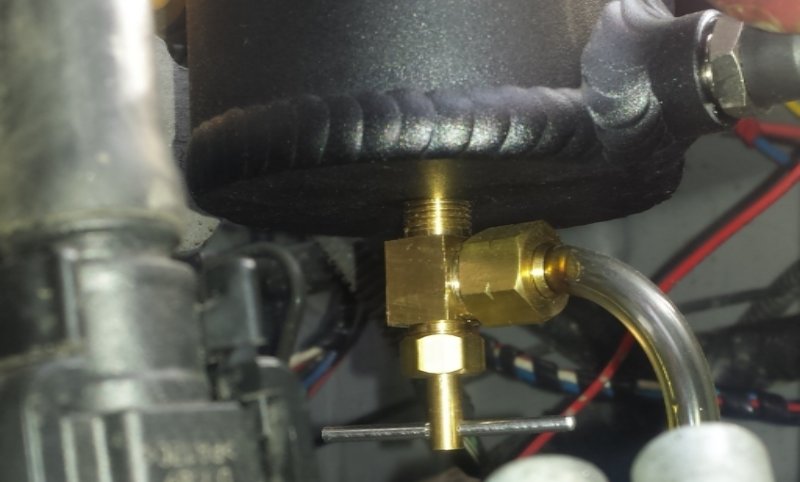

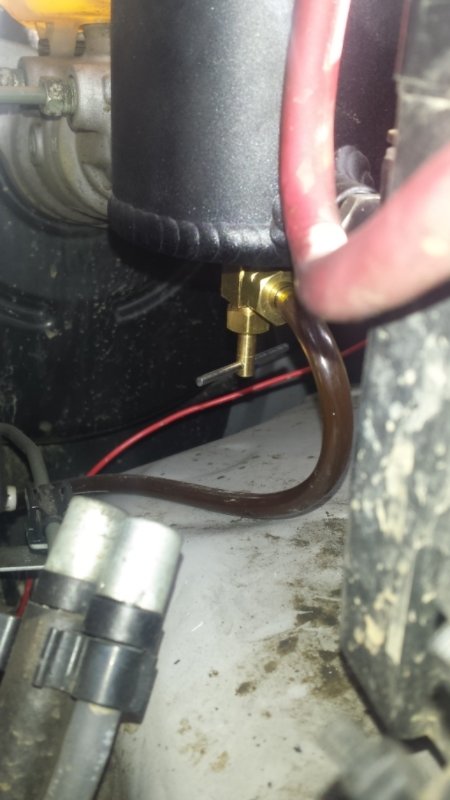

    I also re-threaded and placed this valve on the bottom with 1/8 clear tube so that I could drain it. Routed the tube down the frame to drip into a can placed on the ground.
    http://www.lowes.com/pd_68576-104-LFA40___

    helpful tips:
    • Buy 3/8" ID high pressure fuel line for this to work.
      • DO NOT use regular fuel line, or it will collapse and cause your engine seals to fail prematurely.

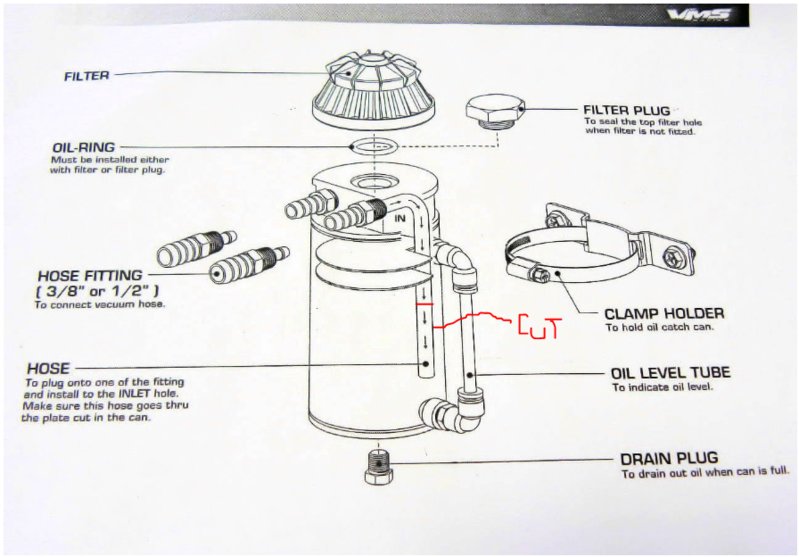

    • An important note on the install of the VMS can. With the internal hose that goes through the baffles, I trimmed it up another 1-1/2" to go through just the lowest baffle. I found that the tube was too low and when the oil starts to collect, the longer hose which sat near the bottom of the can, would froth up the oil.
      [​IMG]
      Edit: Also this should go without saying, Unless you are running the supercharger, the top filter does not get used. Why? because the ECM monitors the closed PCV system pressure and will kick a CEL when the system becomes "OPEN".
    • Because the PCV system is a closed loop. if there is a leak between the crank case and the intake manifold the ECM will kick a Check engine light. Just buy new high pressure fuel line and run this oil catch can in-line and plug the top with the "filter plug". A naturally aspirated engine intake works to equalize the pressures in the crank case by pulling from the intake between the throttle body and valve train.

      on a SC or forced induction engine the intake is now pressurized and if you were to keep the system closed you would over pressurize the crank case and blow seals.
      • please note that depending on your SC setup the PCV system might be routed a different way. please consult your SC manufacturer or manuals for further information.
      • A good ground rule might be to think of the PCV system as being under vacuum from the naturally aspirated engine. SC engines could get away with just venting the PCV system to atmosphere (filter) and plugging the outlet on the can.
    • SNIP: non supercharged=no filter
      supercharged=use filter
    Edit:

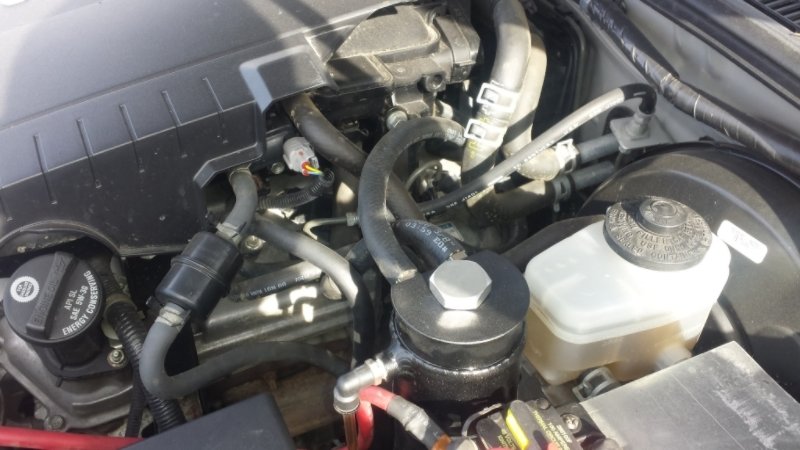

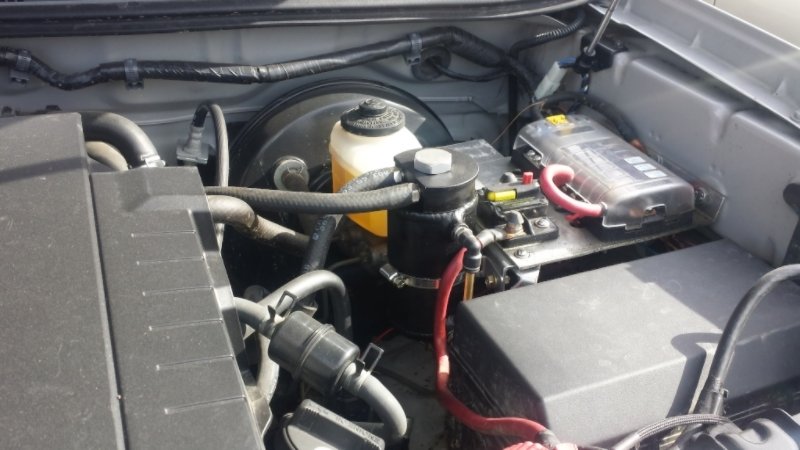

    Photos of VMS catch can installed on my truck.
    d1206118-004c-4e47-9da2-c1b05ed1f8ba_zps_4c2f70aeeb50eb7e92d8fd1e2f1c17c12bc4fa5a.jpg
    54a88e92-bc0d-4973-9001-855384fff744_zps_ba05d703319cdc3ea68b5721348c622761e96b76.jpg
    d011fac3-df51-4209-830e-165d0436a6c8_zps_3eaa50d9e1e19ee70ac7b2ce59cf7eebc36af5c9.jpg
    f48df47b-48bd-4d81-81ce-958a7ae58c0e_zps_ea21f118e07740eb65096662724aa58357ce9542.jpg
    94c0947b-1001-439f-b25c-f5916addc5b7_zps_a22aadce283ecf968f4200c5c2d3bf8f88b9a81a.jpg

    Last edited: Nov 11, 2015
    tcBob likes this.
  2. Oct 27, 2015 at 12:36 PM
    #2
    XJfella95

    XJfella95 [OP] Product Developer

    Joined:
    Dec 11, 2013
    Member:
    #118409
    Messages:
    236
    Gender:
    Male
    First Name:
    Brandon
    Reading Pennsylvania
    yeah, I'll post something up when I get a picture or two tonight.

  3. Oct 27, 2015 at 3:08 PM
    #3
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    subbed, this one is already heading my way, good info!

  4. Nov 7, 2015 at 11:50 AM
    #4
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    So just to clarify, On a supercharged engine, everything is still routed the same way, you just use the filter on top instead of the plug?

  5. Nov 7, 2015 at 2:53 PM
    #5
    Conumdrum

    Conumdrum Well-Known Member

    Joined:
    Aug 21, 2014
    Member:
    #136685
    Messages:
    985
    Gender:
    Male
    Las Vegas
    Vehicle:
    2014 Tacoma
    2WD Sport Nav SC V-6 Mall crawler Home Depot truck
    No, you have the plug, otherwise it will pull vacuum from the outside causing a lean condition. Use the plug.

  6. Nov 7, 2015 at 3:01 PM
    #6
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    uhhh it says use the filter for SC'd engines...in the OP

  7. Nov 7, 2015 at 3:02 PM
    #7
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
  8. Nov 7, 2015 at 5:26 PM
    #8
    Conumdrum

    Conumdrum Well-Known Member

    Joined:
    Aug 21, 2014
    Member:
    #136685
    Messages:
    985
    Gender:
    Male
    Las Vegas
    Vehicle:
    2014 Tacoma
    2WD Sport Nav SC V-6 Mall crawler Home Depot truck
    Ya, if the upper connection was after the SC, then yes. Ours is before the blower. I think? That sounds right?

    Hehe, now I'm confused. If it's not a Roots type blower and the outlet was after the SC then you'd need the filter? I think?

  9. Nov 7, 2015 at 7:19 PM
    #9
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    No, you're right, I was thinking it was a different line.

  10. Nov 7, 2015 at 7:19 PM
    #10
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    The upper line is right before the rotors

  11. Nov 8, 2015 at 12:46 PM
    #11
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Well shit. So, I might have to pull the Supercharger just to get access to the ports for this install lol. Shinning a flashlight I can baaaarely see the tube going into the engine...can't even get a hand back there. So that sucks. Plus I forgot about the Supercharger reservoir in the way, and have no where to mount the catch can. Might have to look into mounting it somewhere else in the engine bay have long tubes tastefully routed to it :D

  12. Nov 9, 2015 at 8:17 AM
    #12
    XJfella95

    XJfella95 [OP] Product Developer

    Joined:
    Dec 11, 2013
    Member:
    #118409
    Messages:
    236
    Gender:
    Male
    First Name:
    Brandon
    Reading Pennsylvania
    if your PCV system pulls before your supercharger then it'll be under suction and you'll need to use the filter plug.

  13. Nov 9, 2015 at 8:43 AM
    #13
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Yep, we got that :)

  14. Nov 9, 2015 at 11:05 AM
    #14
    XJfella95

    XJfella95 [OP] Product Developer

    Joined:
    Dec 11, 2013
    Member:
    #118409
    Messages:
    236
    Gender:
    Male
    First Name:
    Brandon
    Reading Pennsylvania
    Edited OP with installed photos

    Last edited: Nov 9, 2015
  15. Nov 10, 2015 at 3:04 PM
    #15
    Conumdrum

    Conumdrum Well-Known Member

    Joined:
    Aug 21, 2014
    Member:
    #136685
    Messages:
    985
    Gender:
    Male
    Las Vegas
    Vehicle:
    2014 Tacoma
    2WD Sport Nav SC V-6 Mall crawler Home Depot truck
    I know! It's a bitch to get to. The stock clamps that Yota uses are weak, you can pull the hose right off. I used thick wall fuel line and the same clamp and was able to just push it on the fitting. It's not high vacuum or pressure so it should be just fine like that. That's what foampile told me.

  16. Nov 10, 2015 at 3:12 PM
    #16
    VolcomTacoma

    VolcomTacoma Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    20,650
    Gender:
    Male
    First Name:
    Jeff
    NorCal
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Ohhhhhhhhh. I might try that, then...

  17. Nov 11, 2015 at 8:32 AM
    #17
    Vassily28

    Vassily28 Well-Known Member

    Joined:
    Nov 24, 2011
    Member:
    #67629
    Messages:
    423
    Gender:
    Male
    Quebec, Quebec, Canada
    Vehicle:
    11 TRD SPORT 4x4 Quadcab LB
    TRD supercharger with 2.85" URD stealth pulley and OEM FPR mod. URD fuel pump upgrade, URD TB plate adapter 70mm, FJ/4 runner 70 mm Throttle body, URD exhaust cam gears URD performance thermostat TRD CAI 1st gen. with custom cover (coupe), ProDry S + Filter skin, Doug thorley long tube headers, URD spec U exhaust Icon LT 2.5 front coilover, Timbren front bumpstops, Total Choas UCA, Deaver custom leafpack 3 inch. lift, Icon 2.5 VS series rear resishocks, Timbren rear bumpstops, ARB front bumper with WARN 8500 lbs winch,Hella 500 blackmagic, AVID rear bumper, Allpro front IFS skid + Trans. skid + Transfercase skid. Total chaos LCA skid, SS braided brake line, URD O2 sims, URD MAF controller, Wetokole front seatcovers, Innovate MTX-L, MTX-D AFR and boost gage.
    Check the way i've done mineIMG_5627.jpg
