warn M8000 install in CBI moab front bumper

Discussion in '2nd Gen. Builds' started by 907taco, Sep 8, 2011.

  1. Sep 8, 2011 at 11:04 PM
    #1
    907taco

    907taco [OP] Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,364
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,

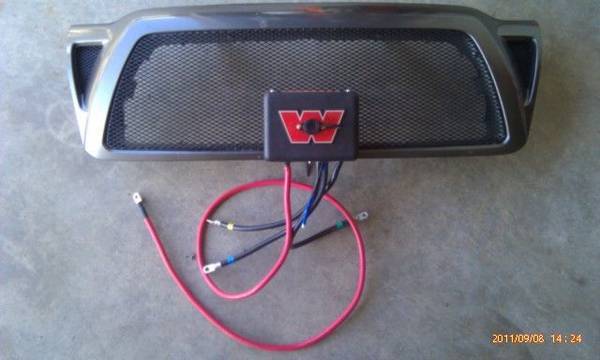

    after installing my yellow top optima recently i finally am able to hook up my winch, after getting ready to hook up wires and contol box i realized that there wasn't much room to put the box in the normal place (far left of winch)
    [​IMG]

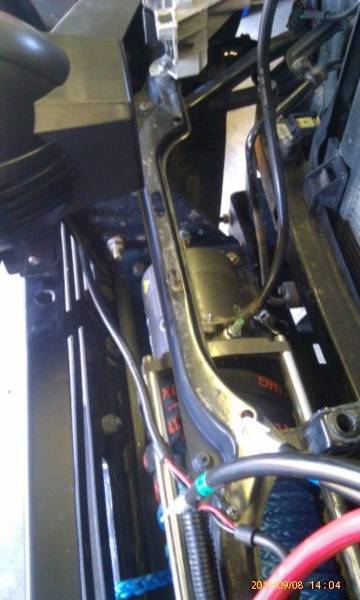

    I spoke with steve at CBI and he said most people place under the hood, I did not want to have to open the hood everytime i want or need to use the winch so a few beers later i decided to mount the box to my grillecraft

    [​IMG]

    I had to open the cover and re arrange wire so they come out the bottom of box instead of the top rear.

    i used the existing bolt/nut and attached to grill, i also re drilled holes for driving lights and moved them over 2" for the box to fit inbetween lights as they would not fit. of course i found out after i had attached it to the grille, so another beer and some drilling


    [​IMG]

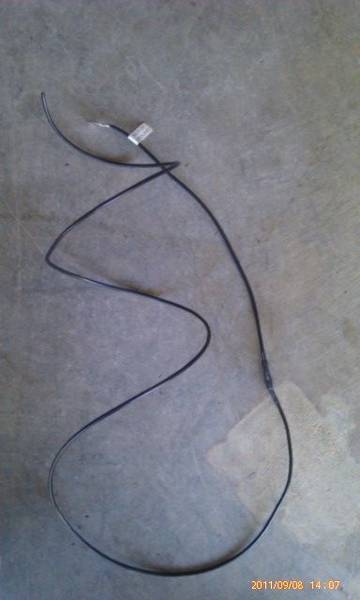

    i had to extend the ground from box to motor ground, i needed the excess wire for it to reach the box using some butt conectors and added then added a snap connector for easy removal (repairs etc...)

    [​IMG]

    once i had the correct length i followed the instructions from warn, cable tied the wires, hooked up to battery and everything works. I also added my hook tied off to shackle.

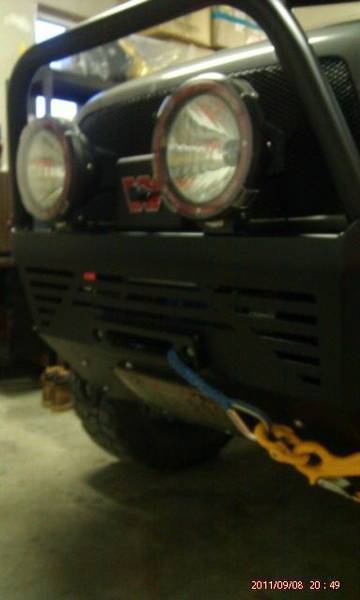

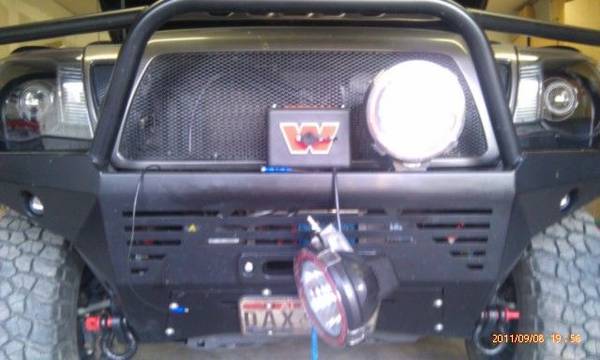

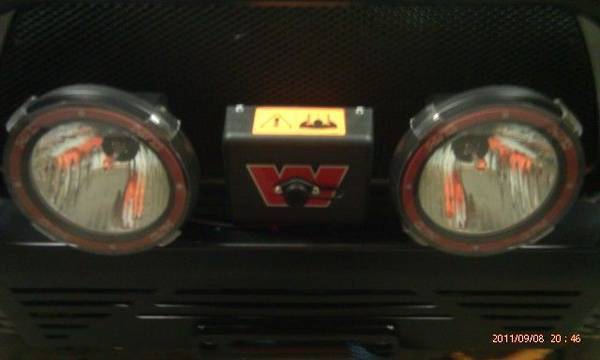

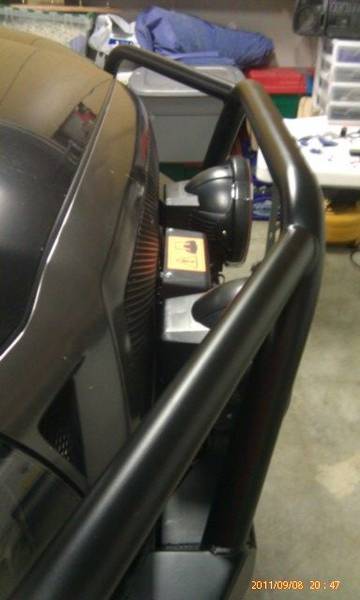

    These last 4 photos are what it looks like now.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I cannot wait to test this out on a few tree stumps in the yard tomorrow.
