Warn Winch cab switch install question

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 000doodie000, Dec 20, 2018.

  1. Dec 20, 2018 at 11:50 PM
    #1
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    I picked up a winch cab switch install kit a while back and finally go around to installing it. The problem is that the instructions that come with the kit are not accurate to my setup. I will upload a picture of the two (how I have mine wired) and the instructions/diagram that came with the kit.

    The Dash Rocker Switch kit number is Warn 99897

    I also have a warn power interrupt (Part 62132) that i installed a while back and its been working great.

    I am connecting it to the Warn Contractor pack solenoid Part#81400 (that is the part number that was on the inside of the enclosed solenoid pack. I had to remove the wires from the original plug that was on the outside of it to get it configured below)

    The grey wire #7 shows it connecting on the solenoid that connects to ground. That connection on my pack does not go directly to the battery and the connector is too small for any of the posts.



    Question #1.
    Is this really supposed to be ground to the battery or is it intended to be grounded to the frame? (or something else?)
    * note the grey wire also eventually connects to the switch in the cab as well.

    Question #2

    Is the red wire that they show connecting to the ignition really just for the led?
    If so can I just connect it to the power interrupt switch that is already in the cab?
    (I really don't care if the light comes on until power is turned on to the winch.)

    Any help would be great.

    If you need more pictures of the actual setup let me know I can add them.

    Last edited: Dec 21, 2018
  2. Dec 21, 2018 at 2:51 AM
    #2
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    Ok.. I diddled with a few diagrams and tried to lay it out a little better... ... ignore it if its not clear. (I still have the same questions)

    The "Original Config" is how the switch that came with the contractor pack was originally configured (as a whole solenoid unit with the plug in the top)


    Current-Warn-Configuration-w-original 2.jpg

    What do I connect the Gray wire to, is it just a ground wire?
    Does everything else look appropriate?

    (The goal was to have a cutoff switch and an in-out switch in the cab)

    Last edited: Dec 21, 2018
  3. Dec 21, 2018 at 3:44 AM
    #3
    HAVOC

    HAVOC Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,432
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    It looks like the grey wire is ground.

    That wiring diagram is the worst. Diagrams should not be 3D.
    Post a better picture of the diagram with no writing on it (or a link to the .PDF) then I could tell you what goes where.

  4. Dec 21, 2018 at 10:41 AM
    #4
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    I agree. I had to dig around warn we site and Google to find those I then squashed them together and put how I currently have it wired. Each diagram had numbers and letters like A1, F2 or #1, #2, and a few were listed with negative, ground, positive, others were color coded (greeng blue yellow) some had a combo.

    I will see what I can find or I can redraw it.

    for now, I did not find an online version of the switch kit. so the picture at the top is what I have.

    here are the other two originals.

    Warn winch installation:
    https://www.warn.com/Attachment/DownloadFile?downloadId=743
    Original link to the manual (https://www.warn.com/95xp-winch-68500) it auto downloads when you click "Preminum Install Guide"

    Warn Power Interupt guide:
    https://www.gowarn.com/aux_incl/pdf.ashx?pdf=WAR_62132_INS_1.pdf&line=WAR

    here is a pic of how it was originally wired, ( I added color so you could see which wires were going where)
    * red which was disconnected in the photo, but it goes to the power interrupt
    * negative is only from the winch to battery.
    * The small black wire is grounded to the chassy)
    * The other wires in the image (green, black, gray) are for the new switch.

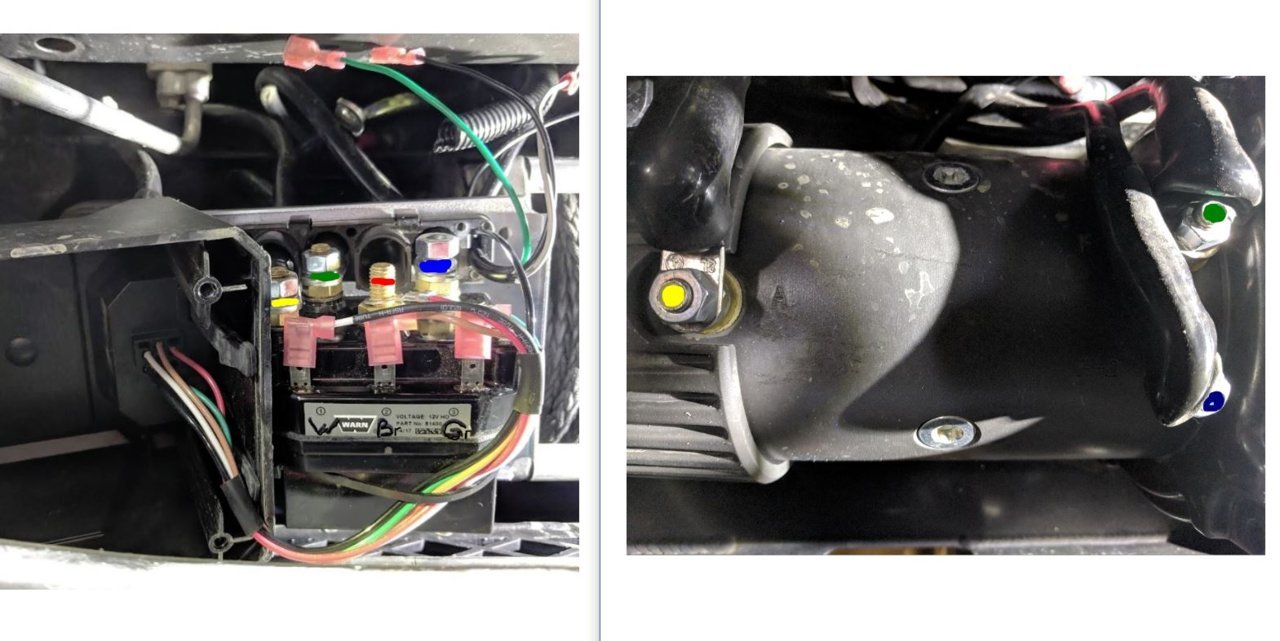

    original cong pic.jpg

    Last edited: Dec 21, 2018
  5. Dec 21, 2018 at 11:05 AM
    #5
    HAVOC

    HAVOC Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,432
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Your first picture with the diagram from Warn, can you post a picture with just that diagram?

  6. Dec 21, 2018 at 11:16 AM
    #6
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,564
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    The first picture appears to show the gray wire going to the (-) terminal of the battery via the "A" post on the WARN 81400 Contactor. With that logic a good chassis ground should work just fine. With emphasis on good, might want to ohm your chosen ground point out first. Just to make sure its actually conductive all the way back to the battery. Other than that I cant see any problems :notsure:

    P.s. It's Contactor not Contractor, despite what Amazon says haha

    Last edited: Dec 22, 2018
  7. Dec 21, 2018 at 12:11 PM
    #7
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,564
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Hopefully my answer above made sense.

    This is a really bad picture, but seems to backup your Red wire theory as well.

  8. Dec 21, 2018 at 1:10 PM
    #8
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...

    Sorry, not trying to be dense. I linked the ones above I used. The last one with the switch diagram is the picture above. Those are all I have.

    Here is a blank one with some color.
    parts diagram -some color.jpg

    Here is how I have it wired
    parts diagram -some color.jpg

    attachment of the original diagram/picture by itself also.
    warn switch kit diagram.jpg

    Last edited: Dec 21, 2018
  9. Dec 21, 2018 at 1:14 PM
    #9
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    Yea. The more I look at it the more I think its a ground as well.

    Do you think it would cause a short if I connected the original switch inside the box as well? I'd like to have a switch fail option.

  10. Dec 21, 2018 at 1:51 PM
    #10
    HAVOC

    HAVOC Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,432
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    I found wiring for the Provantage 3500. Looking at it now.

  11. Dec 21, 2018 at 2:27 PM
    #11
    HAVOC

    HAVOC Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,432
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    The gray wire goes to the same post that the cable from the negative terminal of the battery goes to. Maybe it's for switch illumination/indicator?


    Last edited: Dec 22, 2018
  12. Dec 22, 2018 at 5:01 PM
    #12
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,564
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    A switch fail option? What do you mean by that?

  13. Dec 22, 2018 at 5:06 PM
    #13
    HAVOC

    HAVOC Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,432
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    I think he means that if one switch dies, he has a backup.

  14. Dec 22, 2018 at 5:20 PM
    #14
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    Yea, a buddy reminded me that since the majority of the time you end up out attaching the winch it would be good to have that connection. Id still like to be able to use the normal hand held. Id also like to be able to sit in the cab and use the switch. (Sort of an either or function)

    Last edited: Dec 23, 2018
  15. Dec 22, 2018 at 5:26 PM
    #15
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,564
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    I dont use Warn winches, so Im not sure.. But - isnt that the point of the round 7-pin connector? Isnt that where the Warn remote gets plugged in? I would assume that all the required connections are already made under the heat shrink between the contactor side of the harness and the cab switch side.

    In other words you plug the remote into that 7-pin plug and then you can use either the remote or the in cab switch to operate the contactor

  16. Dec 22, 2018 at 5:44 PM
    #16
    HAVOC

    HAVOC Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,432
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    That's how I thought it worked. You use the switch in the cab of the truck and if you need to, use an external remote switch. It's not for a backup, just convenience.

    SR-71A likes this.
  17. Dec 22, 2018 at 10:19 PM
    #17
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    Me too but the kit requires disconecting a few wires that i believe are needed. Its ok, at this point i found out enough to make we rethink it.

  18. Dec 22, 2018 at 10:25 PM
    #18
    000doodie000

    000doodie000 [OP] Well-Known Member

    Joined:
    Jun 12, 2016
    Member:
    #189457
    Messages:
    702
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2015 Taco TRD Off-Road
    Many and always modding Wheels Suspension lift Armor Electrical gadgets etc...
    Reply from another forum...


  19. Dec 22, 2018 at 11:32 PM
    #19
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    2,507
    Deep South
    Herculiner Hootus

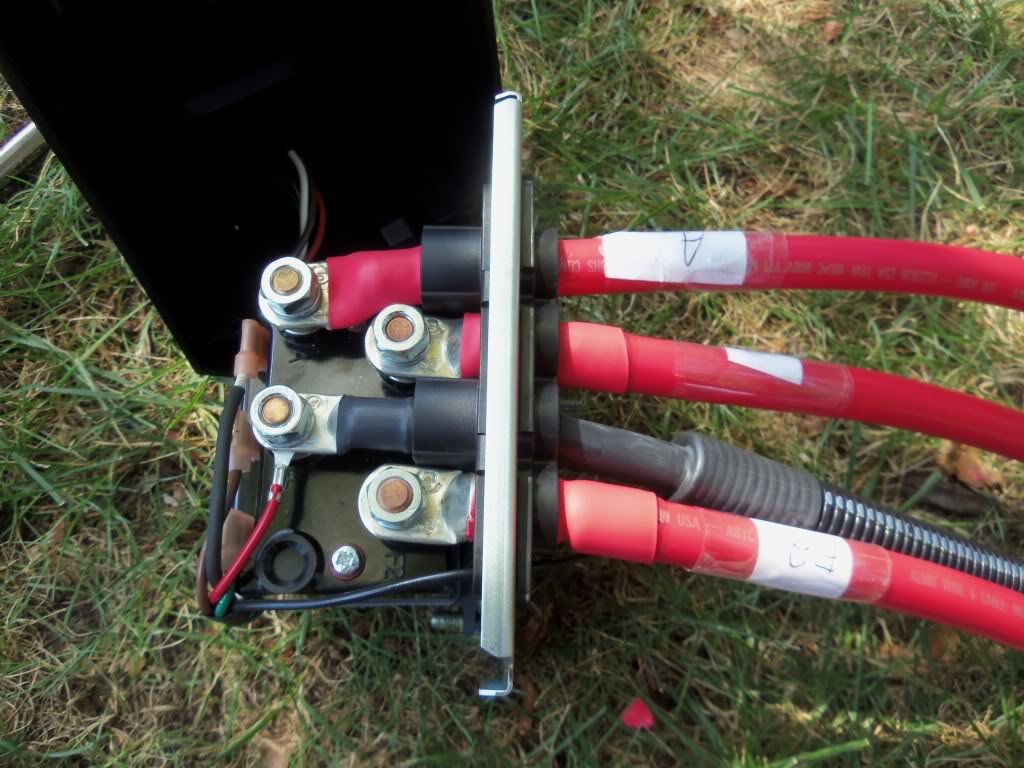

    maybe this will help you, i can expand upon how i worked around the new 5 wire system. That post above is correct, the old 3 wire was simpler but the 5 wire adds in redundancy of isolating the ground as well as the power when using the remote. Failure is unlikely, so I defeated that to go back to the old 3 wire setup. This was my controller setup on the 9.5 xps



    Open up the pack and splice together the brown and black wires. Tap into the positive and winch in/out wires, then you only need to run 3 wires into the cab

    I have an isolation switch along with a winch in/out switch momentary in the cab.

    A schematic of my setup

    WIth this setup the stock plug and remote still works as it should. If you want to keep the 5 wire setup, simply run two extra wires into the cab and use that on the other pole to switch the negative (ground) side of the solenoid.

    SR-71A likes this.
  20. Dec 23, 2018 at 10:31 AM
    #20
    vertrx7

    vertrx7 Well-Known Member

    Joined:
    Jan 27, 2018
    Member:
    #242607
    Messages:
    293
    Gender:
    Male
    First Name:
    Rolf

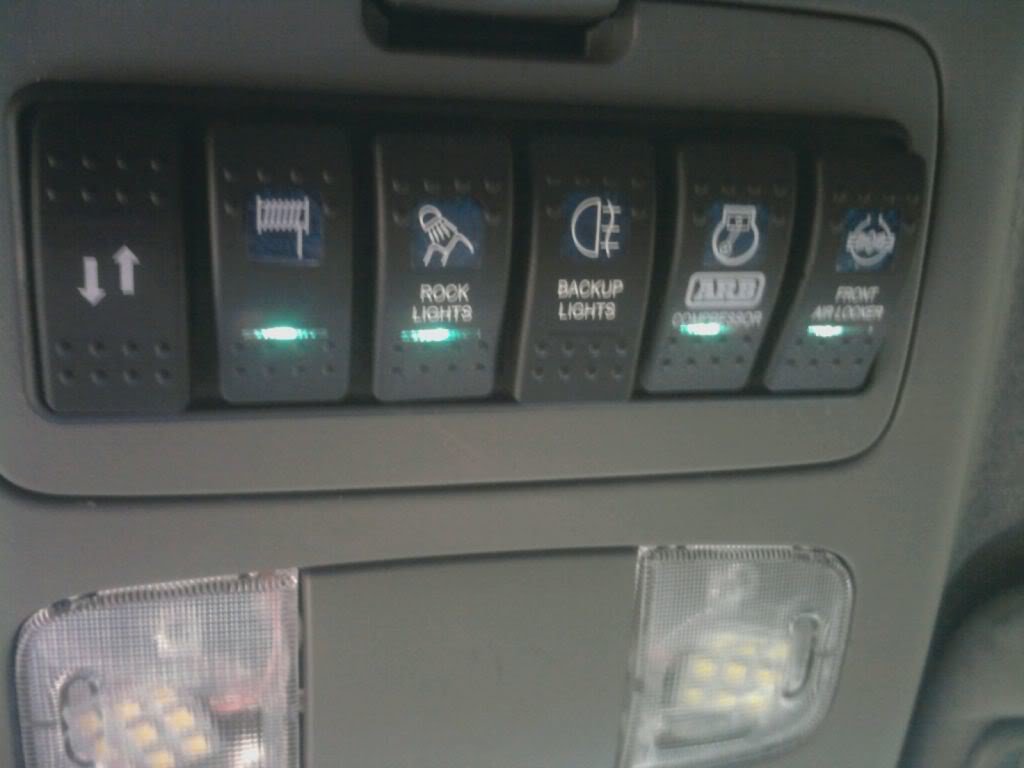

    Where did the switch panel in the ceiling come from? Did you modify it or is that a vendor who supplies the panel that the switches go into? I might have missed that point. If I did, apologies.
