Was trouble installing cams. Now restarting HG job.

Discussion in '1st Gen. Tacomas (1995-2004)' started by Logans2001, Dec 25, 2022.

  1. Dec 25, 2022 at 6:46 PM
    #1
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    So I’m about to start the job either tomorrow or Tuesday and I’ll have about 3 days to finish it before I have to drive back to San Diego (I’m currently near Sac right now).

    I’m planning on following Worse Than Chiggers video on YouTube only because he’s really the only one I’ve found that’s doing this. I’m open to any other videos that I may not be aware of. I’ve done just about everything in this job already as far as disassembly goes with the exception of taking the heads off. Water pump and timing belt will not be getting replaced as they are new.

    I got YotaShops head gasket kit with the head bolts. https://www.yotashop.com/gasket-kit-toyota-v6-5vz-fe-3-4l-4runner-tacoma-tundra-oem-mls-cylinder-head-gasket-replacement-kit-2000-2004-kit-1020b/

    I also bought a pair of reman cylinder heads that are fully assembled ready to slap on, so I won’t be putting my old heads back on. While I’m in there I’m also planning on doing the oil and coolant.

    I feel like I’m pretty prepared for this job but I’m still open to advice from any of you that have done this before.

    Cheers

    Area51Runner and smithtacomapta like this.
  2. Dec 25, 2022 at 7:13 PM
    #2
    0xDEADBEEF

    0xDEADBEEF Swaying to the Symphony of Destruction

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    19,425
    Vehicle:
    2000 reg cab 4x4 flatbed MT
    Don’t use roloc disks on the block, it’s a good way to get tiny abrasive materials into the engine and destroy bearings.

    A razor blade scraped perpendicular to the block does a good job of cleaning the old head gasket off.

    Take lots of pictures, they’re very helpful if something is fuzzy on reassembly.

    Inspect the new heads carefully, definitely want to make sure their right.

    PzTank, colton1er, Wulf and 3 others like this.
  3. Dec 26, 2022 at 9:11 AM
    #3
    MikeWH

    MikeWH Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209164
    Messages:
    830
    First Name:
    Mike
    Colfax, CA
    Vehicle:
    1999 TRD 4x4 (x2)
    Ditto on all of above, make sure you have a 12-point high quality socket for removal/install of head bolts. I used a round brass brush and brakleen to clean out the head bolt threads on top of block, mine had oil in them which messes up your torque values. I also left my oil drain plug out and washed down the oil galleys (that drain head oil) with kerosene. Have several cans of brakleen on hand for general cleaning. Don’t forget the RTV and plugs and gasket for valve covers. my heads had it already but assembly/startup lube on all the camshaft bearing journals as you put the caps back on. Dump oil all over camshafts right before you put valve cover on (this oil will be the start of your oil fill). Actually, fill engine with oil before you put that last valvcover on is easier than filling with a funnel. Haha.

    mainly go slow, keep everything clean.

  4. Dec 26, 2022 at 9:48 AM
    #4
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    Going to check if my dad has a 12 point socket, if not I’ll get one. Interesting, worse than chiggers actually puts some oil on the head bolt threads before he installs them which I thought was a little unnecessary. I believe I have some leftover RTV from the valve cover gasket job. But worst case, if I don’t, what can be a substitute for RTV that I could find at autozone, oriellys or Napa? Closest Toyota is an hour away. I was also curious about that startup oil for the heads. Is there a certain type I should use? And is startup oil absolutely necessary? Can I find it at one of my local auto stores?

  5. Dec 26, 2022 at 9:48 AM
    #5
    IvanhoeTaco

    IvanhoeTaco Well-Known Member

    Joined:
    Aug 4, 2019
    Member:
    #301199
    Messages:
    2,675
    Gender:
    Male
    Eastern NC
    Vehicle:
    2005 Supercharged Converted Prerunner
    Total Chaos 3.5 LT, King Coilovers, 35x11.5r17 on Falcon T2, ADV 4 inch fiberglass, 4.88 gears, FJ cruiser transfer case, 4 runner front diff, Cab mount relocate, archive hangers, shackles, king 2.5x14 rear shocks, icon rxt leaf springs, king hydro bumps
    Hows your beer supply?

    PzTank, colton1er, CrustyTaco and 3 others like this.
  6. Dec 26, 2022 at 10:17 AM
    #6
    MikeWH

    MikeWH Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209164
    Messages:
    830
    First Name:
    Mike
    Colfax, CA
    Vehicle:
    1999 TRD 4x4 (x2)
    So my bad, I misspoke- the FSM specifies a light coating of oil on head bolt threads and cam cap bolt threads. Emphasis on light, you don’t want to hydro lock your bolt. The initial torque value expects the oil….BUT I cleaned my head threads out as they had grit/debris, then once clean, lightly oiled the bolt threads as I installed. You will really want that oil, the last 1/4 turn of the head bolts is a gut buster. You will need as big of ratchet/breaker bar as you can get! Make sure you follow torque sequence and pattern from FSM, and mark all bolt heads for each 90 degree rotation so you don’t get lost on where you are. This is the worst part of the whole job.

    valve cover RTV- ideally the Toyota black FIP but using a high quality oil resistant RTV from NAPA is likely fine. There is an Aisin version (likely same as Toyota) on Amazon if that’s quicker for you?

    Engine assembly lube- any NAPA/Riebes has it. I have a bottle of you want to drive up
    To Colfax to get it! Same goes for what I have left of Toyota black RTV!

    using your normal motor oil is fine for coating the cam lobes/lifters.


  7. Dec 26, 2022 at 10:44 AM
    #7
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    Restocking tonight :thumbsup:

  8. Dec 26, 2022 at 10:49 AM
    #8
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    Copy that. Thank you. This definitely clarifies some of my questions. And I appreciate the offer for the startup oil and the RTV! If I wasn’t starting the job tomorrow and wasn’t busy today I would probably take you up on that. I’ll likely come back to this thread often during the job.

  9. Dec 26, 2022 at 10:53 AM
    #9
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,242
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Use a good gasket scraper to clean the block, the head too but be extra careful because aluminum. Blow out the threads for the head bolts to be sure they’re clean, light oil on the head bolts on the threads and a little at the head of the bolt. It’s not terribly hard work. Just tedious. A paint pen to mark the head bolts would be ideal for the 90 degree turns

  10. Dec 26, 2022 at 12:16 PM
    #10
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,773
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    Going to have several days of rain starting tomorrow. Crossing fingers job goes smoothly. :fingerscrossed:

  11. Dec 26, 2022 at 4:58 PM
    #11
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    3,704
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    Yeah take too many pics if anything.......maybe even couple of 180 degree vids along the way....
    the fog of war......in the 11th hour dont want any uncertainty.....
    digital pics are free.....
    patience is limited.....

    Gavingamer901 and Wulf like this.
  12. Dec 29, 2022 at 9:09 PM
    #12
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto

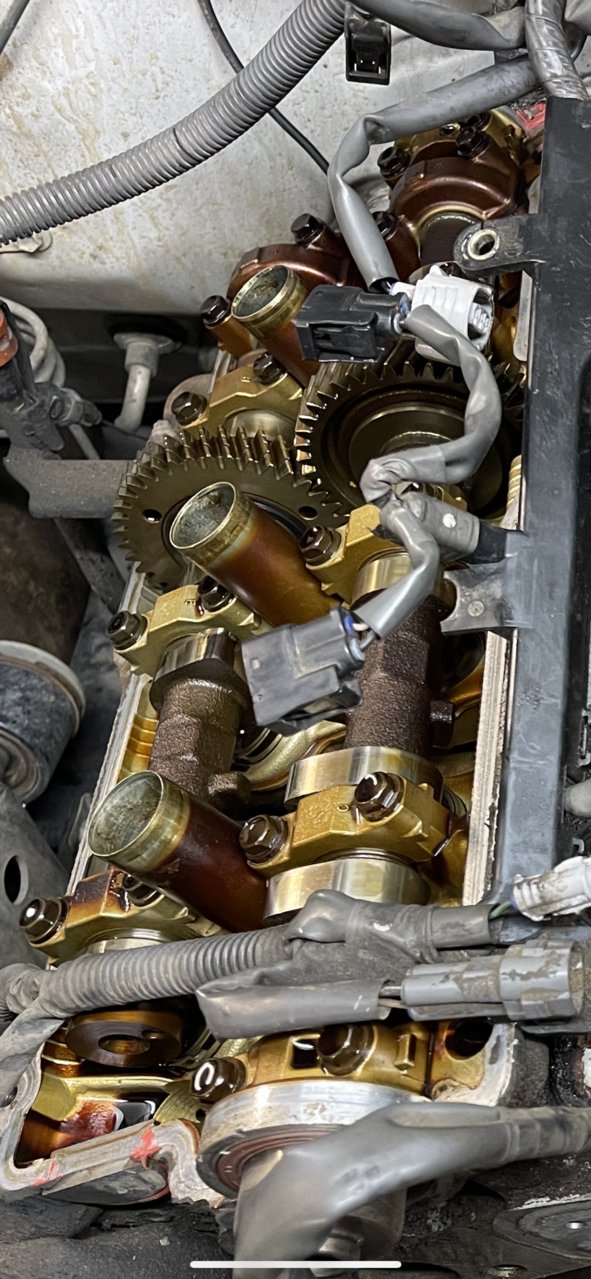

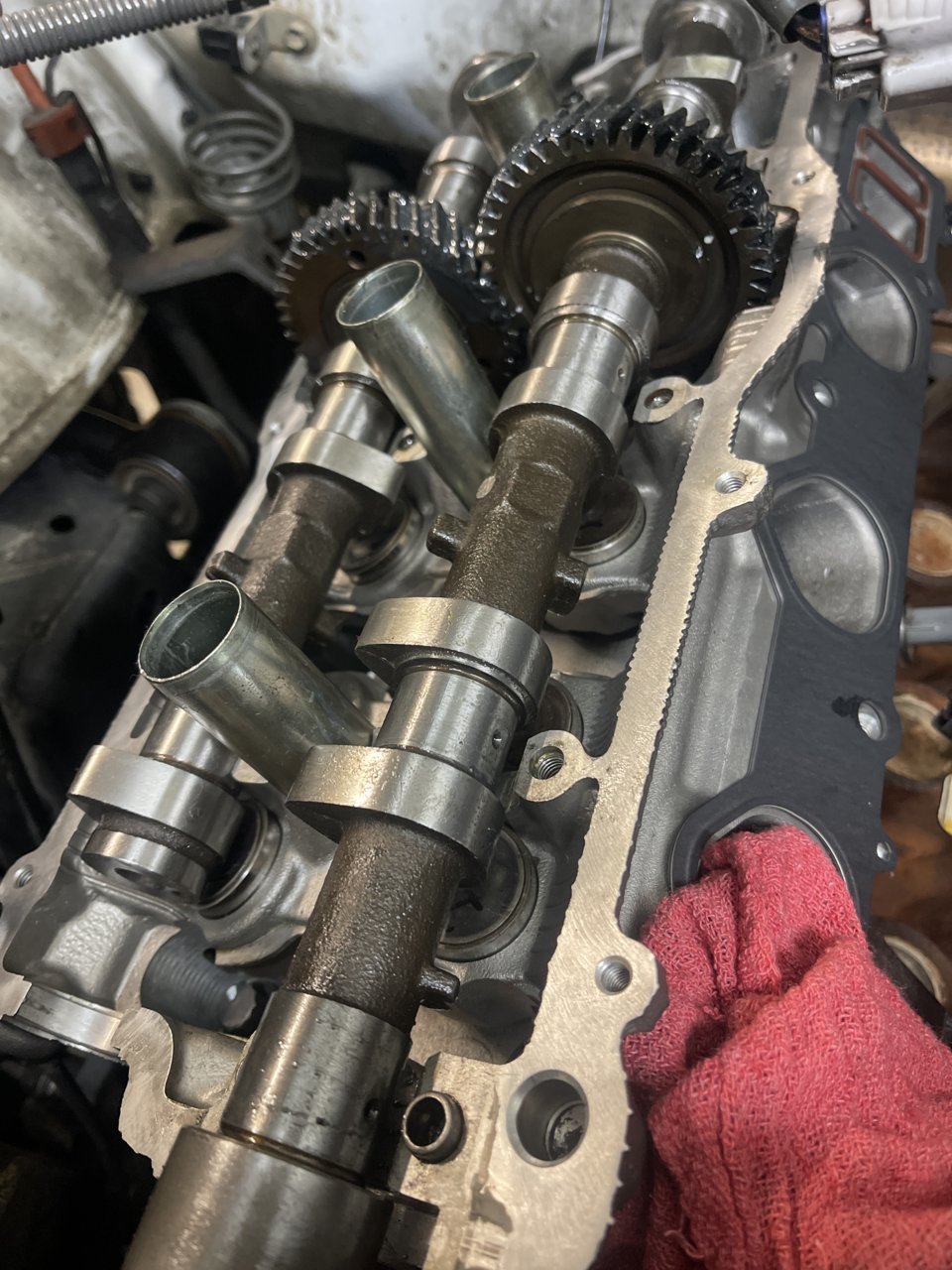

    Here are my passenger side gears before removal. I’m trying to get the new camshafts to match but with the before picture but can’t seem to. Driver side matched up great. I’m trying to get the two holes (one on each wheel) to meet but a part of the cam shaft come in contact with the valve shim. What am I doing wrong.
    Everything should be at top dead center.


  13. Dec 29, 2022 at 9:18 PM
    #13
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    3,704
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    Its looks to me that the exhaust lobes are about 10~15 deg advanced clock wise....
    as compared to 1st pic.......the intake lobes look correct....

  14. Dec 29, 2022 at 9:29 PM
    #14
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    I should mention.. the intake lobes are what I’m working on at the moment. Haven’t focused on the exhaust cam yet. When I try to copy how the cams were positioned originally I can’t because one of the lobes is pointing downward on the shim and therefore not letting the cam sit all the way down in the valleys.

  15. Dec 29, 2022 at 9:39 PM
    #15
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    Can the cams only be installed one way when at top dead center?

  16. Dec 29, 2022 at 9:39 PM
    #16
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    3,704
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    And on mine 2rz/3rz you have to put in a bolt on that split gear......if its ever freed from the intake cam gear...

    Change the heading on this thread.......asking for help installing 5vz cams....
    bunch here have already done this........

    Last edited: Dec 29, 2022
    Logans2001[OP] likes this.
  17. Dec 29, 2022 at 9:44 PM
    #17
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,773
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP
    I'd hit up @Empty_Lord since you're stuck. He might have suggestions :boink:

    Logans2001[OP] and Kwikvette like this.
  18. Dec 29, 2022 at 9:56 PM
    #18
    Logans2001

    Logans2001 [OP] What’s crackin’

    Joined:
    Jan 23, 2016
    Member:
    #175792
    Messages:
    1,896
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2001 v6 4WD auto
    See I’ve seen that in the video I’m following but I don’t understand it’s purpose or how it affects installation.

  19. Dec 29, 2022 at 10:41 PM
    #19
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    3,704
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    Yes those two gears have to stay under tension relative to each other.....
    and then mated against the intake gear......
    if that bolt slips out....its not that hard to reset em....
    but am clueless to their function or action.......

    cruxofthebisquit likes this.
  20. Dec 30, 2022 at 11:16 AM
    #20
    MikeWH

    MikeWH Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209164
    Messages:
    830
    First Name:
    Mike
    Colfax, CA
    Vehicle:
    1999 TRD 4x4 (x2)
    First of all, you need to get the service bolt back in the split gear (note the gear is spring loaded for anti-backlash feature). You will need to do this on the bench, and you will need a pin spanner wrench to tension the movable gear, and a crescent wrench to hold the fixed gear (via the shaft flats). Get that first…in the future, you install the bolt prior to removal, and don’t remove it until all cam bolt
    caps are torqued down.

    On one side of the engine, the FSM indicates that during installation you align the double dots (which are 180 out from the single dots). Try doing that, bolt all the caps down to torque, remove service bolt, and then turn cam assembly (using wrench flats on cam, careful of the spring tension it will beat your hand with the wrench). Turn assembly to ensure single dots match. Ultimately, setting TDC before belt install is done with cam gear mark so as long as your dots match through a couple rotations, you are clear to install valve
    Covers and continue reassembly (don’t forget to coat everything in oil right before).

    hope this helps, I can ref the FSM in a bit if you need any other tips
