Weather Guard Toolbox (DMV) SOLD

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by crashdb, Oct 27, 2020.

  1. Oct 27, 2020 at 8:46 AM
    #1
    crashdb

    crashdb [OP] Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    4,376
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.

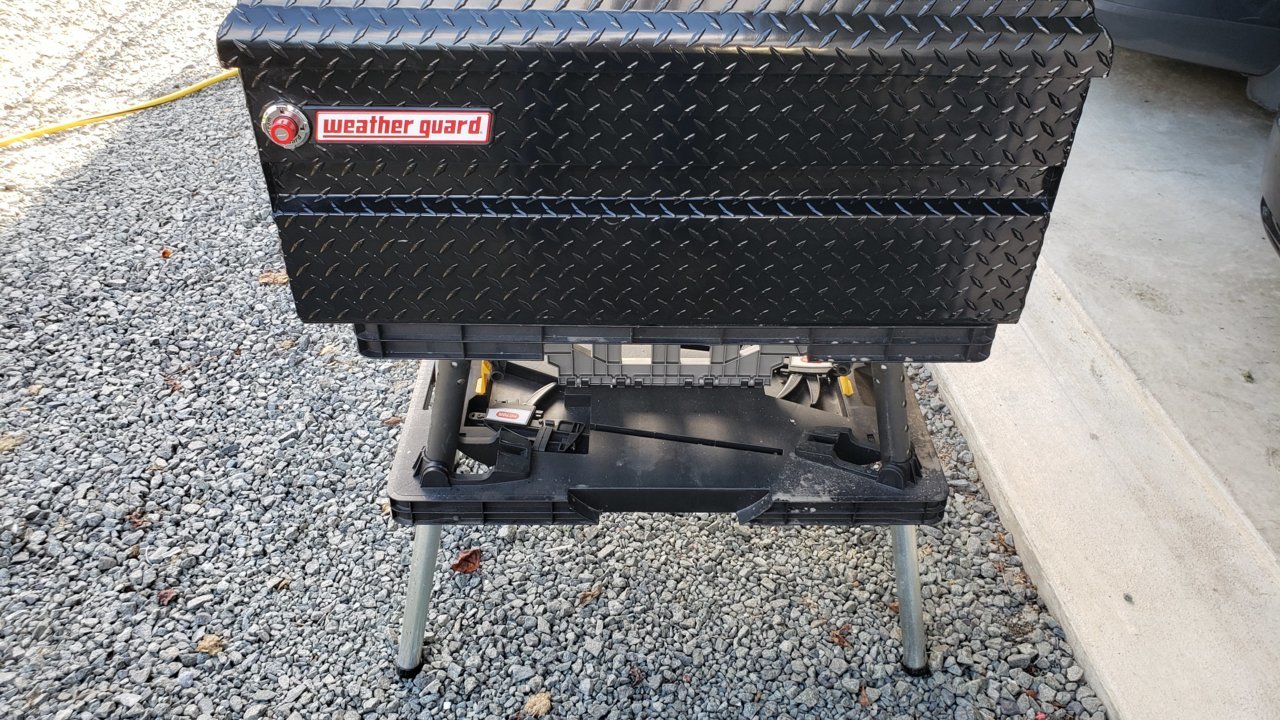

    Weather Guard tool box in black diamond tread. Model number: 644-5-01. The tool box itself will fit a variety of trucks, but I modified it slightly to work with the utility rail in my Tacoma. What that consisted of was drilling two small holes in the back of the box so that bolts could slide through and be secured using thumb wheels. The holes have grommets in them now for the bolts, but could very easily be filled with a plug of some kind (I may have some on hand). The mounting brackets are modified Hi-Lift mounts with two stainless bolts and mounting hardware. You have to have the front rail for this to work. For third-generation Tacomas a rail can be bought for about $40. I used this set-up for a few years through several off-road trips and have not had a single issue; even with quite a bit of gear inside. When closed and locked, the box is essentially locked into the bed. This should fit under all bed covers. I've been running it under a BakFlip cover (also for sale). Toolbox is in great shape and everything functions. Have both keys. I had cut a thick rubber mat for the bottom of the box so that's in there for noise reduction and to protect the finish.

    I can meet within reasonable distance. $300


  2. Oct 27, 2020 at 8:59 AM
    #2
    Ruminator

    Ruminator Chairman of the Bored.

    Joined:
    Feb 13, 2018
    Member:
    #244300
    Messages:
    1,831
    Gender:
    Male
    First Name:
    Mark
    Northern Illinois, USA
    Vehicle:
    2017 Red TRD-Sport, ACLB, MT!!!
    Nice toolbox. Wish you were a little bit closer. GLWS.

  3. Oct 27, 2020 at 9:04 AM
    #3
    prickly_goo

    prickly_goo Well-Known Member

    Joined:
    Sep 17, 2018
    Member:
    #266515
    Messages:
    205
    Gender:
    Male
    First Name:
    Joseph
    Santa Fe, NM
    Vehicle:
    2018 Tacoma SR5 V6 4x4
    Custom headache rack

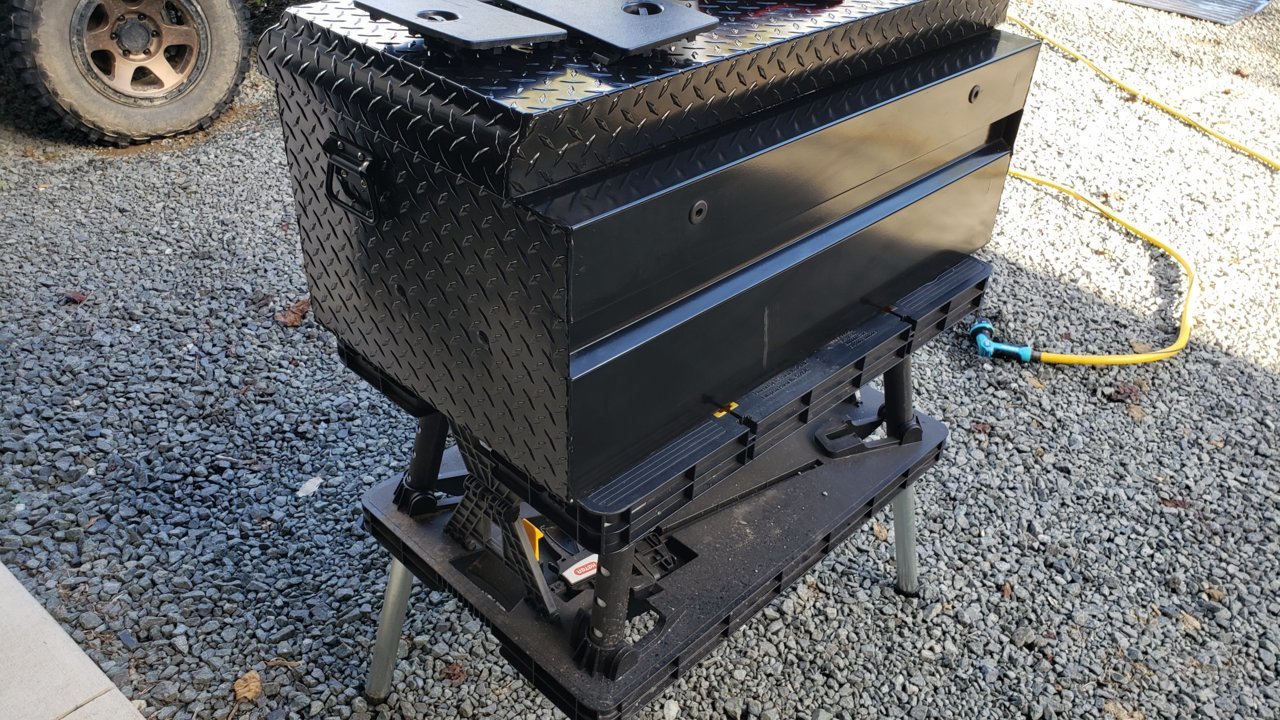

    great set up for a toolbox. wish i were closer. how did you rig up the box to the rails? I see you have a couple holes in the back of the box with some grommets or washers? Are the metal brackets attached to the rail custom? cool set up!

  4. Oct 27, 2020 at 9:15 AM
    #4
    crashdb

    crashdb [OP] Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    4,376
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.

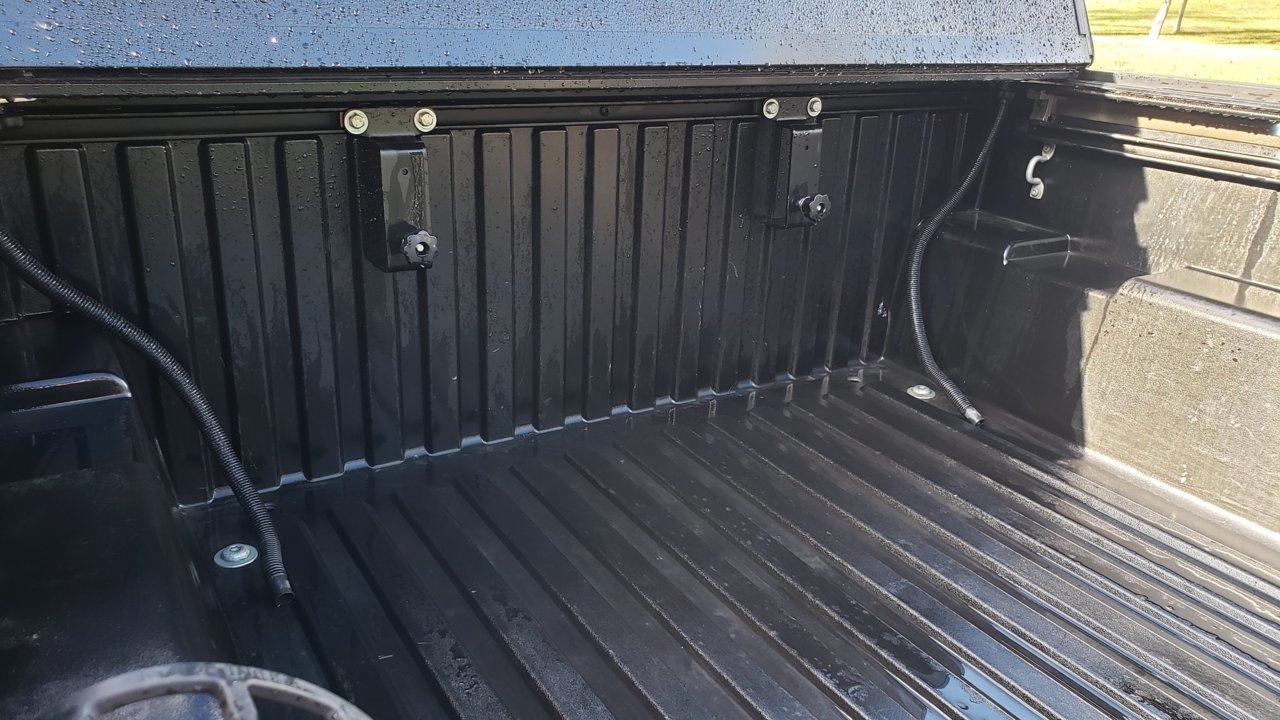

    The brackets are from 4x innovations and they're actually for a Hi-Lift mount that attaches to the rail. I think I just enlarged one of the holes already on them and then matched it up to the toolbox. The holes in the bracket have bolts and nuts on them. They slide through the back of the toolbox (and the grommets). Then I put those thumb wheels or whatever they're called on the bolts and the box is locked down.

    prickly_goo likes this.
  5. Oct 27, 2020 at 9:21 AM
    #5
    prickly_goo

    prickly_goo Well-Known Member

    Joined:
    Sep 17, 2018
    Member:
    #266515
    Messages:
    205
    Gender:
    Male
    First Name:
    Joseph
    Santa Fe, NM
    Vehicle:
    2018 Tacoma SR5 V6 4x4
    Custom headache rack
    Thanks for the info. Since I cant buy your box I may try and do a setup like yours. Been looking for a box that fits inside the bed rails and your set up is what I need. So did you drill holes in the box and put in grommets? Where did you find the thumbwheel things? Sorry for all the questions, just really like the set up

  6. Oct 27, 2020 at 9:27 AM
    #6
    crashdb

    crashdb [OP] Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    4,376
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    No worries! I drilled the holes in the back myself. I got the nuts and bolts from McMaster Carr and the thumbwheel deals from Amazon. https://www.amazon.com/gp/product/B01BHNN2MQ/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

    You'll also need to purchase the front rail if you don't already have one.

  7. Oct 27, 2020 at 9:34 AM
    #7
    prickly_goo

    prickly_goo Well-Known Member

    Joined:
    Sep 17, 2018
    Member:
    #266515
    Messages:
    205
    Gender:
    Male
    First Name:
    Joseph
    Santa Fe, NM
    Vehicle:
    2018 Tacoma SR5 V6 4x4
    Custom headache rack
    Amazon seems to have everything! Thanks for all that info, I greatly appreciate it very much. Hope to get started on my setup soon. I have the box but its been sitting around until I saw your post. Good luck with the sale!

    crashdb [OP] likes this.
  8. Nov 2, 2020 at 9:26 AM
    #8
    crashdb

    crashdb [OP] Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    4,376
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    Bumpity bump. Buy! Christmas is coming and your significant other will get the wrong thing!

  9. Nov 8, 2020 at 11:33 AM
    #9
    crashdb

    crashdb [OP] Dangerous with an angle grinder..

    Joined:
    Aug 16, 2017
    Member:
    #226954
    Messages:
    4,376
    Gender:
    Male
    First Name:
    Dave
    Manassas, VA
    Vehicle:
    2017 TRD Sport 4x4 DC SB
    Stuff that my wife thinks I don't need.
    Bump again.
