Wedgefry's ghetto build thread

Discussion in '3rd Gen. Builds (2016+)' started by wedgefry, Nov 21, 2017.

  1. Nov 21, 2017 at 8:47 AM
    #1
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB

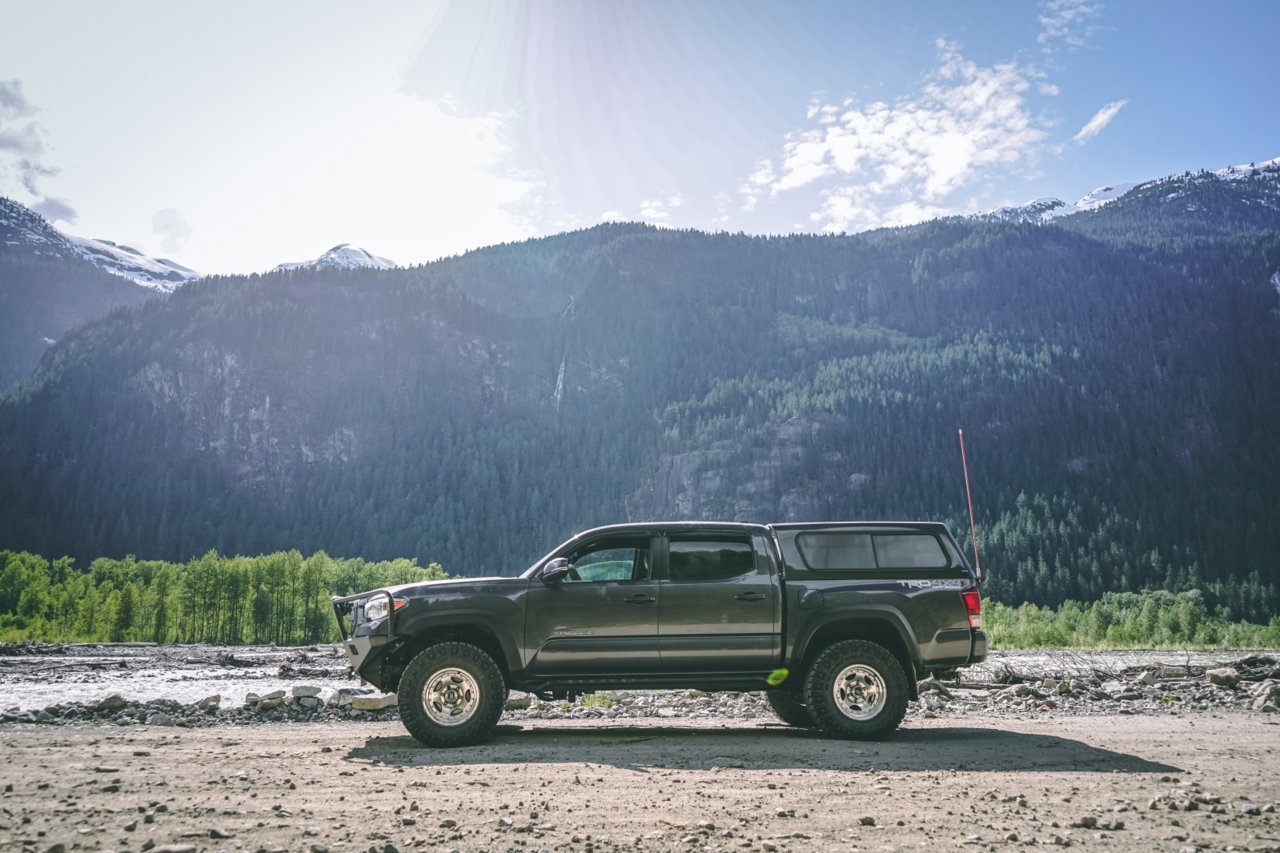

    Current photo

    Exterior / Accessories
    • Custom "TRD Pro" Grille
    • Arrow Mark 1 Canopy
    • Rango Fab CB antenna mount
    • Firestik
    • AVS Vent Visors
    • 6" KC Hilites Apolo series spotties
    • LED pod fog lights
    • LED Hi/Low Headlights
    Suspension / Wheels
    • Front - 3" Lift - Bilstein 5100's w/ 620lb Eibach coils
    • Rear - 3" Lift - Trail Gear AAL's
    • Timbren front bump stops
    • Sumosprings in the rear
    • AR23 16x8 -4.5"BS w/ 285/75/16 Duratracs
    • SPC UCA's
    Interior
    • Center console 6 slot organizer
    • Uniden PRO520XL CB Radio
    • VicoVation TF2 Dash cam
    • CaliRaised Switches and Panel
    • LED Map & Dome lights
    Bed Accessories
    • Bed stiffeners
    • Custom built storage drawers
    • LED bed lighting
    Armor and Recovery
    • Custom made welded sliders
    • Smittybuilt 9500 w/ synthetic rope
    • Custom made low profile bumper
    • Smittybilt 5.65 CFM Air Compressor


    In the summer of 2017, I picked up my first Tacoma. I've been a long time Toyota fanboy.

    After my Surf was written off, I decided to purchase a new vehicle for the first time ever. I haven't ever owned anything made past 96'. This was definitely an exciting experience. I decided to go with a 2017 TRD OR DCSB. This configuration makes the most sense since this is strictly a toy for me. I have a company vehicle that I commute in, so I wanted to spec and build this out for strictly camping/overlanding.

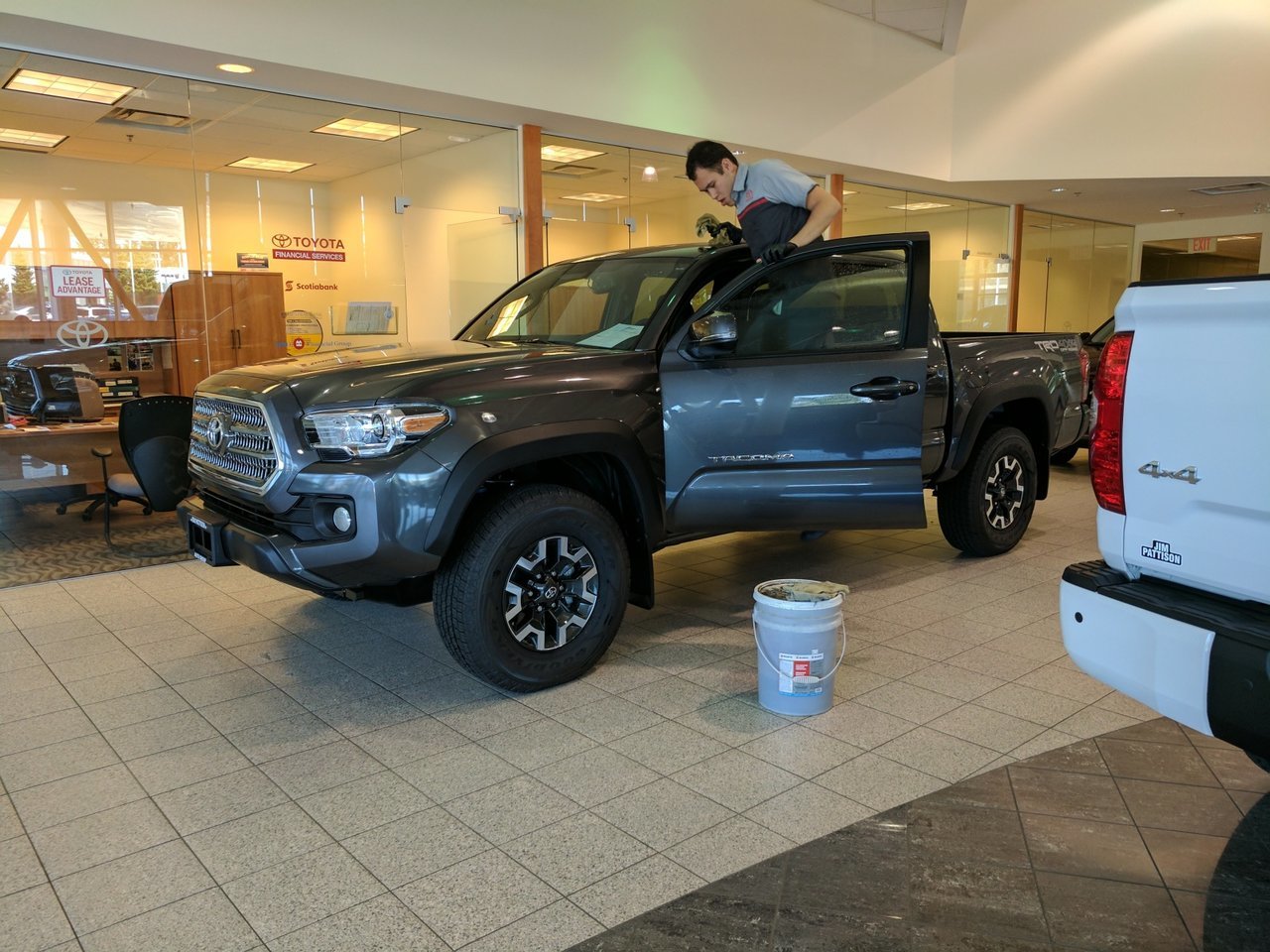

    PDI while signing paperwork.

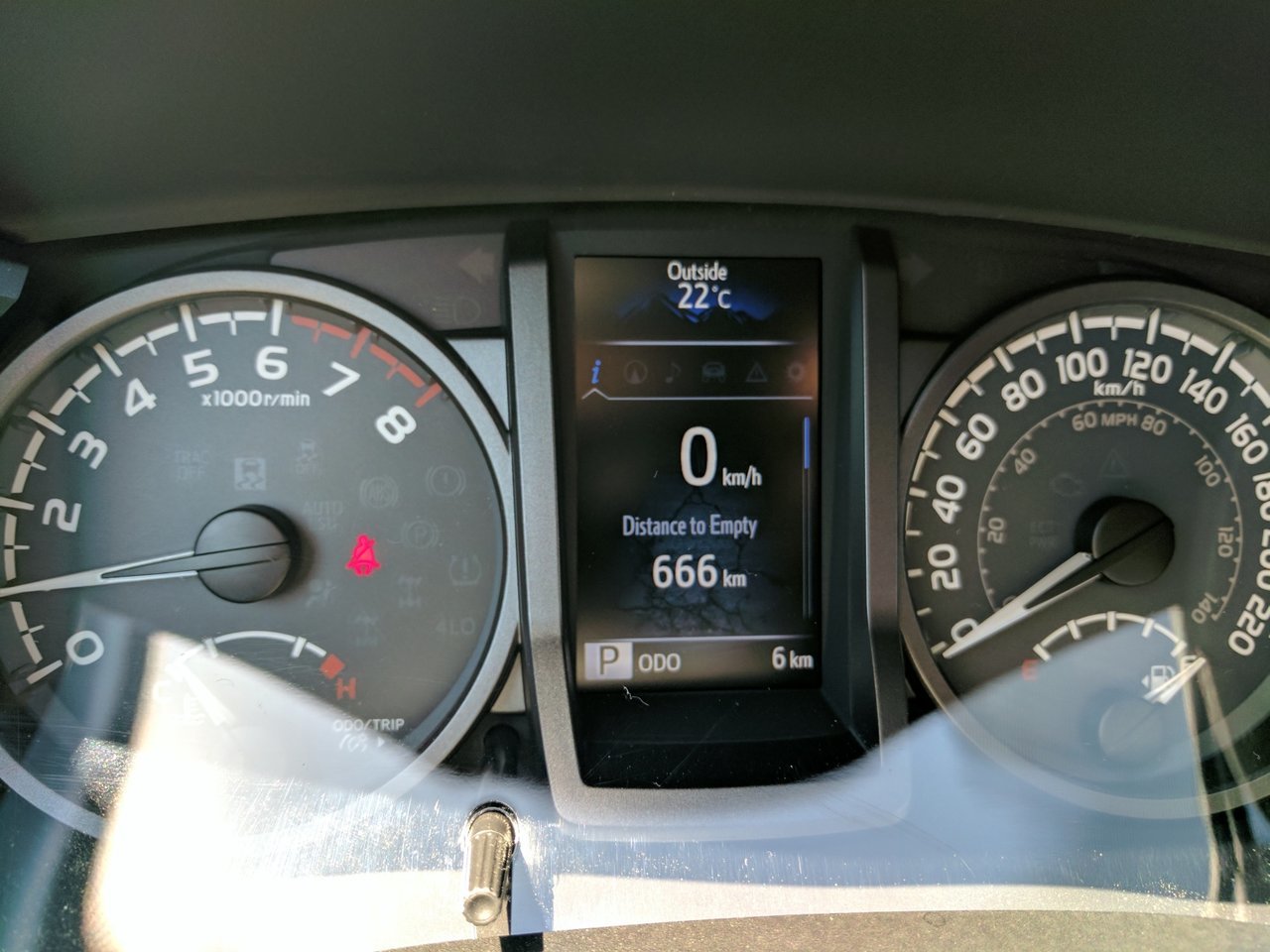

    Drove it out of the showroom with a full tank of gas and 6km on the odometer.

    Quick rip on some FSR's

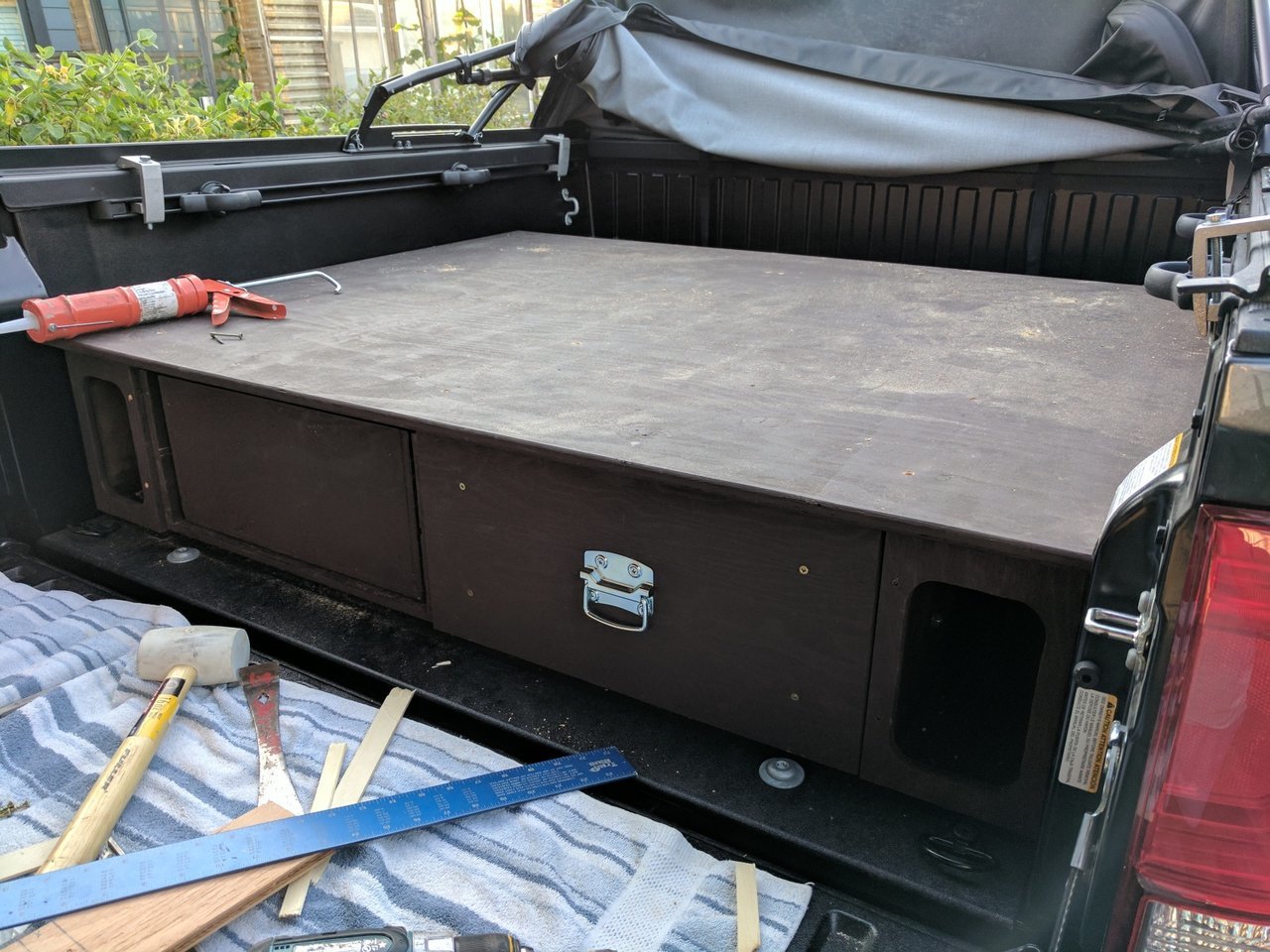

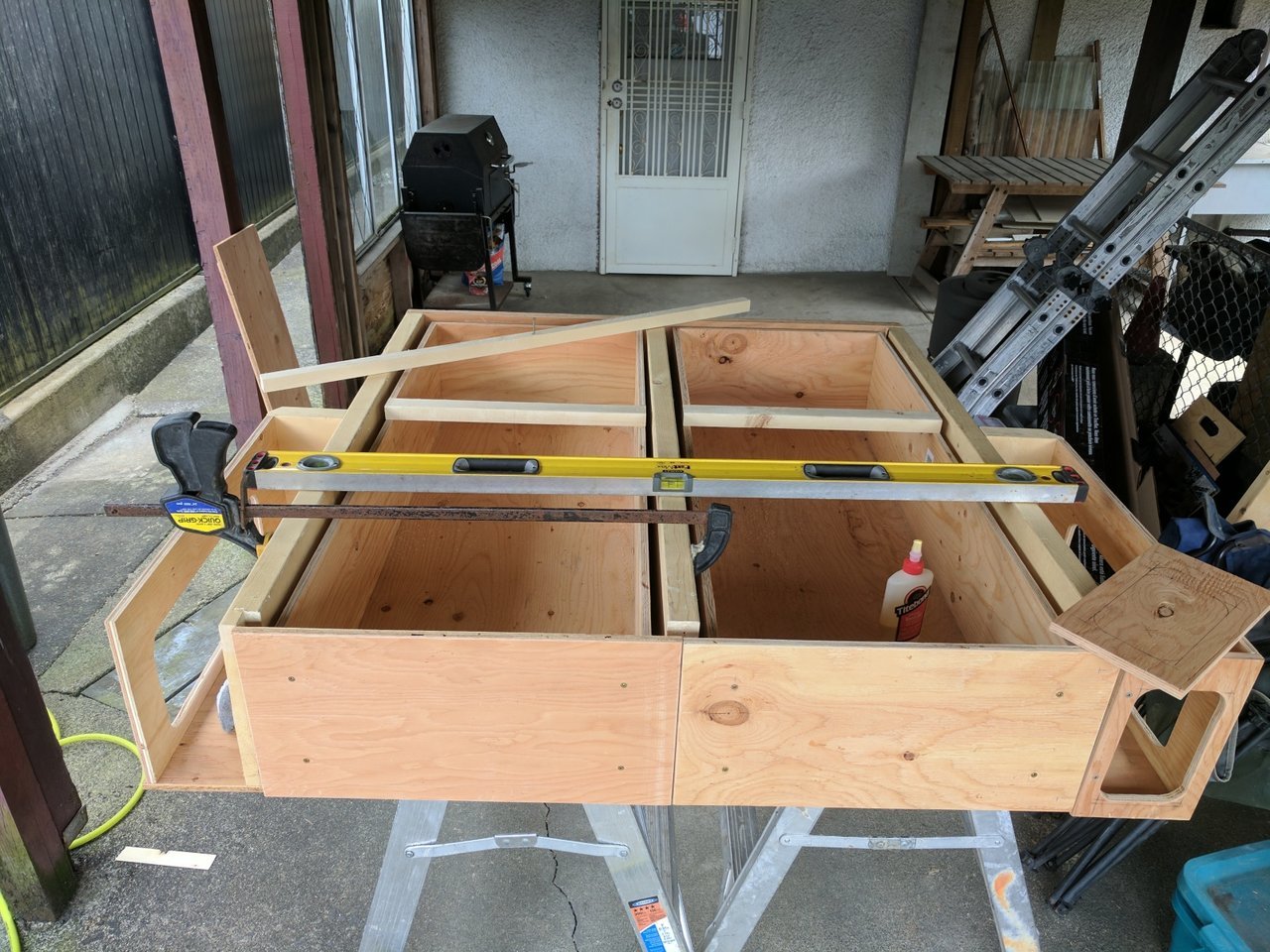

    Unfortunately I didn't document my lift install, but I did snap some shots of the storage drawers I built.

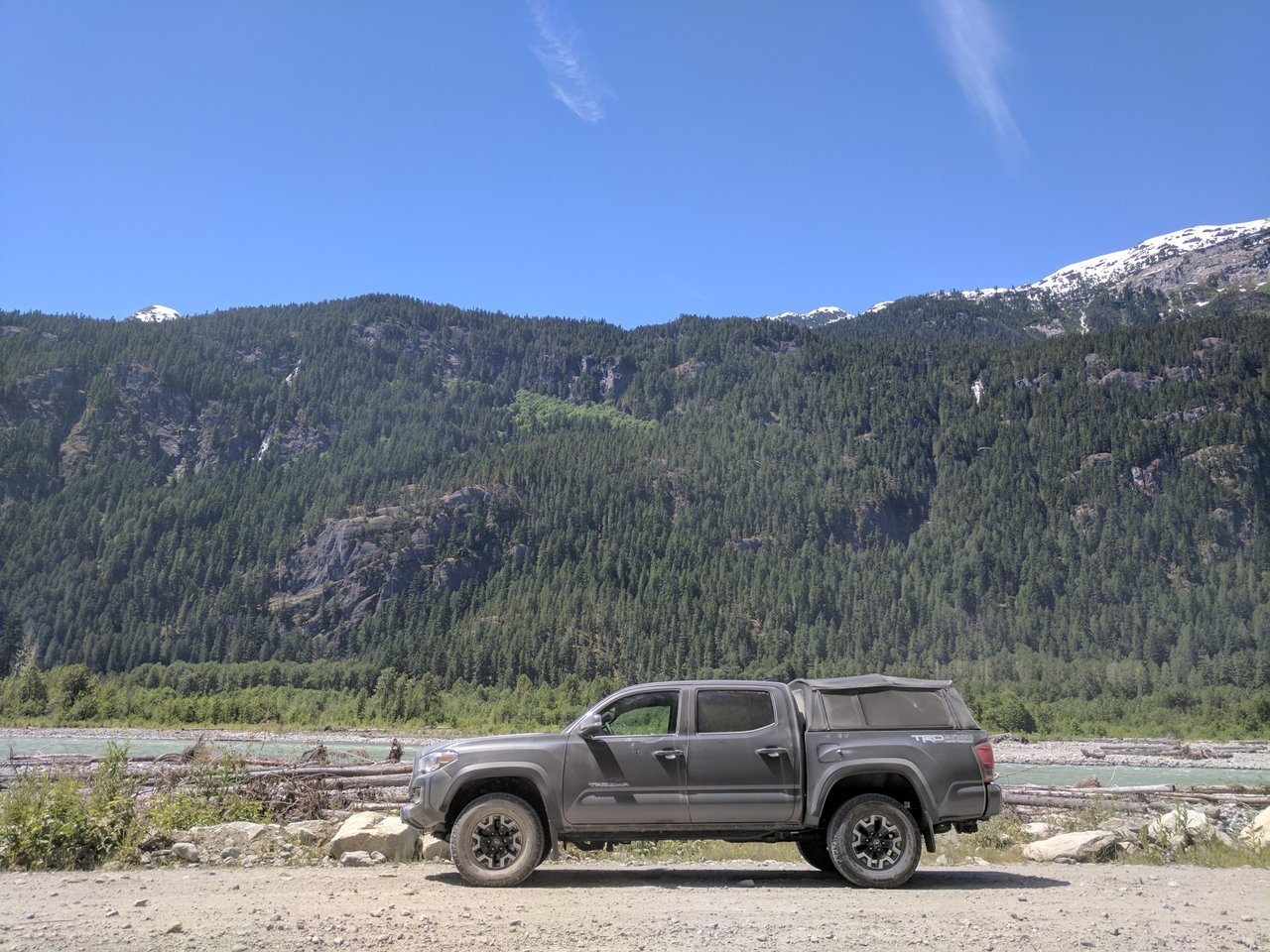

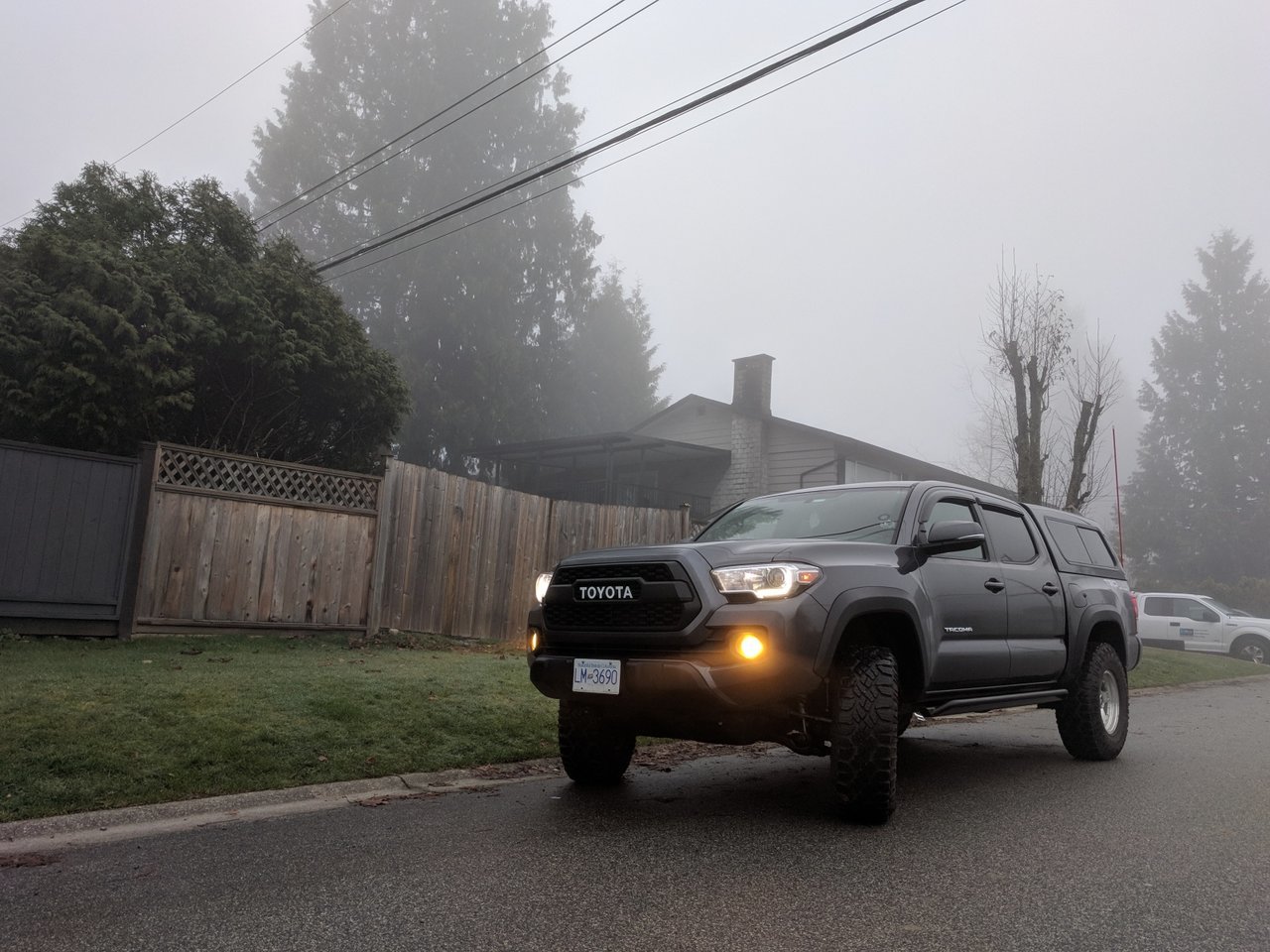

    Here's how she currently sits with the lift in.


    Follow me on IG: @Wedgefries
    What's next?

    • Rear bumper (not yet ordered)
    • Full belly skids (not yet ordered)
    • Waterport, frame mounted (not yet ordered)
    • Prinsu full racks (not yet ordered)
    • Hondo Garage Un-holey dash mount with CB mount (not yet ordered)
    • Snorkel (not yet ordered)

    Here's some of my previous projects:

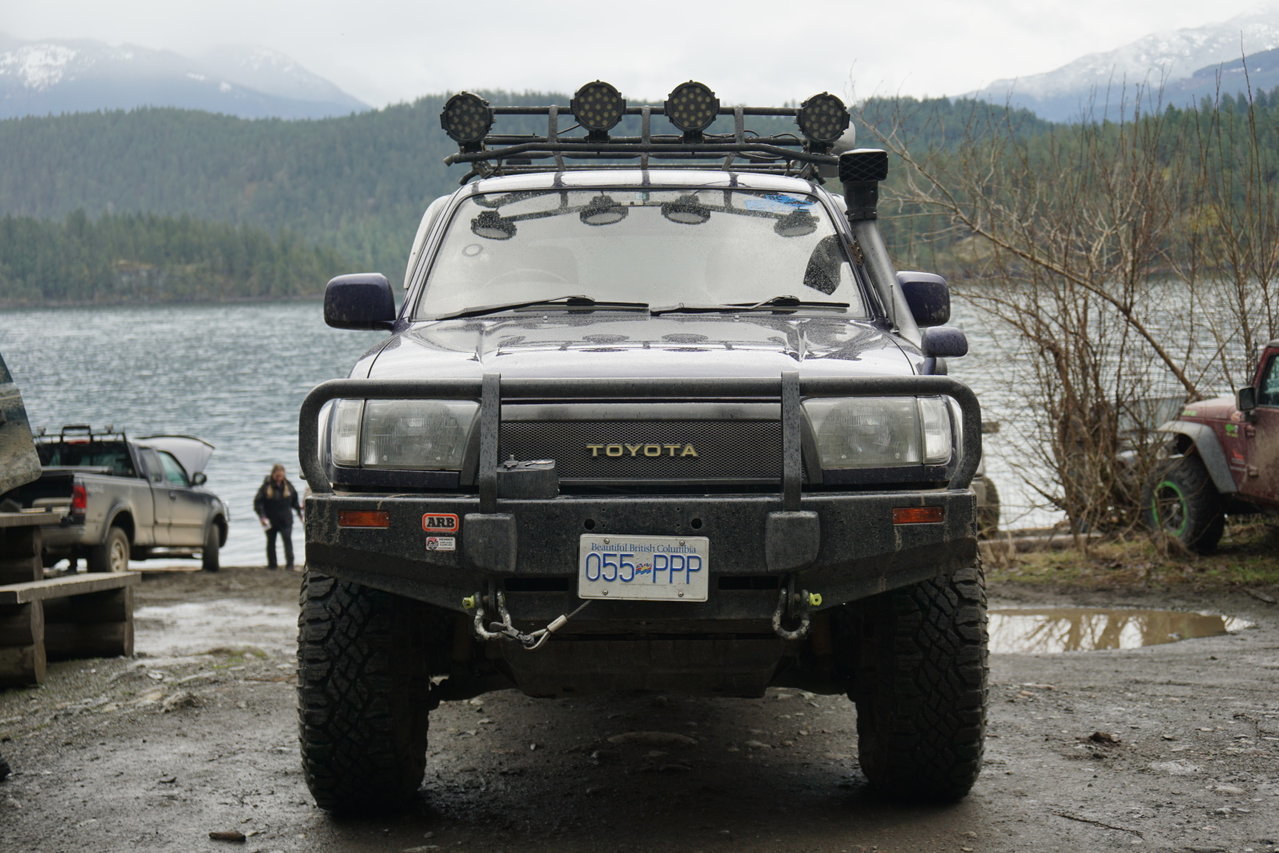

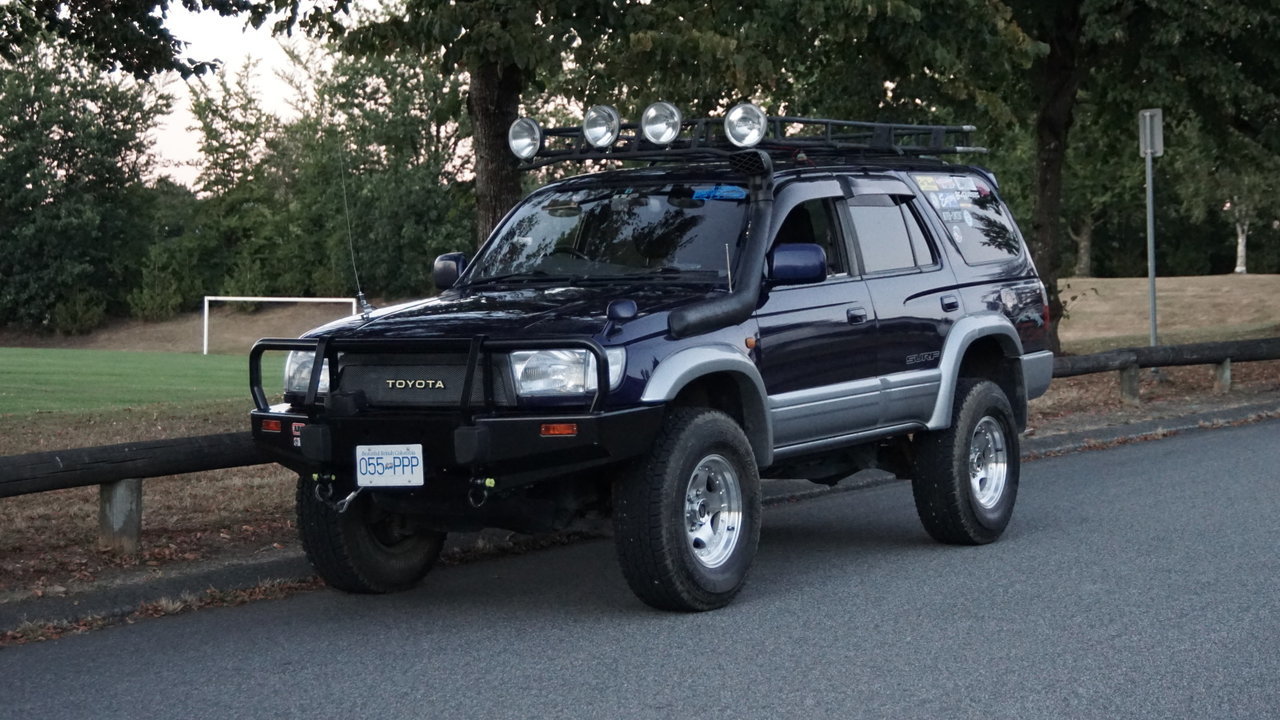

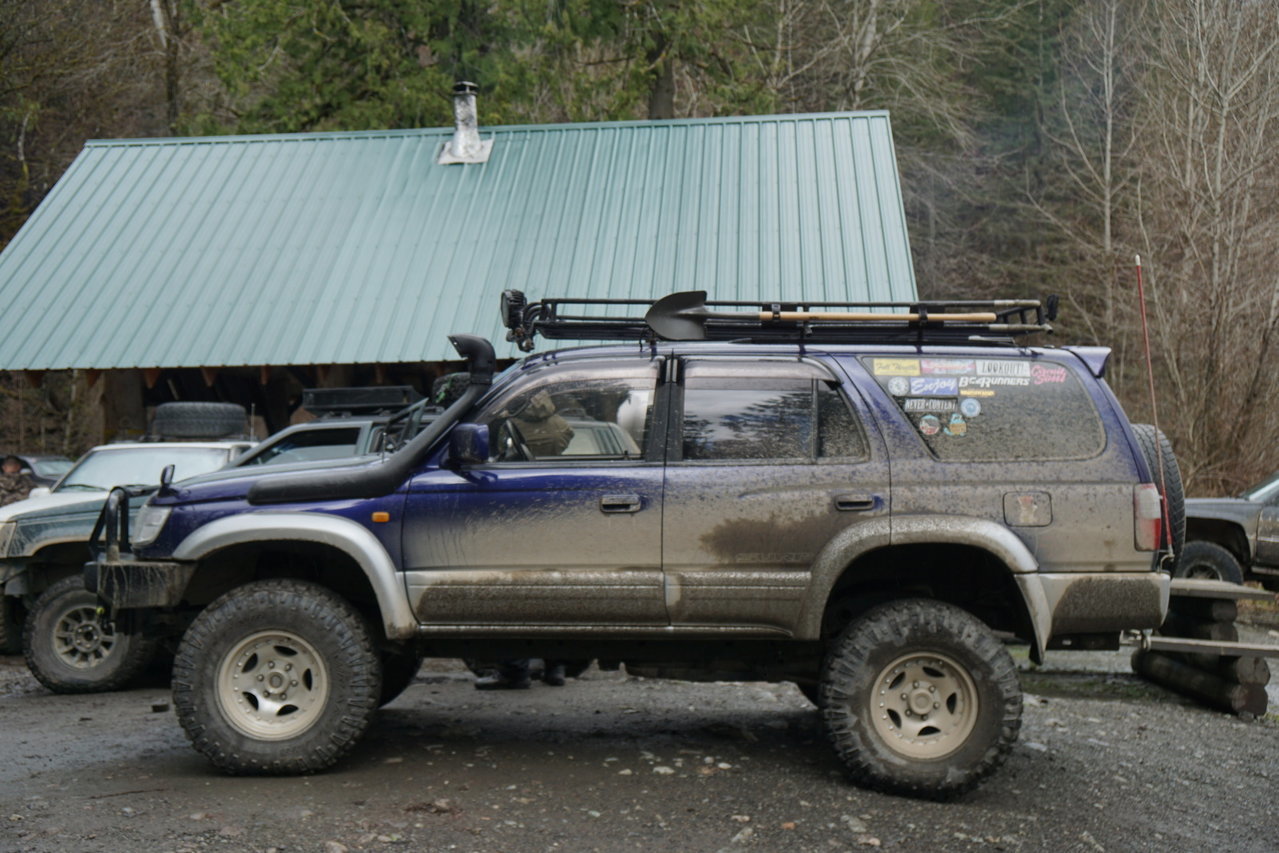

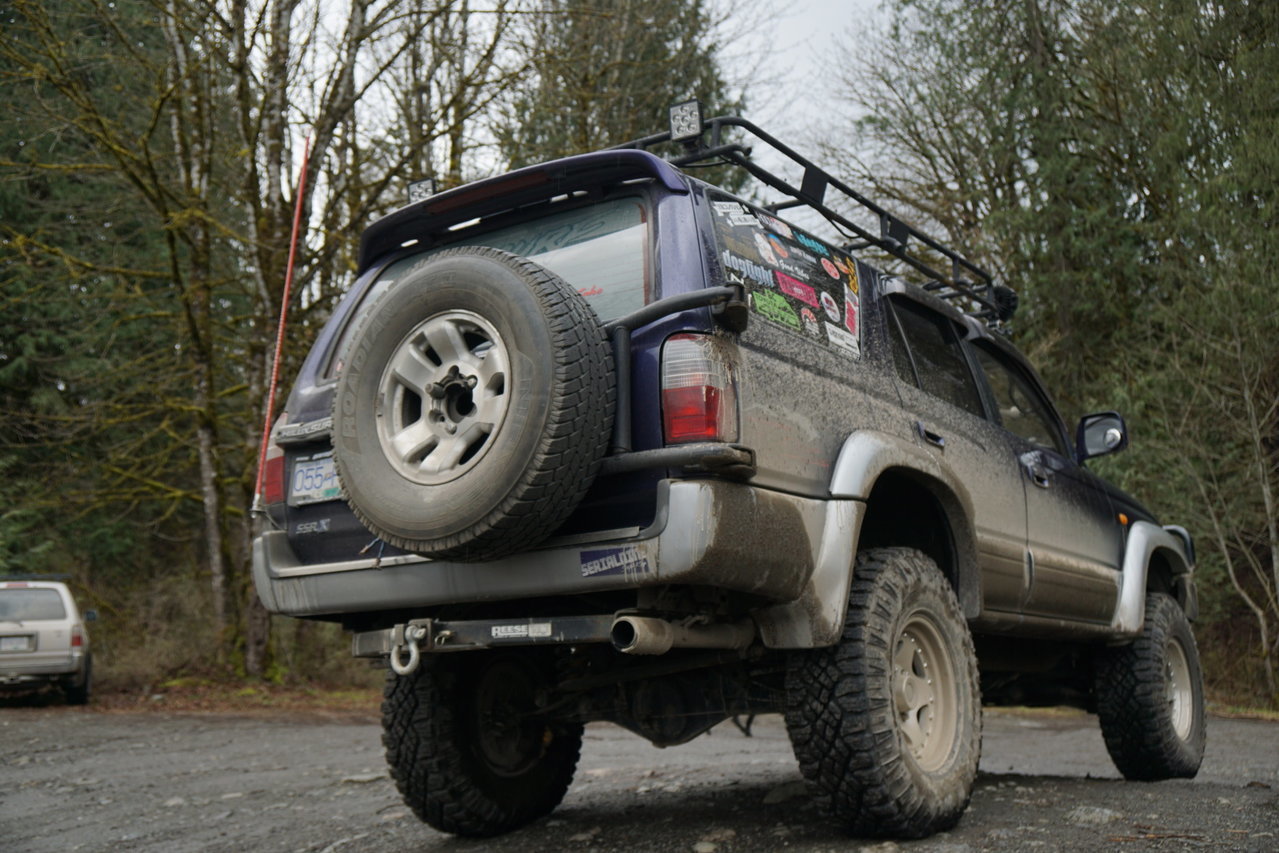

    1996 Hilux Surf - Lifted, locked, adventure ready.

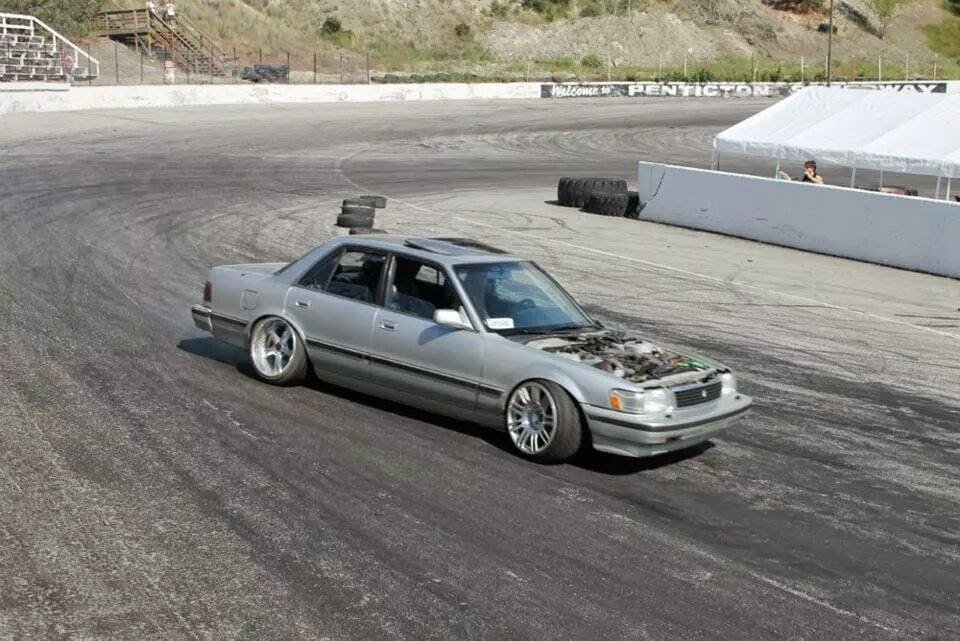

    1991 Toyota Cressida - 1jz swap, sideways fun.

    Last edited: Jun 1, 2018
  2. Dec 11, 2017 at 9:07 PM
    #2
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB

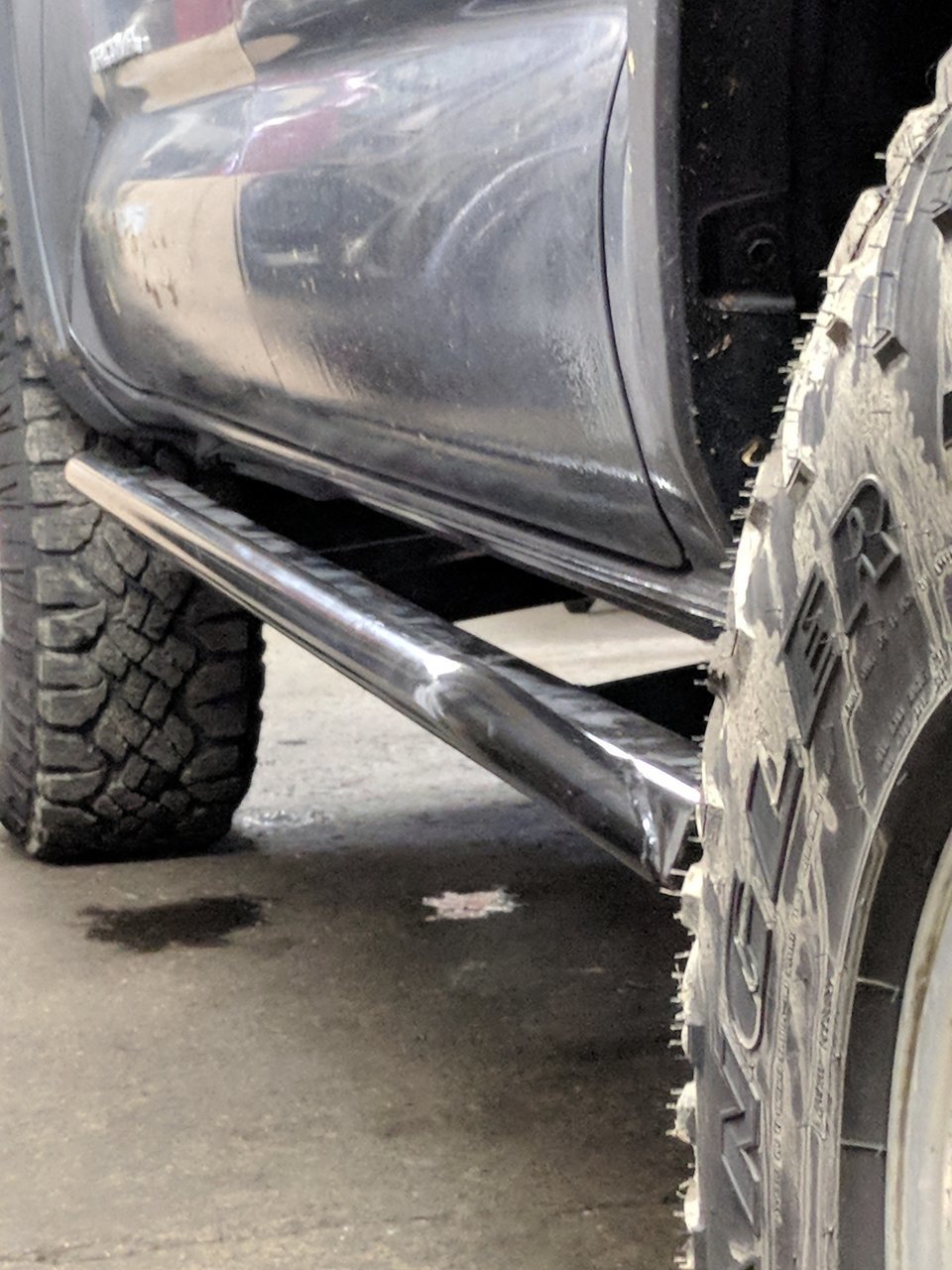

    Custom welded sliders mounted



    Gave her a good wash after installing the cap


    SilverII, ChadsPride and rlx02 like this.
  3. Dec 12, 2017 at 11:17 AM
    #3
    rlx02

    rlx02 ¯\_(ツ)_/¯

    Joined:
    Sep 3, 2016
    Member:
    #196329
    Messages:
    5,465
    Western WA
    Vehicle:
    2017 Inferno DCSB TRD OR 4x4
    Nice ride! I dig the wheels, gives it a retro wheeler look.

    wedgefry [OP] likes this.
  4. Dec 12, 2017 at 6:12 PM
    #4
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    Thanks! Yeah I've always appreciated the classic 5-spoke design.

  5. Dec 12, 2017 at 8:50 PM
    #5
    Rocky.Mtn

    Rocky.Mtn Well-Known Member

    Joined:
    Aug 6, 2017
    Member:
    #226091
    Messages:
    437
    Canada
    Vehicle:
    2017 TRD OFF-ROAD DCSB
    Nice! Both the taco and the hilux.
    Any more info on your lift with the Eibach? Which spring? AAL?

    wedgefry [OP] likes this.
  6. Dec 13, 2017 at 6:46 AM
    #6
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    Thanks! The lift I used was 112-620 Eibach Coils, Top plate spacers, Bilstein 5100's and Toytec AAL's.
    On my Hilux Surf I had these same coils along with OME Nitro Shocks which I found super stiff, so this time around I decided to go with the adjustable Bilstein 5100's and found the ride was much more comfortable for daily driving.

  7. Dec 21, 2017 at 8:56 AM
    #7
    sorgon82

    sorgon82 wanna go for a rip bud

    Joined:
    Oct 1, 2015
    Member:
    #165572
    Messages:
    1,994
    Gender:
    Male
    Ont. Canada
    Vehicle:
    2016 Grey Tacoma sport dc long bed
    is that white inlay letters on grill?

  8. Dec 21, 2017 at 9:01 AM
    #8
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    126,939
    Vehicle:
    Sponsored by TacomaWorld.com
    Loving the bed setup!

  9. Dec 21, 2017 at 9:16 AM
    #9
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    It's the OEM lettering off a BJ40.

    Thanks! This setup definitely worked better than my tupperware bins flying around all over the place haha

    ChadsPride likes this.
  10. Dec 30, 2017 at 8:50 PM
    #10
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    Played in some snow today

    [​IMG]

    [​IMG]

    [​IMG]

    ChadsPride, sorgon82 and sasquatch95 like this.
  11. Dec 31, 2017 at 7:07 PM
    #11
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    126,939
    Vehicle:
    Sponsored by TacomaWorld.com
    Happy New Year Jordan!!!

    :cheers:

  12. Dec 31, 2017 at 7:25 PM
    #12
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB

    Cheers man! Happy New Years!

    ChadsPride likes this.
  13. Feb 8, 2018 at 1:25 AM
    #13
    SnRTaco

    SnRTaco Well-Known Member

    Joined:
    Apr 9, 2016
    Member:
    #183827
    Messages:
    79
    Gender:
    Male
    First Name:
    Brent
    British Columbia
    Vehicle:
    2016 Tacoma MGM TRD Sport DCSB M/T
    Loving the build, very similar to what I'm doing with my 3rd gen!
    If I knew the bctoyota4wd stickers were in green I would've been all over that stuck with grey until my canopy covers the rear glass! :annoyed:

    ChadsPride likes this.
  14. Feb 9, 2018 at 7:06 AM
    #14
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    Cheers man, thanks! Haha talk to malcolm and grab some more! Where in BC are you?

    ChadsPride likes this.
  15. Feb 9, 2018 at 10:55 PM
    #15
    SnRTaco

    SnRTaco Well-Known Member

    Joined:
    Apr 9, 2016
    Member:
    #183827
    Messages:
    79
    Gender:
    Male
    First Name:
    Brent
    British Columbia
    Vehicle:
    2016 Tacoma MGM TRD Sport DCSB M/T
    I'm out in Abbotsford, I'm gonna have to the next time I'm at his work, need to get some new wheels for when the lift and STT Pro's go on since wheel spacers aren't happening haha so it'll probably be soon.

    ChadsPride likes this.
  16. Feb 24, 2018 at 9:02 AM
    #16
    Taco Gusto

    Taco Gusto Member

    Joined:
    Jan 21, 2018
    Member:
    #241891
    Messages:
    14
    Gender:
    Male
    Calgary, Ab
    Vehicle:
    2017 TRD Sport 4x4 DCSB
    Really like the look of your truck!

    Couple of questions about it:

    How do you like the Arrow canopy? The Mark I is on my short list, but it's a little hard to find any info on them aside from what's on the manufacturer's website.

    Also, the drawer setup you've built is great. It is almost exactly what I had in mind for my truck and I just happened to stumble across your thread a couple of days after I started thinking about bed options. It was great to see what someone had already done. Thanks for posting the pictures. Did you secure it down in the bed or are you relying on its weight to hold it in place? I'm planning of having the dogs ride on top of mine and haven't figured out how to keep it solidly in place short of bolting it to the bed, which isn't the most appealing option.

    ChadsPride likes this.
  17. Apr 22, 2018 at 7:37 PM
    #17
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    Sorry for the late reply!

    The Arrow canopy is pretty decent. My only complaint is I would have preferred a center single lock rather than the left and right locks.

    The drawers are pressure fitted, no drilling whatsoever.

    ChadsPride and sasquatch95 like this.
  18. May 7, 2018 at 8:51 AM
    #18
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB

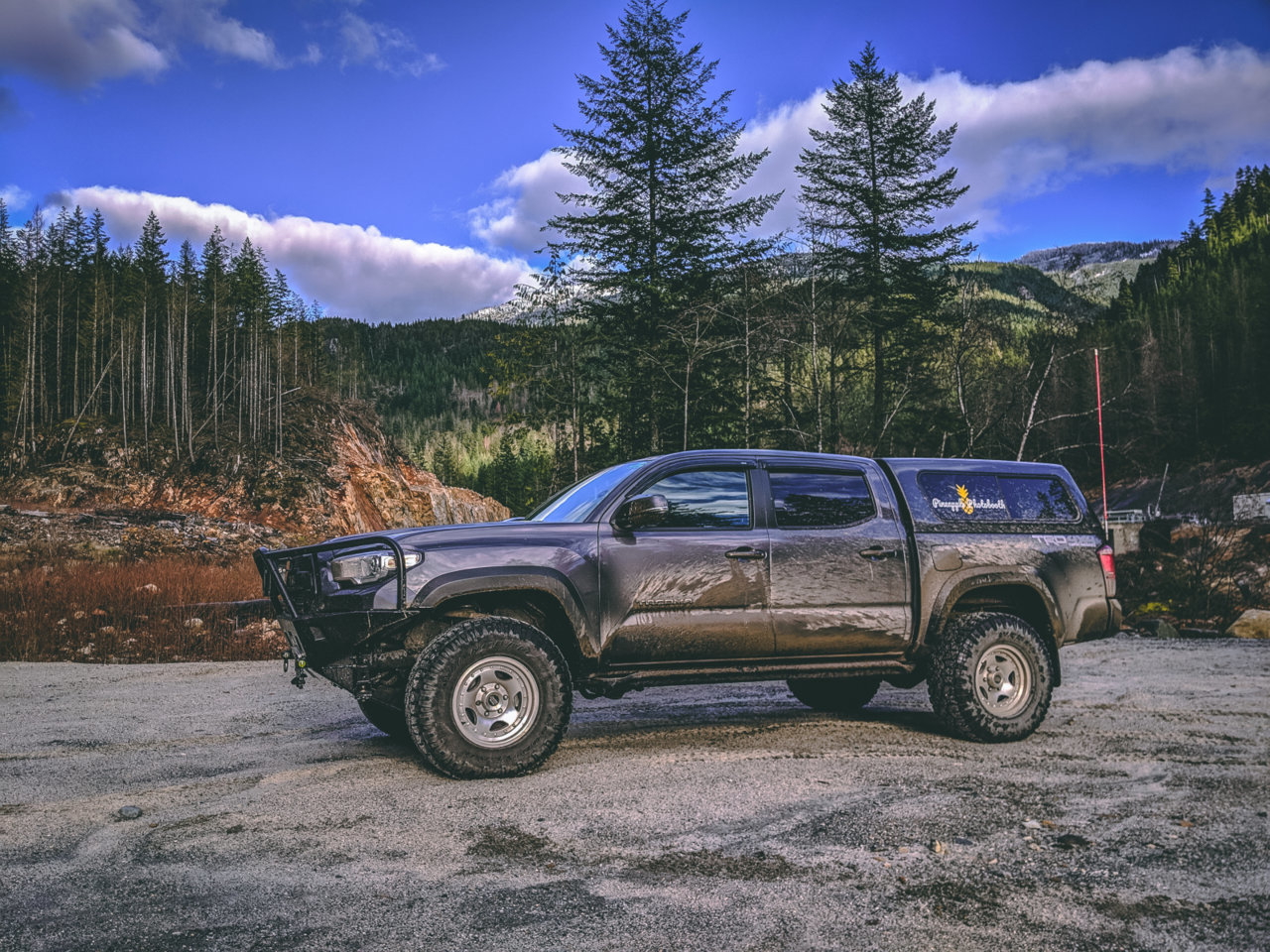

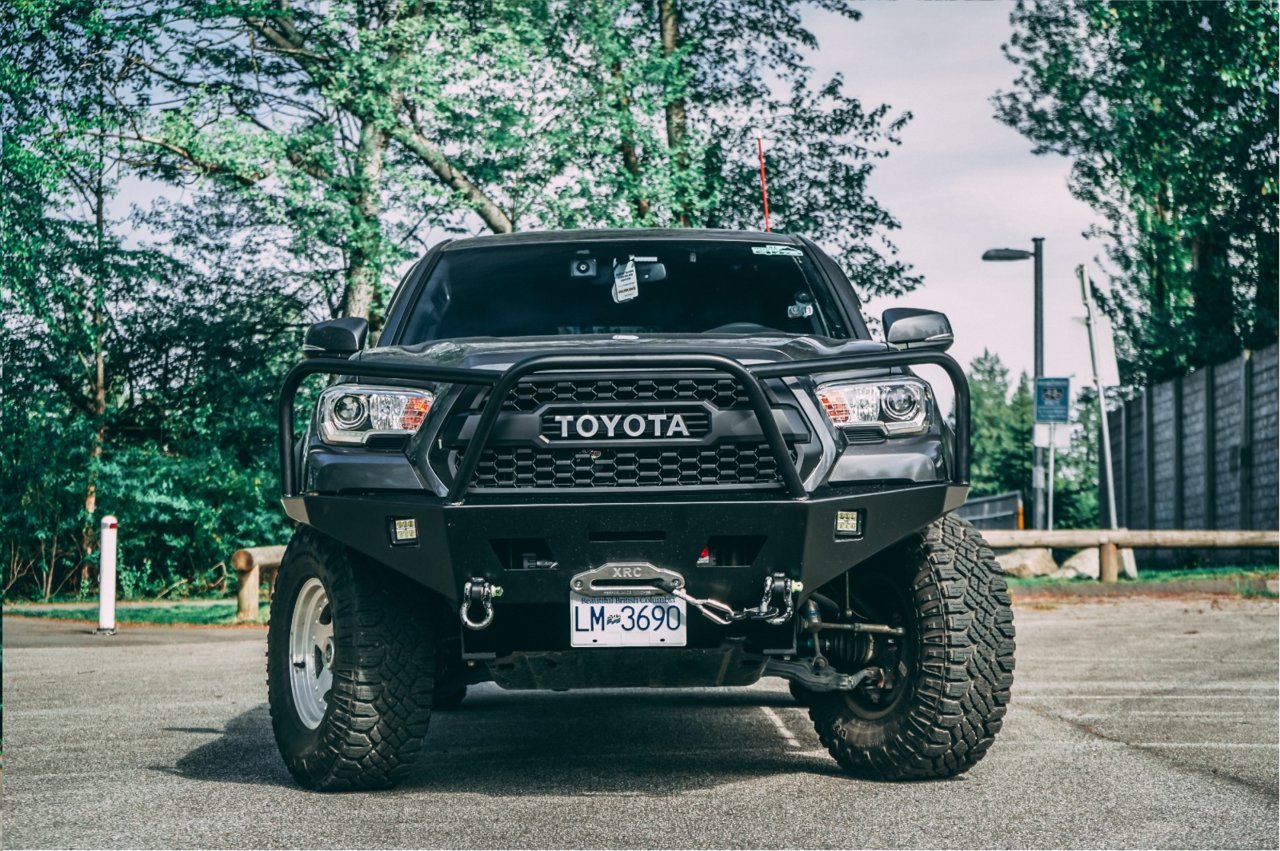

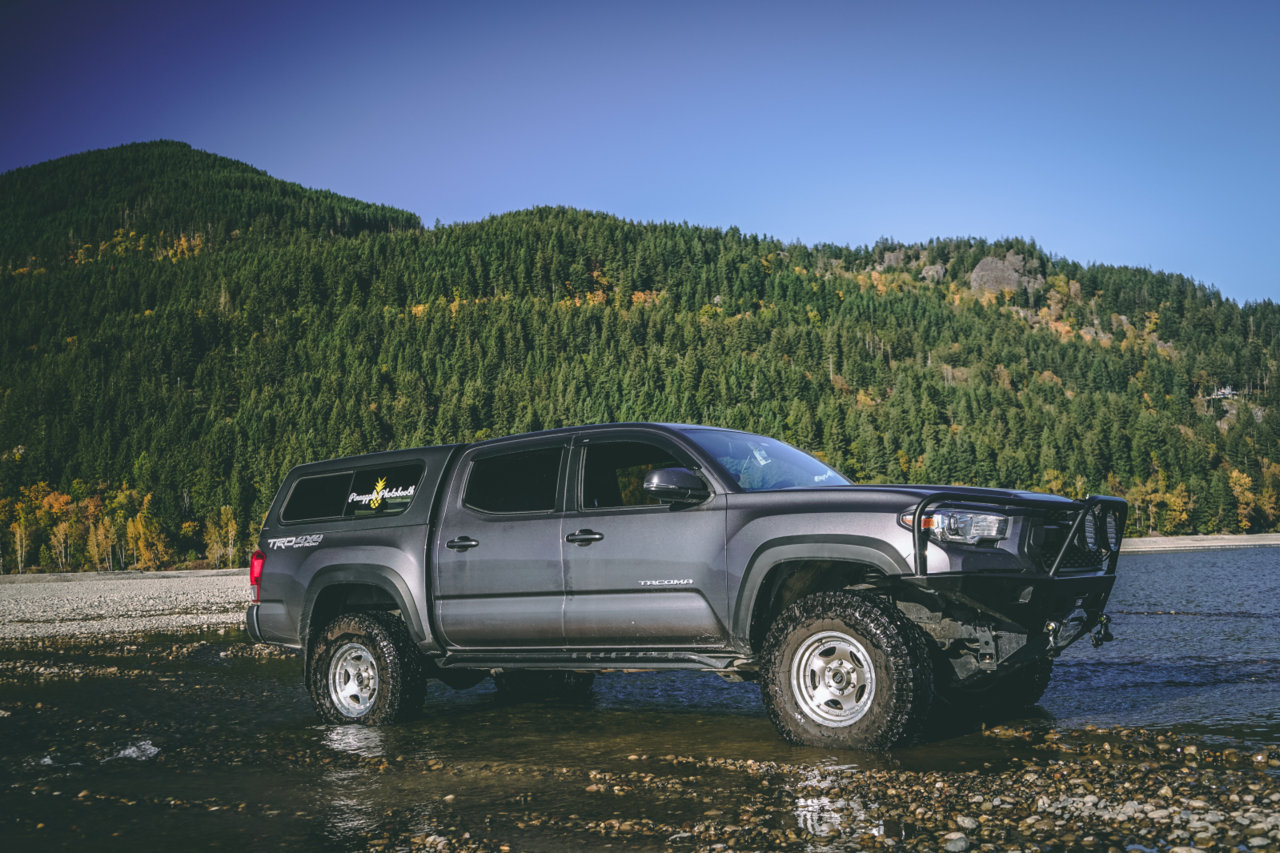

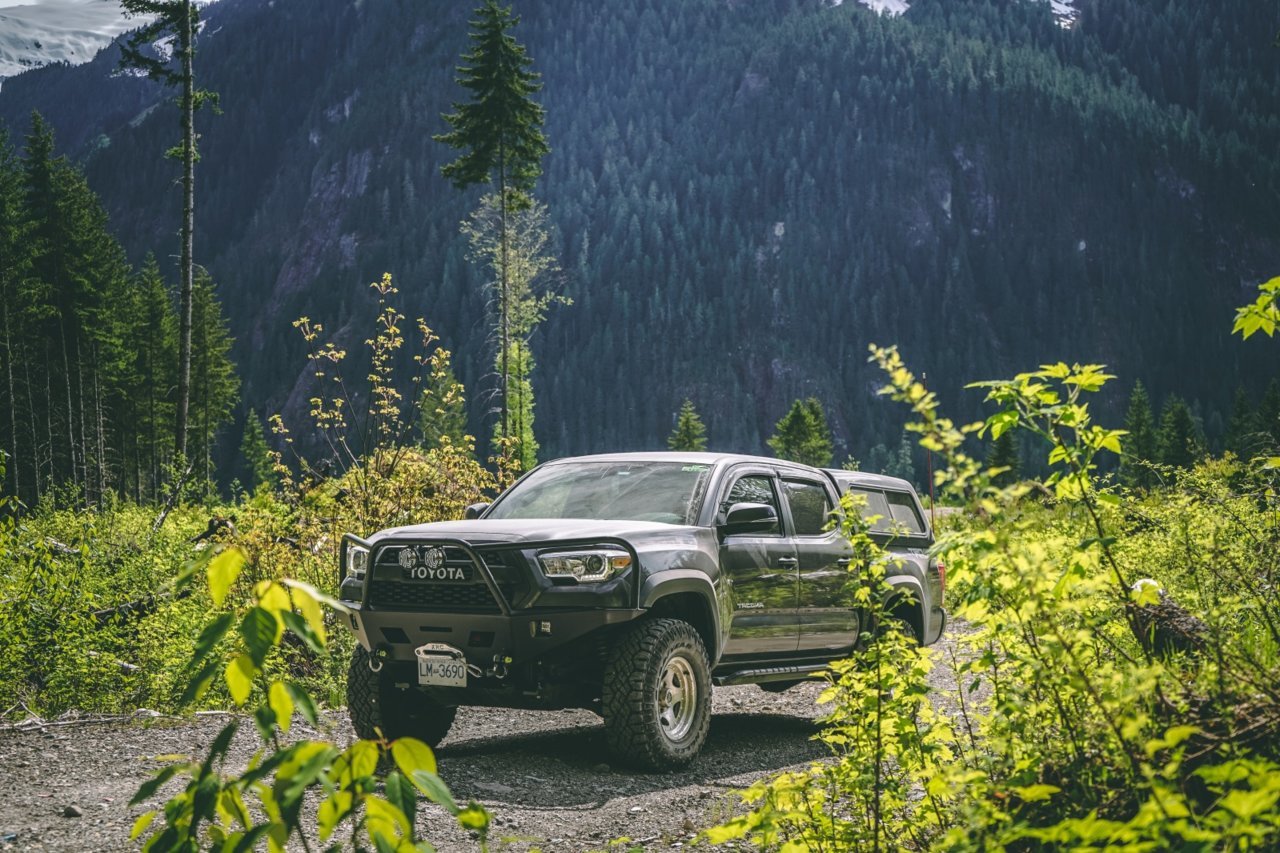

    Finished the front bumper and did some exploring this weekend. Fucking love the PNW.


  19. Mar 19, 2019 at 7:13 PM
    #19
    wedgefry

    wedgefry [OP] Active Member

    Joined:
    May 6, 2017
    Member:
    #218387
    Messages:
    43
    Gender:
    Male
    First Name:
    Jordon
    Vancouver, Canada
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    Hey internet. It's been a minute since I last posted. Not much has happened to the truck, but nows the best time to update the thread on upcoming additions.

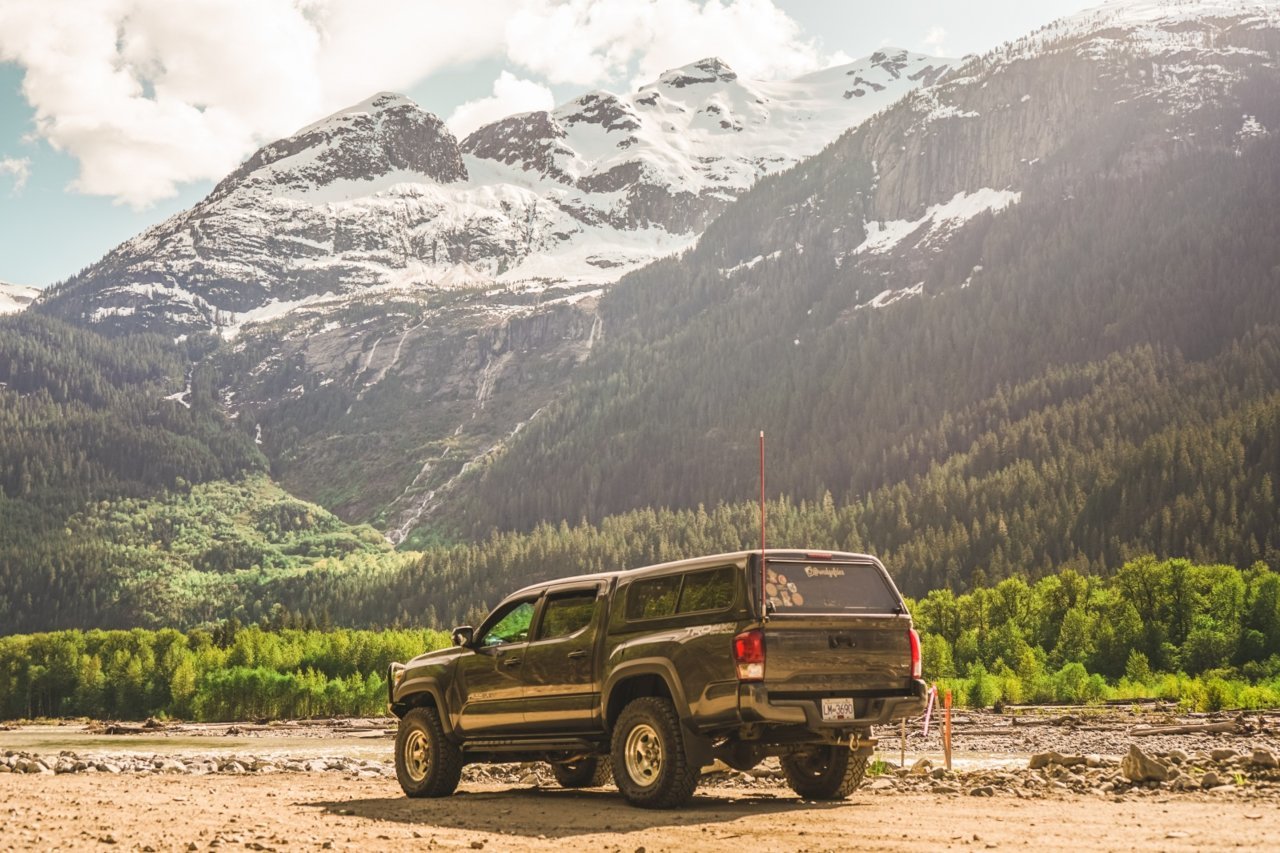

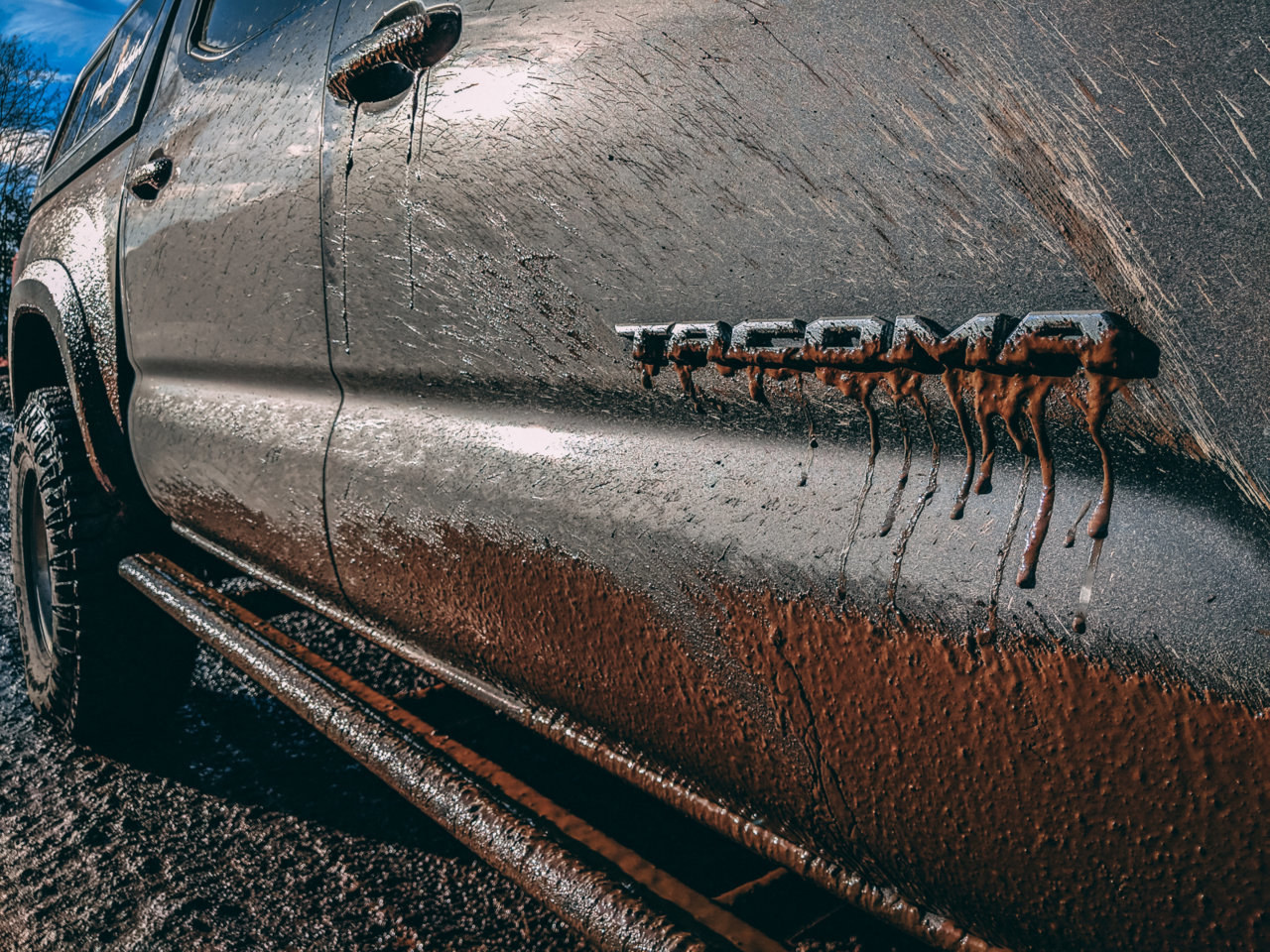

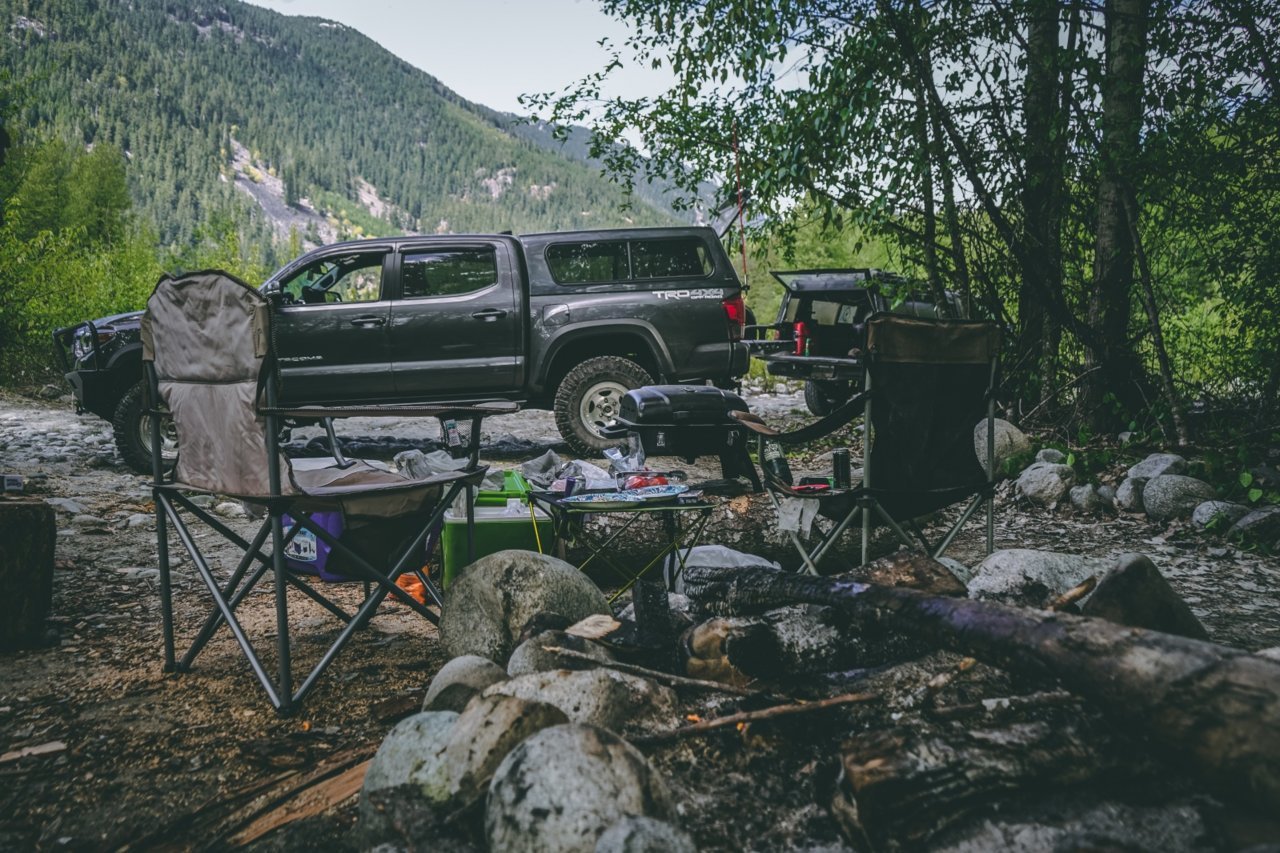

    Just begun the build process on my rear bumper with dual swingouts. For now, here's some shots of some recent wheeling trips.


    sasquatch95 likes this.
