Weird LED map/dome light issue

Discussion in '1st Gen. Tacomas (1995-2004)' started by Seagull233, Jun 3, 2017.

  1. Jun 3, 2017 at 4:55 PM
    #1
    Seagull233

    Seagull233 [OP] Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6
    BMW seats, OME Suspension, CBI and NWTI plates front and rear, 13,000 winch, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    I purchased 4 LED bulbs to replace my map lights and dome light. These are Canbus, "error free" bulbs, from Amazon, Alla Lighting CANBUS Error Free 31mm (1.25") Super White High Power 3030 SMD DE3175 DE3021 DE3022 3175 LED Bulbs for Interior Festoon Map Dome License Plate Lights Lamp. Struggled to get the dome to work, filament bulb would work fine, but LED would not. This was the case in either "door" mode (yes, with the door open) or in "on" mode. Gave up, and moved to the map lights. Put in the LEDs, and they worked (at first). Moved back to the dome light, even testing the bulb at the battery with a jumper wire, which worked just fine. Put it back in, after verifying with the filament that I had power. Still no go, and now the map lights won't work either. At this point, for whatever reason, I turned on the ignition. Lo and behold, all of the lights now work, maps with the switches, dome with either the door or in "on" position. BUT.... If you turn off the ignition none will work. Love the additional light provided, but I certainly want the lights available without having to have ignition in "accessory" or "on" position. I want still be able to have the dome come on as soon as I unlock as I approach the vehicle. Looking for help from those more learned than I. Did I say I hate electrical issues!! Oh, it's a 2004 DC.

    Last edited: Jun 3, 2017
  2. Jun 3, 2017 at 5:07 PM
    #2
    RedManRocket

    RedManRocket Well-Known Member

    Joined:
    Mar 18, 2015
    Member:
    #151238
    Messages:
    2,298
    Gender:
    Male
    First Name:
    Red
    Sonora, Central Cali
    Vehicle:
    2002 Double Cab LT
    Esb 5.5 with Kings Mcneil 6.5 fenders Other stuffs
    You need resistors, too much power for those leds, search around the forum some, this has come up countless times.

  3. Jun 3, 2017 at 5:12 PM
    #3
    Seagull233

    Seagull233 [OP] Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6
    BMW seats, OME Suspension, CBI and NWTI plates front and rear, 13,000 winch, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    I find that confusing, since they burn fine on a jumper wire right at the battery, and will burn and work fine with the ignition on to either run or accessory positions. Just not with the ignition off.

  4. Jun 3, 2017 at 6:35 PM
    #4
    Smash8ight

    Smash8ight Well-Known Member

    Joined:
    May 6, 2017
    Member:
    #218360
    Messages:
    160
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    04 trd
    Bone stock
    Mine did the same...04 dc..I have yet to tinker but I'll get to it one day..

  5. Jun 3, 2017 at 6:53 PM
    #5
    blind cowboy

    blind cowboy Well-Known Member

    Joined:
    Mar 25, 2016
    Member:
    #182345
    Messages:
    410
    Gender:
    Male
    First Name:
    Don
    Auburn CA
    Vehicle:
    2002 TRD XC 5sp
    My led map lights without resistors just flicker with ignition off, unless I turn on the non led dome light, then they work just fine. I can live with that.

  6. Jun 3, 2017 at 7:26 PM
    #6
    jrallan26

    jrallan26 Well-Known Member

    Joined:
    Sep 10, 2006
    Member:
    #32
    Messages:
    1,200
    Gender:
    Male
    Iowa
    Vehicle:
    2004 White D-Cab TRD
    Contact csjumper on this forum for your LED needs. He's never steered me wrong.

  7. Jun 3, 2017 at 10:09 PM
    #7
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    5,322
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    ^ @csjumper2003

    I got 3 from him with resistors and they work great :)

    in '01 they changed how the power is handled to the map lights for "fade out" of courtesy lights

  8. Jun 4, 2017 at 12:34 AM
    #8
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,088
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Correct its all controlled by a module now. I actually opened my map light up and ran 2 resisters from the switch to ground. The lights are turned on by the switch grounding them. Cut the wire from the switch to ground. LED's are brighter and no flicker problems. On the Dome light I'm running a 33 ohm 5watt wire wound resistor on the power input. tucked above the headliner, 5watt resistor never even gets warm.

    Edited

    Last edited: Jun 4, 2017
  9. Jun 4, 2017 at 5:11 AM
    #9
    Seagull233

    Seagull233 [OP] Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6
    BMW seats, OME Suspension, CBI and NWTI plates front and rear, 13,000 winch, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    Thanks for the replies. Obviously, I missed already existing information. Would one of the moderators kindly remove the thread, as it contains no new information. Many thanks!!

  10. Jun 4, 2017 at 5:13 PM
    #10
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,088
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Edited my post.

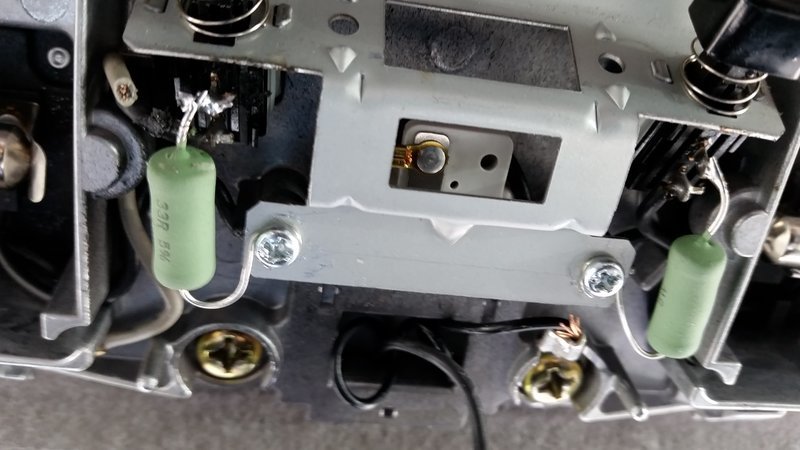

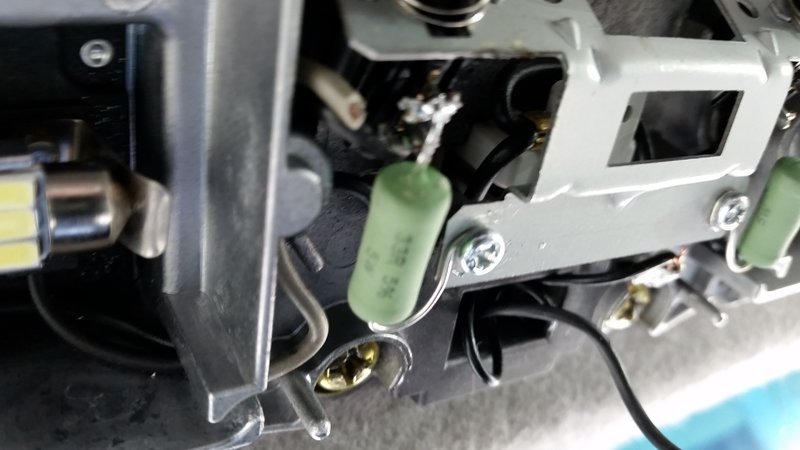

    20170604_170726.jpg 20170604_170718.jpg

    tony2018 likes this.
  11. Jun 4, 2017 at 5:39 PM
    #11
    Smash8ight

    Smash8ight Well-Known Member

    Joined:
    May 6, 2017
    Member:
    #218360
    Messages:
    160
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    04 trd
    Bone stock
    I just ordered mine from jumper......so mine is a done deal...

  12. Jun 4, 2017 at 6:35 PM
    #12
    Seagull233

    Seagull233 [OP] Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6
    BMW seats, OME Suspension, CBI and NWTI plates front and rear, 13,000 winch, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    I ordered some resistors (gotta love Amazon Prime) that I am going to add to the bulbs that I already have on hand. That fix, which I found in other threads makes sense to me. I believe that the dimming feature is part of the problem. Much like the headlights, and the high beam indicator not working without some sort of resistance. For that, I just added an additional socket pigtail and put in a standard bulb.

  13. Jun 8, 2017 at 7:24 PM
    #13
    Maestro

    Maestro Well-Known Member

    Joined:
    May 5, 2014
    Member:
    #129216
    Messages:
    158
    Gender:
    Male
    First Name:
    The Master
    Absolutely no chance that I am soldering resistors. Has anyone found a plug & play LED for 2002+ ?

    I wrecked a 2000 with interior LED and it was GREAT - lots of clean light - nothing went unseen. I swapped parts into my 2002 and experienced the "weirdness."

    I loved the light, but not enough to do the work...

    frenchee likes this.
  14. Jun 8, 2017 at 8:14 PM
    #14
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,288
    Gender:
    Male
    Got a part #, I might need to do this for my 02 down the line.

  15. Jun 9, 2017 at 7:09 AM
    #15
    Seagull233

    Seagull233 [OP] Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6
    BMW seats, OME Suspension, CBI and NWTI plates front and rear, 13,000 winch, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    Here are the resistors that I used to get my LEDs working in the dome light. https://www.amazon.com/gp/product/B00PZYO11K/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1 I just soldered one across from one metal end of the bulb to the other. It was about a five minute job, once I found the soldering iron, then looked for the roll of solder, and searched out a bit of 1000 grit sand paper to clean the terminals. Can you tell I'm an old geezer!! Once I added the resistor, the light works perfectly. I didn't need to do this for the map lights, as the can-bus LEDs worked fine for those. I surmise that the dome light issue has something to do with the dimming feature.

  16. Jun 9, 2017 at 8:43 PM
    #16
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    5,322
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    scroll back up. post #6 & 7

  17. Jun 10, 2017 at 7:40 AM
    #17
    ghs57

    ghs57 Well-Known Member

    Joined:
    Jul 27, 2010
    Member:
    #40832
    Messages:
    1,091
    Gender:
    Male
    First Name:
    Chops
    Catskill Mts. NY
    Vehicle:
    '07 Black TRD OR xtracab 4.0L 4WD
    Pretty much stock right now
    I thought I saw LED bulbs at AutoZone "guaranteed" to work with these lighting systems. (built in resisters)

  18. Jun 10, 2017 at 1:04 PM
    #18
    treyus30

    treyus30 cntl-y

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    7,222
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-TT 14PSI+
    Two spooly snails, Haltech 2500, 35s, 125kmi, raptor lined
    Guys, this resistor business makes no sense. Resistors will reduce the current and drop the voltage. Current is not your issue with LEDs, voltage is. LED's essentially have a self-regulating current at a specific voltage. Battery Voltage is 12.8 when the truck is off, 13.2+ when it is on. LEDs are highly voltage dependent because they are diodes with a forward voltage drop. If the diodes are in series (which they will be), then it is possible the ones you have that don't turn on or flicker have a combined forward DC bias of 12.8 to 13.2V.

    I guarantee that "fade out" is just a capacitor discharging - causing all of your issues - which is why cutting it out of the circuit works. Did you try just jumping across those terminals instead of using resistors? If I'm correct, that will work, and you'll have full brightness, unlike with the resistors.
    I'd be surprised if an 04 actually PWMd their cabin lights.

    I bought my interior LEDs from superbrightleds.com. No such issues. I have a '99 though.

  19. Jun 10, 2017 at 11:50 PM
    #19
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    5,322
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    they don't work, sadly :(


    defeats the purpose of the "courtesy" function if you bypass.

  20. Jun 11, 2017 at 8:08 AM
    #20
    Seagull233

    Seagull233 [OP] Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    1,992
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6
    BMW seats, OME Suspension, CBI and NWTI plates front and rear, 13,000 winch, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    Just a curiosity question. Is he adding the resistors to the LED bulbs, or does he just have a source for manufactured bulbs that work in all the various situations in the '01-'04's? Had I not already had the bulbs in hand, I would have probably just ordered from him, but since I had them, I took the chance and ordered resistors to be added.

    When all was said and done, my homemade addition of the one 1-watt 100-ohm resistor across the contact points of the bulb solved all of the issues for me. I do not note any decrease in the brightness of the bulb by the addition of the resistor.
