What do yall think of my new bumper design?

Discussion in '1st Gen. Tacomas (1995-2004)' started by Tucker771, Apr 19, 2016.

  1. Apr 19, 2016 at 7:27 AM
    #1
    Tucker771

    Tucker771 [OP] Tacoma Beast

    Joined:
    Apr 15, 2015
    Member:
    #153283
    Messages:
    388
    Gender:
    Male
    First Name:
    Tucker
    Raleigh, NC
    Vehicle:
    2004 Tacoma Doublecab 4x4 TRD
    Gray wire mod, 4" coil lift, 2" block lift+2" AAL, rear air bags, re-located trailer wiring plugs, trail gear front bumper, kicker sound w/pioneer in-dash, 8" kicker sub, airaid MIT kit, trail gear rock sliders, arrow antenna, blacked out grille, HID kit, Smittybilt 8k winch, extended brake lines, LED overhead lighting, LED turn signals, Explorer Rock Lights, removable doors, Re-wired 4x4, Roof Rack

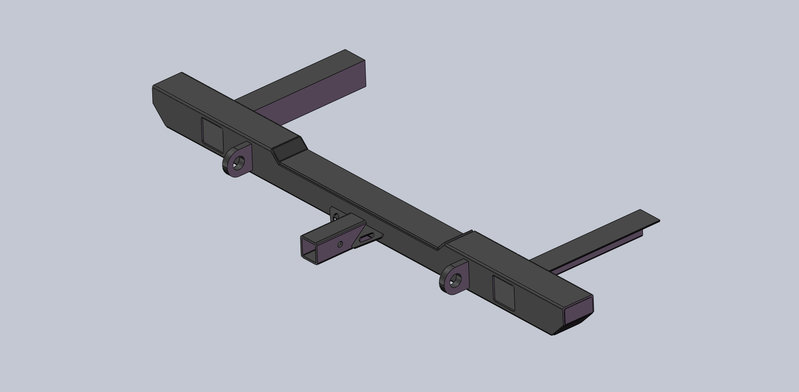

    Been learning how to use CAD software and this is my first project. what do yall think?

    TUCKER BUMPER.jpg

    Burnett likes this.
  2. Apr 19, 2016 at 7:29 AM
    #2
    SuperJakeTheSnake

    SuperJakeTheSnake What is this place?

    Joined:
    Jun 17, 2013
    Member:
    #106462
    Messages:
    445
    Gender:
    Male
    First Name:
    Jacob
    Jacksonville NC
    Vehicle:
    02 Toyota Tacoma Prerunner
    Looks good to me, this is just my personal preference but I would try and have the hitch recessed into the bumper

    a.smo and DustStorm4x4 like this.
  3. Apr 19, 2016 at 1:47 PM
    #3
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    12,416
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Recessing the hitch in the bumper means laying on the ground to put the pin in till you figure out just how to do it without seeing it.

    I learned this the hard way.

    Design looks good but the only real thing is do you like it.

    Maybe include some real world measurements in case you save this 11 months later you want to build it

  4. Apr 19, 2016 at 1:54 PM
    #4
    Mobtown Offroad

    Mobtown Offroad Boss Vendor

    Joined:
    Jul 23, 2014
    Member:
    #134511
    Messages:
    10,748
    Gender:
    Male
    First Name:
    Joe
    Harrington, DE
    Vehicle:
    2002 SR5 4Runner
    To lay under the truck to put a hitch pin in is minor IMO. I'd rather deal with that and keep a good depature angle.

    Bumper looks good OP. What CAD software do you use?

    ChamYota and DustStorm4x4 like this.
  5. Apr 19, 2016 at 1:56 PM
    #5
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    33,799
    Gender:
    Male
    First Name:
    ゼイン
    Spokane, WA
    Vehicle:
    93 Land Cruiser & 96 Tacoma V6 4WD
    I've done a mod or two
    Oooh, SolidWorks? I should design my bumper. Like yours OP, I would recess the bumper as well, makes sure if you tow or snatch someone that there isn't so much leverage on the main piece as well.

  6. Apr 19, 2016 at 1:56 PM
    #6
    neegdogdig

    neegdogdig Untrained with bad experiences go go go!

    Joined:
    Mar 18, 2012
    Member:
    #75151
    Messages:
    1,840
    Gender:
    Male
    Vehicle:
    1st Gen DC V6 5Spd
    Should have mounting brackets for plate

  7. Apr 19, 2016 at 2:00 PM
    #7
    mountain mike

    mountain mike Woodsbum

    Joined:
    Oct 24, 2013
    Member:
    #115195
    Messages:
    480
    Gender:
    Male
    First Name:
    Mike
    the backwoods...
    Vehicle:
    2003 DCSB 4x4
    just what I need to do what I want
    Where will you mount your license plate? If you recess the hitch then you could hide it with your plate, hinged from the bottom unless that would interfere with your trailer coupler. IDK

  8. Apr 19, 2016 at 3:17 PM
    #8
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    25,939
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Build
    OP double check your mounts. They need to be flipped 180 degrees. There are 4 bolts on each side you can utilize to mount it to the frame. 2 on the outer sides of the frame (head of the bolt pointing away from the truck) and 2 on the bottom of the frame (pointing towards the ground). You'll also want to re-inforce the mounts back to the bumper Other than that and the previous comments looks good! Maybe even get some type of wrap around protection.

    I made a bumper like that on solid works as well, just a little different plus a swing out

    a.smo likes this.
  9. Apr 19, 2016 at 9:30 PM
    #9
    Tucker771

    Tucker771 [OP] Tacoma Beast

    Joined:
    Apr 15, 2015
    Member:
    #153283
    Messages:
    388
    Gender:
    Male
    First Name:
    Tucker
    Raleigh, NC
    Vehicle:
    2004 Tacoma Doublecab 4x4 TRD
    Gray wire mod, 4" coil lift, 2" block lift+2" AAL, rear air bags, re-located trailer wiring plugs, trail gear front bumper, kicker sound w/pioneer in-dash, 8" kicker sub, airaid MIT kit, trail gear rock sliders, arrow antenna, blacked out grille, HID kit, Smittybilt 8k winch, extended brake lines, LED overhead lighting, LED turn signals, Explorer Rock Lights, removable doors, Re-wired 4x4, Roof Rack
    It is solid works and i do have a small problem with the way the hitch is but im stuck between recessing it and having to do more work but gaining structural integrity and keeping it convenient. maybe ill drop the hitch down just a bit more cause ill still have damn good ground clearance and it'll be safer. Still thinking about boxing the rear frame a bit too to help structural integrity.

  10. Apr 19, 2016 at 10:28 PM
    #10
    neegdogdig

    neegdogdig Untrained with bad experiences go go go!

    Joined:
    Mar 18, 2012
    Member:
    #75151
    Messages:
    1,840
    Gender:
    Male
    Vehicle:
    1st Gen DC V6 5Spd

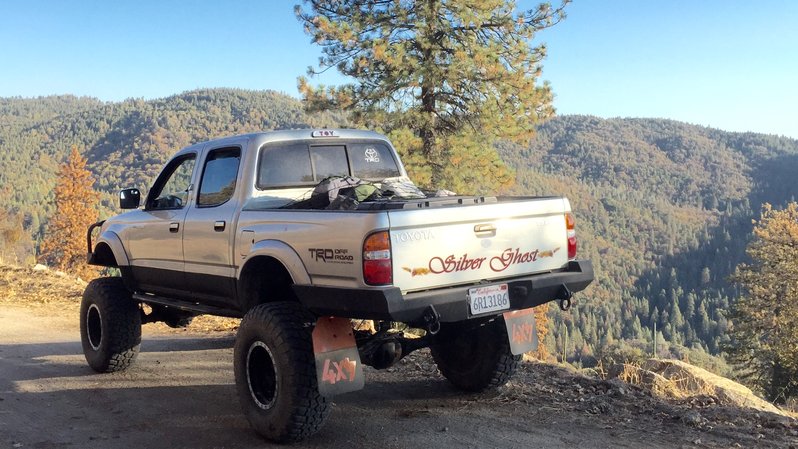

    image.jpg Give you little help how 'bout like this

  11. Apr 19, 2016 at 10:37 PM
    #11
    Toyko Joe

    Toyko Joe Here for the pictures

    Joined:
    Sep 19, 2014
    Member:
    #138654
    Messages:
    3,050
    What kind of departure angle is REALLY necessary? Unless you're doing serious rock crawling the few degrees of departure angle over the center 6" of your bumper will be irrelevant.

  12. Apr 19, 2016 at 10:39 PM
    #12
    Toyko Joe

    Toyko Joe Here for the pictures

    Joined:
    Sep 19, 2014
    Member:
    #138654
    Messages:
    3,050
    I think your design looks pretty good though. Have you thought about putting 1.25" square openings just inside of the frame rails for an auxiliary basket or bike rack?

  13. Apr 20, 2016 at 1:10 AM
    #13
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    12,416
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    To each there own but for me laying in a foot of mud to install the pin through the receiver was not in any way fun.

    I was happy to see that truck go

  14. Apr 20, 2016 at 3:15 AM
    #14
    bry838

    bry838 Well-Known Member

    Joined:
    Sep 3, 2014
    Member:
    #137527
    Messages:
    2,403
    Gender:
    Male
    oregon
    Vehicle:
    '00 tacoma 2.7 4x4 reg cab 5speed x's 2. '01 T4R 3.4 5 speed
    Is it really that hard to deal with a hitch pin without looking at it?? I have a relentless bumper with the hidden behind the plate reciever and have never had an issue....

  15. Apr 20, 2016 at 4:54 AM
    #15
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,588
    Gender:
    Male
    I dont think ive ever had to look. It's not that complex.

  16. Apr 20, 2016 at 4:54 AM
    #16
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    25,939
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Build
    1st gens stock bumper already have a decent departure angle. So aftermarket doesn't need a lot. 2nd gens have horrible rears. You're angles are fine OP

  17. Apr 20, 2016 at 5:48 AM
    #17
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    12,416
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    I am just quite a klutz then I have no idea just how your bumpers are designed

    This one the hole through the receiver tube was between two pieces of channel the receiver tube ran through.

    really no way to reach in there but from the bottom up with my short arms I could only reach it laying on the ground

  18. Apr 20, 2016 at 6:46 PM
    #18
    Buckoma

    Buckoma Well-Known Member

    Joined:
    Jan 26, 2013
    Member:
    #96125
    Messages:
    1,048
    Gender:
    Male
    First Name:
    Chris
    Buckeye, AZ
    Vehicle:
    2016 TRD Sport 4x4
    I would push the receiver in as well so it doesn't drag behind on hills and looks cleaner. It will also make it easier to weld it through the rear of the bumper for additional strength. Make sure the tow rings go through as well and weld to the rear.

  19. Apr 24, 2016 at 8:33 AM
    #19
    Tucker771

    Tucker771 [OP] Tacoma Beast

    Joined:
    Apr 15, 2015
    Member:
    #153283
    Messages:
    388
    Gender:
    Male
    First Name:
    Tucker
    Raleigh, NC
    Vehicle:
    2004 Tacoma Doublecab 4x4 TRD
    Gray wire mod, 4" coil lift, 2" block lift+2" AAL, rear air bags, re-located trailer wiring plugs, trail gear front bumper, kicker sound w/pioneer in-dash, 8" kicker sub, airaid MIT kit, trail gear rock sliders, arrow antenna, blacked out grille, HID kit, Smittybilt 8k winch, extended brake lines, LED overhead lighting, LED turn signals, Explorer Rock Lights, removable doors, Re-wired 4x4, Roof Rack
    thanks for all the good advice everyone! ill be sure to take it into consideration

  20. Apr 24, 2016 at 12:10 PM
    #20
    JPinFL

    JPinFL Well-Known Member

    Joined:
    Nov 16, 2015
    Member:
    #169817
    Messages:
    871
    Vehicle:
    '01 Tacoma Xtra Cab 4x4
    Also...with the hitch receiver sticking out like that, you'll be running into it more times than you would like. It may be only a few inches, but anything metal jutting out seems to be something that every shin/knee seems to hit.
